Sludge Filtration High Pressure Round Filter Plate Automatic Plate Shifting Filter Press

Product Overview

Description

Filter Press Working Principle:

The filter press is composed of five main parts: filter plate, hydraulic system, machine frame, hydraulic oil cylinder and electrical system. Chamber filter press work principle is relatively simple, firstly hydraulic pressing the filter plates tightly to form chambers, then feeding the slurry from the center hole, the slurry will come to every chambers, filtering the water out by filter cloth to get the solid liquid separation result.

Filter Press Types

There are three types, high pressure round filter plates filter press, chamber filter press and high efficient membrane filter press

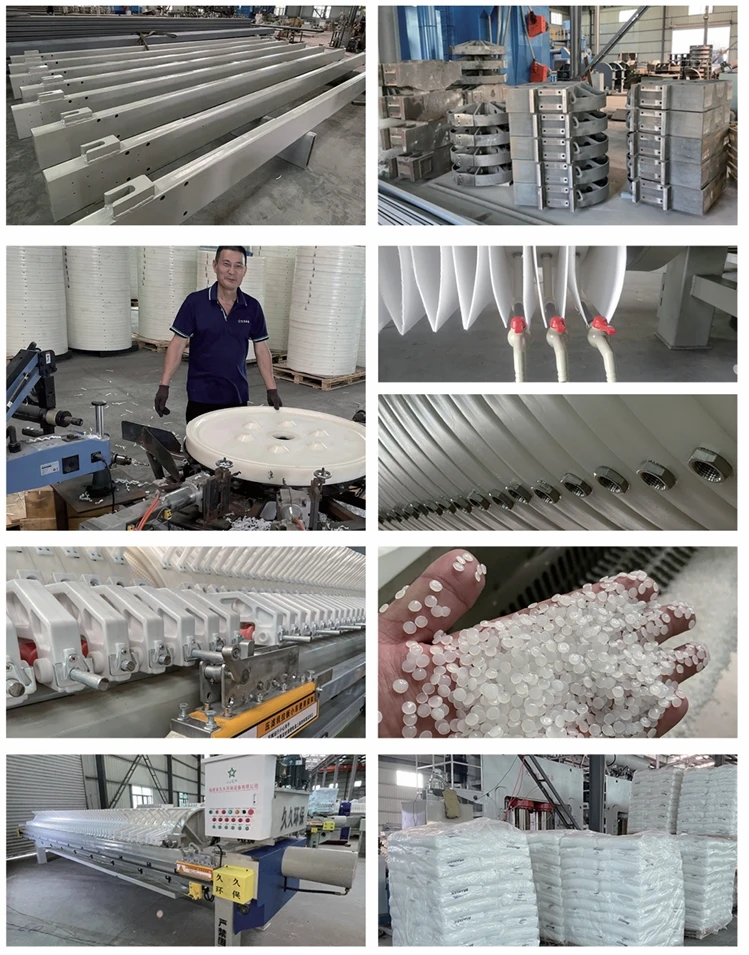

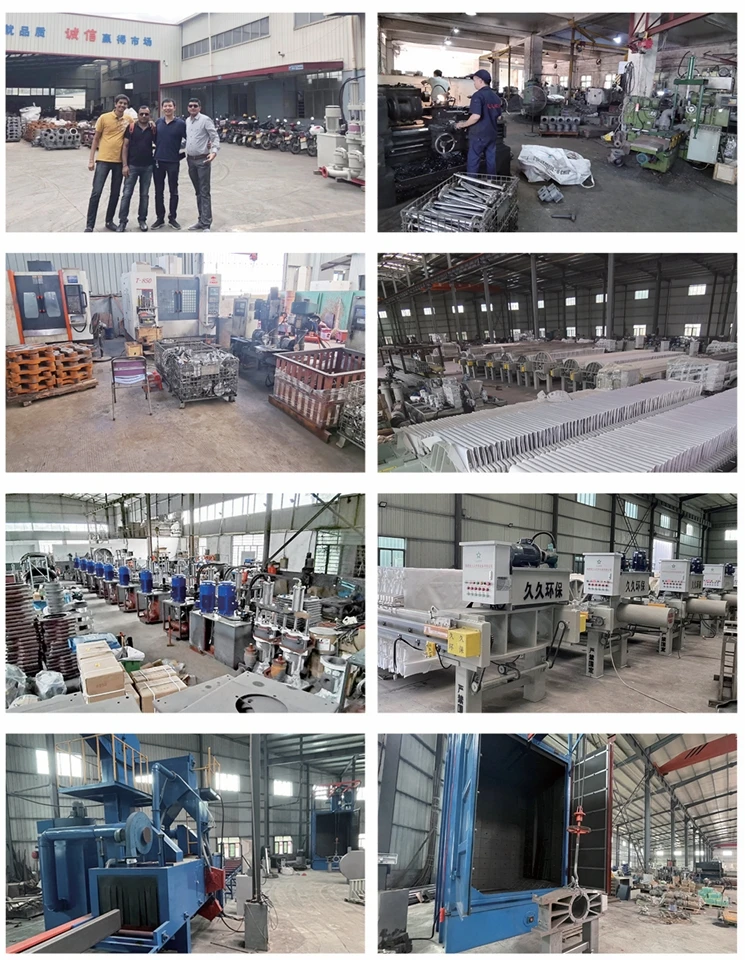

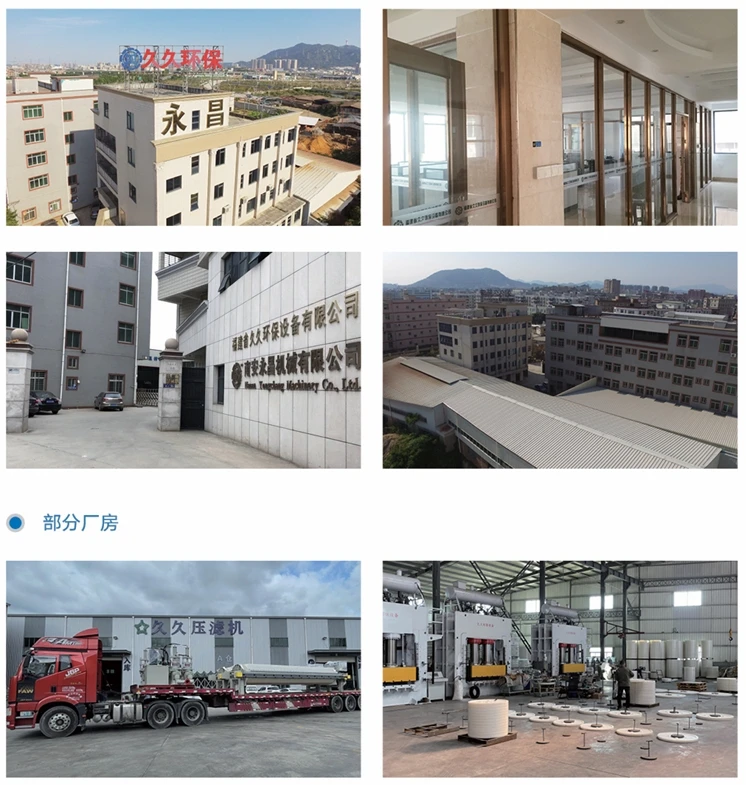

Filter Press Factory

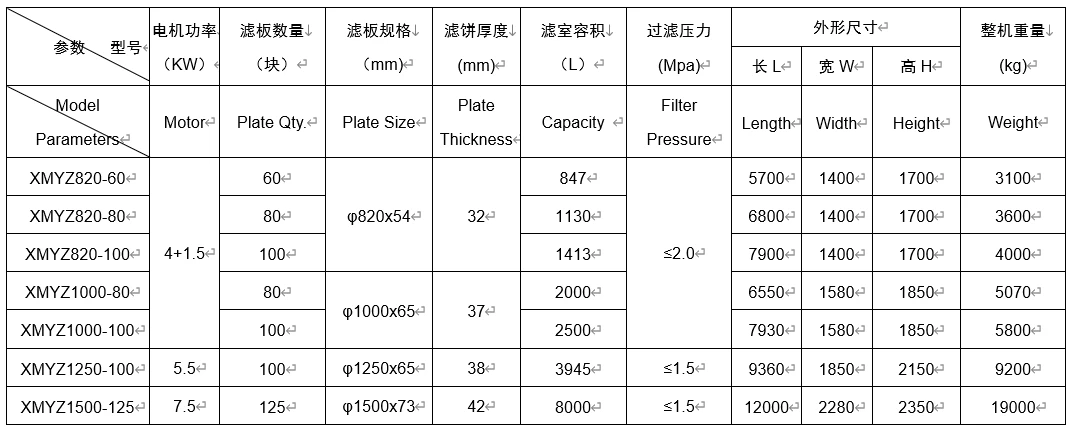

High Pressure Round Filter Plates Filter Press Parameters:





Filter Press Advantage:



1. Adopt national standard plate welding structure, carry out all-round sand blasting and shot blasting, and spray antirust paint, which has high compressive strength, stable structure and long service life.

2. The filter plates are made by pressing mould of high density PE , with high strength, light weight, corrosion resistance, shock resistance and so son.

3. Electromechanical and hydraulic integration control system, sophisticated processing the hydraulic system valves.

4. Adopting Taiwan Technology for pressing and loosening filter plates, automatically maintaining the pressure through the electric contact pressure gauge.

5. The main frame is covered by stainless steel 304, the surface is treated by anti-corrosion, increasing the usage life.

6. Adopting PLC control system, Electromechanical-hydraulic integration program-controlled structure, integrated oil tank, space-saving, beautiful appearance.



How to choose the filter press

Filter Press is the ideal equipment for solid liquid separation.

1. Confirming the slurry character, during the filtration, big particle will not be allowed, because it will break the filter cloth. For the industries requiring high pressure (E.g.: sand washing, ceramic, stone, concrete and washed kaolin) customer should choose the high pressure round filter plates filter press. For the industries requiring low pressure (E.g.: Water class, Calcium Carbonate and so on), customer should choose the common chamber filter press. For the sticky and thin slurry (E.g.: dyeing, leather, textile and paper, customer should choose the high efficient membrane filter press having the second filtration.

2. Confirming the reasonable chambers capacity, the capacity in the parameters chart is for the capacity after one filter, customer should also consider the margin of filter capacity.

3. If any question, please call us, we will ask our engineer to help you choose the suitable model.

Filter Press Exhibition

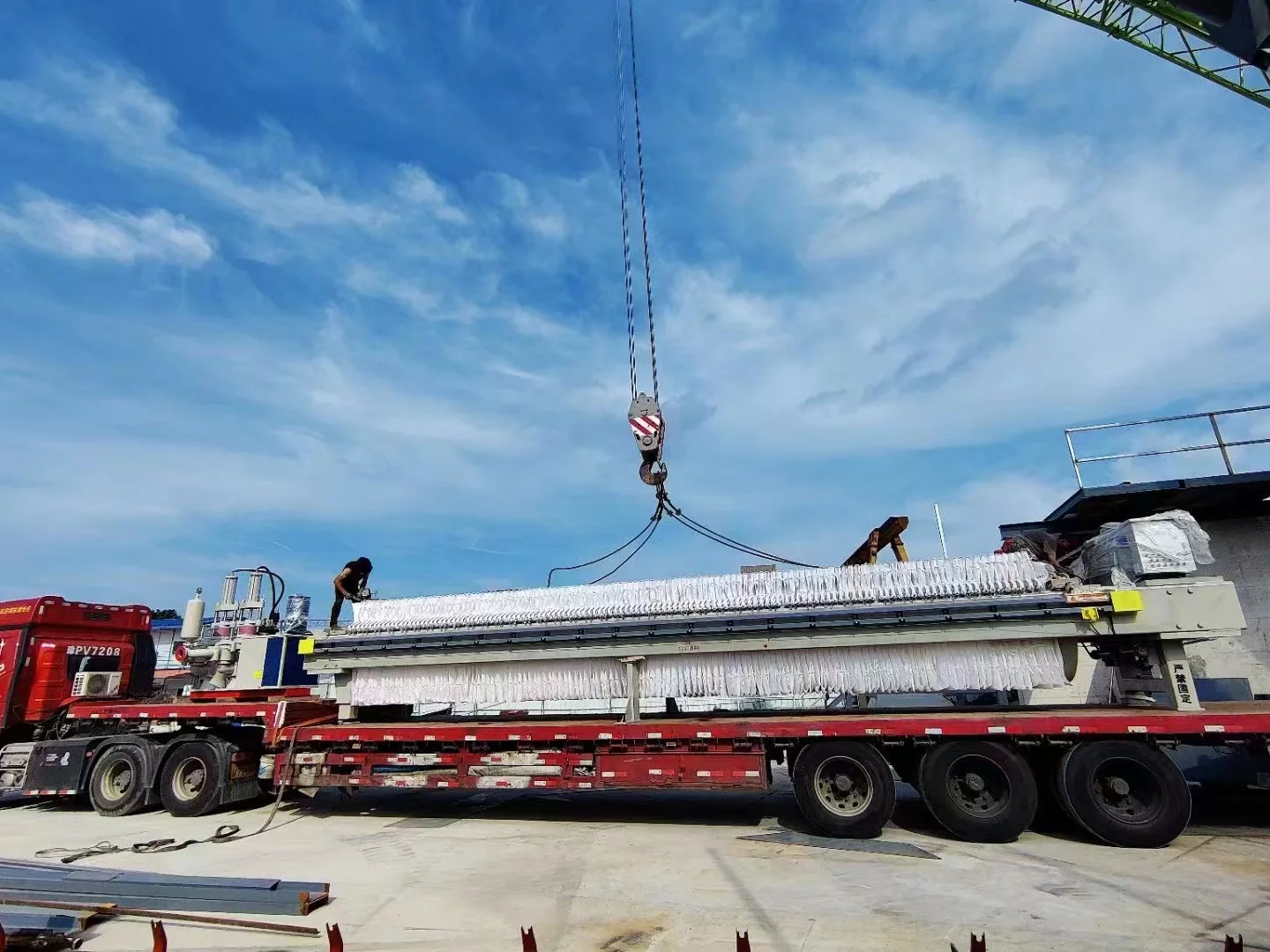

Filter Press Shipment
