High Quality Manufacturing Non alloy PVC Wire Rope Coated Steel Nylon 7x19 Galvanized Steel Wire Rope
- Category: >>>
- Supplier: Tianjin Hardware Co. Ltd.Tianjin Ltd.
Share on (1601047685723):
Product Overview
Description
Products Description
High Quality Manufacturing Non-alloy PVC Wire Rope Coated Steel Nylon 7x19 Galvanized Steel Wire Rope
Wire rope is a complex mechanical device that has many moving parts all working in tandem to help support and move an object or load. In the lifting and rigging industries, wire rope is attached to a crane or hoist and fitted with swivels, shackles or hooks to attach to a load and move it in a controlled matter. It can also be used to lift and lower elevators, or as a means of support for suspension bridges or towers.
Wire rope is a preferred lifting device for many reasons. Its unique design consists of multiple steel wires that form individual strands laid in a helical pattern around a core. This structure provides strength, flexibility, and the ability to handle bending stresses. Different configurations of the material, wire, and strand structure will provide different benefits for the specific lifting application.
Wire rope is a preferred lifting device for many reasons. Its unique design consists of multiple steel wires that form individual strands laid in a helical pattern around a core. This structure provides strength, flexibility, and the ability to handle bending stresses. Different configurations of the material, wire, and strand structure will provide different benefits for the specific lifting application.
High Quality Manufacturing Non-alloy PVC Wire Rope Coated Steel Nylon 7x19 Galvanized Steel Wire Rope
At Tianjin Hardware, we offer all different kinds of wire rope from all of the leading manufacturers. We sell the
highest-quality wire rope and rigging products because product quality and operating safety go hand-in-hand. We have one of the largest and most complete inventories of rigging and lifting products to suit your lifting needs.If you’re looking for a standard or custom specified wire rope for your lifting project, contact a Lifting Specialist at Tianjin Hardware
highest-quality wire rope and rigging products because product quality and operating safety go hand-in-hand. We have one of the largest and most complete inventories of rigging and lifting products to suit your lifting needs.If you’re looking for a standard or custom specified wire rope for your lifting project, contact a Lifting Specialist at Tianjin Hardware
Product Name: | High Quality Manufacturing Non-alloy PVC Wire Rope Coated Steel Nylon 7x19 Galvanized Steel Wire Rope | ||||||
Standard: | EN12385/MIL/GB | ||||||
Material: | PVC Nylon | ||||||
Contruction: | 7X7 7X19 1X7 1X19 etc. | ||||||
Surface: | Plastic coated wire rope | ||||||
Size: | 0 . 3mm-55mm | ||||||
Tensile Strength: | 1570MPA/1670MPA/1770MPA/1870MPA | ||||||
Breaking Load: | Depends on Tensile Strength | ||||||
Length: | 500Ft/152m, 1000Ft/305m, 2000Ft/610m 100m, 500m,1000m | ||||||
Application : | Chain Hoist, Stage, Aircraft, Marine, Lifting | ||||||

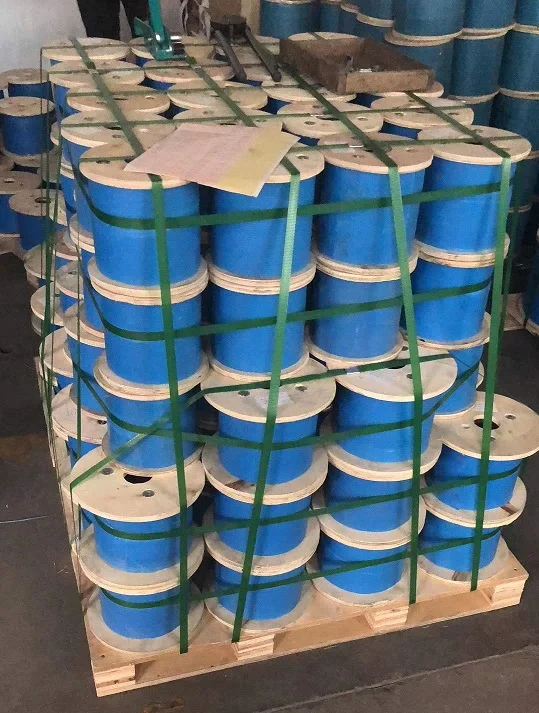

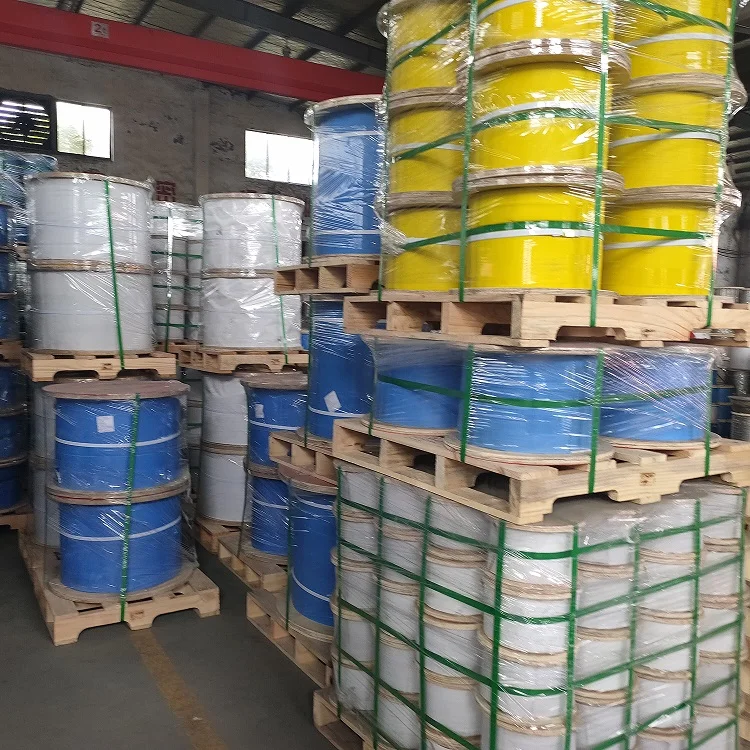

Package: | Wooden Reel, Plastic Reel, Coil Packing, Sea worthy Packing | ||||||

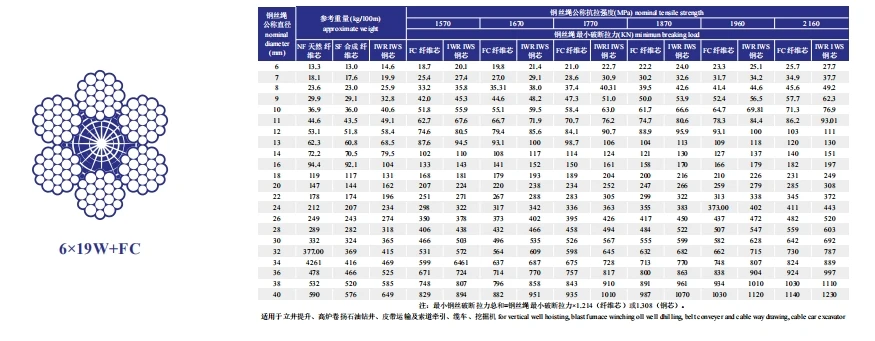

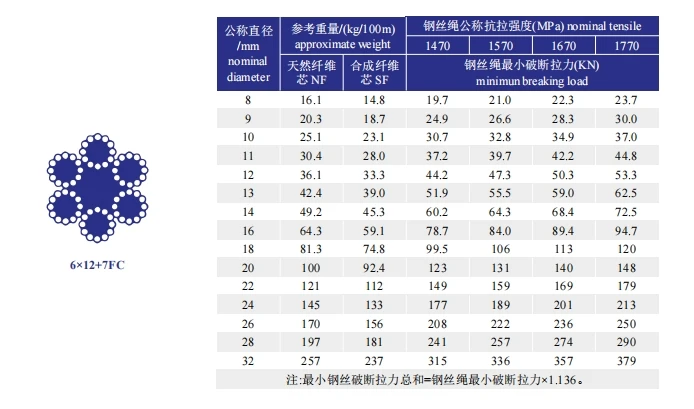

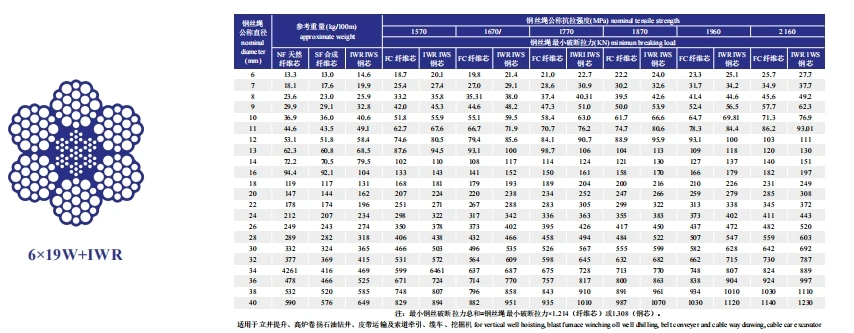

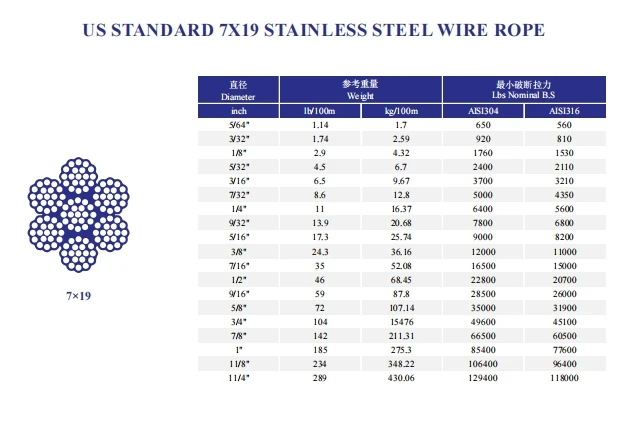

Specifications

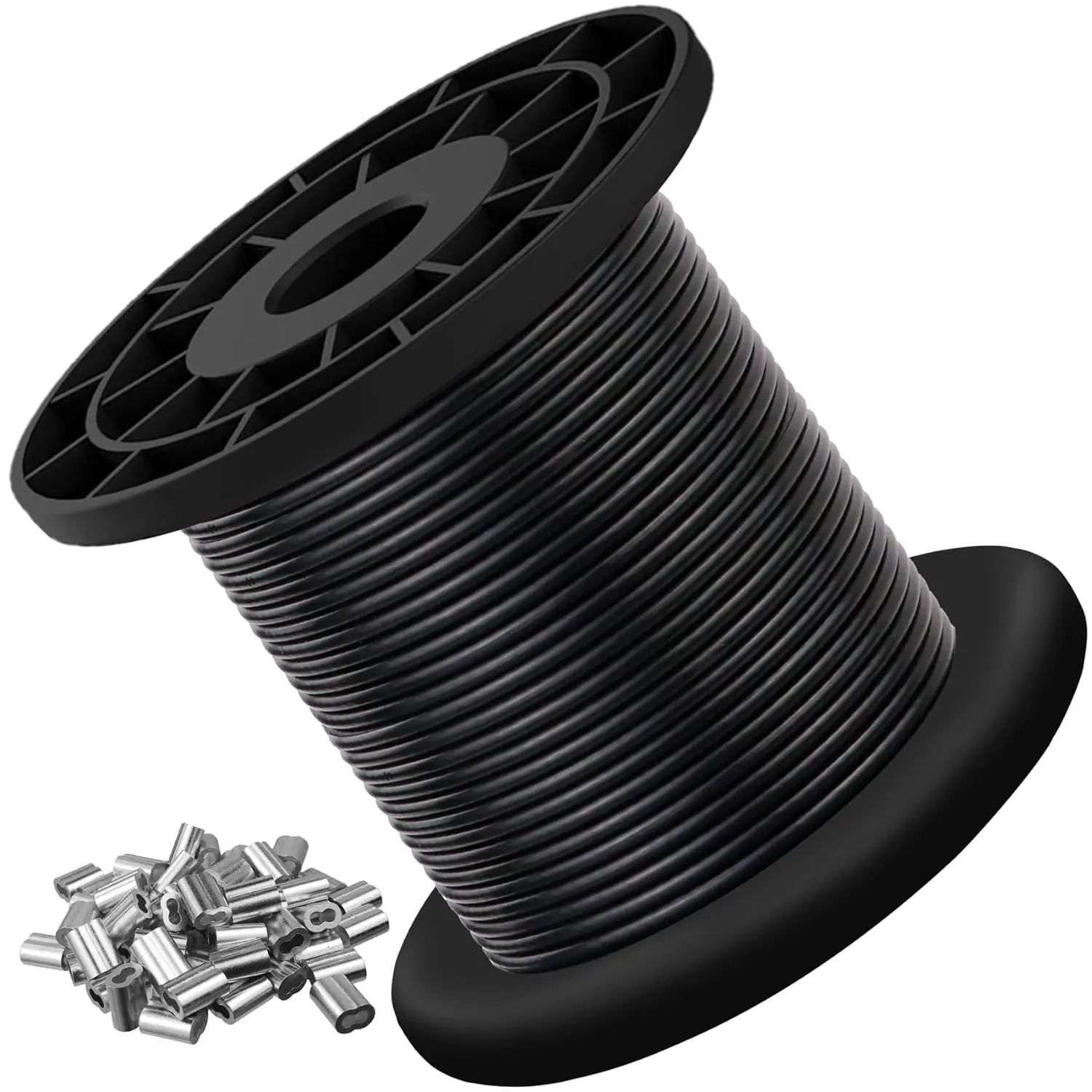

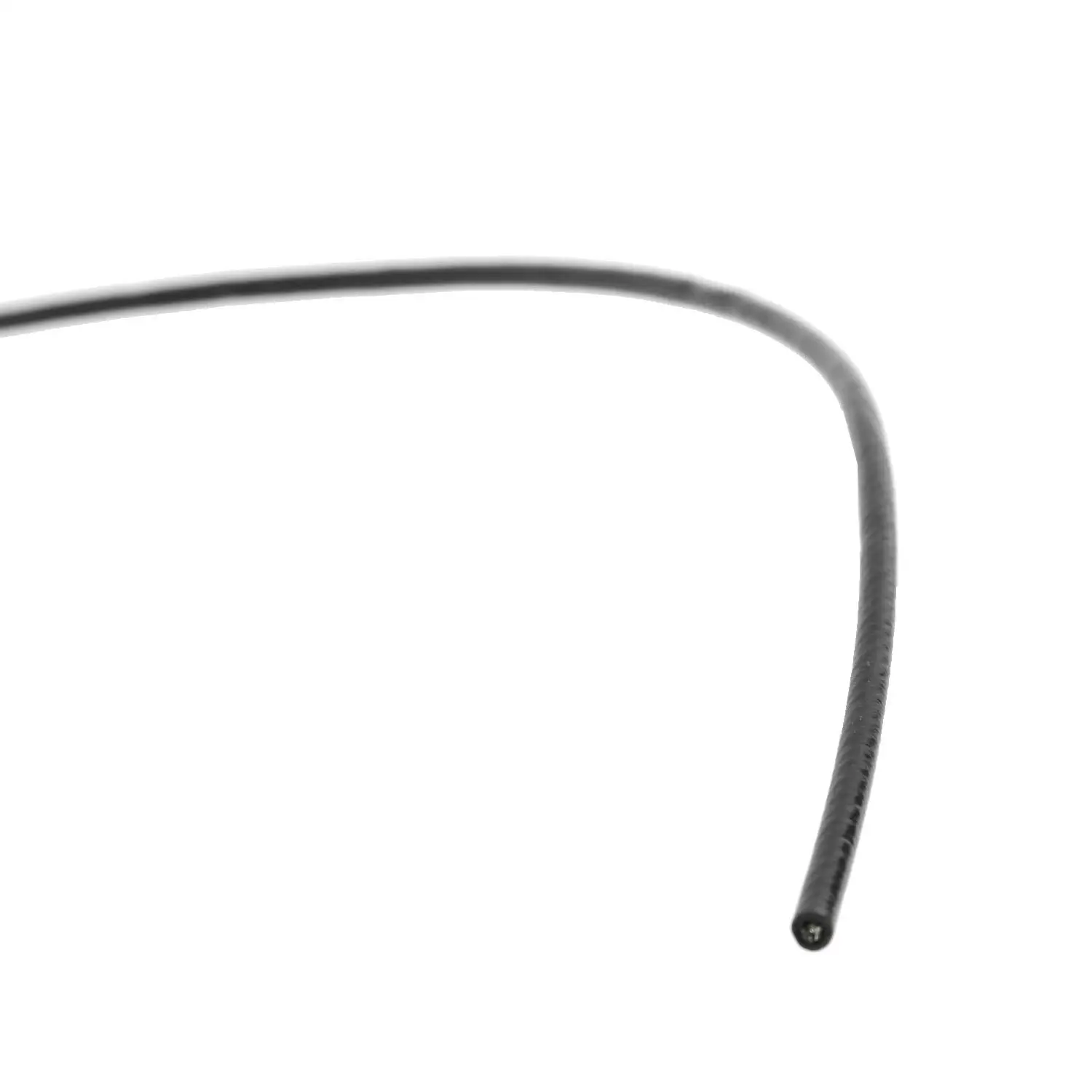

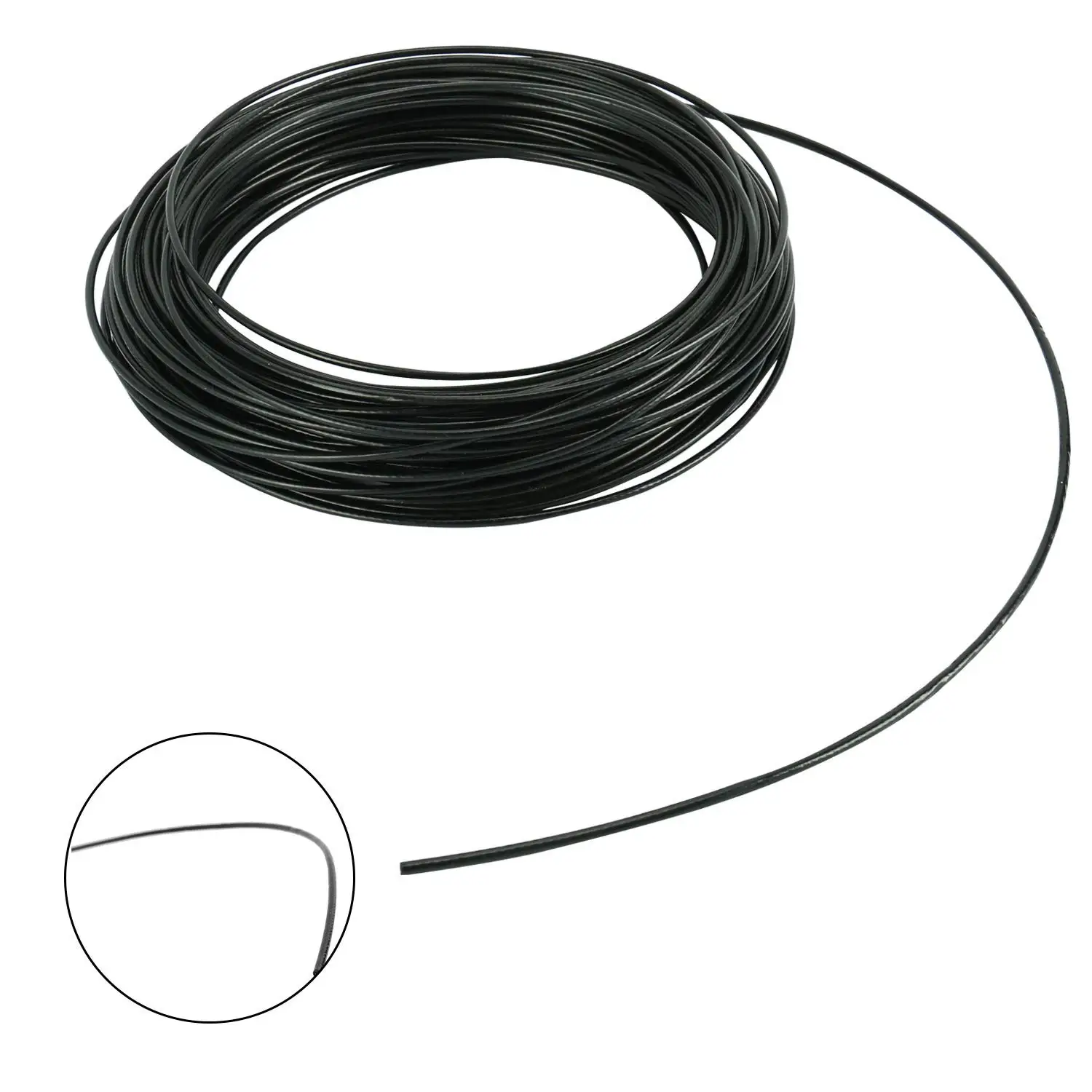

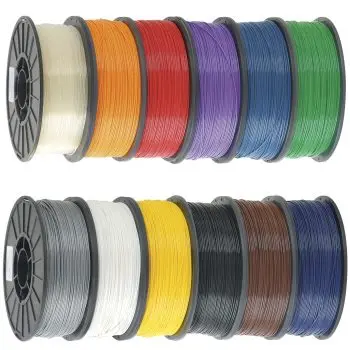

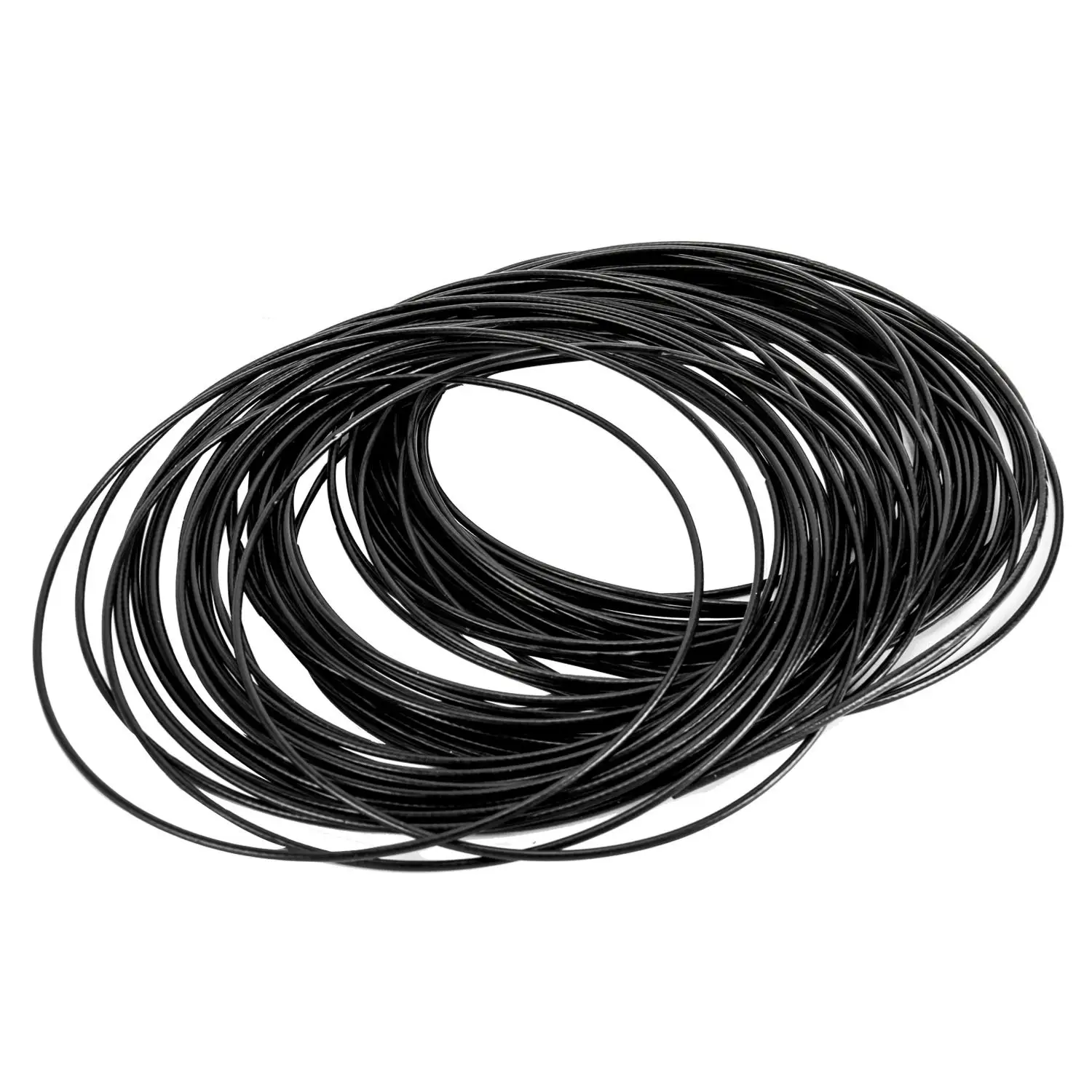

Reference Picture

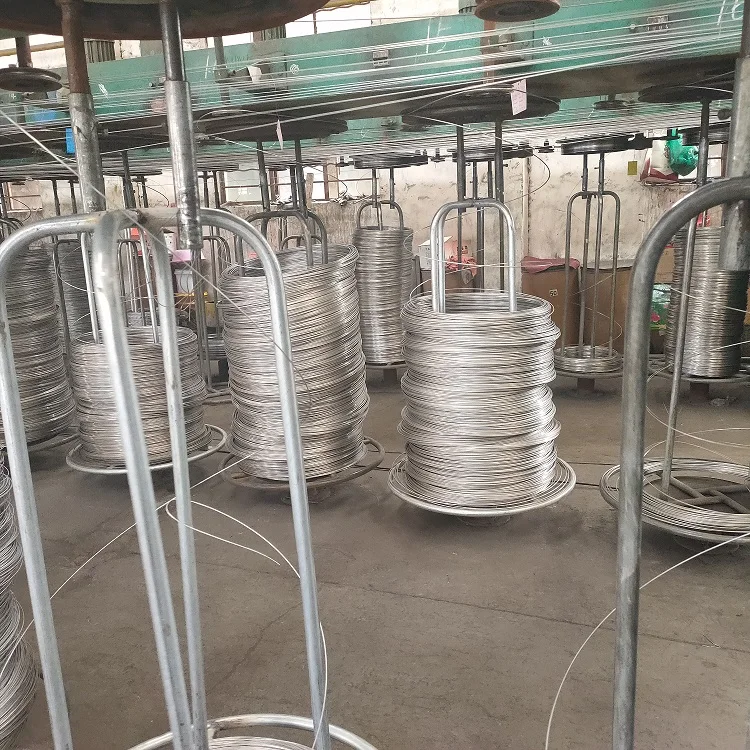

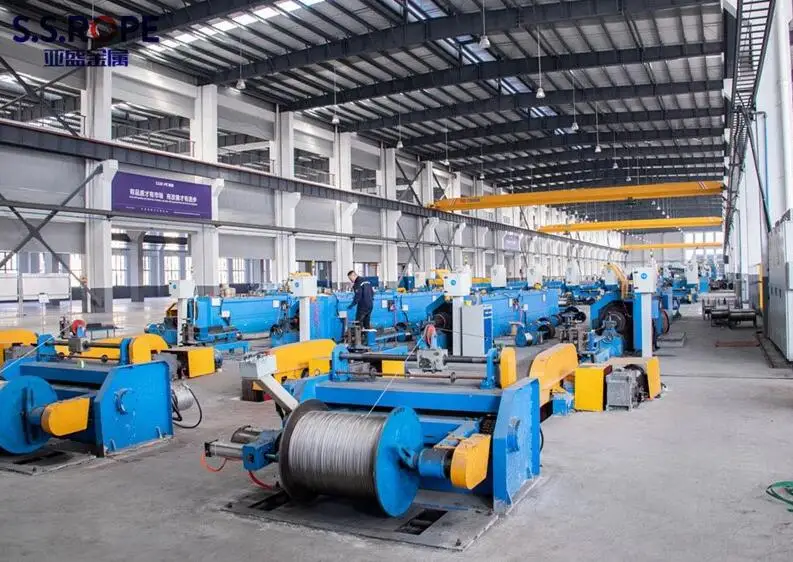

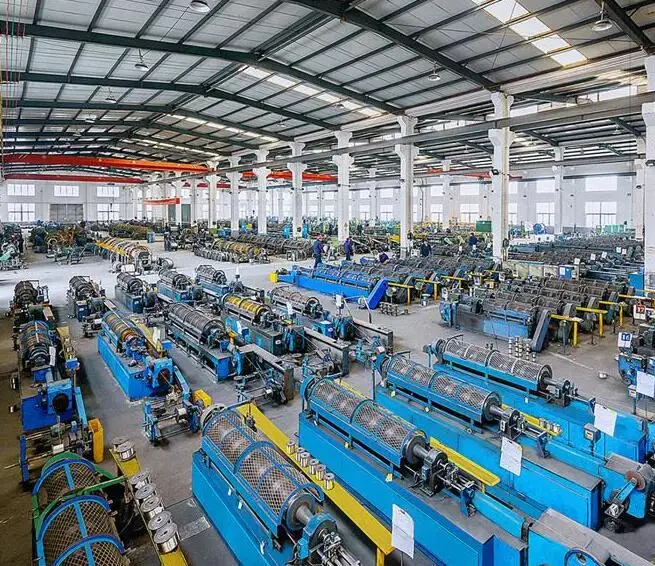

Workshop
Quality Control
Salt Spray Test
Breaking Load Test
Breaking Load Test

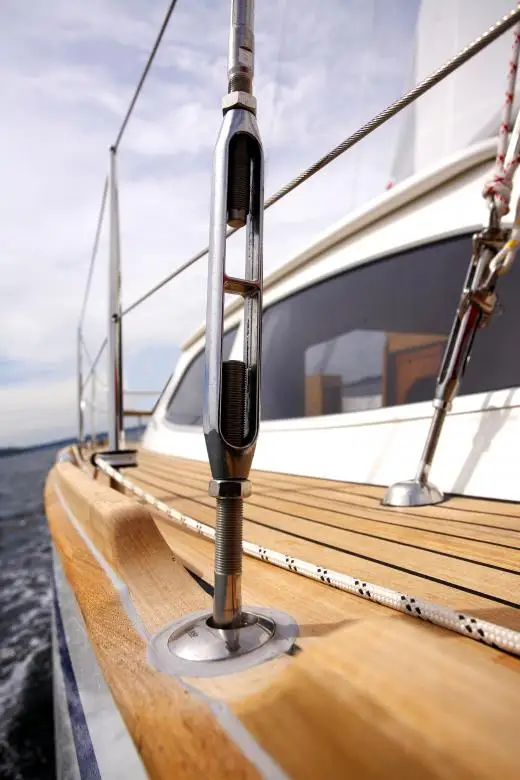

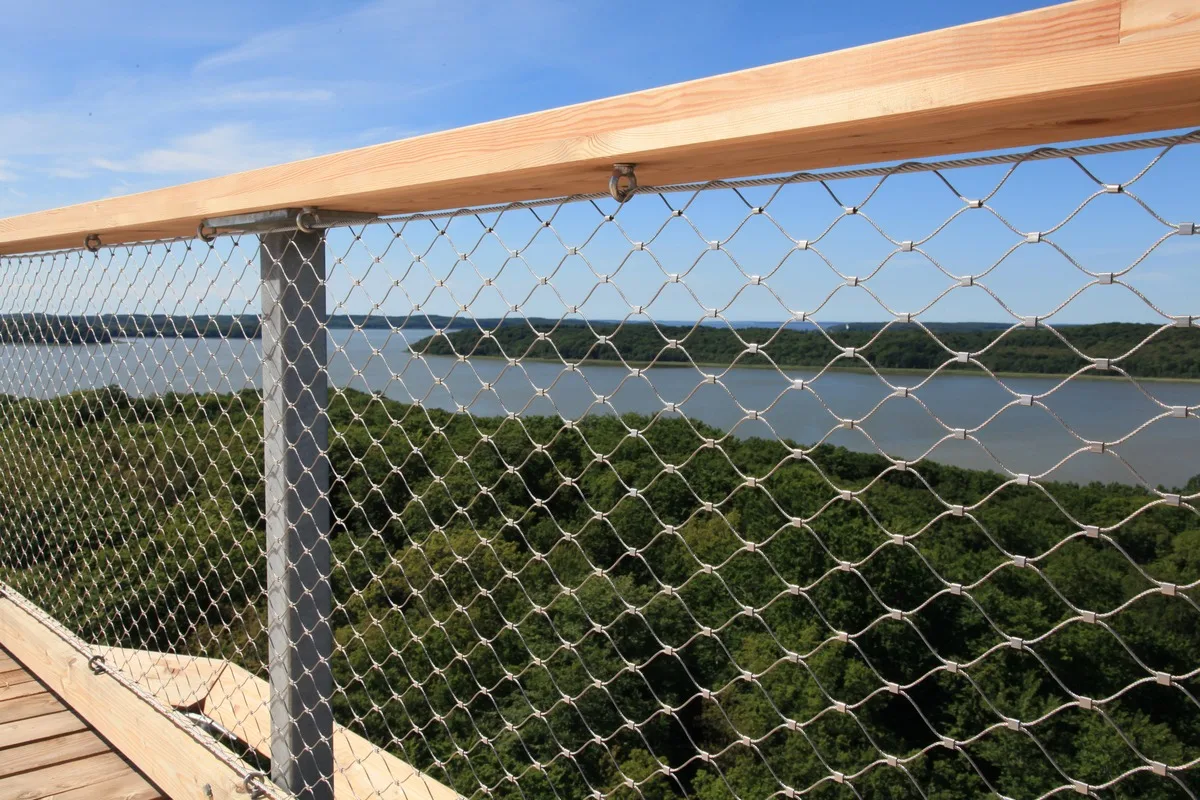

Application
FAQ
1. Who are we?
We are based in Tianjin,China.Tianjin Hardware is an international market leading manufacturer and export of different kinds of hardware to helping our customers manufacture quality products for their respective markets.
We have customers all over the world and have established long-term cooperative relationships.
2. What is wire rope?
Wire rope is a flexible steel cord that is extremely strong. Typical uses for wire rope are: hoisting,towing,and anchoring heavy loads. The core is the foundation of a wire rope. The three most commonly used core designations are:fiber core (FC), independent wire rope core (IWRC), and wire strand core (WSC).
3. What are the factors affecting the selection of wire rope?
1) Strength-resistance to breaking (The wire rope should be strong enough to handle the maximum potential load including safety factors)
2) Resistance to bending fatigue (Fatigue is caused by repeatedly bending rope around drums, sheaves, etc. A wire
rope with strands made up of many small wires will be more resistant to fatigue, but less resistant to abrasion)
3) Resistance to vibrational fatigue (Energy is absorbed at the end fittings or at the tangent point where the rope contacts the sheave)
4) Resistance to abrasion (Abrasion occurs when a rope is dragged over the ground or other surfaces. A wire rope with strands made of fewer, larger wires will be more resistant to abrasion, but less resistant to fatigue)
5) Resistance to crushing (During use, a wire rope may encounter crushing forces or be struck against hard objects. This can cause the rope to become flattened or distorted, resulting in premature breakage. Wire rope must have sufficient lateral stability to withstand the crushing pressures it may encounter. Regular lay ropes have greater lateral stability than Lang's lay, and six strand wire ropes have greater lateral stability than eight strand)
3. What are the factors affecting the selection of wire rope?
1) Strength-resistance to breaking (The wire rope should be strong enough to handle the maximum potential load including safety factors)
2) Resistance to bending fatigue (Fatigue is caused by repeatedly bending rope around drums, sheaves, etc. A wire
rope with strands made up of many small wires will be more resistant to fatigue, but less resistant to abrasion)
3) Resistance to vibrational fatigue (Energy is absorbed at the end fittings or at the tangent point where the rope contacts the sheave)
4) Resistance to abrasion (Abrasion occurs when a rope is dragged over the ground or other surfaces. A wire rope with strands made of fewer, larger wires will be more resistant to abrasion, but less resistant to fatigue)
5) Resistance to crushing (During use, a wire rope may encounter crushing forces or be struck against hard objects. This can cause the rope to become flattened or distorted, resulting in premature breakage. Wire rope must have sufficient lateral stability to withstand the crushing pressures it may encounter. Regular lay ropes have greater lateral stability than Lang's lay, and six strand wire ropes have greater lateral stability than eight strand)
4.What are the advantages of plastic-coated wire rope？
(1) High tensile strength: the tensile strength of the wire rope is several times that of the ordinary rope, which can meet the needs of heavy lifting.
(2) Corrosion resistance: the outer sheath of plastic-coated steel wire rope can effectively prevent seawater, acid rain and other strong acid and alkali corrosion.
(3) Wear resistance: the outer sheath of plastic-coated steel wire rope can greatly improve the wear resistance of the steel wire rope, and it is not easy to damage when used in harsh environments such as wind sand and desert.
(4) Long service life: due to the above advantages, the service life of plastic-coated steel wire rope is longer, which can reduce the cost of replacing the rope and improve work efficiency.
(2) Corrosion resistance: the outer sheath of plastic-coated steel wire rope can effectively prevent seawater, acid rain and other strong acid and alkali corrosion.
(3) Wear resistance: the outer sheath of plastic-coated steel wire rope can greatly improve the wear resistance of the steel wire rope, and it is not easy to damage when used in harsh environments such as wind sand and desert.
(4) Long service life: due to the above advantages, the service life of plastic-coated steel wire rope is longer, which can reduce the cost of replacing the rope and improve work efficiency.
5. How can we guarantee quality?
Always a pre-production sample before mass production;We adhere to the principle of inspection before delivery.
6. Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
Always a pre-production sample before mass production;We adhere to the principle of inspection before delivery.
6. Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
Please feel free to leave us message if you have any question about us and our products.
