2024 New 32ch 8HDD 384Mbps incoming/recording bandwidth Face Recognition ANPR 4K H.265 NVR Dahua 32 channel NVR5832 XI
- Category: >>>
- Supplier: Shenzhen Guowei Security Electronic Co. Ltd.
Share on (1601047948826):
Product Overview
Description
Product Description
As a new generation of network video recorders, the NVR5000-XI series offers advanced recording technology and has AI capabilities that make it ideal for IP video surveillance. It has a powerful processor, strong decoding capabilities and offers high incoming and outgoing bandwidth, allowing it to produce unimpeded streams and access videos as high as 32MP. Through its deep learning modules and video metadata technology, it offers high-precision human face recognition, video metadata, perimeter protection and SMD plus technology. Together, these functions shorten the response time to events and provide critical information for surveillance personnel. AcuPick is an industry-leading, highly accurate search technology. When the NVR is put together with IP cameras that are compatible with AcuPick, it uses the features of the target to search for videos where the target appears. The NVR is compatible with many third-party devices, making it a great surveillance solution.
AcuPick
Perimeter Protection
Face Recognition
AcuPick
This industry-leading search technology effectively utilizes both front end and back-end intelligence to help with searching through massive video data to quickly and conveniently locate targets with greater precision.

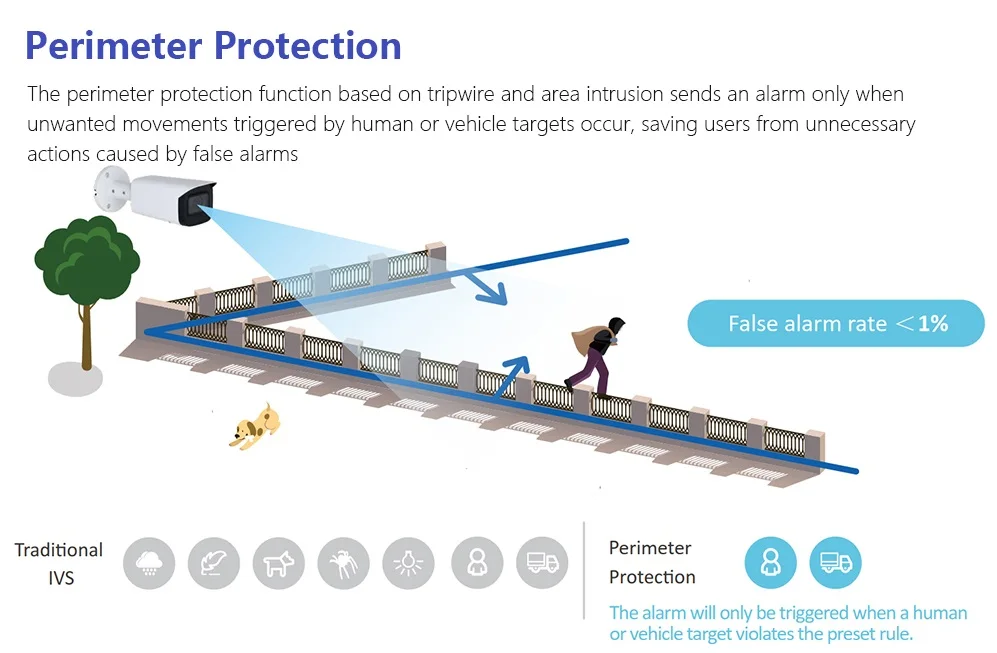

Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.

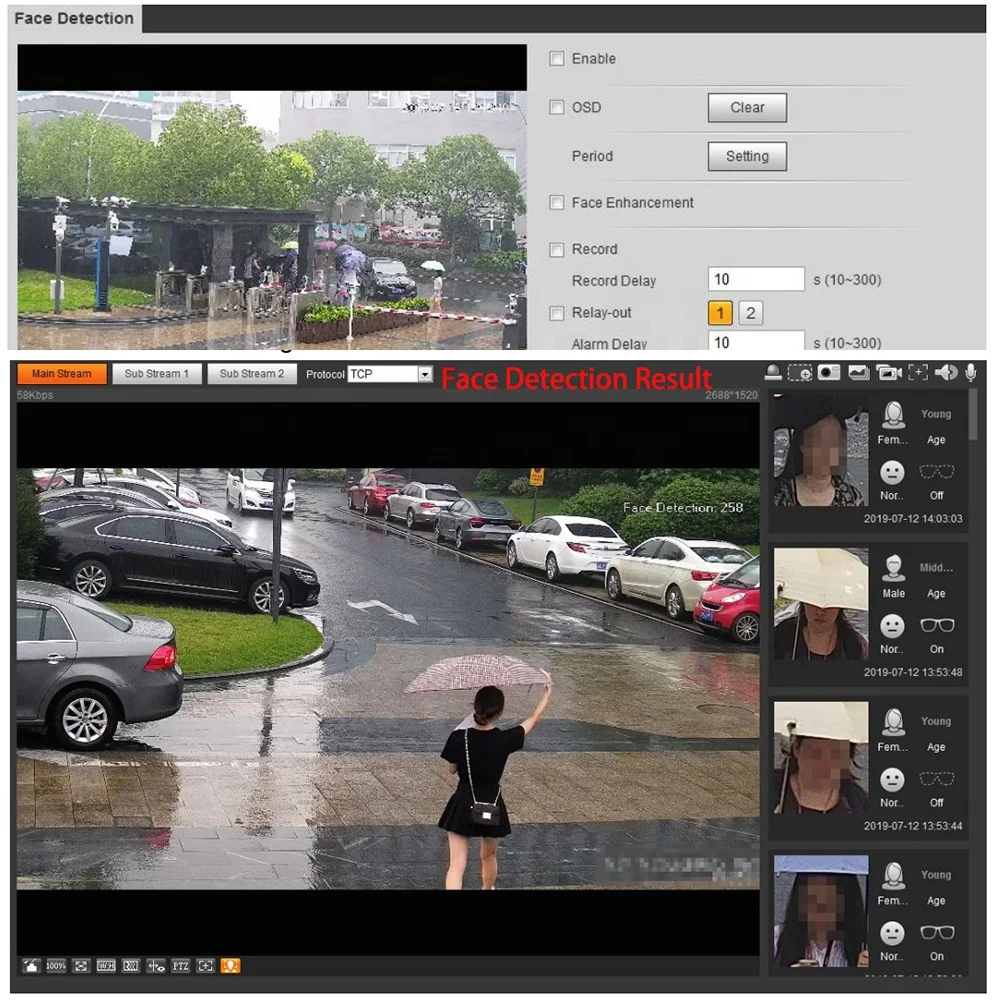

Face Recognition technology extracts the features of captured faces and compares them with that in face database.
Video Metadata
With deep learning algorithm, Video Metadata technology can detect, track, capture vehicle, non-motor vehicle and people, and select the best images, and extract attributes.
Heat Map by Camera
Heat map technology is used to display the crowd density and people appearance probability. Export and
display the crowd status by different colors. Generally, the crowd status is the statistics of people quantity in space and time dimensions.
display the crowd status by different colors. Generally, the crowd status is the statistics of people quantity in space and time dimensions.

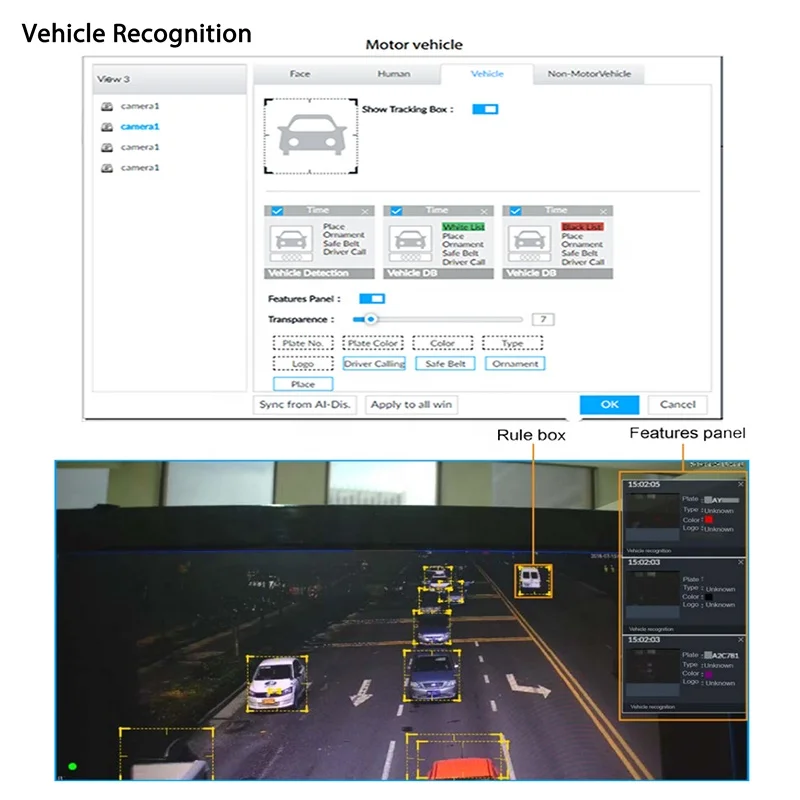

ANPR by Camera
With deep learning algorithm, ANPR technology can recognize the number plate information of vehicles in the image with ANPR cameras. Support blocklist/allowlist mode, searching target vehicles from recorded video.

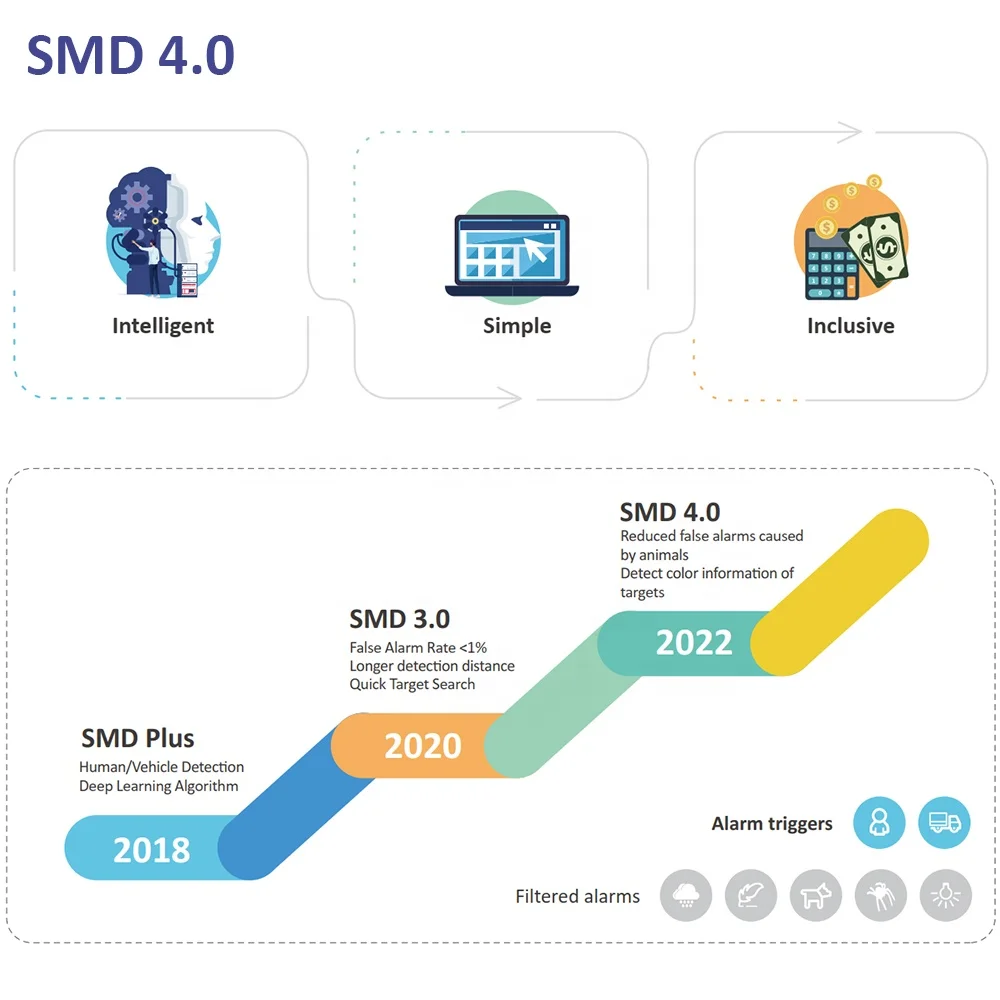

SMD Plus
With intelligent algorithm, Da hua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

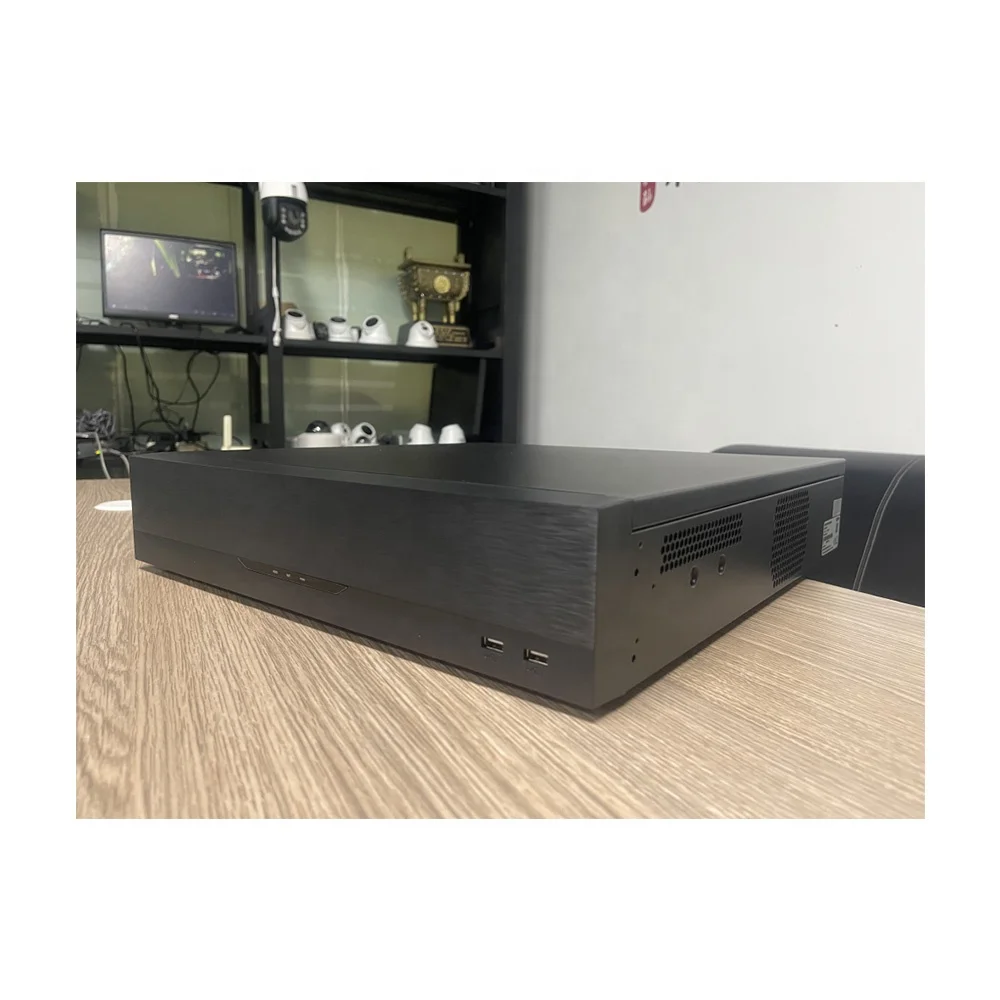

32CH 2U 8HDDs WizMind Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 32 × 1080p@30 fps
> Max. 384/384/384 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 32 MP.
> Supports AcuPick with up to 24 channels.
> AI by Recorder supports 8-channel face detection and recognition, up to 20 face databases and 200,000 face images; 8-channel metadata; 24-channel perimeter protection; 32-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map,
and people counting.
> Supports N+M cluster, ISCSI.

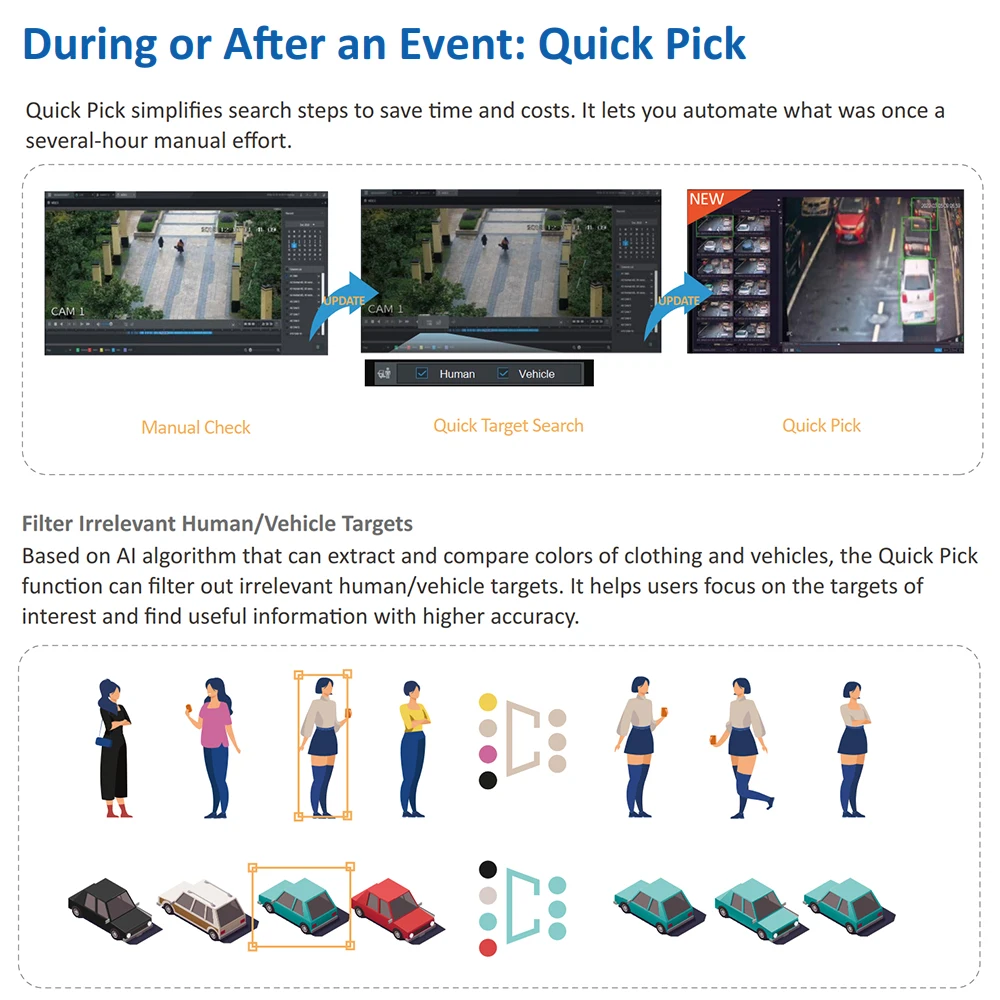

> Supports QuickPick, EPTZ, and one-click arming and disarming.
NVR5832-XI

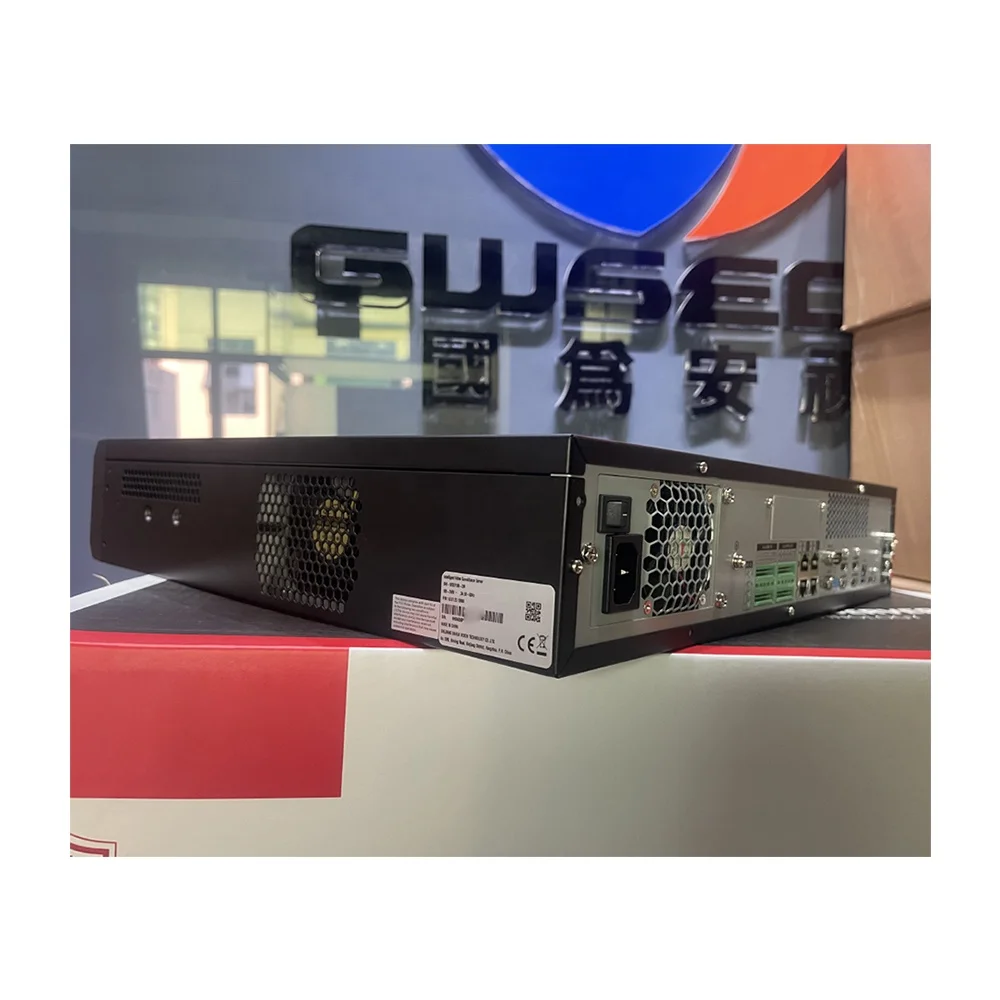

32CH 2U 8HDDs WizMind Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 32 × 1080p@30 fps
> Max. 384/384/384 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 32 MP.
> Supports AcuPick with up to 24 channels.
> AI by Recorder supports 8-channel face detection and recognition, up to 20 face databases and 200,000 face images; 8-channel metadata; 24-channel perimeter protection; 32-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map,
and people counting.
> Supports N+M cluster, ISCSI.
> Supports QuickPick, EPTZ, and one-click arming and disarming.
Brief specifications for a quick acknowledge of this item, for further detailed parameters or technical consult, please feel free to contact us at HERE.
Model | DHI-NVR5832-XI | |
AI | ||
AI by Recorder | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD | |
AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis, crowd distribution; people counting; ANPR; heat map; PPE detection | |
AcuPick AI by Camera + Recorder | Max. 24-channel, 1 combined event per channels | |
Perimeter Protection | ||
Perimeter Performance AI by Recorder (Number of Channels) | 24 channels, 10 IVS rules for each channel | |
Perimeter Performance of AI by Camera (Number of Channels) | 32 channels | |
Face Detection | ||
Face Attributes | 6 attributes | |
Face Detection Performance of AI by Recorder (Number of Channels) | Sub screen 4K enabled：4 channels (up to 12 face images/s each channel) Sub screen 4K disabled：8 channels (up to 12 face images/s each channel) | |
Face Detection Performance of AI by Camera (Number of Channels) | 32 channels | |
Face Recognition | ||
Face Database Capacity | Up to 20 face databases with 2,000,00 images, with a total capacity of 44 G. | |
Face Recognition Performance of AI by Recorder (Number of Channels) | Sub screen 4K enabled: 16-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s 4-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s Sub screen 4K disabled: 16-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s | |
Face Recognition Performance of AI by Camera (Number of Channels) | 32 channels | |
SMD Plus | ||
SMD Plus by Recorder | 32 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change | |
SMD Plus by Camera | 32 channels | |
Video Metadata | ||
Metadata Performance of AI by Recorder (Number of Channels) | 8 channels, 23 attributes extraction. | |
Metadata Performance of AI by Camera (Number of Channels) | 16 channels | |
People Attributes | 9 human body attributes | |
Motor Vehicle Attributes | 9 attributes | |
Non-motor Vehicle Attributes | 4 attributes | |
Vehicle License Plate Comparison | ||
ANPR by Camera (Number of Channels) | 16 channels | |
License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist | |
Audio and Video | ||
Access Channel | 16 channels | |
Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing | |
Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF | |
Decoding Capability | AI disabled: 2-channel 32 MP@25fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps;8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps;16-channel 4 MP@30 fps AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps;6-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 16-channel 1080p@30 fps | |
Video Output | 2 VGA, 2 HDMI VGA:1920 × 1080, 1280 × 1024, 1280 × 720 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 | |
Multi-screen Display | Main screen: 1/4/8/9/16 Sub screen: 1/4/8/9/16 | |
Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha | |
Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG | |
Audio Compression | G.711a; G.711u; PCM; G726 | |
Network | ||
Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI | |
Mobile Phone Access | iOS; Android | |
Interoperability | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK | |
Browser | Chrome; Firefox; IE | |
Network Mode | Multi-address; load balance; fault tolerance | |
Port | ||
Audio Input | 1-channel RCA | |
Audio Output | 2-channel RCA | |
Alarm Input | 16 channels | |
Alarm Output | 6 channels (1-channel 12 V 1 A output） | |
Disk Interface | 8 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. | |
eSATA | 1 | |
RS-232 | 1 | |
RS-485 | 1 (half-duplex serial communication) | |
USB | 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports) | |
HDMI | 2 | |
VGA | 2 | |
Network Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) | |
General | ||
Power Supply | 100–240 VAC, 50-60 Hz | |
Power Consumption | <13 W (without HDD) | |
Gross Weight | 8.91 kg (19.64 lb) | |
Product Dimensions | 440.0 mm × 452.5 mm x 94.9 mm (17.32" × 17.81" × 3.74") (W ×D × H) | |
Installation | Rack or desktop | |
Certifications | Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 | |
Successful Projects
1- This a Surveillance Projects installed in Melborne, Australia.
Customer preferred to have a long range visible 4K PTZ camera and people counting 4K Bullet camera. So we suggested DH-SD8A840-HNF-PA which is 8MP 4K 40X zoom with 500m laser IR and auto-tracking function, and IPC-HFW71242H-Z which is 12MP Wizmind Series with face recognition, people counting, ANPR etc intelligent AI camera. Besides that, there also other accessories like PoE switch, camera bracket and cables suggested to customer. The whole system running very well.
Why Choose Us
Our company
As a professional project-base structure designed hd cctv camera manufacturer, GWSecu had passed ISO9001-14001 quality management system authentication, all products have been successfully certificated by CE, FCC, ROHS.
We're also Da hua distributor for the brand products as always. Origin English firmware version and 2 years warranty service. Welcome to contact us for more information.
1- Original international version products and support future firmware upgrade if necessary.
2- Online technical support to help you design the system and recommend most cost-effective and suitable products.
3- Fast delivery within 1-10 working business day base on models in stock.
4- 18 years golden supplier with Alibaba Trade Assurance to protect your purchase.
3- Fast delivery within 1-10 working business day base on models in stock.
4- 18 years golden supplier with Alibaba Trade Assurance to protect your purchase.
5- OEM Service available to put your company brand on the products and package box.
6- Two years worry-free warranty service.
We pack the goods well just make sure our customer receive all items in good condition.
Regular cameras and DVR/NVRs will have good enough foam protected. LCD monitor or LCD Display wall will be packed by poly-wooden box, making these fragile goods be well protected. You can rest assure to buy from us.
Company Introduction
About us
Shenzhen Guowei Security Co., ltd is a national high-tech enterprise that integrates the design, development, production and sales of video surveillance products.
As a member of Onvif, our IP Camera and NVR have passed international ONVIF Profile S standards, perfectly compatible with world-wide platform like Da Hua, Hik-vision, Milestone, Digifort etc.).
GWSecu Factory Show:
A: Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset, lens and infrared lights. We source from Sony, Ti and Aptina directly.
B: Assembling
As ISO certified CCTV factory, we have a management system in conformity with 6S in manufacturing management. We have all kinds of production and inspection equipment to ensure product quality.
C: Quality Test
GWSecu invests abundant capital in advanced testing equipments to ensure products quality.
Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test,Salt spray test.
D: OEM & ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
Worldwide Customer
We attend worldwide exhibitions in Dubai, Las Vegas, Moscow, London, Germany, Thailand, South Africa. "Honest" and "Sincerity" is the principle we serve the customers.
GWSecu Company Culture
Along with the experience of 17 Years Alibaba verified supplier, GWSECU had been dedicated in CCTV Security industrial for more than 20 years. We had an experienced team with great enthusiasm and professional spirit for CCTV Surveillance systems.
We had online technical support and experience in helping customer for different projects suggestion and recommendation. Looking forward to your inquiry!
We had online technical support and experience in helping customer for different projects suggestion and recommendation. Looking forward to your inquiry!
FAQ & Contact Me
1- How do you I know your products are genuine?
We offer Da hua origin English firmware products, same web GUI, Smart PSS, Configtool software.
2- What service can I have?
We offer 2 years warranty service.
3- If I want firmware to upgrade, can you provide?
Yes. We can offer latest firmware for your future upgrading.
But normally we don't suggest as firmware upgrade with risks, unless the products with technical issue and need update.
4- Can we test sample before ordering?
Yes sure. We accept sample order and PayPal payment.
5- Do you offer OEM service for Da hua products?
It depends. We can print your brand in our factory. But don't offer web page OEM.
6- What will be your technical support?
We have engineers online to support, like skype or teamviewer remotely.
