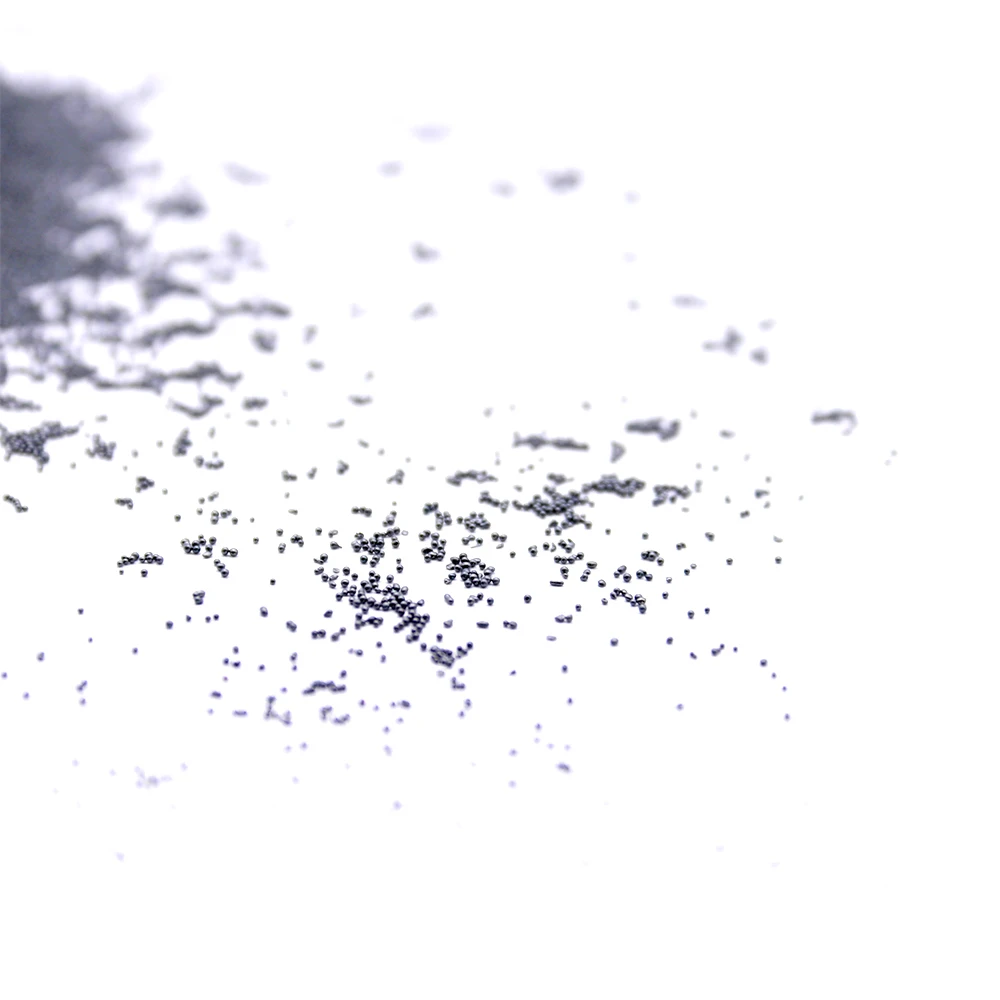

cr steel shot 1mm steel shot blasting s230 for shot cleaning machine
- Category: >>>
- Supplier: Shandong Yafeite Metal Products Co. Ltd.
Share on (1601048008598):
Product Overview
Description

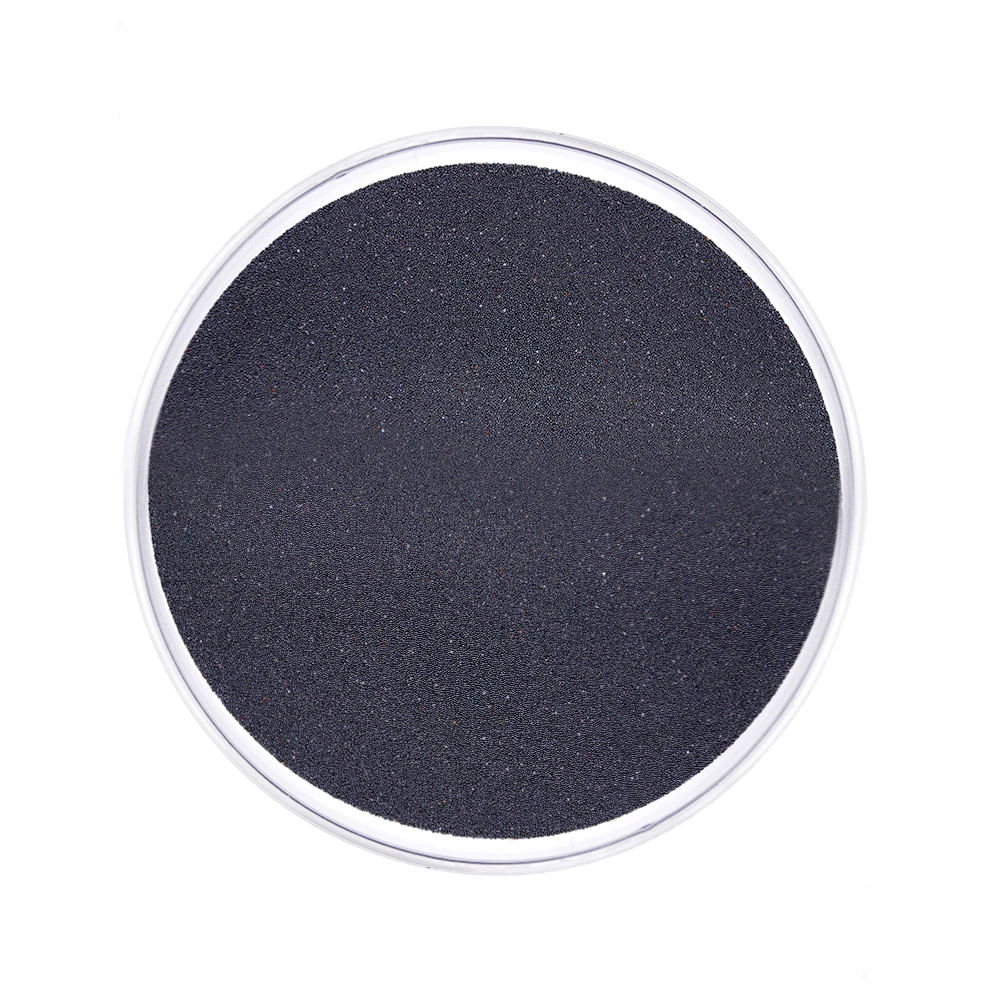

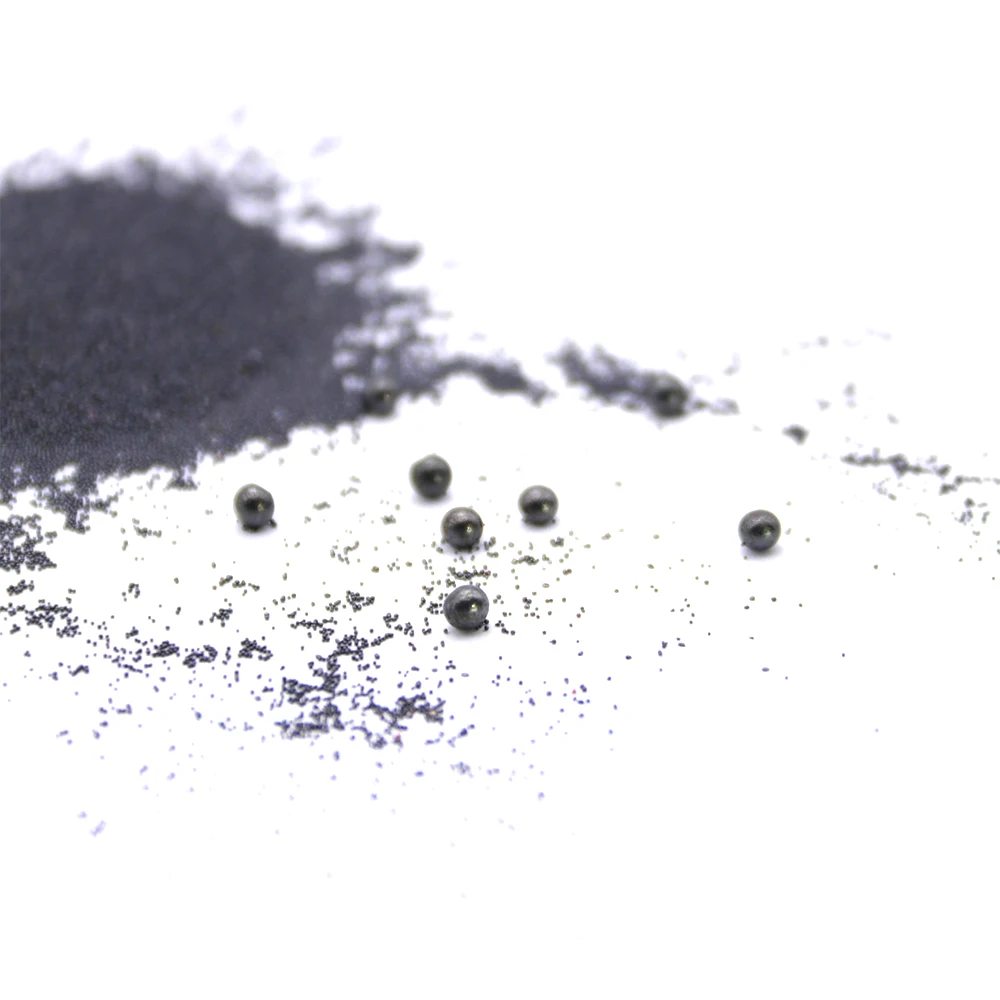

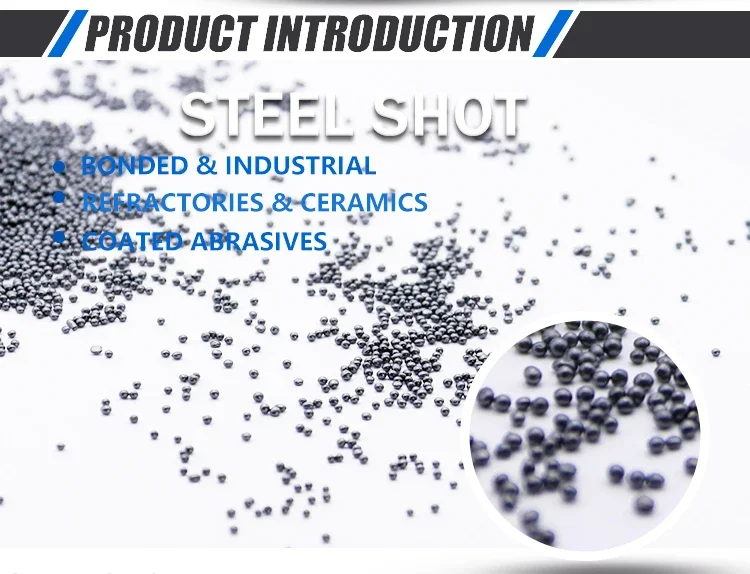

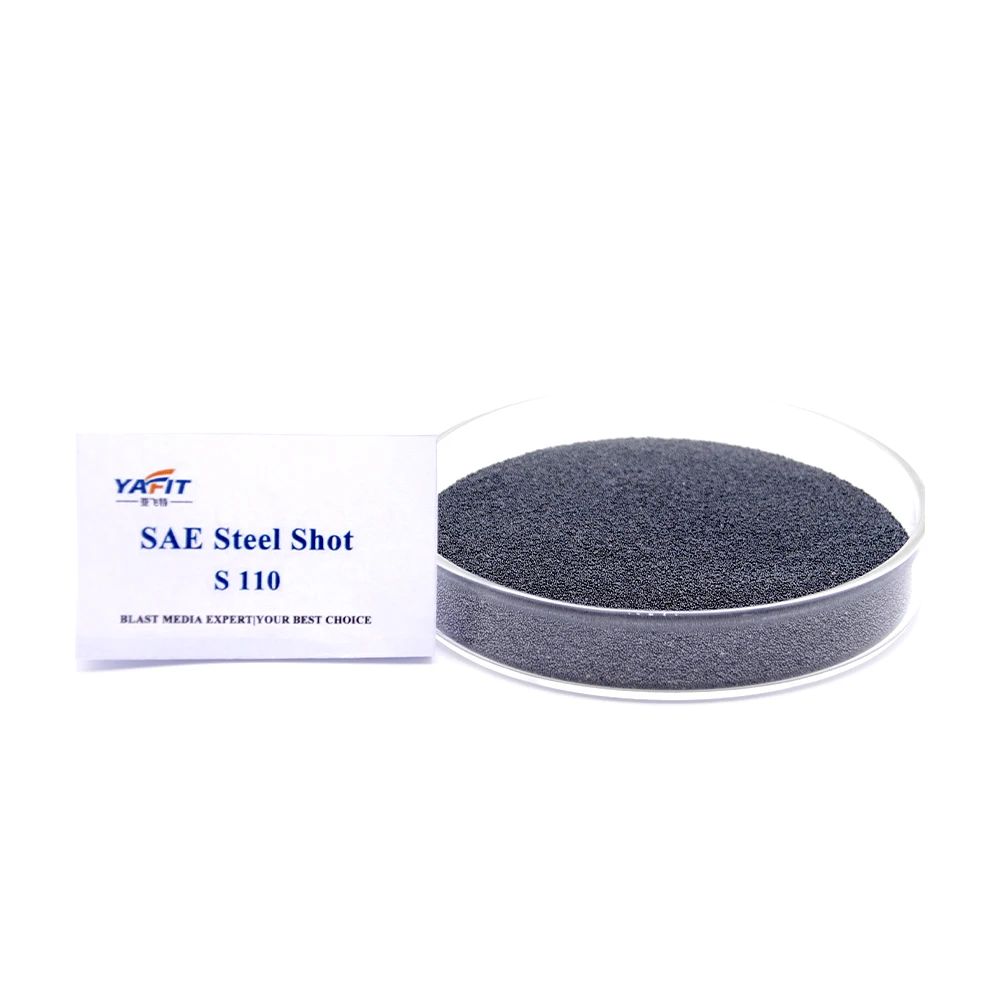

STEEL SHOT
Specification & Standard:
Specifications: S70-S780
Standards: In accordance with standards of GB/T18838.3 - 2008 Steel Shot and Steel Grit,SFSA20-66Cast Steel Abrasive, SAE J827 Cast Steel Shot, SAE J1993High
Standards: In accordance with standards of GB/T18838.3 - 2008 Steel Shot and Steel Grit,SFSA20-66Cast Steel Abrasive, SAE J827 Cast Steel Shot, SAE J1993High
Products | Cast Steel Shot | ||
Chemical Composition | C | 0.80-1.20% | |
Mn | 0.35-1.20% | ||
Si | 0.50-1.20% | ||
S | ≤0.03% | ||
P | ≤0.03% | ||
Hardness | Normal:40 ~ 50HRC (377 ~ 509HV) Special:52 ~ 56HRC (543 ~ 620HV) Special:56 ~ 60HRC (620 ~ 713HV) | ||
Hardness Deviation | Max deviation 3.0 HRC or 40HV | ||
Density | ≥7.40 g/cm3 | ||
Bulk Density | ≥4.40 g/cm3 | ||
Durability | 2200 to 2500 times | ||
Microstructure | Homogeneous tempered martensite or sorbite | ||
Mesh | 7-120 | ||
Granularity | 0.2mm-2.5mm | ||

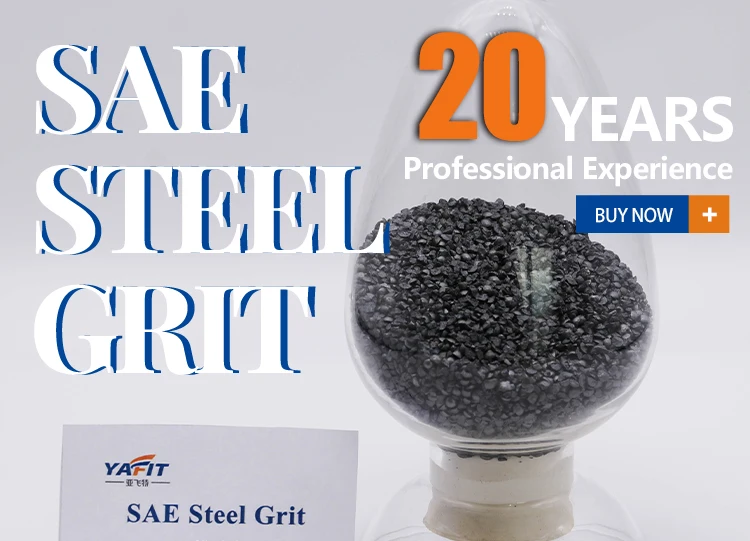

STEEL GRIT
Products | Cast Steel Grit | ||
Chemical Composition | C | 0.80-1.20% | |
Mn | 0.60-1.20% | ||
Si | 0.50-1.20% | ||
S | ≤0.03% | ||
P | ≤0.03% | ||
Hardness | Normal:40 ~ 50HRC Special:53 ~ 60HRC Special:60 ~ 64HRC | ||
Hardness Deviation | Max deviation 3.0 HRC or 40HV | ||
Density | ≥7.60 g/cm3 | ||
Bulk Density | ≥4.20 g/cm3 | ||
Microstructure | Homogeneous tempered martensite or sorbite | ||
Mesh | 7-200 | ||
Granularity | 0.2mm-2.5mm | ||
PRODUCT ADVANTAGES
STEEL SHOT/GRIT/CUT WIRE SHOT
A. Strict quality control procedures ensure uniform particles, tight structure, and fast cleaning.
B. Moderate hardness, good resilience, and strong impact force.
C. Good toughness, strong impact resistance, and long service life.
B. Moderate hardness, good resilience, and strong impact force.
C. Good toughness, strong impact resistance, and long service life.

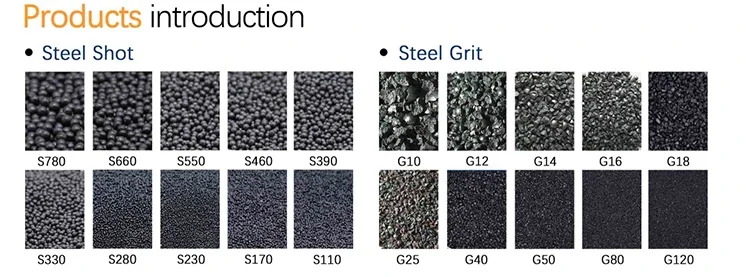

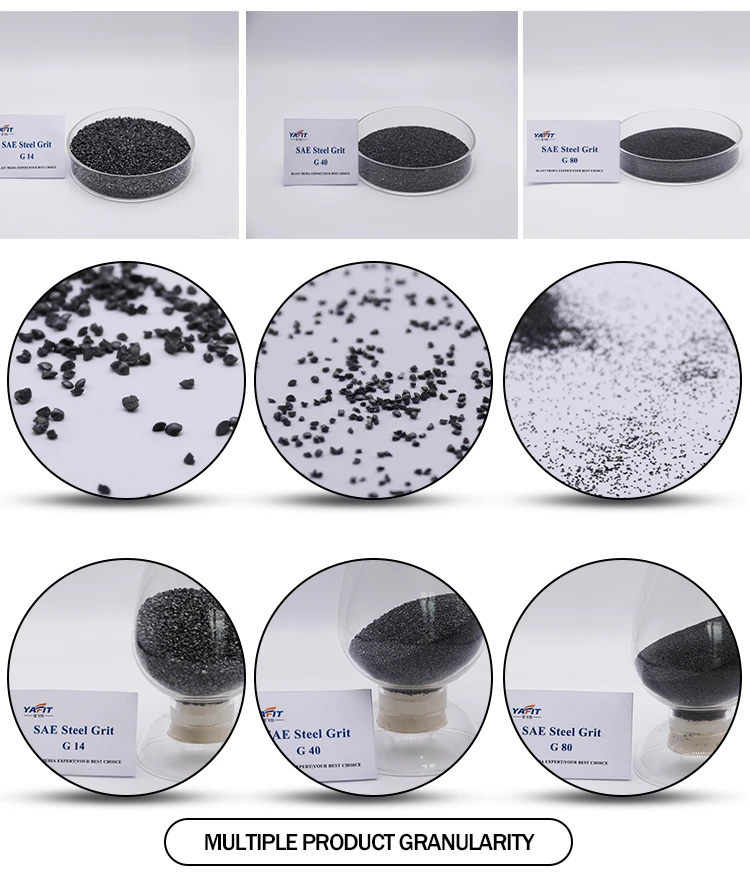

Few Specifications of Steel Shot and Grit:
They are different on naming: bigger the number is, bigger the diameter of steel shot is, while the smaller the diameter of steel grit is!

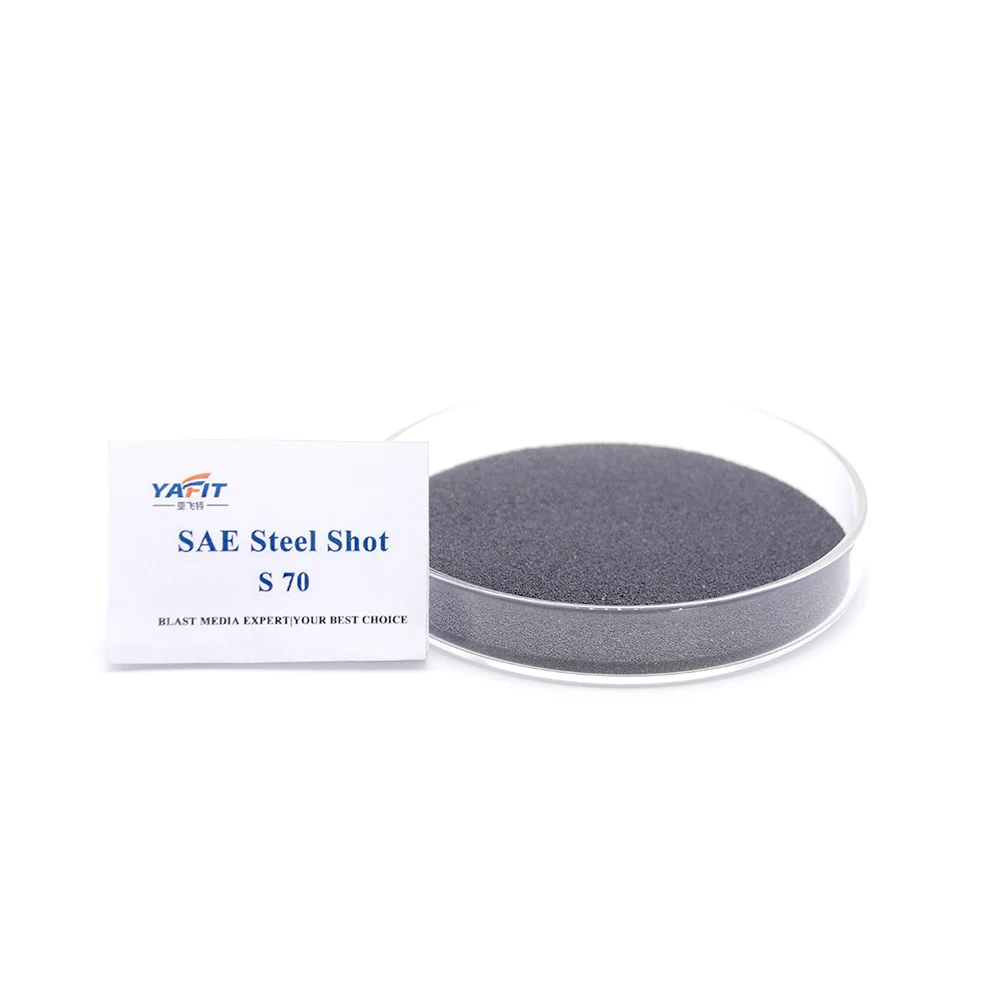

For Steel Shot: while model is from S70 to S780, the dia is from 0.2mm to 2.5mm.
For Steel Grit: while model is from G10 to G120, the dia is from 2.5mm to 0.2mm.

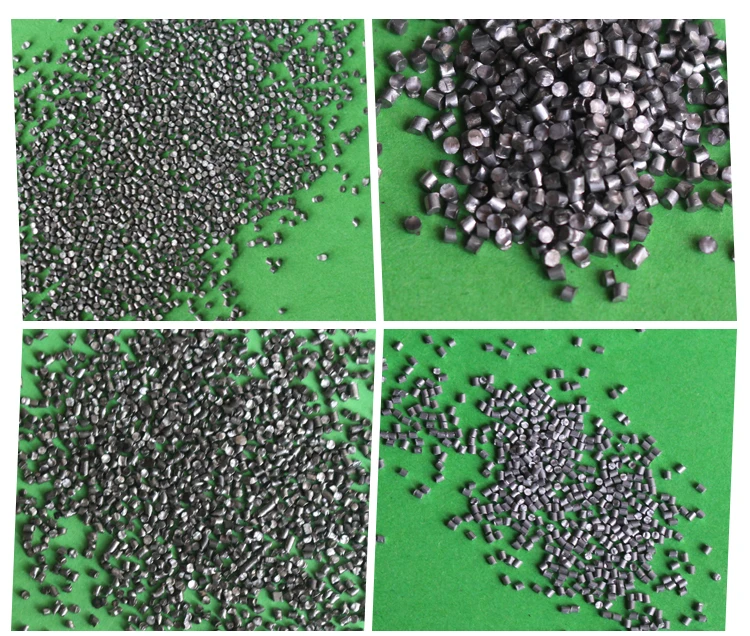

STEEL CUT WIRE SHOT
Products | Cut Wire Shot | ||
Chemical Composition | C | 0.45～0.75% | |
Mn | 0.40～1.20% | ||
Si | 0.10～0.30% | ||
S | ＜0.03% | ||
P | ＜0.03% | ||
Microhardness | 1.0mm：51～53 HRC(525～561HV) 1.5mm：41～45 HRC(388～436HV) | ||
Hardness Deviation | Max Deviation ±1.0HRC or ±40HV | ||
Tensile Intensity | 1.0mm：1750～2150 Mpa 1.5mm：1250～1450 Mpa | ||
Density | 7.6g/cm3 | ||
Granularity | 0.3mm-3.0mm | ||
WHY CHOOSE US?
Professional Company and Excellent Customer Services:
Specializing in steel shot, steel grit, and other metal abrasives and steel ball products for 17 years. The products are exported to more than 50 countries and regions worldwide, with extensive experience in foreign trade accumulated over nearly a decade.
B. Excellent Services especially After-Sales':
a. Strict quality control has resulted in no returns or complaints from customers due to quality issues in large-scale transactions over the years.
b. Transportation control is equally strict. During the transportation of products, our company actively communicates and coordinates with freight forwarders to ensure accurate and safe delivery for each order. In case of issues, our company will jointly provide compensation with the freight forwarder, firmly preventing situations where customer claims are fruitless due to delays and procrastination.
c. In terms of cargo transportation, we additionally employ moisture-proof treatment and air cushion reinforcement inside containers to minimize product loss during transportation.
c. In terms of cargo transportation, we additionally employ moisture-proof treatment and air cushion reinforcement inside containers to minimize product loss during transportation.
Yafit always adheres to the customer-centric business philosophy and remains true to the original aspiration of serving customers to meet their needs. A comprehensive service system and 17 years of corporate integrity and reputation have led to long-term business relationships with numerous global enterprises, fostering close relationships.
COMPANY PROFILE
PRODUCT APPLICATION

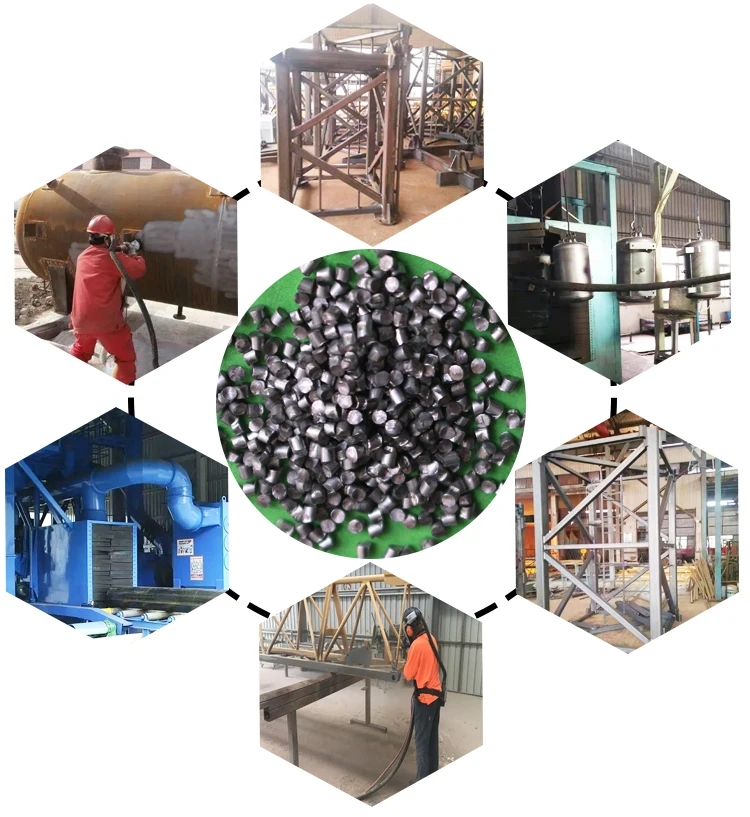

Applications:
Usually Applicable in various fields such as shot blasting, sanding, cleaning, rust removal, etc.
Using steel shot/girt or cut wire shot for surface treatment of metal workpieces can increase the surface pressure of metal workpieces, significantly improving the workpiece's fatigue resistance. They are excellent surface treatment material commonly used for castings, forgings, and machined parts, both before and after heat treatment. Widely used in general manufacturing and shipbuilding. For specific examples:

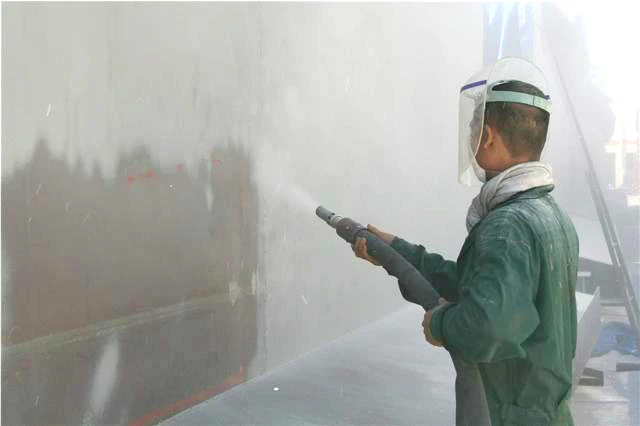

a. Blast cleaning : Used for blast cleaning of casting, die-casting, forging, sand removal of casting, steel plate,H type steel, steel structure.b. Rust removal: Rust removal of casting, forging, steel plate, H-type steel, steel structure, descaling of forging.
c. Shot peening: Shot peening of gear, heat treatment.
d. Shot blasting: Shot blasting of profile steel, ship board, steel board, steel material.
e. Shot blasting: Shot blasting of steel board, profile steel, steel structure.
f. Pre-treatment: Pre-treatment of surface, steel board, profile steel,steel structure, before-painting.
Different Application Due to Diameter: | ||||||||
Steel Shot model/diameter (mm | Steel Grit model/diameter (mm | Application | ||||||
S780/SS2.5 S660/SS2.0 | G10/SG2.5 G12/SG2.0 | Sand removal of large sized castings, scale removal of large sized products from forging, stamping, dieforging, drawing and rolling or after heat treatment (e.g. pipes, sections, plates, fittings, wire). | ||||||
S550/SS1.7 S460/SS1.4 | G16/SG1.4 G14/SG1.7 | Sand removal of large and medium sized castings, scale removal of forging and heat-treated work pieces, surface blast cleaning of steel plates, sections and steel structures, shot peening of work pieces, cutting of granite. | ||||||
S390/SS1.2 S330/SS1.0 | G18/SG1.2 G25/SG1.0 | Sand removal of medium and small sized castings, surface blast cleaning of forgings, heattreated pieces, steel pipes, sections and steel structures, surface treatment before painting, shot peening of work pieces. | ||||||
S280/SS0.8 S230/SS0.6 | G25/SG1.0 G40/SG0.7 | Surface blast cleaning of small sized castings, forgings and heat-treated pieces, aluminium and copper alloy castings, steel plates, steel pipes, sections and steel structures, shot peening of work pieces. | ||||||
S170/SS0.5 S110/SS0.3 | G50/SG0.4 G80/SG0.3 G120/SG0.2 | Surface blast cleaning of stainless steel plates, thin steel plates, non ferrous alloys, dacromet coat. | ||||||
Application devices:
Steel shot/grit/cut wire shot are used for shot blasting machine, shot blasting equipment, shot peening machine, shot peening equipment, sandblasting machine, sandblasting equipment, steel material pretreatment production line, steel plate pretreatment production line, steel structure pretreatment production line.
FAQ
1. who are we?
We are based in Shandong, China, start from 2010, sell to all over the world. There are total about 51-100 people in our office.
We are a manufacturer of abrasive & refractory. And have spent 23 years in metallic abrasive
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Steel cut wire shot, stainless cut wire shot, steel shot/grit…
4. why should you buy from us not from other suppliers?
Shandong Yafeite Metal Produts Co., Ltd. is one of the biggest manufacturers of metal abrasive in China and we integrate technical research, development and production together.
5. what services can we provide?
Accepted Delivery Terms:4 working days after receiving the advance
Accepted Payment Currency: T/T, L/C
Accepted Payment Type:
1)T/T: 30% in advance, 70% balance after receiving the copy of B/L within 3 days.
2)L/C: 100% L/C at sight (Unit price will be increased $15/Ton)
We are based in Shandong, China, start from 2010, sell to all over the world. There are total about 51-100 people in our office.
We are a manufacturer of abrasive & refractory. And have spent 23 years in metallic abrasive
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Steel cut wire shot, stainless cut wire shot, steel shot/grit…
4. why should you buy from us not from other suppliers?
Shandong Yafeite Metal Produts Co., Ltd. is one of the biggest manufacturers of metal abrasive in China and we integrate technical research, development and production together.
5. what services can we provide?
Accepted Delivery Terms:4 working days after receiving the advance
Accepted Payment Currency: T/T, L/C
Accepted Payment Type:
1)T/T: 30% in advance, 70% balance after receiving the copy of B/L within 3 days.
2)L/C: 100% L/C at sight (Unit price will be increased $15/Ton)
