Product Overview
Description
Product Overview

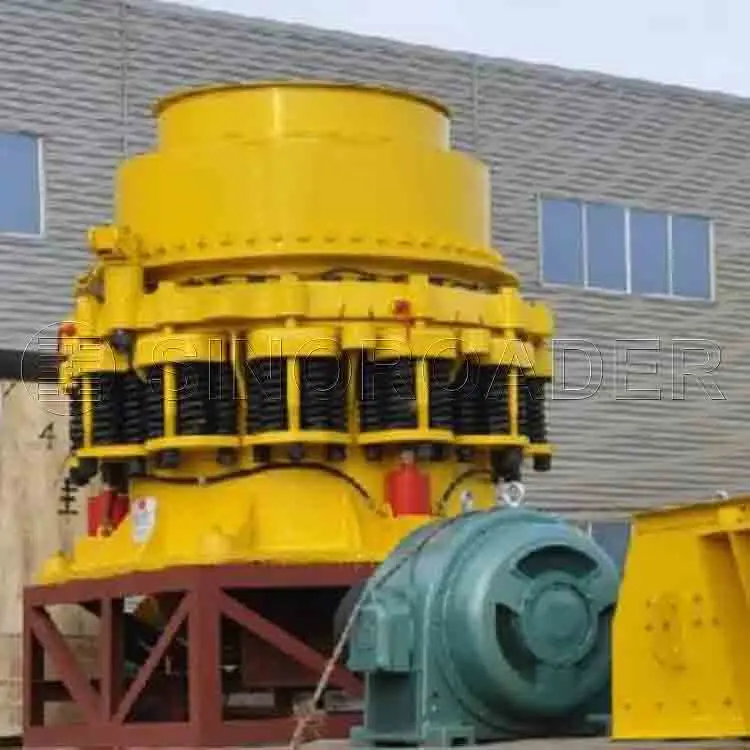

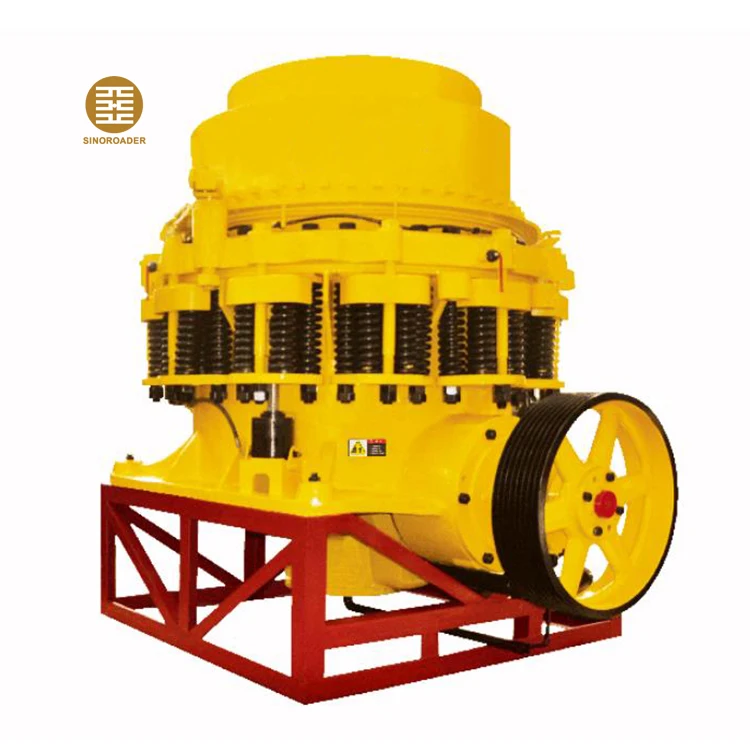

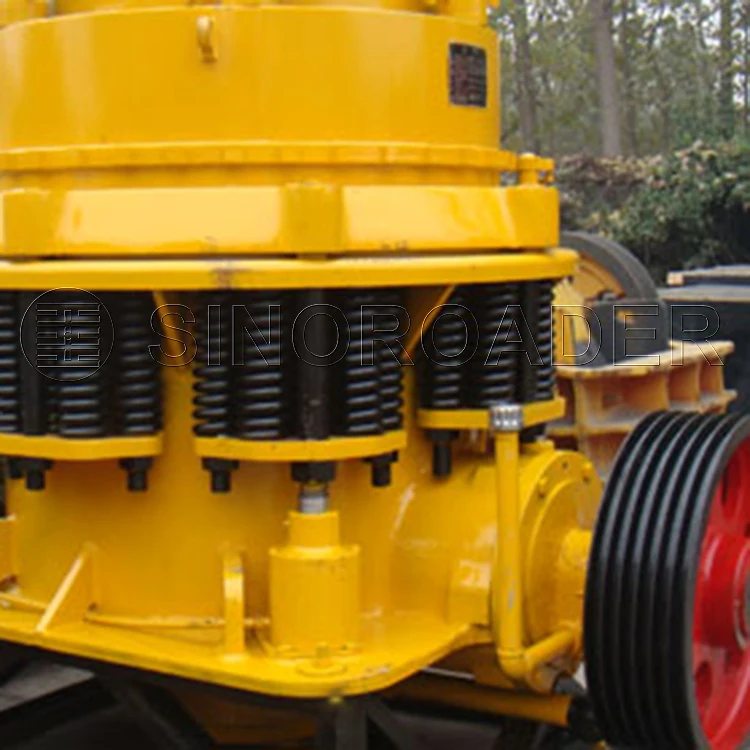

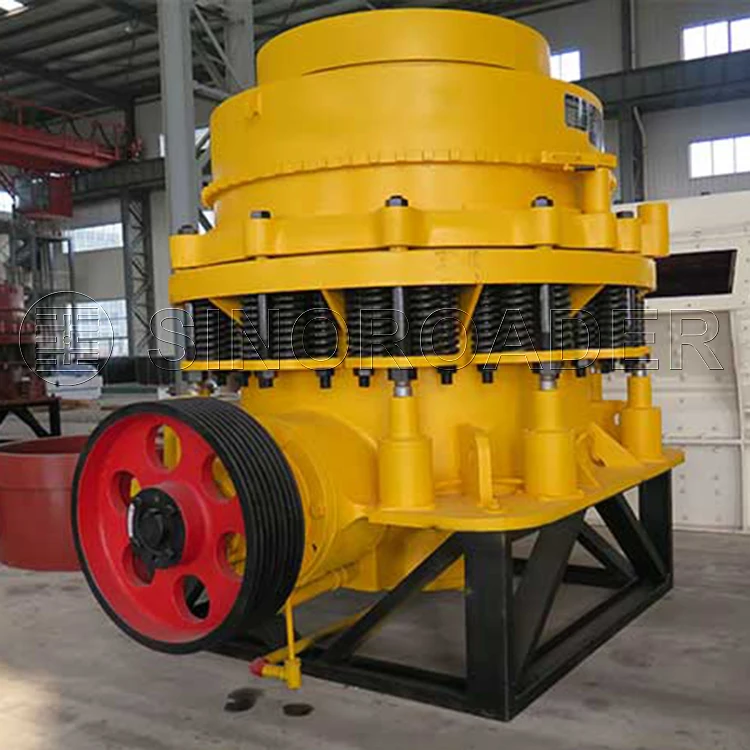

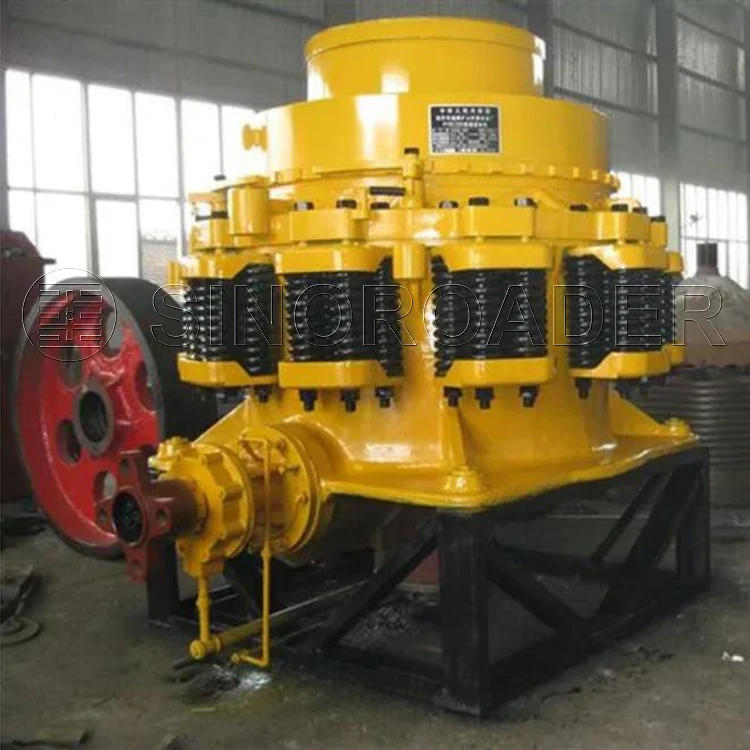

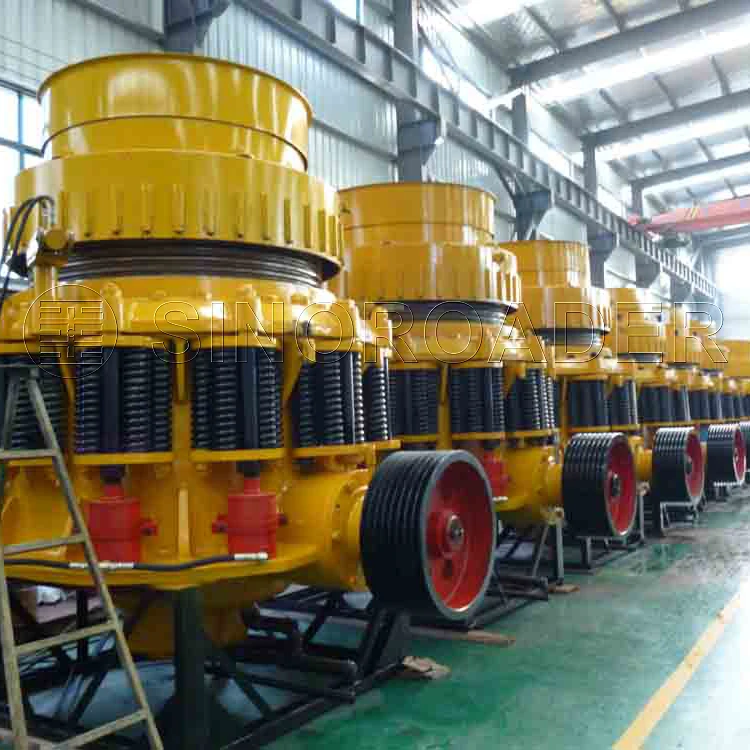

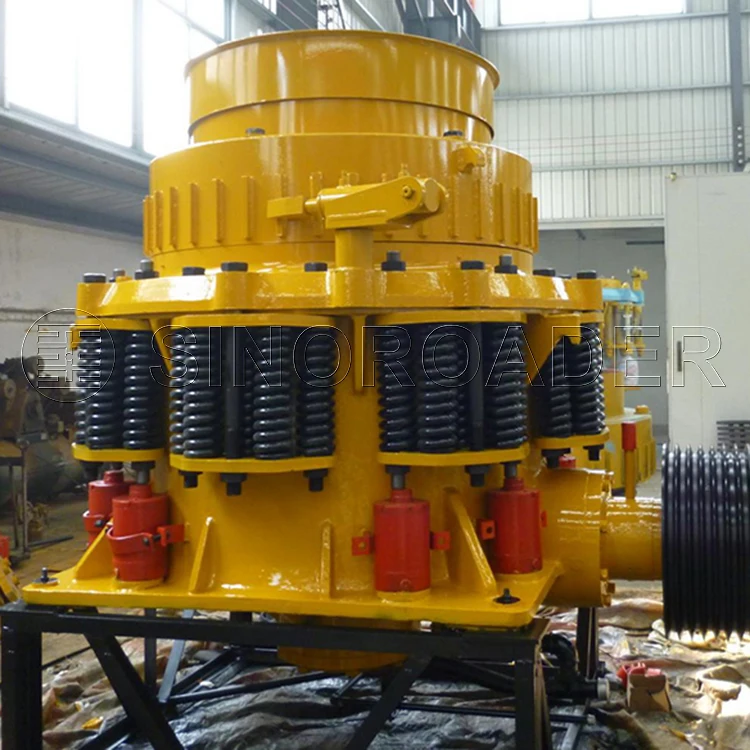

Cone Crusher
The Cone Crusher is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgy and so on. It can crush materials in middle and high hardness, such as ironstone, copper ore, limestone, quartz, granite, rock and so on.
The paryicle size is even and using this crusher decreases the circulating, and using multi-cylinder hydraulic clearing system can decrease downtime and save the working strength. This machine takes advantages of safety and easy maintenance, and its overload protection device can make the production steady.
Advantage:
1. Larger capacity achieved by the design of larger crush throw2. Setting of discharge opening is hydraulic drive
3. Grease seal reduces dust contamination effectively
4. Cavities of standard or short head are changeable through different mantles and bowl liners
5. Hydraulic overload protection device helps to remove tramp iron and reduce downtime
6. Thin oil lubrication station is outfitted with air_conditioning cooling system for better cooling performance.
When the Cone Crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle close to the bowl liner and far away from the bowl liner from time to time. The raw materials are pressed, impacted and finally crushed in the crushing cavity.

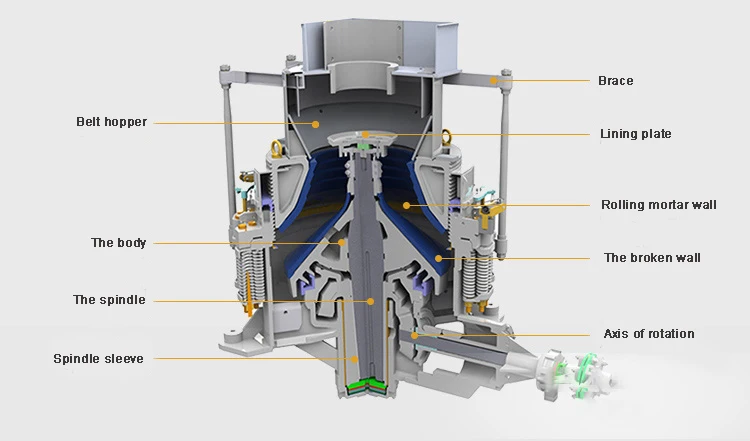

Product Structure
Model | Broken cone big end diameter (mm) | Width of Feeding opening(mm) | Adjustment range of discharge port(mm) | Capacity (tph) | Power (kw) |
HPM200 | 900 | 118 | 10-30 | 108-210 | 160 |
HPM300 | 1100 | 105 | 15-45 | 160-220 | 250 |
HPM400 | 1400 | 115 | 16-50 | 160-370 | 320 |
HPM500 | 1500 | 130 | 14-50 | 200-450 | 400 |
HPM800 | 2000 | 136 | 14-50 | 350-750 | 630 |
Why Choose Us
Company Profile
Henan Sinoroader Heavy Industry Corporation focuses on a modern enterprise integrating R&D, design, production, sales and after-sales service.
Since its establishment, the company has always been committed to the professional and experienced R&D team and production of mining crushing equipment, including Jaw Crusher, Impact Crusher, Scapling Screener, Tracked Crusher and some Road Construction Equipment etc., which Widely used in mining, quarry, metallurgy, chemical industry, building materials, highways, railways, tunnels and bridges, airport construction and other industries at home and abroad.

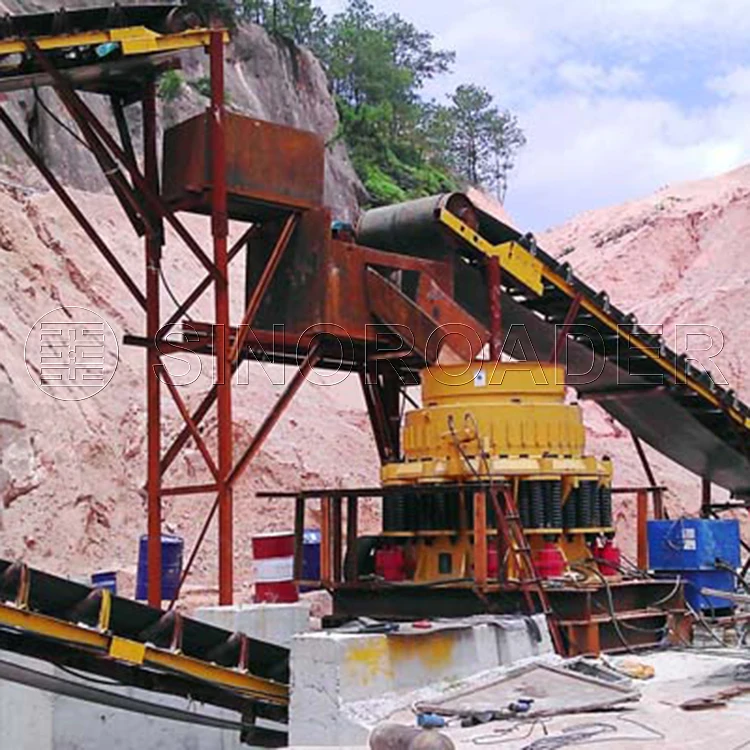

Customer Photos
