Inclined Welding Rotator Industrial Cylinder Pipe Tube Tank Roller Fit Up Extend Linkage Control Oscillator Electric Torch Head
- Category: >>>
- Supplier: Shandong Ouka Intelligent Equipment Co. Ltd.
Share on (1601048039679):
Product Overview
Description
Product Overview

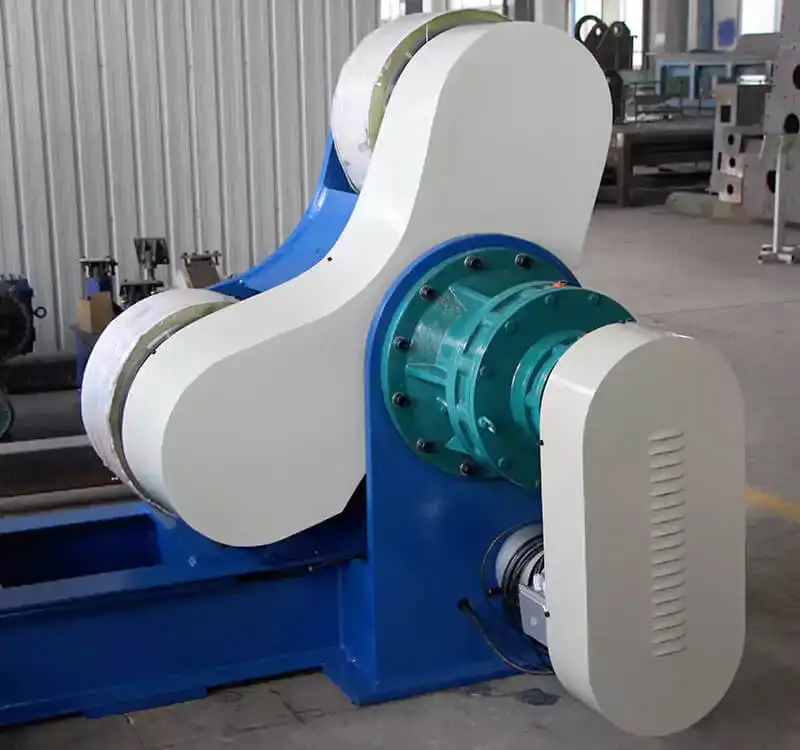

Self-Adjusting Pipe Welding Rotator
Advantages：Wide speed range, high precision, long service life, strong bearing capacity, and high friction.
Scope of Application：Widely used in wind power, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, surfacing repair and other industries.
Brief Intro：The self-adjusting pipe welding rotator can be adjusted according to the diameter of the cylinder.
Scope of Application：Widely used in wind power, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, surfacing repair and other industries.
Brief Intro：The self-adjusting pipe welding rotator can be adjusted according to the diameter of the cylinder.
Details Images
Features:

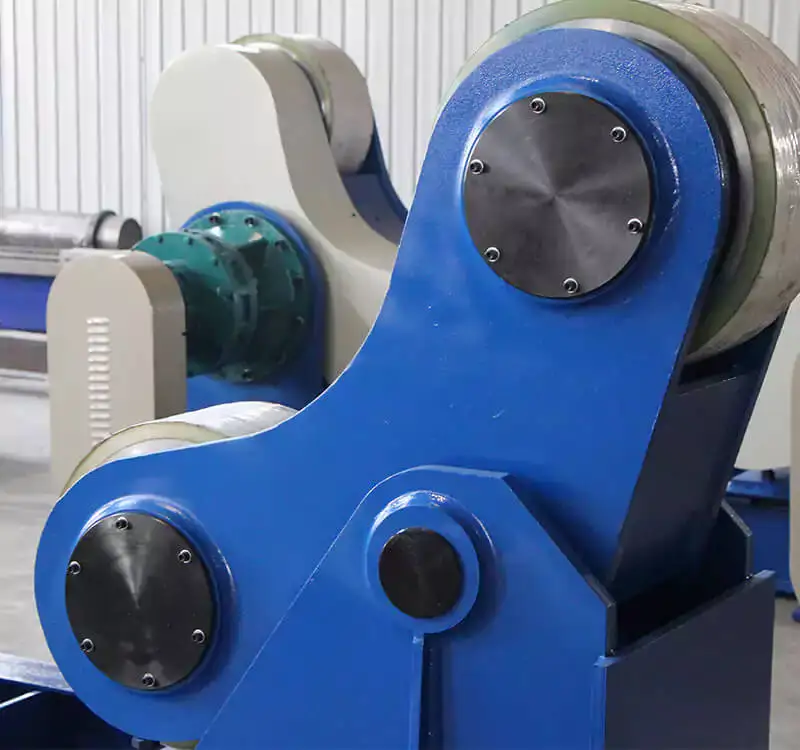

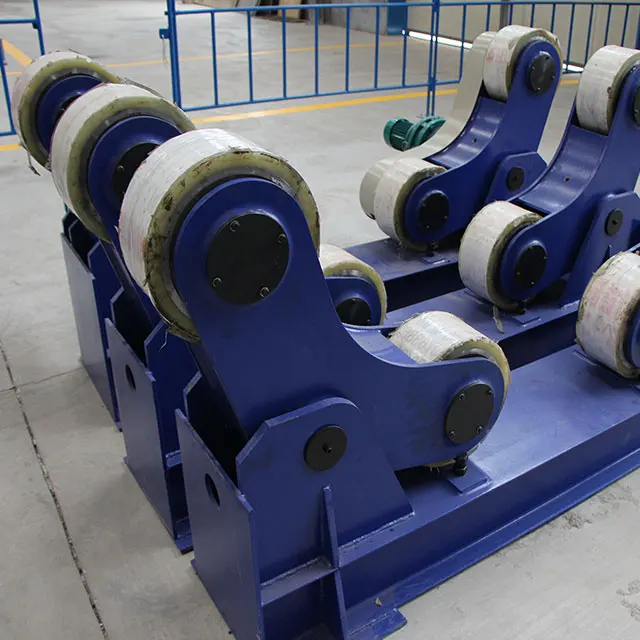

1. The self-adjusting roller frame automatically adjusts the angle of the roller bracket according to the diameter of the
workpiece to meet the support and rotation drive of different diameter workpieces.

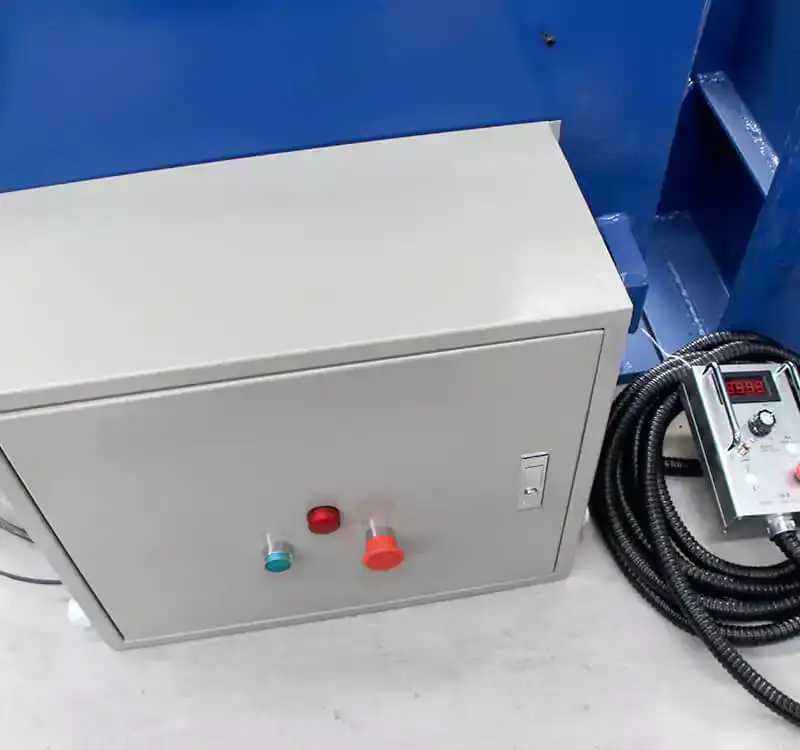

2. Adopt step-less speed regulation by inverter, wide speed regulation range, high accuracy, and large starting torque.
3. Adopting high-capacity bearing, no vibration, and long service life.
4. Combined box-type base, with high rigidity and strong bearing capacity.

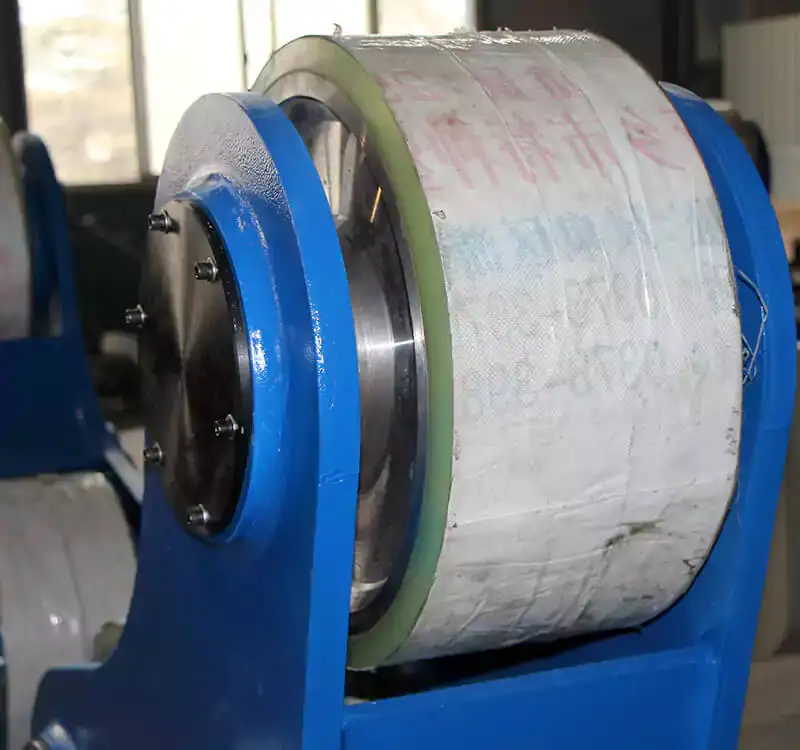

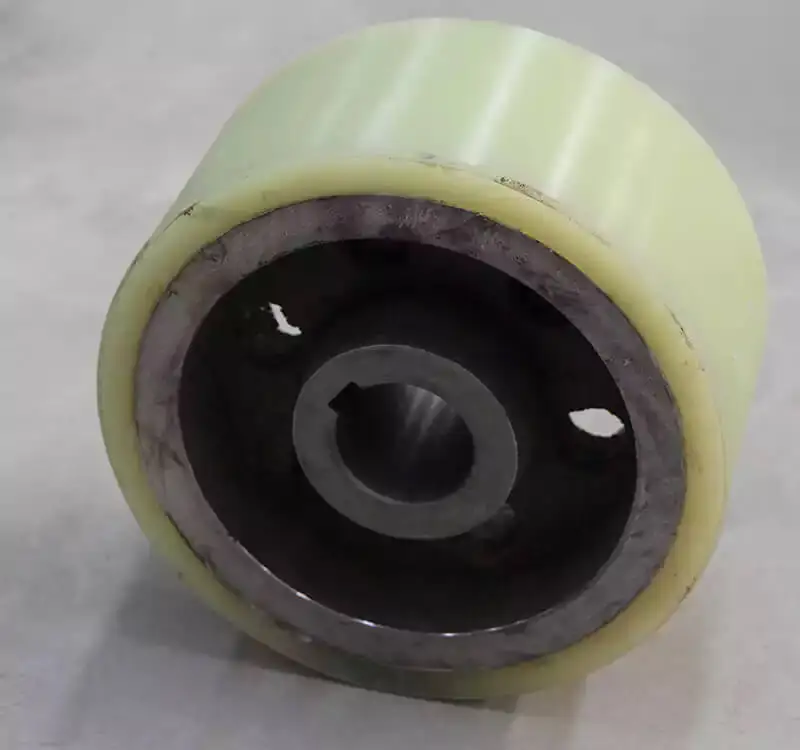

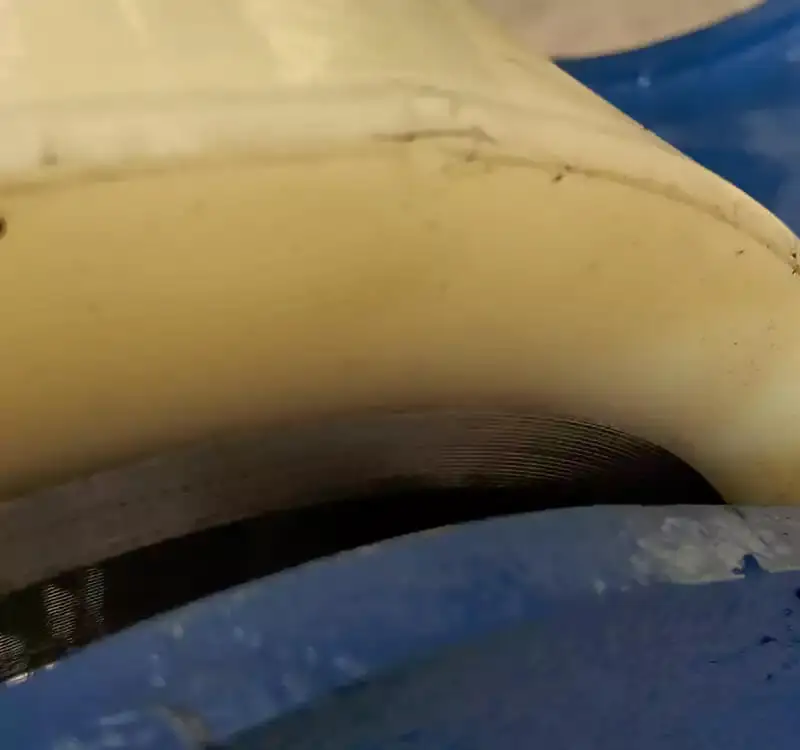

5. Specially designed grooved steel core rubber-faced roller with high friction, long life, and strong bearing capacity.
1. The self-adjusting roller frame automatically adjusts the angle of the roller bracket according to the diameter of the
workpiece to meet the support and rotation drive of different diameter workpieces.
2. Adopt step-less speed regulation by inverter, wide speed regulation range, high accuracy, and large starting torque.
3. Adopting high-capacity bearing, no vibration, and long service life.
4. Combined box-type base, with high rigidity and strong bearing capacity.
5. Specially designed grooved steel core rubber-faced roller with high friction, long life, and strong bearing capacity.
Product Paramenters

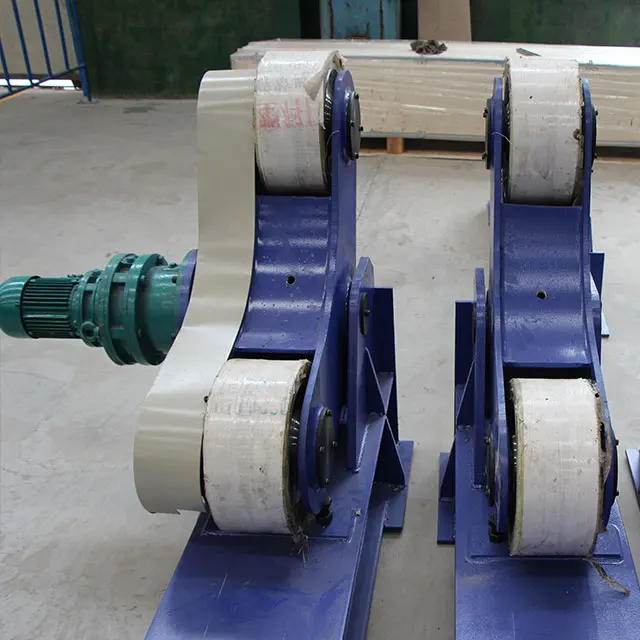

The self-adjusting pipe welding rotator can be adjusted according to the diameter of the cylinder. Its driving adopts the cycloid pin gear reducer mode or the worm gear reducer mode, and it is driven by two motors. According to the needs of users, the rollers are divided into three types: rubber wheels, steel wheels, and steel-rubber combination wheels; they can be linked and controlled with other equipment.
The roller frame is mainly used for welding, polishing, rubber lining and assembly of cylindrical cylinders, and can also be used with other tools to assemble and weld cones and segmented unequal-diameter rotating bodies. This product is widely used in wind power, pressure vessels, petrochemicals, pipelines, steel structures, boilers, shipbuilding, surfacing repair, and other industries. The factory can also design and customize various types of roller frames according to user needs.
The roller frame is mainly used for welding, polishing, rubber lining and assembly of cylindrical cylinders, and can also be used with other tools to assemble and weld cones and segmented unequal-diameter rotating bodies. This product is widely used in wind power, pressure vessels, petrochemicals, pipelines, steel structures, boilers, shipbuilding, surfacing repair, and other industries. The factory can also design and customize various types of roller frames according to user needs.
Model No. | HG1-10 | HG1-20 | HG1-30 | HG1-40 | HG1-50 | HG1-60 | HG1-80 | HG1-100 | |||||||
Loading capacity(t) | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | |||||||
Diameter of shell Min.(mm) | 350 | 600 | 600 | 600 | 750 | 800 | 900 | 900 | |||||||
Diameter of shell Max.(mm) | 3000 | 4000 | 4500 | 4500 | 5000 | 5000 | 5000 | 5000 | |||||||
Roller speed(m/h) | 6~60 | ||||||||||||||
Motor power(kw) | 2*0.55 | 2*0.75 | 2*0.37 | 2*0.55 | 2*0.75 | 2*0.75 | 2*1.1 | 2*1.5 | |||||||
Speed regulating mode | Frequency control | ||||||||||||||
Length(mm) | Actice 1585 Passive 1450 | Actice 2165 Passive 2125 | Actice 2410 Passive 2410 | Actice 2410 Passive 2410 | Actice 2600 Passive 2600 | Actice 2600 Passive 2600 | Actice 3020 Passive 3020 | Actice 3020 Passive 3020 | |||||||
Width(mm) | Actice 872 Passive 392 | Actice 1010 Passive 425 | Actice 1260 Passive 550 | Actice 1290 Passive 550 | Actice 1360 Passive 590 | Actice 1360 Passive 590 | Actice 1745 Passive 760 | Actice 1770 Passive 760 | |||||||
Height(mm) | 660 | 945 | 1125 | 1135 | 1135 | 1135 | 1400 | 1400 | |||||||
Recommend Products
Company Profile
Since established, Shandong Ouka Intelligent Equipment Co., Ltd.. has focused on introducing and cultivating high-tech talents and takes it as development strategy at present, many professionals have been brought together who specialize in researching and developing of CNC welding and cutting equipment. technical strength is always cherished as core competitiveness of our company.
With constant efforts of all staffs, our products have been sold well in domestic market and exported to many countries in theworld, including Australia, Indonesia, India, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, KZ, UZ, Sri Lanka, etc. During establishing the national brand of Ouka, we always hold the responsibility of culture communication between china and the world.
With constant efforts of all staffs, our products have been sold well in domestic market and exported to many countries in theworld, including Australia, Indonesia, India, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, KZ, UZ, Sri Lanka, etc. During establishing the national brand of Ouka, we always hold the responsibility of culture communication between china and the world.
Product packaging
FAQ
1.When the machine can’t work well, What should I do?
(1)Engineer is online for 24-hours, they can check the problems and then give you solutions in two hours.
(2)our machine is with one’s year warranty, If any problems of machine parts under “normal use”, new machine parts will be sent by air In free.
(3)Please rest assured that operation CD and manual will be offered along with the machine, making you can operate the machine easily. Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions andsolutions according to your requirements, the engineering feasibility and economic benefit, etc.
Provide knowledge of equipment operation and maintenance, Allows you to accurately grasp the characteristics of the machine. one year warranty, life-long maintenance services through email or telephone. Please feel free to use it. Supply all kinds of accessories and replacements.
2. Does your company accept the customized offer, we have a special need.
(2)our machine is with one’s year warranty, If any problems of machine parts under “normal use”, new machine parts will be sent by air In free.
(3)Please rest assured that operation CD and manual will be offered along with the machine, making you can operate the machine easily. Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions andsolutions according to your requirements, the engineering feasibility and economic benefit, etc.
Provide knowledge of equipment operation and maintenance, Allows you to accurately grasp the characteristics of the machine. one year warranty, life-long maintenance services through email or telephone. Please feel free to use it. Supply all kinds of accessories and replacements.
2. Does your company accept the customized offer, we have a special need.
Ouka CNC is a company that focuses on research and manufacture of modular CNC machines. We have very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long
as you have a certain amount of needs.
3. What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
4. Does your company accept CIF price?
CIF price includes the shipping cost of the CNC machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such a need. CIF price also includes marine premium which is 2‰ of 1.1*total amount.
5. What are your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. The exported CNC machine is all be packed by a wooden case which can be fixed into a 40 HQ.
6.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
7. Does MC have a maintenance manual and operation manual?
Each CNC machine leaving the factory will be along with a related series or model the English instructions including maintenance manual and operation manual. Attached documentation may also include CNC controller instruction, parts instruction you bought(like
a rotary table, oil cooler).
as you have a certain amount of needs.
3. What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
4. Does your company accept CIF price?
CIF price includes the shipping cost of the CNC machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such a need. CIF price also includes marine premium which is 2‰ of 1.1*total amount.
5. What are your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. The exported CNC machine is all be packed by a wooden case which can be fixed into a 40 HQ.
6.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
7. Does MC have a maintenance manual and operation manual?
Each CNC machine leaving the factory will be along with a related series or model the English instructions including maintenance manual and operation manual. Attached documentation may also include CNC controller instruction, parts instruction you bought(like
a rotary table, oil cooler).
