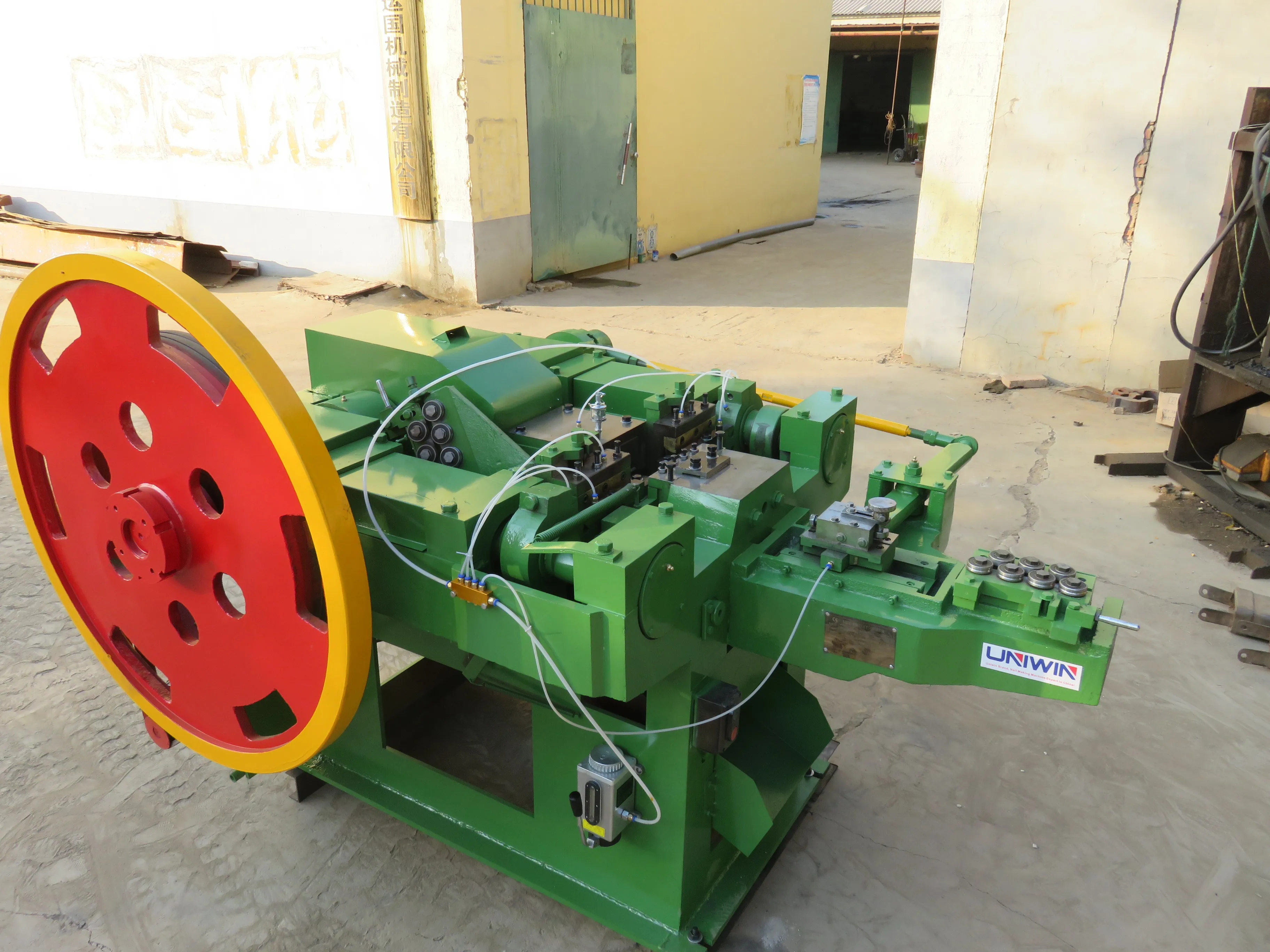

Automatic Wire Nail Making Machine Z94 1C Z94 2C Z94 3C Z94 4C Z94 5C Z94 6C

Product Overview

Description

Automatic Wire Nail Making Machine Z94-1C Z94-2C Z94-3C Z94-4C Z94-5C Z94-6C

 UNIWIN Nail making machine is designed for 1-6 inch nails, just feed the wire Q195/SEA1008/ SEA1006/Q235 low carbon steel wire into nail making machine, it will cut the steel wire into nails.





Features of the wire nail making machine



z94-4C series is our new designed product with the advantages of :



1. Very low noise, the noise will not let people feel uncomfortable .



2. wire nail making machine main parts(Shaft, Cam, Gear) are made of high grade steel with professional heat treatment to ensure nails machine have longer working life and less time maintenance.

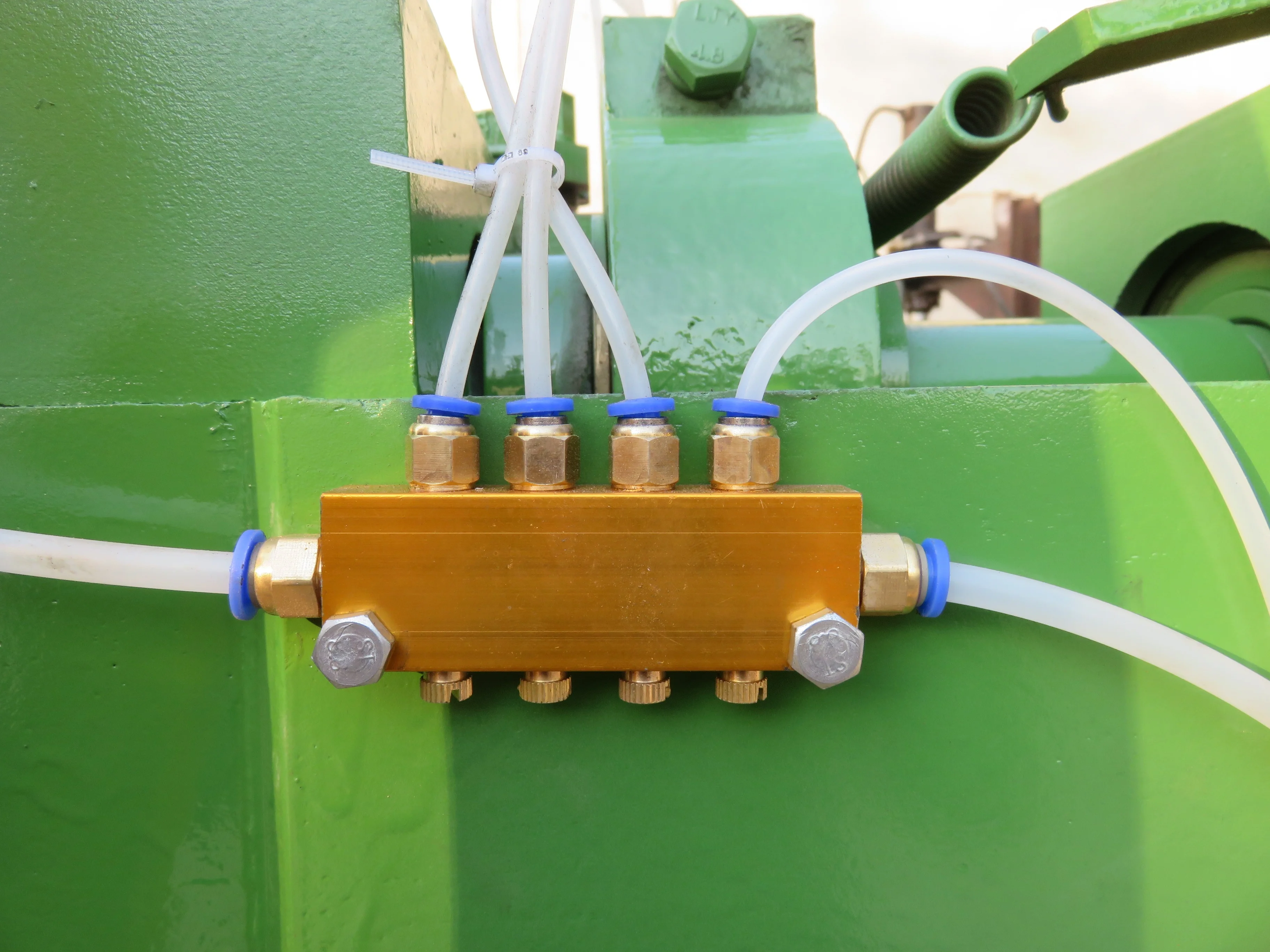

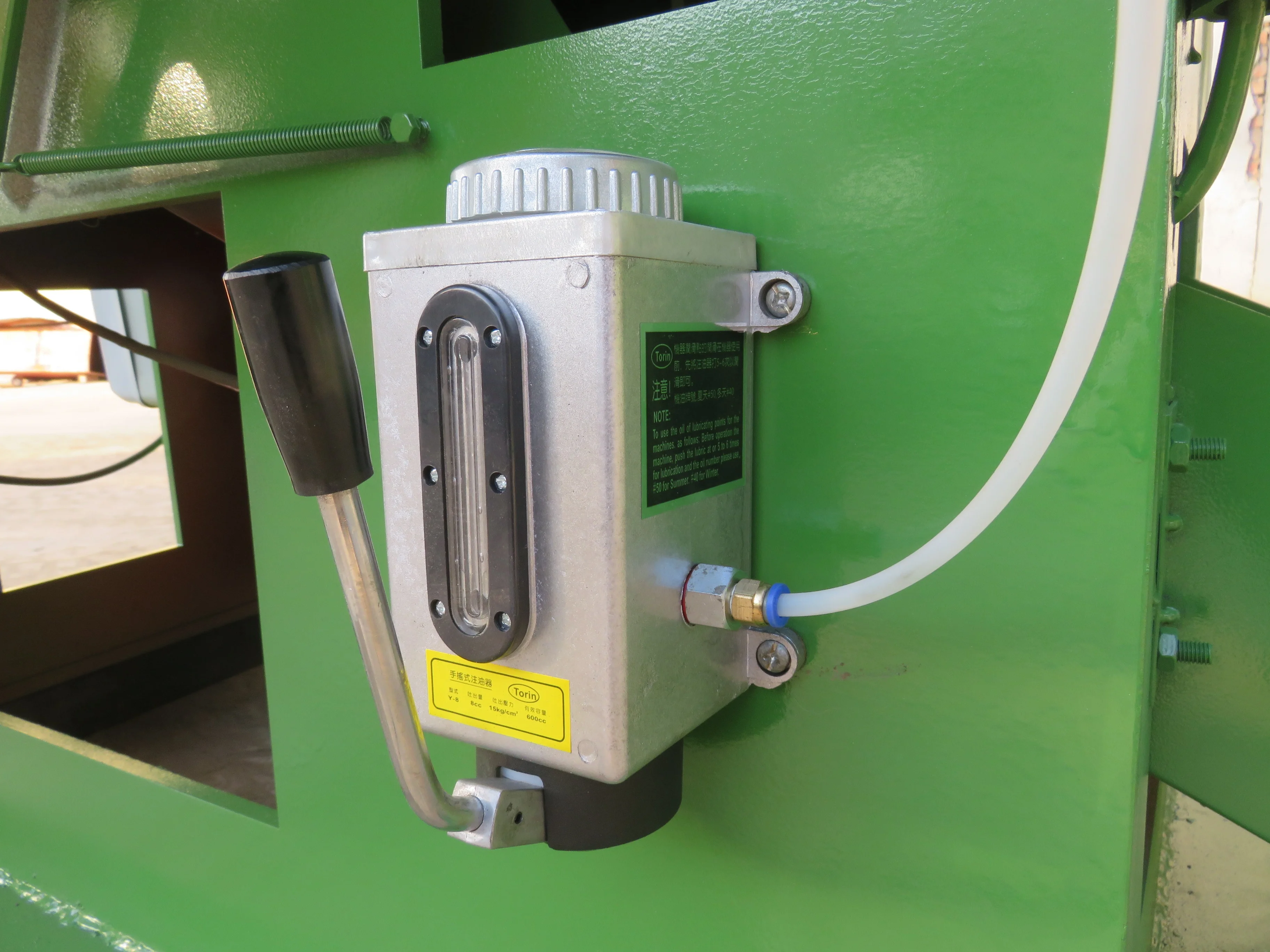

3. Auto lubrication: just add the lubricant into the small oil tank, then the machine can lubricate machine parts automatically.



4. Bearing structure and longer lifetime.



5. Each wire nail making machine will supply related spare parts of nail mould ,nail knife and punch pin, ect .





Model of Nail making machine	Z94-5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C
Max. dia. of nail	5.5mm	4.5mm	3.1mm	2.8mm	1.6mm
Min. dia. of nail	3.8mm	2.8 mm	1.8 mm	1.2 mm	0.9 mm
Max. Length of nail	150mm	100mm	75mm	50mm	25mm
Min. length of nail	80mm	50 mm	30mm	16mm	9mm
Motor power	5.5kw	4kw	2.2kw	2.2kw	0.8kw
Nail making speed	220pcs/min	260pcs/min	320pcs/min	350pcs/min	450pcs/min
L*W*H	2.5*1.8*1.5m	2.2*1.6*1.65m	2.0*1.4*1.4m	1.9*1.356*1.4m	1.55*1.3*1.1m
Weight	2.2tons	2tons	1.5 tons	1 ton	750kg





Whole nails making Process of wire nail making machine



The whole process of nails production line: wire drawing --- nails making ---polish --- nails packing

1. Wire drawing machine -- to draw the 6.5mm/5.5mm wire diameter to the smaller wire size diameter to make nails as your required such as 4.1mm, 3.4mm, 3.1mm, 2.5mm etc. wire diameter
2.Automatic wire nail making machine --- feed the drawn wire into nail making machine to make nails.
3. Polishing machine -- to polish finished nails to remove the thron and dust and make nails more black and shiny.
4. wire nails Packaging--- pack the nails in cartons or plastic bags, or kraft bag in 5kg, 10kg, 15kg, 20kg, 25kg nails, etc.











Z94-4C series wire nail making machine :

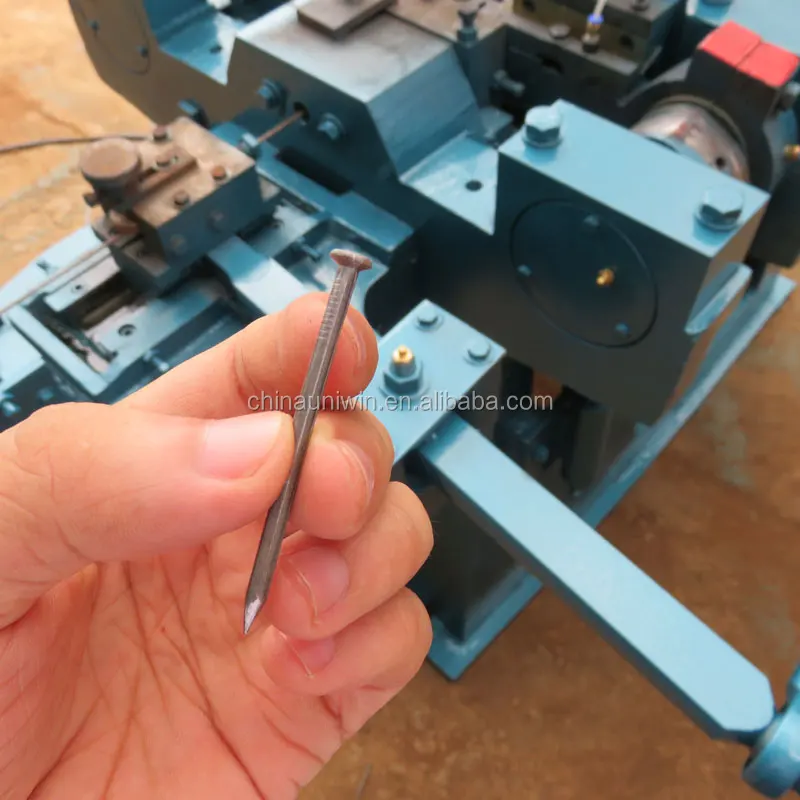

The function of nail making machine is to make the nails into different size through adjust the nail making machine. It needs to put the suitable wire diameter into the entrance of the nail making machine, then start the nail making machine, it will finish nail making automatically.

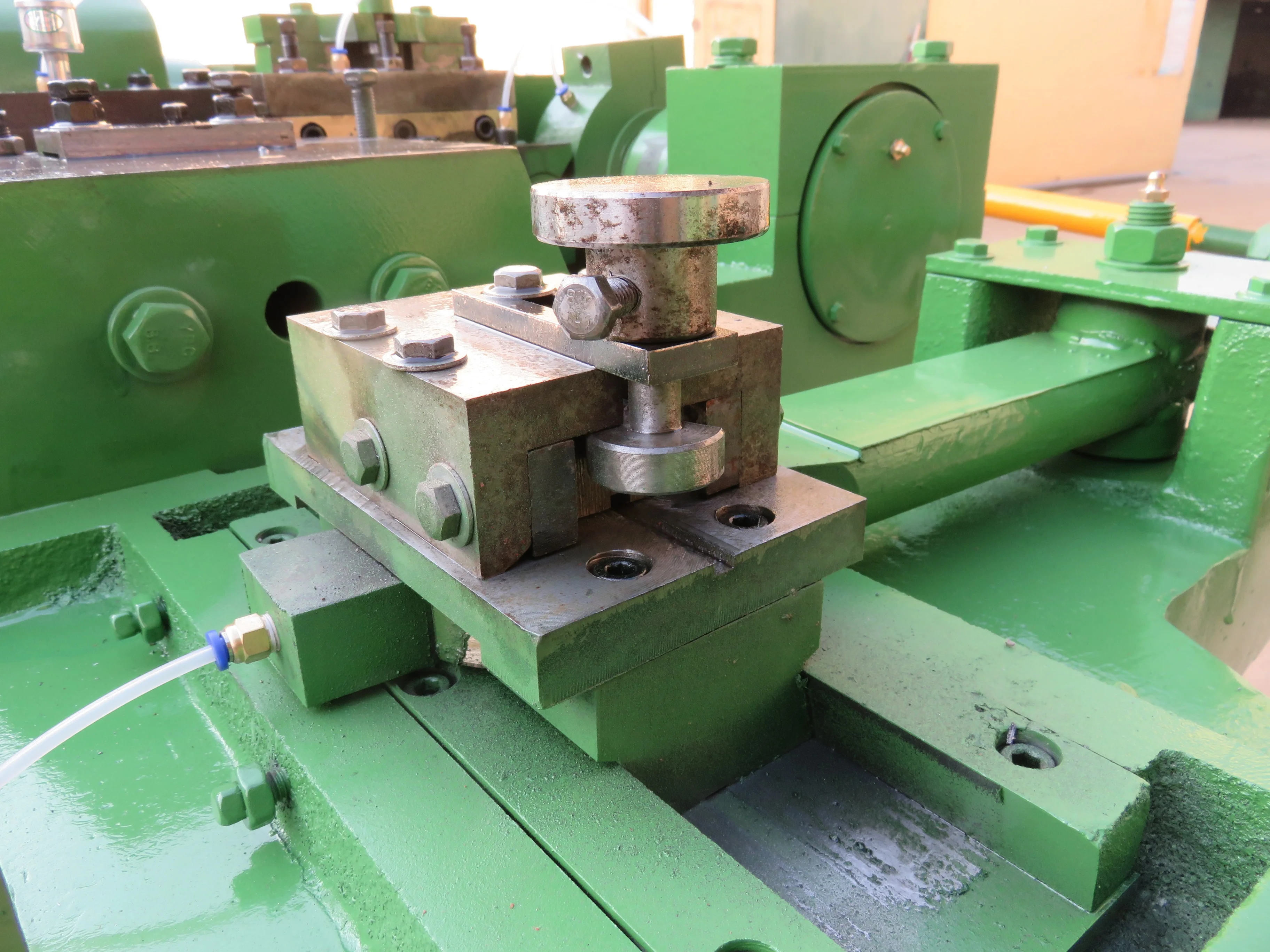

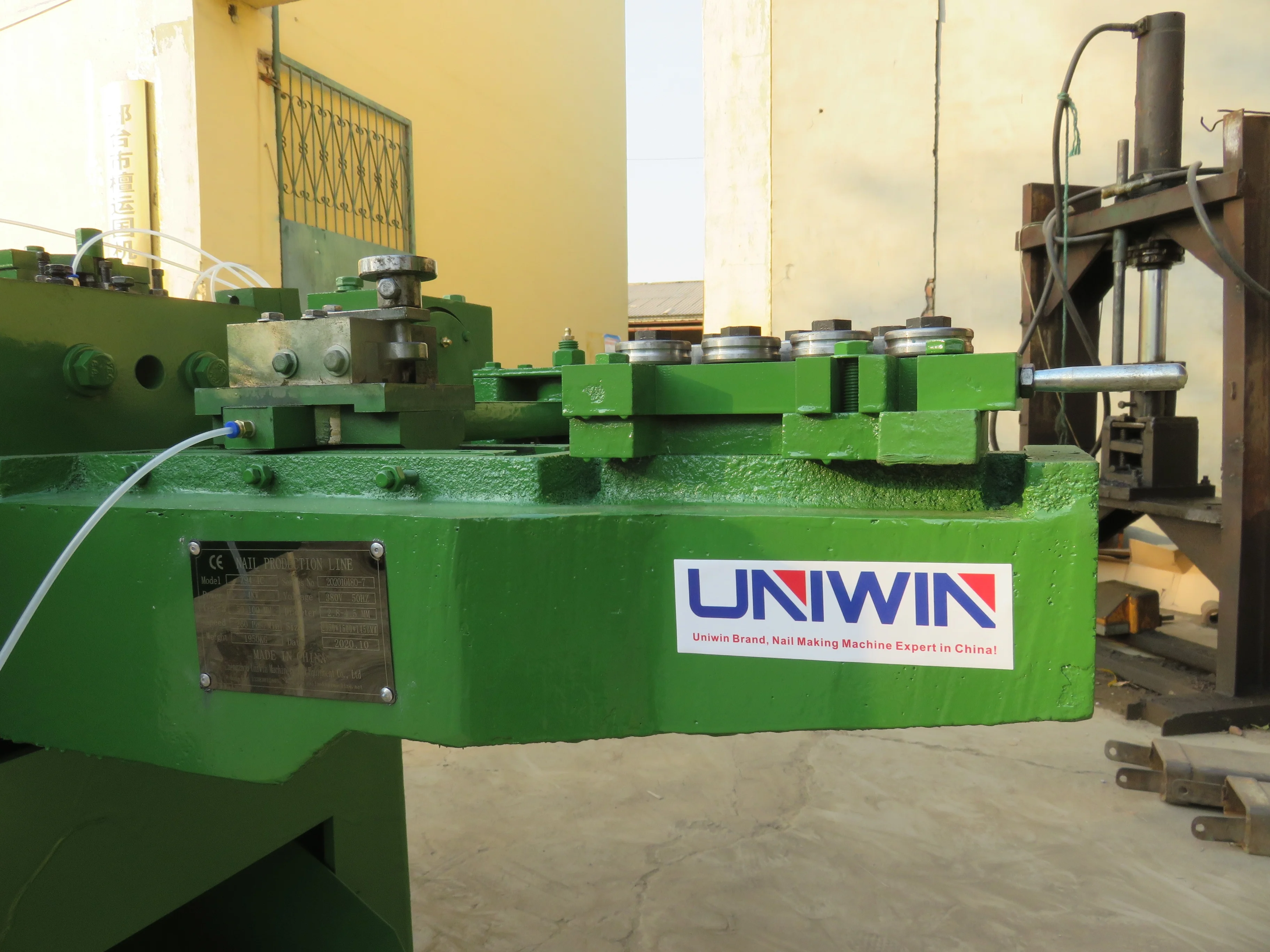

  wire nail making machine structure detailed pictures



For our nail making machine, it is strengthened type, the frame is more heavy to ensure the fixedness of frame after tension. we pay more attention on every small parts details, all these small details ensure the best quality of the nail making machines so that it can run for many years without problem.

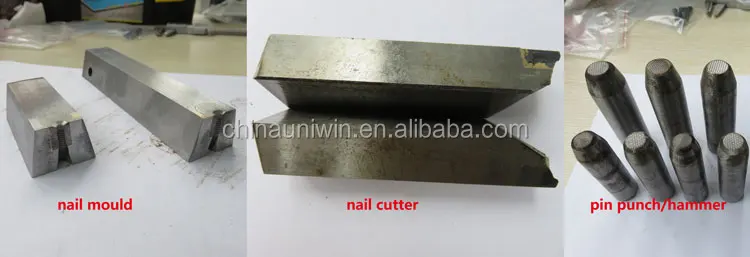

wire nail making machine Spare parts:



• nail mould/Grip Die:
  to clamp the wire for the nail knife to cut, to make different diameter nails, it needs to change different nail mould.



•  Nail cutter/Nail knife: to cut the steel wire and make the nail point.


•  Pin Punch/ Hammer: to make nail head. And also nail head can be customized with customer's simple logo.









Customer visiting



Welcome customer s visit our factory to see our nail making machine and its production process, and also welcome customer bring their material samples for testing in our laboratory and talk with our engineer and then choose suitable filter press.



A: We are manufacturer since 1992. As many manufacturers, we first do business in domestic trade, and then do exporting business since 2008.



Q: Can I visit your factory ?
A: Yes, welcome to our factory, you can see every production details in our factory. we are manufacturer with more than 26 years experience for nail making machine.



Q: What’s the guarantee of the machine?
A: We will provide 1 year warranty.



Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
