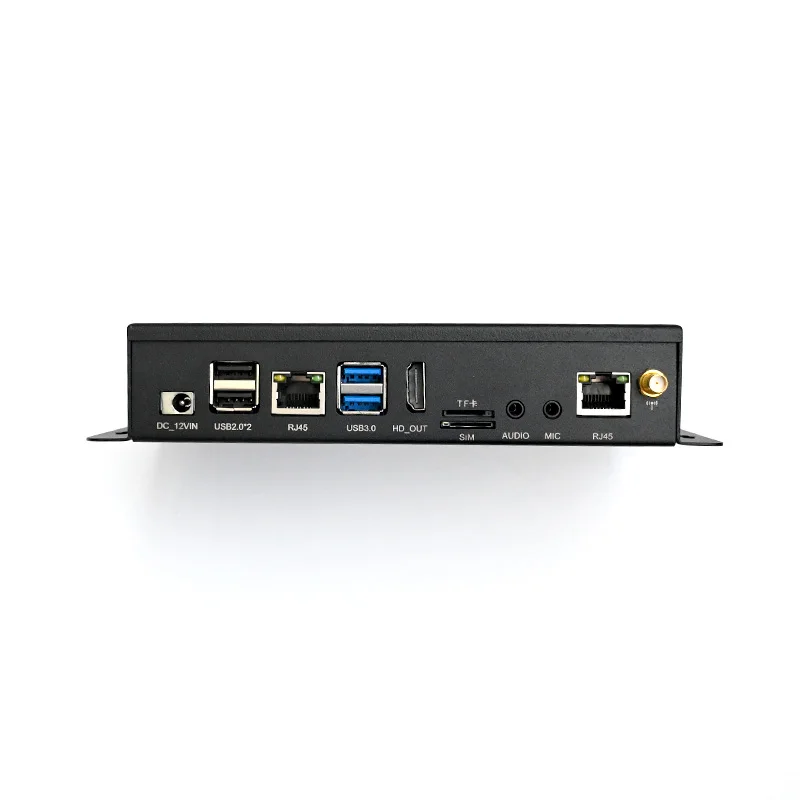

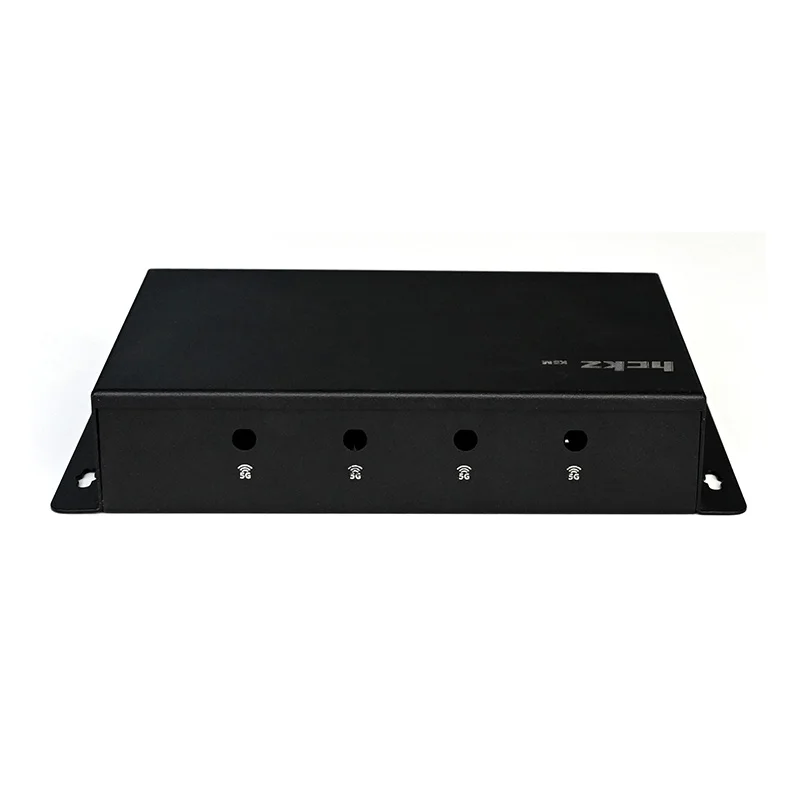

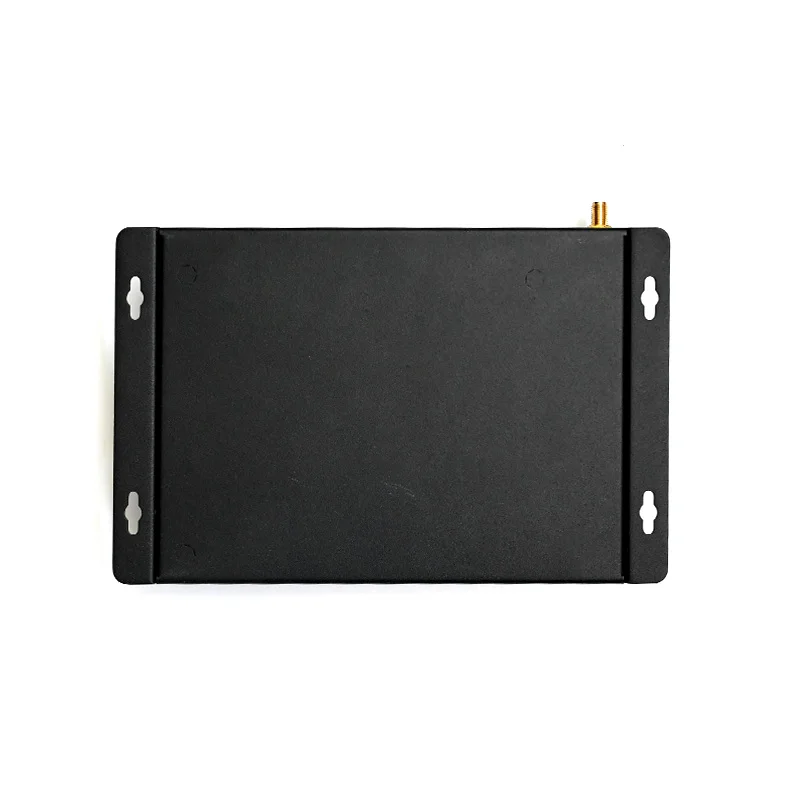

New Smart K5M Adopt RK3568 4K Digital Signage Media Player Box For LCD Advertising Display LED HD MI2.0 Out
- Category: >>>
- Supplier: Shenzhen Giantsmart Technology Co. Limited
Share on (1601048207018):
Product Overview
Description
Details Images
The Final Price Depends on the Functions and Specifications you need? All of prices are RK Mini PC(Motherboard+CPU+Case). If you need Memory,DDR,EMMC,WIFI,License operating system,4G,5G,GPS,power adapter and other accessories, please contact us to get the prices. If you need to purchase in large quantities, or want to know about promotional activities/clearance sale, please contact us for the best price. Notice: The prices will vary with exchange rates and material costs,If you want to know the latest price, please contact us Thank you for your support *Motherboard Features: (customize the functions you need)* | ||
Specification
Model K5M | ||
Model | K5M | |
CPU | RK3568 chip, Hexa core, Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz | |
GPU | ARM G52 2EE/support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 | |
NPU | Support 0.8T computing power | |
OS | Android 11 | |
DDR | LPDDR4 4GB | |
Emmc | 16-128GB | |
FAN | X1 5V | |
RS232 | X2(RS232X2+TTL*2/ RS458X1+TLL*1)(optional) | |
RS485 | X1(RS232X2+TTL*2/ RS458X1+TLL*1)(optional) | |
LAN | X2 Gigabit | |
GPIO | X 3 3.3V/5V Out and in | |
WIFI | 2.4-5.8G | |
IR | X1 | |
BT | V4.2/v5.0 (optional) | |
USB2.0 | X2 built in pin | |
USB2.0 | X2 external usb OTG X1 | |
USB3.0 | X2 external usb | |
TF Card | 16-128GB | |
SIM Card Slot | X1 | |
HD-MI OUT | 2.0 4k-60fps | |
LVDS | X1 13.3-108 inch（1080P） support 3.3V/5V/12V power supply | |
eDP | X1 (eDP1.3 , 4 lanes with 5.4Gbps), support 3.3V/5V/12V power supply | |
MIPI | X2 MIPI camera | |
MIC in | X2 support external mic | |
Audio out | Audio Jack Phone Φ3.5mm | |
Speaker | X2 (10W 8Ω) | |
DC in | X1 （12V in ，Auto boot when power supply） | |
SATA | X1 to SATA /Teyp-C HDD 2.5inch (DC:12V/5V) | |
4G/5G_M.2 | X1 Mini_PCIE 4g Model/SSD LTE-TDD/LTE-FDD/TD-SCDMA/EDGE（optional） | |
LED | X1（Run:blue Standby：red） | |
Debug | X1 | |
Power KEY | X1 Press power key to start system (optional) | |

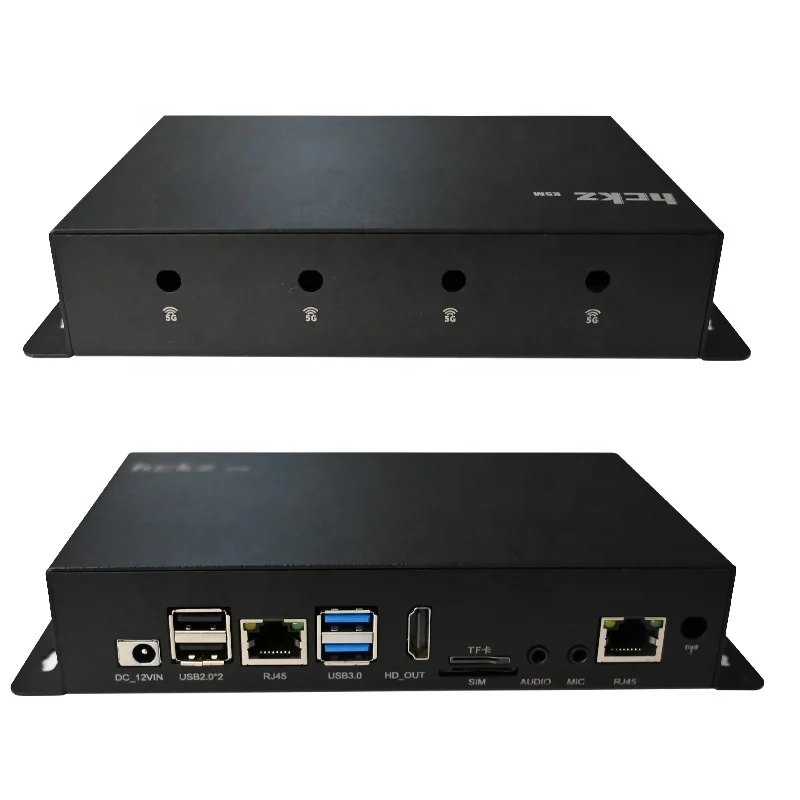

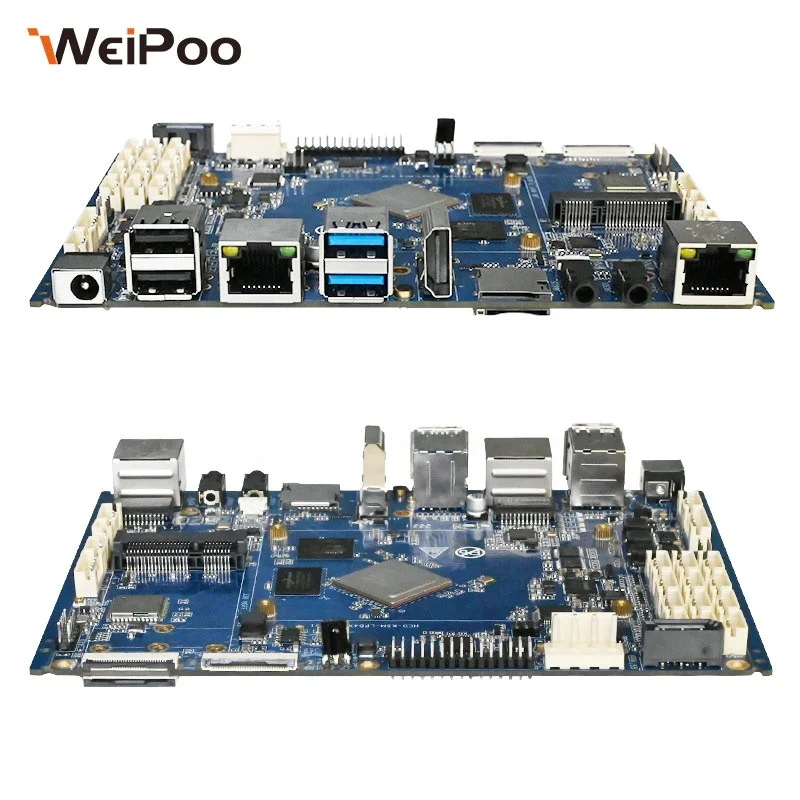

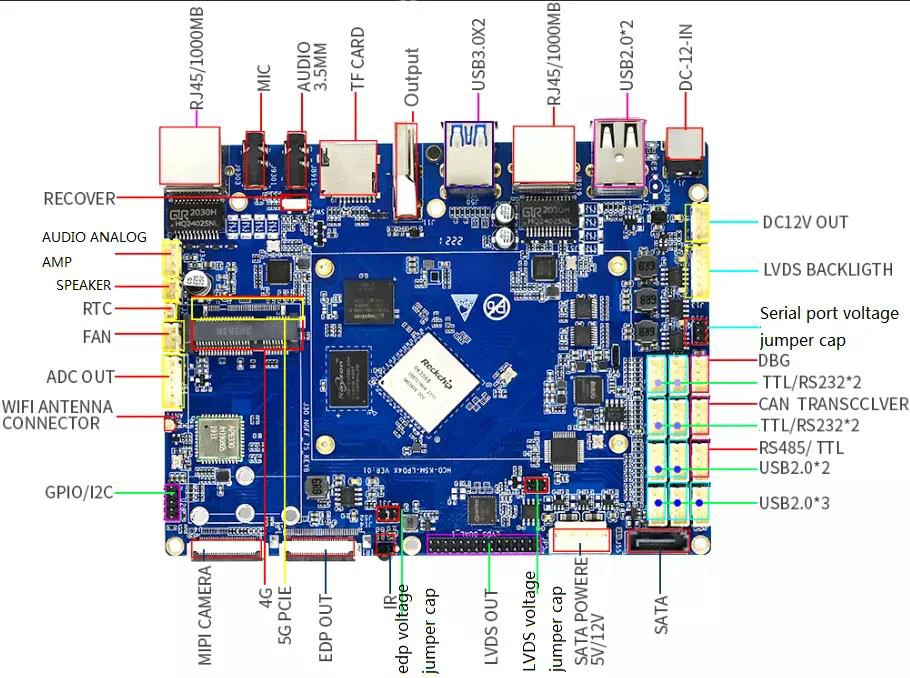

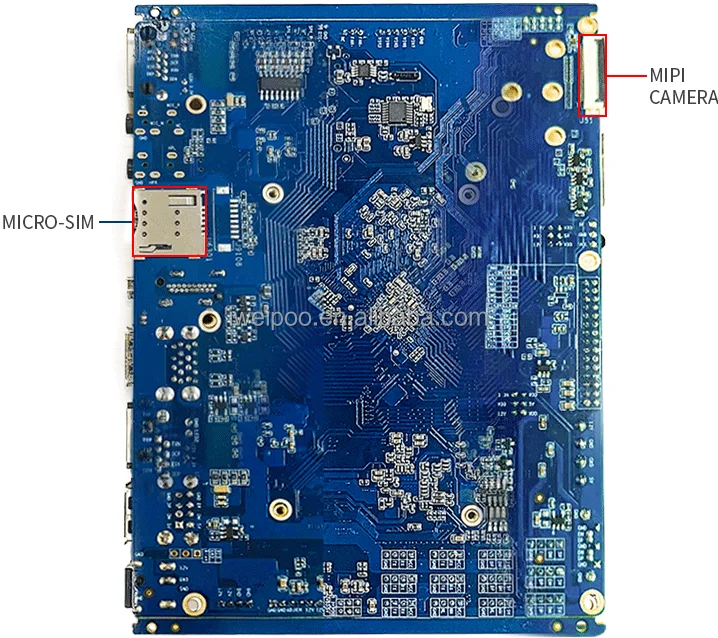

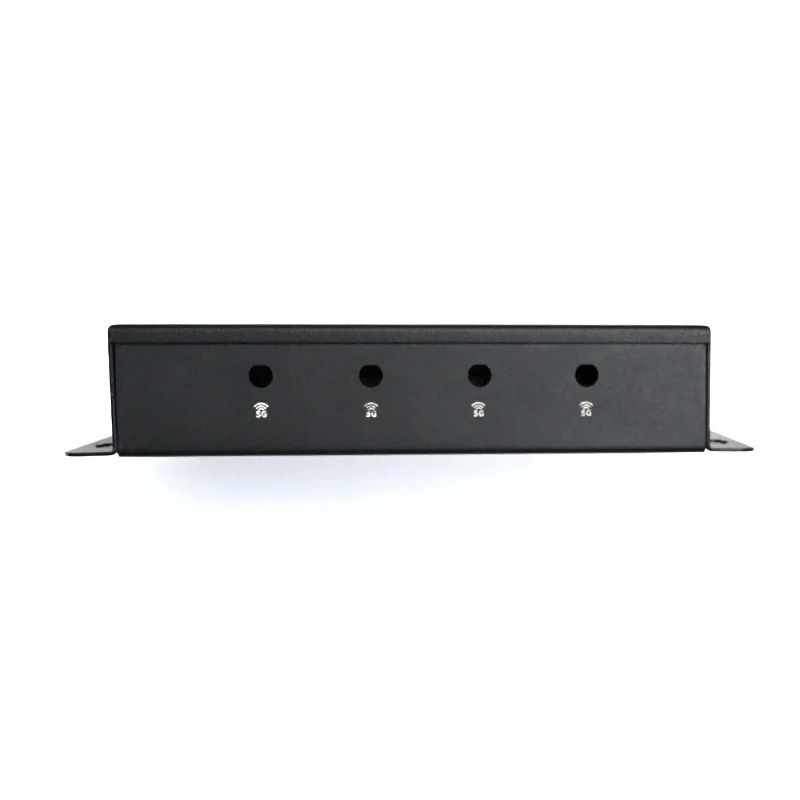

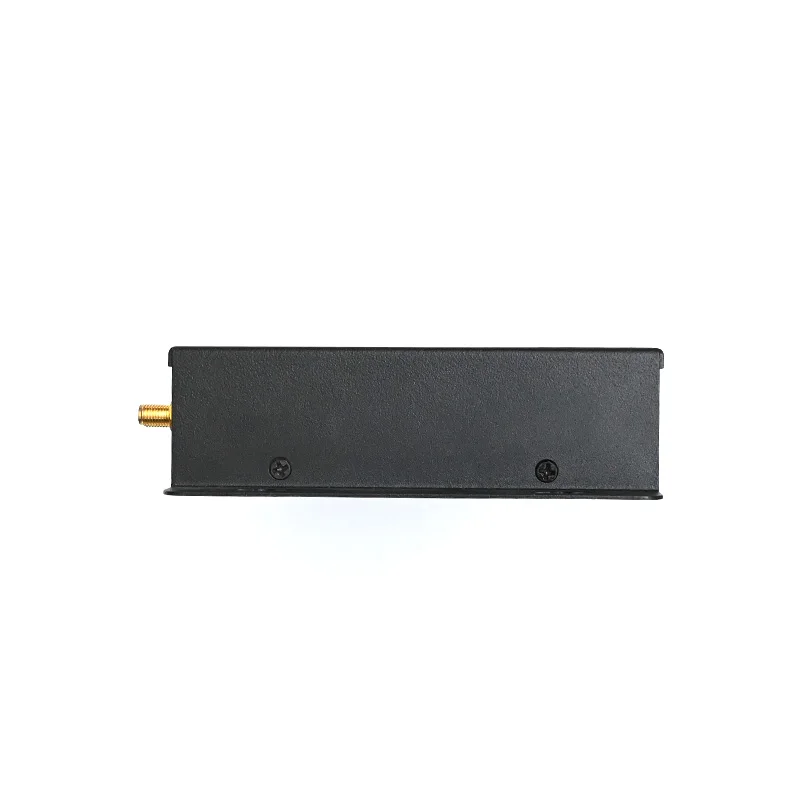

Details Images

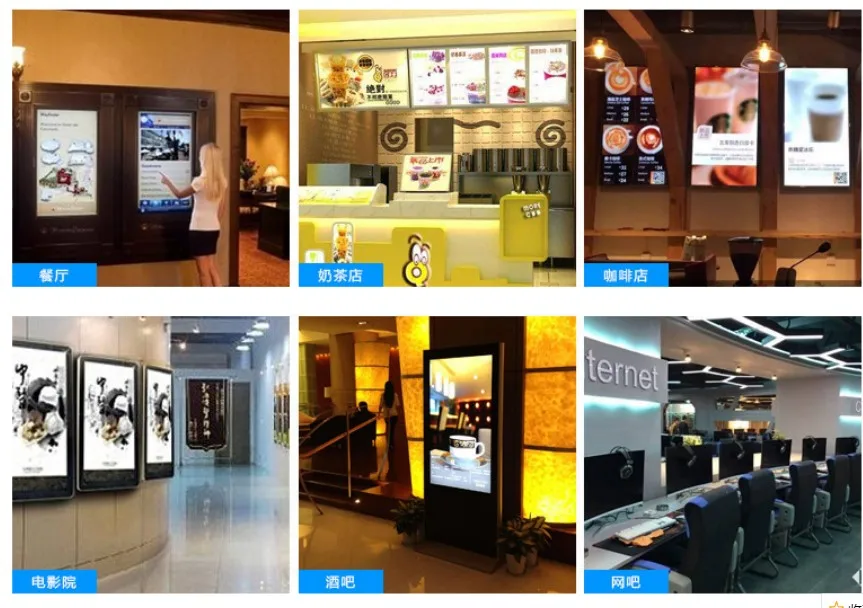

Application: Finance retail,Advertising machine,Network Security,Firewall Host,Firewall Server,Firewall Computer,Audio Player/Server,Electronic map machine,All-in-One PC,PO-S cash register, Interactive ordering machine in restaurant,Intelligent transportation,Digital signage, Education IWB(Interactive Whiteboard),Conference electronic whiteboard,Industrial PC, Subway/Metro/MRT/Tube/automatically Entrance&Export gate,Face recognition turnstile gate,Industrial camera,Data collection,Video capture,Automatic welding machine,Industrial robot,Bank ATM and other fields. | ||||||||
Packing Deliver and Shipping | ||||||||
Packing:
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag andseparated by stiff cardboards in carton boxes. 30pcs/carton size: 40.6x35.4x16.8cm
3 working days after received full payment(In stock).
Express:DHL,Fedex,UPS,TNT,etc.
Recommended Products | ||||||||
Company Profile
The company has been committed to RK Chip solutions as the leading direction, focusing on providing customers with ARM motherboard customized solutions, including hardware design, operating system, application software development, etc. At present, we provide a series of ARM motherboard and host, intelligent box, industrial computer, TV stick , etc. The application field covers intelligent business display, intelligent retail, KTV karaoke machine, intelligent education, vehicle-mounted advertising, security access control and other intelligent terminals. We adhere to "customer-centric, quality-based“. With a spirit of continuous improvement, we will better serve our customers and create a more brilliant tomorrow! | ||||||||
Exhibition Show

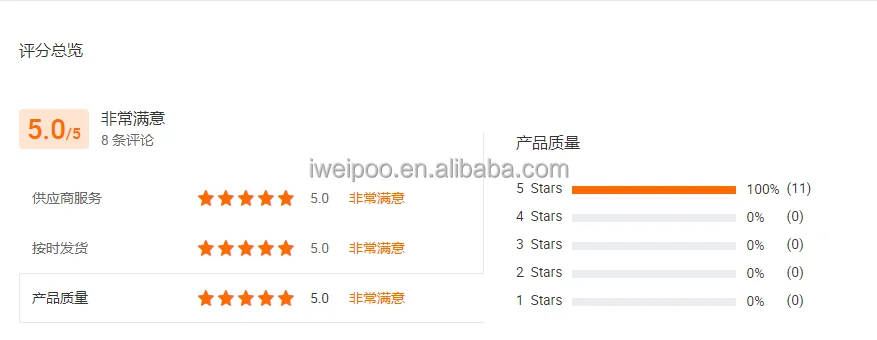

My Reviews | ||||||||
Our certifications | ||||||||
Why Choose Us | ||||||||

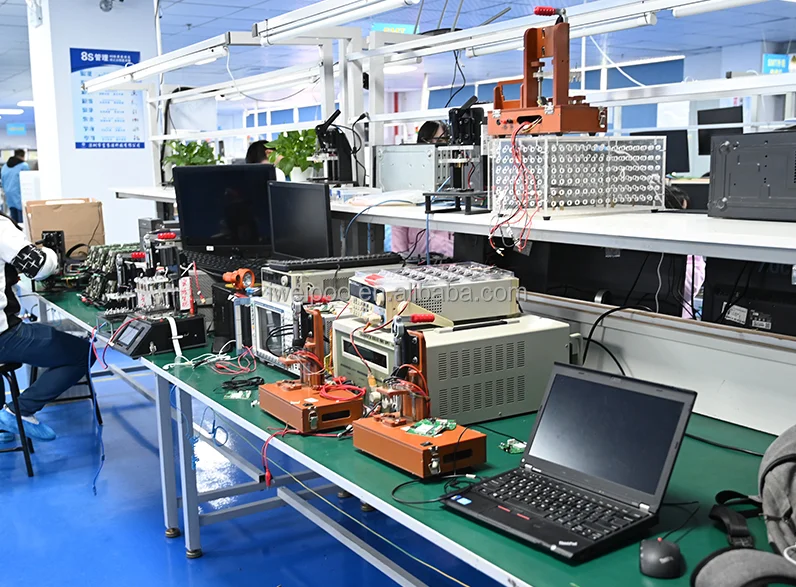

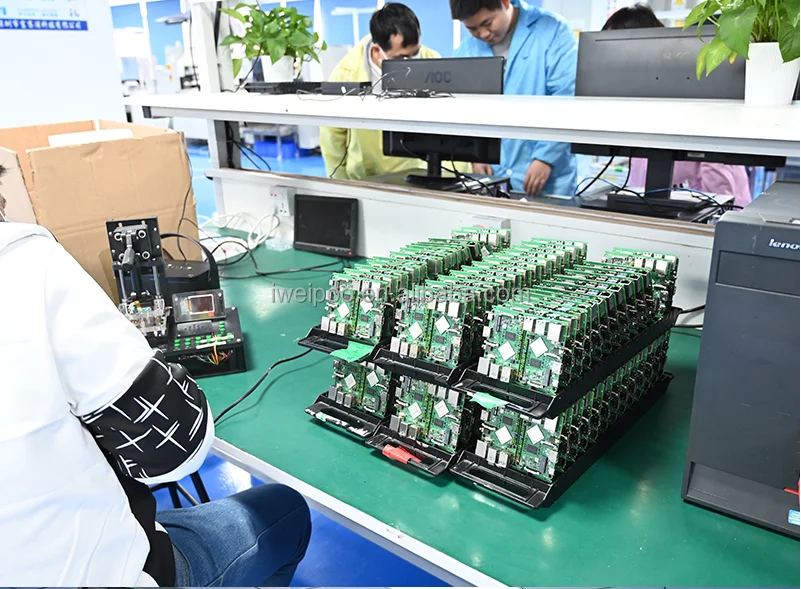

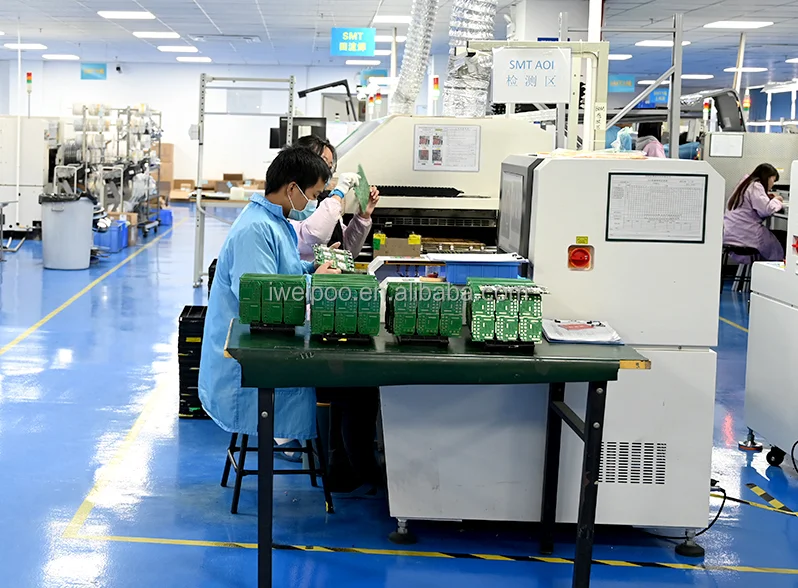

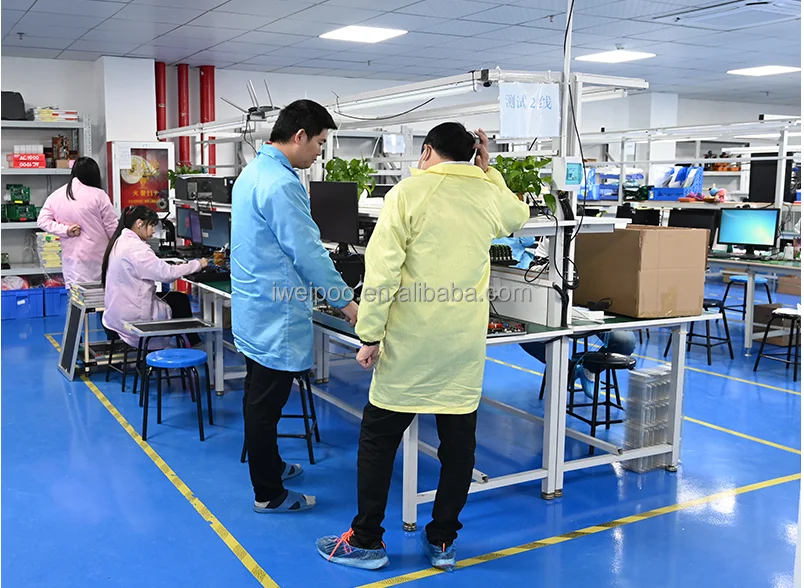

we are professional manufacturer for intelligent control since established in 2012. **Specialized in ODM / OEM **Strong R&D department team of 10 people **2000 square meters plant area, 200+ workers, 3 production line **Some of our Partner: Baidu / KFC/ COSHIP / Brazilian professionals How to order? 1. Please let us know the model you need. 2. We will make performa invoice for you. 3. Please check and confirm the Invoice. 4. Once we confirmed the order,please pay it soon. 5. After payment , all goods will be sent to you in 2-3 days as usual. 6. We will track the package until you get it. After service: 1. warranty:1 year 2. Give replacements if there is quality problem of the part in your next order 3. Can print client's LOGO on the battery /atomizer and packing 4. Replacement for Spare Parts if there is any faulty | ||||||||
