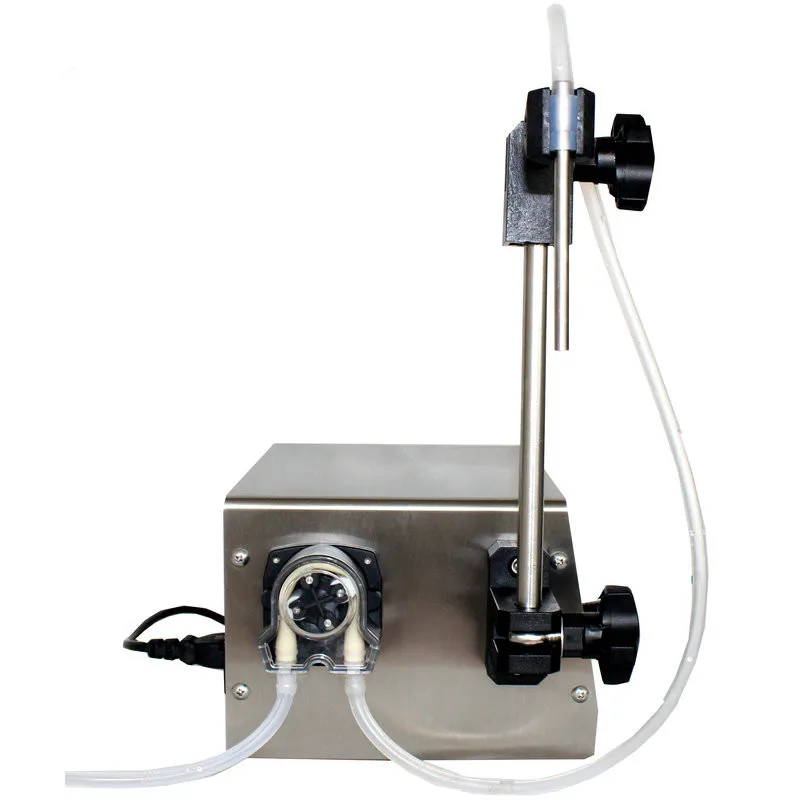

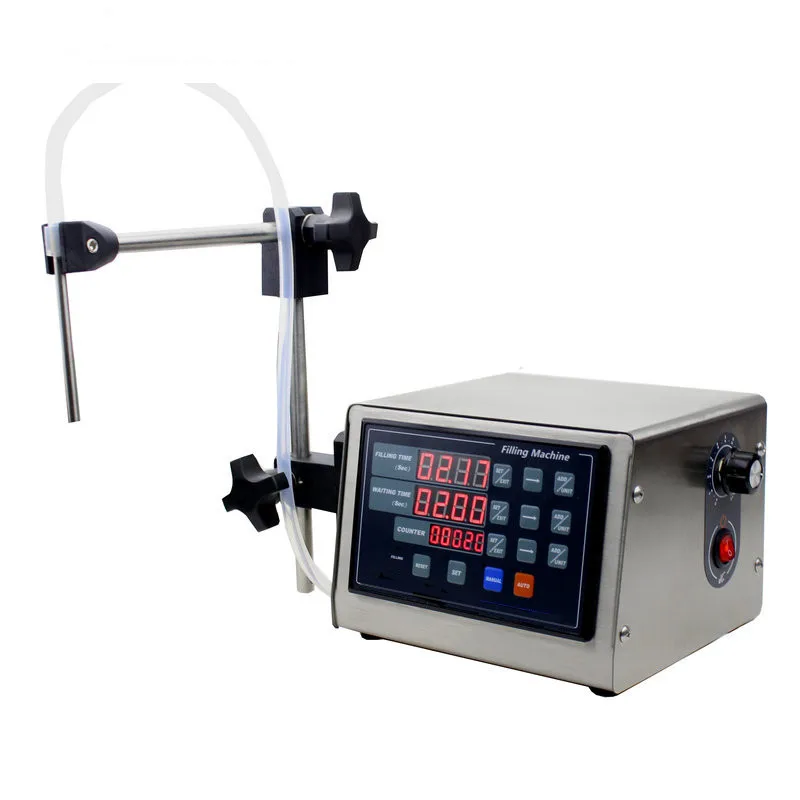

factory wholesale small scale stainless steel peristaltic pump perfume bottle filling machine

Model

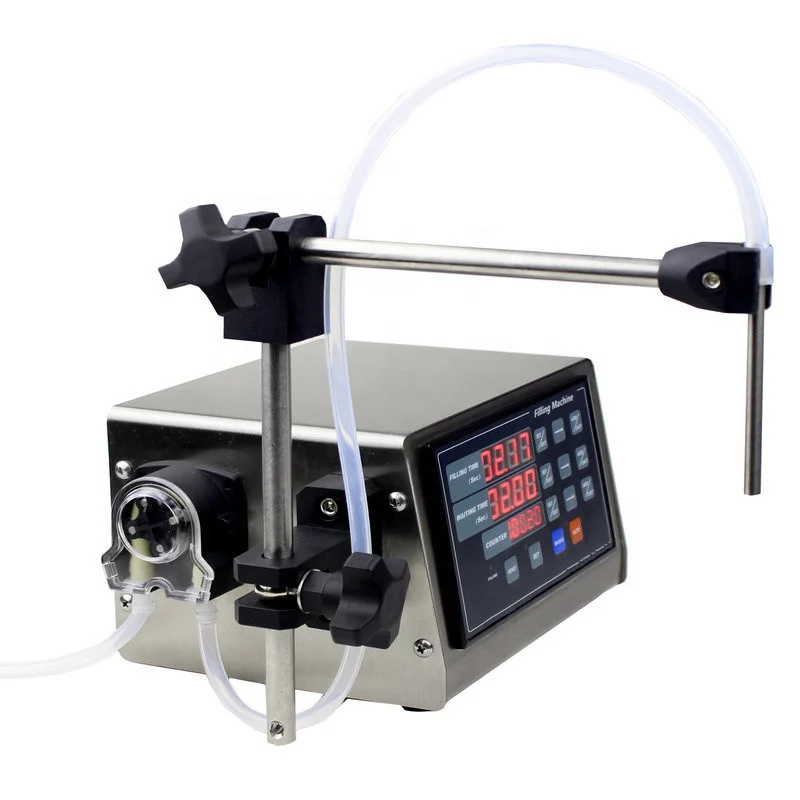

DC1-6BPeristaltic Pump filling machine

Filling pump

S300-JZ15 peristaltic pump

CPU

ARM Cortex-0 Core, STM32 Chip

Motor drive chip

THB6128 SANYO driver chip

Filling tube

Import 17# long-life peristaltic pump tube (with the import food grade silicone connection tube )

Filling range

1-100mL,

Flow range

0-500mL/min

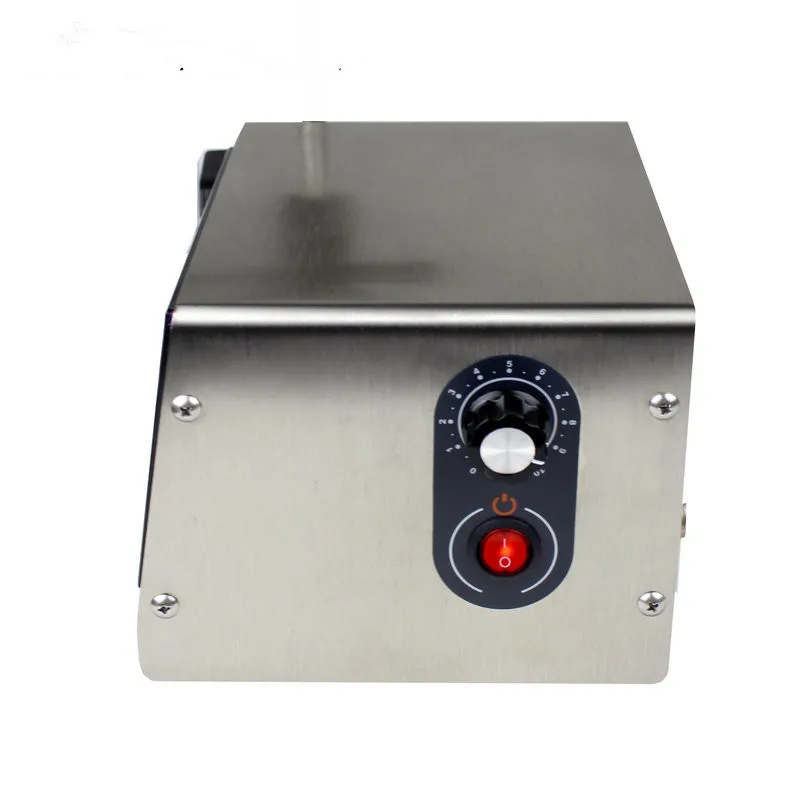

Flow adjust

potentiometer knob to adjust the flow

Filling nozzle

Single

Filling mode

Manual,auto, preset three filing modes for choice

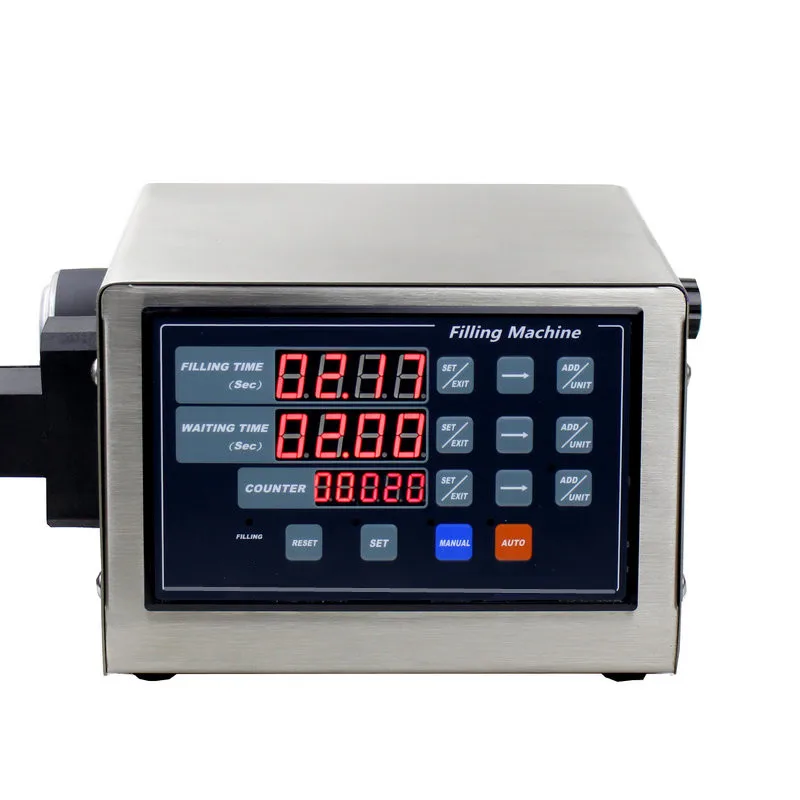

Display

LED screen display the running data

Filling time preset

0.01s-999.9s

Interval time preset

0.01s-999.9s

Filling times

Maximum 59999 times

Filling time preset

Accumulate filling times, preset the filling time for choice

Operation mode

Membrane keypad operate, convenient, quick and reliable ;Import potentiometer knob to adjust the flow

Power-down memory function

After power on, running as before

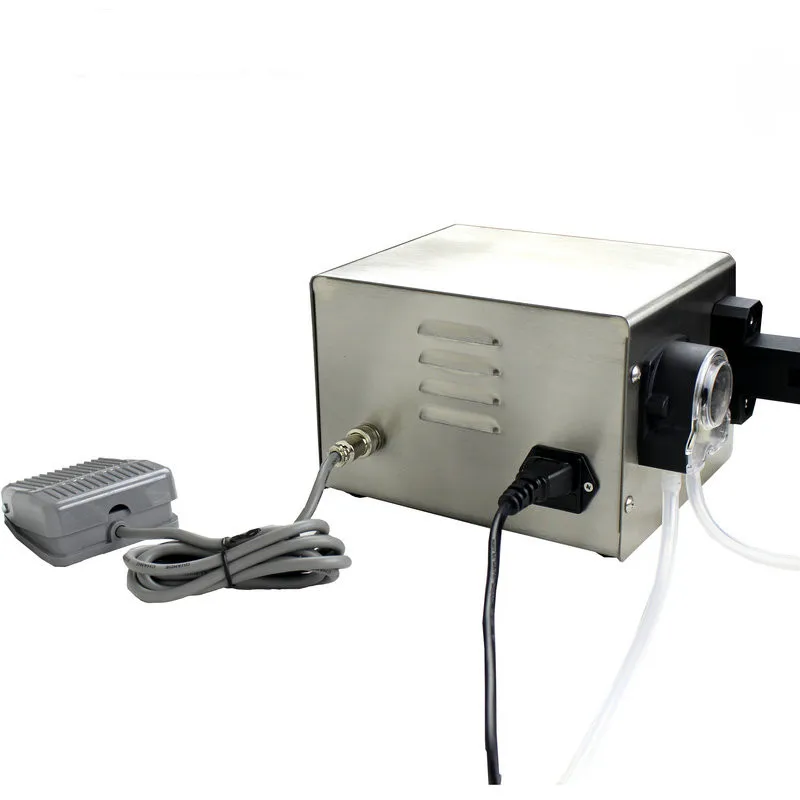

Foot switch control

Foot switch control more convenient

Filling stand

Both height and length of the Stand are adjustable

Filling nozzle

304 stainless steel nozzle

Power consumption

<40W

Power supply

Wide voltage AC90-260V,50Hz/60Hz

Operation conditions

Temperature 0 to 40 °C, Relative humidity < 80%

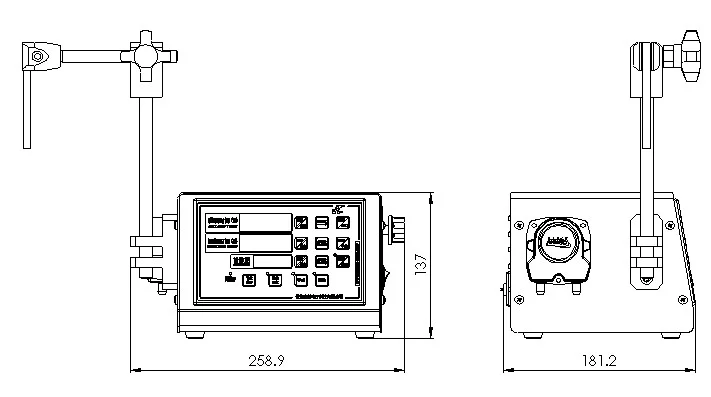

Dimensions

250mmX180mm×140mm (doesn’t including the filling stand)

Weight

3.5KG

IP rating

IP31

Filling volume target(ml)

Filling time(Sec)

Actual filling volume(ml)

Actual filling volume(ml)

Actual filling volume(ml)

Actual filling volume(ml)

Actual filling volume(ml)

5ml

0.7

4.99

4.90

4.96

4.90

4.90

10ml

1.4

10.16

10.01

10.04

10.33

9.99

20ml

2.87

19.99

19.86

19.93

20.11

19.86

50ml

7.10

50.05

50.34

50.13

50.27

50.06

100ml

15

99.86

99.68

99.56

100.15

99.90

1 Above data are actual testing result of 5 times, at highest filling speed

2 Test media is water, the data is influenced by testing media

3 Flow volume decrease when media viscosity increases, or filling time increases
