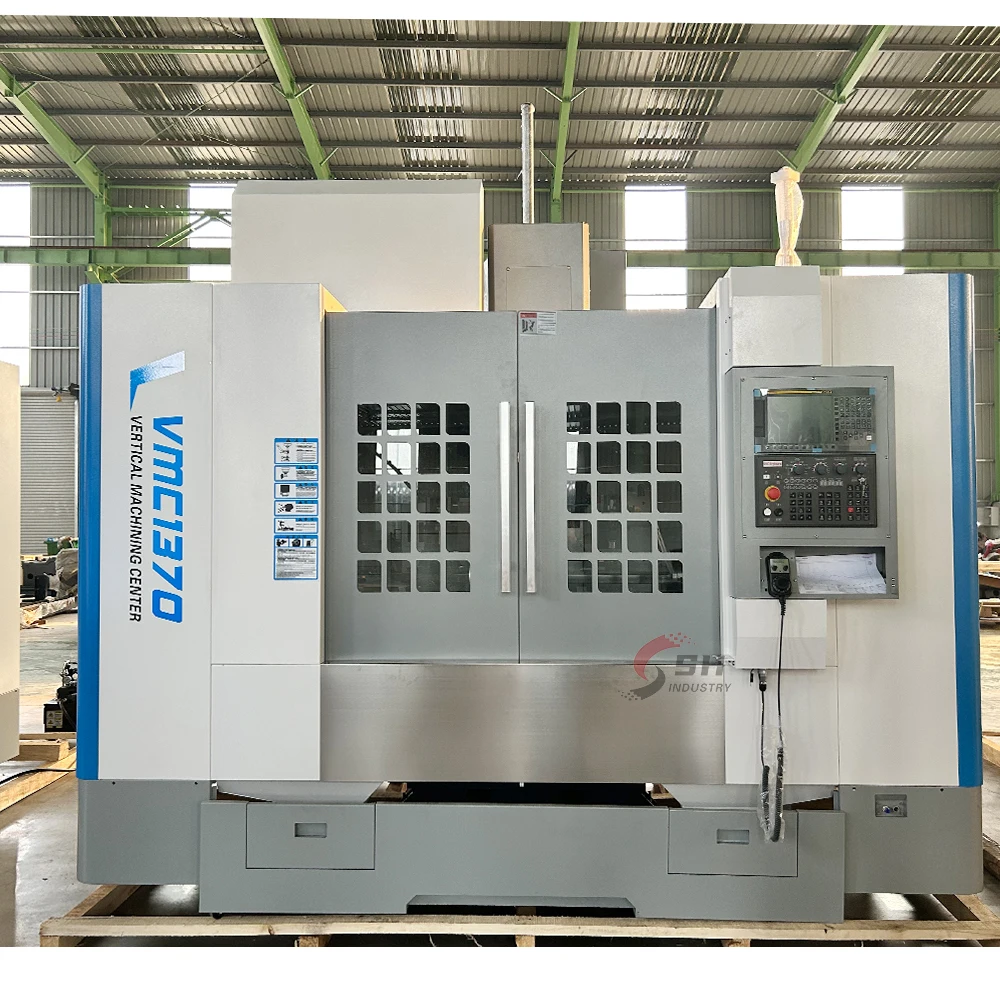

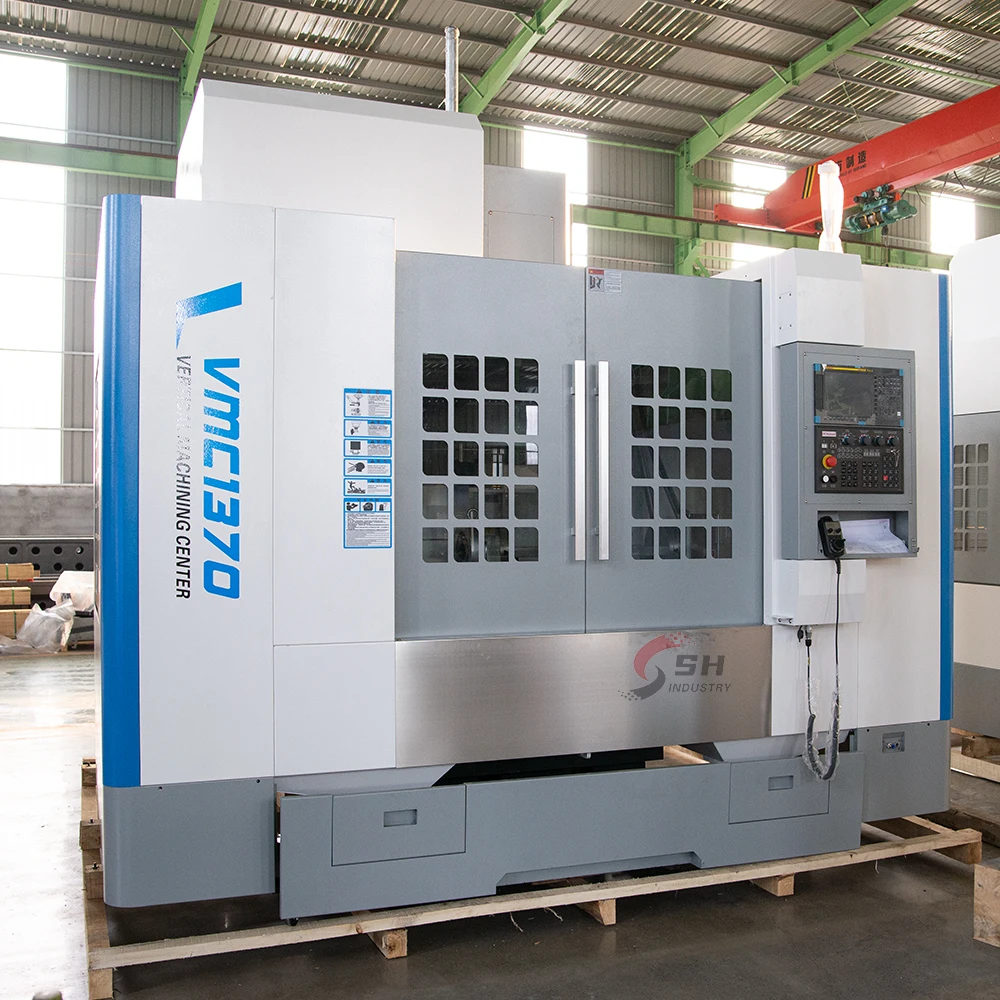

New Siemens Fanuc Mitsubishi Controller Milling Machine Vmc1370 Metal cnc vertical machining center
- Category: >>>
- Supplier: Zaozhuang Shenghuan Cnc Machine Tool Co. Ltd.
Share on (1601048284982):
Product Overview
Description
Main configuration
1. The CNC Machine Tool Body Has Undergone a Complete Casting Process To Ensure The Quality Of The Product

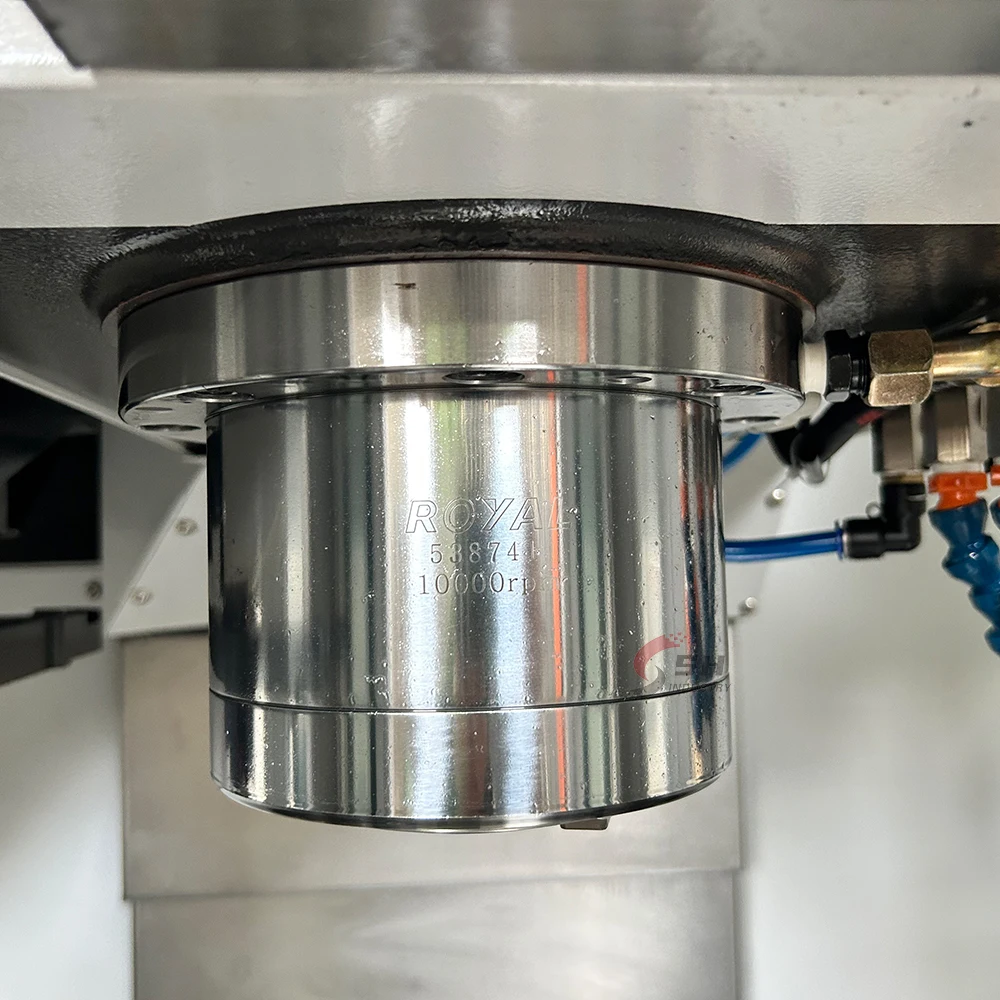

2. Taiwan Spindle (Speed, Brand, Can Be Matched According To Customer Requirements)
3. Taiwan Ball Screw And Locking Nut
4. Taiwan Pressure Cylinder
6.Japanese Nsk Bearing Germany R+W Coupling
7. Automatic Lubrication System
8.Chip Conveyor At Optional (According To Customer Requirements)
Optional Configuration

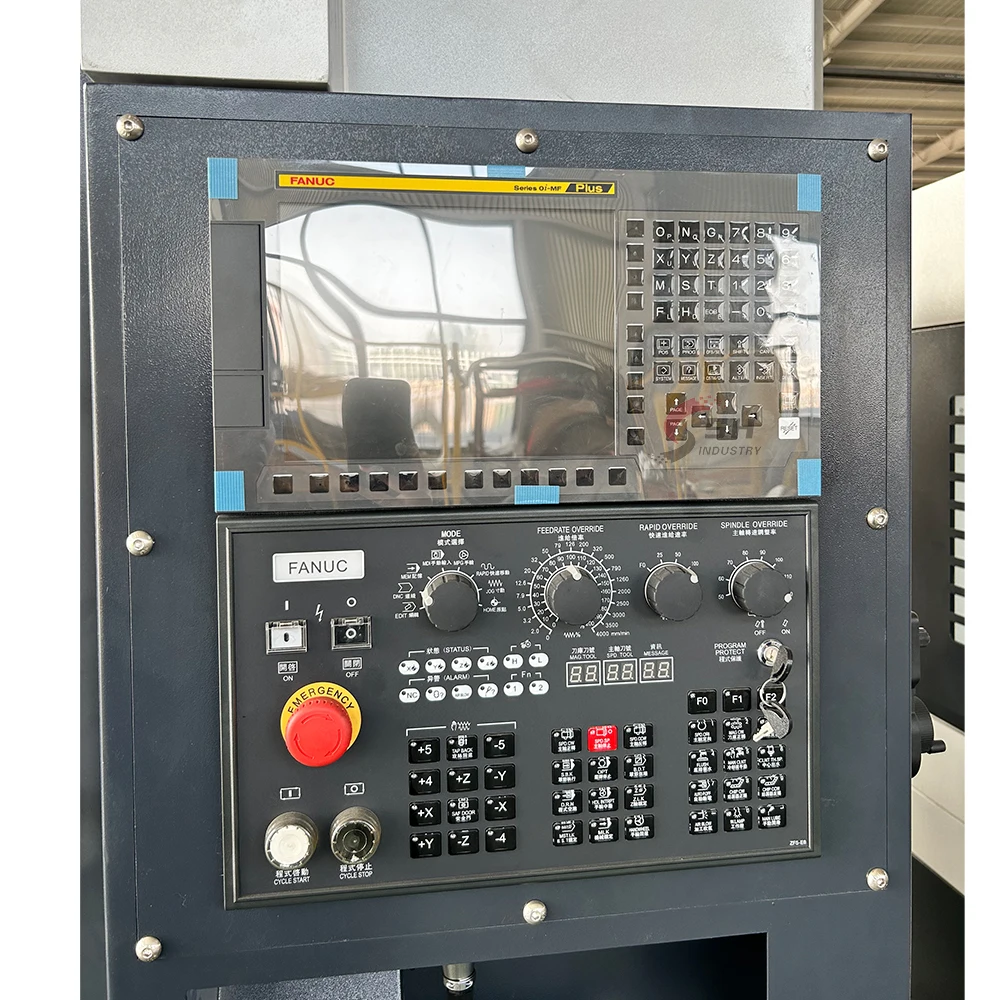

System: Syntec,Siemens,Fanuc

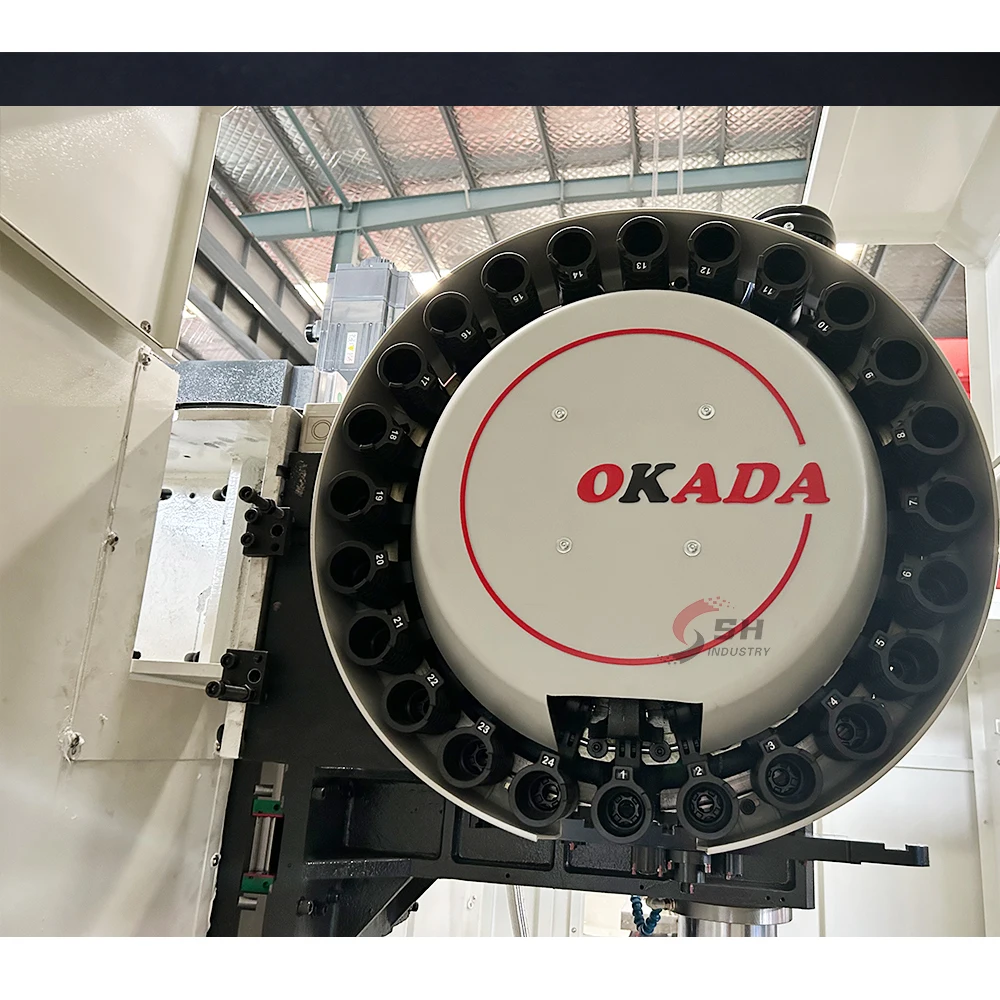

1.24 Arm Tool Magazine
2.The 4th Axis
3.Spindle Oil Cooling
4.Chip Conveyor
5.Oil-Water Separator
6.12000rpm Spindle Unit
Application:
This Vmc Is Suitable For Mechanical Processing And Mold Making .And It Can Adapt To The Processing
Requirement From Rough Machining To Finish Machining .It Can Also Finish Many Working Procedures Like Milling ,Drilling ,Tapping,Boring ,Etc.
2. Taiwan Spindle (Speed, Brand, Can Be Matched According To Customer Requirements)
3. Taiwan Ball Screw And Locking Nut
4. Taiwan Pressure Cylinder
6.Japanese Nsk Bearing Germany R+W Coupling
7. Automatic Lubrication System
8.Chip Conveyor At Optional (According To Customer Requirements)
Optional Configuration
System: Syntec,Siemens,Fanuc
1.24 Arm Tool Magazine
2.The 4th Axis
3.Spindle Oil Cooling
4.Chip Conveyor
5.Oil-Water Separator
6.12000rpm Spindle Unit
Application:
This Vmc Is Suitable For Mechanical Processing And Mold Making .And It Can Adapt To The Processing
Requirement From Rough Machining To Finish Machining .It Can Also Finish Many Working Procedures Like Milling ,Drilling ,Tapping,Boring ,Etc.
Technical Parameter
Working table | Table size | 1400×700mm |
T-slot | 5-18-110mm | |
Max loading capacity of table | 1400kg | |
Spindle | Spindle taper | BT40/50 |
Spindle speed | 8000Rpm/Optional 12000RPM | |
Spindle power | 15/18.5kw | |
Travel | X,Y,Z axis travel | 1300×700×700mm |
Distance from spindle nose to table | 160-860mm | |
Distance from spindle center to Column surface | 780mm | |
Feed | Rapid movement speed X,Y,Z | 24/24/18m/min |
Feed rate of cutting X,Y,Z | 1~10000mm/min | |
Three axis | X Y Z axis motor torque | 24/24/24NM |
X Y Z axis linear guide rail width | 45mm | |
X Y Z lead screw size | 4512 | |
X Y Z sliding block no | 6/8/6 | |
Tools capacity | Tools capacity | 24T |
Max tool weight | 8kg | |
Max length | φ78/300mm | |
Tool magazine type | Arm type | |
Precision | Positioning accuracy X/Y/Z | 0.008mm |
Repeated positioning accuracyX/Y/Z | +-0.004mm | |
Machine tool | Machine size | 3500*2700*2650m |
Casting material model | HT300 | |
Machine hardness | 45-50rkc | |
Machine weight | 9000kg |
Company Profile
Exhibition
Customer visit
Certifications
Packing & Delivery
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,wire cuttingmachine ,EDM drilling
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,wire cuttingmachine ,EDM drilling
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
