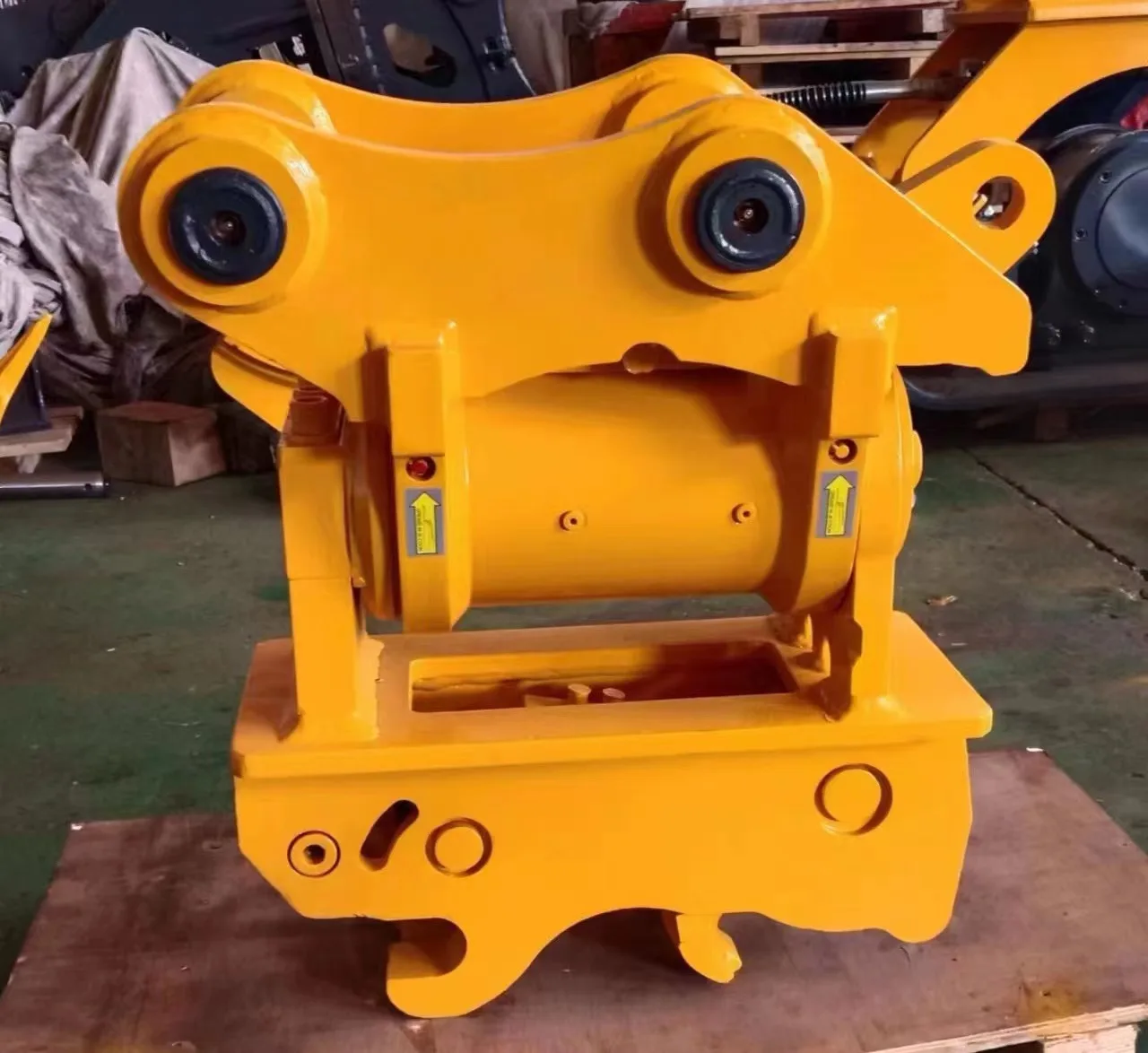

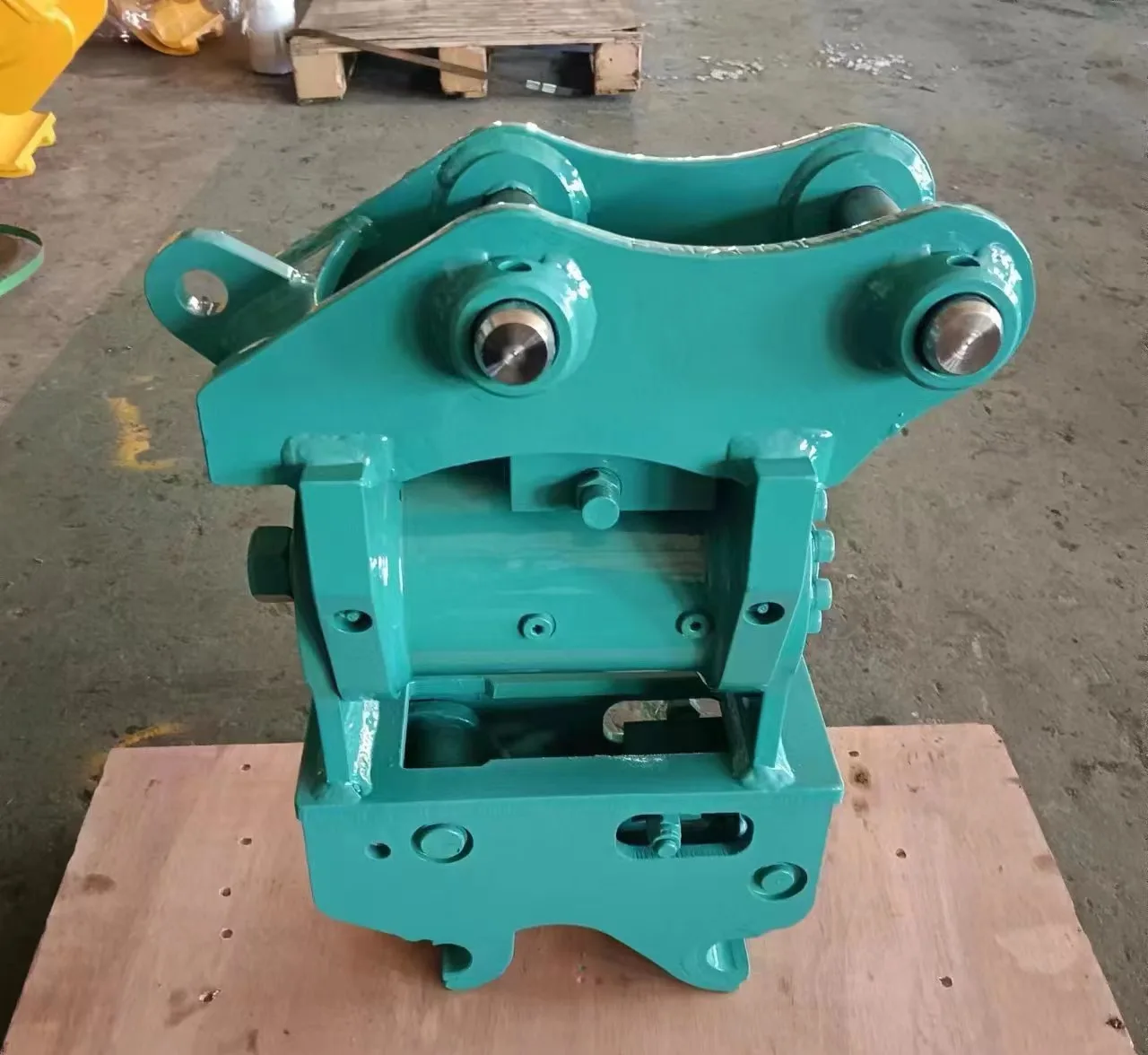

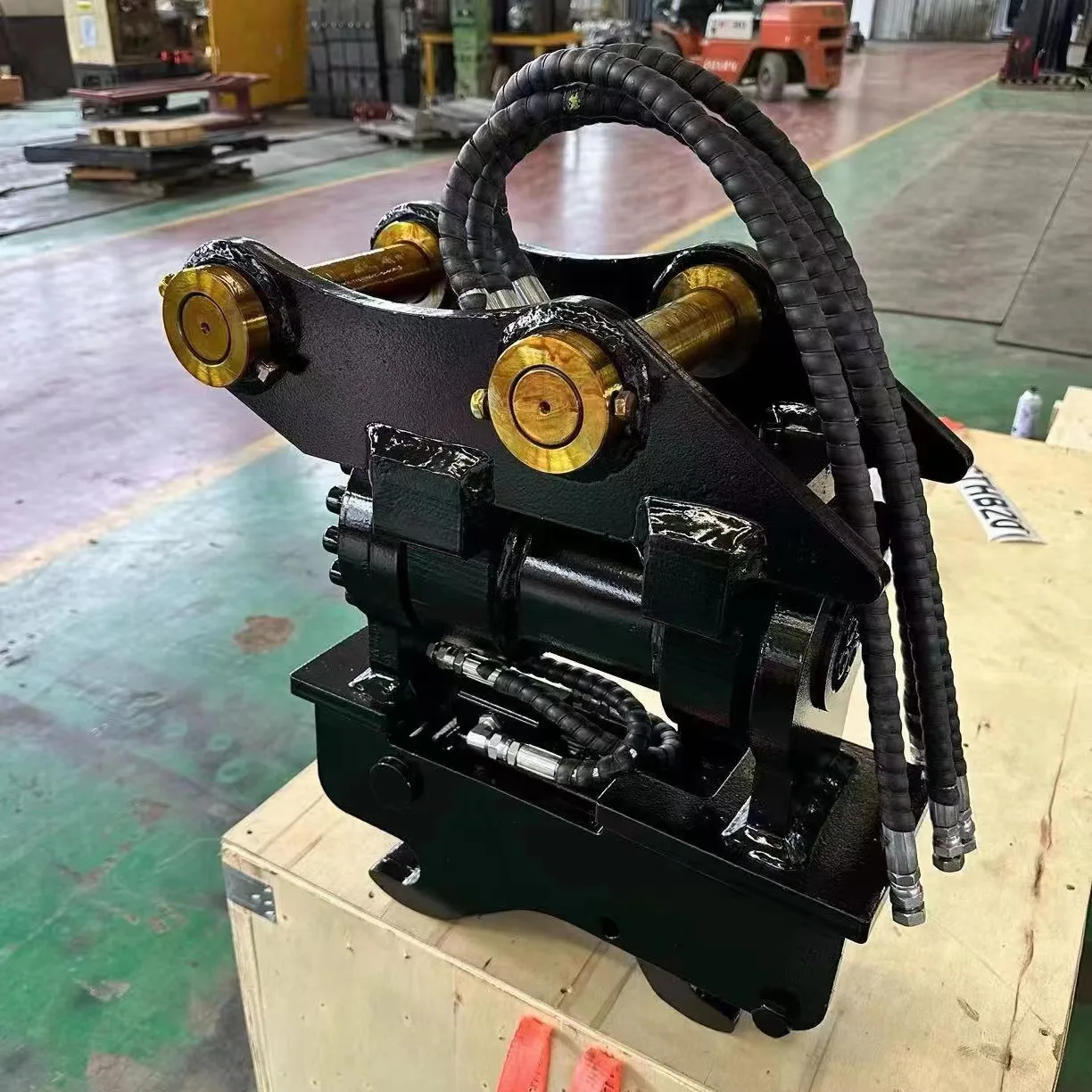

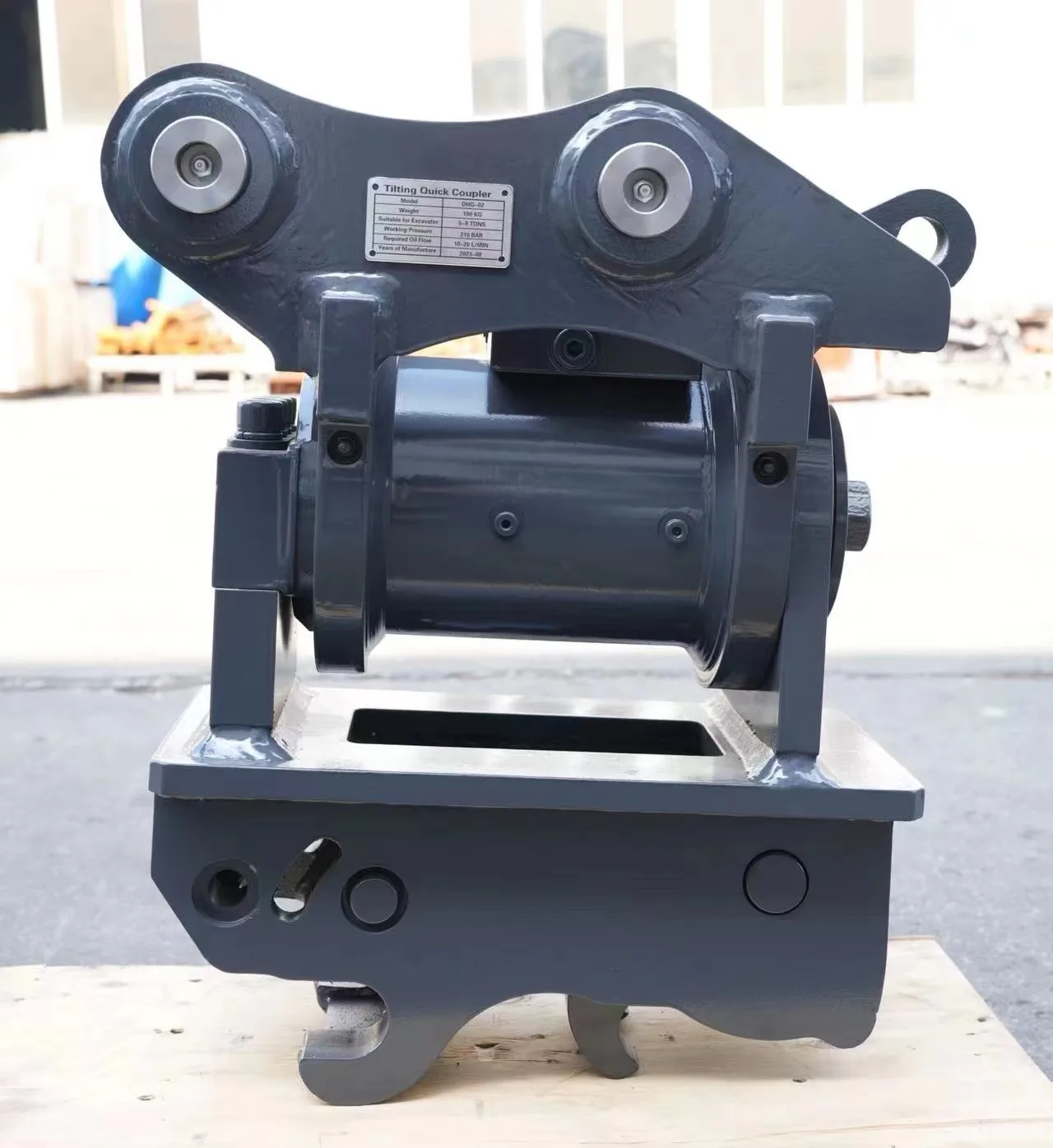

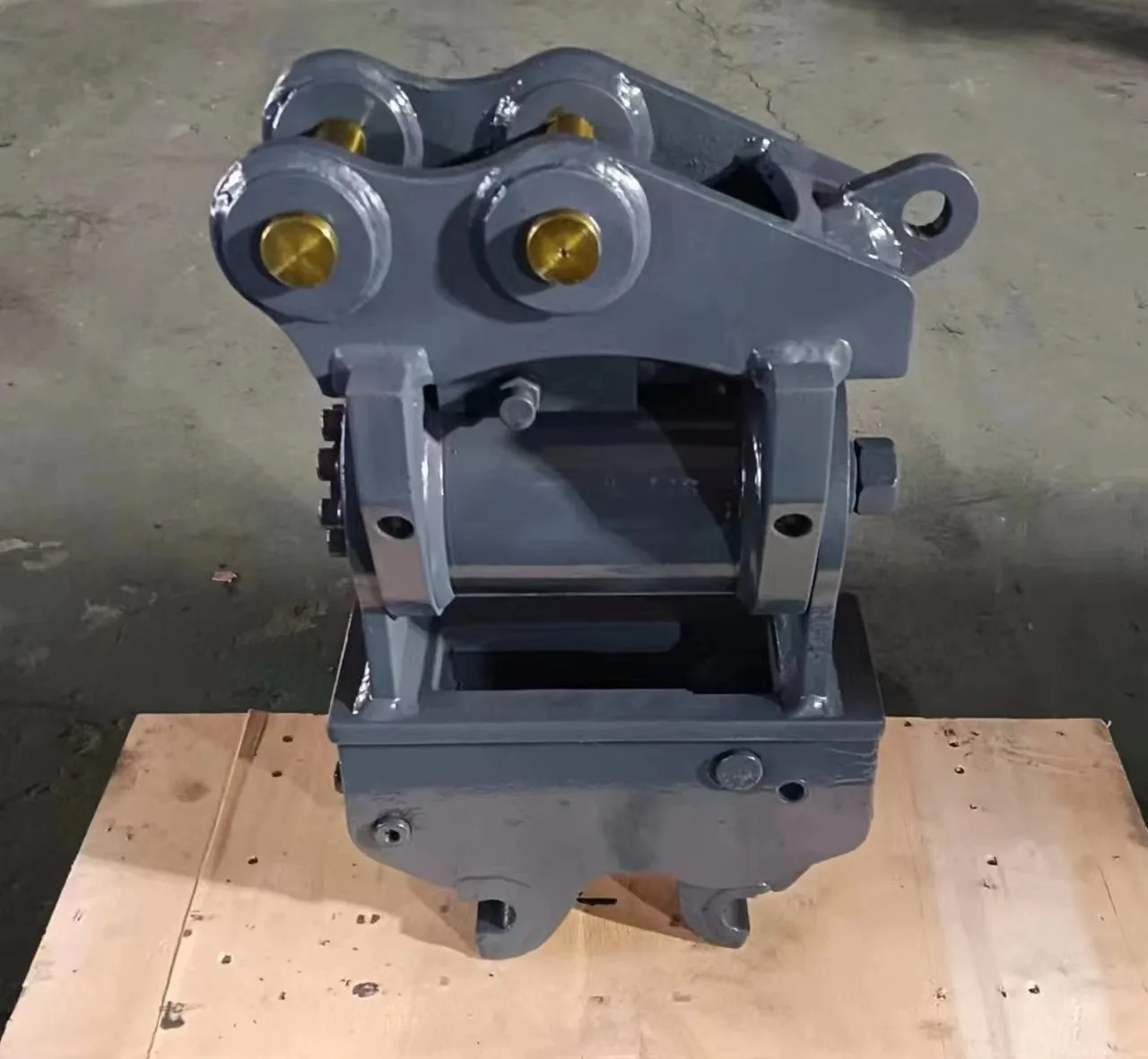

180 Degree Hydraulic Tilt Quick Coupler Tilting Coupler Hydraulic Hydraulic Bucket Tilting Quick Hitch excavator quick coupler
- Category: >>>
- Supplier: Yantai Zhuoxin Machinery Technology Co. Ltd.Yantai Ltd.
Share on (1601048357935):
Product Overview
Description

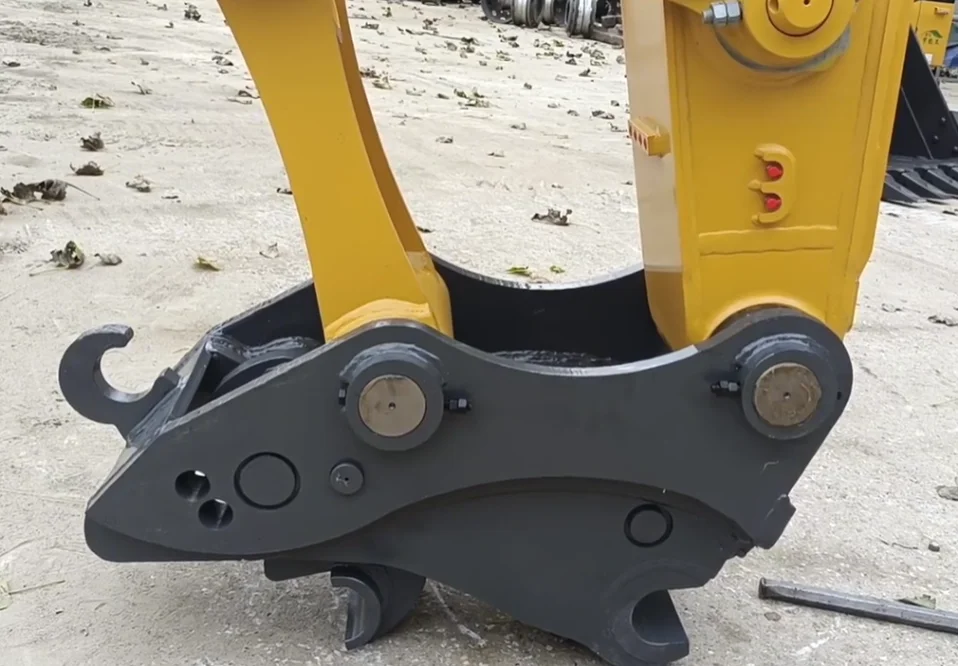

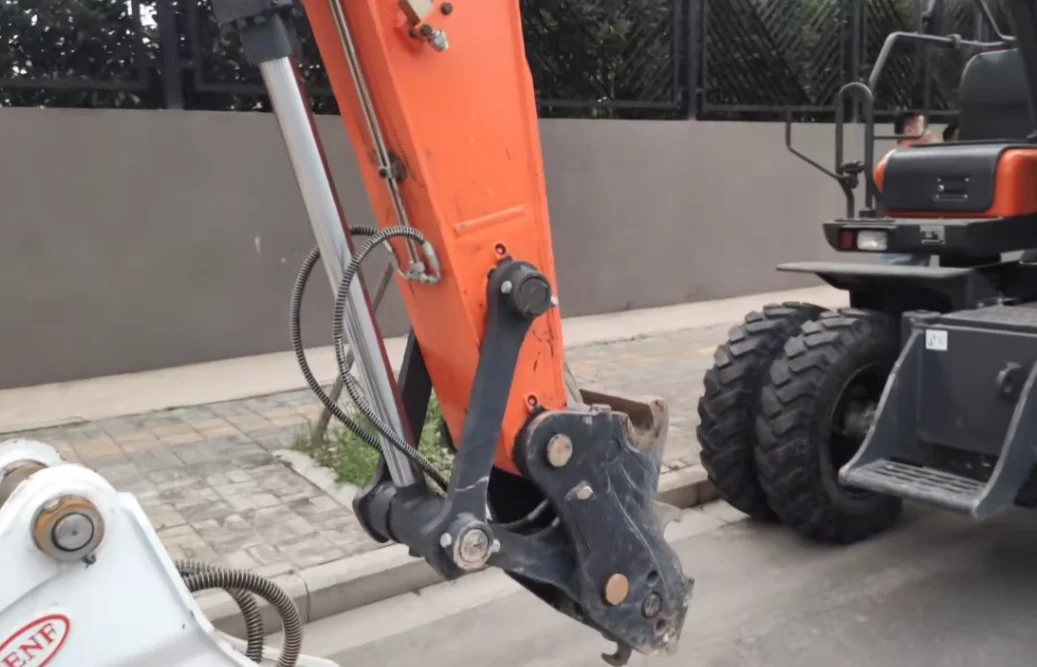

Quick couplers (also called quick hitches) are used with constructionmachines to allow the rapid change of buckets and attachments on themachine. They remove the need to use hammers to manually drive out andinsert the mounting pins for attachments. They can be used on excavator.mini excavator, backhoe loader and so on.

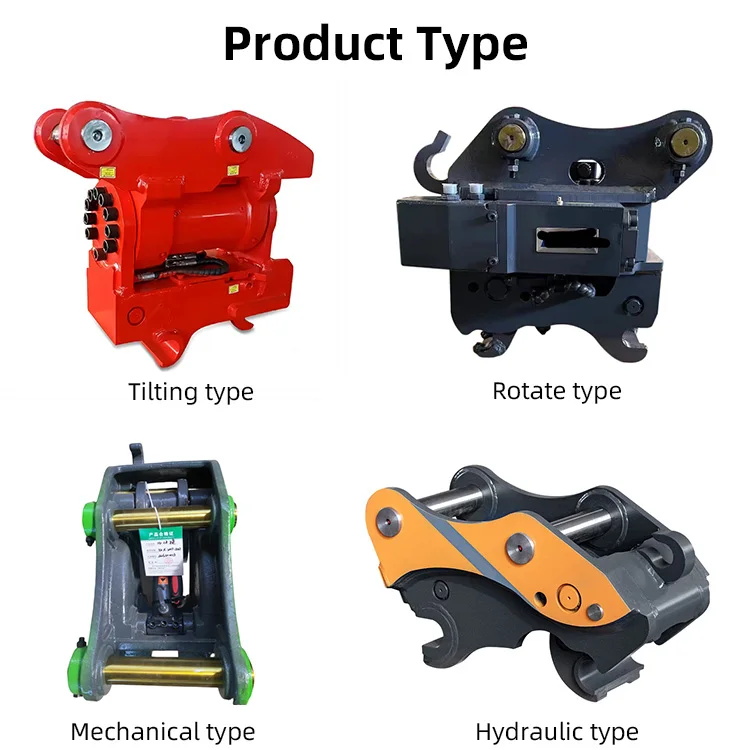

We can supply five type: hydraulic type, Double lock type,Tilting type,Rotate type and Mechanical type.Use high-strength materials; suitable for various models of 3-80 tons
Model | unit | MINI | ZSP02 | ZSP04 | ZSP06 | ZSP08 | ZSP10 | ZSP17 | ZSP20 |
length | mm | 300-450 | 550-595 | 590-630 | 795-825 | 888-980 | 980-1060 | 1050-1250 | 1050-1250 |
Height | mm | 250-280 | 312 | 320 | 410 | 520 | 608 | 620 | 620 |
Width | mm | 170-230 | 270-300 | 300-355 | 365-420 | 460-500 | 510-590 | 580-650 | 580-680 |
Pins center distance | mm | 90-210 | 225-285 | 285-360 | 370-420 | 430-500 | 470-550 | 540-600 | 540-600 |
Arm width | mm | 90-140 | 156-200 | 160-230 | 220-275 | 300-350 | 340-420 | 420-500 | 420-500 |
Cylinder stroke | mm | 35 | 75 | 75 | 85 | 70 | 80 | 80 | 80 |
Vertical pins center distance | mm | 150-170 | 200 | 200 | 260 | 325 | 385 | 400 | 400 |
Weight | kg | 30-50 | 50-80 | 70-100 | 220-290 | 370-420 | 500-600 | 650-900 | 700-1000 |
Working pressure | bar | 40-200 | 40-200 | 40-200 | 40-200 | 40-200 | 40-200 | 40-200 | 40-200 |
Stuitable excavator | ton | 1.5-4 | 4-6 | 6-10 | 10-16 | 16-24 | 24-32 | 34-42 | 45-52 |
