Price:$620.00 - $690.00

Quantity:


Product Overview

Description



What can I do for you?
Nice to meet you.I am Elina.
Please feel free to contact me if you are interested in our products.

WhatsApp: +86 18988780466

Wechat: +86 18988780466

Email: elina.luo@boli-tech.com










Note: In Stock, You Can Make Order Directly Or Send Inquiry To Us!
Basic specification will be mark on the Cells before shipping!


Products Description

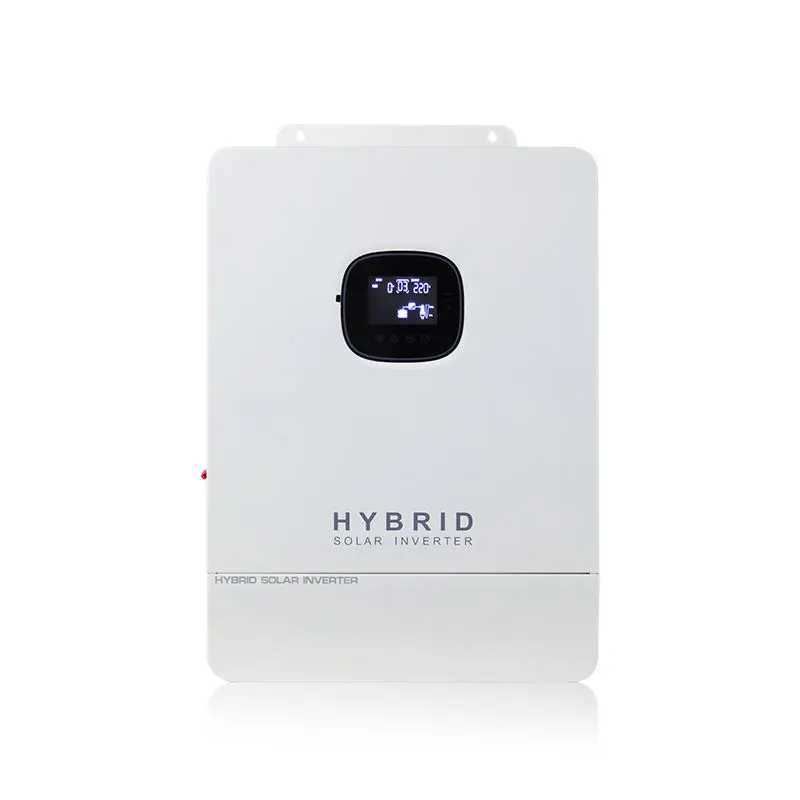

Split Phase and Single Phase 8-10KW ALL IN ON SOLAR CHARGER INVERTER
PV Input data(DC)
Max. PV power（kW）
11000W
11000W
11000W
11000W
Max.Voltage of Open Circuit
500Vdc
MPPT Voltage Range
125~425Vdc
Number of MPPT trackers
2
Max.Input Current per MPPT
22/22A
Output data(AC)
AC nominal power(kW)
8000W
10000W
8000W
10000W
Max Peak Power
16,000W
20,000W
16,000W
20,000W
Nominal AC voltage(V)
230Vac (single-phase L1/N/PE)
120/240Vac OR 110/220Vac(split phase)
AC grid frequency(Hz)
50/60HZ
Wareform
Pure Sine Wave
Switch Time
10ms (typical)
Battery data (DC)
Battery Type
Li-ion / Lead-Acid / User Defined
Rated Battery Voltage
48Vdc
Battery Voltage Range
40～60Vdc
Max.MPPT Charging Current
200A
Max.Mains/Generator Charging
100A
Max.Hybrid Charging Current
180A
UTILITY/ GENERATOR INPUT
Input Voltage Range
90～275Vac
90-140Vac
Frequency Range
50/60Hz
Bypass Overload Current
63A
Efficiency
MPPT Tracking Efficiency
99.9%
Max. Battery Inverter Efficiency
92%
Dimension W*D*H(mm)
734*514*260
Weight(kg)
23.7kg


Wall Mounted LiFePo4 Battery
15-20 years design life.
Up to 6000 + cycle Ilfe

Wall mount or ground stack brick,
simply connecting to inverter

Battery module is scalable for any larger storage system.

Battery modular built in high quality BMS. Protect battery cells all the way.

Lithium iron phosphate battery cell,
stay safe with battery storage at home.




Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kg



Hybrid Solar Inverter

48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging.

Max.charging/discharging current of 240A Max.10pcs parallel

DC couple and AC couple to retrofit existing solar system



Monitoring System

Open station supports one-click

installation and registration Problem support one-click dispatch and navigation Safe operation,
traceable logs, etc

Support full lifecycle data storage to ensure data security and reliability



Product Parameters
















Company Profile
















FAQ


1. Q: Are you a manufacturer?
A: Yes, we have been offering specialized products in this field for 20 years.

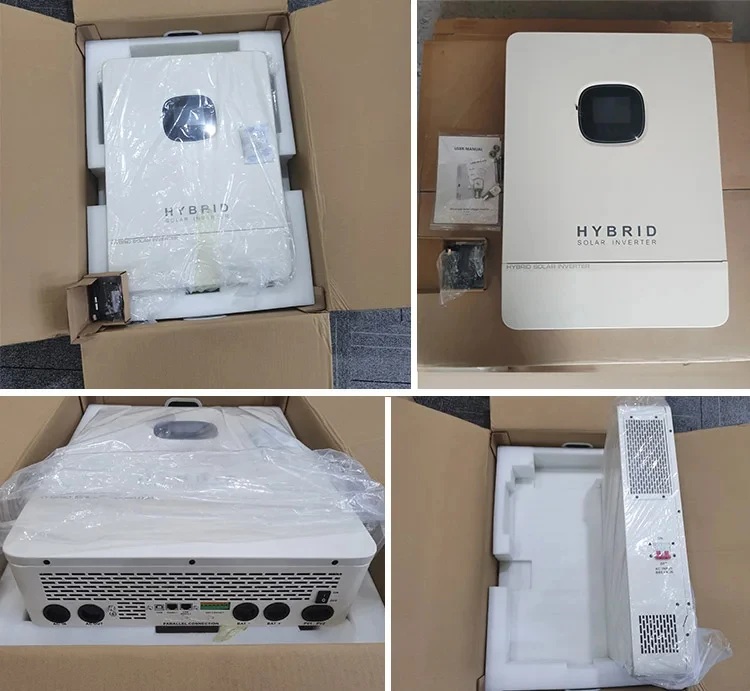

2. Q: How do you pack these products?
A: Usually packed according to export standard or your requirement.

3. Q: Is it customizable?
A: Yes, according to your requirements.

4. Q: After-sales service
A: 24-hour technical support by phone, email or skype

5. Q: What is your lead time?
A: Spot goods usually take 3-5 days, and customization takes 5-7 days
