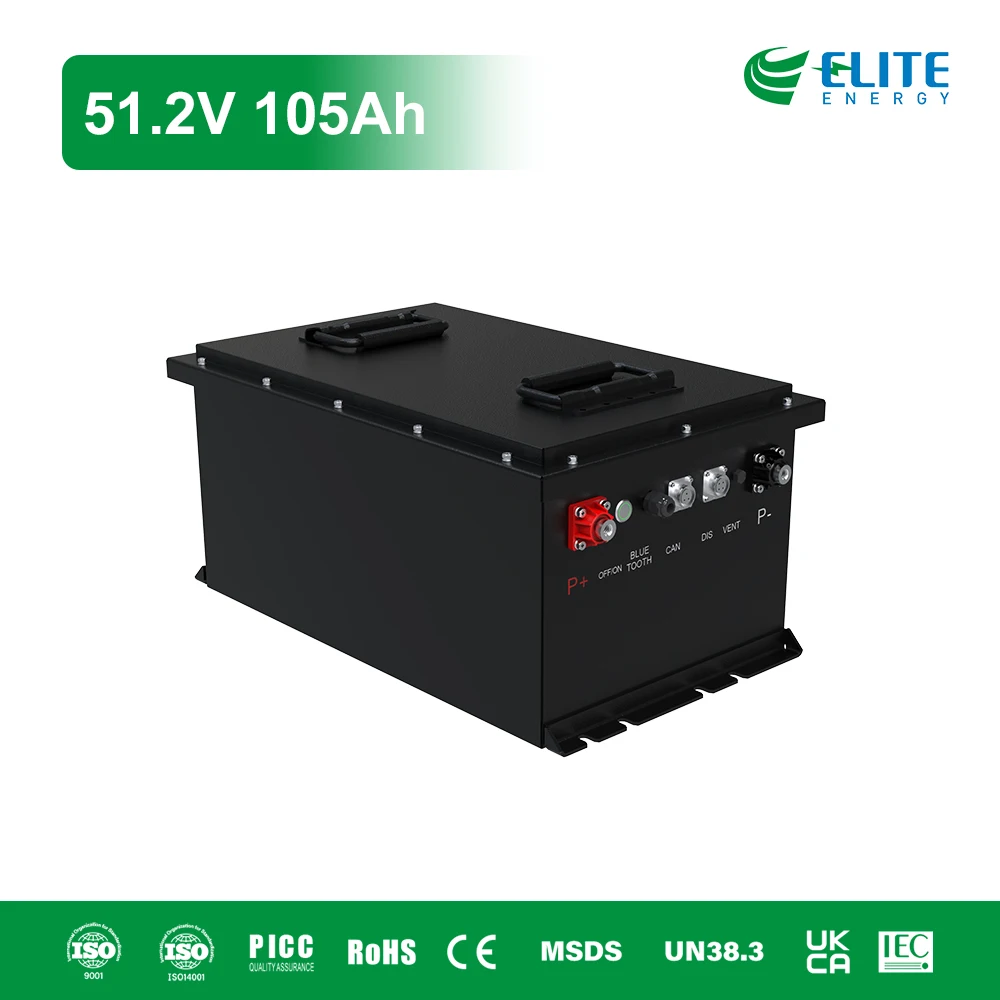

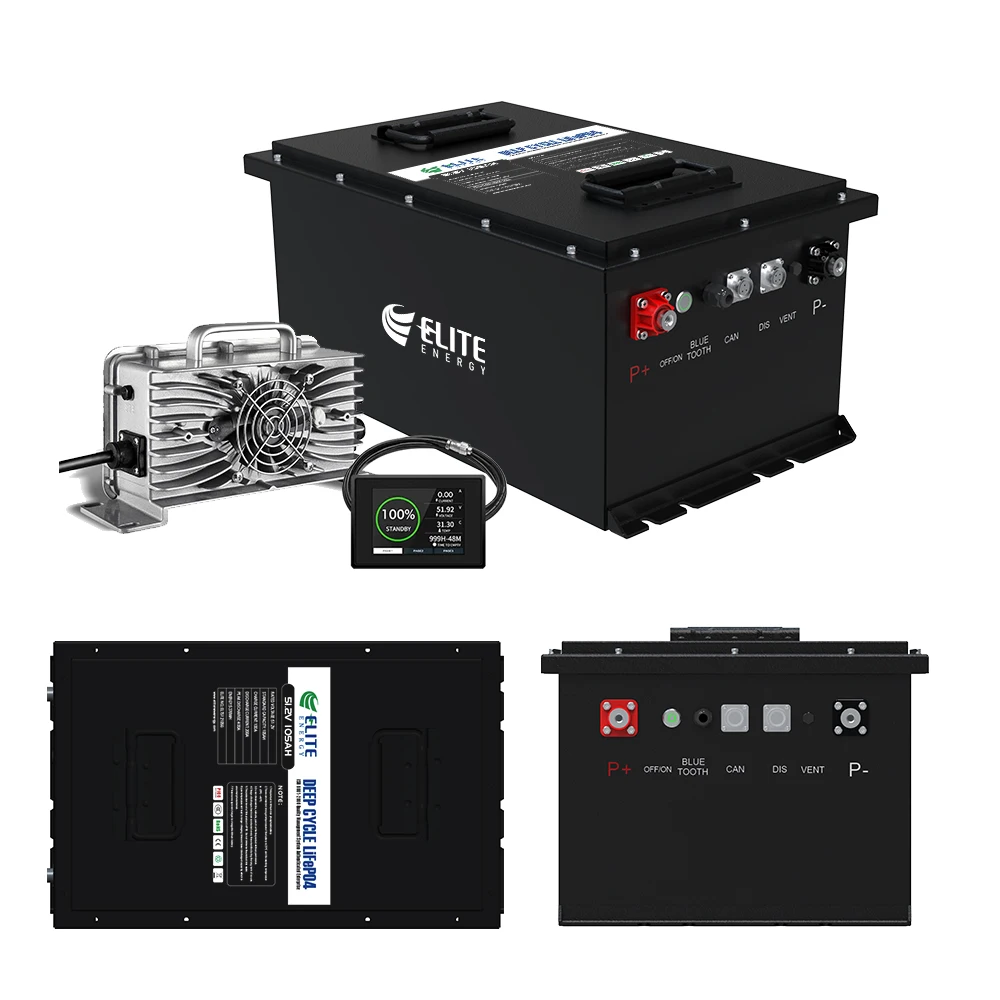

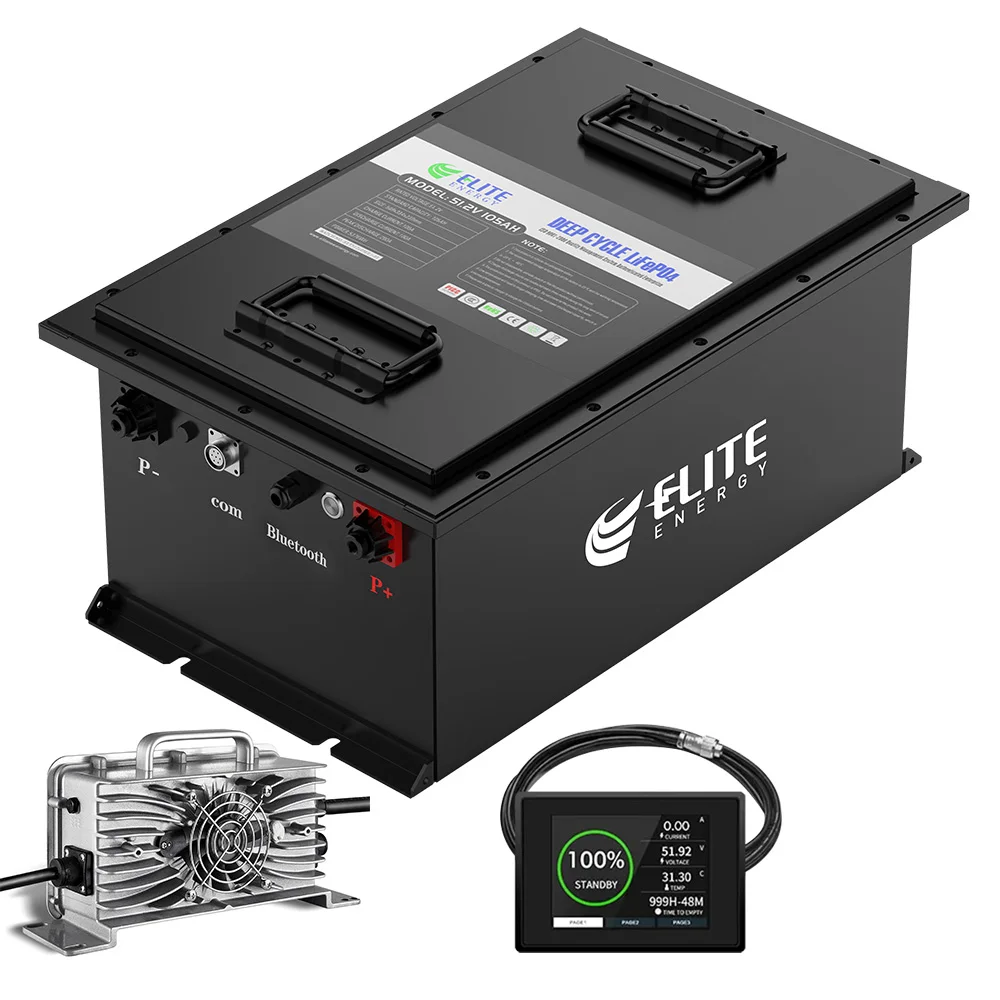

36V 48V 72V Lithium Golf Cart Battery Conversion kit 100Ah 105Ah 150Ah 160Ah LiFePO4 48 Volt LiFePO4 DIY Battery for Golf Carts
- Category: >>>
- Supplier: Dongguan Elite New Energy Co. Ltd.
Share on (1601048469713):
Product Overview
Description

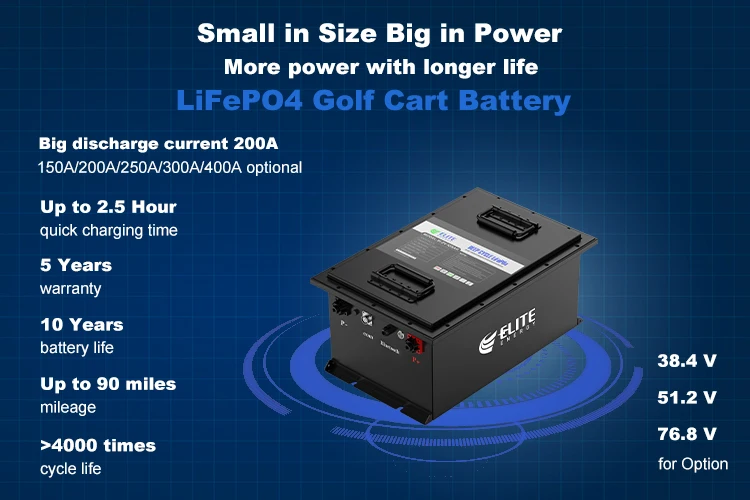

36V 48V 72V 50Ah 100Ah 105Ah 150Ah 160Ah 200Ah
LiFePO4 Golf Cart Battery

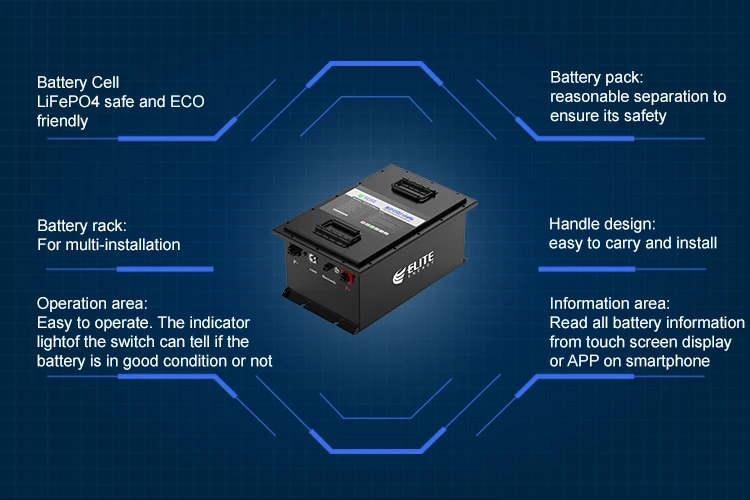

Product Features
1. Safety Performance: safest Lithium Iron Phosphate battery, CE IEC UN38.3 MSDS approved, built-in Smart 200A BMS
2. Long Cycle Life: > 6000 times, 6-8 times life cycle compare to lead acid battery
3. Deep cycle, no memory effect, highly efficient
4. Compact size and light weight: 1/2 size & weight of lead acid battery
5. Good performance at high temperature
6. Low self-discharge rate: < 3% month
2. Long Cycle Life: > 6000 times, 6-8 times life cycle compare to lead acid battery
3. Deep cycle, no memory effect, highly efficient
4. Compact size and light weight: 1/2 size & weight of lead acid battery
5. Good performance at high temperature
6. Low self-discharge rate: < 3% month

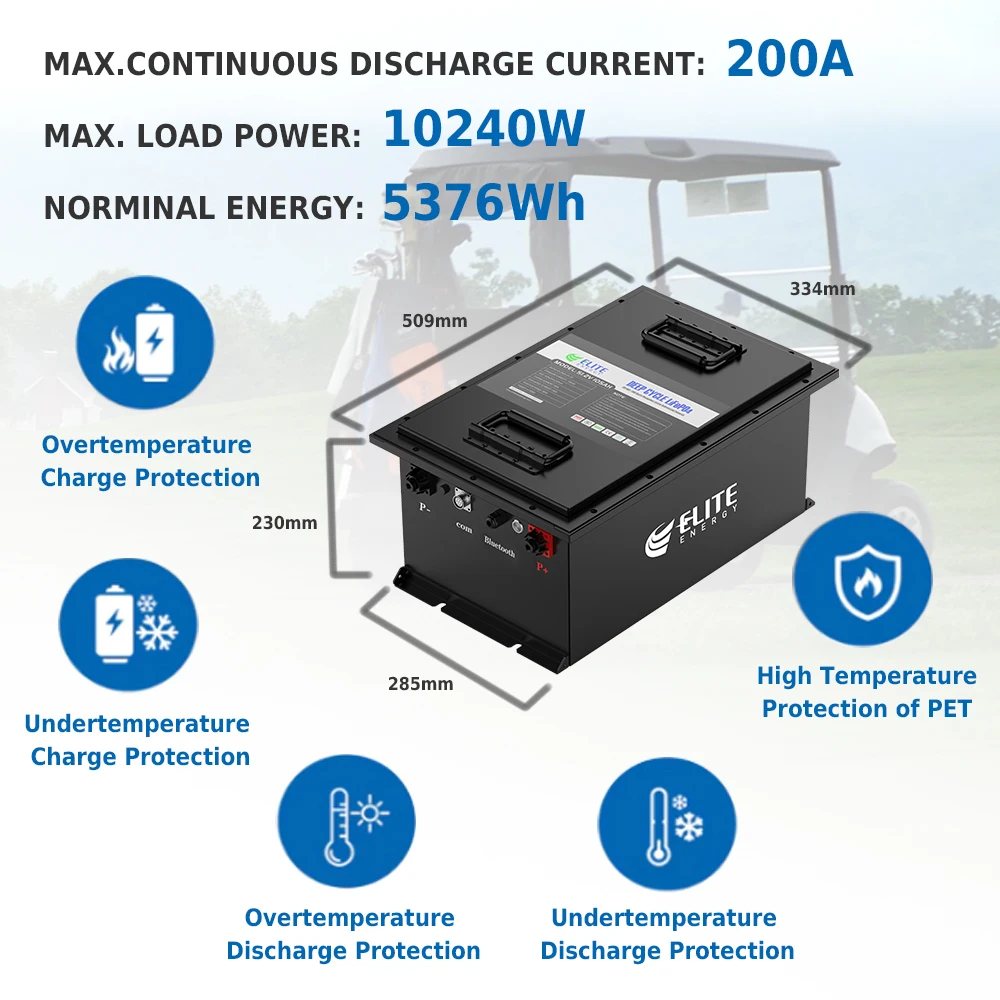

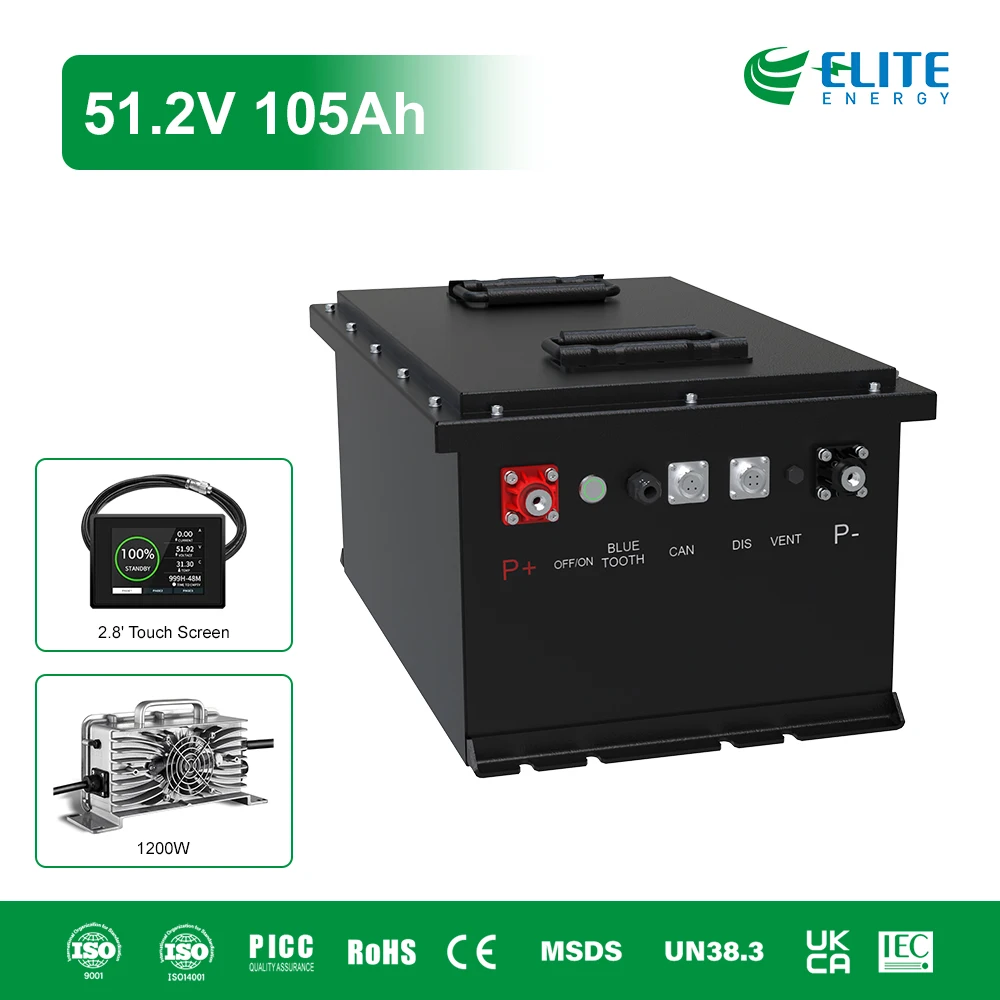

Product Paramenters
1 | Nominal voltage | (36V)38.4V | (48V)51.2V | (48V)51.2V | (72V)76.8V | |||
2 | Capacity (Ah) | 105Ah | 105Ah | 160Ah | 105Ah | |||
3 | Battery Energy | 4032Wh | 5376Wh | 8192Wh | 8064Wh | |||
4 | Self-discharge | 25℃，≤3% per month | 25℃，≤3% per month | 25℃，≤3% per month | 25℃，≤3% per month | |||
5 | Cycle life | >6000 cycles | >6000 cycles | >6000 cycles | >6000 cycles | |||
6 | Charge Mode | CC/CV | CC/CV | CC/CV | CC/CV | |||
7 | Max. Continuous Charge Current | 100A | 100A | 100A | 100A | |||
8 | Charge Cut-off Voltage | 43.8V | 58.4V | 58.4V | 87.6V | |||
9 | Max. Continuous Discharge Current | 100A | 200A | 200A | 200A | |||
10 | Max. Pulse Current | 200A (3-5S) | 400A 10S | 400A 10S | 315A 30S | |||
11 | Discharge Cut-off Voltage | 30V | 40V | 40V | 60V | |||
12 | Communication mode | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN | |||
13 | Storage temperature | 0~45℃ | 0~45℃ | 0~45℃ | 0~45℃ | |||
14 | Working Environment | 0℃ ~ +55℃（Charge） | 0℃~+55℃（Charge） | 0℃~+55℃（Charge） | 0℃~+55℃（Charge） | |||
-20℃~+65℃（Discharge） | -20℃~+65℃（Discharge） | -20℃~+65℃（Discharge） | -20℃~+65℃（Discharge） | |||||
15 | IP Grade | IP67 | IP67 | IP67 | IP67 | |||
16 | Housing Material | Metal case | Metal case | Metal case | Metal case | |||
17 | Bluetooth | Yes | Yes | Yes | Yes | |||
18 | GPS Feature | Optional | Optional | Optional | Optional | |||
19 | Display Screen | Optional | Optional | Optional | Optional | |||
20 | OEM & ODM | Optional | Optional | Optional | Optional | |||
21 | Dimension | 425*318*252mm | 500*318*230mm | 573*369*270mm | 800*310*270mm | |||
22 | Weight | 83.78lbs.(38Kg) | 99.21lbs.(45kg) | 149.91lbs.(68kg) | 158.73lbs.(72kg) | |||
23 | Applications | Electric Golf Carts,Club Car,EZGO,Golf Trolley,Electric Utility Vehicle,Sightseeing Car,Hunting Car,Electric Truck, Electric Tractors | ||||||
OEM / ODM Supported
1. All models of shell material, battery dimension, color, label can be customized.

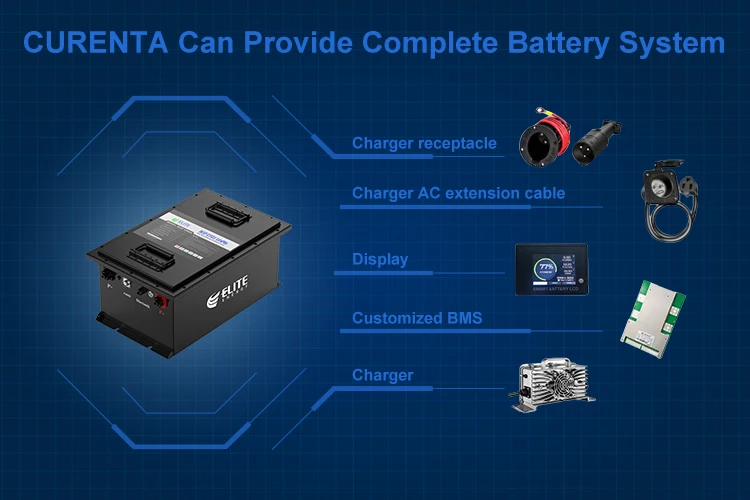

2. BMS functions(like Bluetooth function and LCD display function) can be customized.
3. New BMS or battery model developing is available, professional battery solution will be provided based on customers' requirements.
2. BMS functions(like Bluetooth function and LCD display function) can be customized.
3. New BMS or battery model developing is available, professional battery solution will be provided based on customers' requirements.
Certifications
Products with CE, UKCA, MSDS, UN38.3, BIS, etc. approved;
Factory with ISO9001, ISO14001 and ISO45001 certificated.
Founded in 2017, Elite New Energy Co., Ltd. is a high-tech enterprise specializing in the R&D and production of LiFePO4 battery systems for EV, ESS, lead acid battery replacement and many other different applications.

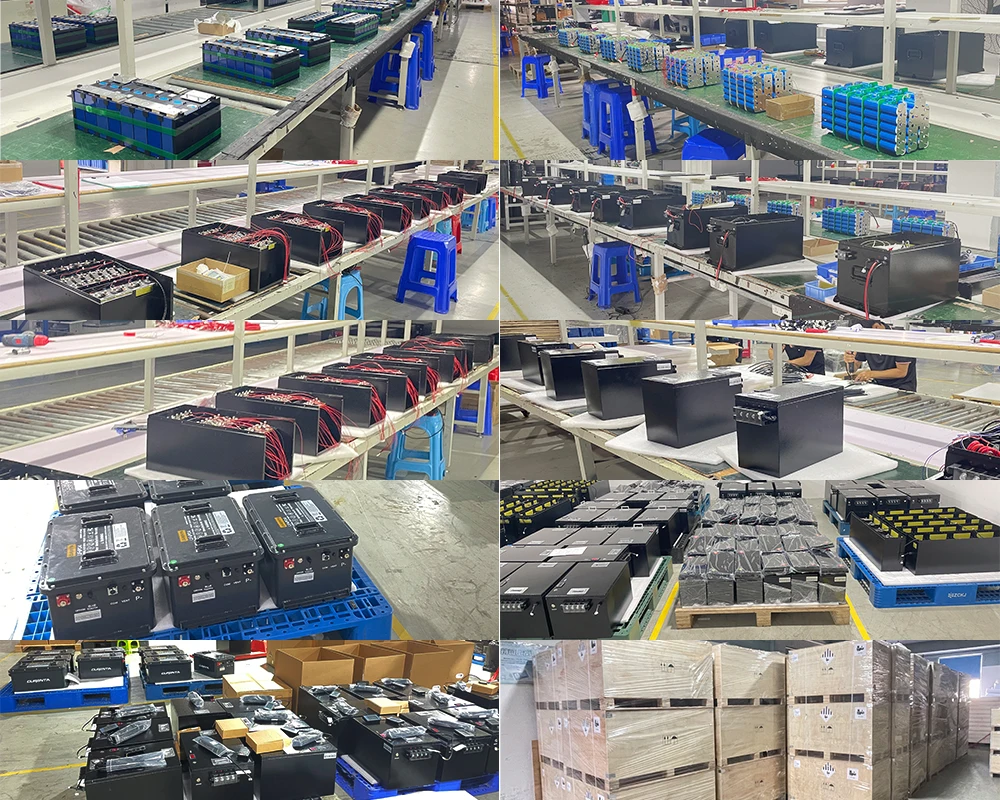

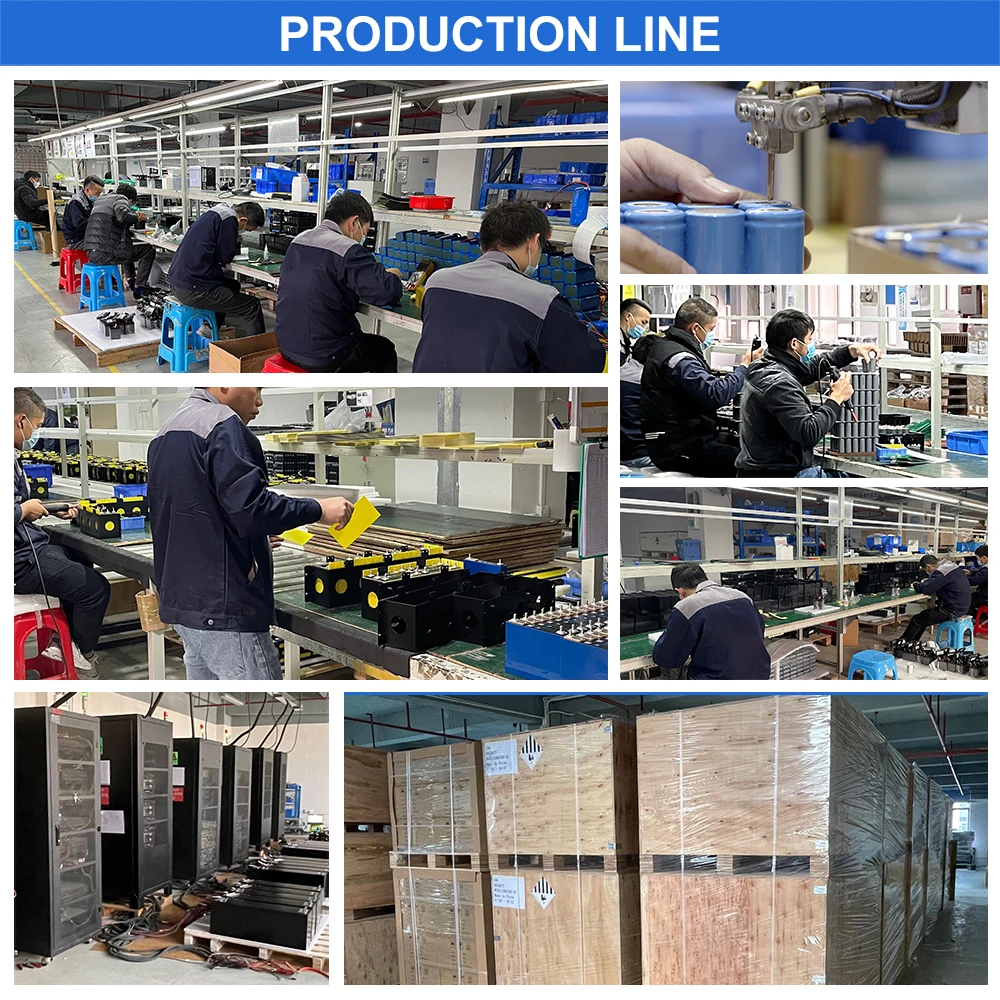

Equipped with state-of-art facilities and equipment, certified with Quality System ISO9001, Environmental Management System ISO14001, and Occupation Health and Management System ISO45001, complied with up- to-date certifications: CE, BIS, MSDS, UN38.3, Elite New Energy’s products perfectly meet international standards with most excellent performance and safety Compliance, and fully qualified for high end OEM/ODM markets.
Elite New Energy now have strong R&D centers for developing leading technologies and applying them to the product design, so as to providing high quality and excellent performance LiFePO4 battery solution.
FAQ
Q1. Do you have MOQ (Minimum Order Quantity) limit?
A: No, Elite do not have MOQ limit, sample order or small volume is available.
Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.

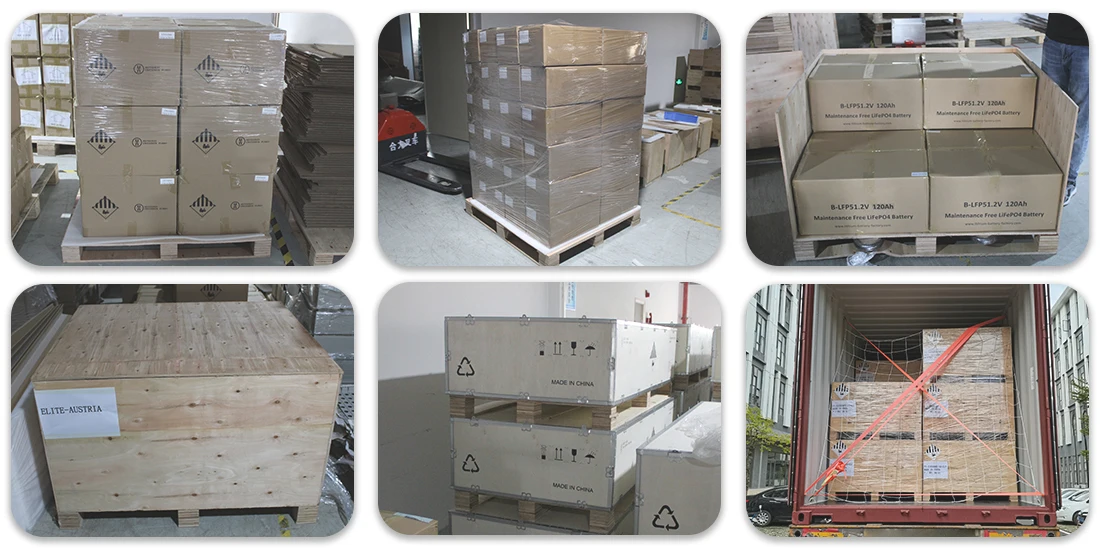

Q3. How do you ship the goods? How about the shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.
Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly. Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q5. Is it available to print my logo on the product?
A: Yes. Just send us you logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.
Q6.Which Certificates do you have?
A: Factory with ISO9001, ISO14001 and ISO45001 approved;
Products with CE/UKCA/UN38.3/MSDS/etc..
Q7.How about the product warranty?
A: 3 years warranty + product lifetime technical support.
Q8: How can I pay for the order?
A: T/T, Paypal, L/C, etc..
Other payment options please contact us before order confirmation.
A: No, Elite do not have MOQ limit, sample order or small volume is available.
Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.
Q3. How do you ship the goods? How about the shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.
Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly. Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q5. Is it available to print my logo on the product?
A: Yes. Just send us you logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.
Q6.Which Certificates do you have?
A: Factory with ISO9001, ISO14001 and ISO45001 approved;
Products with CE/UKCA/UN38.3/MSDS/etc..
Q7.How about the product warranty?
A: 3 years warranty + product lifetime technical support.
Q8: How can I pay for the order?
A: T/T, Paypal, L/C, etc..
Other payment options please contact us before order confirmation.
