Commercial 50 200kg Semi Automatic Potato Frozen French Fries Production Machine customized
- Category: >>>
- Supplier: Zhucheng Lijie Food Machinery Co. Ltd.
Share on (1601048566683):
Product Overview
Description
Product Description
50-200KG/H frozen french fries production line
This set of equipment has the advantages of low investment, low energy consumption, multiple functions, small size, high profit, and convenient use and maintenance.
The production line includes peeling, cutting, blanching, water removal, frying, oil removal, quick freezing and packaging. Guarantee the high quality of finished French fries.

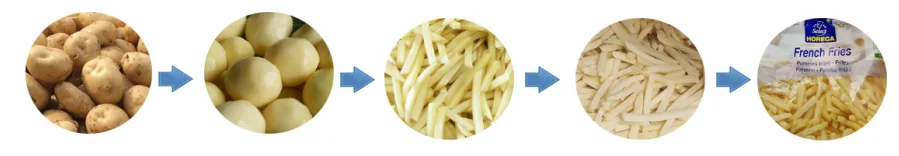

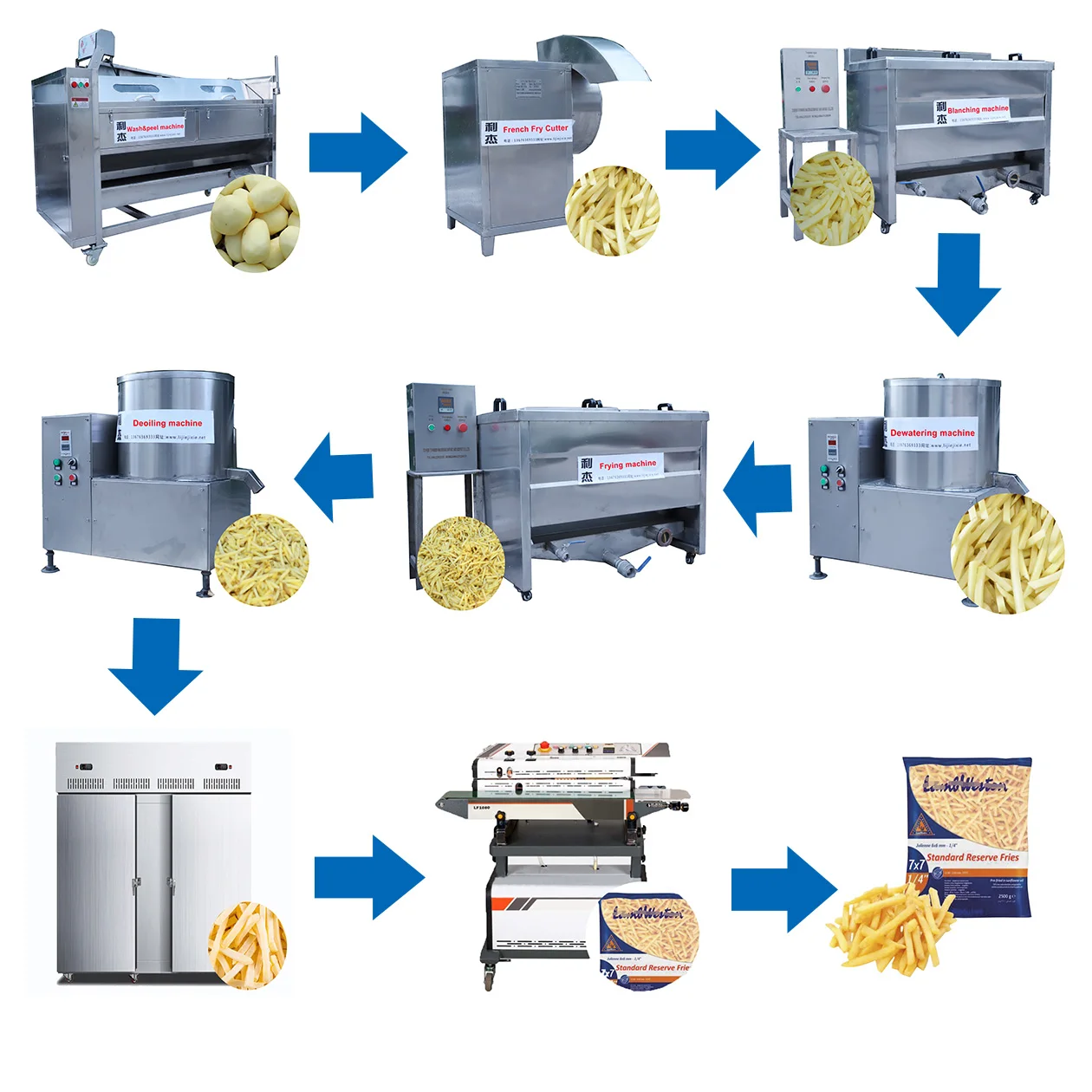

The processing flow
Fresh Potato--washing&peeling--cutting--blanching--Dewatering--Frying--de-oiling--freezing--packing
The processing capacity is 50-200 kg/h.Machine can be customized by your requirements.
Product Paramenters

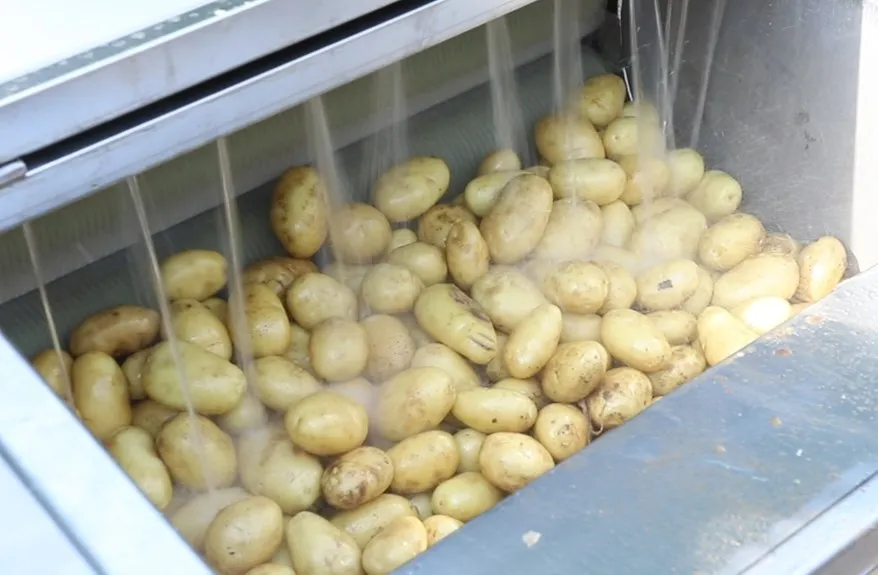

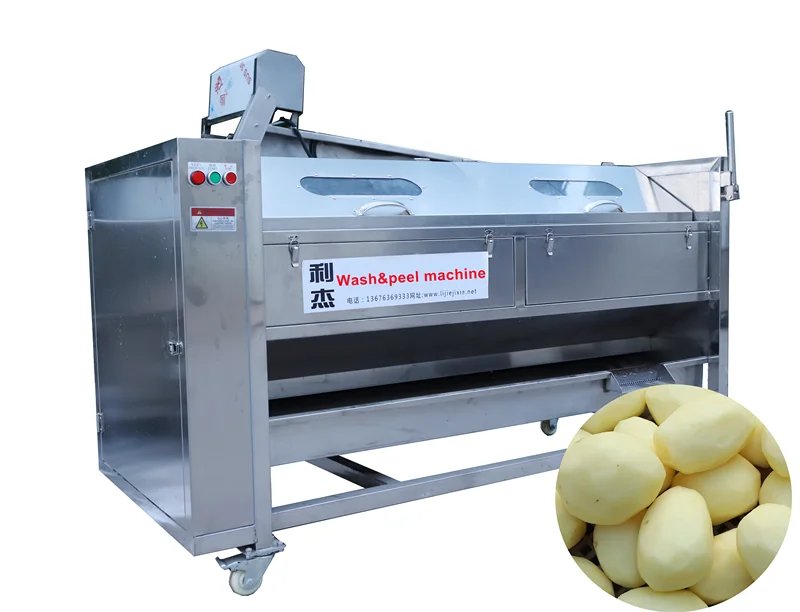

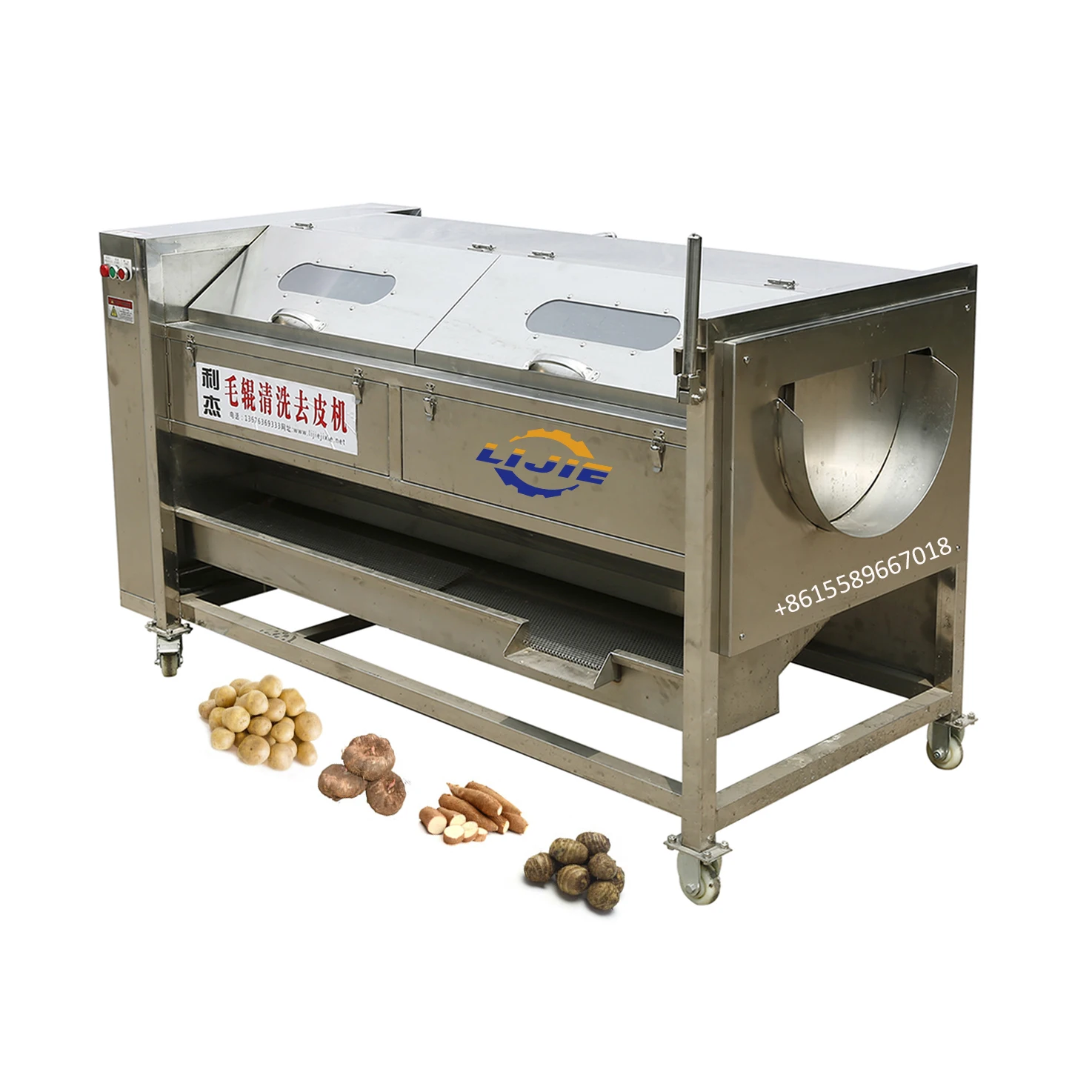

Washing and peeling machine
1. Usage: to wash and peel potatoes
2. Features: Spiral discharge realizes continuous production, imported nylon wool roller, durable, stainless steel frame structure.
3. Technical parameters:
Dimensions: 1500*824*1238mm,
Roller length: 1.5 meters
Power: 1.5kw /380v/ 50Hz
Number of rollers: 9 pieces
2. Features: Spiral discharge realizes continuous production, imported nylon wool roller, durable, stainless steel frame structure.
3. Technical parameters:
Dimensions: 1500*824*1238mm,
Roller length: 1.5 meters
Power: 1.5kw /380v/ 50Hz
Number of rollers: 9 pieces

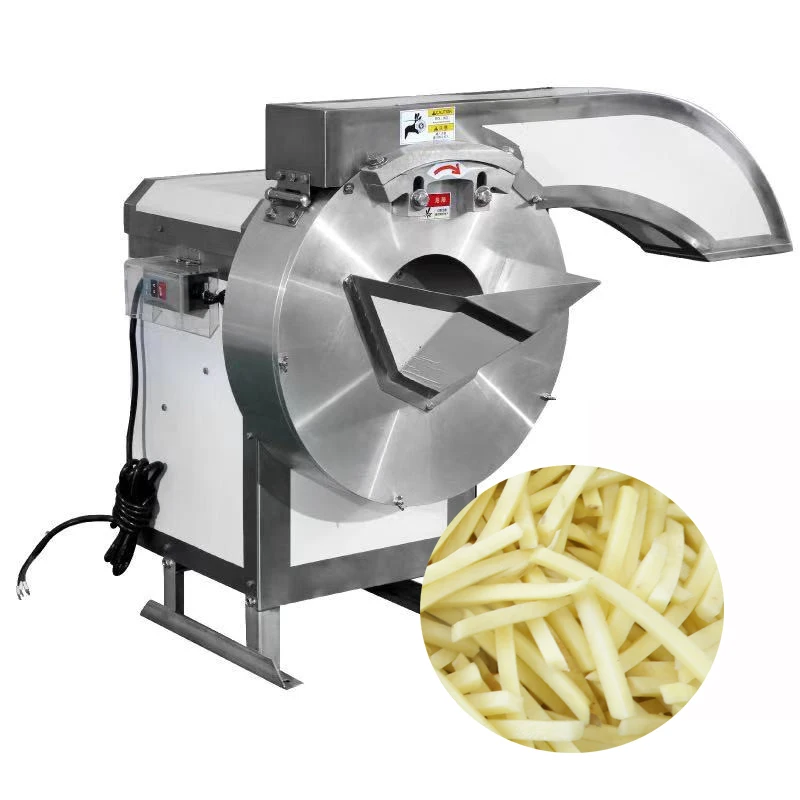

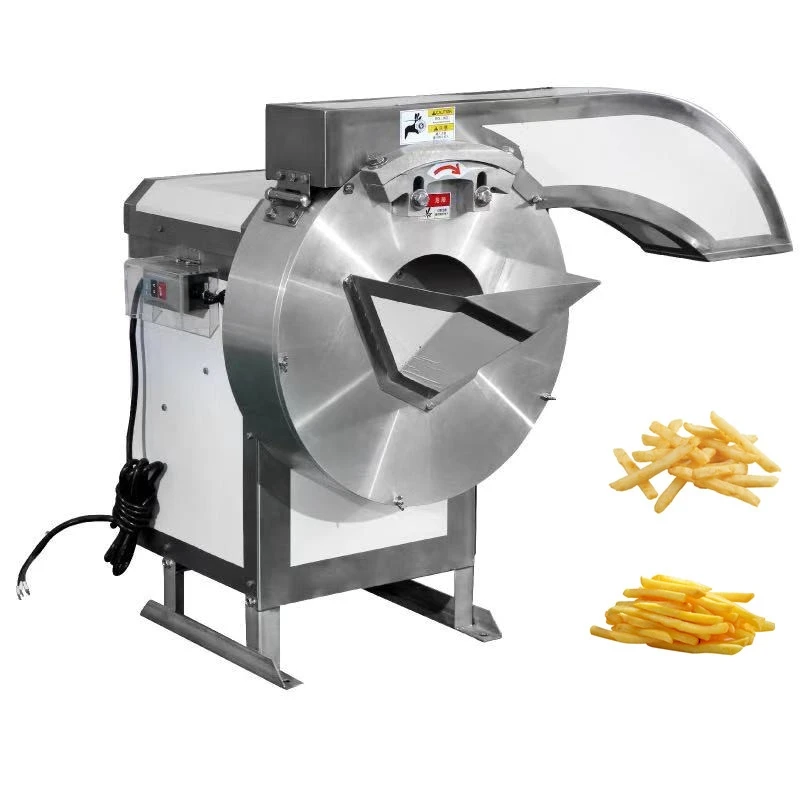

French fry cutter
1. Usage:to cut the cleaned and peeled potatoes into strips
2. Features: Made in Taiwan, the blade is durable and runs smoothly. After the strips are cut, they go directly into the rinse machine for rinse treatment.
3. Technical parameters:
Dimensions: 970*660*800mm
Power: 1.5kw /380v/ 50Hz
Strip size: 7-16mm
2. Features: Made in Taiwan, the blade is durable and runs smoothly. After the strips are cut, they go directly into the rinse machine for rinse treatment.
3. Technical parameters:
Dimensions: 970*660*800mm
Power: 1.5kw /380v/ 50Hz
Strip size: 7-16mm

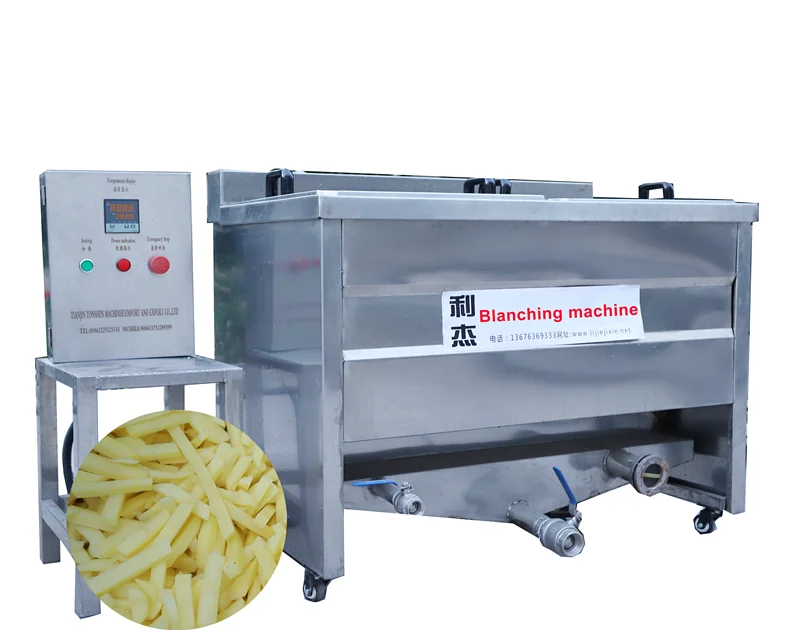

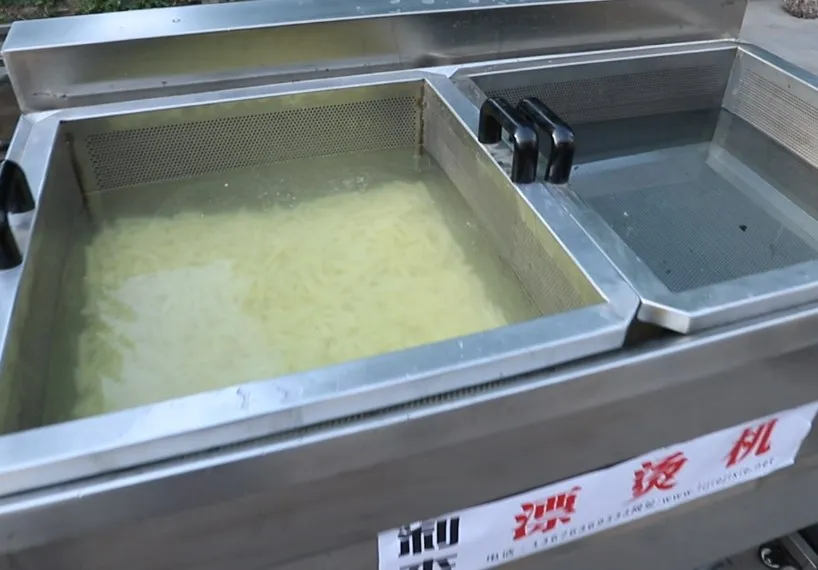

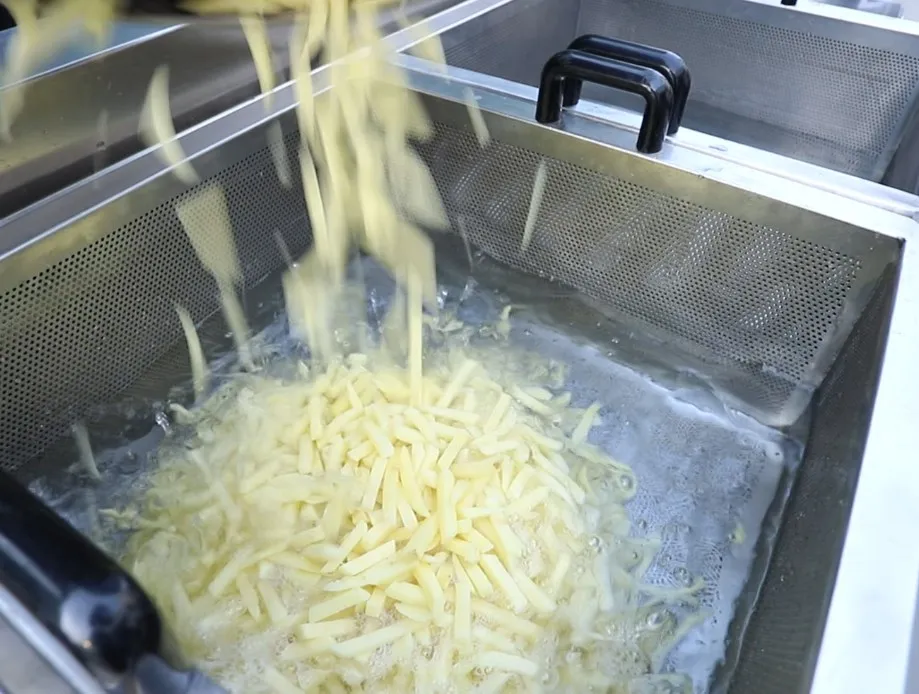

Blanching machine
1. Usage: Blanch French fries with 60-95°C hot water to remove starch and preserve color.
2. Features: It adopts electric heating, which is convenient for cleaning and maintenance, and is convenient for discharging and cleaning.
3. Technical parameters:
Dimensions: 1000*500*750mm
Power: 24kw /380v/ 50Hz
2. Features: It adopts electric heating, which is convenient for cleaning and maintenance, and is convenient for discharging and cleaning.
3. Technical parameters:
Dimensions: 1000*500*750mm
Power: 24kw /380v/ 50Hz

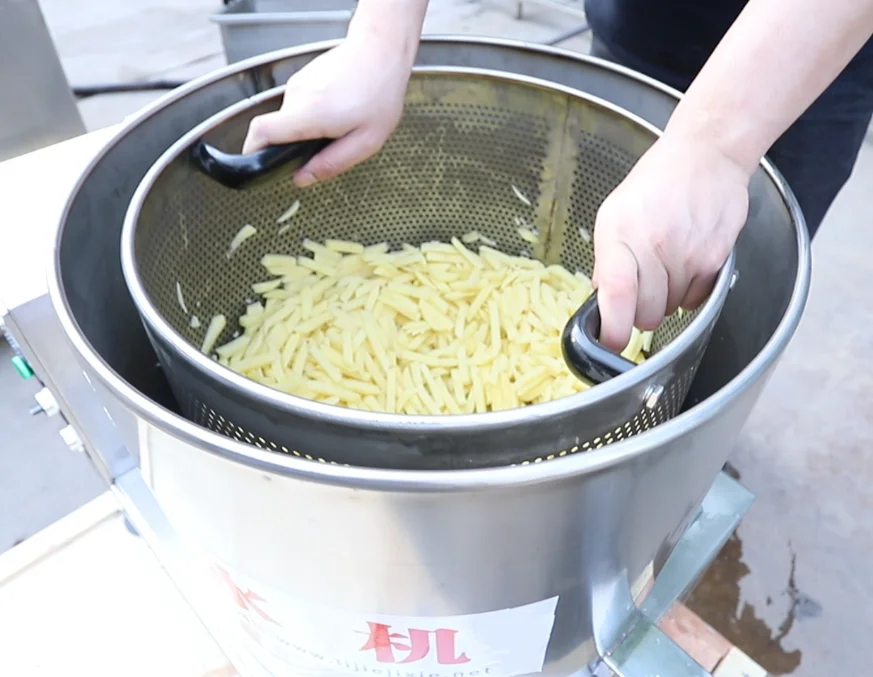

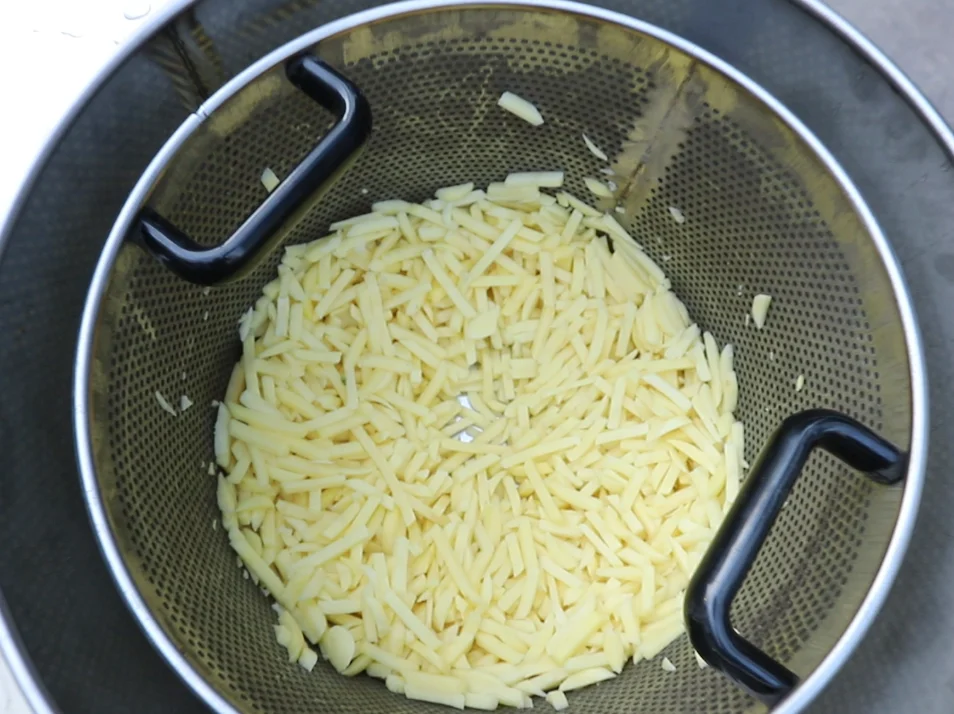

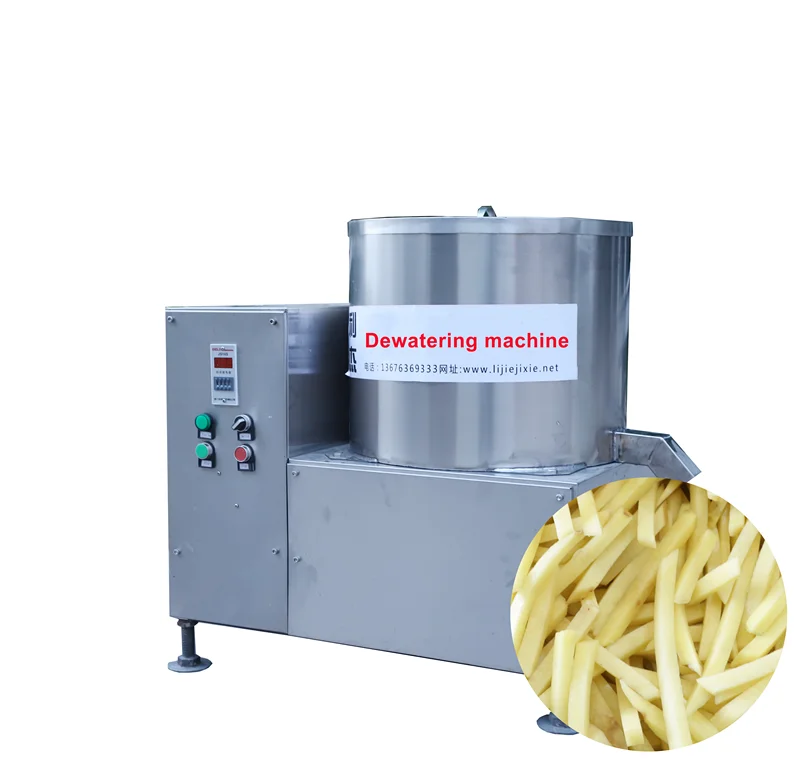

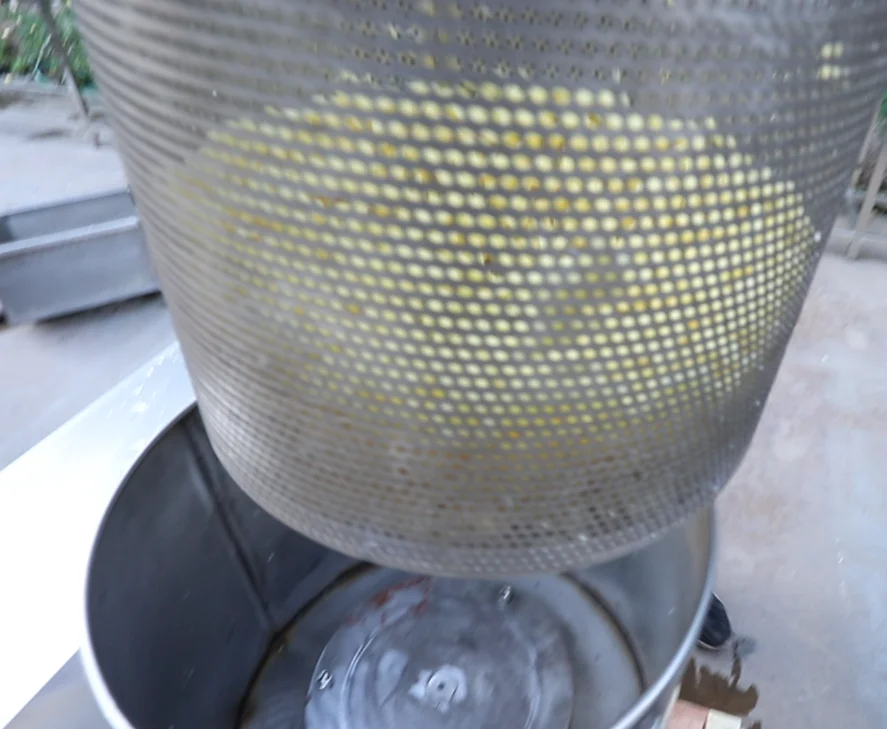

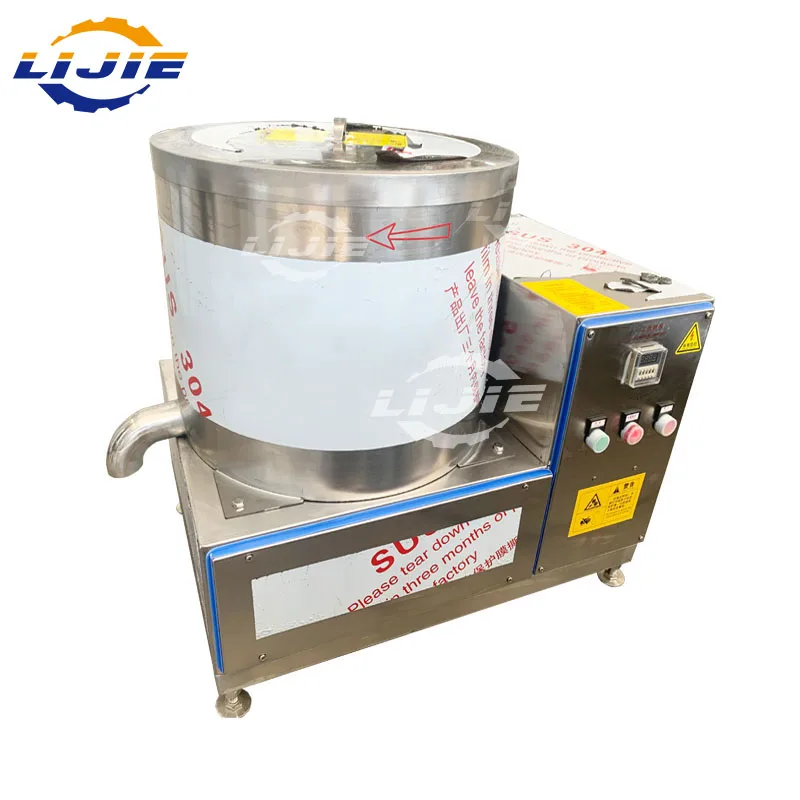

Dewatering machine
1. Purpose: to remove excess water on the surface of French fries after blanching, and shorten the frying time later
2.Features: Use centrifugal force to quickly remove the moisture on the surface of French fries.
3. Technical parameters:
3. Technical parameters:
inner diameter 800
Dimensions: 1300*750*700mm
Power: 2.2kw /380v/ 50Hz
Dimensions: 1300*750*700mm
Power: 2.2kw /380v/ 50Hz

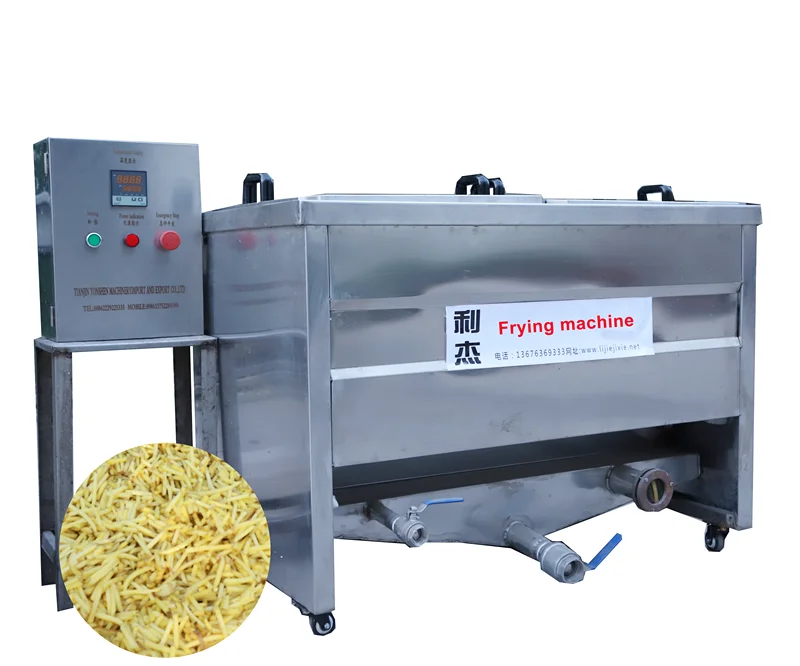

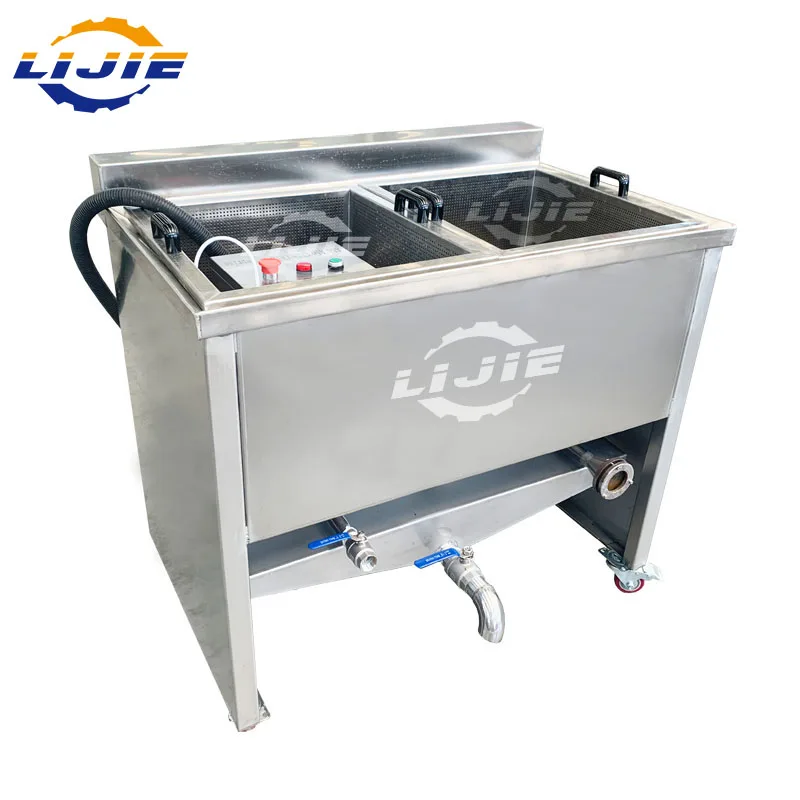

Frying machine
1. Usage: Deep-fry the blanched and dehydrated French fries
2. Features: This fryer uses electric heating to deep fry French fries quickly. Ensure the color and taste of French fries. Frying blanket design, simple and easy to operate，precise temperature control.
3. Technical parameters:
Dimensions: 1200*1000*1250mm
Heating power: 36kw/380v/50Hz
2. Features: This fryer uses electric heating to deep fry French fries quickly. Ensure the color and taste of French fries. Frying blanket design, simple and easy to operate，precise temperature control.
3. Technical parameters:
Dimensions: 1200*1000*1250mm
Heating power: 36kw/380v/50Hz

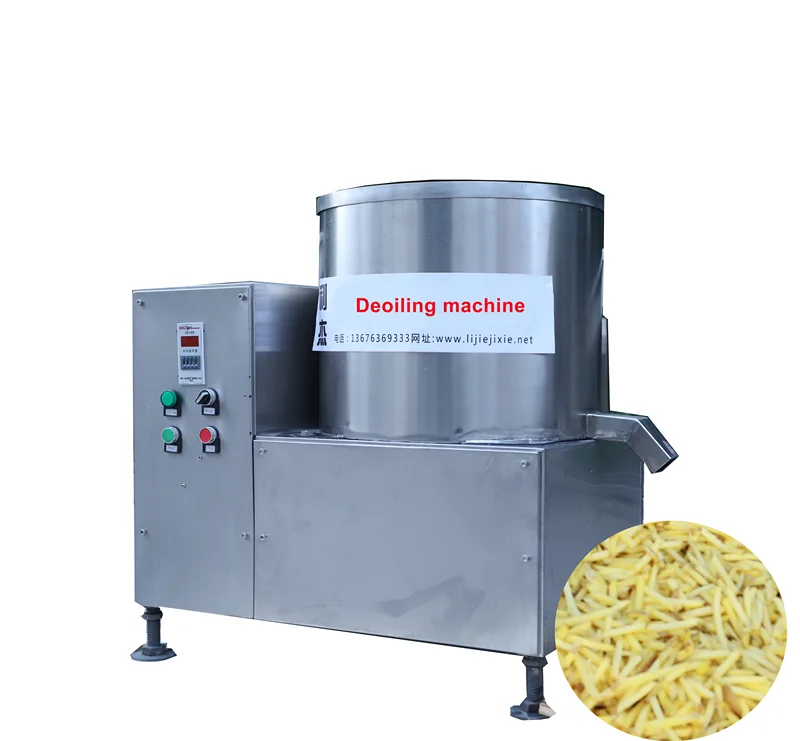

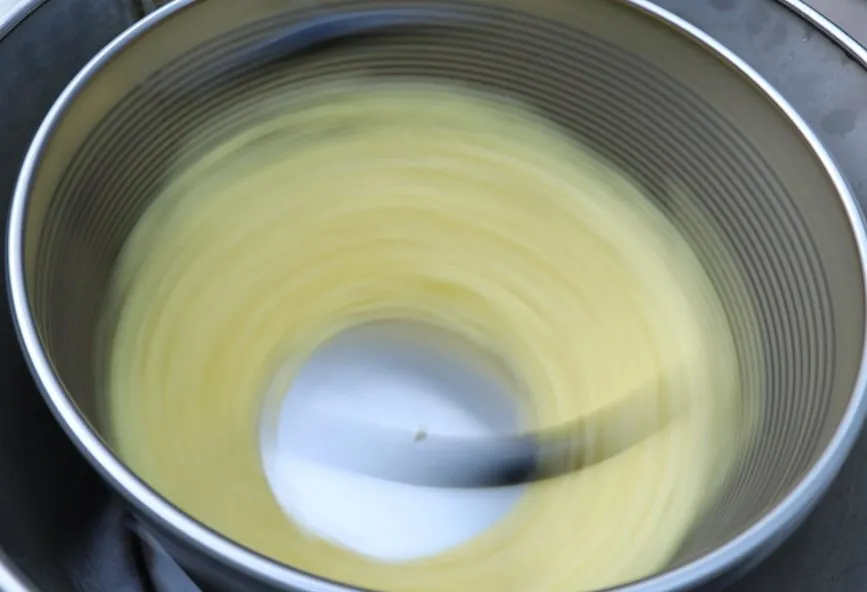

Deoiling machine
1. Usage: Remove excess grease on the surface of French fries, and can also quickly cool down.
2. Features: Made of 304 stainless steel, in line with food hygiene requirements. High dehydration efficiency
Time can be set, easy to operate, saving time and effort.
3. Technical parameters:
Dimensions: 1300*750*700mm
Power: 2.2kw /380v/ 50Hz
2. Features: Made of 304 stainless steel, in line with food hygiene requirements. High dehydration efficiency
Time can be set, easy to operate, saving time and effort.
3. Technical parameters:
Dimensions: 1300*750*700mm
Power: 2.2kw /380v/ 50Hz
IQF cabinet
1. Usage: Quick-freeze every batch of French fries.
2. Features: Made of 304 stainless steel, in line with food hygiene requirements. High freezing efficiency. Equipped with two sets of cars
Freeze time can be set, easy to operate.
3. Technical parameters:
Dimensions: 1900*940*2200mm
Total power: 10kw/380v/50Hz,
Capacity: 100-150kg/h
Temperature: -40°C Tray: 30
2. Features: Made of 304 stainless steel, in line with food hygiene requirements. High freezing efficiency. Equipped with two sets of cars
Freeze time can be set, easy to operate.
3. Technical parameters:
Dimensions: 1900*940*2200mm
Total power: 10kw/380v/50Hz,
Capacity: 100-150kg/h
Temperature: -40°C Tray: 30

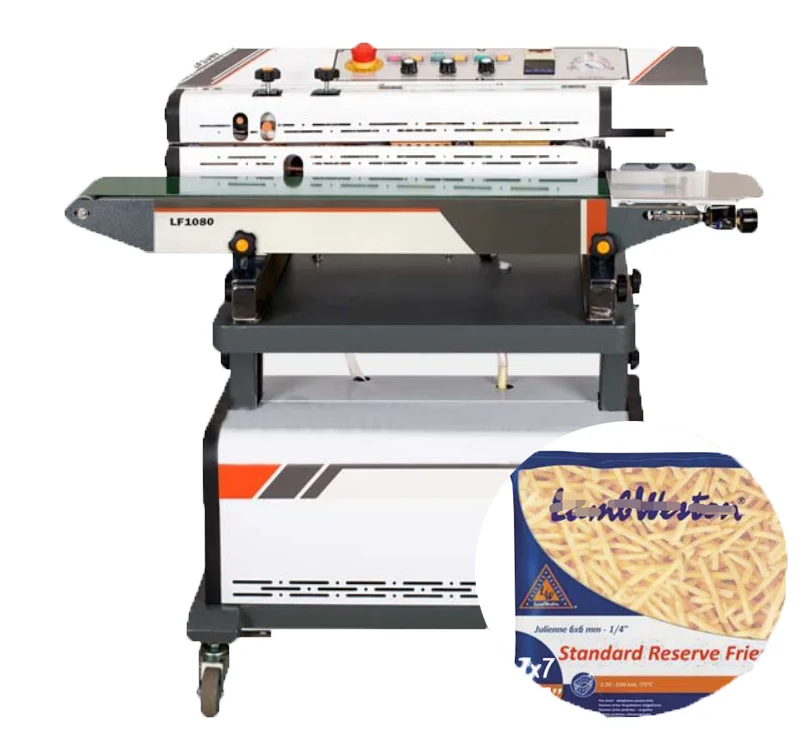

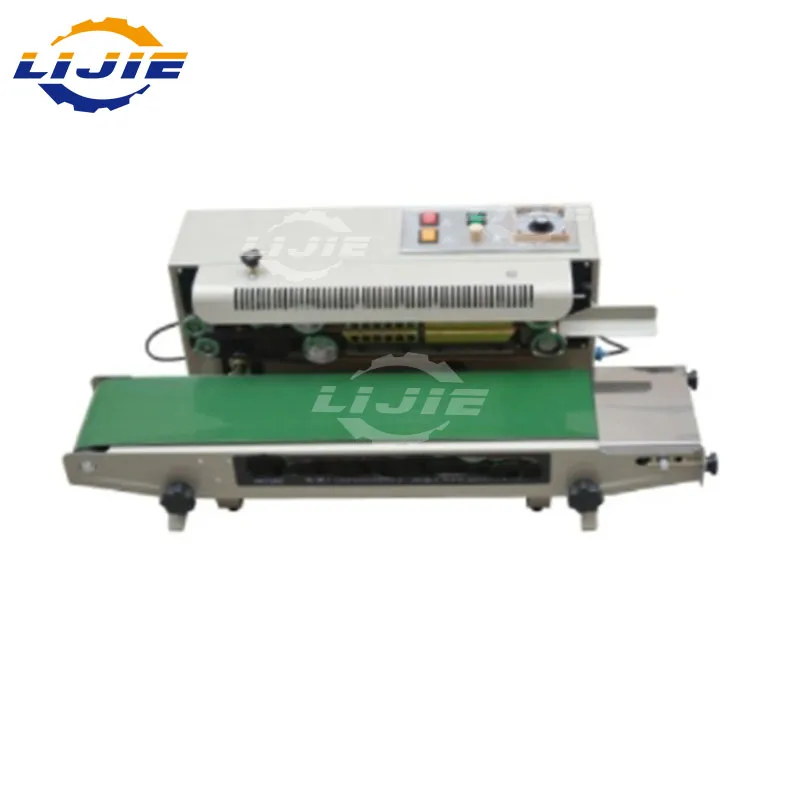

Packing machine
1. Usage: It can realize the functions of coding, inflating, vacuuming, sealing and so on.
2. Features: electronic constant temperature control,Efficient production, simple operation,with multiple functions
3. Technical parameters
Temperature control mode: electronic constant temperature control
Power supply: 220V/50Hz/1.15kw
Sealing speed: 0-12m/min
Seal thickness: <0.08mm
Seal width: 6-12 mm
2. Features: electronic constant temperature control,Efficient production, simple operation,with multiple functions
3. Technical parameters
Temperature control mode: electronic constant temperature control
Power supply: 220V/50Hz/1.15kw
Sealing speed: 0-12m/min
Seal thickness: <0.08mm
Seal width: 6-12 mm
Specification
No. | Product name | Dimensions | Quantity |
1 | Washing and Peeling machine | 1500*824*1238mm | 1 |
2 | Strip cutting | 970*660*800mm | 1 |
3 | Blanching machine | 1100*600*1000mm | 1 |
4 | Dewatering machine | 870*530*720mm | 1 |
5 | Frying machine | 1100*600*1000mm | 1 |
6 | De-oiling machine | 1300*750*700mm | 1 |
7 | IQF | 800*800*1980mm | 1 |
8 | Sealing machine | 800*400*900mm | 1 |
Product details

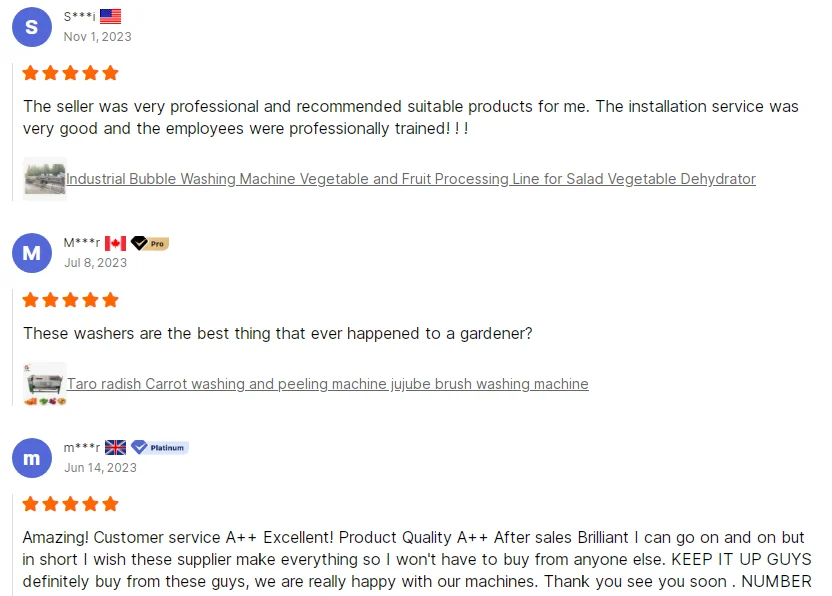

Customer review
