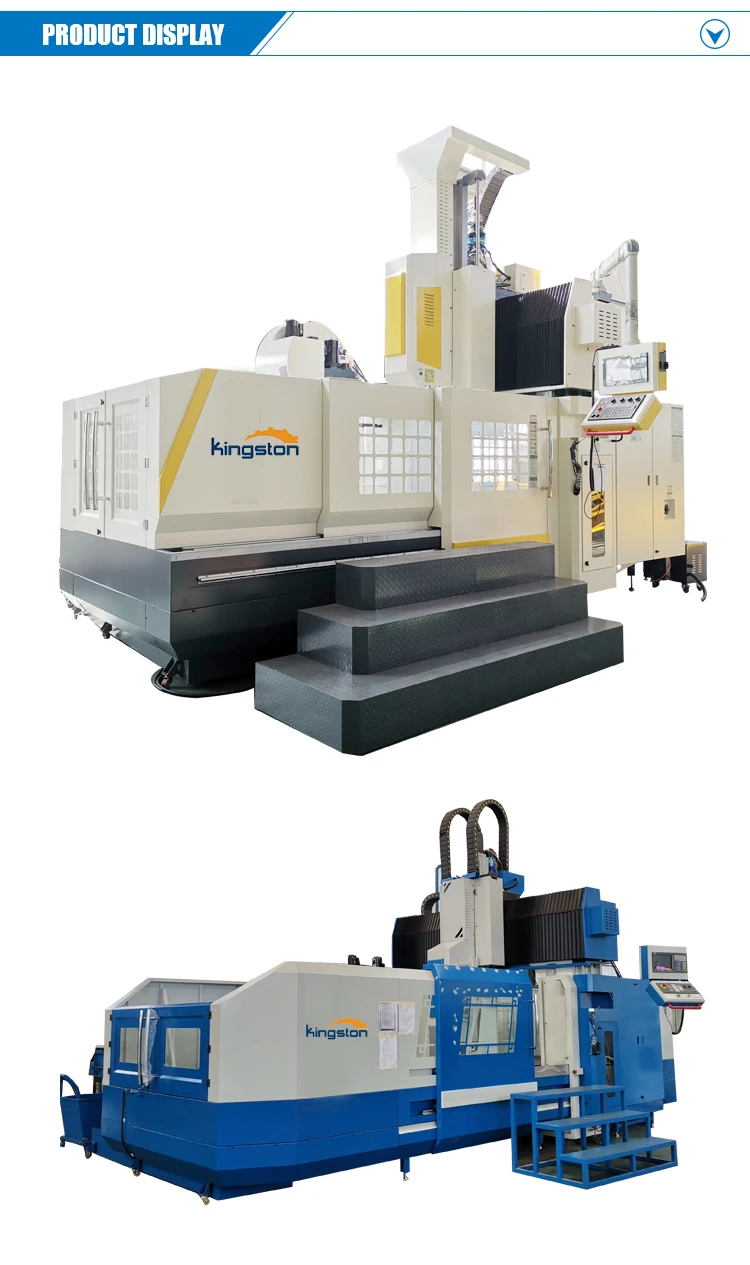

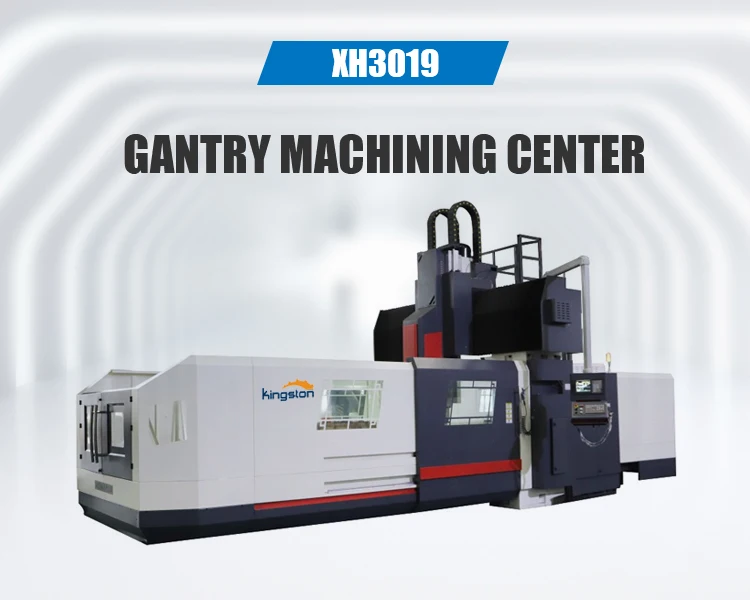

Manufacturer Provides Modular Design Flexible Configuration XH3019 CNC Gantry Milling Machine
- Category: >>>
- Supplier: Jiangsu Kingston Machine Tools Group Co. Ltd.
Share on (1601048602746):
Product Overview
Description
Product Paramenters
Specification | UNIT | XH2014 | XH2519 | XH3020 |
Table size | MM | 2000*1200 | 2500*1500 | 3000*1500 |
Max table load | TON | 4 | 7 | 9 |
Table travel X | MM | 2100 | 2600 | 3100 |
Table travel Y | MM | 1400 | 1900 | 1900 |
Table travel Z | MM | 800 | 900 | 900 |
Distance from spindle nose to worktable | MM | 150-950 | 150-1050 | 150-1050 |
Distance between two column | MM | 1400 | 1900 | 1900 |
Spindle speed range and driving method | RPM | 6000 Belt Driving | 6000 Belt Driving | 6000 Belt Driving |
Spindle taper | / | BT50-190 | BT50-190 | BT50-190 |
Rapid traverse speed - X axis | MM/MIN | 12000 | 12000 | 12000 |
Rapid traverse speed - Y axis | MM/MIN | 12000 | 12000 | 12000 |
Rapid traverse speed - Z axis | MM/MIN | 10000 | 10000 | 10000 |
Feed rate ( X / Y / Z axes) | MM/MIN | 1-8000 | 1-8000 | 1-8000 |
Number of tool magazine--opt | / | 24 | 24 | 24 |
Tool magazine type | / | Disc type | Disc type | Disc type |
Controller | / | FANUC OI MF5 | FANUC OI MF5 | FANUC OI MF5 |
Spindle motor power | KW | 15/18.5 | 15/18.5 | 15/18.5 |
Positioning accuracy(JISstandard) | MM | ±0.005/300 | ±0.005/300 | ±0.005/300 |
Repeatability Positioning accuracy (JIS standard) | MM | ±0.005/1000 | ±0.005/1000 | ±0.005/1000 |
Weight | TON | 16 | 20 | 22 |
