SCH5 to SCH160 SS304 316 Stainless Steel Pipe Fitting Butt-Welded/Welding 90 Degree Elbows
Products Description
Butt weld pipe fittings allow for changing the direction of flow, reducing pipe sizes and attaching auxiliary equipment.
A common example using welded pipe fitting is a pipe reduced by concentric reducer, welded to a weld neck flange and connected to an equipment.
* Welded connection offers a more robust connection
* Continuous metal structure adds to the strength of the piping system
* Buttweld fittings with matching pipe schedules, offers seamless flow inside the pipe. A full penetration weld and properly fitted LR 90 Elbow, Reducer, Concentric reducer etc. offers gradual transition via welded pipe fitting.
* Option of various turn radius using Short Radius (SR), Long Radius (LR) or 3R Elbows
* Cost effective compared to their expensive threaded or socket weld counter parts.
* Stainless Steel Welded Fittings are also available in SCH 10, allowing a more thinner wall option.
* Stainless Steel Butt Weld Fittings are more common in SCH 10 and SCH 40 configuration.
All butt weld fittings have beveled ends as per ASME B16.25 standard. This helps create full penetration weld without any extra preparation needed for the butt weld fitting.
Butt weld pipe fittings are most commonly available in carbon steel, stainless steel, nickel alloy, aluminum and high yield material. High yield butt weld carbon steel pipe fittings are available in A234-WPB, A234-WPC, A420-WPL6, Y-52, Y-60, Y-65, Y-70.All WPL6 pipe fittings are annealed and are NACE MR0157 and NACE MR0103 compatible.
Materials & Specifications
A common example using welded pipe fitting is a pipe reduced by concentric reducer, welded to a weld neck flange and connected to an equipment.
* Welded connection offers a more robust connection
* Continuous metal structure adds to the strength of the piping system
* Buttweld fittings with matching pipe schedules, offers seamless flow inside the pipe. A full penetration weld and properly fitted LR 90 Elbow, Reducer, Concentric reducer etc. offers gradual transition via welded pipe fitting.
* Option of various turn radius using Short Radius (SR), Long Radius (LR) or 3R Elbows
* Cost effective compared to their expensive threaded or socket weld counter parts.
* Stainless Steel Welded Fittings are also available in SCH 10, allowing a more thinner wall option.
* Stainless Steel Butt Weld Fittings are more common in SCH 10 and SCH 40 configuration.
All butt weld fittings have beveled ends as per ASME B16.25 standard. This helps create full penetration weld without any extra preparation needed for the butt weld fitting.
Butt weld pipe fittings are most commonly available in carbon steel, stainless steel, nickel alloy, aluminum and high yield material. High yield butt weld carbon steel pipe fittings are available in A234-WPB, A234-WPC, A420-WPL6, Y-52, Y-60, Y-65, Y-70.All WPL6 pipe fittings are annealed and are NACE MR0157 and NACE MR0103 compatible.
1. Types:

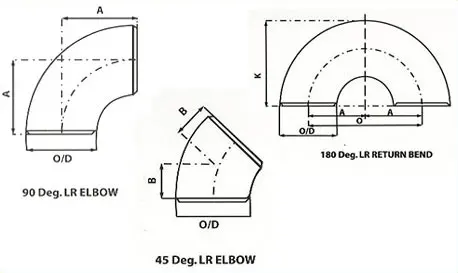

Long Radius, Short Radius; 3D, 5D, 90°, 45°, 180°, 30°
2. Sizes:
1/2" ~ 24" (DN15~DN600), Seamless Elbow
26" ~ 72" (DN650 ~ DN1800), Welded Elbow
3. Wall Thickness:
ASME: SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH XS, SCH80, SCH100
SCH120, SCH140, SCH160, SCH XXS, SCH10S, SCH20S, SCH40S, SCH80S
JIS: SGP
DIN: acc. to DIN2605 schedule list
GOST: acc. to GOST 17375 schedule list
4. Material:
Carbon Steel: ASTM A234 WPB/WPC, WP1, WP12, WP11, WP22, WP5, WP9
Stainless Steel: SS 304/304L, SS 316/316L, SS317/317L, SS 310s, SS 321
Alloy Steel: ASTM A335 P12, P11, P3b, P22, P21, P5 to P9.
Non-Ferrous Alloy: Aluminum Alloys, Nickel Alloys, Copper Alloys
5. Standards:
ASME B 16.9, ASME B 16.25, EN10253, GOST 17375, DIN 2605-1, DIN 2605-2, JIS B 2311/2312/2313
Long Radius, Short Radius; 3D, 5D, 90°, 45°, 180°, 30°
2. Sizes:
1/2" ~ 24" (DN15~DN600), Seamless Elbow
26" ~ 72" (DN650 ~ DN1800), Welded Elbow
3. Wall Thickness:
ASME: SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH XS, SCH80, SCH100
SCH120, SCH140, SCH160, SCH XXS, SCH10S, SCH20S, SCH40S, SCH80S
JIS: SGP
DIN: acc. to DIN2605 schedule list
GOST: acc. to GOST 17375 schedule list
4. Material:
Carbon Steel: ASTM A234 WPB/WPC, WP1, WP12, WP11, WP22, WP5, WP9
Stainless Steel: SS 304/304L, SS 316/316L, SS317/317L, SS 310s, SS 321
Alloy Steel: ASTM A335 P12, P11, P3b, P22, P21, P5 to P9.
Non-Ferrous Alloy: Aluminum Alloys, Nickel Alloys, Copper Alloys
5. Standards:
ASME B 16.9, ASME B 16.25, EN10253, GOST 17375, DIN 2605-1, DIN 2605-2, JIS B 2311/2312/2313
Materials & Specifications
Material | Grade |
Carbon Steel | WPB, WPC, WPL6 |
Chrome Moly | WP5, WP9, WP11, WP12, WP22 |
Stainless Steel | 304/304L, 316/316L, 304H, 316H, 309, 310S, 317L, 321/321H, 347/347H, 904L, DUPLEX 2205 / SUPER DUPLEX 2507 |
High Yield Carbon Steel | WPHY42, WPHY52, WPHY65 |
Nickel Alloys | Alloy 20, 200, 201, 400, 600, 625, 800H/HT, 825, 254SMO, AL6XN, C276, C22, B3, HAST-X |
* Standard Grades: Carbon, Stainless, Chrome Moly, High Yield, Low Temperature, Aluminum
* Types: Elbows, Tees, Reducers, Caps, Stub Ends, Crosses, Laterals, Olets, Return Bends
* Sizes: Standard 1/2" to 48" (special order larger O.D. fittings)
* Wall Sizes: Schedule 20 thru XXH, and Special Wall Sizes
* Specialty Items: 3D & 5D Bends, Galvanizing, 100% X-ray Testing
Forged Steel buttweld fittings are manufactured in accordance with ANSI / ASME B16.9.
Manufacturing Standards of Welded Fittings
* Types: Elbows, Tees, Reducers, Caps, Stub Ends, Crosses, Laterals, Olets, Return Bends
* Sizes: Standard 1/2" to 48" (special order larger O.D. fittings)
* Wall Sizes: Schedule 20 thru XXH, and Special Wall Sizes
* Specialty Items: 3D & 5D Bends, Galvanizing, 100% X-ray Testing
Forged Steel buttweld fittings are manufactured in accordance with ANSI / ASME B16.9.
Manufacturing Standards of Welded Fittings
Standard | Grade |
ASME | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
DIN | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
EN | EN10253-1, EN10253-2 |
ASTM A403 – ASME SA403 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
ASME B16.25 | Buttwelding Ends |
ASME B16.28 | Wrought Steel Short Radius Elbows and Buttwelding Returns |
MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Pipe fitting type:
Steel elbow, steel pipe bend, tee, reducer, cross, cap,etc.
1. Elbow
Steel elbow type
Carbon steel elbow, Stainless steel elbow, SS304 elbow, WPB elbow, LR steel elbow, 2D elbow
1) Standard: ASME B16.9, B16.11, DIN 2605, JIS 2311, JIS 2312 etc.
2)Materials: A234-WPB, WP11, A234-WP5, WP304, WP316L, A105N, ST52-3, A420-WPL6 etc.
3) OD: 1/2" - 48".
4) WT: Sch5 - Sch160.
5) Surface: Painted with black paint (or varnish), galvanized, 3PE, FBE epoxy anti-corrosion coating etc.
6) Packaging: wooden case, pallet.
7) Inspection: water pressure test, X-ray inspection, ultrasonic inspection.
2. Tee, Reducer Tee, Cross
Steel Tee type
straight tee, reducing tee; steel tee; Stainless steel tee; steel cross
1) Standard: ASME B16.9 ,B16.11, DIN2616, JIS 2311, JIS 2312 etc.
2)Materials: A234-WPB, WP11, A234-WP5, WP304, WP316L, A105N, ST52-3, A420-WPL6 etc.
3) Size: 1/2”-48”
Thickness: sch5-sch160
4) Surface: painted with black paint (or varnish), galvanized, 3PE, FBE epoxy anti-corrosion coating etc.
5) Packaging: wooden case, pallet.
6) Inspection: water pressure test, X-ray inspection, ultrasonic inspection:
3. Reducer
Steel reducer type
Concentric Reducer; Eccentric Reducer; Steel Reducer; Stainless steel reducer
1) Standard: ASME B16.9, B16.11, DIN2616, JIS 2311, JIS 2312 etc.
2)Materails: A234-WPB, WP11, A234-WP5, WP304, WP316L, A105N, ST52-3, A420-WPL6 etc.
3) Size: 1/2”-48” Thickness: sch5-sch160.
4) Surface: Painted with black paint (or varnish), galvanized, 3PE, FBE epoxy anti-corrosion coating etc .
5) Packaging: wooden case, pallet.
6) Inspection: water pressure test, X-ray inspection, ultrasonic inspection.
Steel pipe fittings advantages
The quality of raw materials is good, the quality of finished products is superior; Shenlong steel pipe fittings are 100%
non-destructive testing, short delivery time and can be set according to the drawings.The customerized quantity(even one piece) can be mostly satisfied.
Steel elbow, steel pipe bend, tee, reducer, cross, cap,etc.
1. Elbow
Steel elbow type
Carbon steel elbow, Stainless steel elbow, SS304 elbow, WPB elbow, LR steel elbow, 2D elbow
1) Standard: ASME B16.9, B16.11, DIN 2605, JIS 2311, JIS 2312 etc.
2)Materials: A234-WPB, WP11, A234-WP5, WP304, WP316L, A105N, ST52-3, A420-WPL6 etc.
3) OD: 1/2" - 48".
4) WT: Sch5 - Sch160.
5) Surface: Painted with black paint (or varnish), galvanized, 3PE, FBE epoxy anti-corrosion coating etc.
6) Packaging: wooden case, pallet.
7) Inspection: water pressure test, X-ray inspection, ultrasonic inspection.
2. Tee, Reducer Tee, Cross
Steel Tee type
straight tee, reducing tee; steel tee; Stainless steel tee; steel cross
1) Standard: ASME B16.9 ,B16.11, DIN2616, JIS 2311, JIS 2312 etc.
2)Materials: A234-WPB, WP11, A234-WP5, WP304, WP316L, A105N, ST52-3, A420-WPL6 etc.
3) Size: 1/2”-48”
Thickness: sch5-sch160
4) Surface: painted with black paint (or varnish), galvanized, 3PE, FBE epoxy anti-corrosion coating etc.
5) Packaging: wooden case, pallet.
6) Inspection: water pressure test, X-ray inspection, ultrasonic inspection:
3. Reducer
Steel reducer type
Concentric Reducer; Eccentric Reducer; Steel Reducer; Stainless steel reducer
1) Standard: ASME B16.9, B16.11, DIN2616, JIS 2311, JIS 2312 etc.
2)Materails: A234-WPB, WP11, A234-WP5, WP304, WP316L, A105N, ST52-3, A420-WPL6 etc.
3) Size: 1/2”-48” Thickness: sch5-sch160.
4) Surface: Painted with black paint (or varnish), galvanized, 3PE, FBE epoxy anti-corrosion coating etc .
5) Packaging: wooden case, pallet.
6) Inspection: water pressure test, X-ray inspection, ultrasonic inspection.
Steel pipe fittings advantages
The quality of raw materials is good, the quality of finished products is superior; Shenlong steel pipe fittings are 100%
non-destructive testing, short delivery time and can be set according to the drawings.The customerized quantity(even one piece) can be mostly satisfied.
Please contact us for more detail , package,delivery time and shipment.
welcome your enquiry ,we will do our best to support.

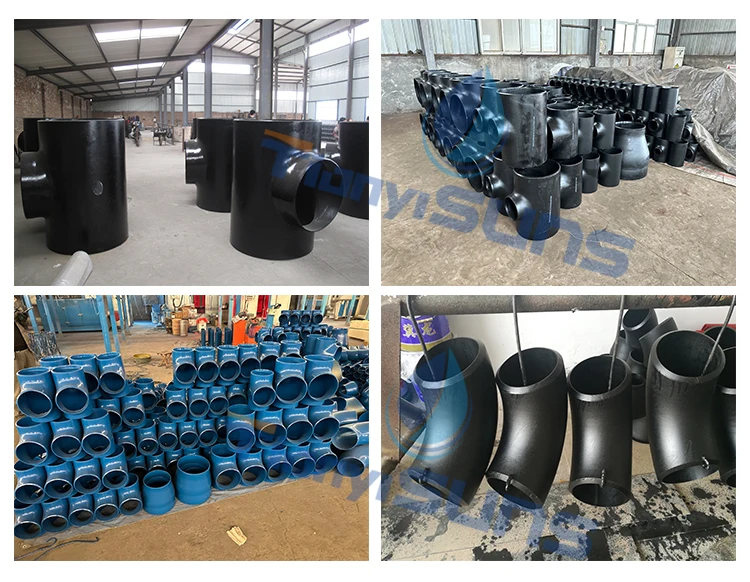

Details Images
Factory Display
Product packaging
Recommend Products
Company Profile
FAQ
Q. Do you accept OEM service?
A: Yes, we do.
Q. Can I get free samples?
A: Yes, And you only need to bear the delivery costs, if the samples are not too big.
Q. Can I have my own Logo on the product?
A: Yes, we're the professional manufacturer, so the OEM service is available.
Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc...
Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.
Q: What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea.
Airline shipping is also optional.
A: Yes, we do.
Q. Can I get free samples?
A: Yes, And you only need to bear the delivery costs, if the samples are not too big.
Q. Can I have my own Logo on the product?
A: Yes, we're the professional manufacturer, so the OEM service is available.
Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc...
Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.
Q: What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea.
Airline shipping is also optional.
