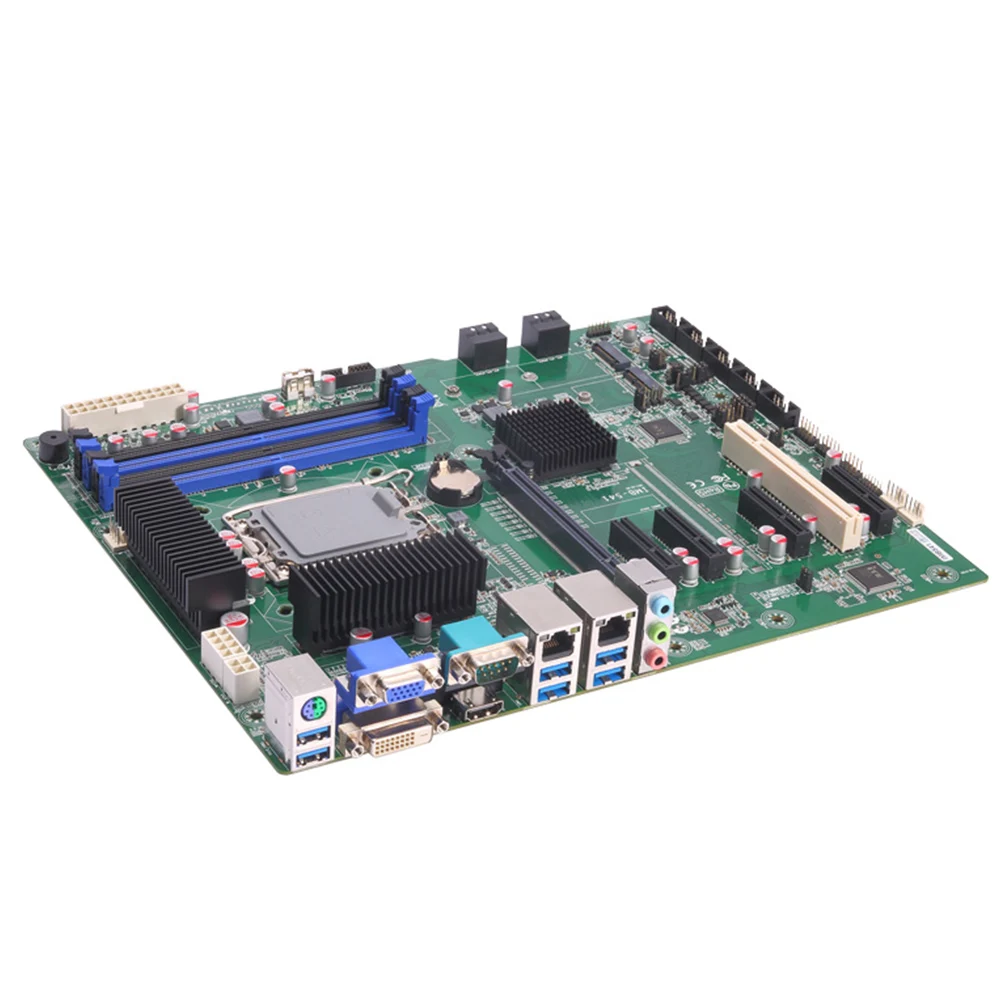

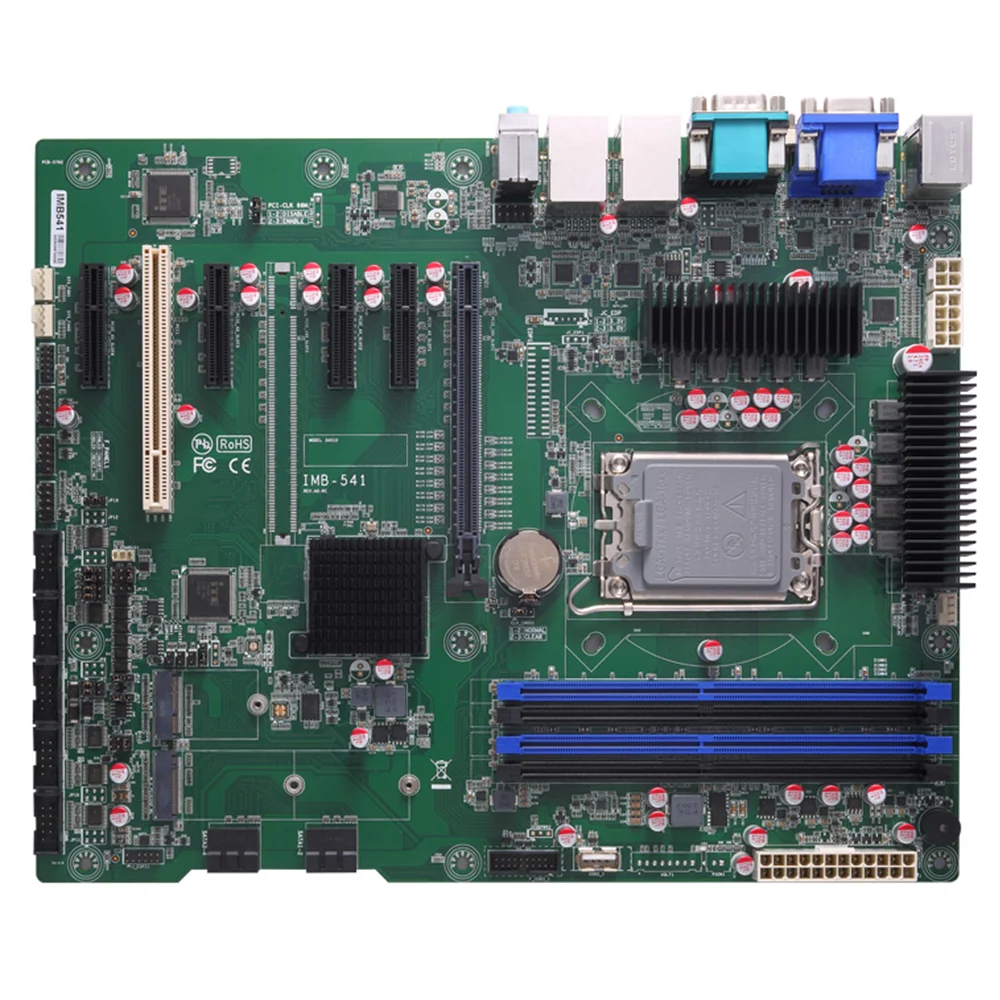

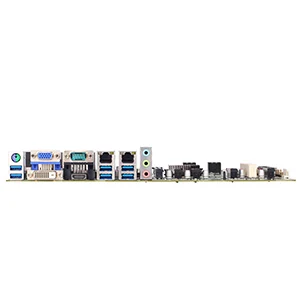

IMB541
ATX Motherboard with LGA1700 Socket 12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® Processor, Intel® Q670E, USB 3.2 Gen1x1 , SATA 3.0, GbE and 2.5GbE LAN, VGA, DVI-D, and HDI



Features

LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (Alder Lake S)
Four 288-pin DDR4-3200 non-ECC Long-DIMM, up to 128GB
Supports triple-view with VGA, DVI-D, and HDI connectivity
Supports M.2 Key M 2280 and Key B 2230
6 USB 3.2 Gen1x1 and 2 USB 3.2 Gen1x1 (internal)
TPM 2.0 supported (optional)



Specifications



CPU
LGA1700 socket 12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (up to 125W)

Chipset
Intel® Q670E

System Memory
4 x 288-pin DDR4-3200 non-ECC Long-DIMM, up to 128GB

BIOS
AMI

COM
1 x RS-232 (rear I/O)
3 x RS-232 (internal box header)
1 x RS-232/422/485 (internal box header)
1 x RS-232/485 (internal box header)

USB
6 x USB 3.2 Gen1x1 (5Gbps, rear I/O)
2 x USB 2.0 (rear I/O)
2 x USB 3.2 Gen1x1 (5Gbps, internal box header)
4 x USB 2.0 (internal pin header)
1 x USB 2.0 (internal 180D type A)

Ethernet
1 x 10/100/1000/2500 Mbps (Intel® I225-V)
1 x 10/100/1000 Mbps (Intel® I219-V)

Display
1 x VGA
1 x HDI 1.4b
1 x DVI-D

Digital I/O
8-channel programmable

Audio
MIC-in/Line-in/Line-out

Storage
4 x SATA-600 with RAID 0/1/5/10
M.2 Key M 2280 in support of PCIe x4 via CPU

Expansion
1 x PCIe Gen4 x16 slot
4 x Open-ended PCIe x4 slot (Gen4 signal by PCH, slot 2 supports Gen3 only)
1 x M.2 Key B 2230 (supports PCIe x1 and USB)
1 x 32-bit PCI slot, default clock is 33 MHz

Others
1 x PS/2 keyboard (rear I/O)

Battery
Lithium 3 V/ 220 mAH

TPM
TPM 2.0 (optional)

Watchdog Timer
255 levels, 1 to 255 sec.

Hardware Monitoring
Yes

Operating Temperature
0°C to +60°C (+32°F to +140°F)

Relative Humidity
10% to 95% relative humidity, non-condensing

Dimensions
305 x 244 mm

Board Thickness
1.6 mm

Certifications
CE



Order Imformation



IMB541-Q670E-BP (P/N-E38F541100)
ATX motherboard with LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor, Intel® Q670E, USB 3.2 Gen1x1, SATA 3.0, GbE and 2.5GbE LAN, VGA, DVI-D, and HDMI (bulk packaging)



IMB541-Q670E-SP (P/N-E38F541101)
ATX motherboard with LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor, Intel® Q670E, USB 3.2 Gen1x1, SATA 3.0, GbE and 2.5GbE LAN, VGA, DVI-D, and HDMI (single packaging)



5938A808010E
2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm



5938A808020E
2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm



5948C122800E
2 x USB 3.2 Gen1 cable with bracket, L=400 mm



594G5208000E
SATA III signal cable, L=500 mm with locking latch



594G5208010E
SATA III signal cable, L=500 mm without locking latch



59380402010E
1 x COM port cable with bracket, P=2.54 mm, L=300 mm



59380703000E
2 x COM port cable with bracket, P=2.54 mm, L=300 mm



711000002500
CPU cooler for 2U, 4U, and wall mount chassis with smart fan
