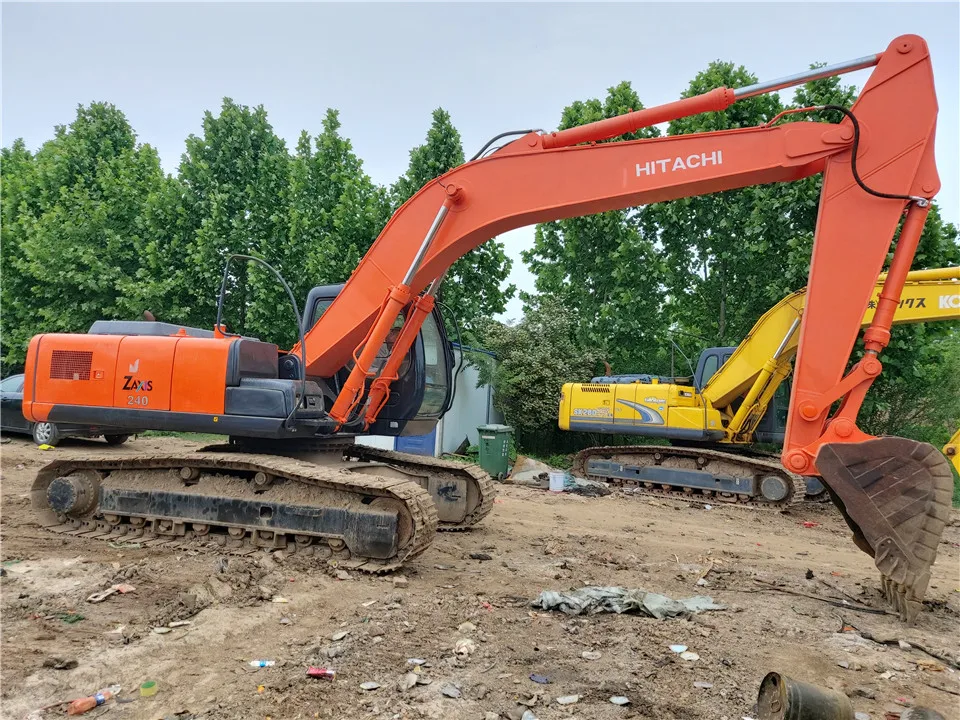

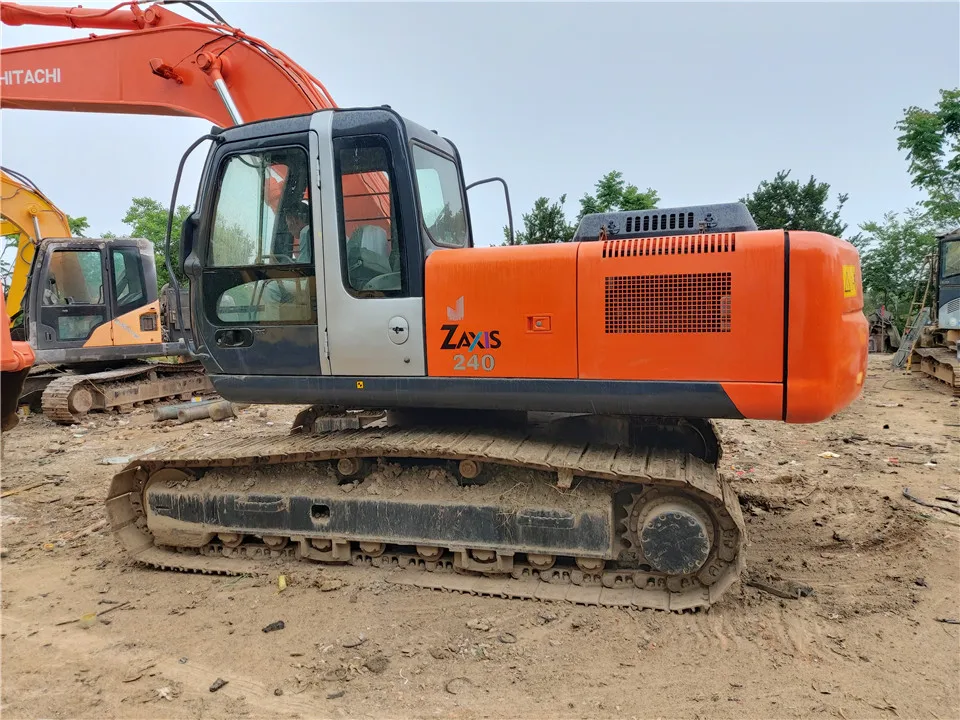

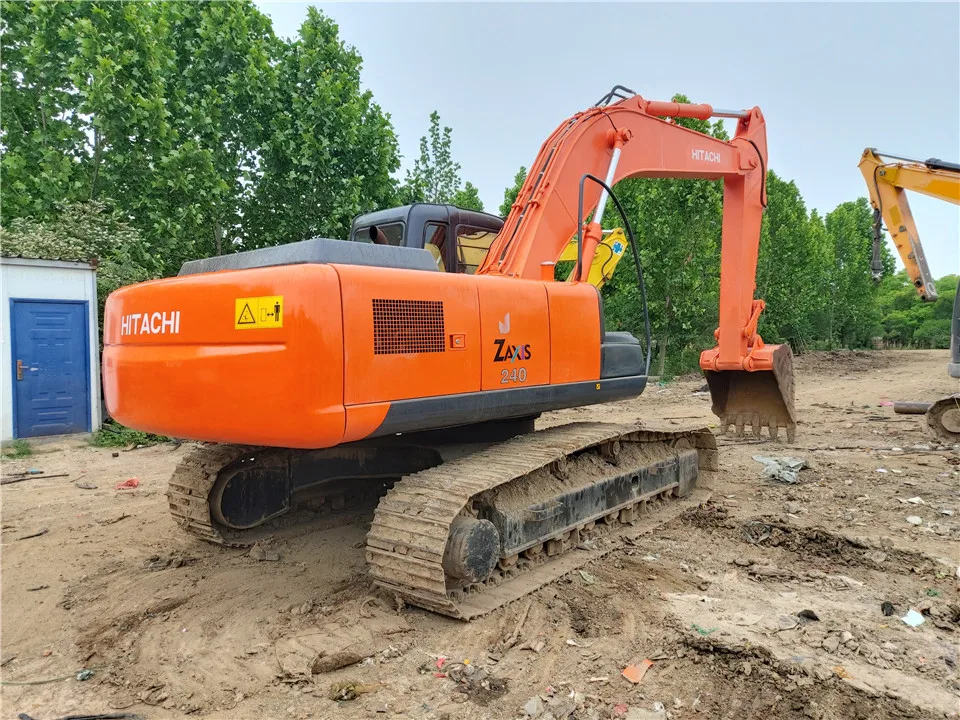

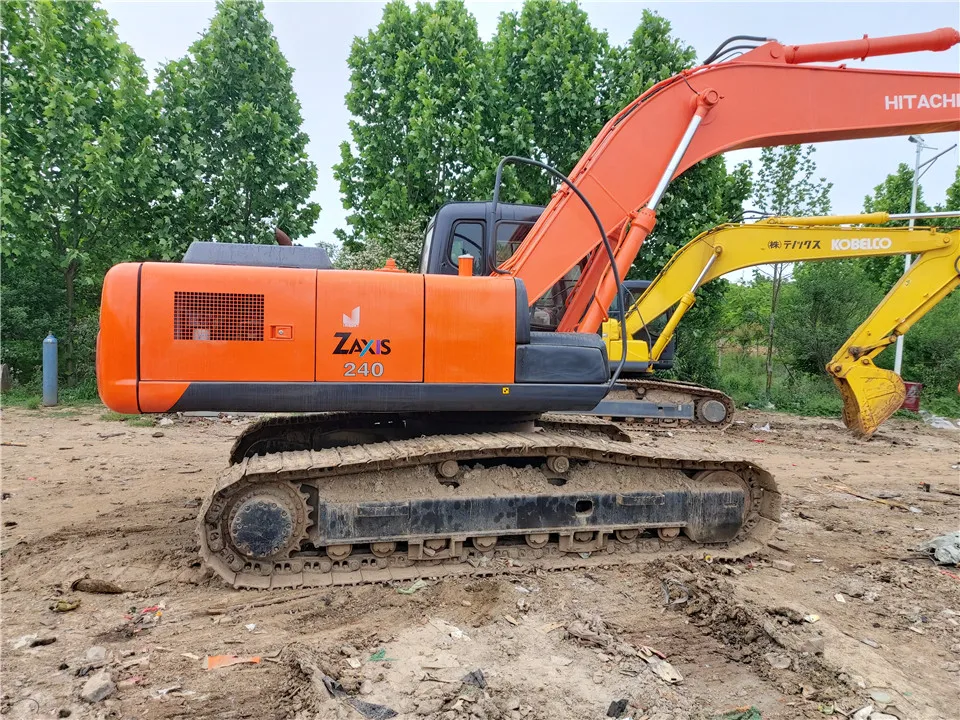

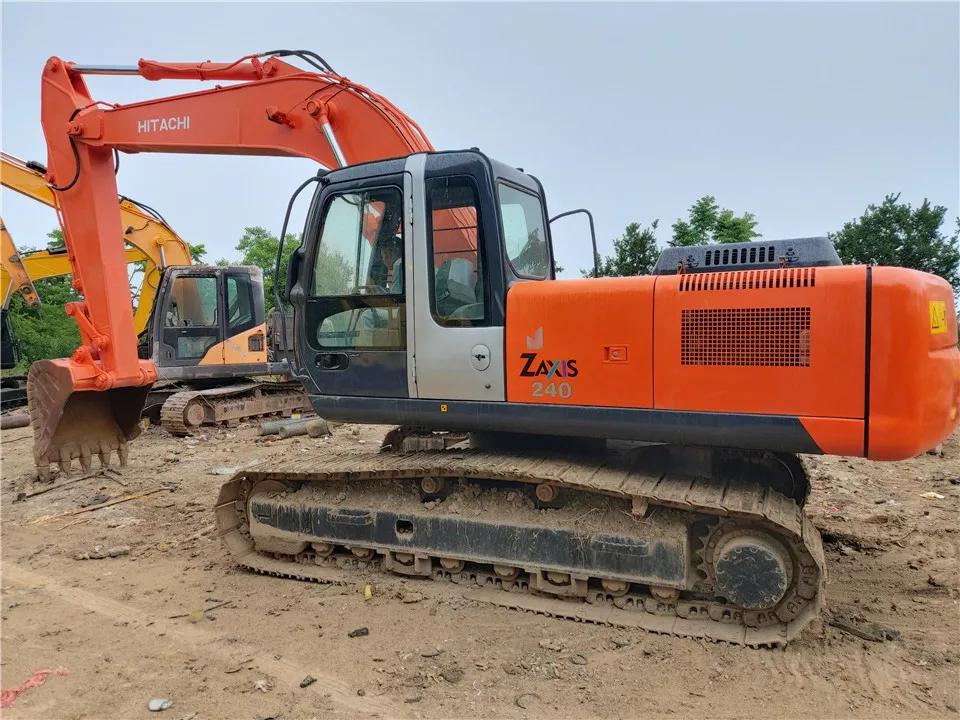

Hitachi ZX240 second hand excavator used machine powerful shipping fast supply wholesale

Product Overview

Description

Hitachi 240 excavator parameter configuration
The parameter configuration of Hitachi 240 excavator is as follows:

The working weight of the whole machine is 26100 kg.

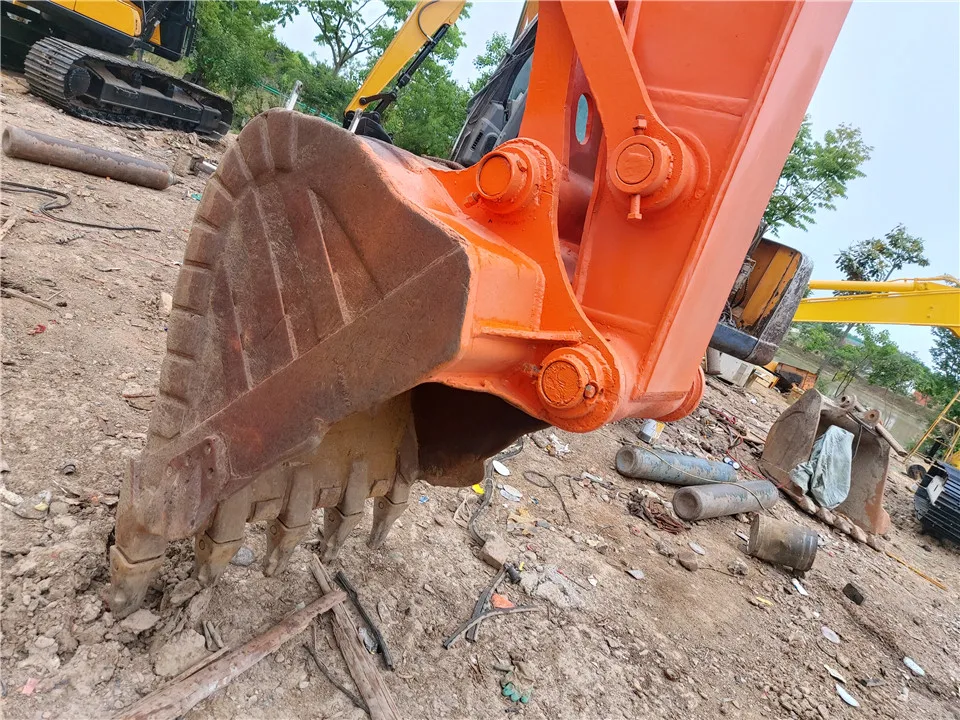

Bucket capacity is approximately 0.4 cubic meters.

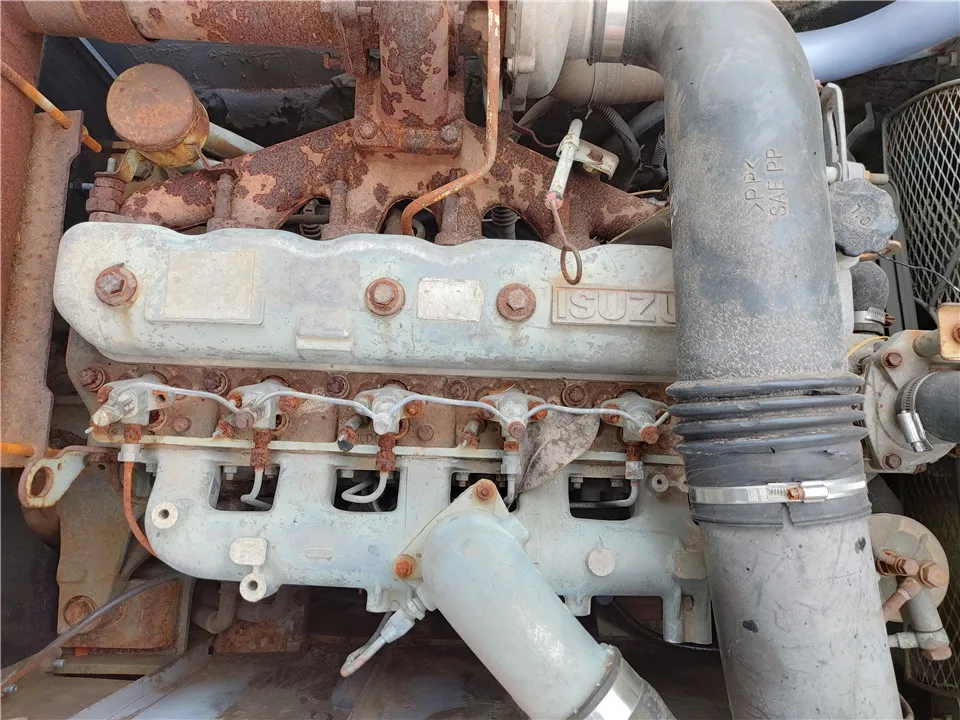

The engine model is Isuzu AH-4HK1XYSA-01, with a rated power of 132 kilowatts (kW) and a rated speed of 2000 rpm.

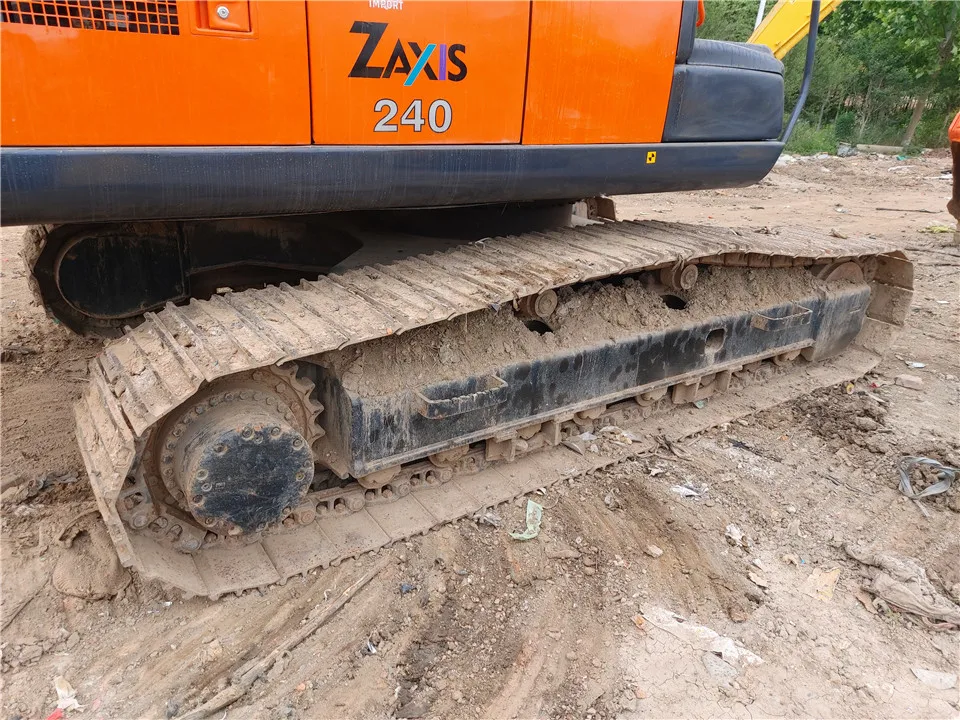

In terms of main body size, the total transportation length is 13890 mm, the total transportation width is 3290 mm, the total transportation height (to the top of the boom) is 3260 mm, the total height of the cab is 3010 mm, the boarding width is 2890 mm, and the counterweight ground clearance is 1090 mm, the total track length is 4640 mm, the track shoe width is 700 mm, the total track width is 3290 mm, the track gauge is 2590 mm, the minimum ground clearance is 460 mm, and the minimum turning radius of the front working device is 5400 mm. , the rear end turning radius is 2940 mm.
In terms of operating scope, the maximum excavation radius is 18250 mm, the maximum excavation radius of the parking surface is 18150 mm, the maximum excavation depth is 14350 mm, the maximum excavation height (cutting) is 15810 mm, the maximum unloading height is 13410 mm, and the maximum vertical excavation depth is 6020 mm.
In terms of performance parameters, the walking speed (high/low) is 5.5/3.4 kilometers/hour, the rotation speed is 12.4 rpm, the ground specific pressure is 43.8 kilopascals (Kpa), and the bucket rod length is 2500 mm.

Shipping Time: Within 1week  after received the complete payment.

Port: Shanghai
