  • Hot sale factory supply 2 litre oil lubrication pump thin oil for lubrication system
Hot sale factory supply 2 litre oil lubrication pump thin oil for lubrication system
Hot sale factory supply 2 litre oil lubrication pump thin oil for lubrication system

Hot sale factory supply 2 litre oil lubrication pump thin oil for lubrication system

Share on (1601048791706):


Price:$56.00

Quantity:


Product Overview

Description










Product Description


 Product Datasheet





































































MR-2232-2L



Operation


self-control


Oil Injection Cycle


1~200s and 1~999min adjustable


Oil Pressure


18 kgf/cm2


Oil Flow


150-200 ml/min


Working Voltage


110,220 VAC


Power


18 W


Oil Viscosity


30-1000 kgf/cm2


Tank Capacity


2000ml


Oil Pipe Size:Φ6mm


Φ6mm


Applicable System


Damper Type SLR / Volumetric PDI


More Details: MR-2232-200 self-controlled, intermittence could be maximum 999 minutes, oil supply last maximum 200 seconds. When
the liquid level is insufficient, the machine stops and buzzing alarm goes. NC / COM / NO outputs, water outlet at the bottom,
damper type or volumetric type perferrable, suitable for various lubricating systems.


More Details: MR-2202-300 is controlled by Host or a special controller, with a Liquid Level Alarm, NC / COM / NO outputs, water outlet at the bottom, damper type or volumetric type perferrable, suitable for various lubricating systems.


1. What is the difference between: 2202 and 2232 ?
2202 type is half-controlled,it needs your machine to control the oil offering time and resting time.
2232 type is self-controlled,there is the controller inside,it can control the oil offering time (0-200 seconds) and resting
time(0-999 mins).

2. How long can be the hose?
You can buy our plastic hose,it is from 1 meter to 100 meters,200 meters or 300 meters.


3. How many lubrication points can be used for each pump?
You can buy our lubricating points from 2 points to 14 points.


4. What is the main application for lubricating pump?
Normally our pumps are suitable for plastic machinery,engineering machinery,and machinery for
textile,printing,woodworking,chemical,etc. ,ensuring lubrication performance of various kinds of machinery products, for longer service life and accuracy.

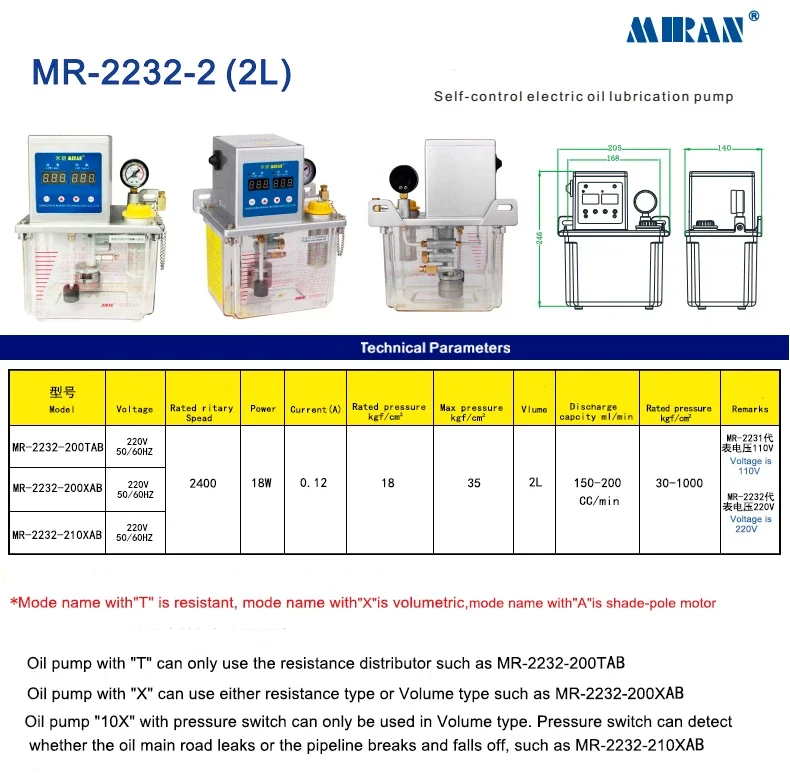

pump 01











Opration  Instruction





MR-2232()-1





Packaging & Shipping








Each product external packing is carton packing








PUMP packing pump packing -02








Company Information



Miran Products are widely used in injection molding machines,die casting machines,rubber machines,footwear machines,EVA injection machines,bottle blowing machines,woodworker machines, hydraulic machinery,level control, suspension stroke control,construction machinery,seaport machinery,industrial robots,etc.

As a leading manufacturer in China, Miran has the faith to keep our customers in the lead.Miran is approved by ISO9001:2008, CE, CCC, Rohs certifications. Also we are very proud of the following
1. Being among the leading manufacturer we contribute in R&D of related industry, We spend millions every year for developing new tech and new products.
2.We Promise high quality with strict QC. We performed vibration test, low and high temperature test,electromagnetic interference regulatory test,endurance test, and explosion proof test for each product before shipping.
3. Lean Production is intruduced to factory.
4. Excellent performance in on time delivery.
5. Excellent sales & after-sales service.

Miran now provide the service to customize product logo
