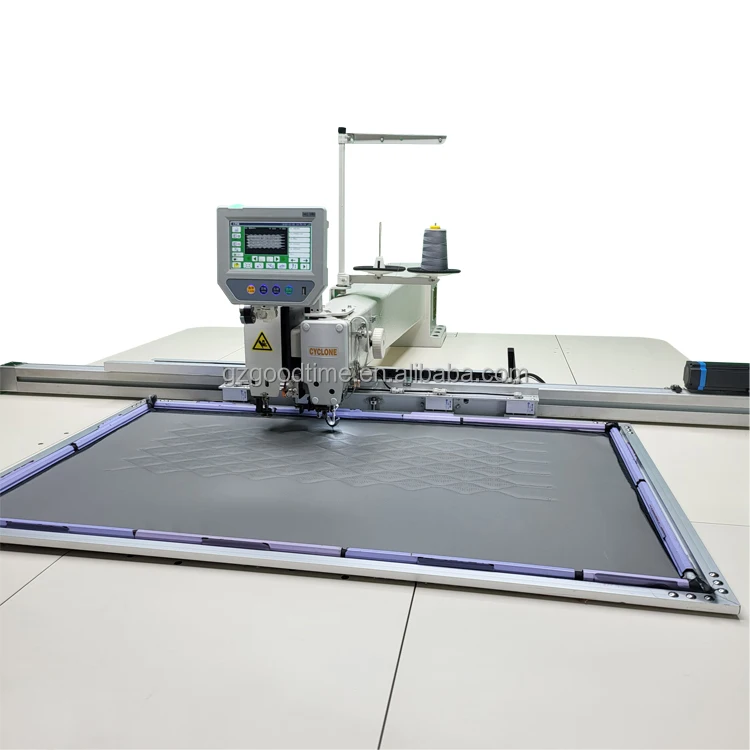

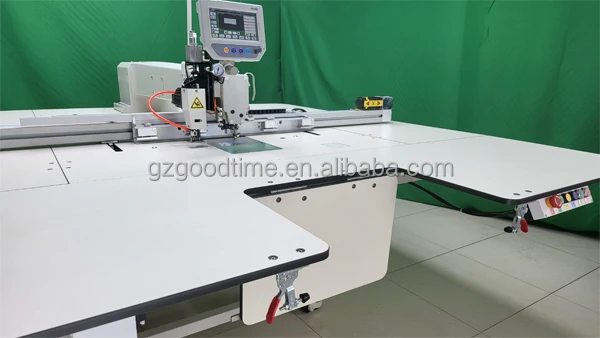

Automatic High Speed Computerize Template Pattern Sewing Machine for Leather Goods
- Category: >>>
- Supplier: Guangzhou Good Time Trading Co. Ltd.Guangzhou Ltd.
Share on (1601048824423):
Product Overview
Description
Automatic High Speed Computerize Template Pattern Sewing Machine for Leather Goods.
Product Description
1. Efficient intelligent sewing: one button operation, fully automatic sewing of set patterns, no intervention in the whole process! Simple, fast, efficient and accurate! Everyone can work.
2. High end sewing: patterns can follow the fashion trend and can be designed freely. There is no need to worry about the difficulty and accuracy of sewing! Intelligent formwork machine specially designed for ordinary workers.
3. Easy to operate: easy to operate color touch screen, Chinese and English operation interface can be switched freely, and all functions are clear at a glance. Basic operations can be performed by pressing the key as illustrated in the figure.
4. Template identification device: automatically identify the template, automatically identify the starting point of sewing, one key operation, in line with the standardized production process, and there is no need to worry about the novice!
5. Programming is simple and convenient, and can be entered in USB flash disk: DXF and PLT graphics generated by garment CAD software can be directly used through the upper software. The recognition formats include DXF, PLT, DST & AI, which is simple and convenient.
6. In addition, it can also be programmed directly by inserting USB flash disk to read graphics, or converted into a runnable program with upper software.
7. Thread breakage detection function: ensure sewing quality!
8. A wide range of fabrics can be sewn: both thin, medium and thick fabrics can be sewn.
Technical data
Item No: | GT-13090 |
Sewing rang : | 1300mm X 900mm |
Sewing speed: | 2800-3500rpm/min |
Work holder lift: | 25mm (max:30mm) |
Stepping foot lift: | 20mm |
Stepping foot stoke: | 4-10mm (Optional) |
Hook : | Double capacity hook |
Stitch Formation: | Single needle Lock Stitch |
Motor : | 750W direct drive servo motor |
Memory device: | USB |
Stitch Length: | 0.1-12.7mm |
Needle : | DP*17(#16-#23) |
Operation screen: | 7 inch LCD touch control panel |
Voltage : | Single phase 220-240V |
Air pressure : | 0.5Mpa 1.8L/min |
Memory Card: | 999 patterns |
Max. needle number: | Each pattern 20,000 needles. |

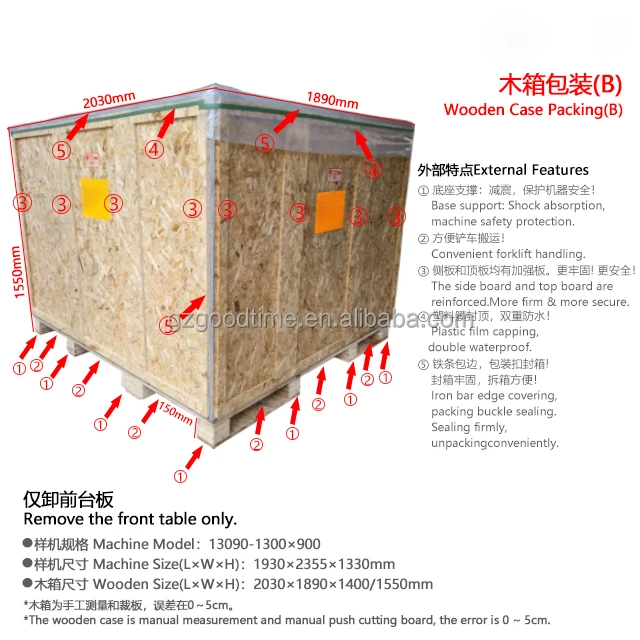

Packing size : | 220x190x160cm |
G.W/N.G: | 920kgs/820kgs. |

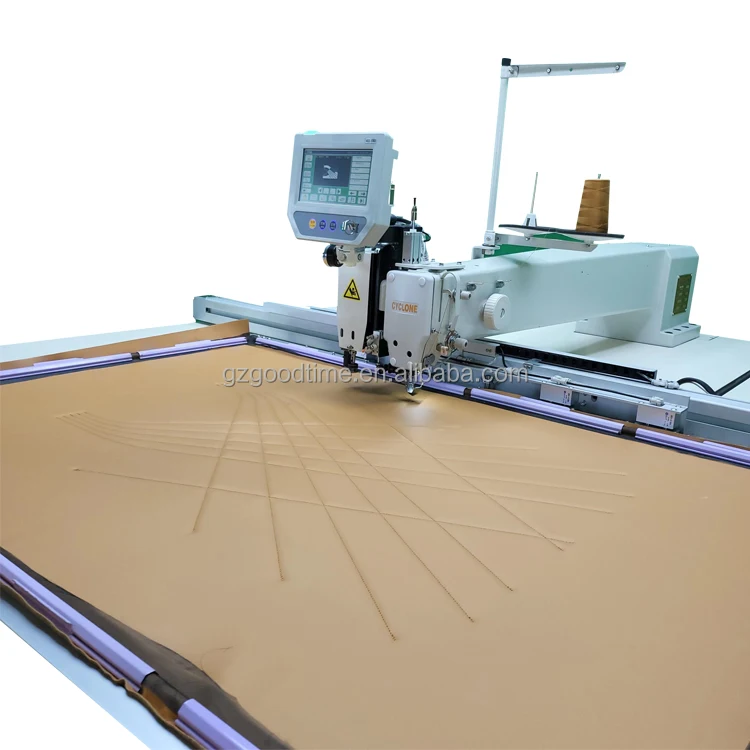

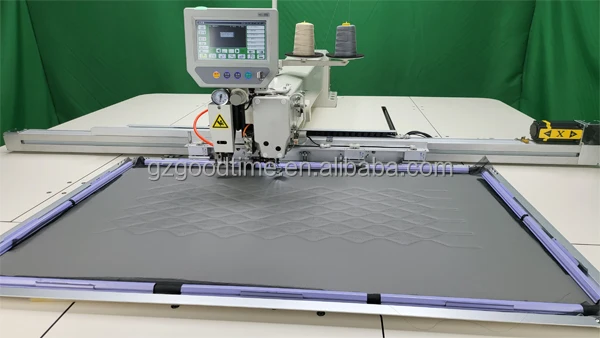

Detail Image

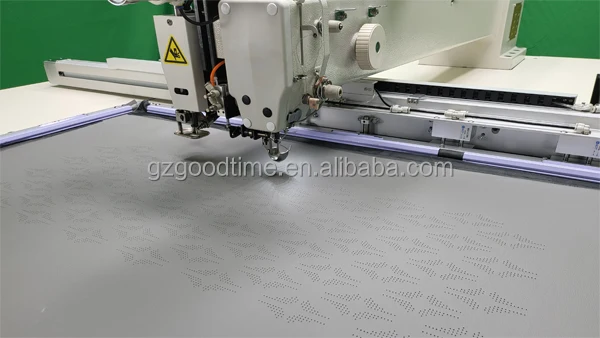

1. Realize sewing and punching in one, with the punching point controlled by computer and achieve the desired combination pattern.

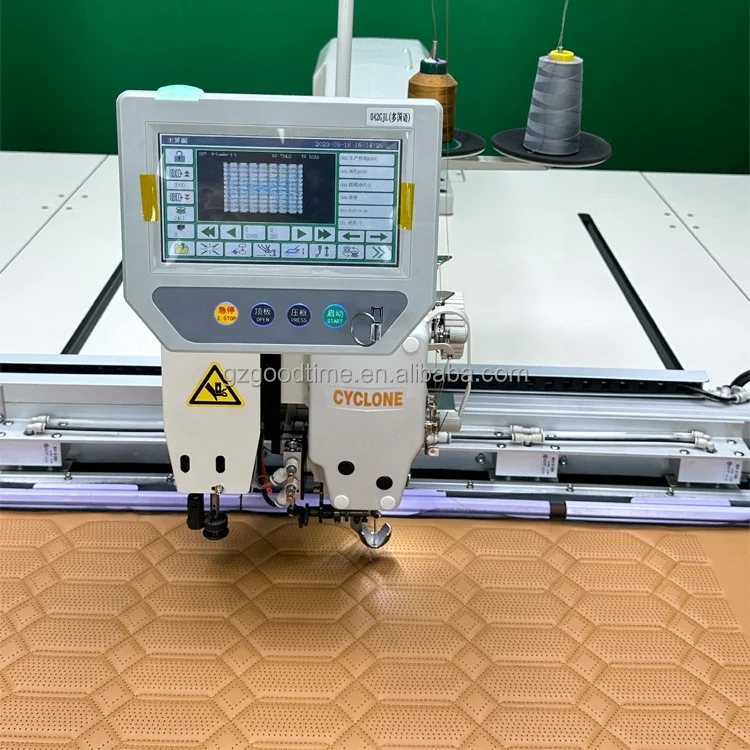

2. With 7 inch LED colorful touch screen, clear & good using.
3. It is easy to learn the operation of the machine and no requirement for skilled sewing machine operation, which reduce the dependence on skilled workers.
4. Arbitrary design of sewing pattern, easy realization of special sewing process.
5. Good consistency of sewing stitches, with stable quality and low reject rate.
6. Shuttle/hook: double shuttle/hook, reduce the number of bottom thread replacement, good hardness and wear resistance
7. High working speed, accurate pattern.
8. The distance from the punching and sewing head is 170 mm, while the switching time for sewing and punching can be neglected to maximize work efficiency.
9. Sewing head and punching head are independent , guarantee the actual working area, also make it convenient to open and reloading the template.

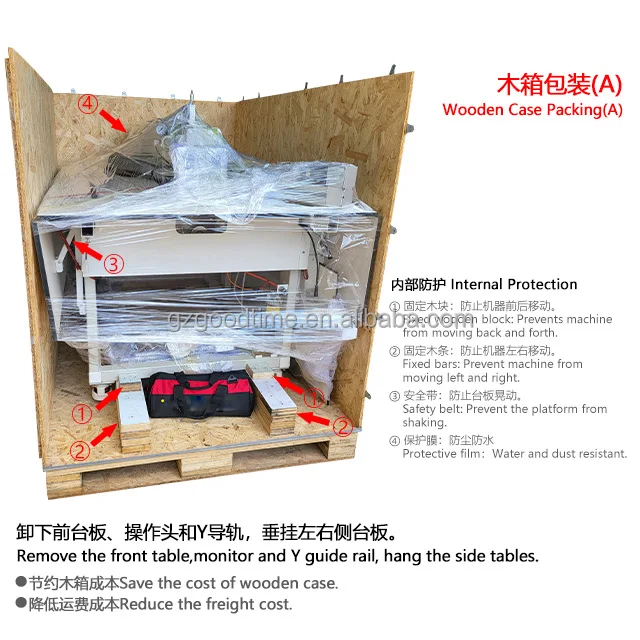

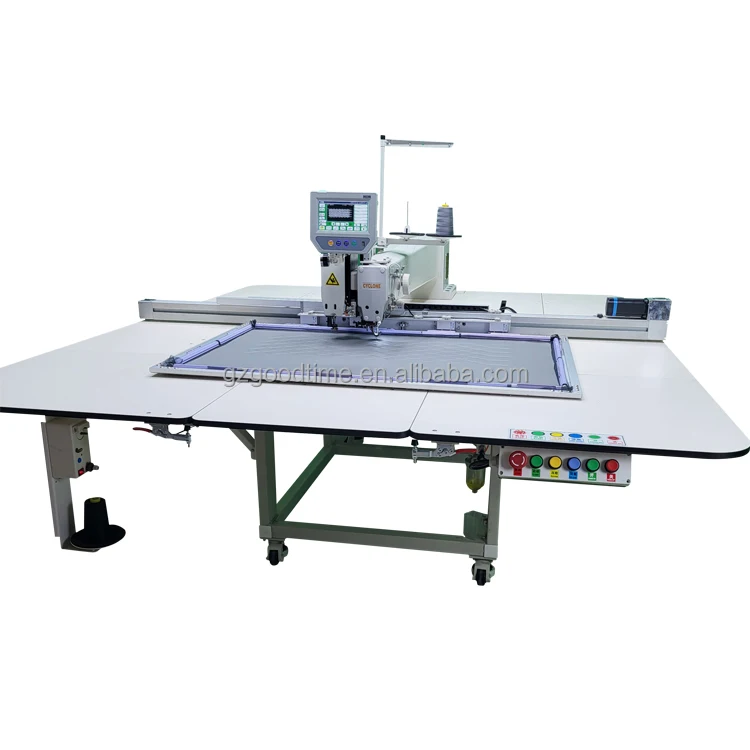

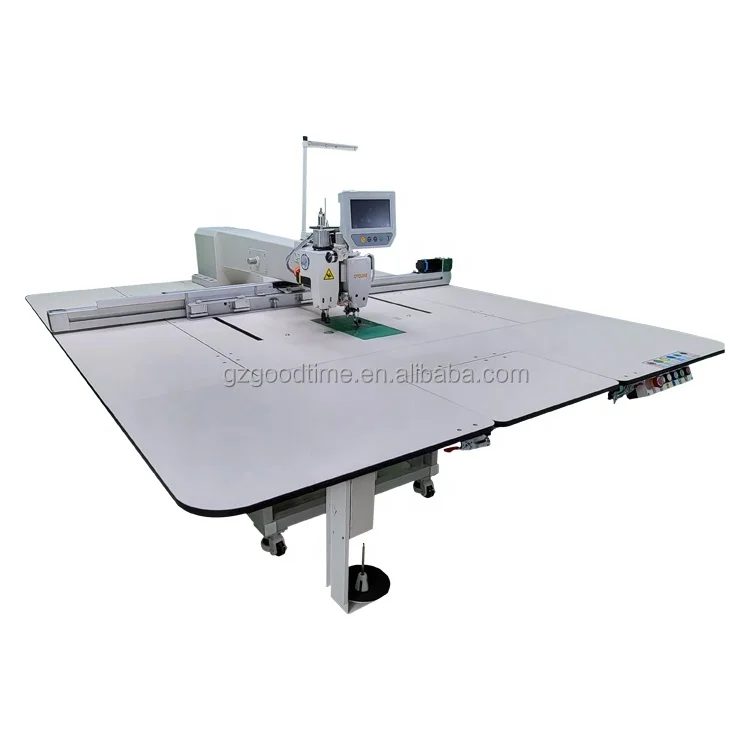

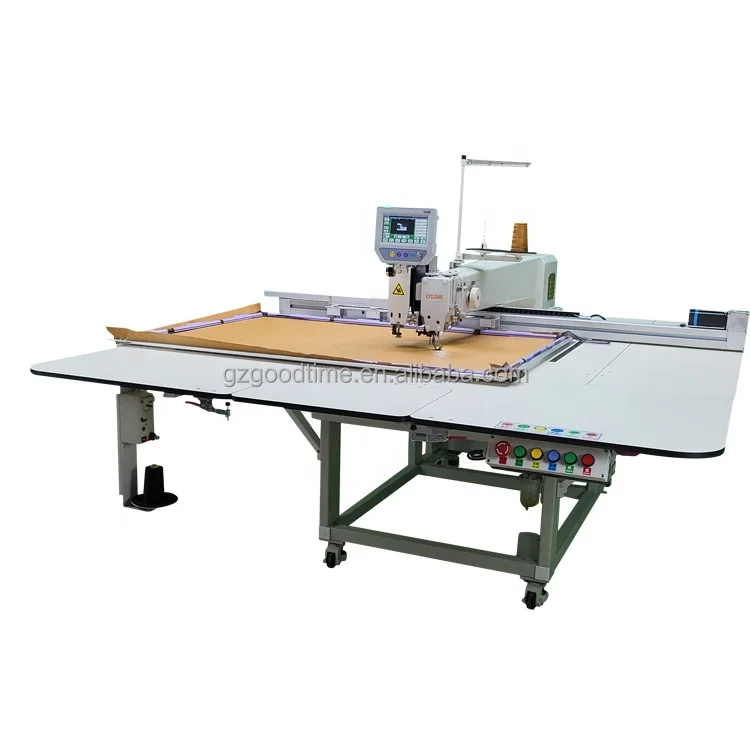

Foldable table is convenient for moving and transportation.

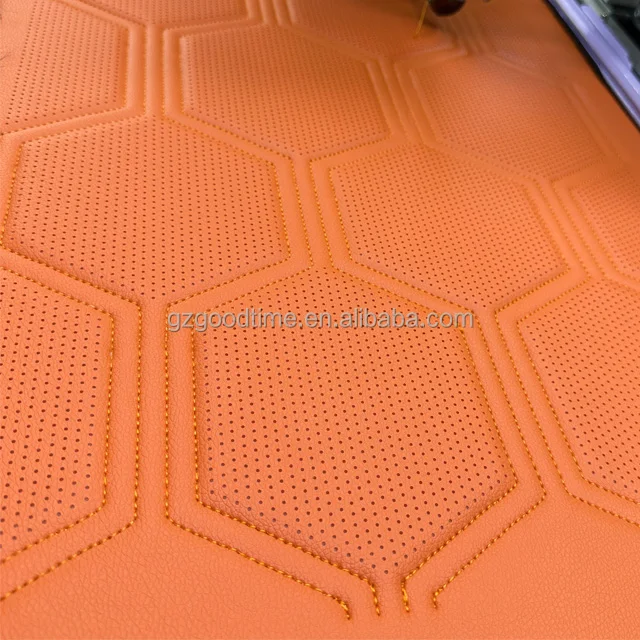

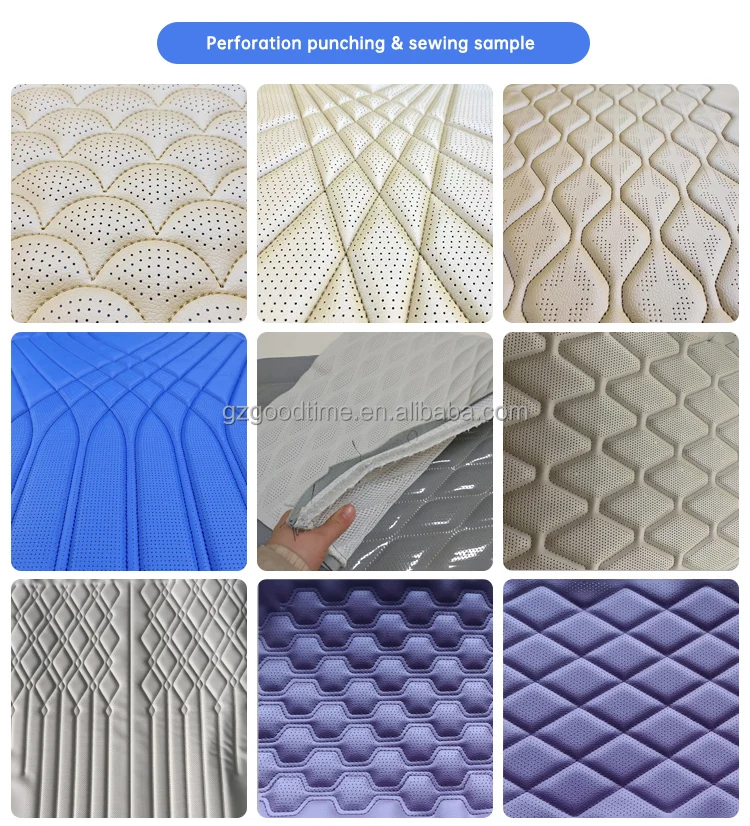

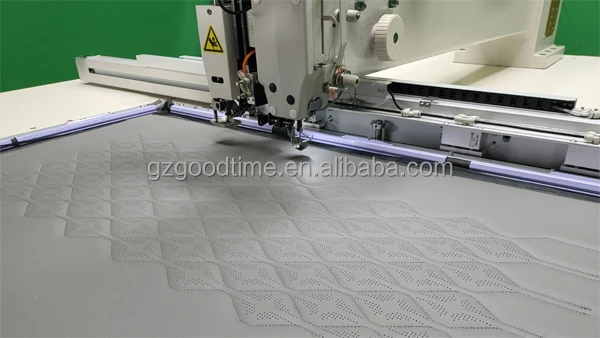

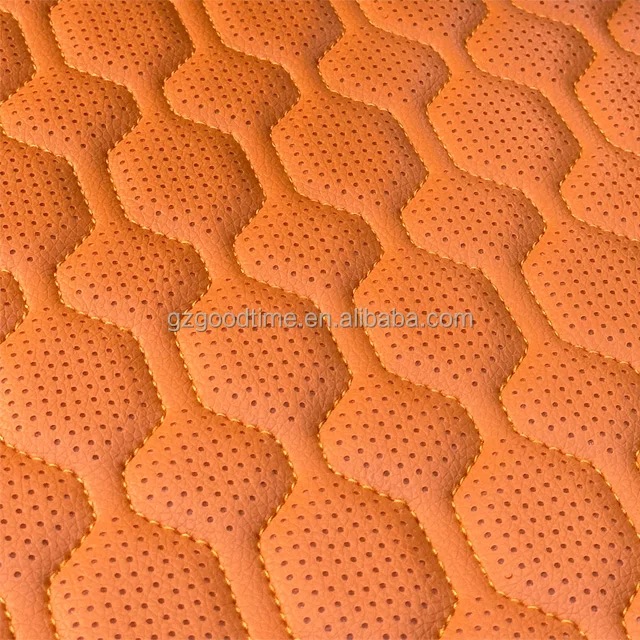

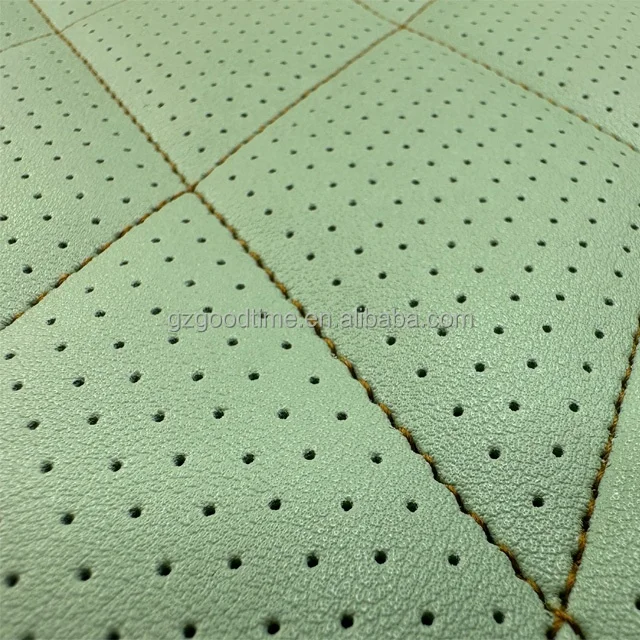

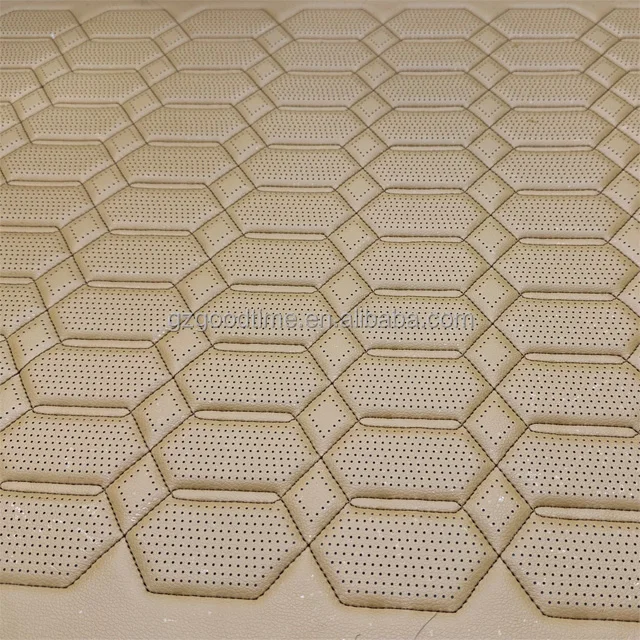

Perforation punching hole and stitching line show: punching hole diameter: 0.8mm, 1.0mm, 1.2mm, 1.3mm, 1.5mm, 1.7mm, 1.8mm & 2.0mm for option.
Punching of automobile speaker.
Stitching thickness: 15mm foam + leather. Perfect beautiful stitching lines.
If you like it, please act quickly and order immediately!

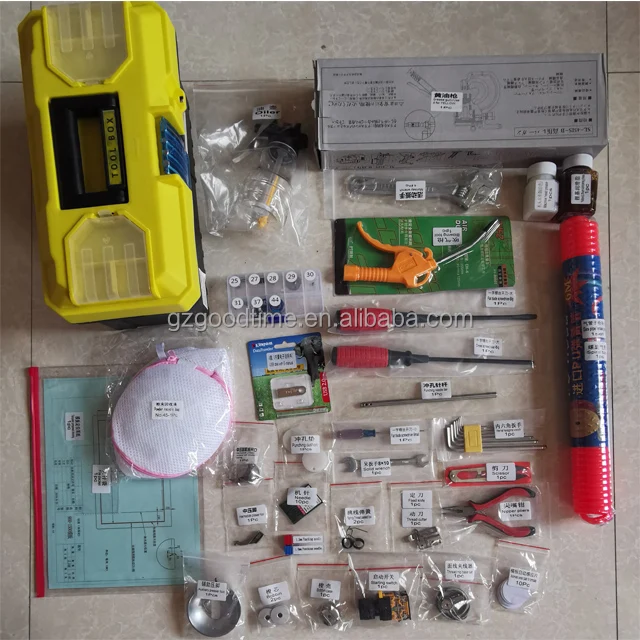

Free accessories come with the machine.
Recommended Products
Application display
Especially suitable for lean production of clothing assembly line intelligent sewing unit. Such as collar, cuff, epaulette and zipper. T-shirt, uniform, down jacket, coat etc.
It is also good for sewing shoes, bags, suitcase, clothes, textiles, leather bags, footwear, belts, car decoration, sofa & furniture, etc. With big sewing area and extensive usage. It is competitive in productivity and cost effectiveness, which improves productivity by 100% - 300%
Company Information
FAQ
Q1. Are you a factory?
Re. Yes. we are both a trading company and a factory, and we only focus on excellence sewing machine.
Q2.How about your machine quality?
Re. I cannot answer to you from our side. But our customer said to us our machine quality is good and high, use it about two years no change voice and vibration. After you use it, you will more understand our quality.
Q3. How about your price?
Re. Our price not expensive, but also not very cheap, in general, quality is better than price
Q4. How long could your sewing machine be used?
Re. Generally, more than 6 years.
Q5. What is the shipping port?
Re. We ship the goods via Guangzhou port or as you like
Q6. How about payment ?
Re. At beginning cooperation, 100% TT in advance, or LC at sight for big amount order , after we have good cooperation, we will try to accept DP OR DA payment
Q7. Can you do OEM or ODM for us?
Re. Yes, of course, and we also can do all kinds of the sewing machine by customized.
Q8. Can you supply spare parts?
Re. Yes, of course we can.
Q9. What guarantee you can supply ?
Re: Limited spare parts one-year guarantee, not including quick-wear parts, like needle, hook, needle plate.
