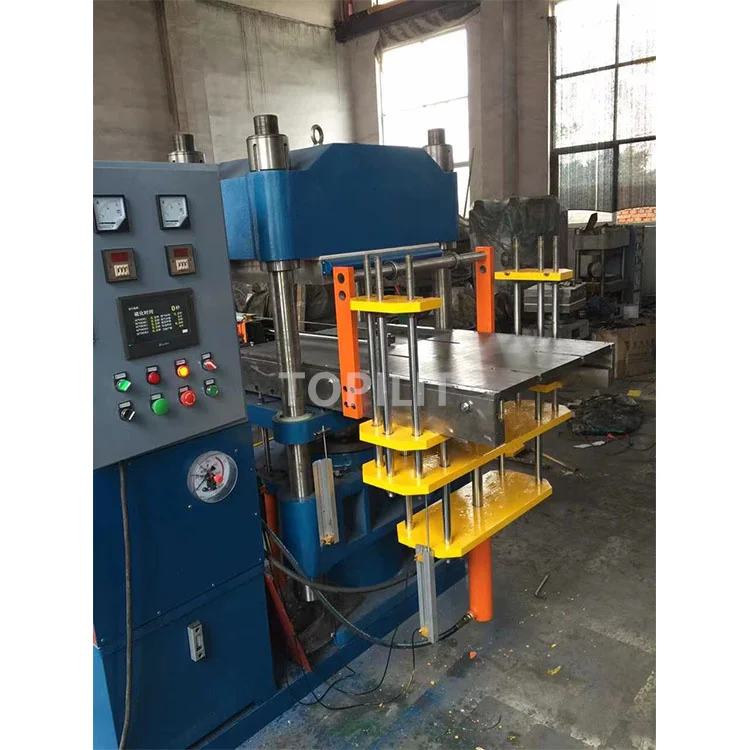

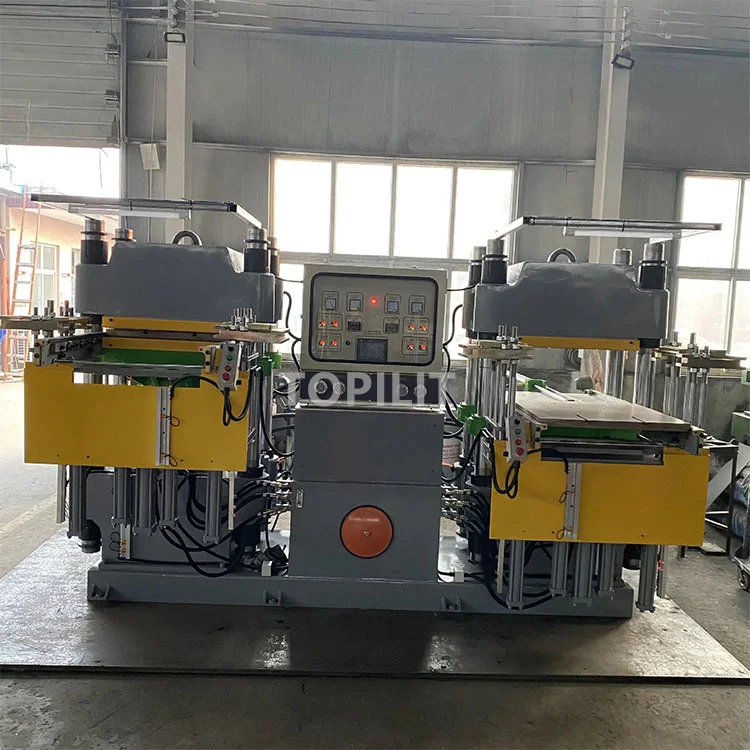

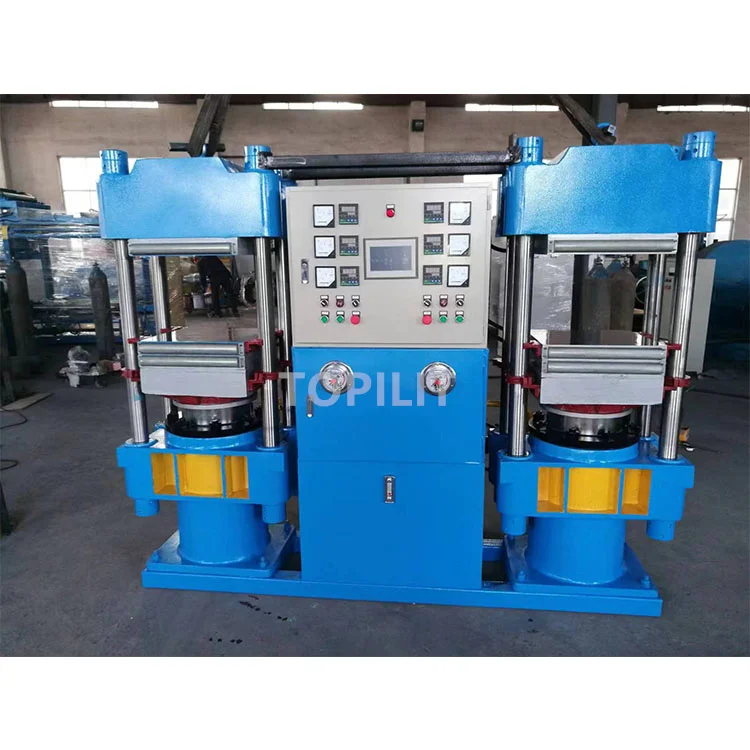

Made In China High Production Rubber Vacuum Vulcanizing Press Production Machine For Eva Foaming Materials
- Category: >>>
- Supplier: Qingdao Toplit Industry Co. Ltd.
Share on (1601048825347):
Product Overview
Description
Made In China High Production Rubber Vacuum Vulcanizing Press Production Machine For Eva Foaming Materials
Equipment summary
Introduction：
This machine is column structure, including main machine, hydraulic station, electric controlling cabinet. Main machine is composed by base, plunger piston, platform, beam, automatic mould pushing-out device and compulsory mould opening device.
Usage：
It's suitable for all kinds of rubber vulcanization molding, molded products can also be used for other thermosetting products forming technology. It is suitable to vulcanize and form EVA, PE, PVC, the SBR foaming materials. Such as material, floor MATS, sports protective material, beach shoes, insulation materials, etc
Features：quick opening and closing mould, high production efficiency, slow lock, protect the mould
* Strong rigidity, small deformation
* Pressure, and high back pressure
* Open mold fast
* With cavity pressure function, can satisfy the production of high, medium and low grade of product process requirements.
* The special structure of the hot plate design, uniform heating temperature.
Under the control of PLC, this machine achieves automatic mould closing, vulcanization timing, exhausting time and frequency setting, mould opening, mould pushing, and so on.
As a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
The base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and a brad ability. The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.
By moving the operational handle of the control valve to the two different positions, the heating plate can open and close.
Electricity heating will make workshop clean with easy and reliable.
(We can design different plate size, different pressure , and other any requests from customers.)
Under the control of PLC, this machine achieves automatic mould closing, vulcanization timing, exhausting time and frequency setting, mould opening, mould pushing, and so on.
As a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
The base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and a brad ability. The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.
By moving the operational handle of the control valve to the two different positions, the heating plate can open and close.
Electricity heating will make workshop clean with easy and reliable.
(We can design different plate size, different pressure , and other any requests from customers.)
type | XLB-DQ 400X400X2 | XLB-DQ 500x500x2 (600X600X2) | XLB-DQ 750X850X2(4) |
total pressure(tons) | 50 | 100 | 160 |
plate size(mm) | 400x400 | 500x500(600x600) | 750x850 |
daylight clearance(mm) | 125 | 125 | 125 |
daylight number | 2 | 2 | 2(4) |
piston stroke(mm) | 250 | 250 | 250(500) |
unit area pressure (kg/sqcm) | 31 | 40(28) | 25 |
main motor power(kw) | 2.2 | 2.2 | 3 |
weight(kg) | 1300 | 2400 | 6500(7500) |
Qingdao TOPLIT Industry Co.,Ltd is a professional provider of rubber machine.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, extruder, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, rubber powder machines, and so on.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, extruder, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, rubber powder machines, and so on.
We enjoy good reputation with reasonable price, best quality and good delivery. And we sincerely welcome clients from home and abroad to establish long and steady business relations and develop domestic and international market jointly on the base of equality and mutual benefit.
Q1.WHO ARE YOU?
A: We are Professional Provider of Rubber Machine in China for many years.
Q2.ARE YOU AN COMPREHENSIVE SUPPLIER FOR RUBBER&PLASTIC MACHINE?
A: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3. HOW ABOUT THE QUALITY CONTROL IN YOUR FACTORY?
A: We has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP.
Q4. WHAT ABOUT THE AFTER-SERVICE? WILL YOU SEND YOUR ENGINEER TO MY COUNTRY TO HELP COMMISSION AND INSTALL THE MACHINE?
A: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers.
Q5. WHAT IS THE DELIVERY TIME OF THE MACHINE?
A: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within10-60 days.
Q6. WHAT IS THE WARRANTY OF THE MACHINE?
A: The whole machine's warranty period is 12 months and spare parts will be depended.
A: We are Professional Provider of Rubber Machine in China for many years.
Q2.ARE YOU AN COMPREHENSIVE SUPPLIER FOR RUBBER&PLASTIC MACHINE?
A: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3. HOW ABOUT THE QUALITY CONTROL IN YOUR FACTORY?
A: We has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP.
Q4. WHAT ABOUT THE AFTER-SERVICE? WILL YOU SEND YOUR ENGINEER TO MY COUNTRY TO HELP COMMISSION AND INSTALL THE MACHINE?
A: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers.
Q5. WHAT IS THE DELIVERY TIME OF THE MACHINE?
A: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within10-60 days.
Q6. WHAT IS THE WARRANTY OF THE MACHINE?
A: The whole machine's warranty period is 12 months and spare parts will be depended.
