  • TURE FULL New Products XLG HLD 50w 75w 100w 150w 200w 240w 320w 12v 24v DALI 2 Digital Dimming LED Driver
TURE FULL New Products XLG HLD 50w 75w 100w 150w 200w 240w 320w 12v 24v DALI 2 Digital Dimming LED Driver
TURE FULL New Products XLG-HLD 50w 75w 100w 150w 200w 240w 320w 12v 24v DALI-2 Digital Dimming LED Driver
TURE FULL New Products XLG-HLD 50w 75w 100w 150w 200w 240w 320w 12v 24v DALI-2 Digital Dimming LED Driver
TURE FULL New Products XLG-HLD 50w 75w 100w 150w 200w 240w 320w 12v 24v DALI-2 Digital Dimming LED Driver
TURE FULL New Products XLG-HLD 50w 75w 100w 150w 200w 240w 320w 12v 24v DALI-2 Digital Dimming LED Driver

TURE FULL New Products XLG HLD 50w 75w 100w 150w 200w 240w 320w 12v 24v DALI 2 Digital Dimming LED Driver

Share on (1601048837963):


Price:$10.00 - $10.50

Quantity:


Product Overview

Description



TURE FULL Factory price Constant Current Dimming LED Driver 75w 120w 150w 200w Power Supply Led Driver


Product Paramenters


Model No.
power
input voltage
output voltage
PFC
Efficiency
Dimension
ZF-HLD-30
30W
100-277V
28-36V/28-42V/28-54V/40-60V
0.98
89%
110x45x33MM
ZF-HLD-50
50W
100-277V
28-36V/28-42V/28-54V/40-60V
0.98
89%
130x45x33MM
ZF-HLD-60
60W
100-277V
28-36V/28-42V/28-54V/40-60V
0.98
89%
130x45x33MM
ZF-HLD-100
100W
100-277V
28-36V/28-42V/28-54V/40-60V
0.98
89%
150x60x35MM
ZF-HLD-120
120W
100-277V
28-36V/28-42V/28-54V/40-60V
0.98
89%
150x60x35MM
ZF-HLD-150
150W
100-277V
28-36V/28-42V/28-54V/40-60V
0.98
89%
170x68x39MM


Specification Technique


Model No.
ZF-HLD-100-36
ZF-HLD-100-42
ZF-HLD-100-48
ZF-HLD-100-54
ZF-HLD-100-60
no-load voltage
37VDC
43VDC
49VDC
55VDC
59VDC
output current
2.8A
2.4A
2.1A
1.85A
1.75A
output power
103W
103W
103W
103W
103W
Ripple and noise
3000mV
3000mV
3000mV
3000mV
3000mV
output voltage range
25-36V
25-42V
25-48V
38-54V
38-72V
Efficiency
89%
89%
89%
89%
89%
Current error
±2%
±2%
±2%
±2%
±2%
line regulation
±2%
±2%
±2%
±2%
±2%
load regulation
±2%
±2%
±2%
±2%
±2%
Start-up time
≤1000ms，≤2000ms（Full load）230VAC/115AC
Hold-up time
10ms  full  load  230VAC/115VAC
input voltage range
100-300VAC  or  130-430VDC
Frequency
47-63HZ
PFC
PF≥0.98 230VAC  full load
THD
＜20%（Based on load lamps as standard）
AC current
＜1.4A/115VAC， ＜0.8A/230VAC， ＜0.6A/277VAC
Surge current
cold start<50A /230VAC
Leakage current
＜0.75MA/300VAC
Protection
Over-voltage  over-current  over-temperature  over-load


Products Description

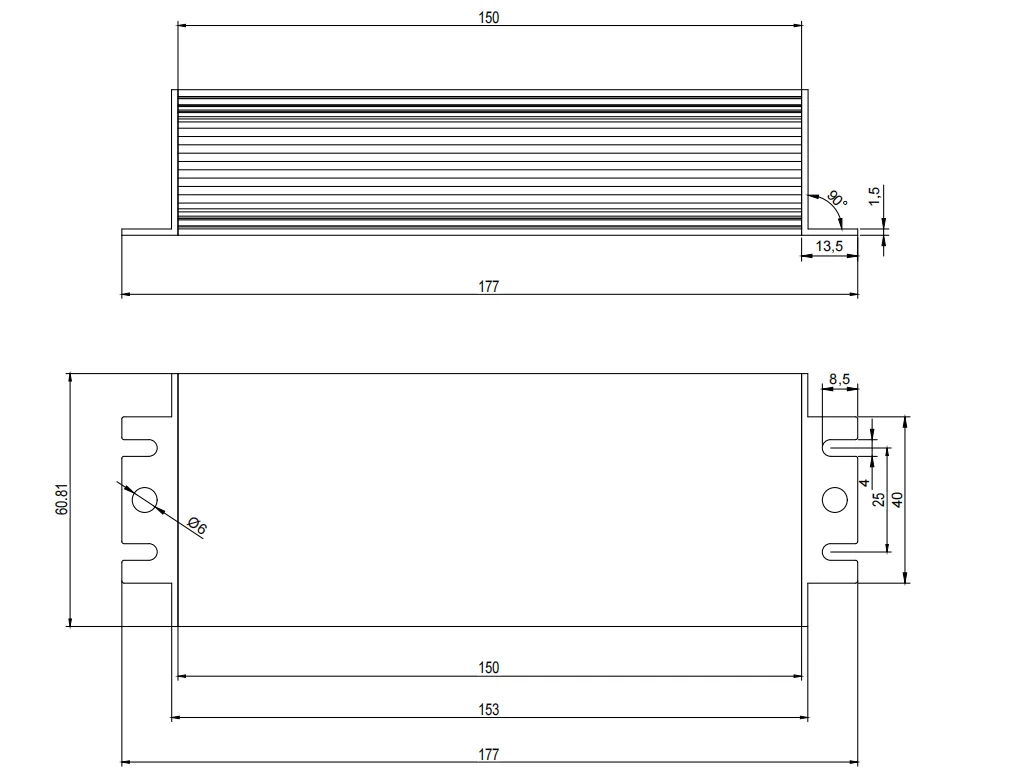

Dimension size


















Package




Payment & Shipping




FAQ


1. Who we are ?
We are based in Guangdong, China, start from 2012,sell to South America(25.00%),Domestic Market(25.00%),North
America(15.00%),Western Europe(10.00%),Mid East(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Southeast Asia(3.00%),Eastern
Asia(3.00%),Eastern Europe(2.00%),Oceania(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
LED Street Lighting Driver,LED Grow Lighting Driver,UFO Led Lighting Driver,Constant Voltage LED Driver,Switching Power Supply
4. Why should you buy from us not from other suppliers?
1.Factory with competitive price with good quality 2.Very experienced R&D technology team 3.10W -400W we can supply,no matter
dimmable or non-dimmable 4.UFO LED driver with good quality
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
