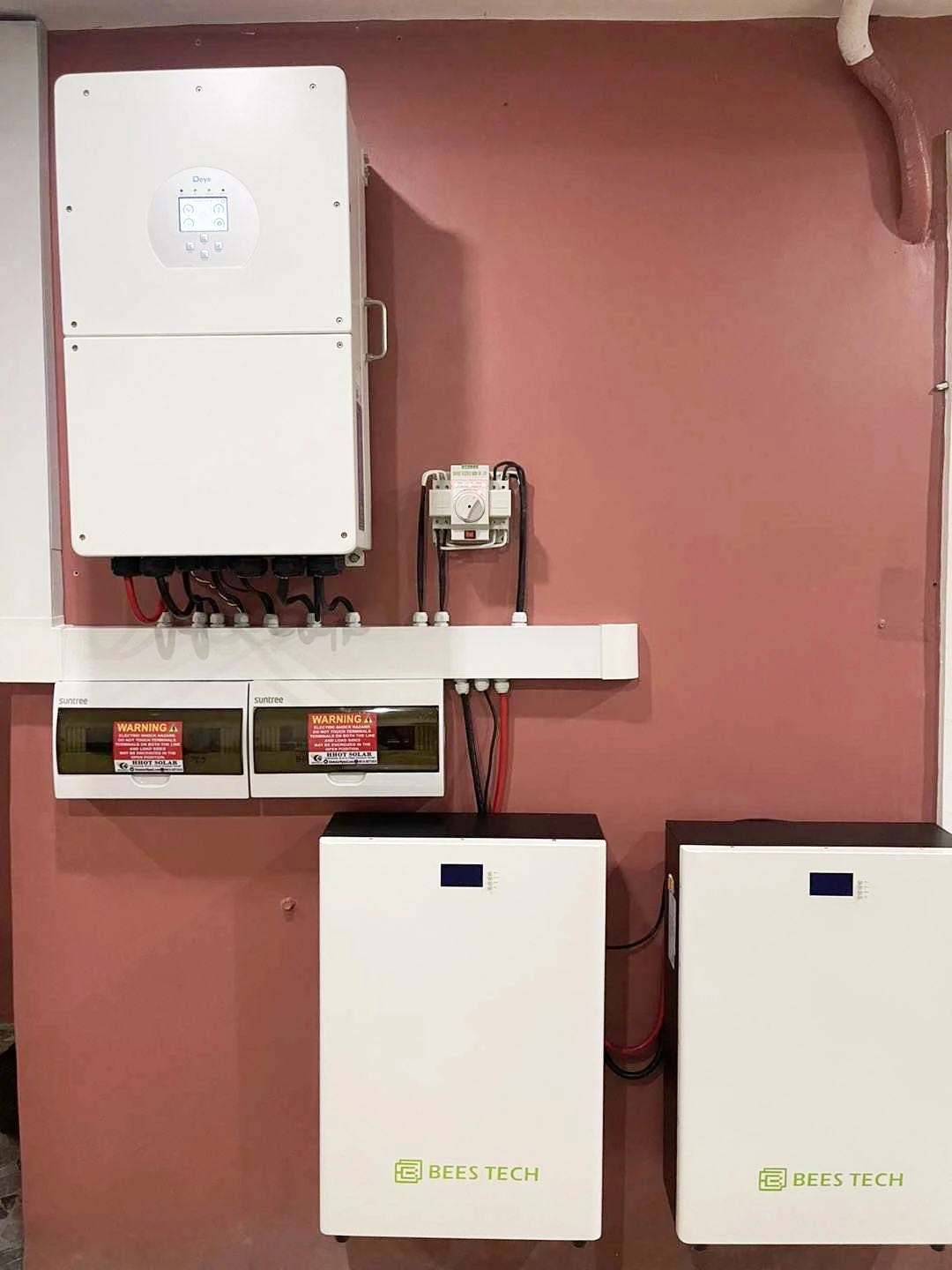

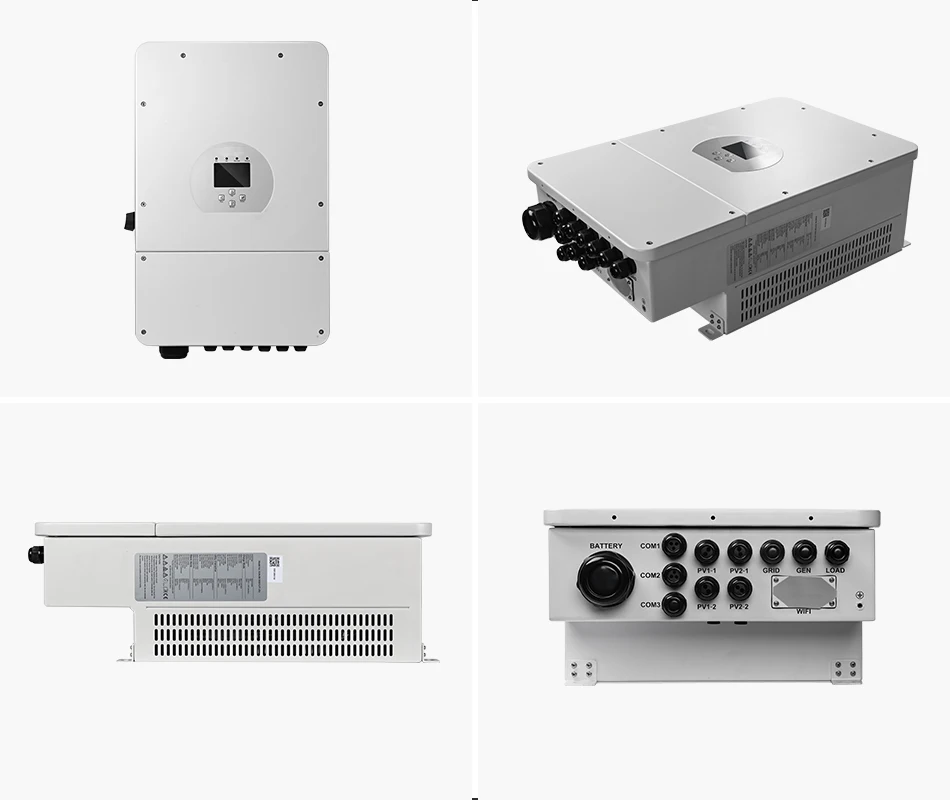

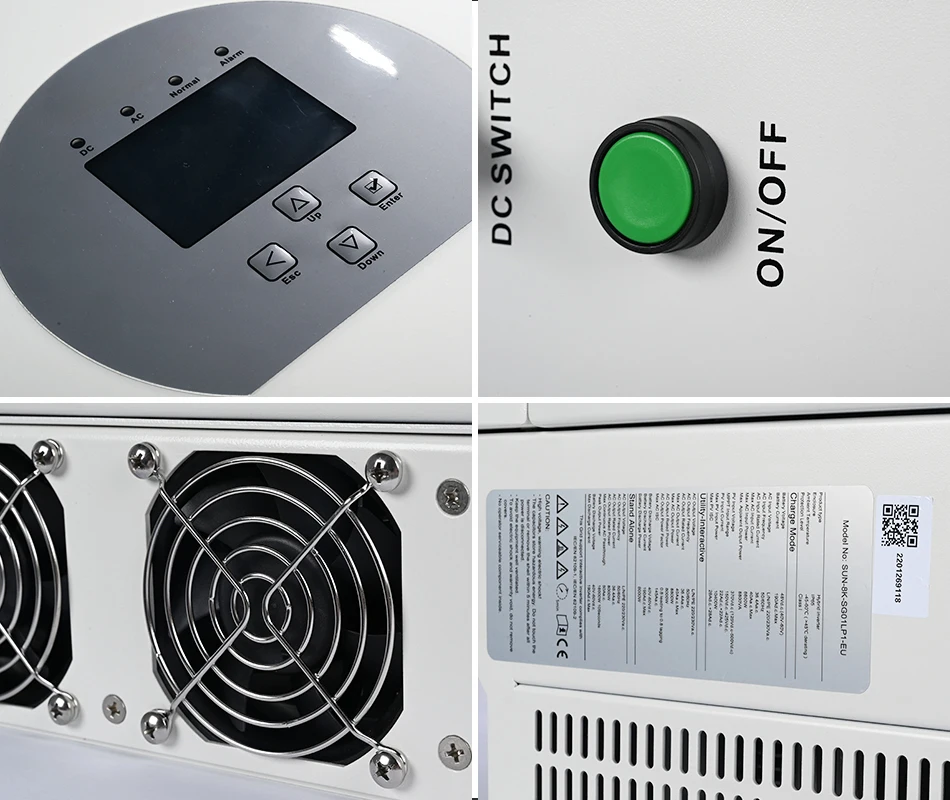

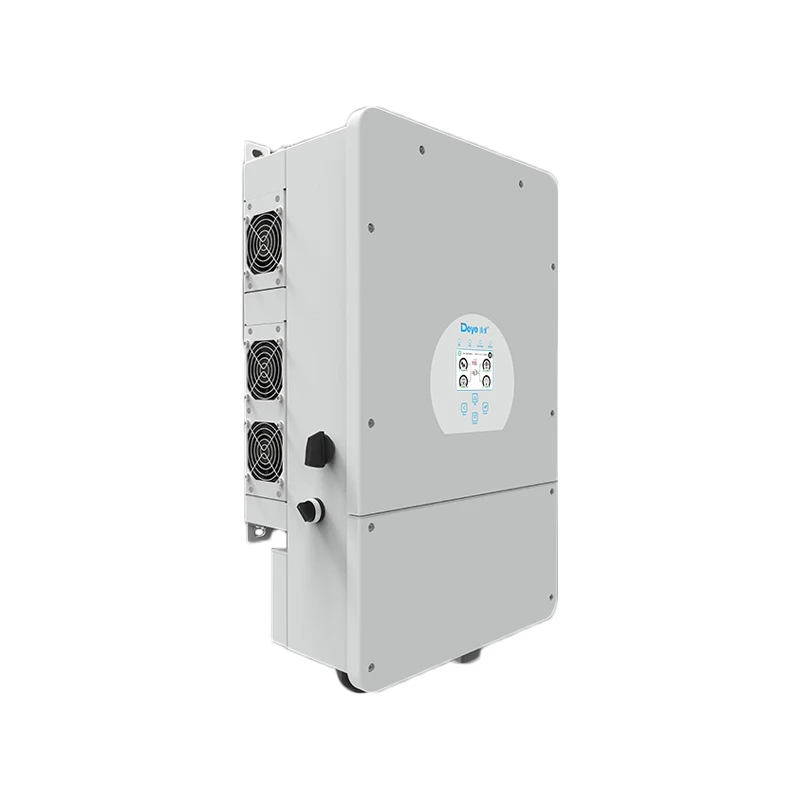

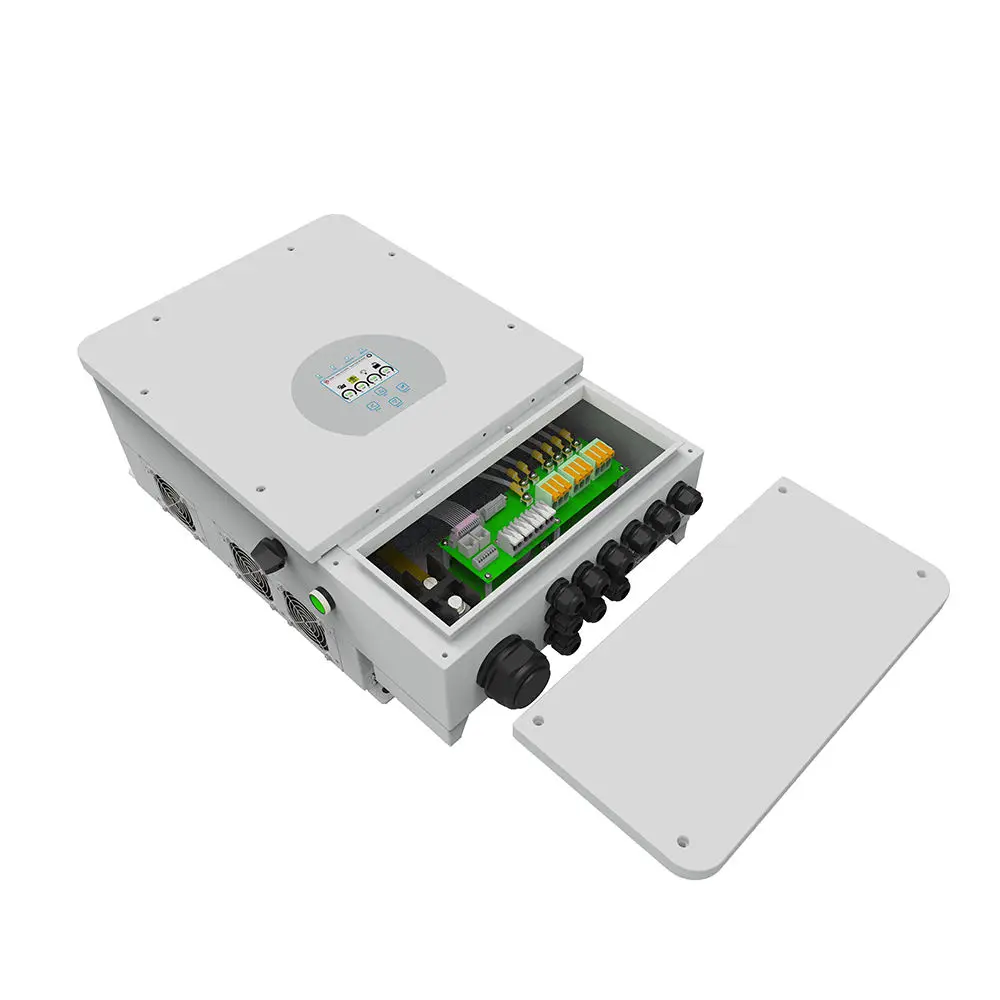

5kw 10kw 12kw Hybrid Inverter 8kw Solar Inverter Power Charger System Single Phase 10kw 3 Phase Inverter Solar
- Category: >>>
- Supplier: Shenzhen Boli Technology Co Ltd.
Share on (1601048865148):
Product Overview
Description
What can I do for you?
Nice to meet you.I am Elina.Please feel free to contact me if you are interested in our products.
WhatsApp: +86 18988780466
Wechat: +86 18988780466
Email: elina.luo@boli-tech.com
WhatsApp: +86 18988780466
Wechat: +86 18988780466
Email: elina.luo@boli-tech.com
Note: In Stock, You Can Make Order Directly Or Send Inquiry To Us!
Basic specification will be mark on the Cells before shipping!
Products Description
General Data | ||||||
Operating Temperature Range (°C) | -25~60°C, >45°C Derating | |||||
Cooling | Smart cooling | |||||
Noise (dB) | <30 dB | |||||
Communication with BMS | RS485; CAN | |||||
Weight (kg) | 36.8 | |||||
Size (mm) | 422Wx658Hx281D | |||||
Protection Degree | IP65 | |||||
Installation Style | Wall-mounted | |||||
Model | 8K-SG04LP3 | 10K-SG04LP3 | 12K-SG04LP3 | |||
Battery Input Data | ||||||
Battery Type | Lead-acid or Li-Ion | |||||
Battery Voltage Range (V) | 40-60V | |||||
Max. Charging Current (A) | 190A | 210A | 240A | |||
Max. Discharging Current (A) | 190A | 210A | 240A | |||
Charging Curve | 3 Stages / Equalization | |||||
External Temperature Sensor | Optional | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power (W) | 10400W | 13000W | 15600W | |||
PV Input Voltage (V) | 550V(150V~800V) | |||||
MPPT Range (V) | 200V-650V | |||||
Start-up Voltage (V) | 160 V | |||||
PV Input Current (A) | 13A+13A | 26A+13A | 26A+13A | |||
No.of MPPT Trackers | 2 | |||||
No.of Strings Per MPPT Tracker | 1+1 | 2+1 | 2+1 | |||
AC Output Data | ||||||
Rated AC Output and UPS Power (W) | 8000W | 10000W | 12000W | |||
Max. AC Output Power (W) | 8800W | 11000W | 13200W | |||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||
AC Output Rated Current (A) | 12A | 15A | 18A | |||
Max. AC Current (A) | 18A | 23A | 27A | |||
Max. Continuous AC Passthrough (A) | 50A | |||||
Output Frequency and Voltage | 50/60HZ； 230/400Vac (Three phase) | |||||
Grid Type | Three Phase | |||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||

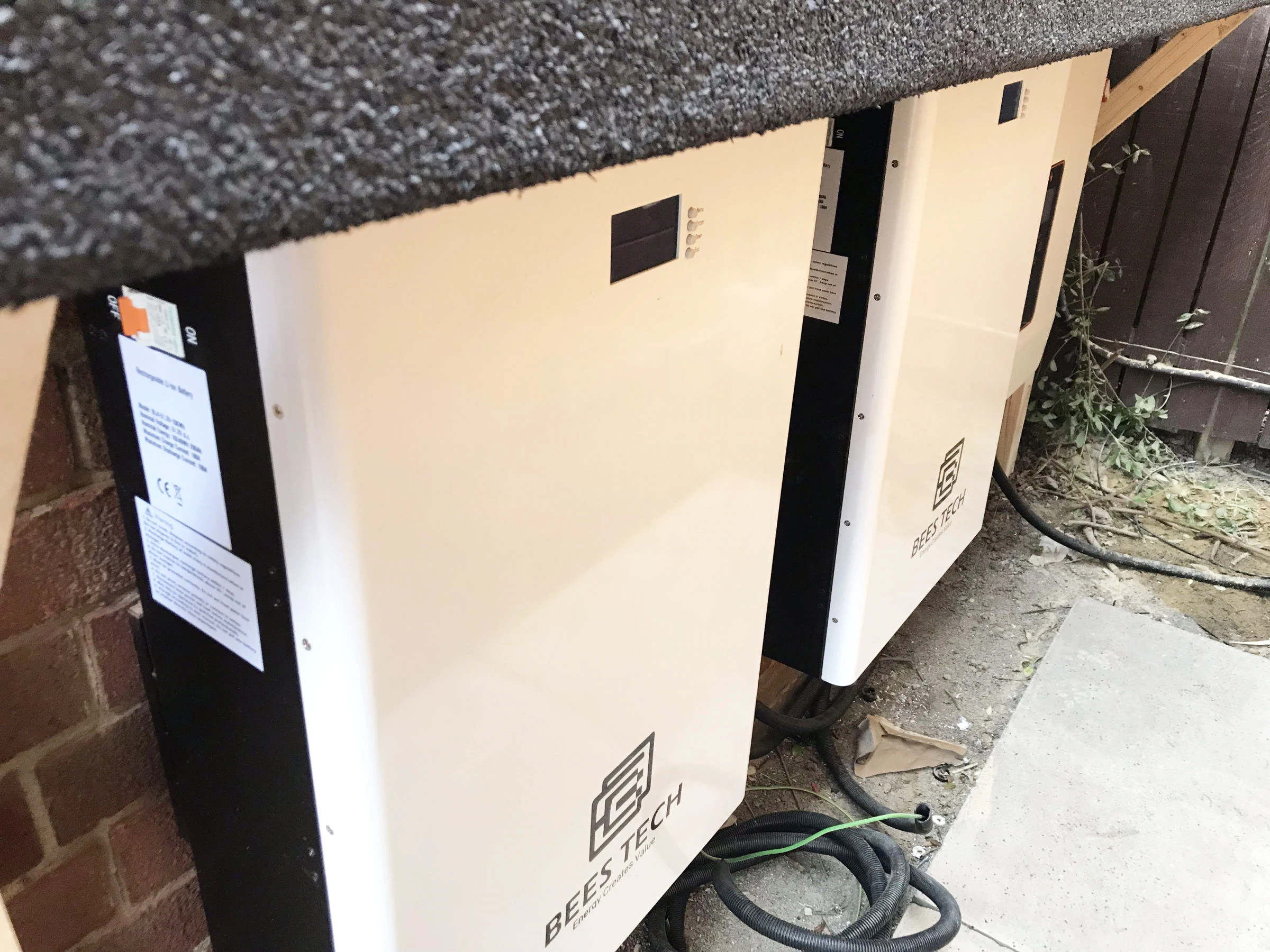

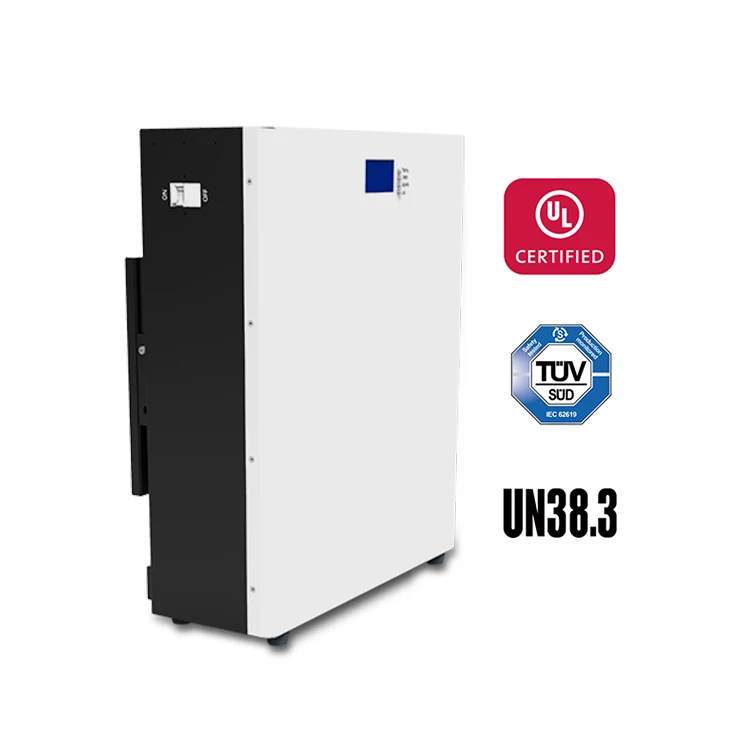

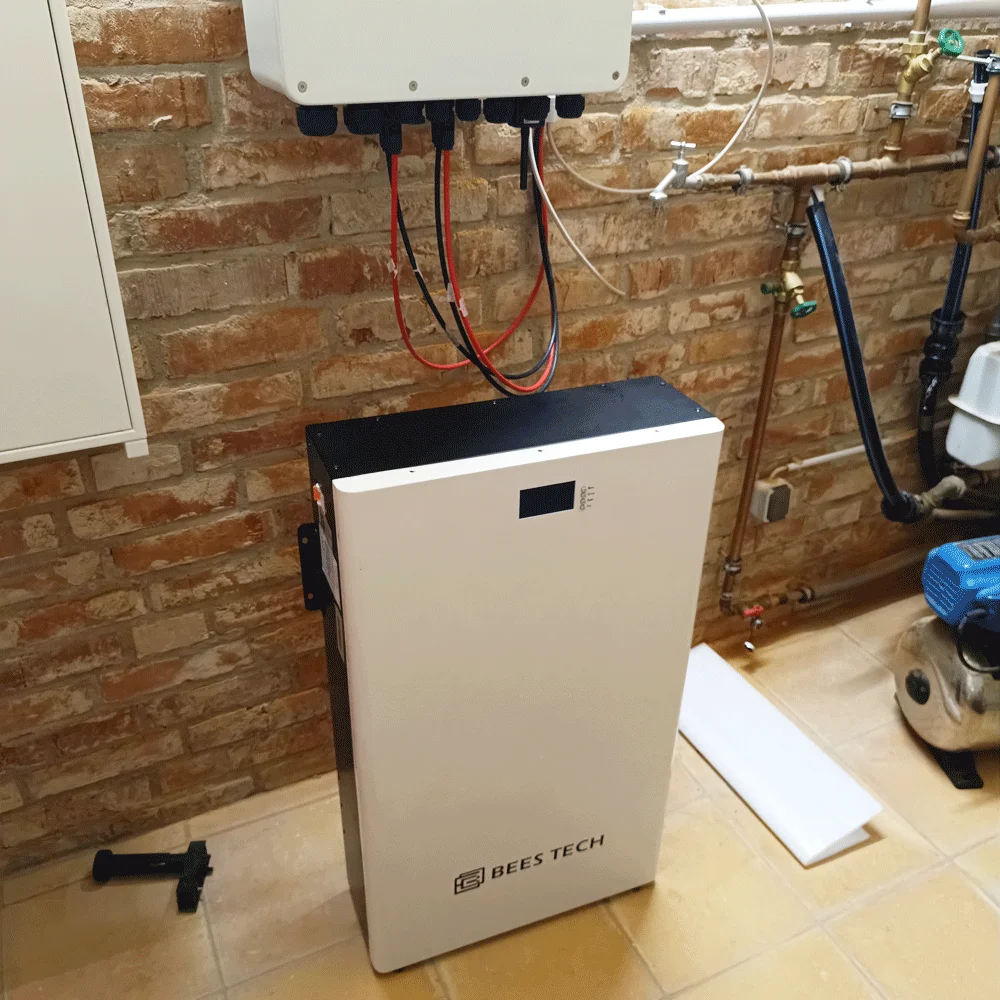

Wall Mounted LiFePo4 Battery
15-20 years design life.
Wall mount or ground stack brick,
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell,
15-20 years design life.
Up to 6000 + cycle Ilfe
Wall mount or ground stack brick,
simply connecting to inverter
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell,
stay safe with battery storage at home.

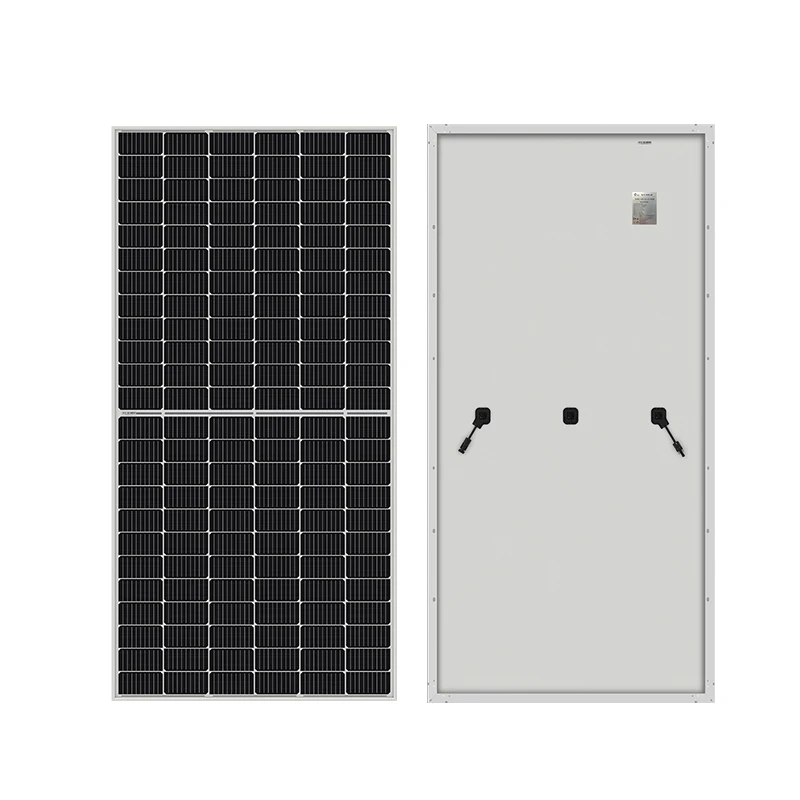

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kg
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kg
48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging.
Max.charging/discharging current of 240A Max.10pcs parallel
DC couple and AC couple to retrofit existing solar system

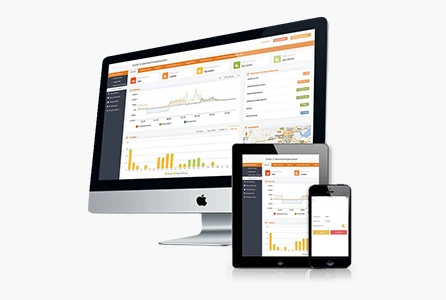

Open station supports one-click
installation and registration Problem support one-click dispatch and navigation Safe operation,
traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
Product Parameters
Company Profile
FAQ
1. Q: Are you a manufacturer?
2. Q: How do you pack these products?
3. Q: Is it customizable?
4. Q: After-sales service
5. Q: What is your lead time?
A: Spot goods usually take 3-5 days, and customization takes 5-7 days
A: Yes, we have been offering specialized products in this field for 20 years.
2. Q: How do you pack these products?
A: Usually packed according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, according to your requirements.
4. Q: After-sales service
A: 24-hour technical support by phone, email or skype
5. Q: What is your lead time?
A: Spot goods usually take 3-5 days, and customization takes 5-7 days
