Fog Cannon Sprayer for Agricultural Orchard Construction Plant Mist Blower System High Pressure 100m Pump Metal Customized 2100
- Category: >>>
- Supplier: Zhengzhou Zhengtong Fan Manufacturing Co. Ltd.
Share on (1601048905178):
Product Overview
Description
FOG CANNON

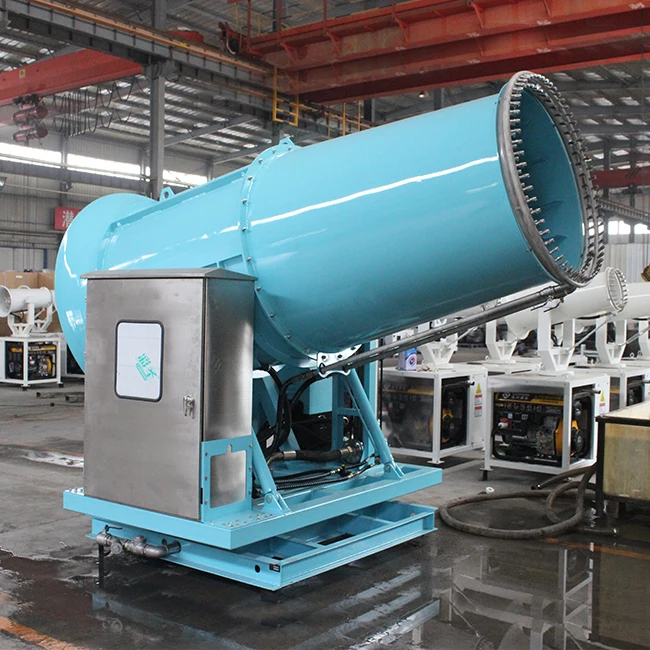

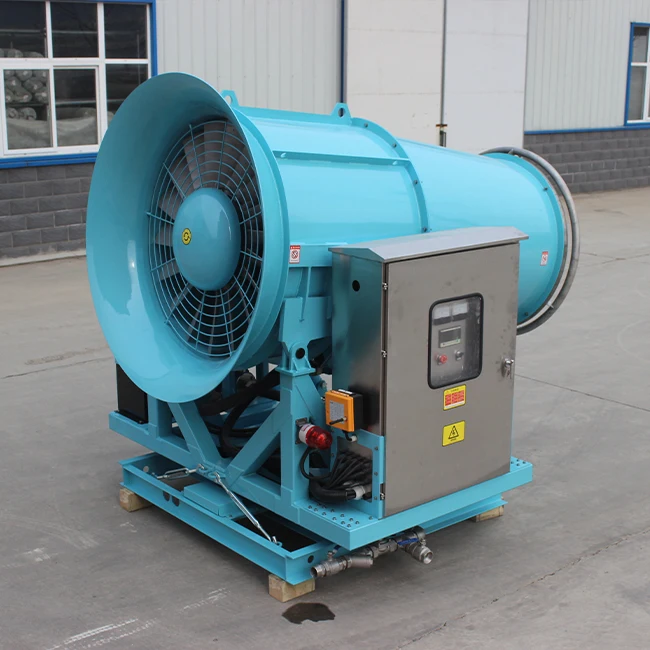

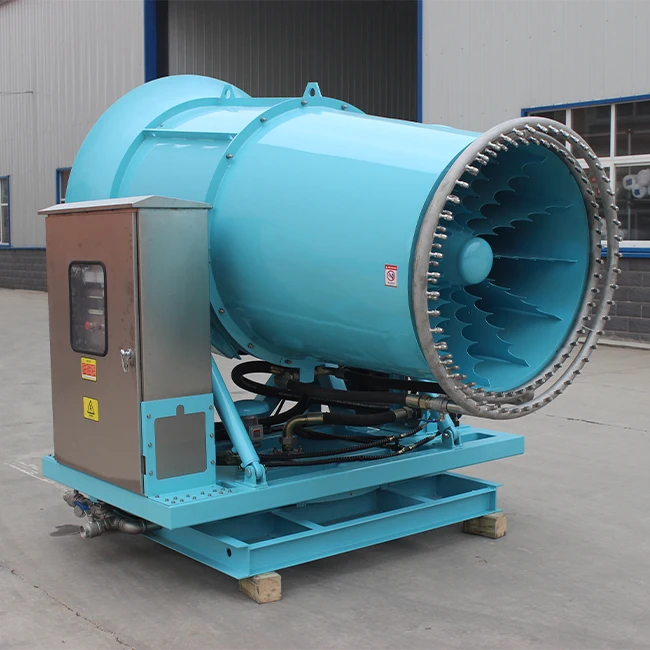

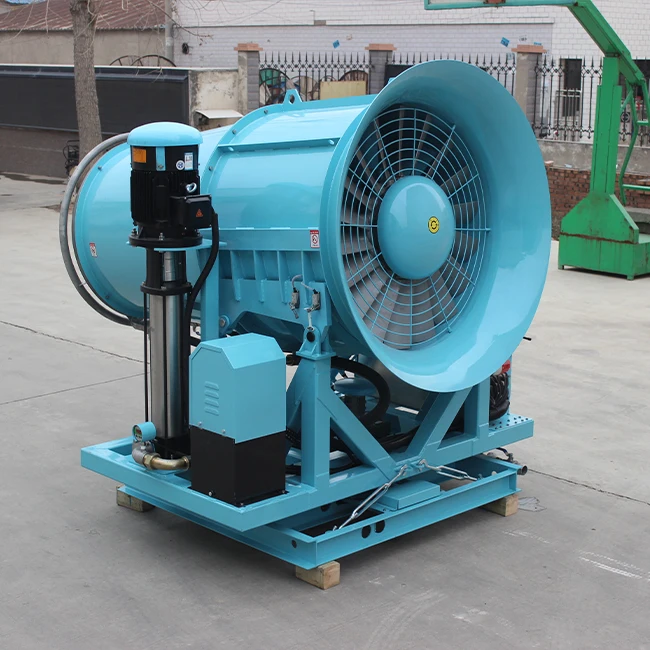

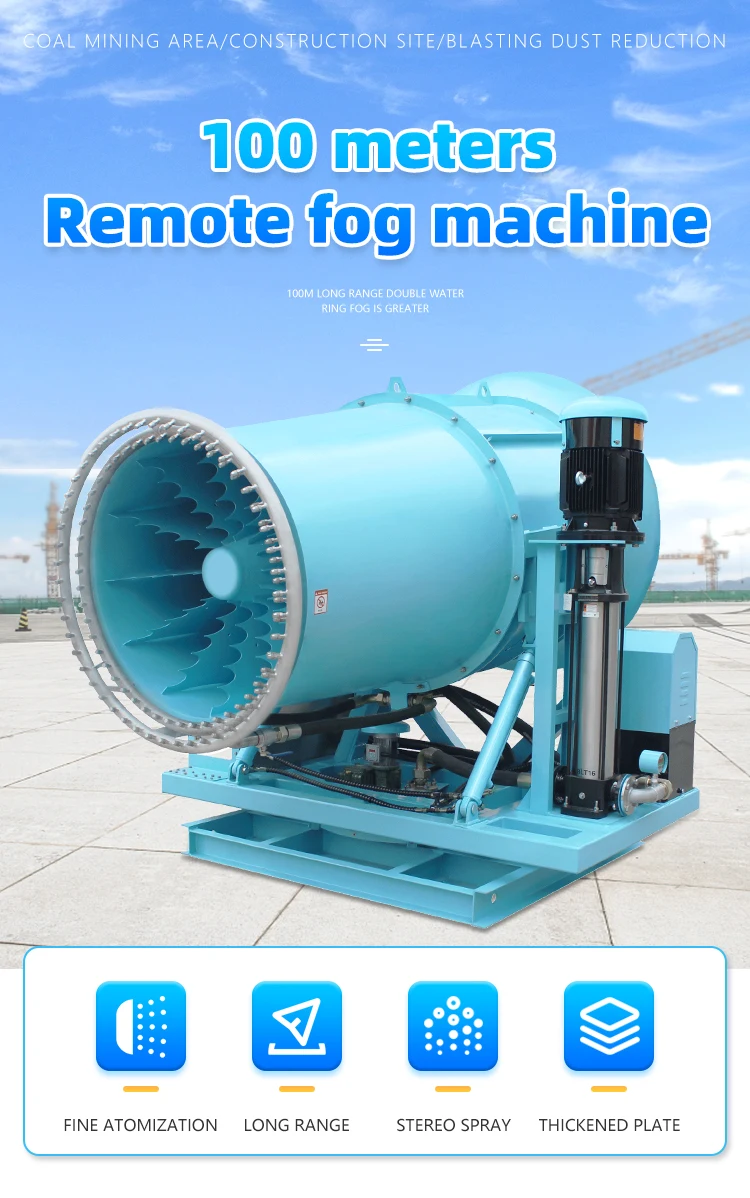

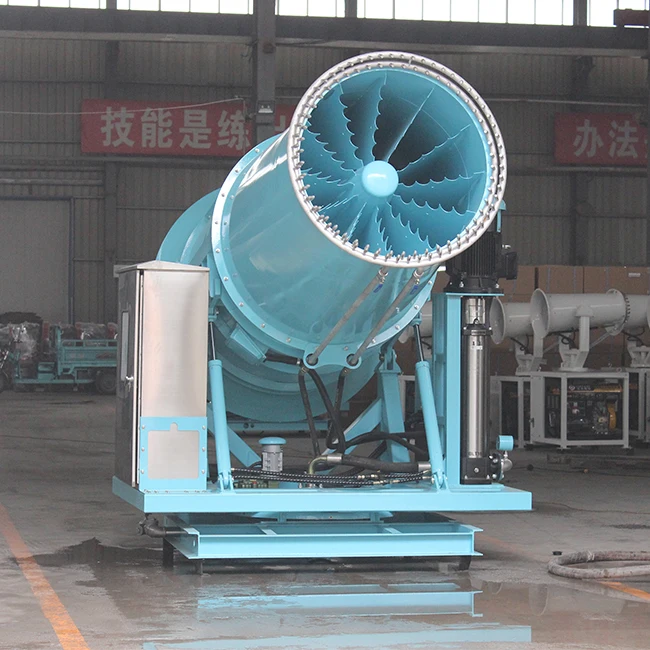

High Pressure 100m Fog Cannon Sprayer For Agricultural Orchard Construction Plant Mist Blower

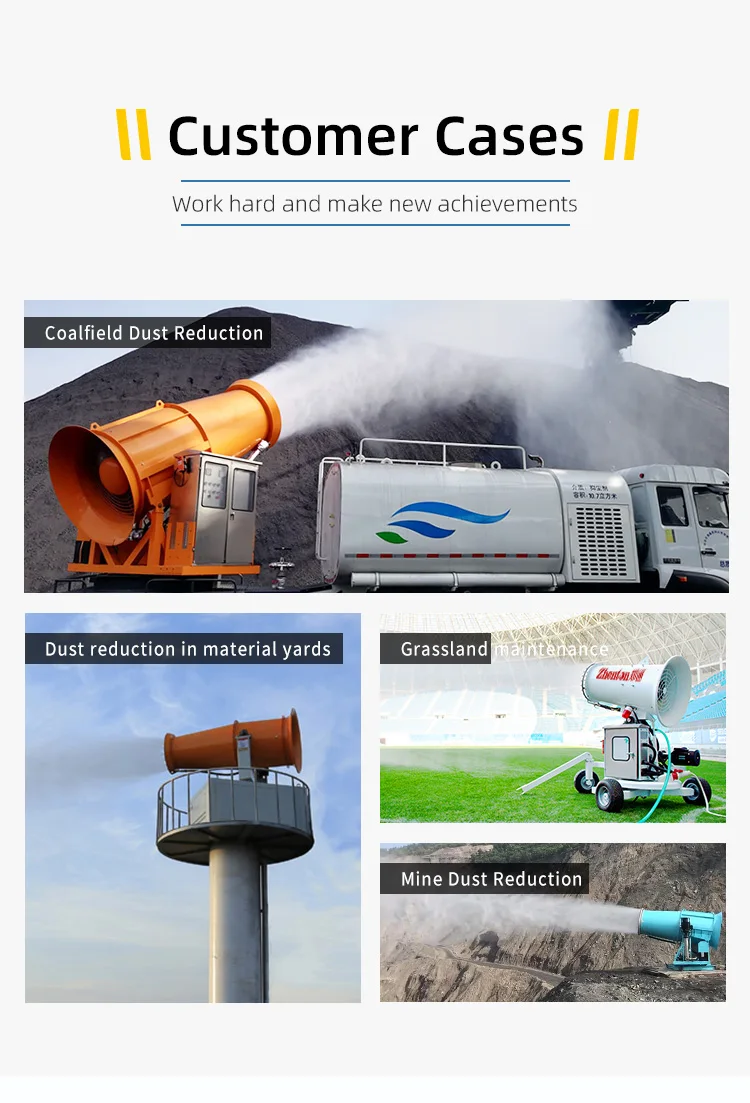

Zhenton fog cannons have a long reach and a long range and can suppress dust by producing a column of mist that leaves the 'cannon' at high speed and that can reach a range of 120 meters.When the mist or spray reaches the dust it can 'knock down' up to 90% of the dust. This type of dust suppression is best suited to building demolition, construction sites, quarries and mines, foundries, steel and slag facilities, waste transfer stations, and recycling plants.
PAREMETER
DUST SUPPRESSION FOG CANNON ZT-100 | ||||||
POWER | Fan motor | Kw | 55 | |||
Water pump | Kw | 11 | ||||
Slewing bearing | KW | 0.18 | ||||

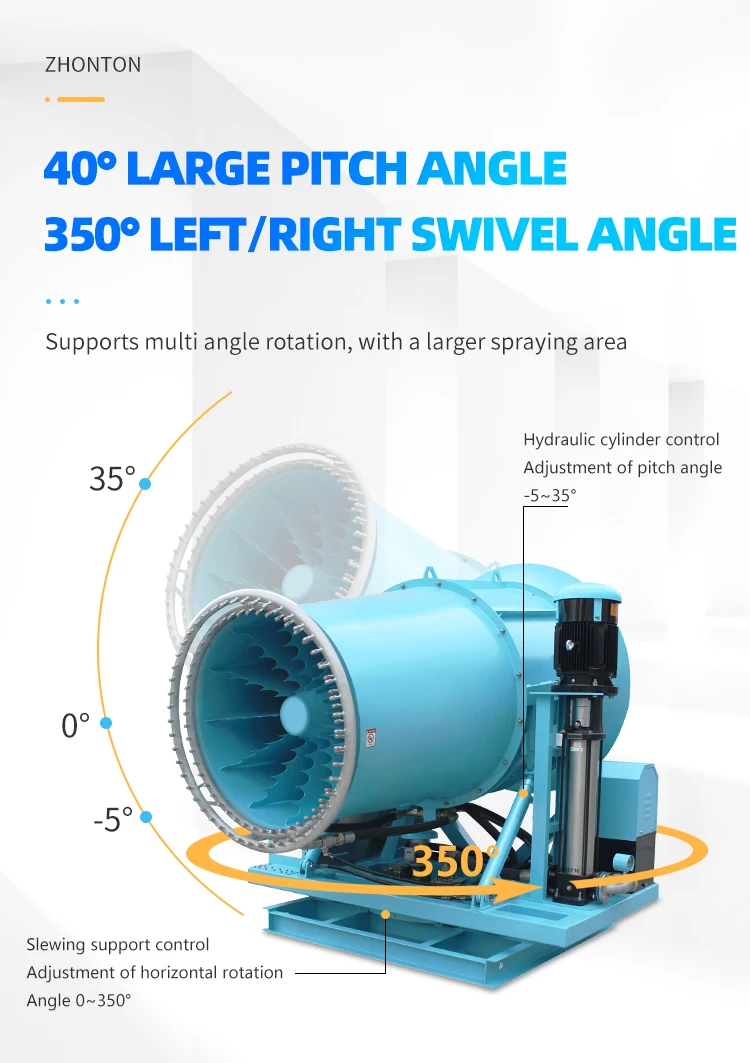

Main performance parameters | Horizontal Rotation Angle(adjustable by remote controller or control panel ) | ° | 360 | |||
Pitching Angle(adjustable by remote controller or control panel ) | ° | -5-40 | ||||
Control methods | Remote control/PCL | Automatic control | ||||
Max Throw Range | M | 100meters *no wind conditions | ||||
Air Volume | m³/h | 245320 | ||||
Inlet Water Pressure | Mpa | 0.3-0.8 | ||||
CANNON DESCRIPTION

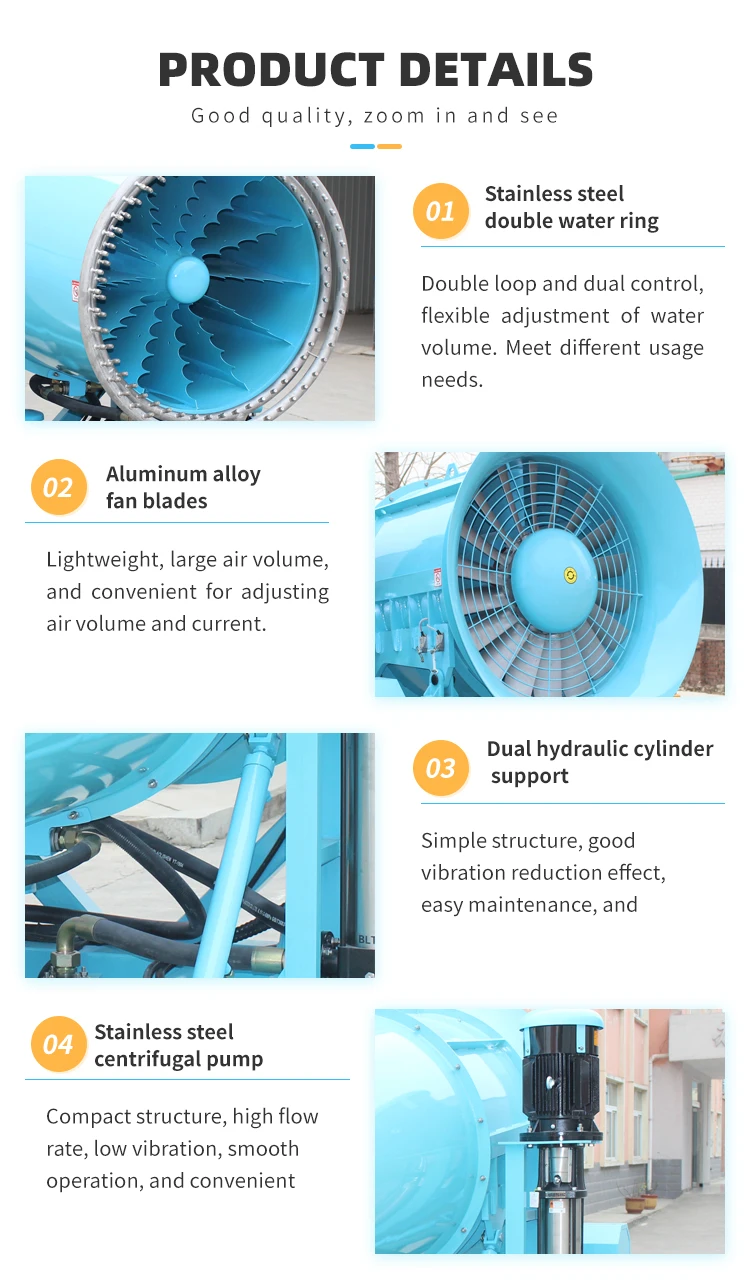

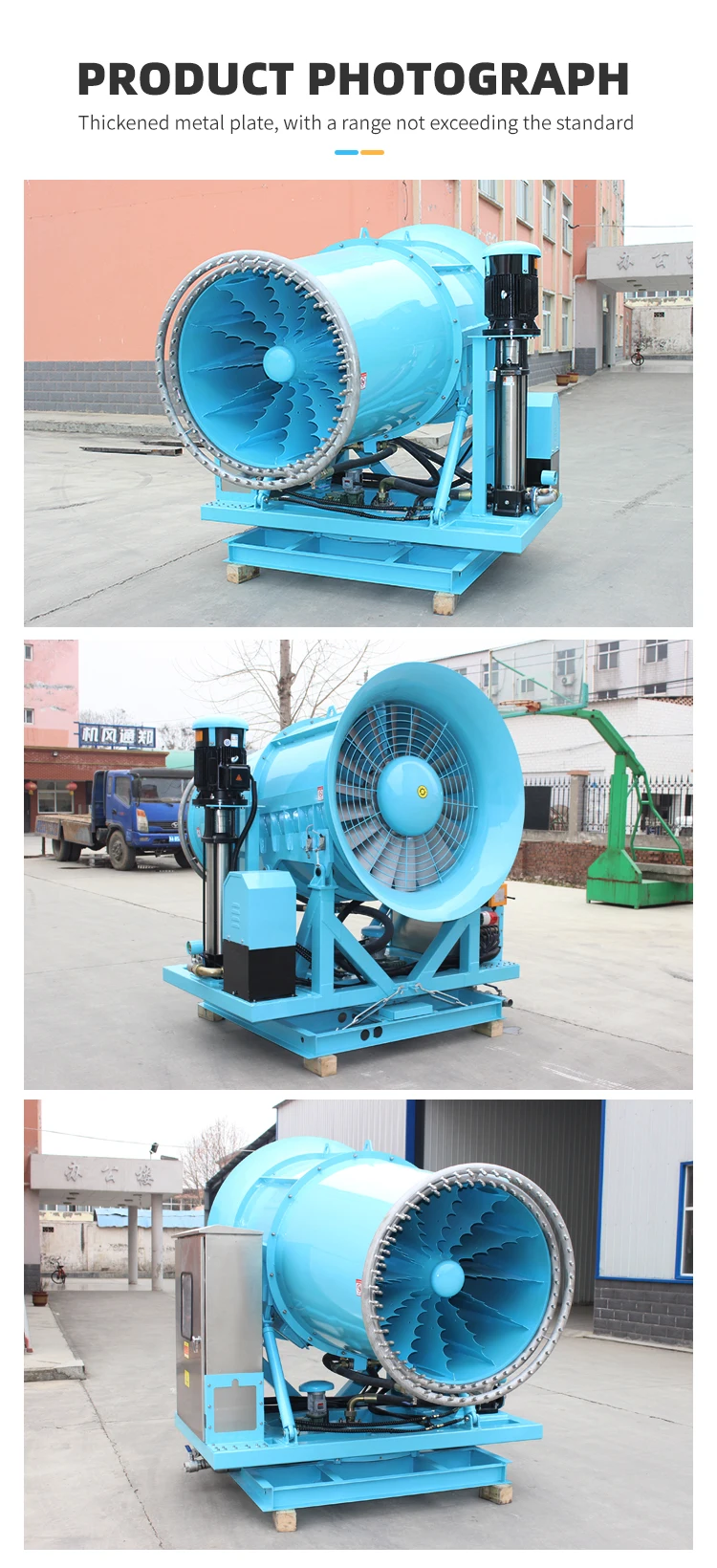

\t\t\t\t\t\t\t\t\tDETAILED IMAGES \t\t\t\t\t\t\t

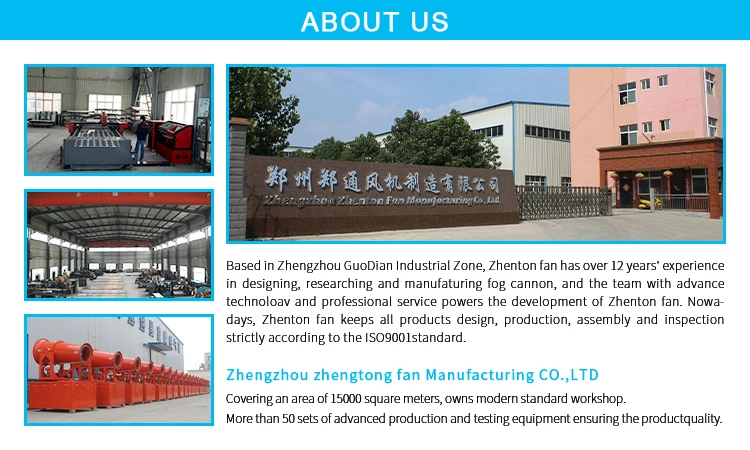

Company Profile
Certifications
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Any questions, welcome to contact us, we ill be always help you and support you.
What should l do if the amount of water atomized by the fog machine is small?
1.Filter clogging, clean the filter, add a cup filter;
2.Unstable voltage and current of power supply line;
3.Nozzle clogging, foreign matter clogging or scale clogging;
4.Nozzle wear, water quality sediment caused by large nozzle wearcaliber becomes larger.
What should l do if the fog cannon does not work?
1.Check whether the wiring and power supply of the distribution controlcabinet are abnormal;
2.the fog cannon equipment access power supply voltage is not enough,the equipment can not start;
3.The amount of water in the tank is too low or the water inlet valve isnot open;
4.The equipment pipe fittings are clogged, the filter is clogged resultingin too little water;
5.Emergency stop button is pressed and not reset.
What should l do if the fan trips after startup?
1.Abnormal air switch function;2.Line running out of phase;
3.excessive starting current due to motor blocking;
4.Excessive fan blade attachment and excessive motor load;5.Fan blade angle adjustment is too large, resulting in
excessivecurrent.
1.Filter clogging, clean the filter, add a cup filter;
2.Unstable voltage and current of power supply line;
3.Nozzle clogging, foreign matter clogging or scale clogging;
4.Nozzle wear, water quality sediment caused by large nozzle wearcaliber becomes larger.
What should l do if the fog cannon does not work?
1.Check whether the wiring and power supply of the distribution controlcabinet are abnormal;
2.the fog cannon equipment access power supply voltage is not enough,the equipment can not start;
3.The amount of water in the tank is too low or the water inlet valve isnot open;
4.The equipment pipe fittings are clogged, the filter is clogged resultingin too little water;
5.Emergency stop button is pressed and not reset.
What should l do if the fan trips after startup?
1.Abnormal air switch function;2.Line running out of phase;
3.excessive starting current due to motor blocking;
4.Excessive fan blade attachment and excessive motor load;5.Fan blade angle adjustment is too large, resulting in
excessivecurrent.
