RWT Large Capacity Lithium Battery EV Using V3 Ear and 4 holes bus bar for Lifepo4 3.2 V 280Ah
- Category: >>>
- Supplier: Rowen (shenzhen) Technology Co. Ltd.
Share on (1601048906791):
Product Overview
Description
Product Description

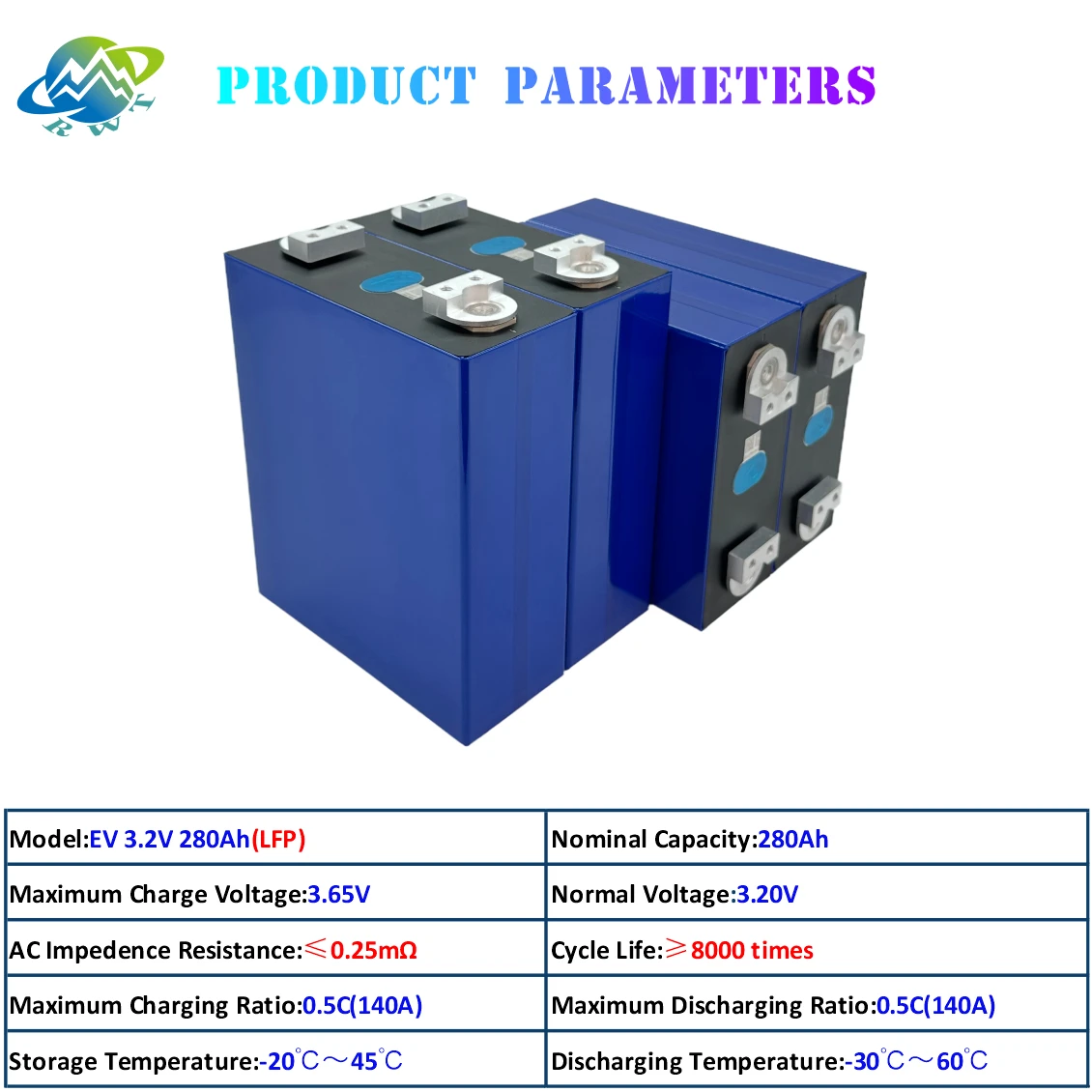

Specification
item | value |
Brand Name | EVE |
Model Number | 3.2V 280Ah |

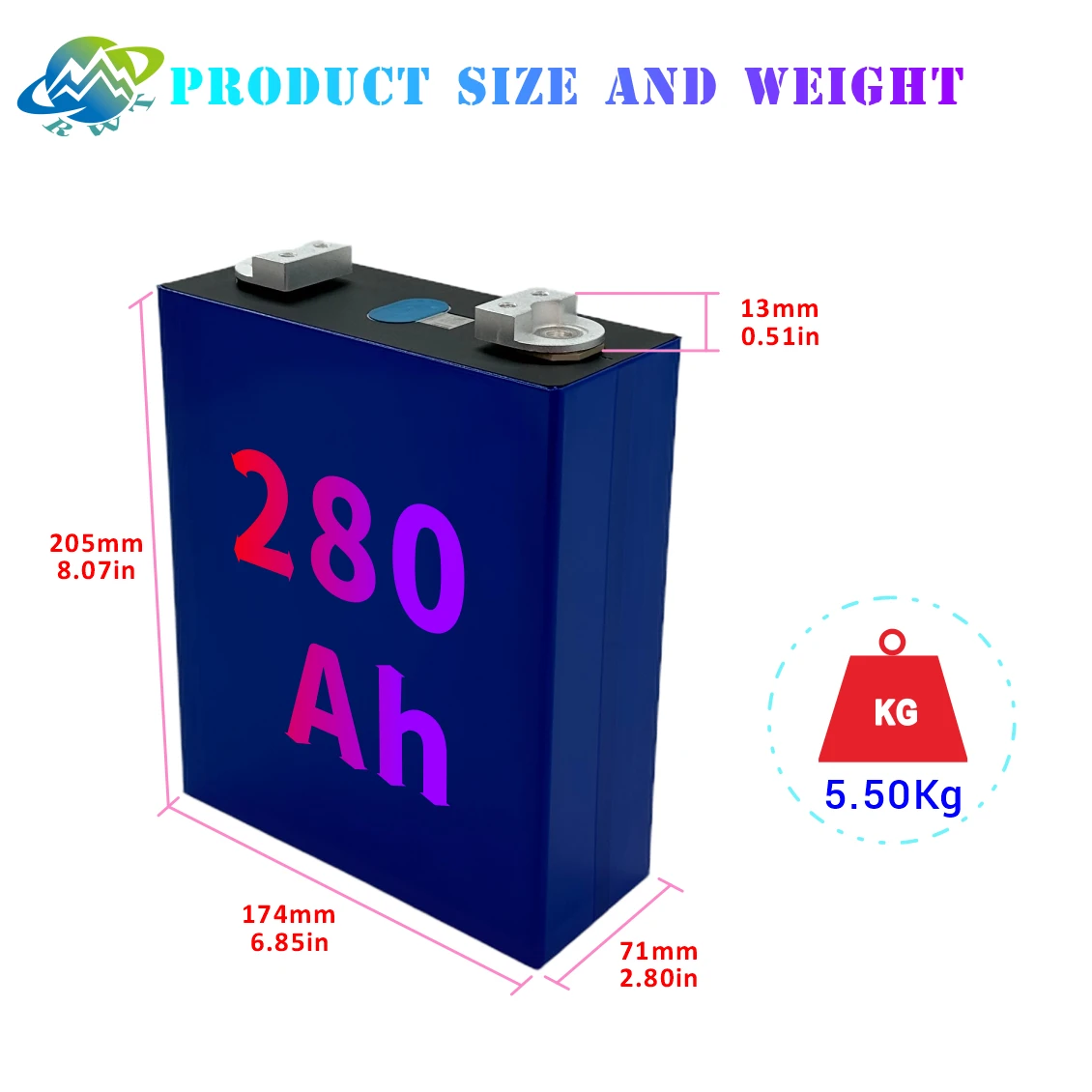

Battery Size | 174*71*205mm |
Place of Origin | China |
Guangdong | |
Weight | 5.5KGS |
The charging ratio | 0.5C(140A) |
The discharge rate | 0.5C(140A) |
Storage Type | -30℃~60℃ |
Anode Material | LFP |
Application | Power Tools, Home Appliances, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies |
Cycle life | 8000 Times |
Certification | CE |
Warranty | 7-10years |
Internal Resistance | 0.15~0.25mΩ |
Note:
1、This item is Original EVE 3.2V 280AH Lifepo4 item, the QR code is intact, Grade A+. After our test, the discharge capacity can reach 300-310Ah.

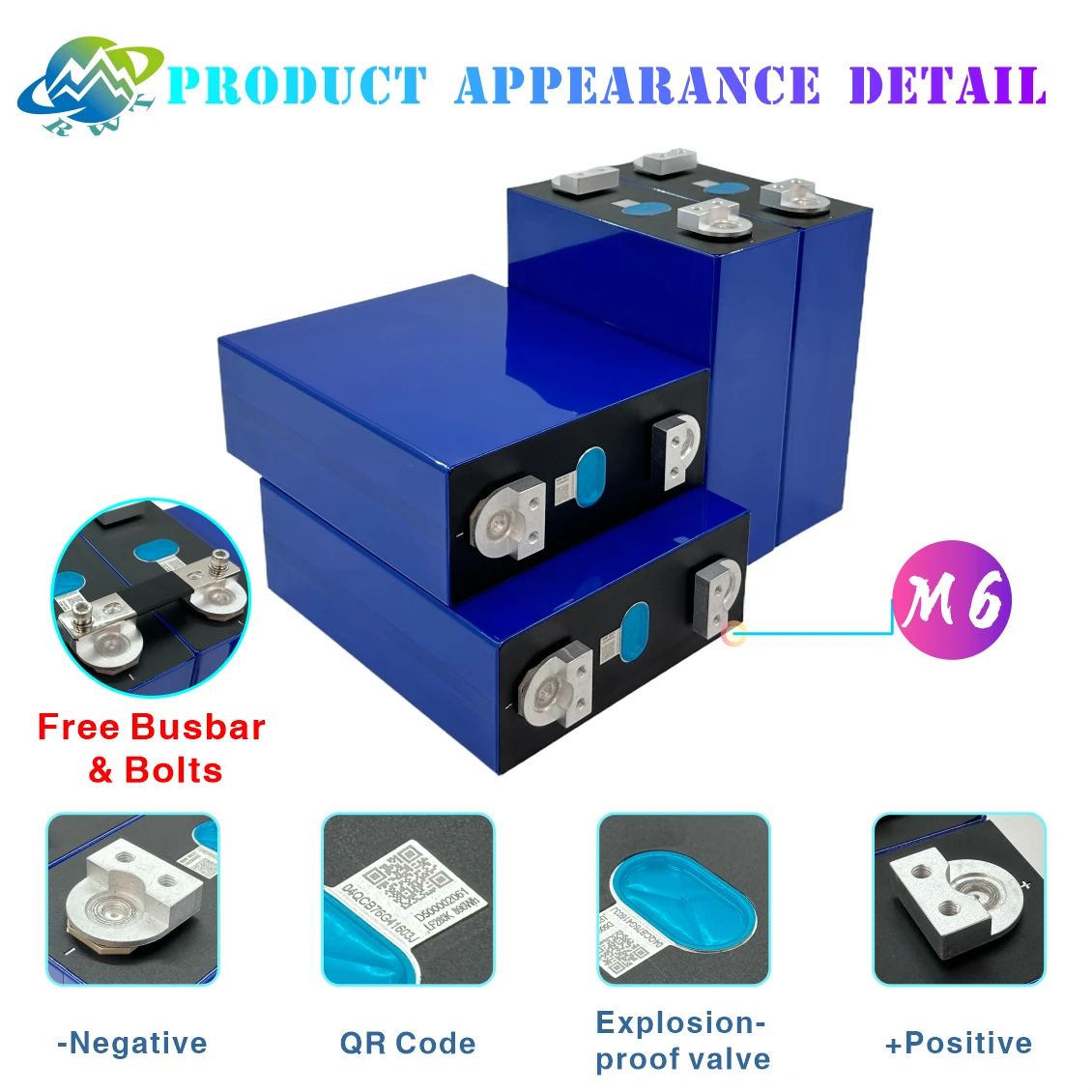

2、The price come with Free Bus bars and Laser welding of V3 studs on the cell Battery positive and negative + M6-10mm Screw(M6 * 4pcs) + Shims(M6*12mm * 4pcs) + Spring washer(M6 * 4pcs) . one battery will come with 1 pcs bus bar and 4pcs studs +4pcs
Screw + 4pcs Shims + 4pcs Spring washer（For example,If buy 4pcs battery cells,we
will send 4pcs cells with 4 pcs bus bars and 16pcs Screw + 16pcs Shims + 16pcs Spring washer）If need more or othercustomized size requirements(Laser welding studs can be selected from M6/M8 or V3 customized stud lengths, and other accessories can
also be matched accordingly) please contact us online.Thank you!
3、Bus bars size:M6*72~82*2mm(Cooper plated with nickel)

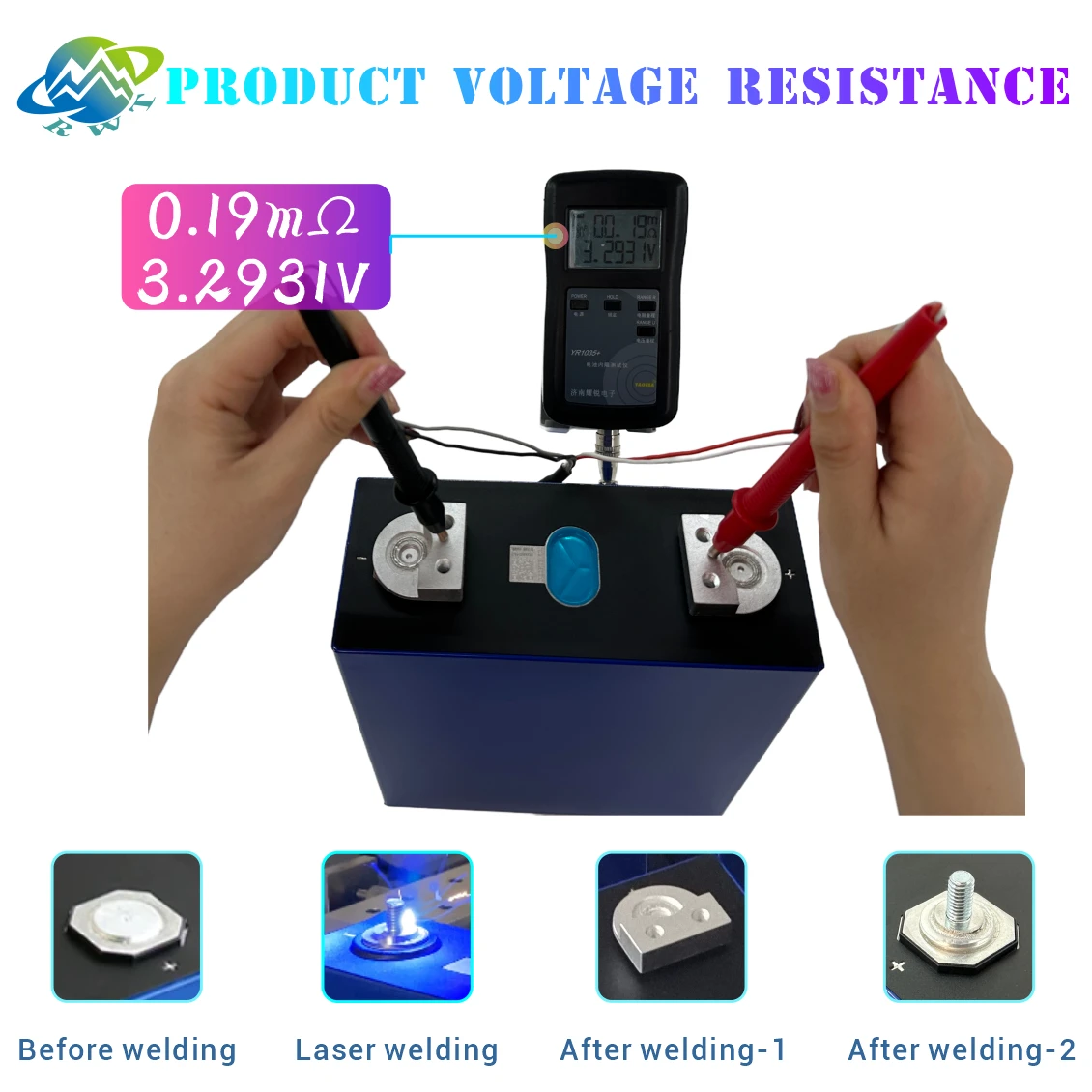

4、We will test all the battery Voltage ,Internal resistance and capacity before delivery.
2、The price come with Free Bus bars and Laser welding of V3 studs on the cell Battery positive and negative + M6-10mm Screw(M6 * 4pcs) + Shims(M6*12mm * 4pcs) + Spring washer(M6 * 4pcs) . one battery will come with 1 pcs bus bar and 4pcs studs +4pcs
Screw + 4pcs Shims + 4pcs Spring washer（For example,If buy 4pcs battery cells,we
will send 4pcs cells with 4 pcs bus bars and 16pcs Screw + 16pcs Shims + 16pcs Spring washer）If need more or othercustomized size requirements(Laser welding studs can be selected from M6/M8 or V3 customized stud lengths, and other accessories can
also be matched accordingly) please contact us online.Thank you!
3、Bus bars size:M6*72~82*2mm(Cooper plated with nickel)
4、We will test all the battery Voltage ,Internal resistance and capacity before delivery.
Packing & Delivery

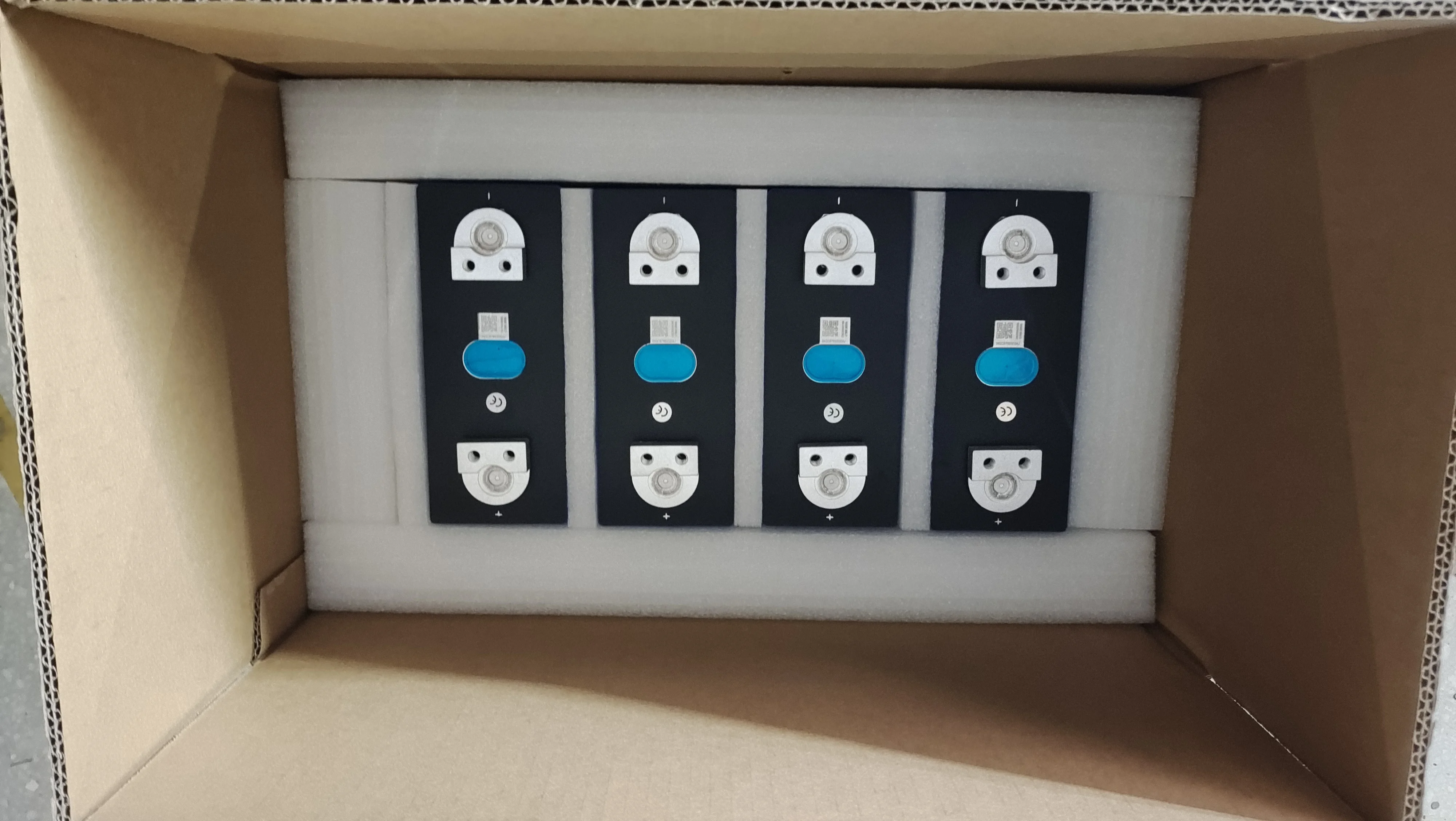

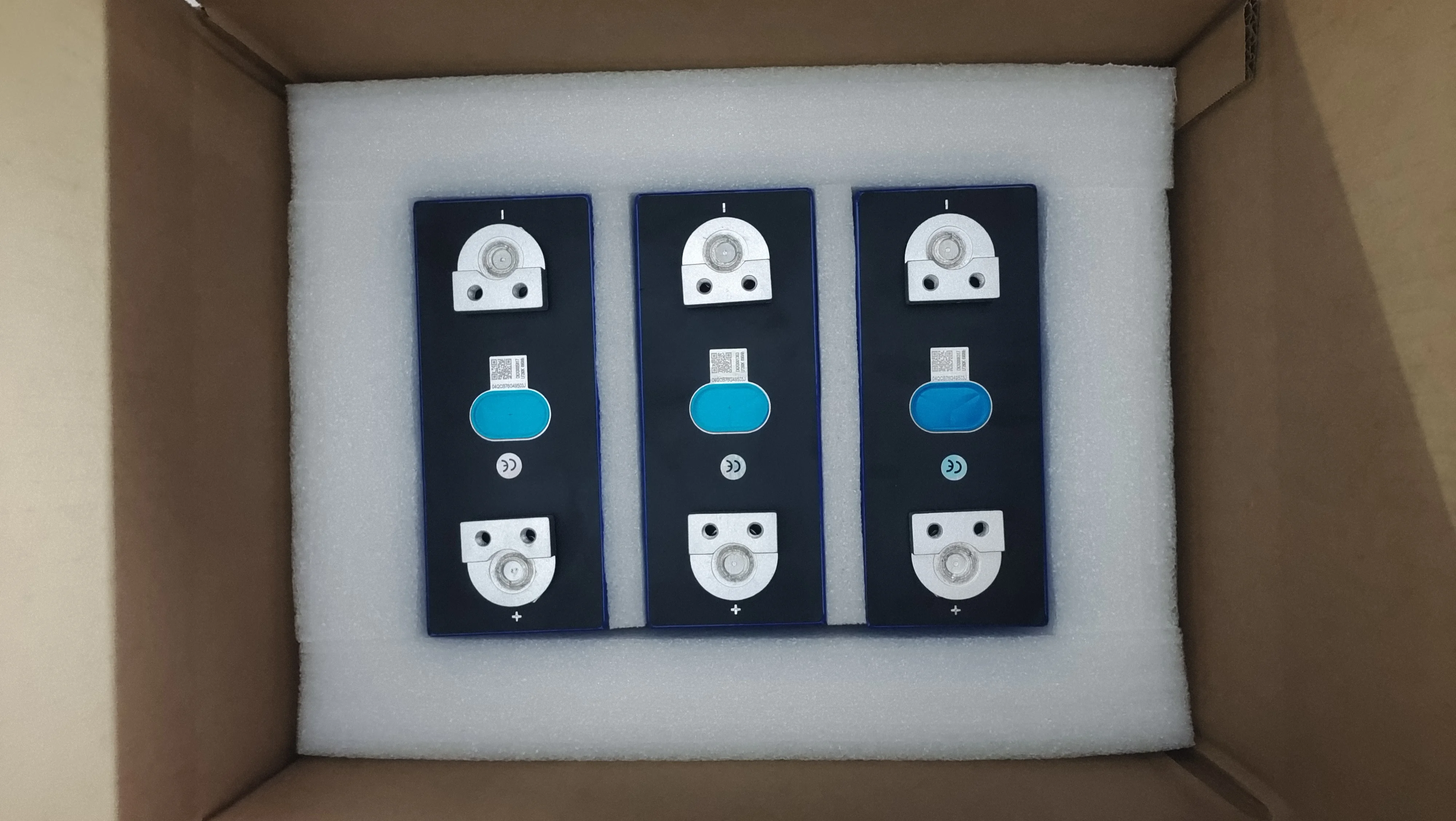

Our commonly used custom boxes is
3 pcs and 4 pcs/cartons
3 pcs/carton sizes: 375 * 295 * 330mm=0.0365CBM (17-18Kg)
4 pcs/carton sizes: 455 * 295 * 330mm=0.0443CBM (22-23Kg)
4 pcs/carton sizes: 455 * 295 * 330mm=0.0443CBM (22-23Kg)
