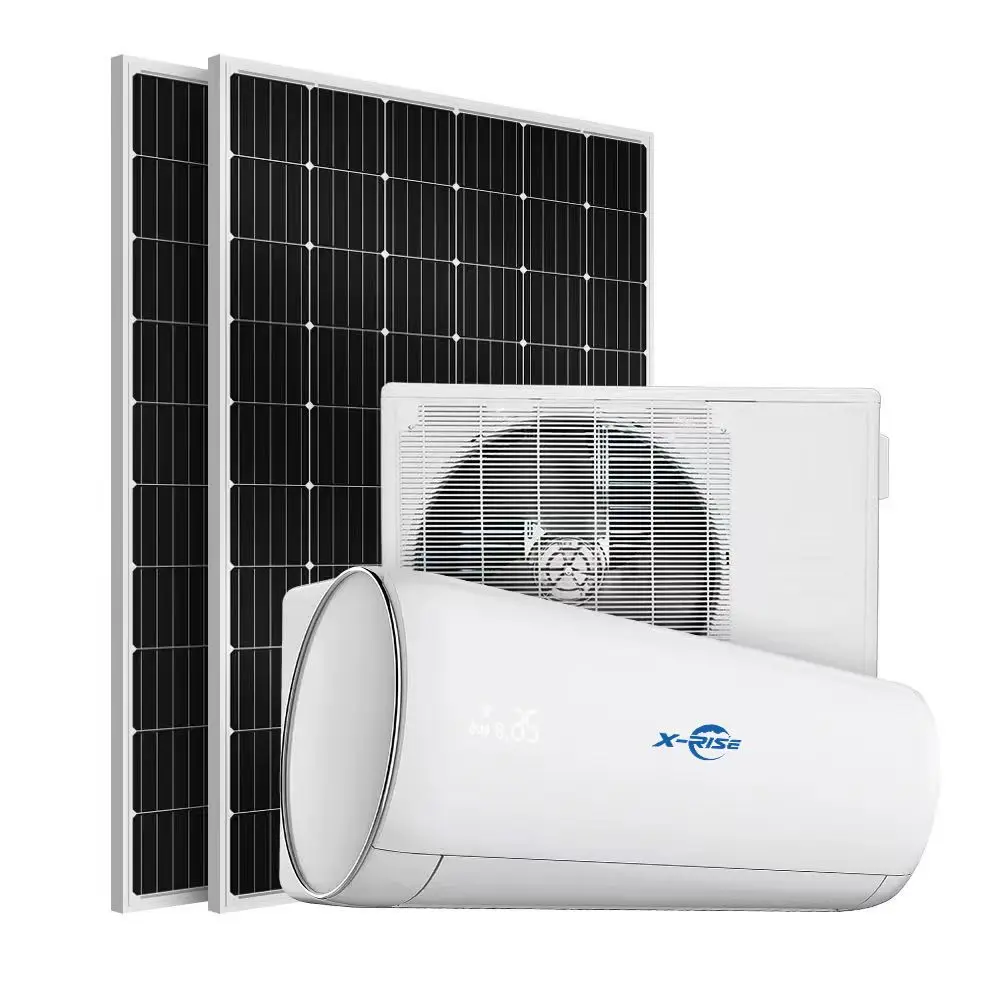

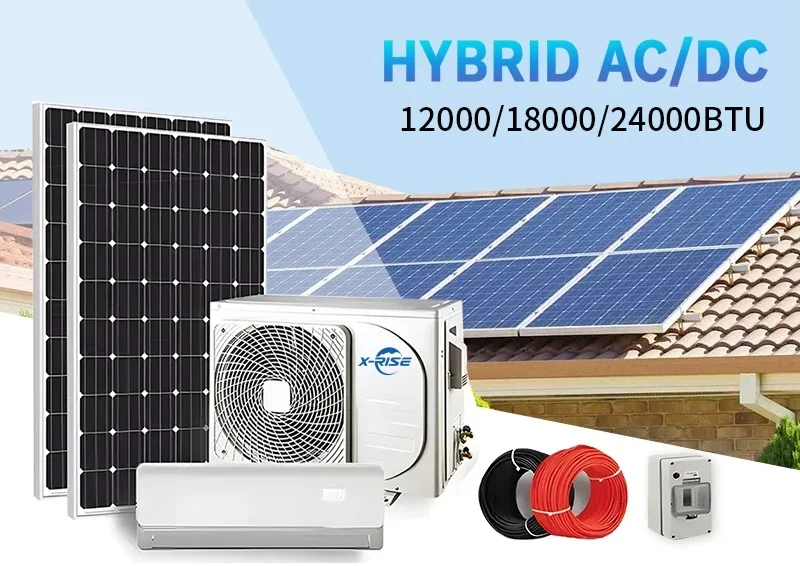

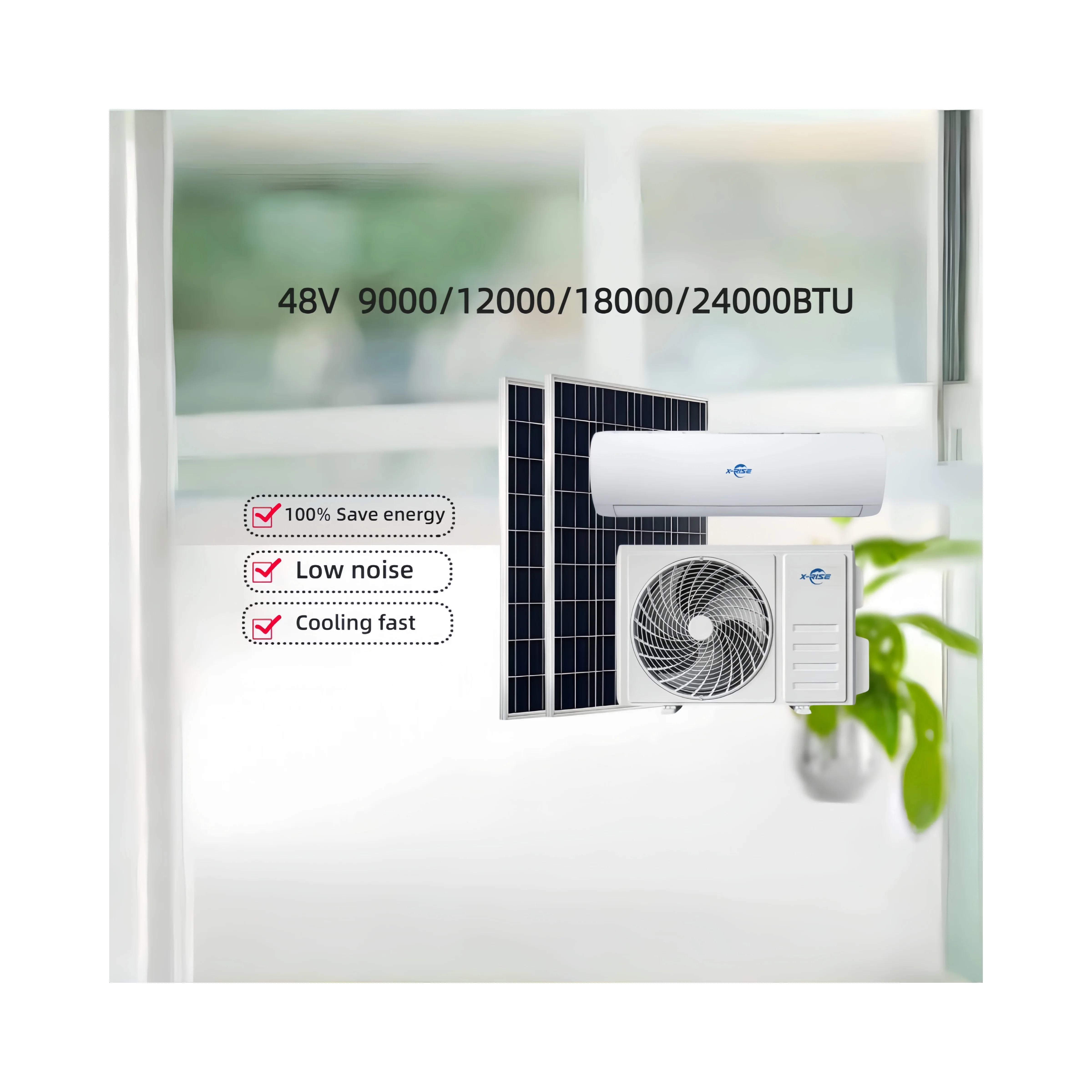

Portable Household ACDC Solar Split Air Conditioner Export Grade 9000BTU/12000BTU/18000BTU/24000BTU Adaptable Supporting Battery
- Category: >>>
- Supplier: Xrise International Trading Co. Ltd
Share on (1601048944152):
Product Overview
Description
Products feature
1.Low power consumption and high energy saving efficiency;
2.All DC：dc compressor, dc motor , dc valve;
3.Variable speed air compressor to achieve the soft start and quick cooling / heating;
4.Wider working frequency range and DC working voltage range;
5.Smooth running with low noise level;
6.The working voltage for off grid solar air conditioner system is 48V/72V/96V DC which is easy to configure the system;
7.Safety protection arrangements are adopted;
8.APP control and power saving indicator are optional.
2.All DC：dc compressor, dc motor , dc valve;
3.Variable speed air compressor to achieve the soft start and quick cooling / heating;
4.Wider working frequency range and DC working voltage range;
5.Smooth running with low noise level;
6.The working voltage for off grid solar air conditioner system is 48V/72V/96V DC which is easy to configure the system;
7.Safety protection arrangements are adopted;
8.APP control and power saving indicator are optional.
Products Description
from the grid power and running with same
principle of regular air conditioner, the SEER is
over 22, it can saving 20-30% energy compare
with the regular A/C unit.

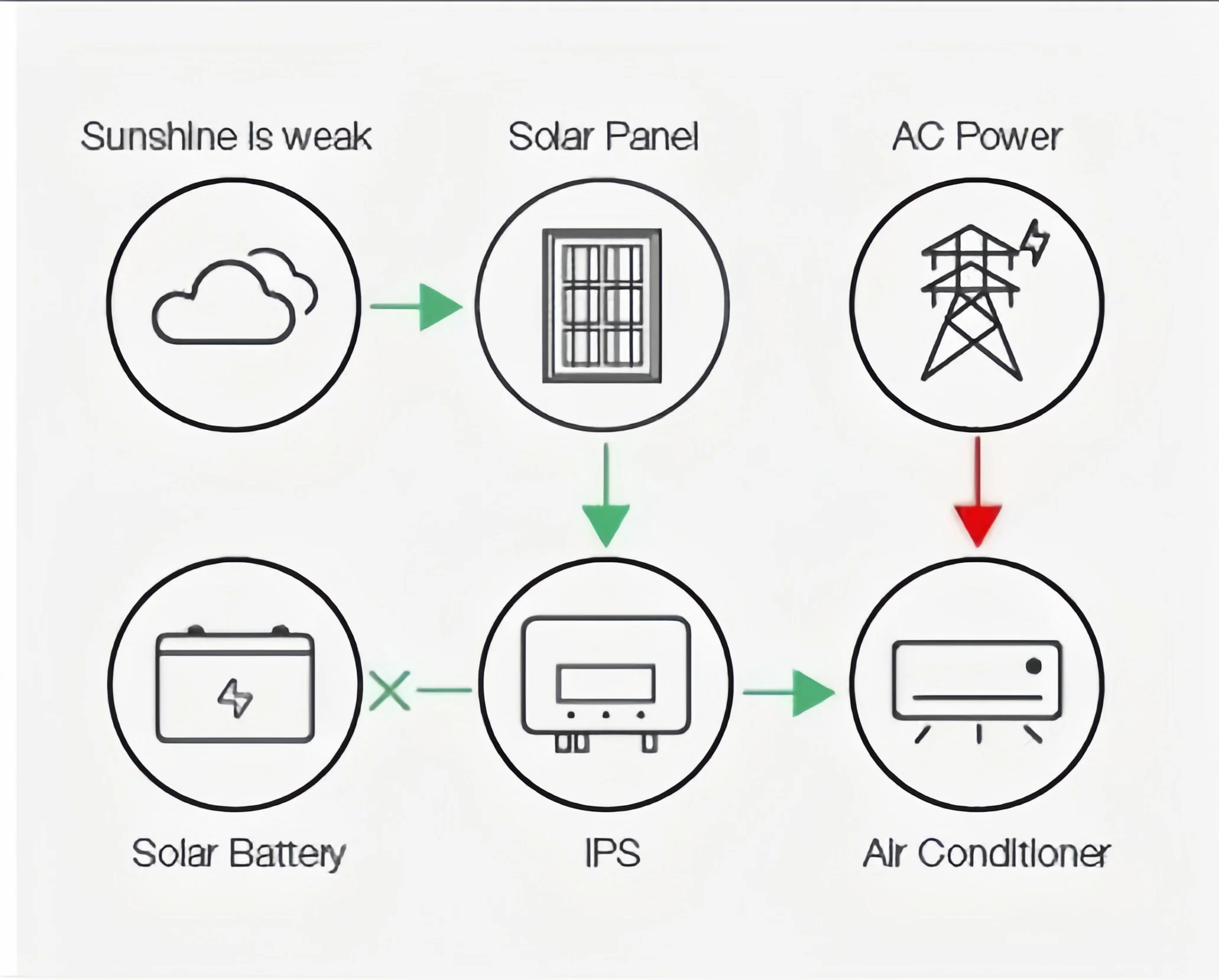

cloudy day, the A/C unit will take the solar as
the priority choice, the insufficient power will
take from the grid to make sure 24H working.
When the solar energy meets the min running
requirement of compressor, the A/C unit will
start and operate by solar energy only, even the
grid off, 100% energy saving. In the same time,
the system will charge the battery automatically.
requirement of compressor, the A/C unit will
start and operate by solar energy only, even the
grid off, 100% energy saving. In the same time,
the system will charge the battery automatically.

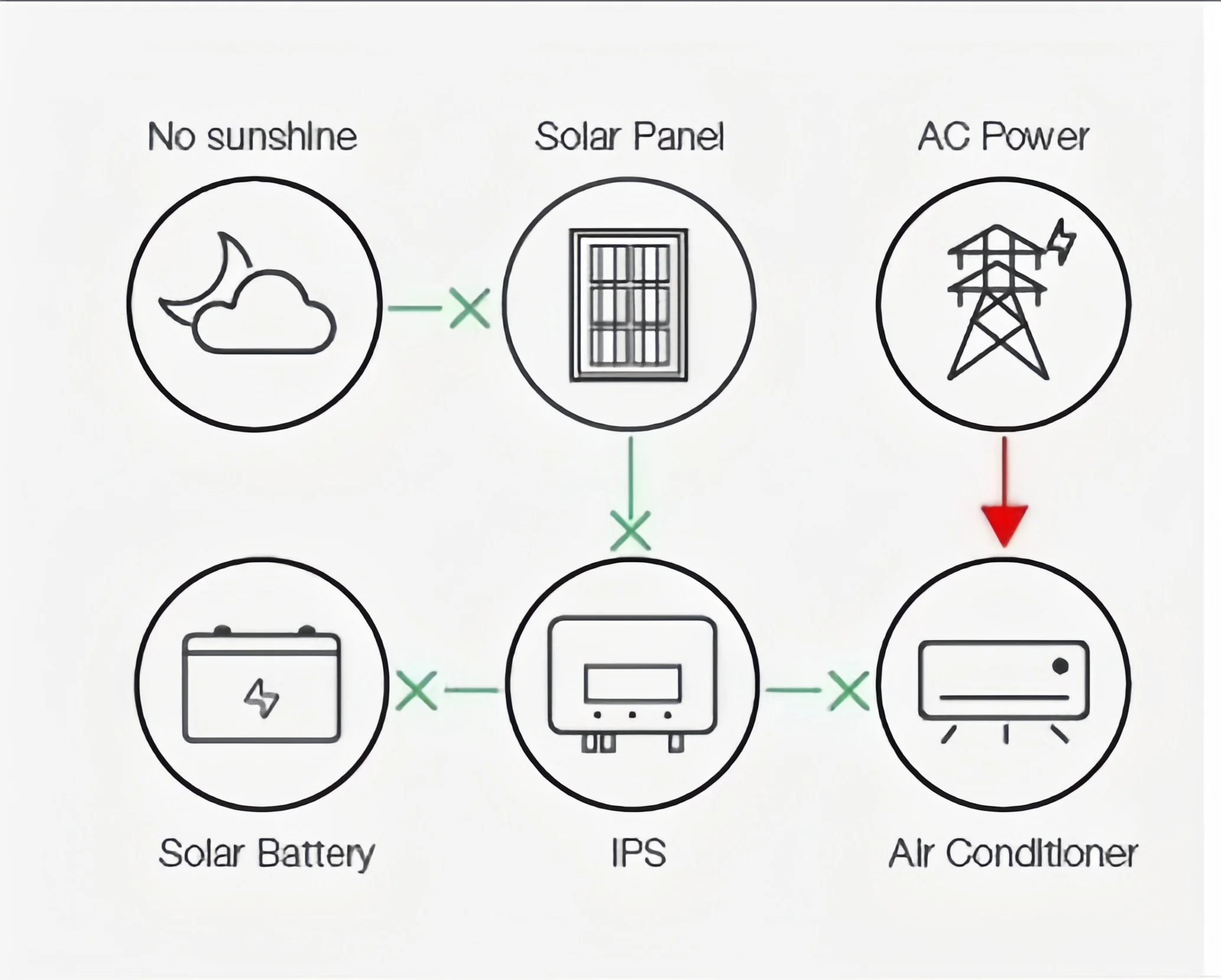

4. Grid Off
grid power, the system will automatically take
the battery energy to run the A/C unit, it will
ensure you enjoy cooling summer in any
situation.
XRISE Technology

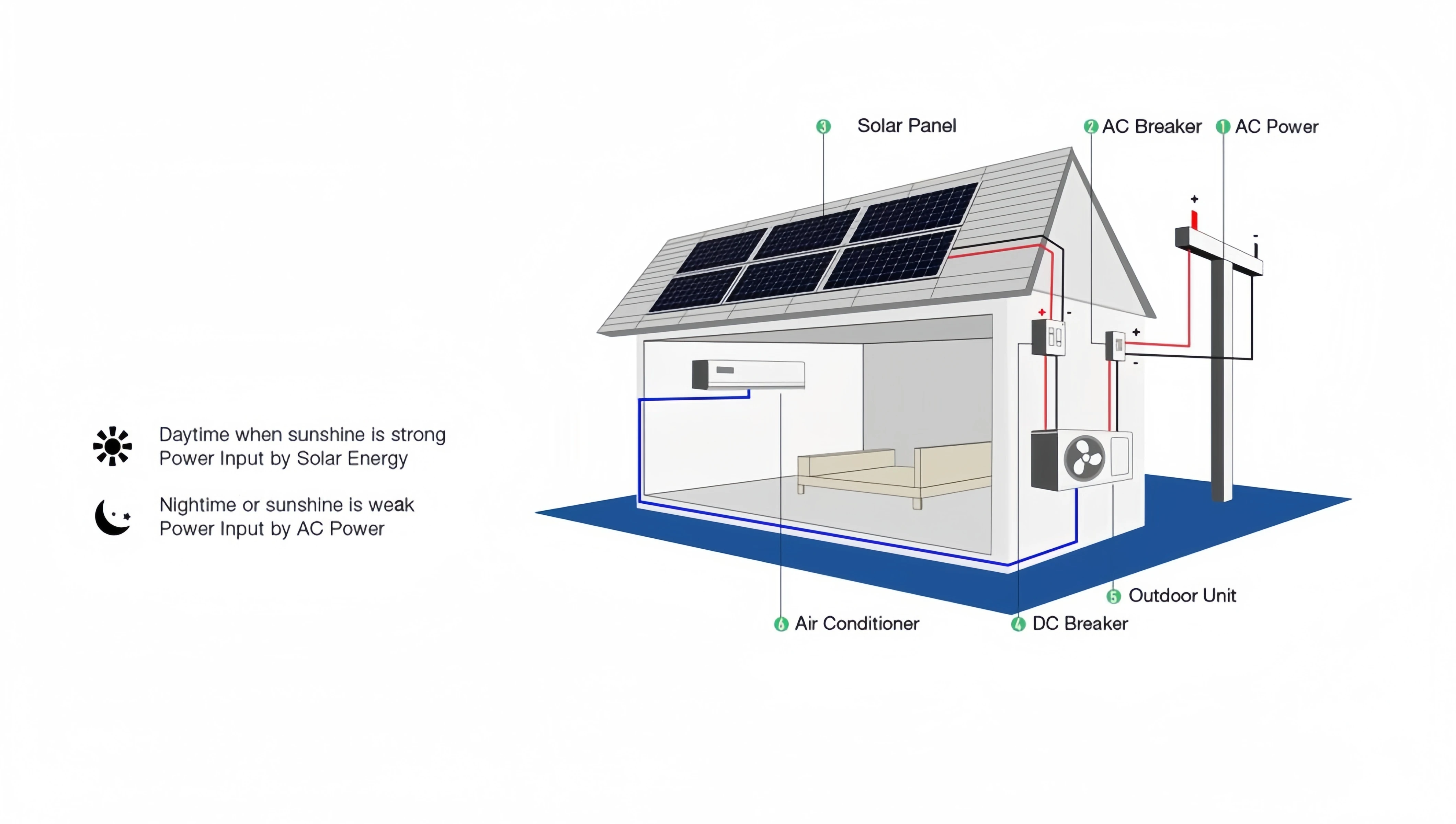

Xrise Solar Air Conditioner embraces both inverter technology(VRF) and Full DC technology in the products, realizing that the solar air conditioner can be directly generated by DC power via solar panels. It can be configured into different system solutions according to the specific application requirements, such as hybrid solar air conditioner system, off grid solar air conditioner system, pure solar air conditioner system, PV-Wind hybrid solar air conditioner system, ect.
Product Paramenters
Model No. | XRIAC9000-V1 | XRIAC12000-V1 | XRIAC18000-V1 | XRIAC24000-V1 | ||||||
Power Supply | Solar input | V | DC70-380V MAX.15A | |||||||
AC input | V | 208-240V50/60Hz | ||||||||
Cooling | Capacity | Btu/h | 9000 | 12000 | 18000 | 24000 | ||||
Power Input | W | 660 | 960 | 1420 | 1830 | |||||
Rated Current | A | 3 | 4.4 | 6.1 | 8 | |||||
SEER | Btu/h | 23 | 22 | 21 | 20 | |||||
EER | Btu/h | 13.6 | 12.5 | 12 | 12 | |||||
Heating | Capacity | Btu/h | 9000 | 12000 | 18000 | 24000 | ||||
Power input | W | 670 | 1028 | 1375 | 1820 | |||||
Rated Current | A | 3.2 | 5.9 | 5.9 | 8 | |||||
HSPF | / | 10 | 11 | 10 | 11 | |||||
COP | Btu/h | 13.4 | 11.7 | 12.4 | 12.08 | |||||
Dehumidification | L/H | 1 | 1.3 | 1.9 | 2.3 | |||||
Indoor air flow(Hi/Mi/Lo) | cfm | 360/340/295 | 360/340/295 | 810/320/278 | 910/340/270 | |||||
Indoor Noise (Hi/Mi/Lo) | dB(A) | 41/38/32 | 41/38/32 | 48/40/32 | 49/41/35 | |||||
Outdoor fan motor | Model | / | D-40-8 | D-40-8 | D-69-8 | D-69-8 | ||||
Input | W | 82 | 82 | 102 | 93 | |||||
Outdoor Noise | dB(A) | 53 | 53 | 56 | 60 | |||||
Max Refrigeration Pipe Length | ft/m | 49/15 | 49/15 | 49/15 | 49/15 | |||||
Max Refrigeration Pipe Rise/Fall | ft/m | 16/5 | 16/5 | 16/5 | 16/5 | |||||
Max Elevation Difference | / | 49/15 | 49/15 | 49/15 | 49/15 | |||||
Refrigerant Charge | (g/oz) | 1150/41 | 1150/41 | 1600/56 | 2100/74 | |||||
Design Pressure(Hi/Lo) | psig | 550 / 340 | 550 / 340 | 550 / 340 | 550 / 340 | |||||
Operation temperature | Indoor (Cooling/Heating) | ℃ | 10-52℃/-15~33 ℃ | 10-52℃/-15~33℃ | 10-52℃/-15~33℃ | 10-52℃/-15~33℃ | ||||
Outdoor (Cooling/Herating) | ℃ | 10-52℃/-15~33 ℃ | 10-52℃/-15~33 ℃ | 10-52℃/-15~33℃ | 10-52℃/-15~33℃ | |||||
Indoor Unit | Dimension(W*D*H) | mm | 850*290*205 | 850*290*205 | 970*315*235 | 1100*330*235 | ||||
inch | 33.46"*11.42"*8.07" | 33.46"*11.42"*8.07" | 38.19"*12.40"*9.25" | 38.19"*12.40"*9.25" | ||||||
Packing(W*D*H) | mm | 920*370*285 | 920*370*285 | 1045*385*320 | 1160*390*300 | |||||
inch | 36.22"*14.57"*11.22" | 36.22"*14.57"*11.22" | 41.14"*15.16"*12.60" | 45.67"*15.35"*11.81" | ||||||
Packing(W*D*H) | kg | 10/12 | 10/12 | 14/16.5 | 16/18 | |||||
lb | 22/26 | 22/26 | 31/36 | 35/40 | ||||||
Outdoor Unit | Dimension(W*D*H) | mm | 860*325*540 | 860*325*540 | 890*320*670 | 890*320*670 | ||||
inch | 33.86"*12.80"*21.26" | 33.86"*12.80"*21.26" | 35.04"*12.60"*26.38" | 35.04"*12.60"*26.38" | ||||||
Packing(W*D*H) | mm | 920*395*605 | 920*395*605 | 1020*430*755 | 1020*430*755 | |||||
inch | 36.22"*15.55"*23.82 | 36.22"*15.55"*23.82 | 40.16"*16.93"*29.72" | 40.16"*16.93"*29.72" | ||||||
Packing(W*D*H) | kg | 32/36 | 32/36 | 48/53 | 53.5/58 | |||||
lb | 71/79 | 71/79 | 106/117 | 118/128 | ||||||
Application Area | ㎡/sq.ft | 8~15/86~161 | 12~25/129~269 | 20~40/215~430 | 33~49/355~527 | |||||
Loading Qty by 20'GP/40'GP/40'HQ | pcs | 80/160/194 | 80/160/194 | 58/120/135 | 58/120/135 | |||||
Certification | / | ETL/DOE/ AHRI Certified | ||||||||
Certifications

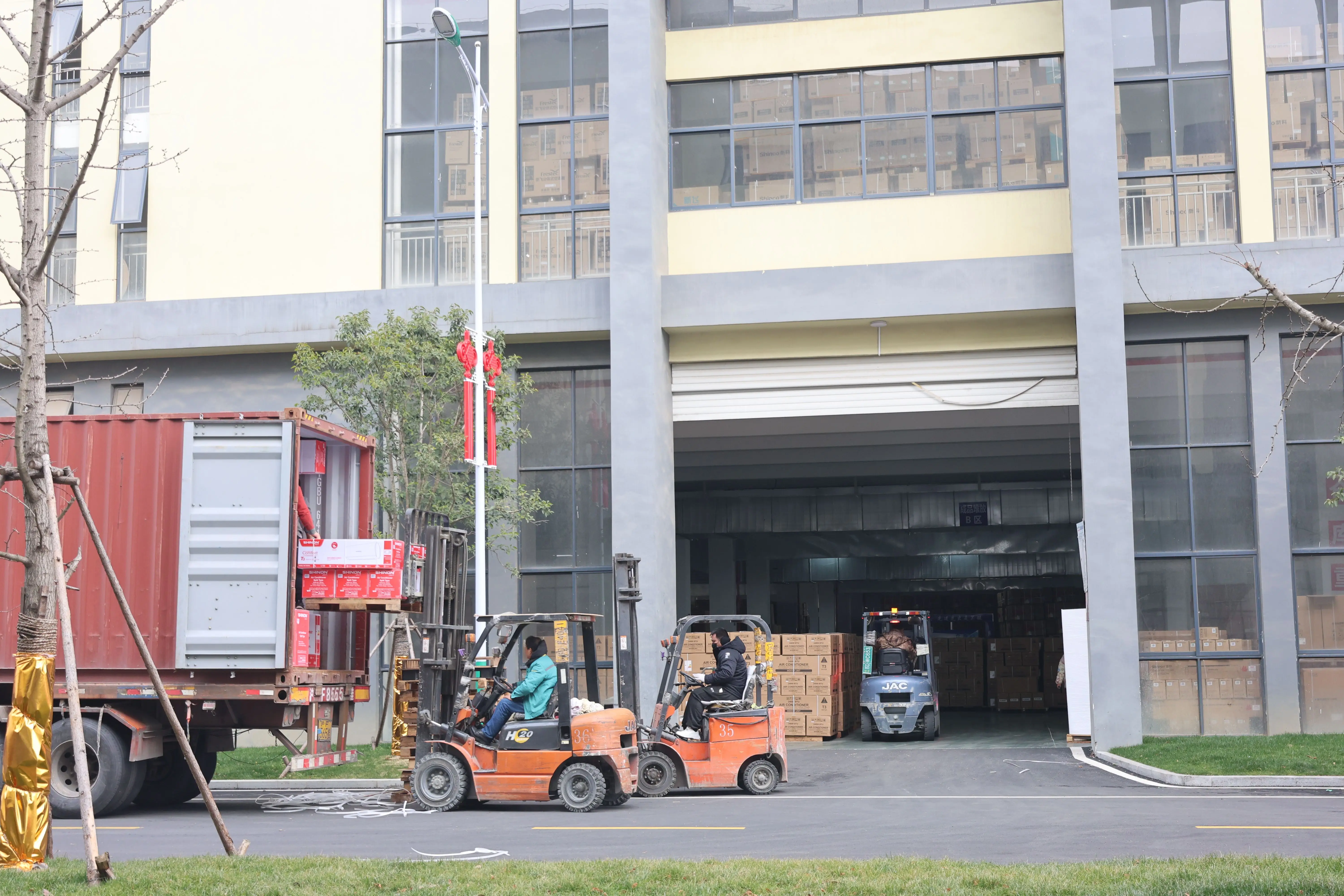

Product packaging
Exhibition
Why Choose Us

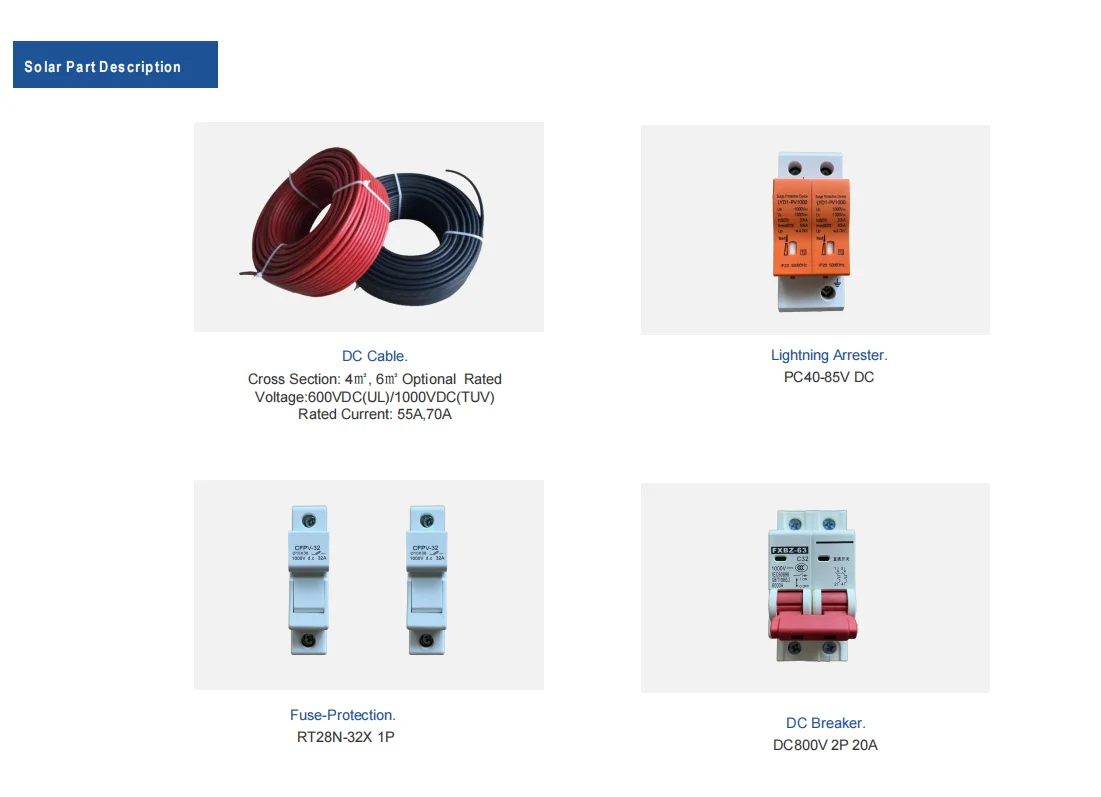

Related accessories
PV cable
Item:PV1-F 1×4mm2Nominal cross-sectional area of conductor: 4mm2
Conductor size: 56/0.3
Conductor DC resistance: 5.09Ω/km
Max. Permit Voltage: 1000VDC
Max. operating current: 8AEnvironment: -40℃~+120℃
Conductor size: 56/0.3
Conductor DC resistance: 5.09Ω/km
Max. Permit Voltage: 1000VDC
Max. operating current: 8AEnvironment: -40℃~+120℃
AC cable
Model: JHS Waterproof
No. of cores: 4 coresRated power-frequency voltage: 300/500V
No. of cores*sectionalarea:3*4mm+1*2.5mm
Insulation thickness(mm) 1.0+1.0
Sheath thickness(mm) 2.0
admissible operating temperature of the conductor:-20~+65℃
