JIS Standard JIS30A JIS37A JIS50N CR73 CR100 JIS15 JIS22 Steel Rails






Specification






JIS Standard JIS30A JIS37A JIS50N CR73 CR100 JIS15 JIS22 Steel Rails
Standard
AiSi ASTM bs DIN GB JIS EN(GB3426-82)
Grade
700/900A/1100
Rail Height
79.37-150mm or Customer's requirements.
Bottom Width
79.37-155mm or Customer's requirements.
Web Thickness
8.33-39mm or Customer's requirements.
Head Width
42.86-120mm or Customer's requirements.

Place of Origin

China
Zhejiang
Type
Crane Steel Rail
Weight
15.2kg/m  22.3kg/m 30.1kg/m 37.2kg/m 50.4kg/m 73.3kg/m 100.2kg/m;
Usage
light transport or light rails such as temporary hauling tracks in forested areas, mines, and
construction areas;
Secondary Or Not
Non-secondary
Tolerance
±1%
Delivery Time
8-14 days
Samples
Freely
Length
10-12m or Customer's requirements
Payment Term
T/T 30% Deposit
MOQ
1 TON

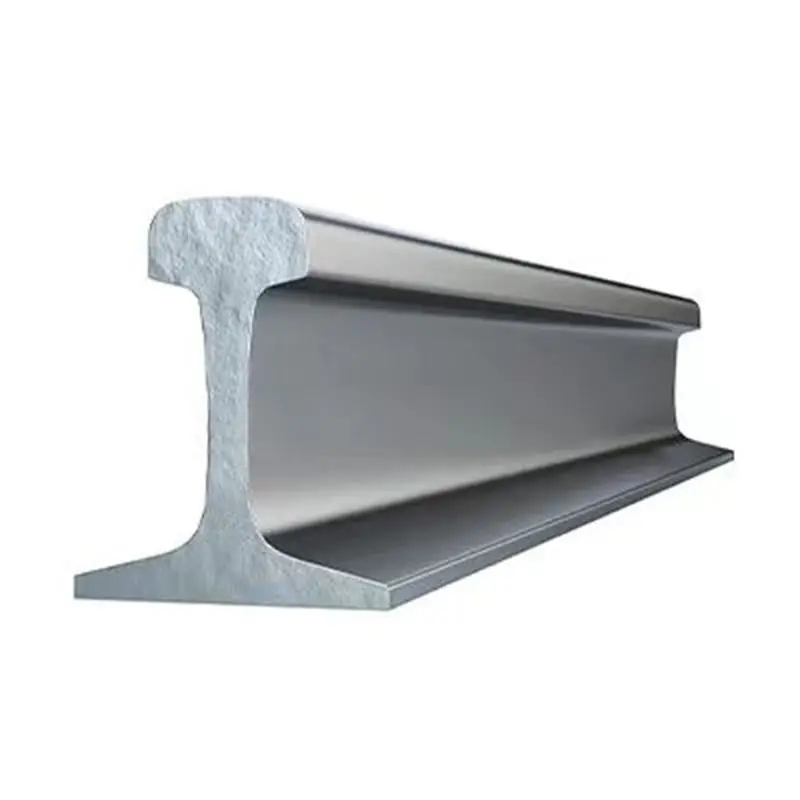

Steel rail, also called rail track, steel track,is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation.The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.

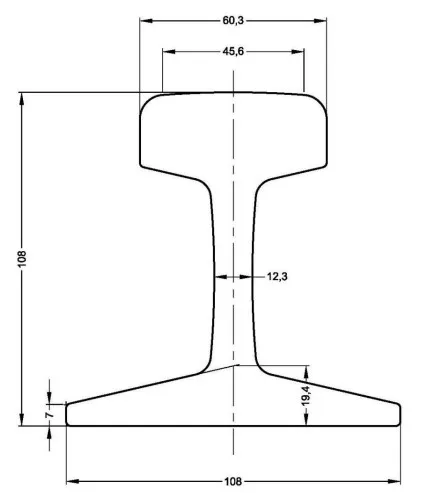

Size about JIS30kg Steel Rails:

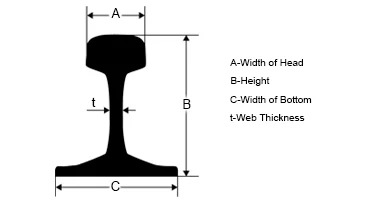

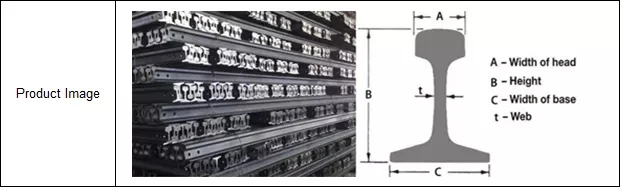

The dimension of JIS30kg light rail consists of the width of the head, the hight, the base and the web.Rail JIS30 manufactured according Japanese Standard, mass 30,10 kg per meter.JIS E1103-91/JIS E1101-93 standard JIS30kg steel rail just be JIS30 rail, it is used for Japanese industrial railway or metro, we can make roller to produce it, length can be 9 to 10m.


Standard:JIS E1103-91/JIS E1104-93

Size
Dimension(mm)

Material

Weight
(kg/m)

Length
(m)
Head
(mm)
Height
(mm)
Bottom
(mm)
Web
(mm)
JIS 15KG
42.86
79.37
79.37
8.33
55Q
15.2
9-10
JIS 22KG
50.8
93.66
93.66
10.72
55Q
22.3
9-10
JIS 30A
60.33
107.95
107.95
12.3
55Q
30.1
9-10
JIS 37A
62.71
122.24
122.24
13.49
U71Mn
37.2
10-12
JIS 50N
65
153
127
15
U71Mn
50.4
10-12
CR 73
100
135
140
32
U71Mn
73.3
10-12
CR 100
120
150
155
39
U71Mn
100.2
10-12


GB Standard:
light rail (6kg, 8kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg)
heavy rail (38kg, 43kg, 50kg, 60kg, 75kg)
crane rail(Qu70, Qu80, Qu100, Qu120)

Other Different International Standards:
JIS E Standard(jis37A JISCR73 JISCR100)
UIC Standard (uic50, uic54, uic60)
DIN Standard (A45, A55, A65, A75, A120)
ASTM/AREMA Standard, BS Standard, and etc.

Chinese Standard light rail:
GB6KG;GB9KG;GB12KG; GB15KG; GB22KG; GB30KG;

Chinese Standard heavy rail:
GB38KG; GB43KG; GB50KG;

Chinese Standardcrane rail:
QU70; QU80; QU100; QU120;

American standard steel rail
ASCE25; ASCE30; ASCE40; ASCE60; ASCE75; ASCE85;90RA;115RE;136RE;175LBs

BS Standard steel Rail:
50O;60A;75A;75R;80A;80R;90A;100A;113A

UIC860 Standard steel Rail
UIC54; UIC60;

South Africa standard steel rail:
15KG;22KG;30KG;40KG;48KG;57KG

EN Standard steel Rail:
49E1;49E2;50E1;50E2;50E4;50E5;50E6;54E1;54E2;54E3;55E1;60E1

Australian standard steel rail
31KG; 47KG; 50KG; 60KG; 68KG; 73KG;86KG; 89KG;

Indian Standard Steel Rail,
ISCR50; ISCR60; ISCR70; ISCR80; ISCR100; ISCR120;

DIN Standard Steel Rail
A65;A75;A100;A120

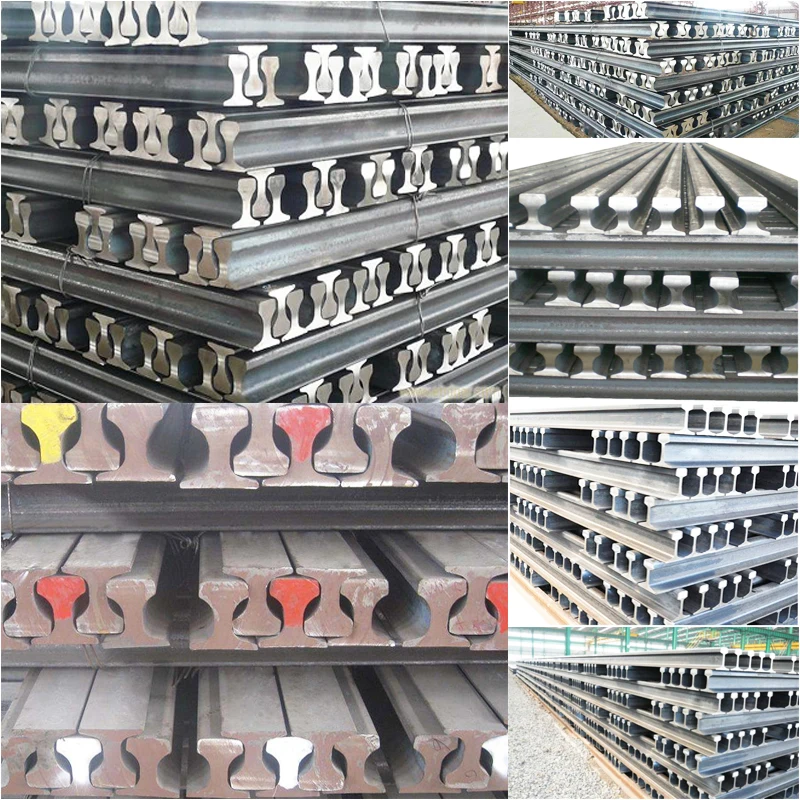

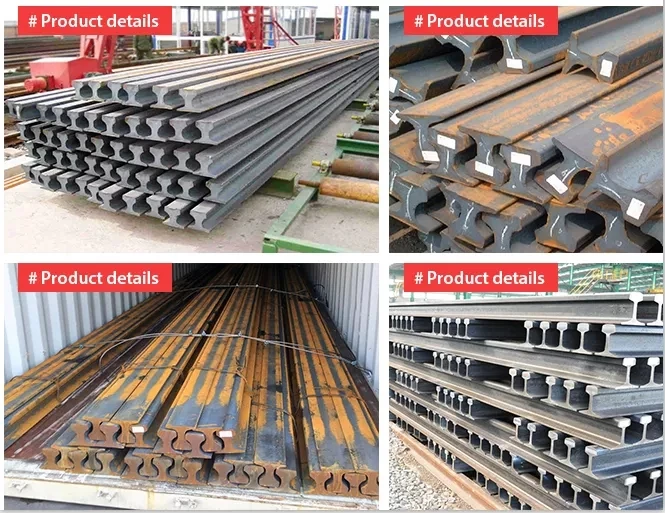

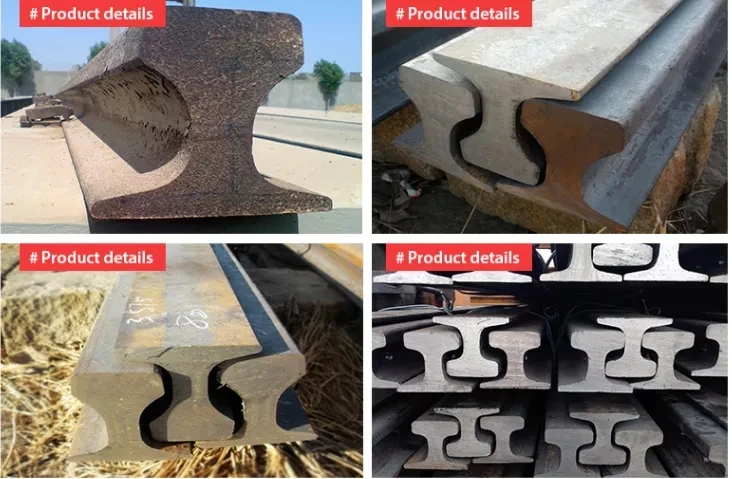

Product Details

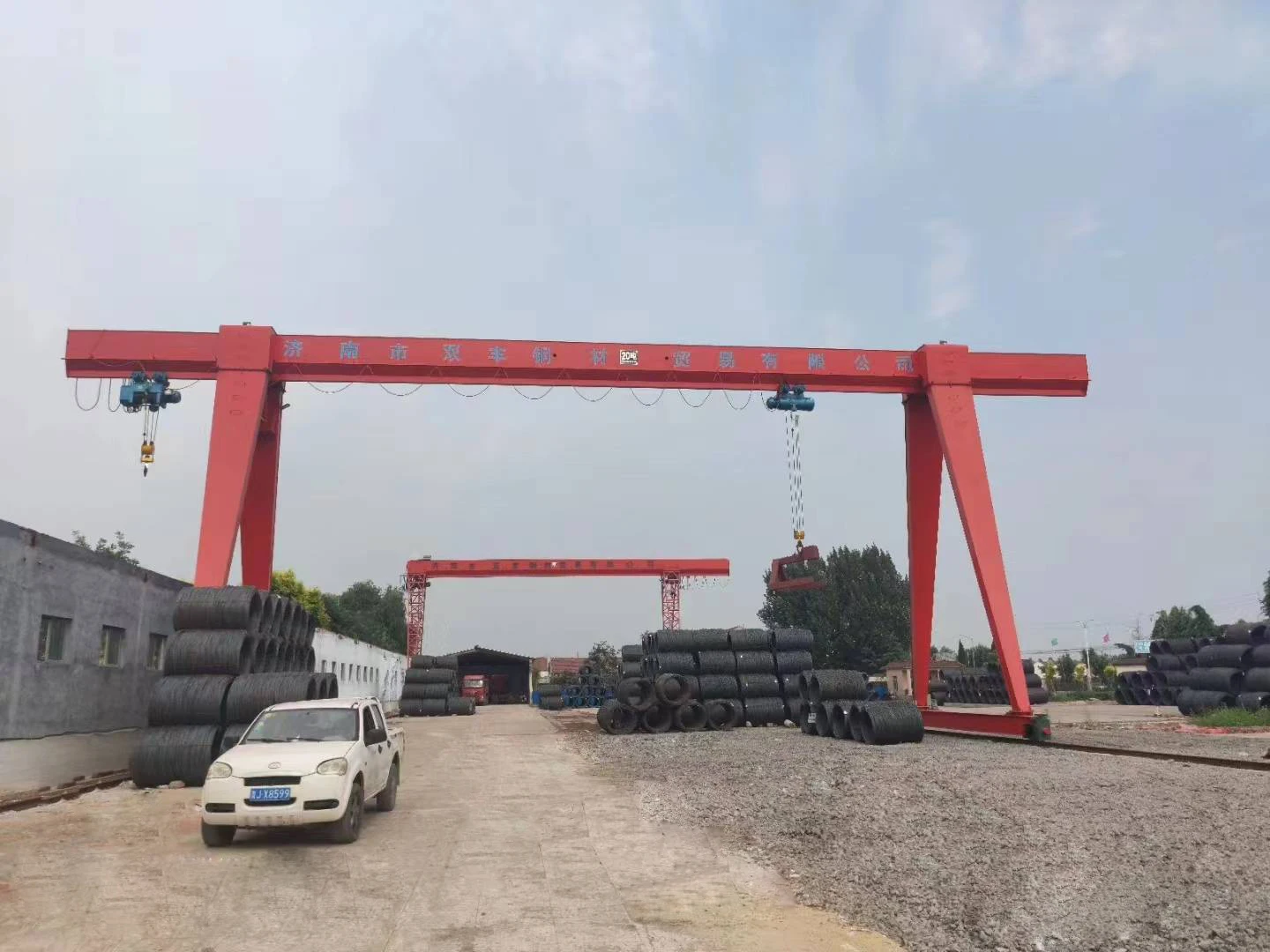

Company Profile

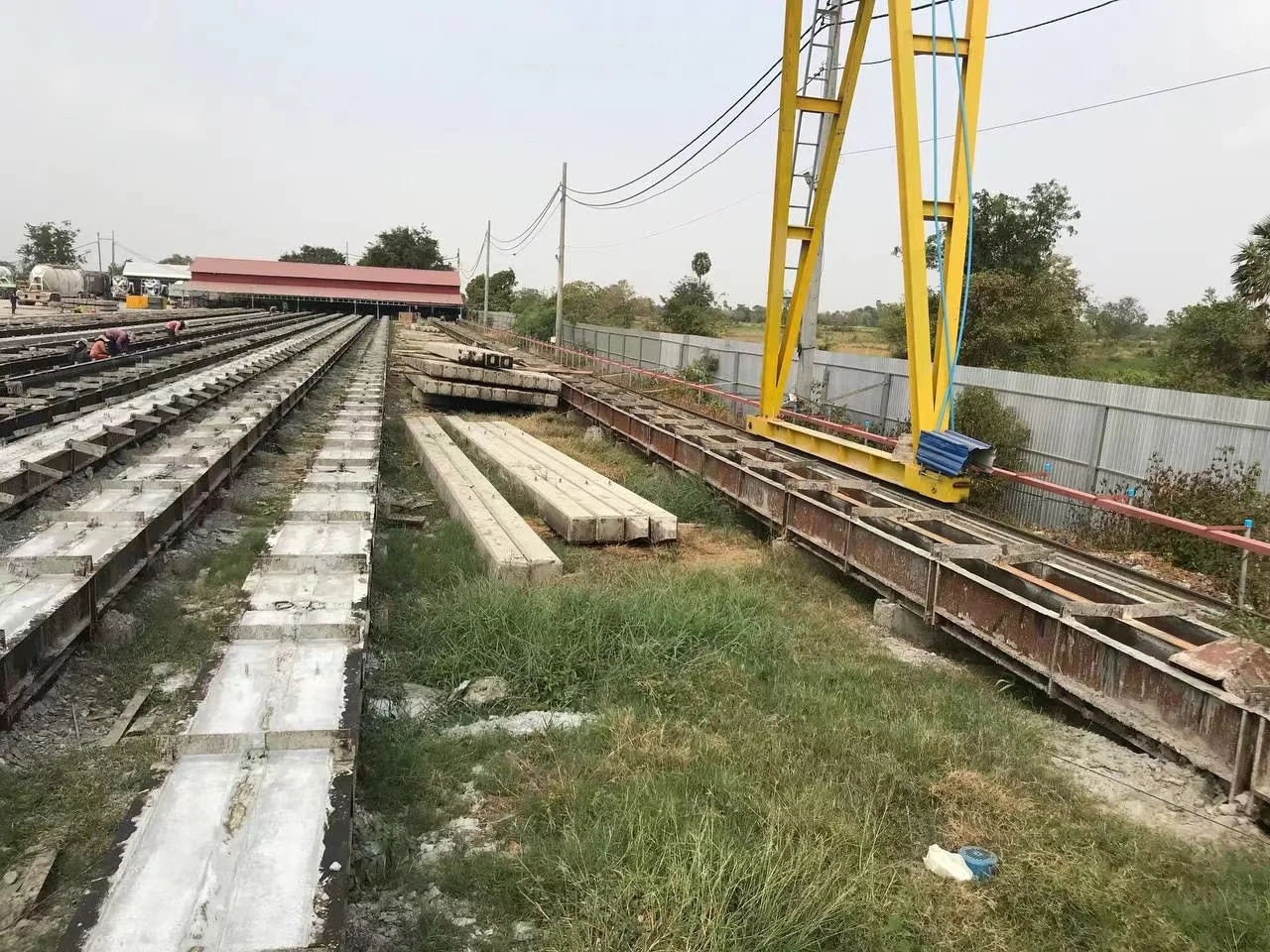

Application

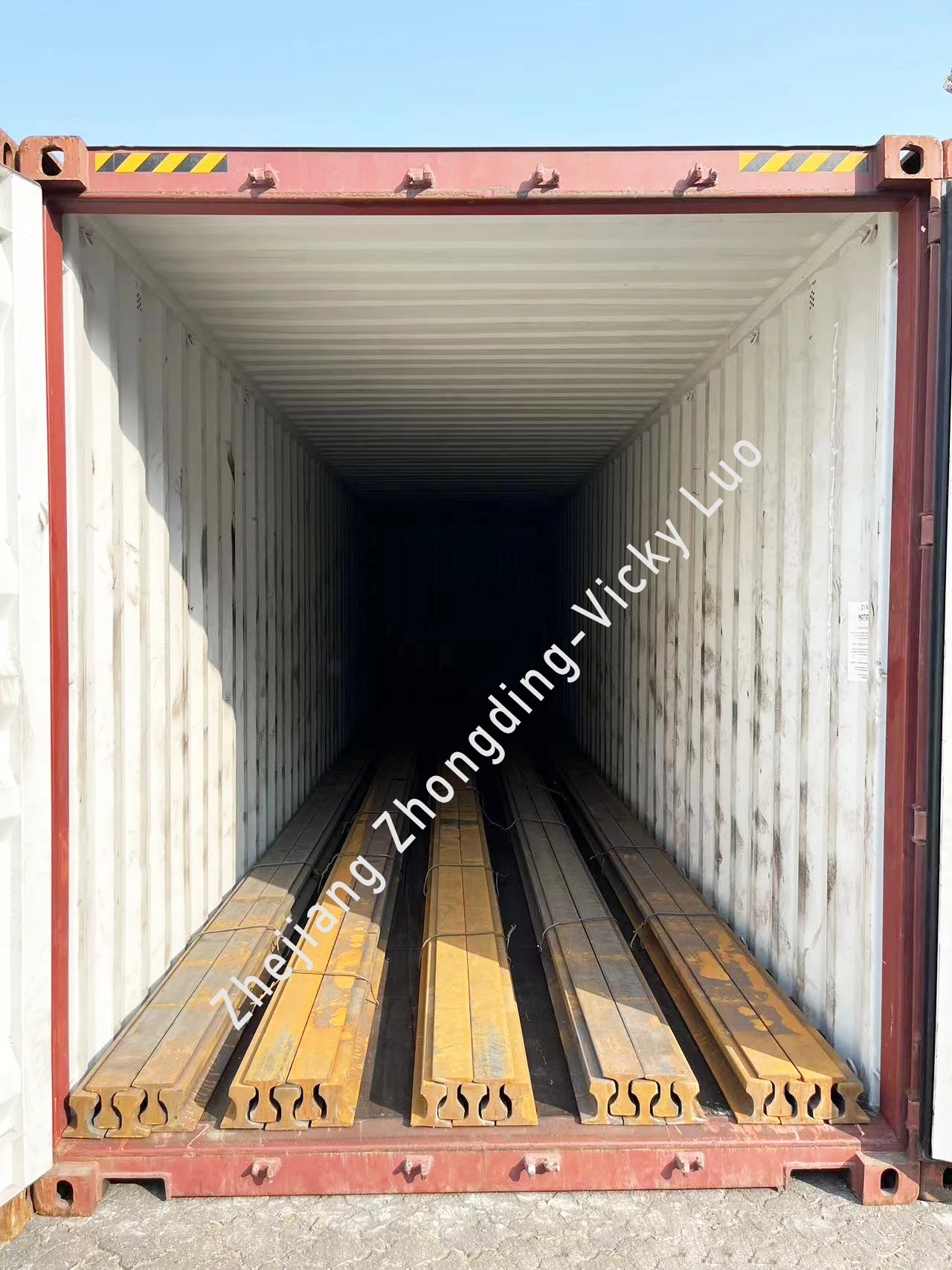

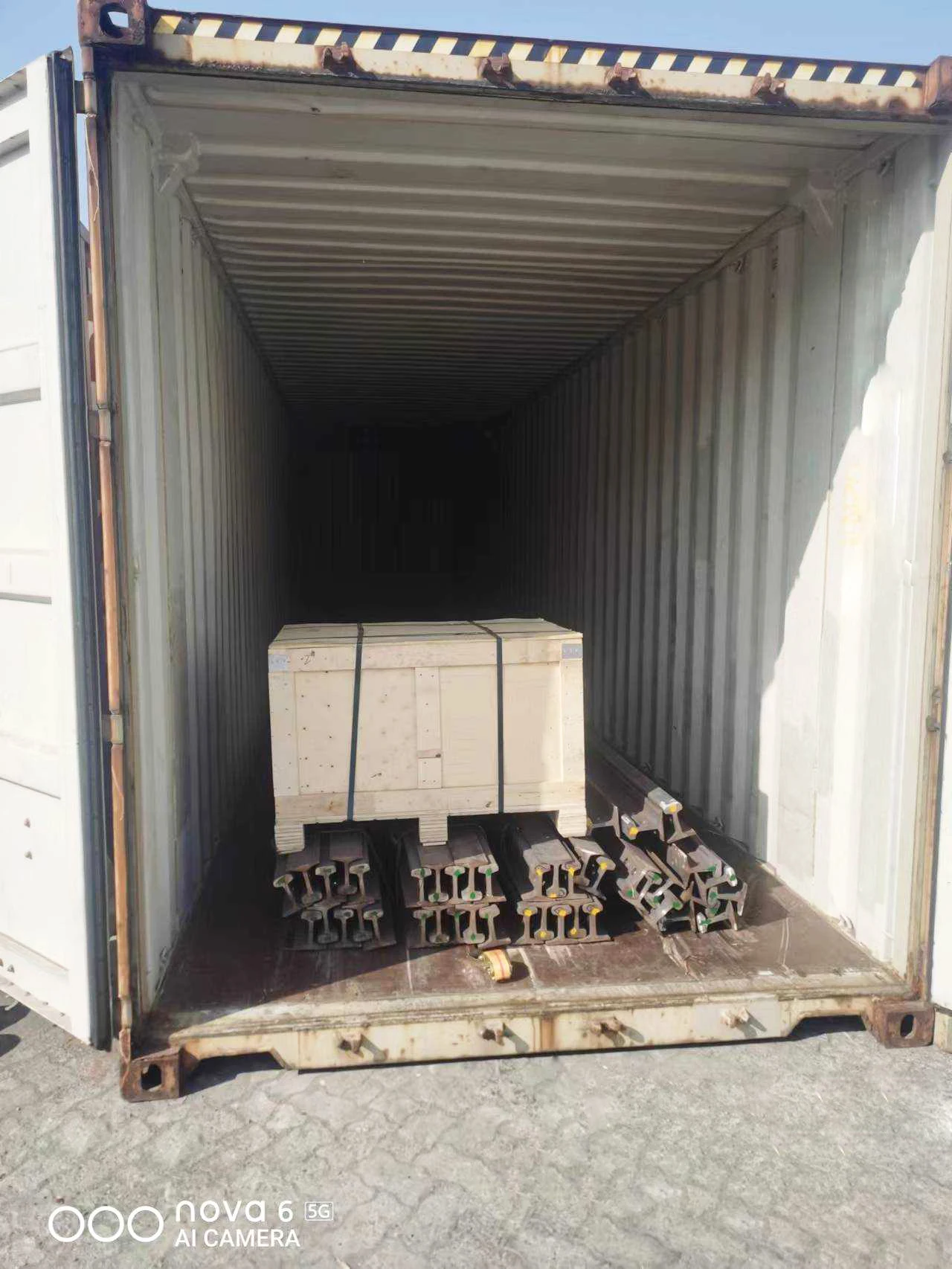

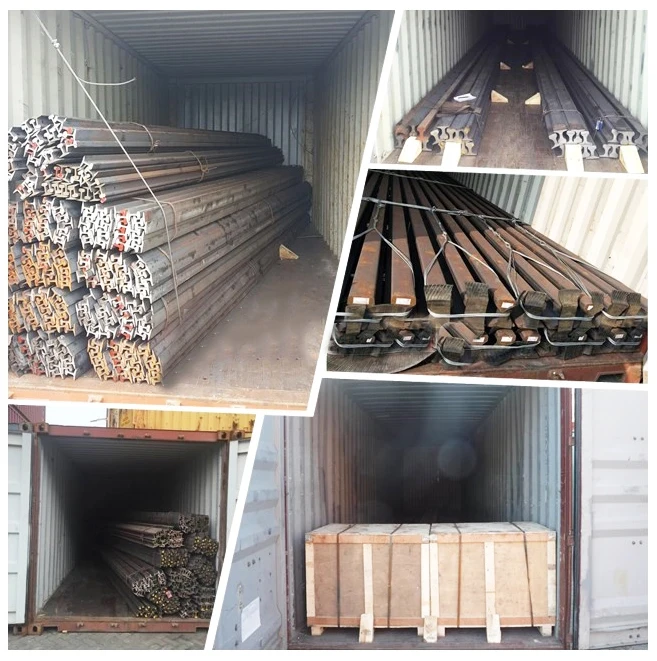

Packing & Delivery










FAQ


Q:Do you provide free samples?
A:Yes,we can provide a free sample for testing,buyer should bear all the shipping costs.
Q:Do you accept small orders?
A:You don't need to worry about this problem,just consult.
Q:Do you accept the third party inspection?
A:Yes absolutely we accept.
Q:How could you guarantee your products?
A:Each piece of products is manufactured by certified workshops,inspected by Linxu piece by piece according to national QA/QC standard.We also could issue the warranty to customer to guarantee the quality.
Q:What are the advantages of your company?
A:(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
Q:What is your terms of payment?
A:Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,balance based on BL copy or LC at sight.
Q:How about our price?
A:Our price is very competitive because we are a factory.Pls feel free to contact us if you are interested in our products.
Q:How long is your delivery time?
A:Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality assurance.Usually the delivery time is within 7 days after we received your deposit.
Q:What can you buy from us?
Seamless Steel Pipe/Welded Steel Pipe,Hot Rolled Plate/Color Steel Plate,Round Bar,etc.
