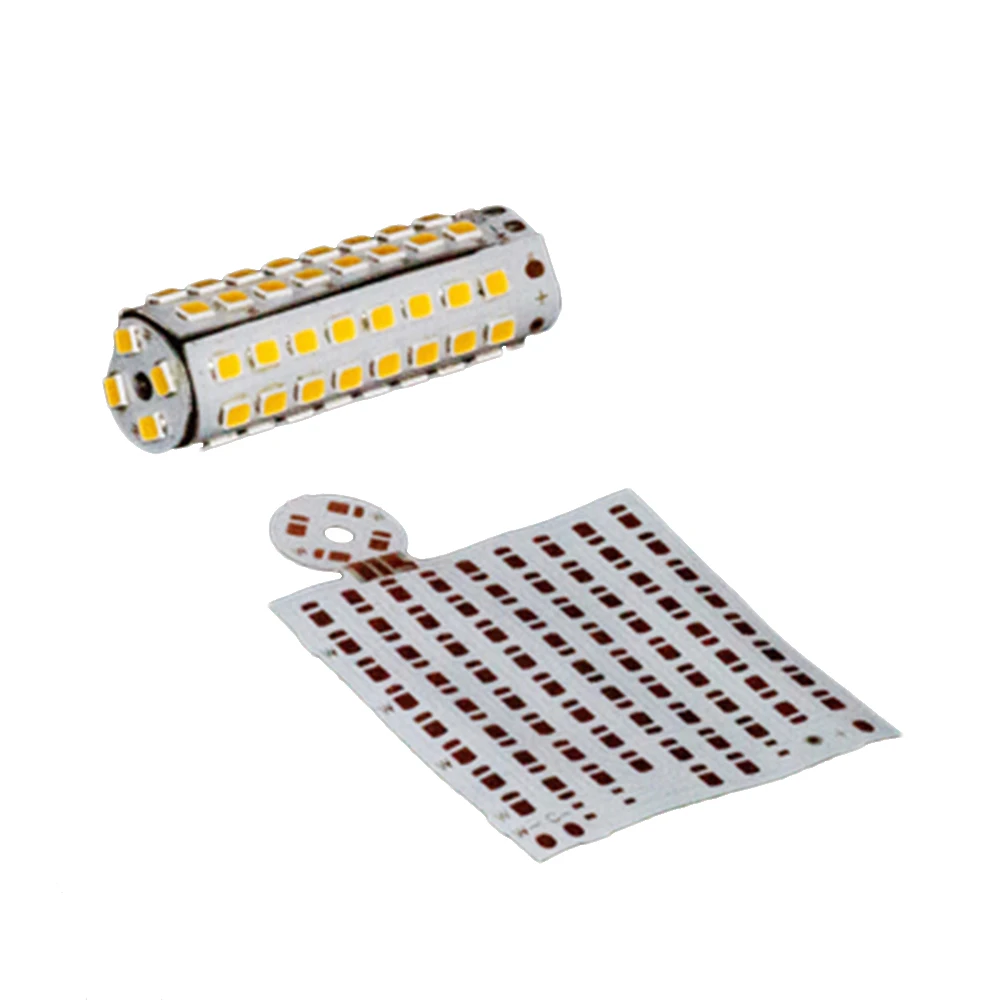

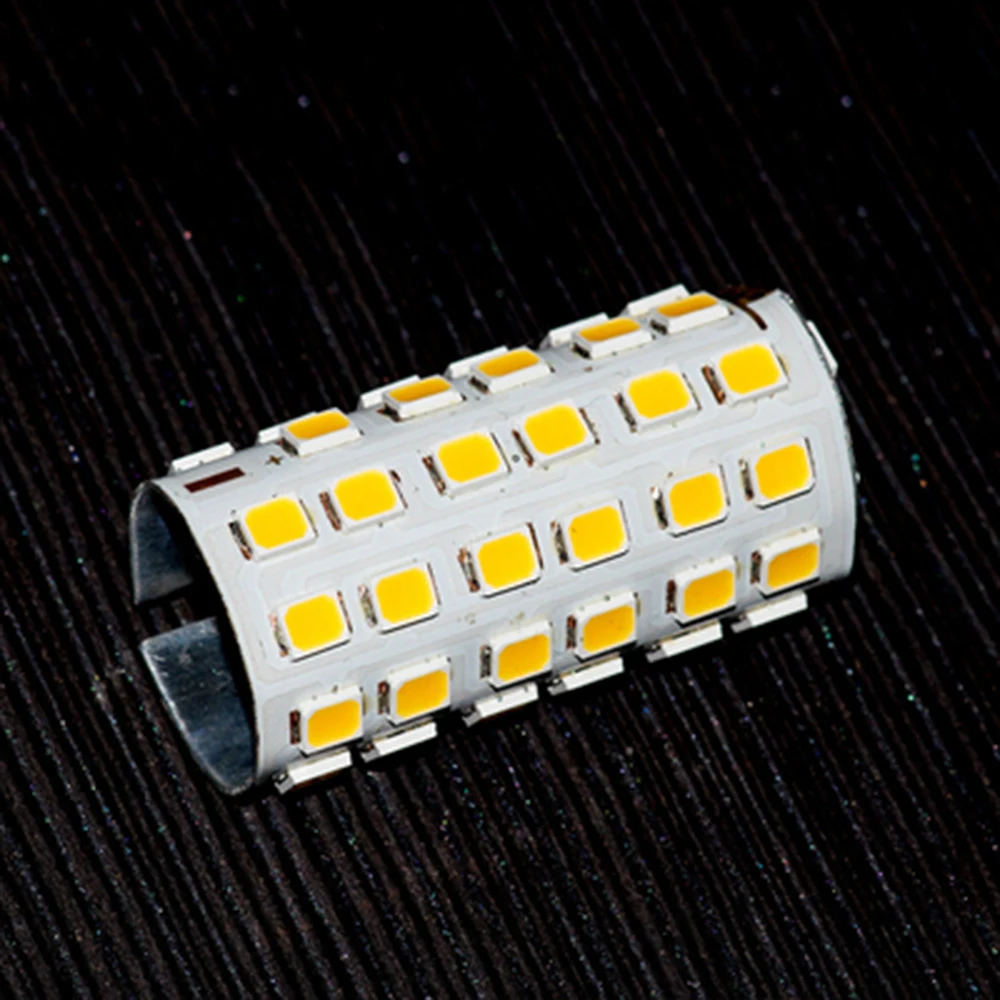

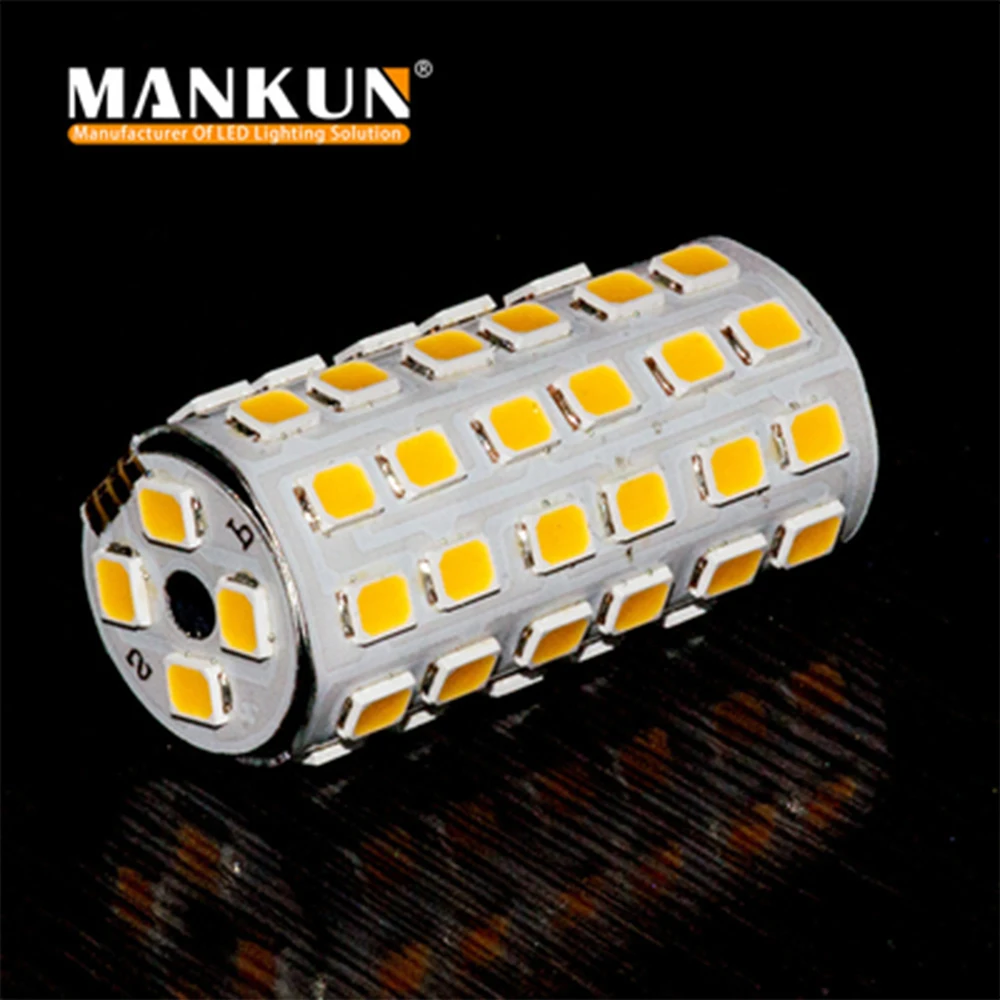

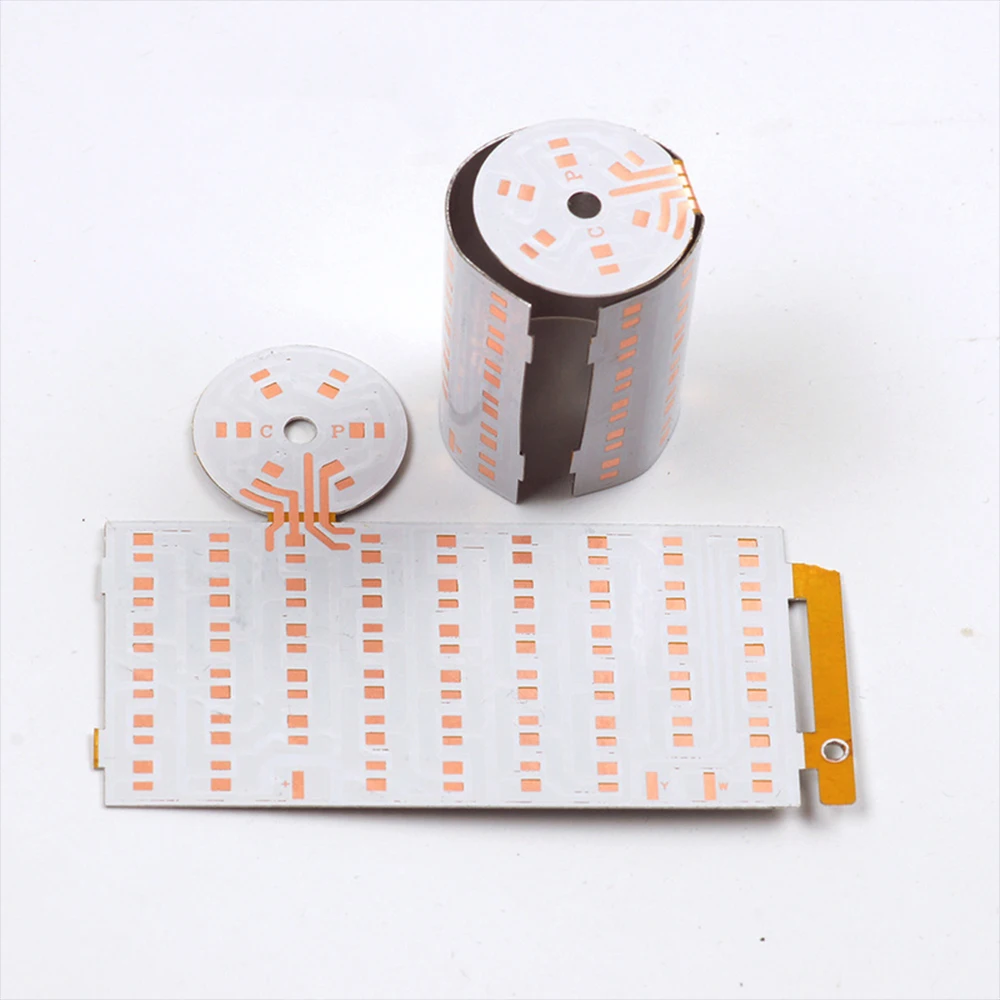

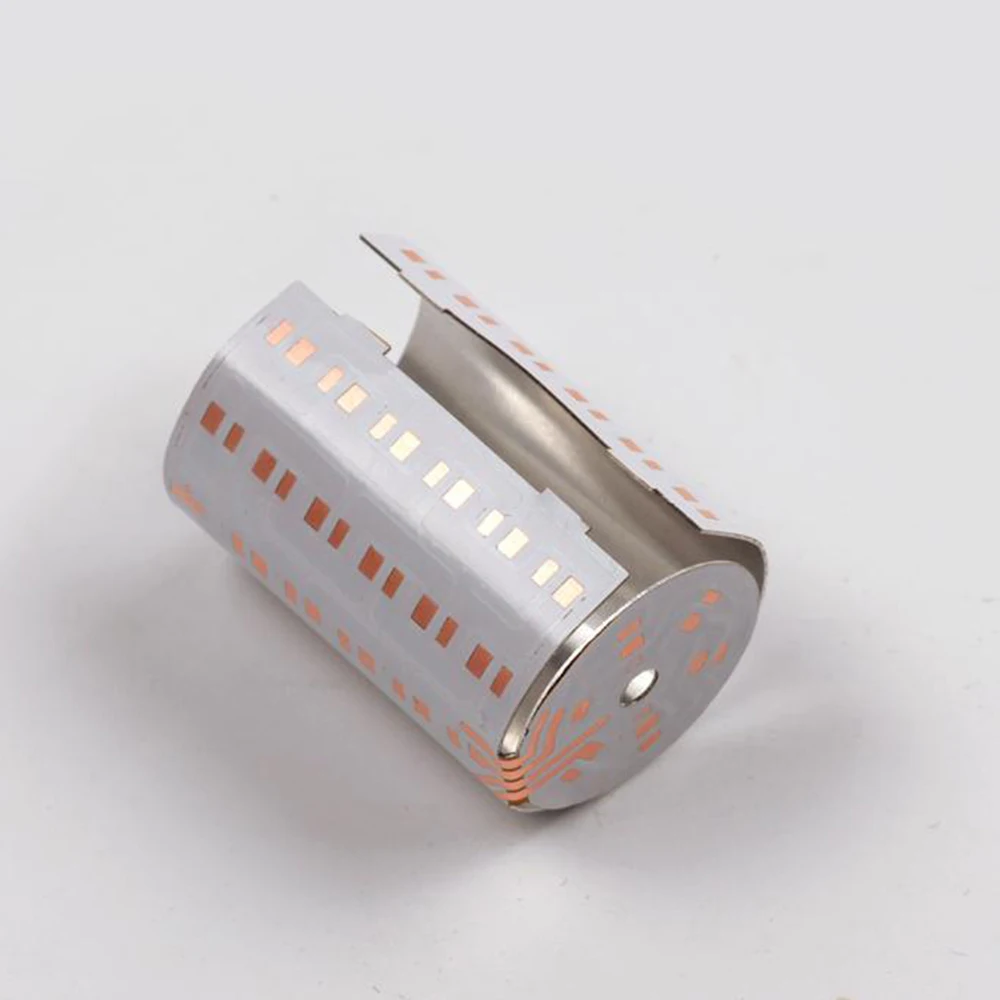

LED PCB Module Customized flex electronic circuit board injection led all lighting chip module pcb&pcba factory
- Category: >>>
- Supplier: Mankun Electronic Co. Ltd.
Share on (1601048964145):
Product Overview
Description
Products Description
Fpc Assembly Flexible Pcb Manufacturer Printed Circuit Board
Type FPC
provinces Guangdong
Brand Name GT
Base Material PI, copper and Ni/Au
Copper Thickness 0.3oz-3oz
Board Thickness 0.057 to 0.6mm
Min. Hole Size 0.1mm
Min. Line Width 0.05mm
Min. Line Spacing 0.05mm
Board Size OEM, Custom
Testing Service AOI,X-Ray,Function Test
Certificate ROSH. ISO9001
Service Flex PCB Turnkey Assembly Services
Layer 1-8 Layers
Type FPC
provinces Guangdong
Brand Name GT
Base Material PI, copper and Ni/Au
Copper Thickness 0.3oz-3oz
Board Thickness 0.057 to 0.6mm
Min. Hole Size 0.1mm
Min. Line Width 0.05mm
Min. Line Spacing 0.05mm
Board Size OEM, Custom
Testing Service AOI,X-Ray,Function Test
Certificate ROSH. ISO9001
Service Flex PCB Turnkey Assembly Services
Layer 1-8 Layers
Surface： | LF HASL，immersion gold，immersion siliver，OSP | ||||||
Layer： | Single side，double sided Multilayer and special structure | ||||||
Maximum PCB size： | 240mm*1490mm OR 490*1190mm | ||||||
Insulation layer thickness ： | 50/75/100/125/150/175/200（um） | ||||||
Metal Material ： | Aluminum（1100/3003/5052/6061），Copper Aluminum/FR4/CEM-1/CEM-3 | ||||||
Shaping ： | Die punching/CNC Route/V-Cut | ||||||
Solder mask ： | green/white/black/red/yellow | ||||||
Sile screen color： | blue/white/black/red/yellow | ||||||
Sopecial hole： | Spot facing/cup hole/buried via hole/buried tank | ||||||
File format： | Gerber，Protel，PowerPCB，AutoCAD etc | ||||||
01
The light module needs to be mounted to a heat sink with a thermal interface material between them if drive more than 20 watts Modules may be hot to the touch. Use caution when handling.
02
Installation of LED modules shall be made referring to all applicable electrical and safety standards.
03
Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
Why Choose Us
Company Information
Factory introduction
Our company is the honoree of "Quality first, Keep improving" policy, with a strong research and development capacity, a number of patents to lay a solid foundation. Our products are widely exported to America, Russia, South Korea , other countries and so on. Our company adhering to the Customer-oriented, with best quality, best efficiency, best service, to create highest value for customers at home and abroad.
FAQ
1: Are you a factory or trade company?
We are a factory, we have our own R&D team, sales team, machinery equipment, and packaging production line.
2：How about the sample time? What is the payment?
Samples time 3-10 days after e-proof is confirmed and your payment received T/T,30% deposit, and finished balance before the shipment.
3: How about the shipping cost?
If your goods are not large, we can send goods to you via express, such as FEDEX, DHL, EMS, TNT, etc. If your google is large, we will send it to you by sea or air, we can quote the price base on FOB as you like, then you can choose whether use our forwarder or yours.
