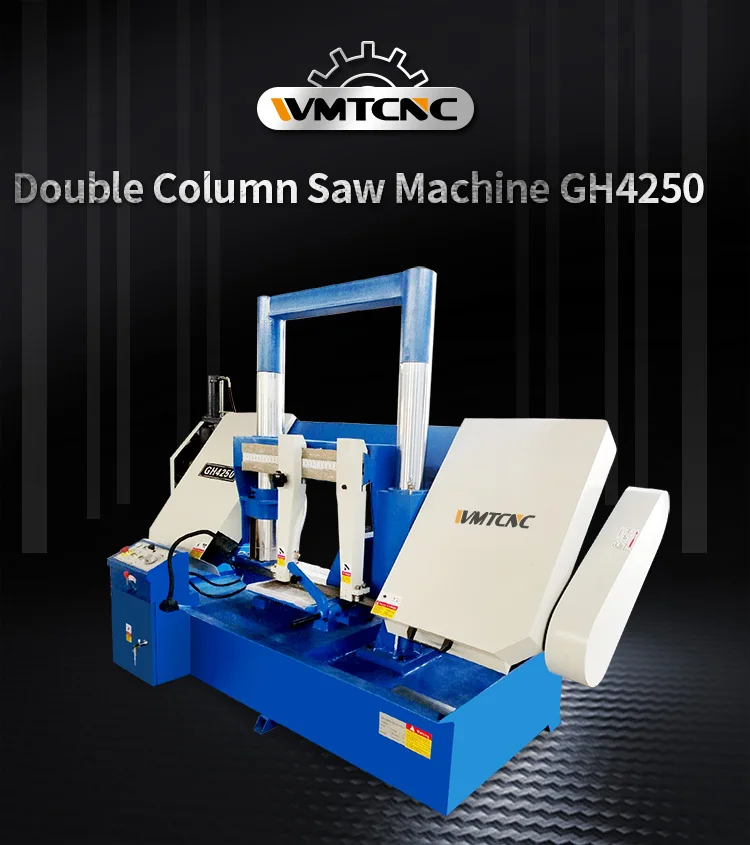

Metal band saw machine GH4250 double column band saw machine cnc cutting
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1601048985053):
Product Overview
Description
Product Description
Main Features:
1. Double column structure vertical lifting with high stability.
2. The cutting speed is variable and hydraulic.
3. Workpiece is clamped by hydraulic control and easy to operate.
4. Hydraulic clamping on three axis is available.
1. Double column structure vertical lifting with high stability.
2. The cutting speed is variable and hydraulic.
3. Workpiece is clamped by hydraulic control and easy to operate.
4. Hydraulic clamping on three axis is available.
Specification | GH4250 | |
Main motor power | kw | 5.5 |
Hydraulic motor power | kw | 0.75 |
Coolant pump motor power | kw | 0.09 |
Blade linear speed | m/min | 27/45/69 |
Blade feed type | hydraulic stepless | |
Main drive structure | worm wheel | |
Blade size | mm | 5800*41*1.3 |
Machine dimensions (L*W*H) | mm | 2800*1400*1900 |
Blade tension type | manual | |
Workpiece feed type | manual | |
Workpiece clamp type | hydraulic | |
N.W. | kg | 1900 |
Cutting range (round) | mm | Φ500 |
Cutting range (rectangular) | mm | 500*500 |

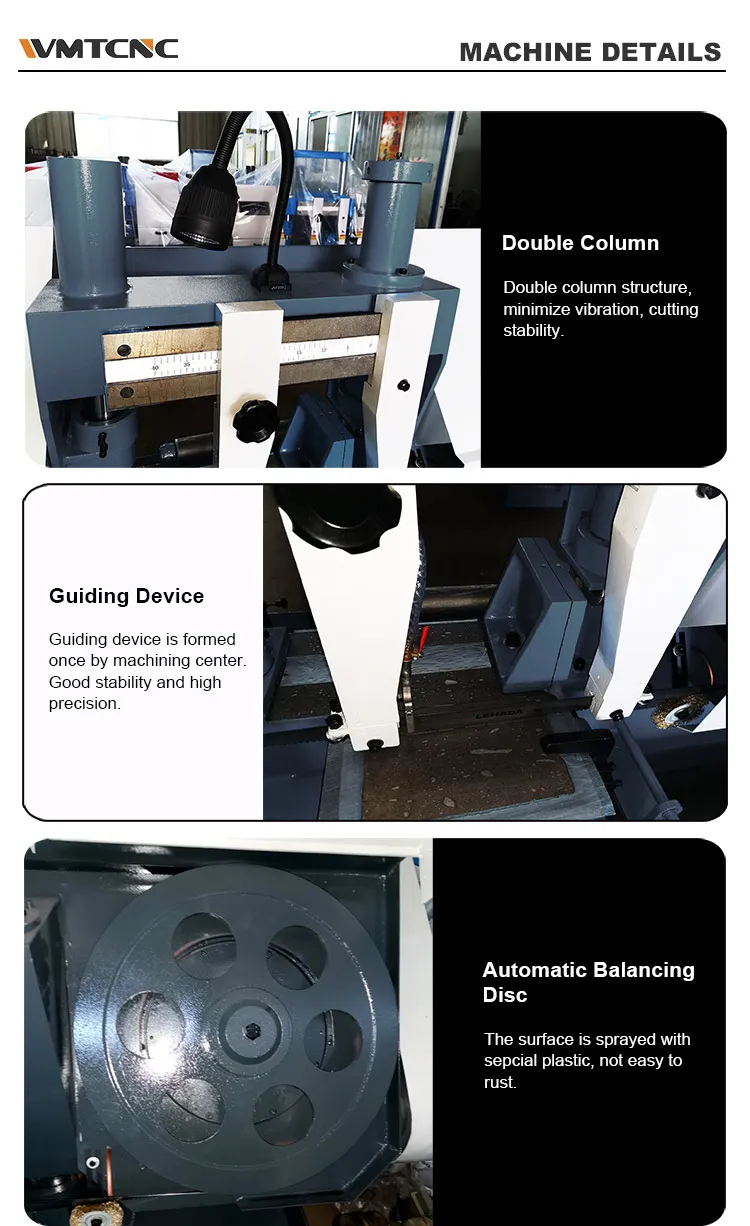

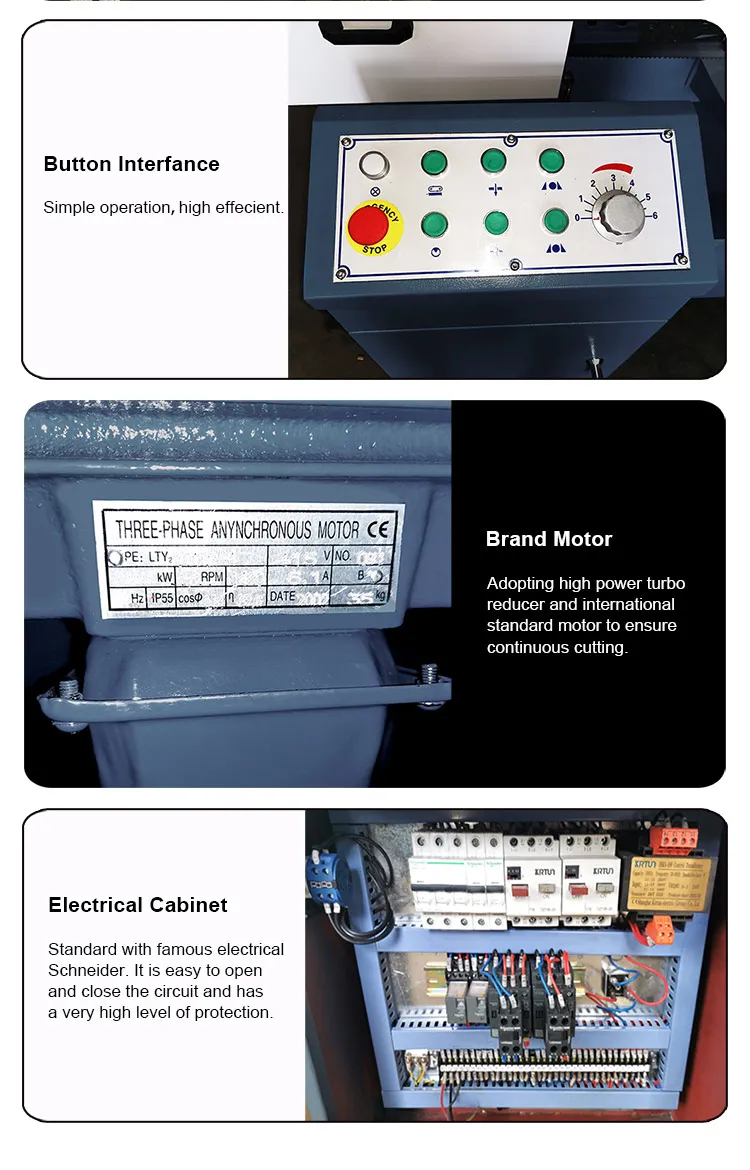

Detailed Images
Company Profile
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
