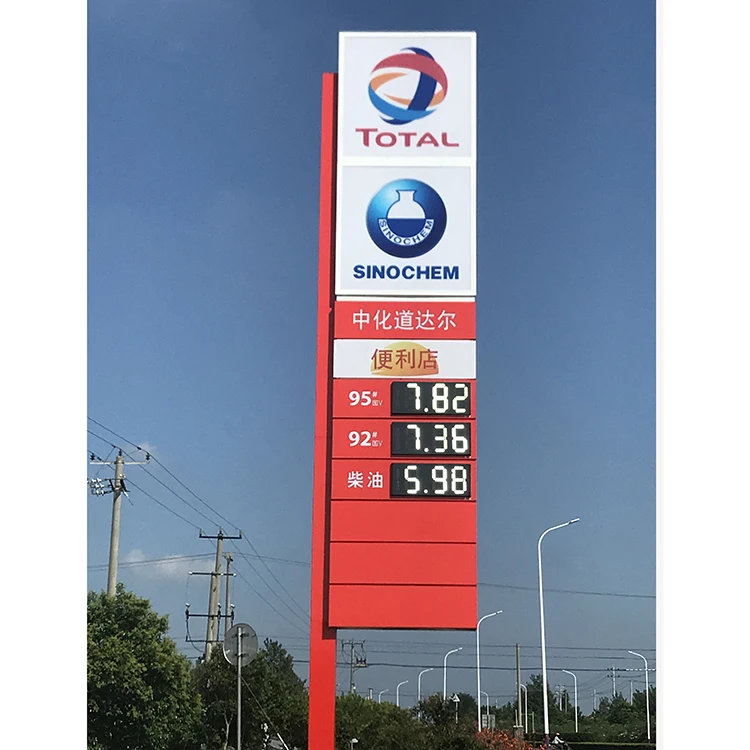

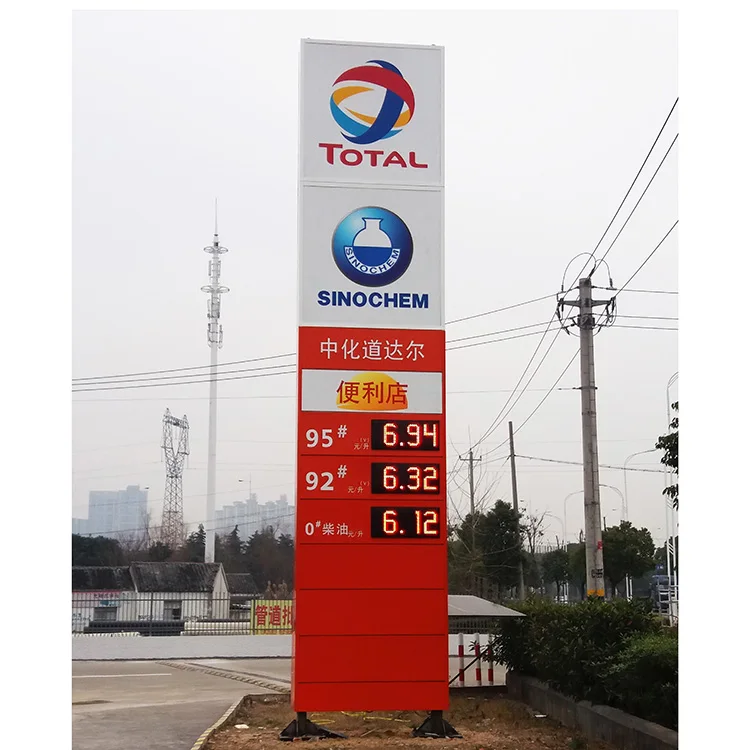

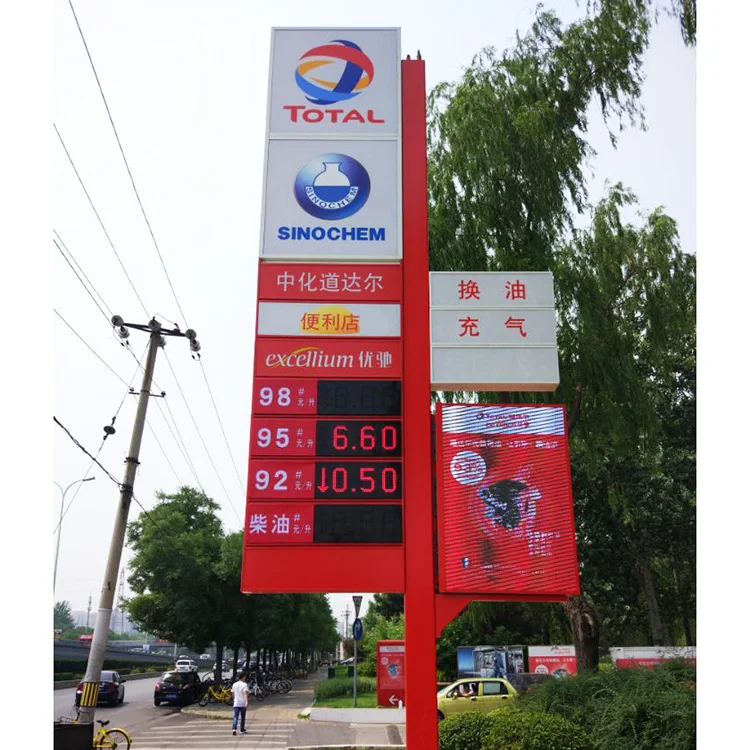

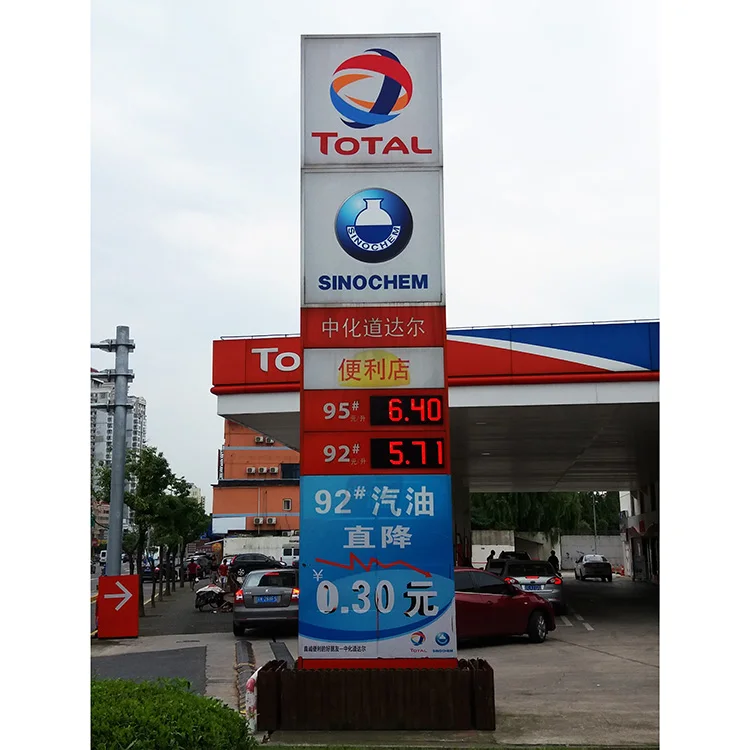

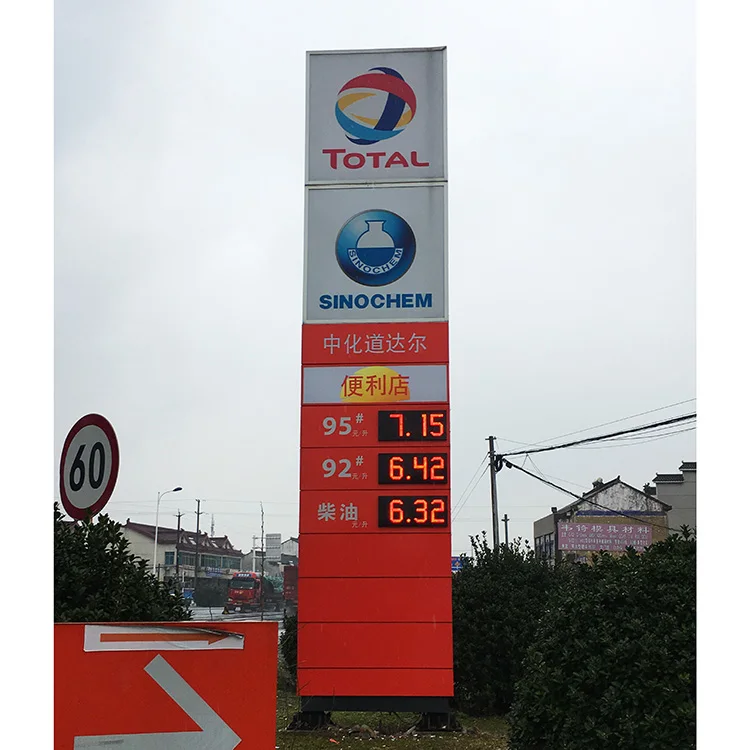

Petrol Station Price Signboard Led Advertising Advertisement Gas Station Pylon Sign
- Category: >>>
- Supplier: Qingdao Autodisplay Co. Ltd.
Share on (1601049229335):
Product Overview
Description

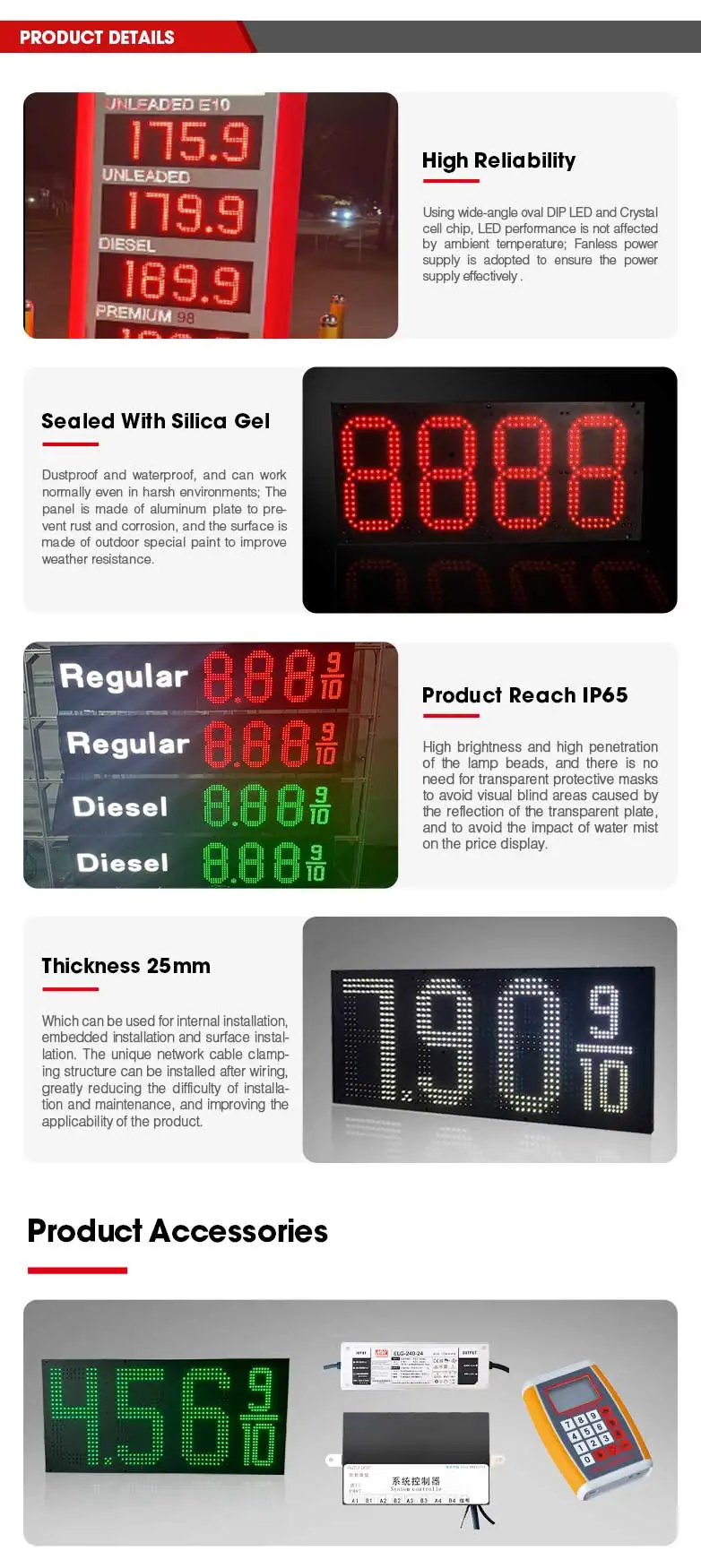

Product Description
LED quality | Size | 346 |
packaging | Oval DIP | |
Chip | · Red/yellow/green:Epistar;white:Epistar or Other equivalent quality | |
Chip line | Gold thread | |
Horizontal visibility angle | ≥80° | |
Vertical visibility angle | ≥40° | |
Colour | Red led: 624nm，yellow led: 590nm；green led: 525nm；white led: 460nm | |
Light（I=20mA） | Red：>1500mcd；Yellow：>1500mcd；Green：>3500mcd；White：>6000mcd | |
Operating temperature | -30~60℃ | |
Lifespan | 100000H | |
MTBF-factor | ≥20000H | |
price unit | IP-value housing | IP65 |
Voltage | DC24V | |
Display<-> controller cabling | Single Reticle | |
Unit thickness | 25mm | |
Fonts | Multi-segment | |
LED quality layout | Max 3 lights all the way | |
Cooling | natural ventilation | |
Panel material | Aluminium, black powder coated | |
LED current | Constant current Imax<20mA | |
MTBF-factor | ≥20000H | |
· Droop standard | 20000H ≤20% | |
Operating temperature | -30~60℃ | |
Storage Temperature | -10~40℃ | |
Average power | 240 series<15W，340 series <25W | |
Modules Protection | Glue sealing | |
maintenance mode | In front of the maintenance | |
Install | Mount on surface or embedded installation | |
Light | ≥6000CD/㎡ | |

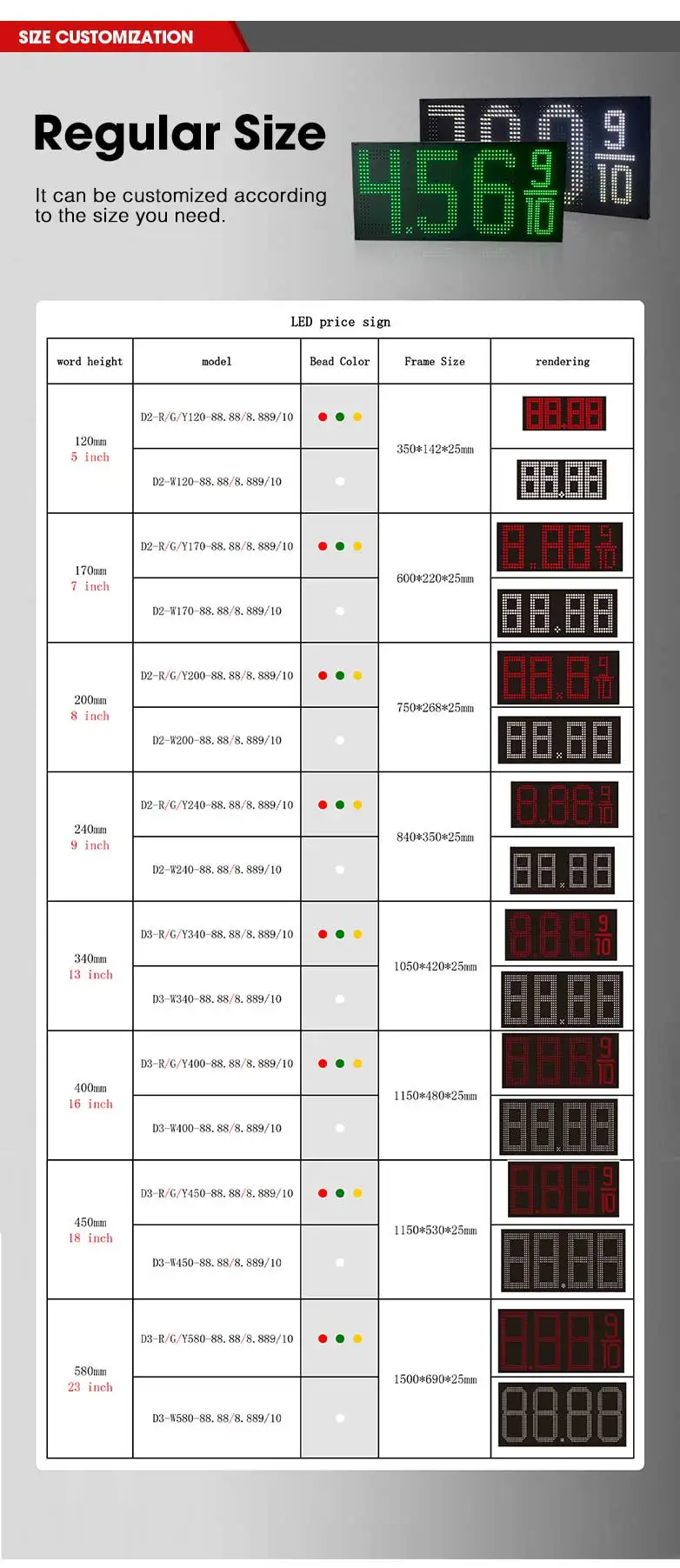

Stock size | 240 unit：880*370*25 340 unit：1050*420*25 unit：mm | |
Function | Used to display figures and prices, connected to system control |
controllers | IP-value housing | IP23 |
Input voltage | 100~240VAC | |
Output voltage | DC24V | |
Output power | 350W | |
· Backlight control power | 3000W | |
Operating temperature | -30~60° | |
Control mode | Remote control or Remote transmitter | |
MTBF-factor | ≥20000H | |
Backlight control VPT | 100Lux | |
Function | Connect to LED price unit，Maximum connectable 12 piece units，Adjust control. | |
remote controls | Operating temperature | -15~50℃ |
Communication mode | 470M radio frequency communication | |
Operating mode | Numeric keyboard | |
Program Display | LCD or Numeric Display | |
Adjust the distance | Open area ≥ 300m，Blocking area≥30m. | |
Charging standby time | ≥3months | |
Voltage | DC5V | |
Charging port | microUSB | |
Faction | Communicate with system control for price unit adjustment | |
remote transmitter | Voltage | DC12V |
Operating temperature | -30~60℃ | |
Operating power | 6W | |
COM port | serial communication，Customizable development | |
IP-value housing | IP65 | |
Communication mode | 470M radio frequency communication | |
Adjust the distance | · Open area ≥ 500m，No more than 80 meters is recommended | |
Installation location | Outdoor | |
Faction | used to connect vestibular equipment and price board system to realize price adjustment |
Company Profile
Qingdao Autodisplay Co, Ltd. is a high-technology enterprise for research and development, production and sale of price signs whose products mainly serve for the gas station.
Starting in the early 1990s, we devoted ourselves to the design of price sign systems, after more than ten years research and development; many serials of product have been developed, such as Magnetic Flip type, Rotating segment type (Rotating Drum and Rotating Shutter), Spring Flip type, Moving Film type and LED Digital Boards. Furthermore, the company is the holder of a number of Chinese patents and international patents.
The products are widely used by PetroChina, Sinopec, CNOOC, Shell, Total, Total-Sinochem, Bp-Petrochina, BP-Sinopec and Zhongcheng Service Chain etc. Our client gas stations can be found in more than thirty cities and provinces nationwide. Magnetic Flip type, Rotating Segment type and LED Digital Boards are well used in Hongkong, Indonesia, Kampuchea, Vietnam and Russia. And we got positive feedback.
The excellent visibility together with its safe and easy operation gain praise from customers.
We stick to the culture of Customer, Innovation, Process and Self-organization, in the spirit of Team, Service, Thankfulness and Happiness; we serve our customers with continuous innovation.
Starting in the early 1990s, we devoted ourselves to the design of price sign systems, after more than ten years research and development; many serials of product have been developed, such as Magnetic Flip type, Rotating segment type (Rotating Drum and Rotating Shutter), Spring Flip type, Moving Film type and LED Digital Boards. Furthermore, the company is the holder of a number of Chinese patents and international patents.
The products are widely used by PetroChina, Sinopec, CNOOC, Shell, Total, Total-Sinochem, Bp-Petrochina, BP-Sinopec and Zhongcheng Service Chain etc. Our client gas stations can be found in more than thirty cities and provinces nationwide. Magnetic Flip type, Rotating Segment type and LED Digital Boards are well used in Hongkong, Indonesia, Kampuchea, Vietnam and Russia. And we got positive feedback.
The excellent visibility together with its safe and easy operation gain praise from customers.
We stick to the culture of Customer, Innovation, Process and Self-organization, in the spirit of Team, Service, Thankfulness and Happiness; we serve our customers with continuous innovation.
Certifications
Exhibition
Packing & Delivery
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time？
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time？
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
