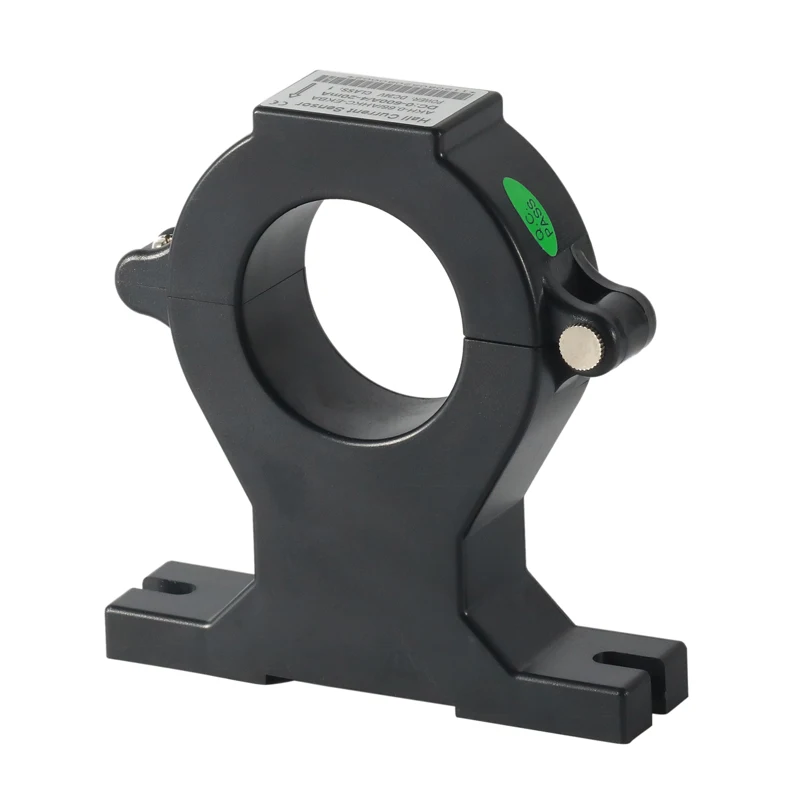

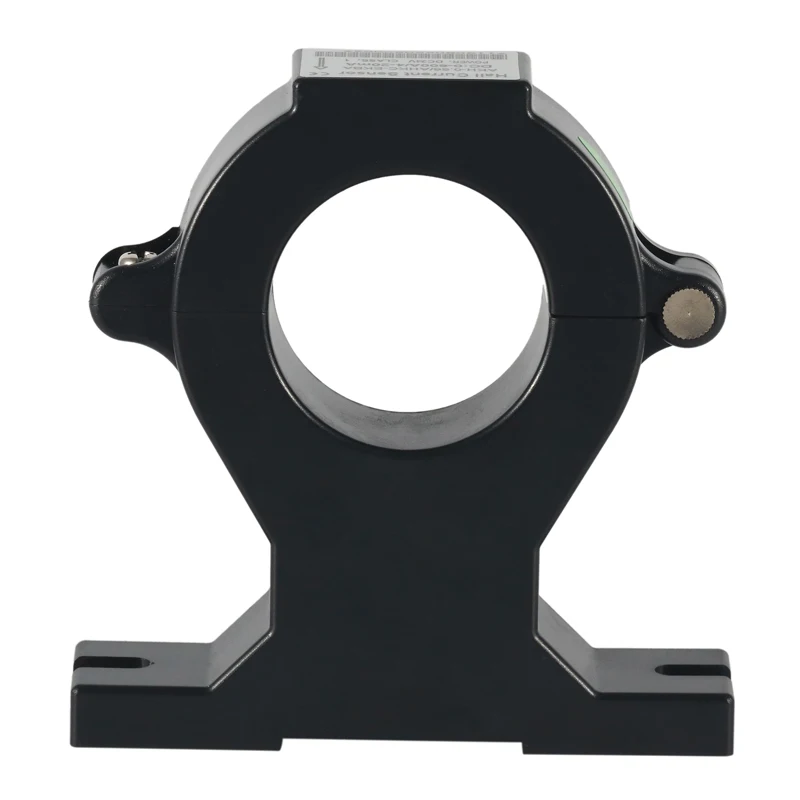

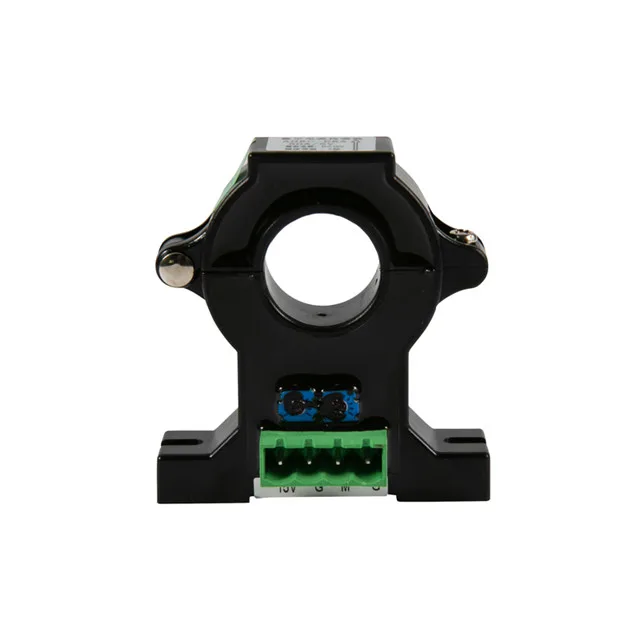

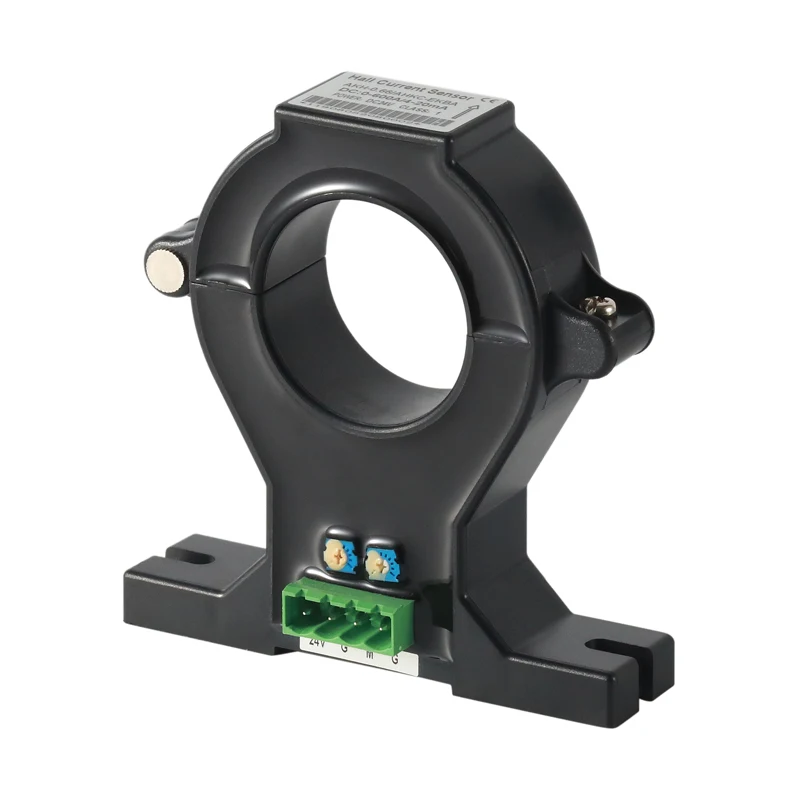

Acrel AHKC-EKAA open loop split core dc current hall effect sensor DC 4-20mA output split core hall sensor
Acrel AHKC-EKAA open loop split core dc current hall effect sensor DC 4-20mA output split core hall sensor
Acrel AHKC-EKAA open loop split core dc current hall effect sensor DC 4-20mA output split core hall sensor
Acrel AHKC-EKAA open loop split core dc current hall effect sensor DC 4-20mA output split core hall sensor
Acrel AHKC-EKAA open loop split core dc current hall effect sensor DC 4-20mA output split core hall sensor
Acrel AHKC-EKAA open loop split core dc current hall effect sensor DC 4-20mA output split core hall sensor

Acrel AHKC EKAA open loop split core dc current hall effect sensor DC 4 20mA output split core hall sensor

Share on (1601049276785):


Price:

Quantity:

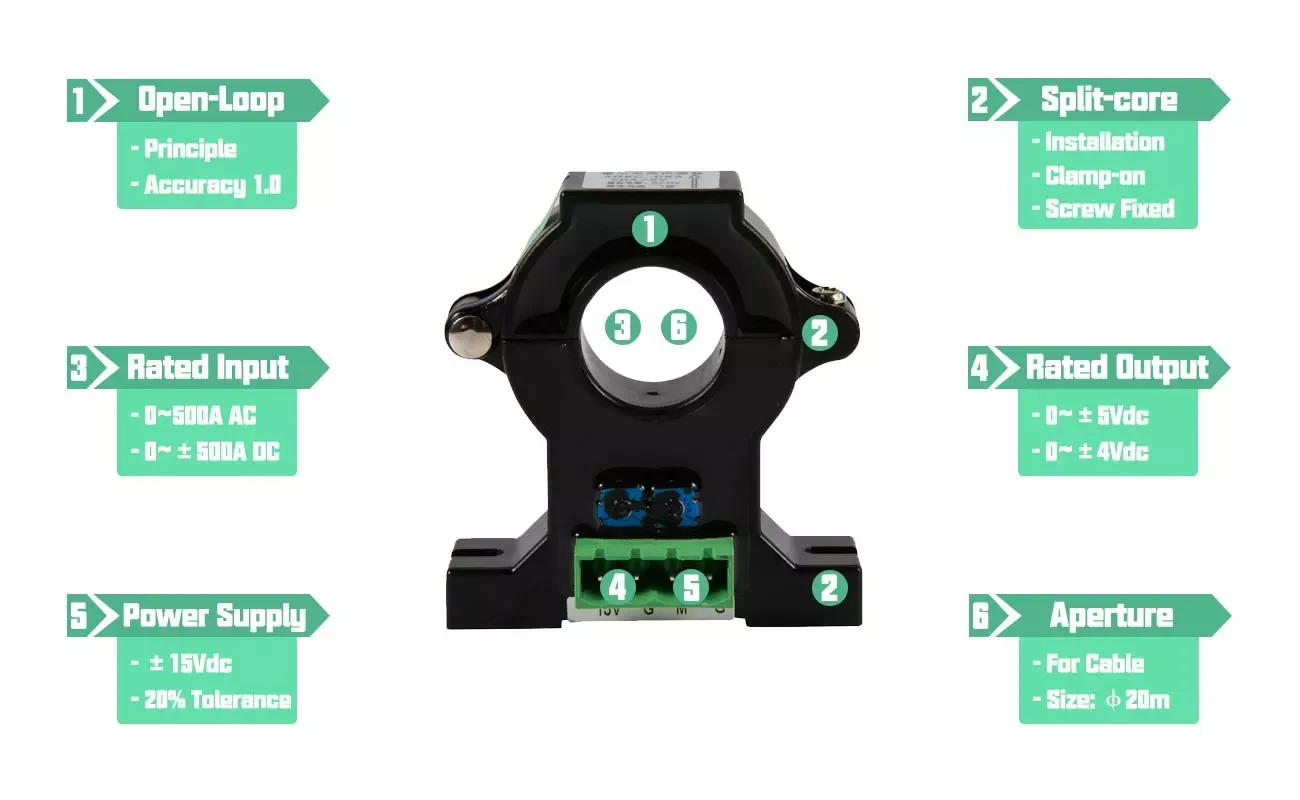

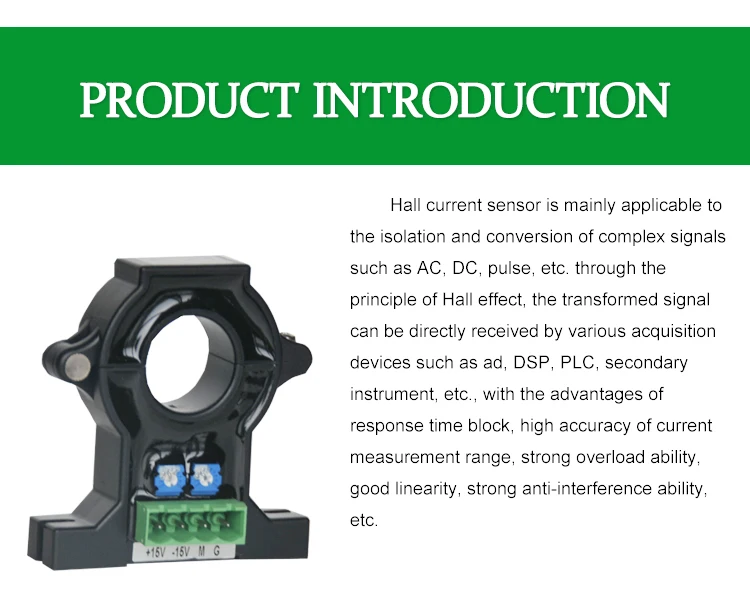

Product Overview

Description





Product Description




Specification


Type
Current input
Analog output
Diameter
Power supply
AHKC-EKA
0~(50-500)A
5V/4V
Φ20mm
±15V
AHKC-EKAA
DC 0~(50-500)A
4-20mA
Φ20mm
12/24V
AHKC-EKDA
AC 0~(50-500)A
4-20mA
Φ20mm
12/24V
AHKC-EKB
0~(200-1000)A
5V/4V
Φ40mm
±15V
AHKC-EKBA
DC 0~(200-1000)A
4-20mA
Φ40mm
12/24V
AHKC-EKBDA
AC 0~(200-1000)A
4-20mA
Φ40mm
12/24V
AHKC-EKC
0~(500-1500)A
5V/4V
Φ55mm
±15V
AHKC-EKCA
DC 0~(500-1500)A
4-20mA
Φ55mm
12/24V
AHKC-EKCDA
AC 0~(500-1500)A
4-20mA
Φ55mm
12/24V
AHKC-K
0~(400-2000)A
5V/4V
64*16mm
±15V
AHKC-KAA
DC 0~(400-2000)A
4-20mA
64*16mm
12/24V
AHKC-KDA
AC 0~(400-2000)A
4-20mA
64*16mm
12/24V
AHKC-H
0~(500-3000)A
5V/4V
82*32mm
±15V
AHKC-KA
0~(500-5000)A
5V/4V
104*36mm
±15V
AHKC-HB
0~(2000-40000)A
5V/4V
132*52mm
±15V
AHKC-HBAA
DC 0~(2000-40000)A
4-20mA
132*52mm
12/24V
AHKC-HBDA
AC 0~(2000-40000)A
4-20mA
132*52mm
12/24V














Customized service


If you have any special requirements, for example another current input and analog output or special power supply and size ,please feel free to Contact Us.

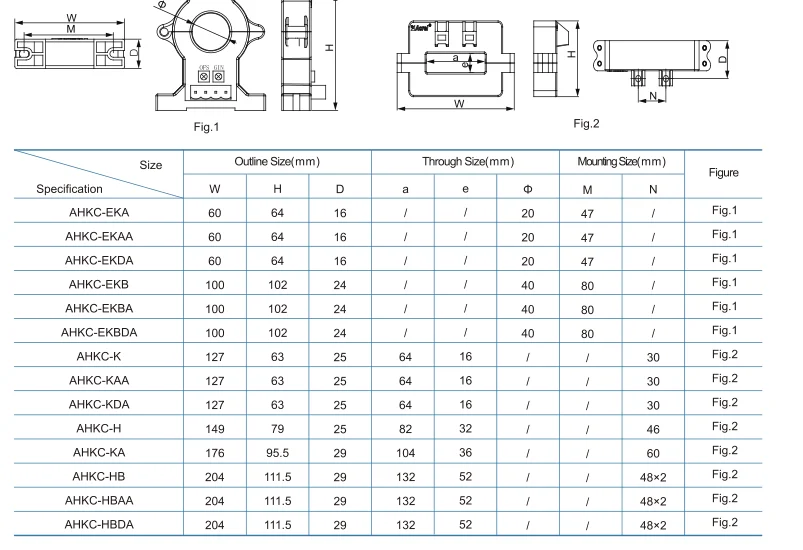

Dimensions




Certifications


CE
IEC

ROHS


Packing & Delivery

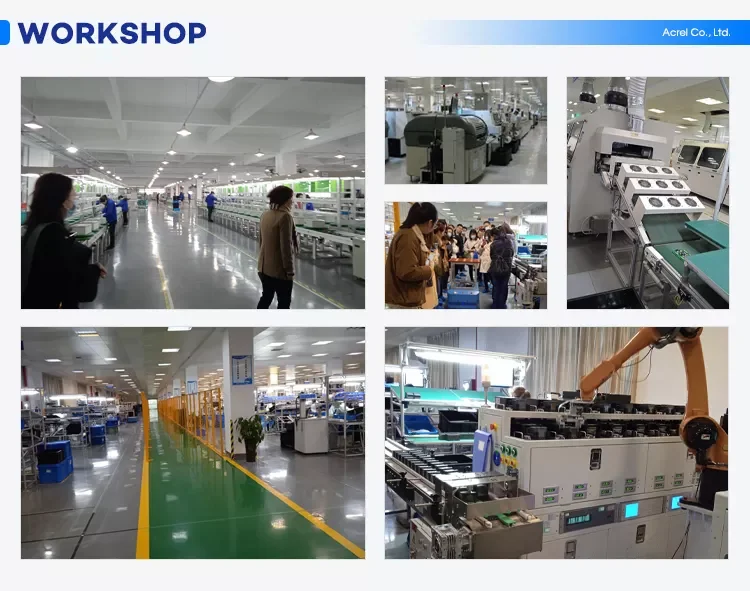

Company Profile








FAQ


Q: Are you trading company or manufacturer ?
A: We are factory. Warmly welcome you to visit and investigate our factory.


Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to
quantity.


Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.


Q: What is your terms of payment ?
A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below:
