PCAP 8.8 inch RGB Interface 480X1920 tft lcd touch screen display for Raspberry Pi
- Category: >>>
- Supplier: Shenzhen Zhunyi Technology Co. Ltd.
Share on (1601049296166):
Product Overview
Description

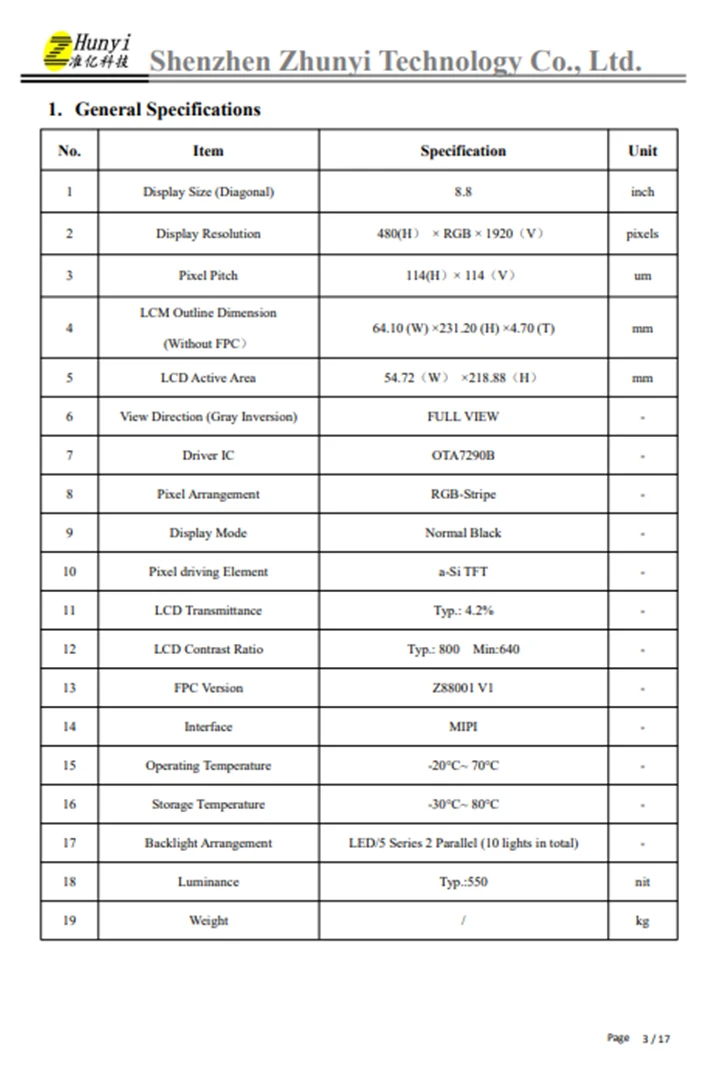

Product Specification
Item | 8.8 inch LCD display |
Model | Z88001 |
Resolution | 480*1280 |
Pixel Pitch | 114(H）× 114（V） |
LCM Dimension | 64.10 (W) ×231.20 (H) ×4.70 (T) |

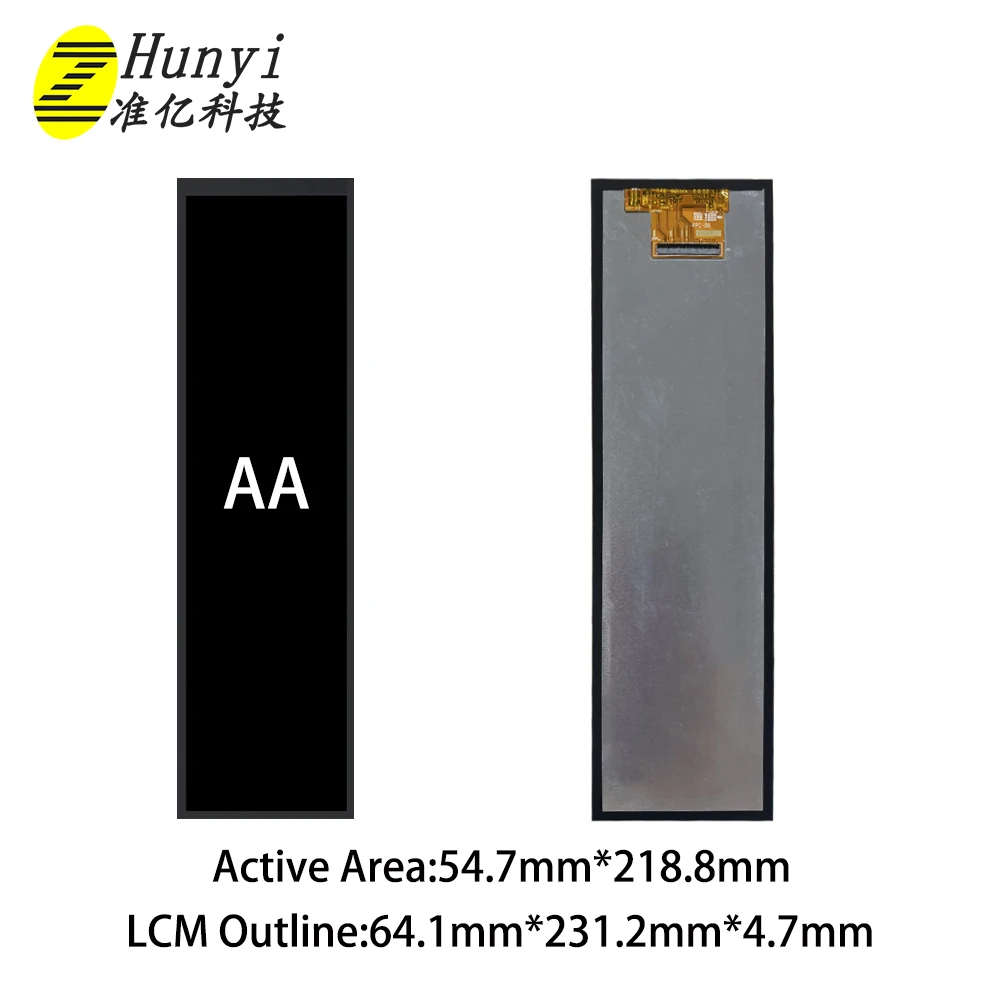

Active Area | 54.72（W） ×218.88（H） |
Interface | MIPI |
View Angle | Free |
Display Mode | Normal Black |
Operating Temperature | -20℃ ~ 70℃ |
Storage Temperatire | -30℃ ~ 80℃ |
Backlight Arrangement | LED/5 Series 2 Parallel |
Luminance | 550 |
PIN NO. | 40 |
Driver IC | OTA7290B |
CTP/RTP | Support |
Product Pictures
Company Introduction
Certification
Application
Shippment&Payment
FAQ
Q1. Can you customize Touch Panel on the TFT LCD Display?
Yes, we support customized the Capacitive Touch Panel and Resistive Touch Panel as your request, as well as display FPC, driver IC, backlight, brightness, voltage and so on.
Q2. Do you support OEM/ODM service?
Yes, we are manufacturer who can print your part number on screen back side, print label, customized the carton according to your requirements.
Q3. How should I choose the suitable display for my project?
Please don't worry about it. Firstly, please send us your demands, our professional engineer team will evaluate and make solution for your project. And then, sales team will provide competitive quotation.
Q4. Where can I download the datasheet, initialization code and other technical files ?
Contact us on trade manager or leave your email address, you will get it soon.
Q5. What is covered under warranty and for how long?
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.
Q2. Do you support OEM/ODM service?
Yes, we are manufacturer who can print your part number on screen back side, print label, customized the carton according to your requirements.
Q3. How should I choose the suitable display for my project?
Please don't worry about it. Firstly, please send us your demands, our professional engineer team will evaluate and make solution for your project. And then, sales team will provide competitive quotation.
Q4. Where can I download the datasheet, initialization code and other technical files ?
Contact us on trade manager or leave your email address, you will get it soon.
Q5. What is covered under warranty and for how long?
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.
