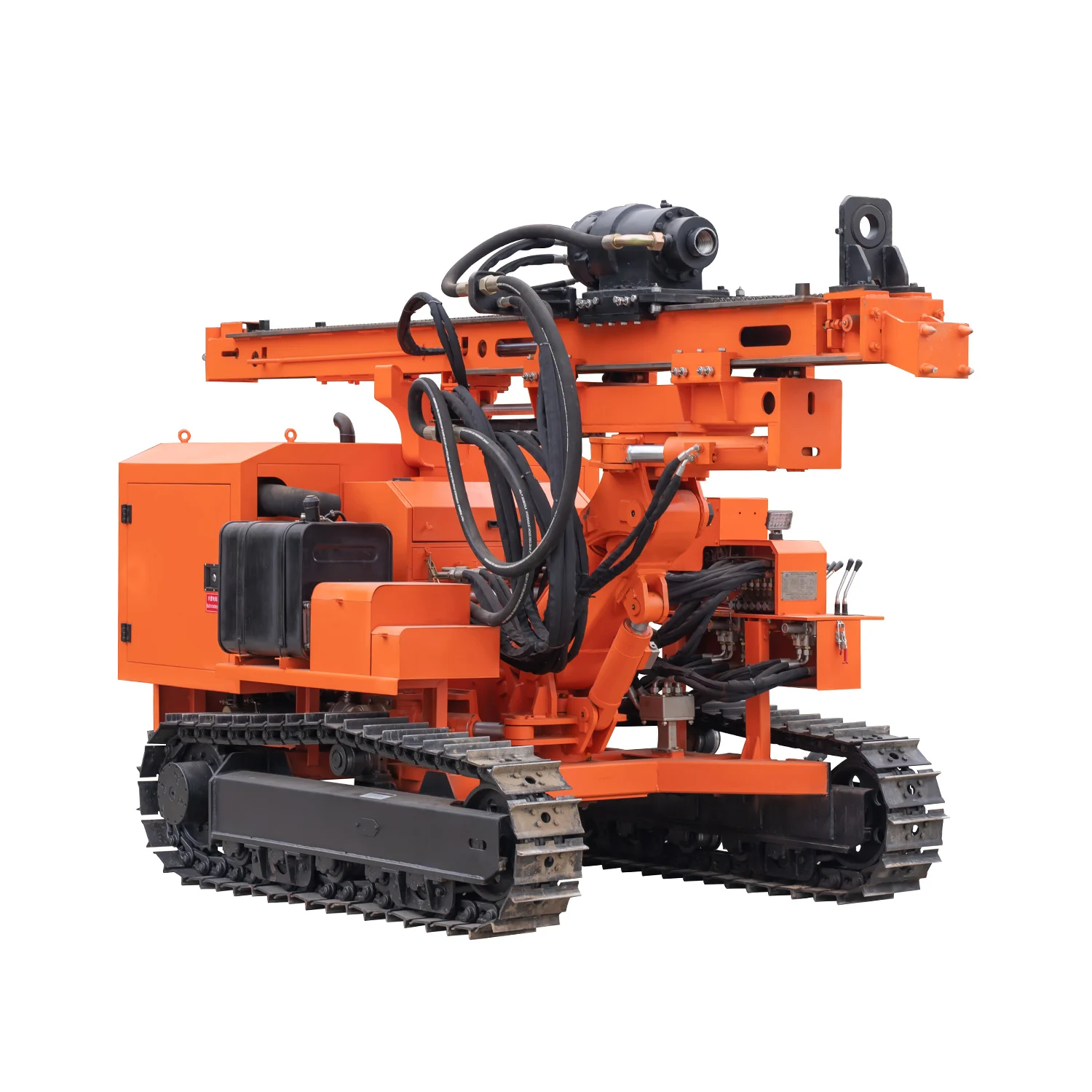

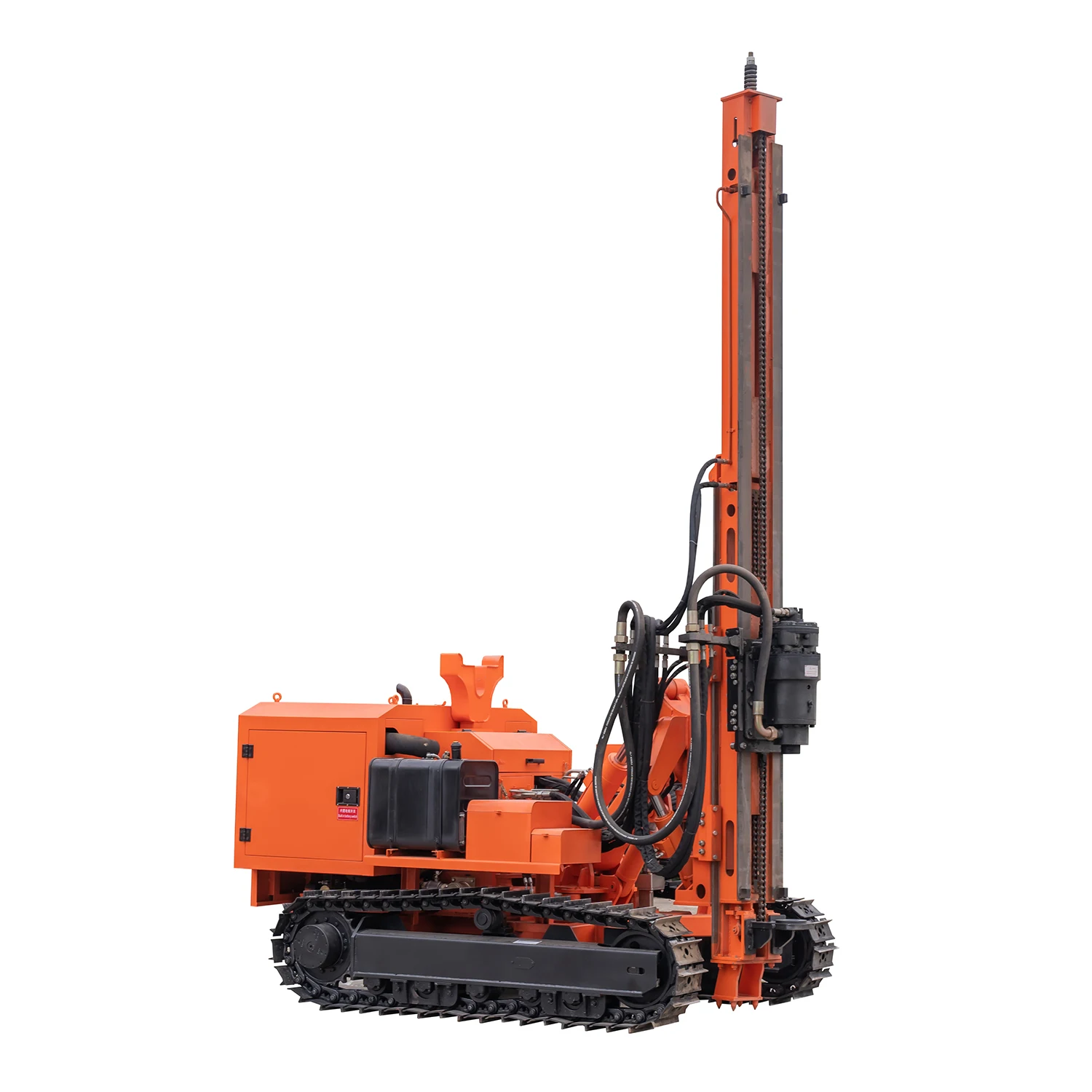

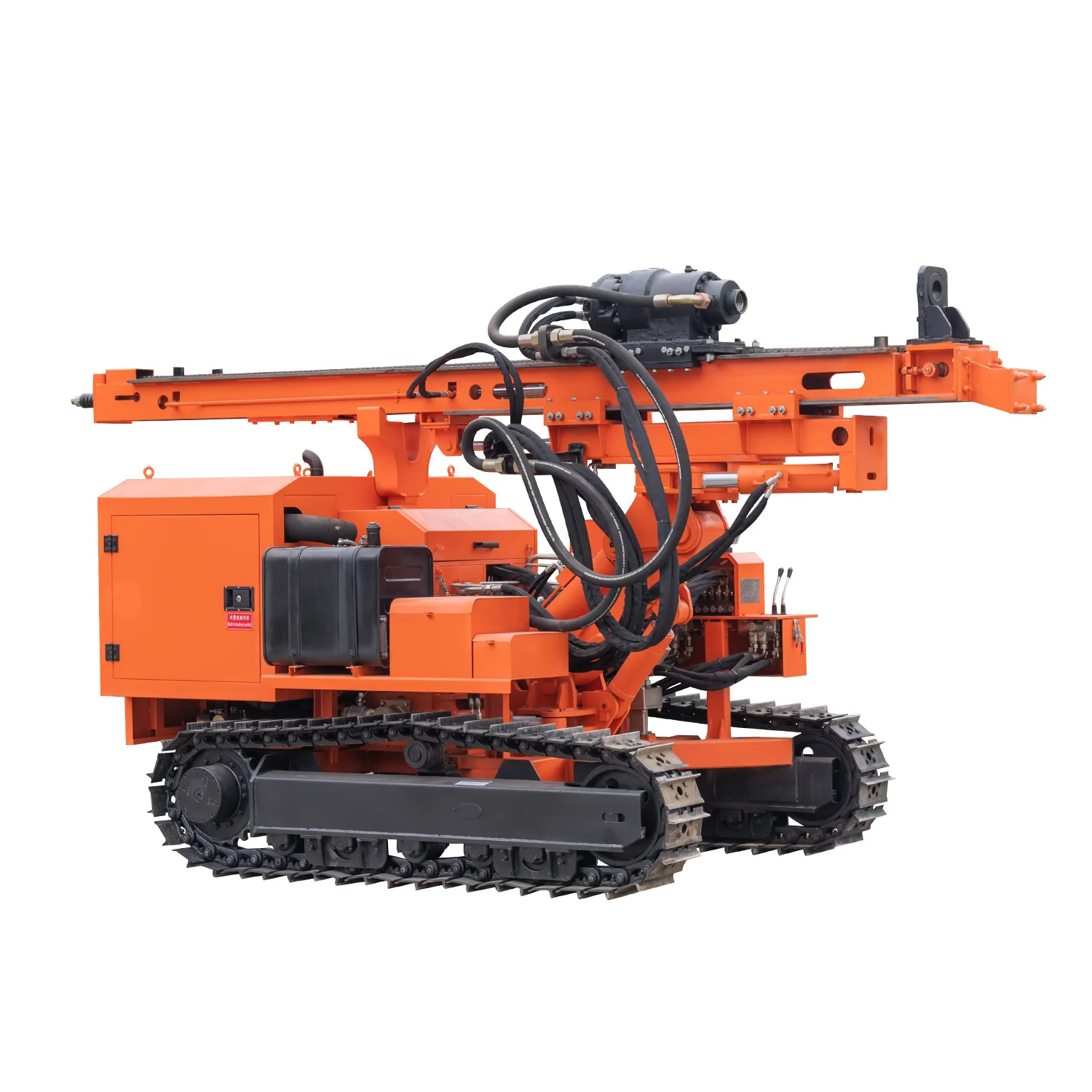

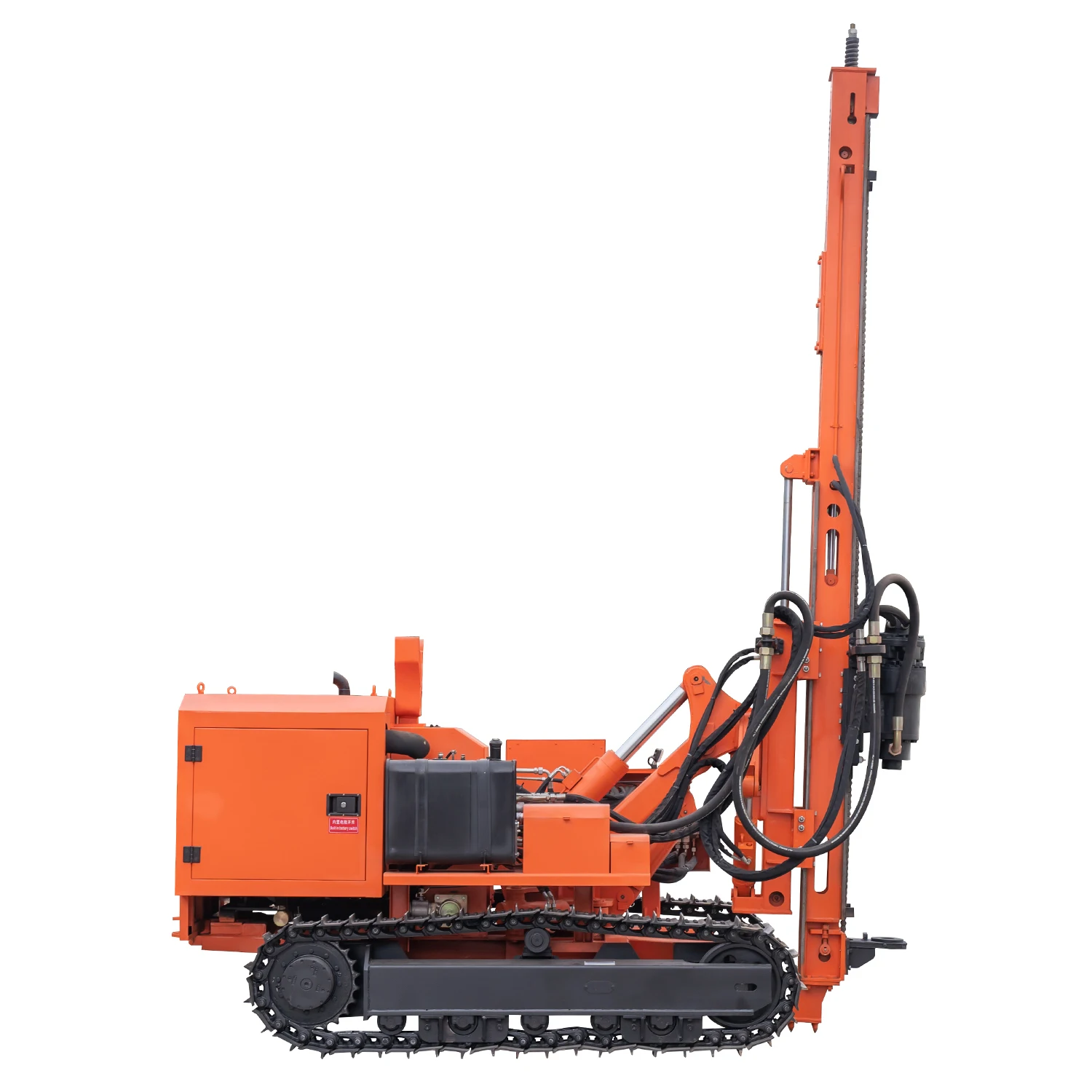

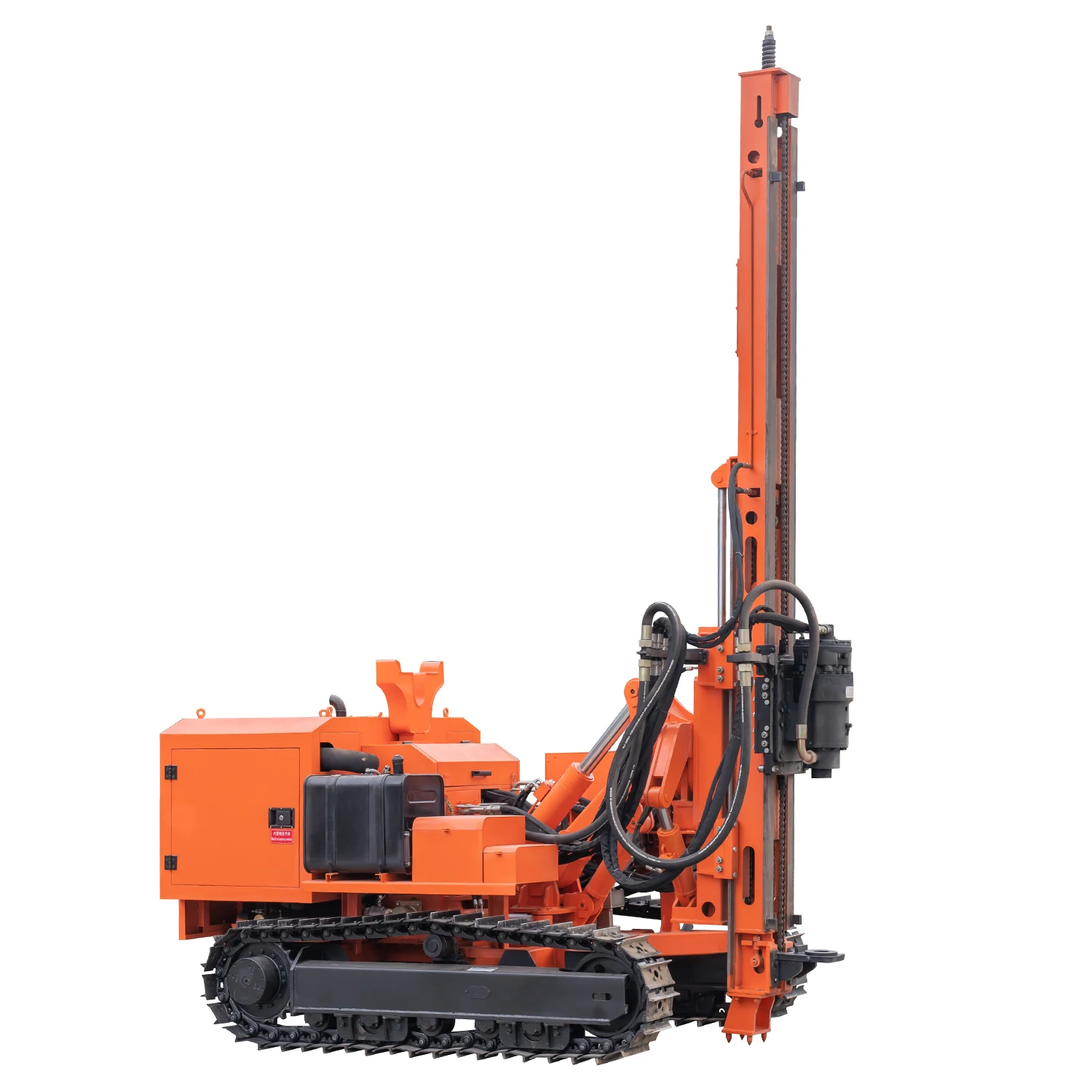

solar ground screw post install drill rigs pile driver
Product Description
1. excellent steel quality of products
2. supply wearing parts for free
3.our crawler hydraulic drilling rig suitable formountainous and muddy pavement.
4.the YuChai Brand diesel engine life is very long
5.the pump desigh , can save the maintenance cost
6.the work efficiency is very high .
7.large hydraulic oil design,also separated controllable, meanwhile guarantee stability during fieldwork.

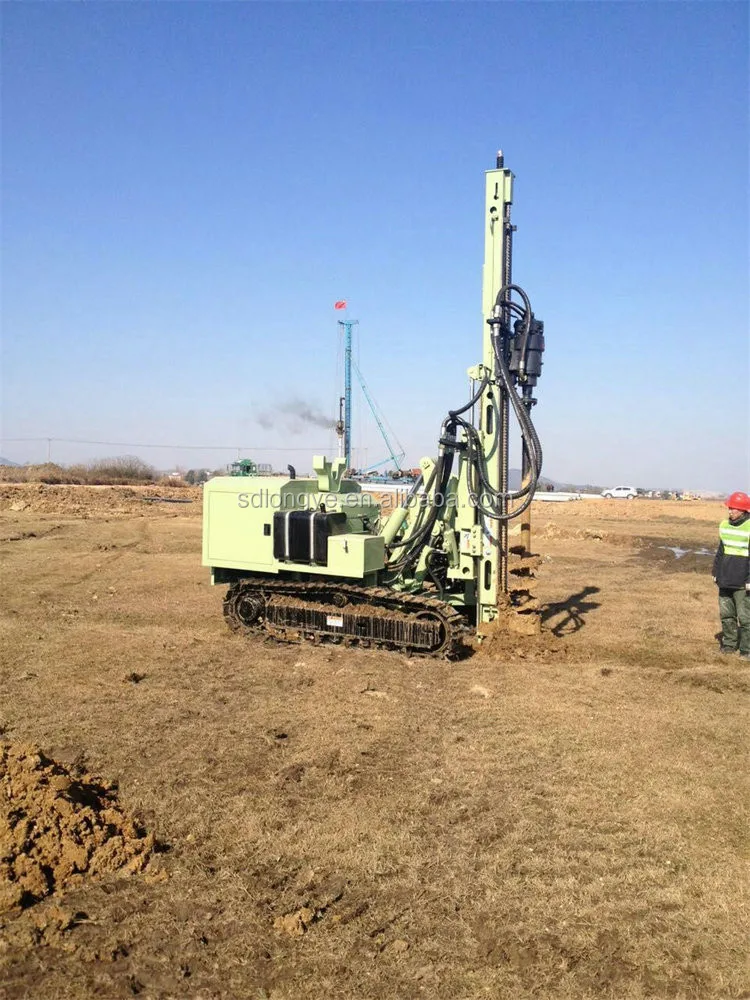

MZ385Y hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. The drilling rig is mainly used for ground pile drilling, micro piling and anchoring,etc.
technical parameters
Bore diameter(DTH hammer)(mm) | 90-300 |
Bore depth(m) | 20-100 |
Air consumption(m³/min) | 10-26 |
Air pressure(Mpa) | 0.7-1.6(medium);1.6-2.46(high) |
Pipe diameter(mm) | 76/89 |
For rock(F) | 6-20 |
Bore diameter(screw)(mm) | Max 400 |
Bore depth(m) | 0-30 |
Screw pipe diameter(mm) | 130-400 |
Once promotion(mm) | 3200 |
Skid pitch(°) | 120 |
Swinging angle of skid(°) | Left and right total 40 |
Boom swing angle(°) | Left and right total 50 |
Rotation speed(r/min) | 0-110 |
Host power(kw) | 84 |
Climb ability(°) | 35 |
Dimension(L*W*H)(mm) | 5300*1950*2580 |
Weight(kg) | 5800 |
Walk speed(km/h) | 0-2.5 |
