BEM 1250 Hydraulic Automatic Spiral Elbow Cold Lock Forming Machine
- Category: >>>
- Supplier: Bobo Machine Co. Ltd.
Share on (1601049396166):
Product Overview
Description
Product Description
Product Application

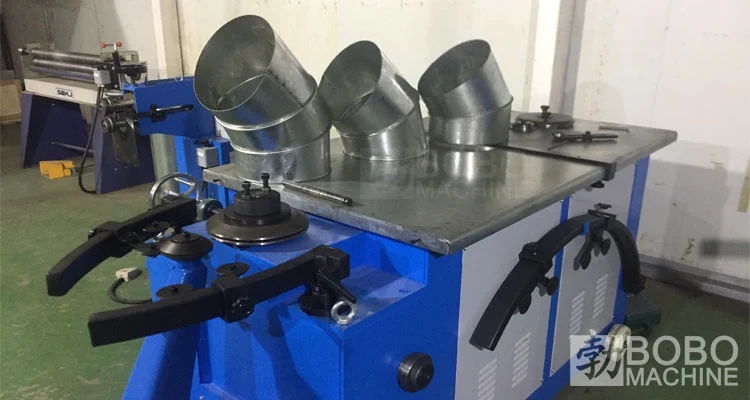

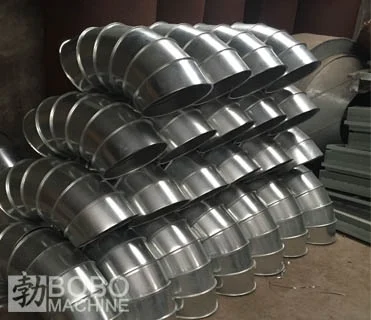

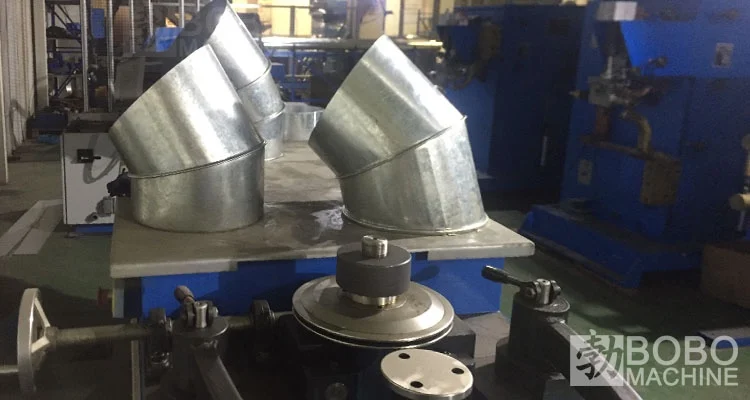

Hydraulic spiral elbow cold gorelocker lock forming machine is for producing round elbows which used to flange and fold each pieces in ventilation & air conditioning system.
Main data of Hydraulic spiral elbow cold gorelocker lock forming machine
BEM-1250 | DCP-1000 | DCP-1500 | |
Diameter range | 100-1250mm | 150-1000mm | 150-1500mm |
Sheet thickness | Stainless steel 0.4-0.8mm Galvaniazed steel: 0.4-1.25mm Aluminum, cuprum: 0.6-1.25mm | Galvaniazed steel: 0.4-1.20mm | Galvaniazed steel: 0.4-2.0mm |
Main power | 4kw+120w(cooling fan) | 1.5kw/1.5kw | 2.2kw/2.2kw |
Forming speed | 0-120m/min | 7r/min | 7r/min |
Power supply | customize for free | customize for free | customize for free |
Dimensions | 2650x700x950mm | 2100x820x890mm | 2400x820x90mm |
Weight | 750kg | 556kg | 556kg |
Main Features
1) Simple structure to change male and female.
2) Very impressive forming speed,up to 120m/min.
3) Hydraulic system ensure stable working.
Packing & Delivery
