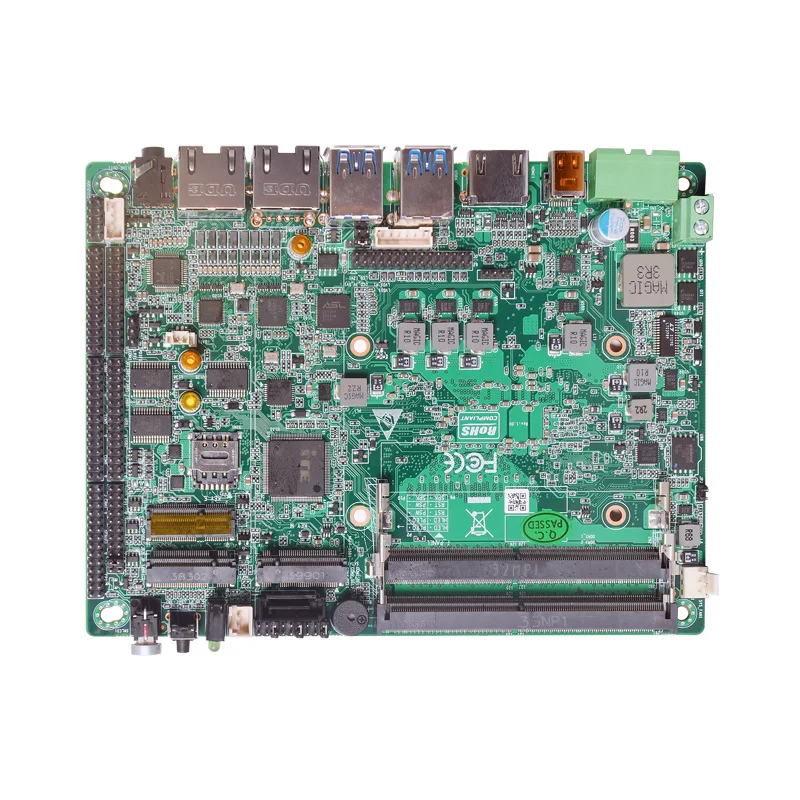

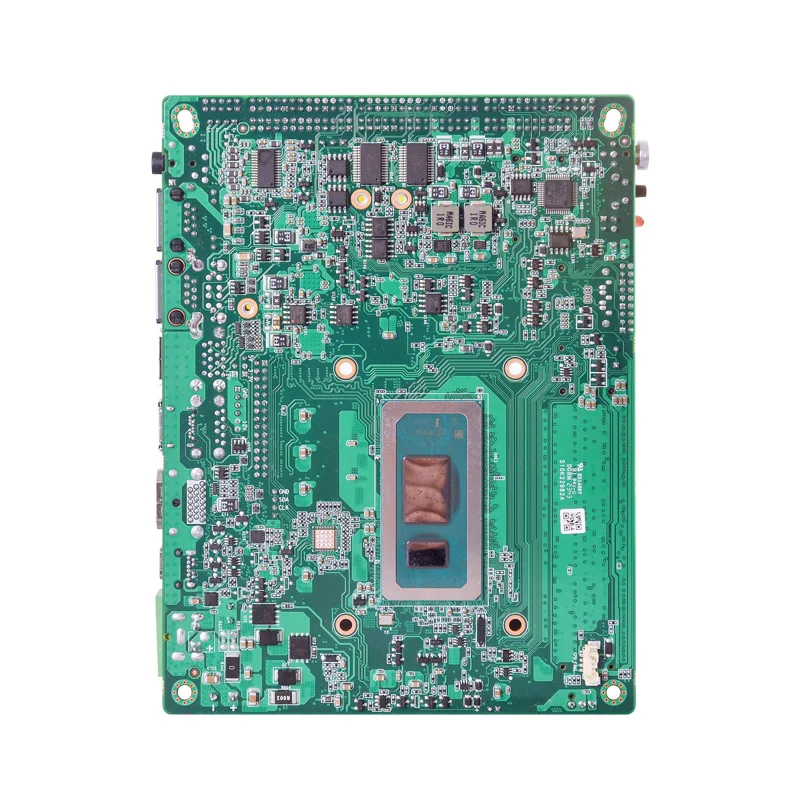

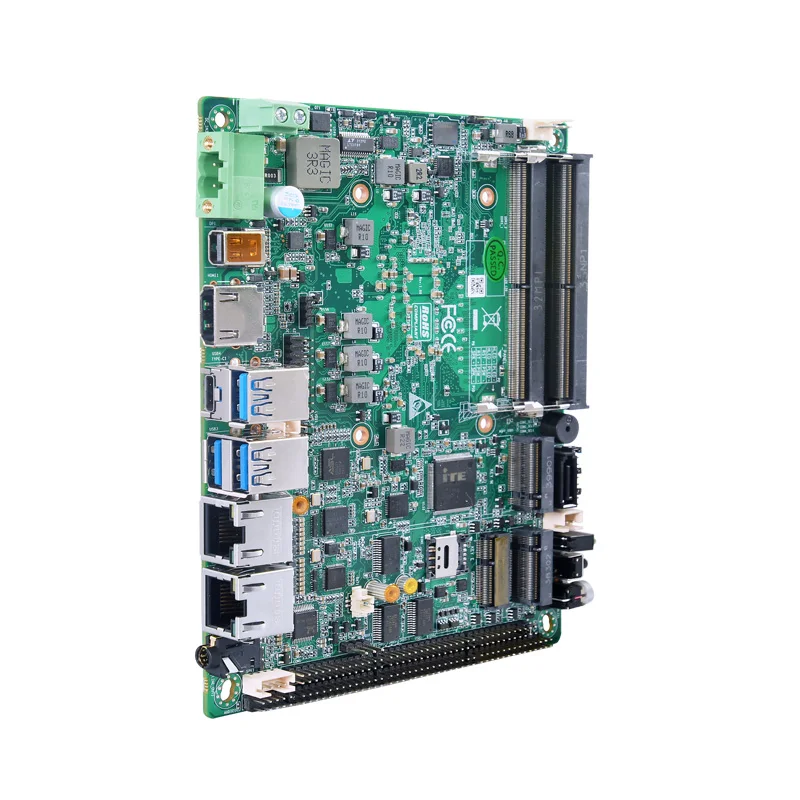

13th I7 Computer Motherboard DDR5 Ram LVDS Three Display AMT Gigabit Lan RS485 RS232 Com M.2 SSD Newest Industrial Motherboard
- Category: >>>
- Supplier: Chengqin Precision Technology (Shenzhen) Co. Ltd.
Share on (1601049501614):
Product Overview
Description
◆Intel 12th/13th Generation -U/-P Series Processors
◆2 DDR5 SO-DIMM, total maximum 64GB
◆TPM2.0optional,1TYPE-C(support4Kdisplay),
◆TPM2.0optional,1TYPE-C(support4Kdisplay),
1DP,1HDMI,1EDP/LVDS optional
◆3*M.2(SSD/WIFI/4G/5G)
◆2LAN/6COM/7USB/8GPIO/1CAN
◆2LAN/6COM/7USB/8GPIO/1CAN
◆DC9-36V wide voltage
◆155x117mm
◆155x117mm
Processor | Intel 12th/13th Generation -U/-P Series Processors |
EFI BIOS | |
Memory | 2 DDR5 SO-DIMM memory slots, up to 64GB |
Display | 1 HDMI2.1; 1 24-bit LVDS (LVDS/EDP Either Way); 1 MiniDP1.4; USB TYPE-C 4K |
Storage | 1 M.2 KEY-M 2280 (PCIe_x4 NVMe) |
1x 7Pin SATA3.0, SATA Power 5V 2Pin | |

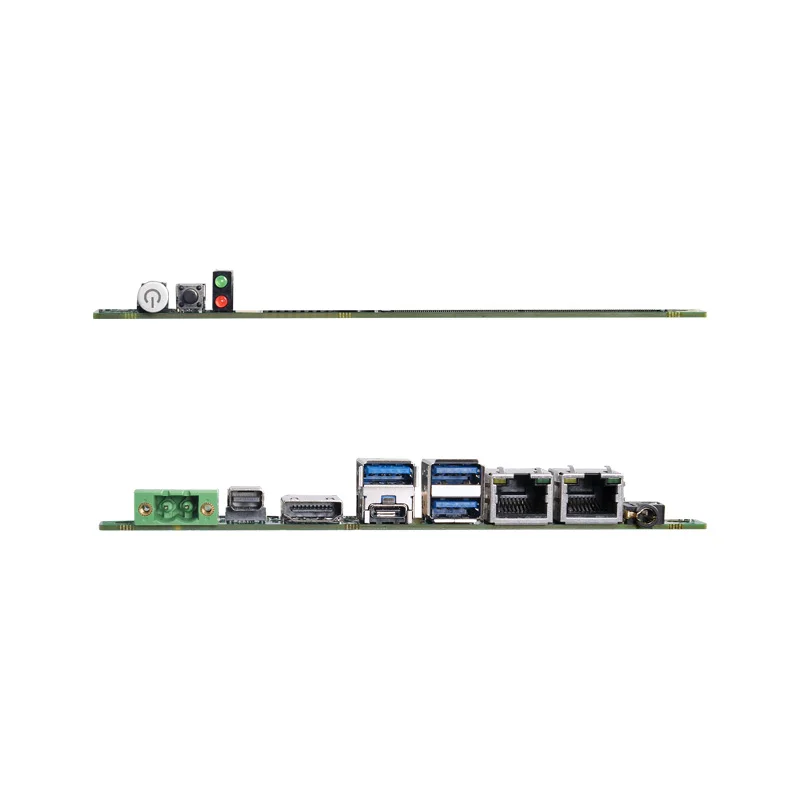

Board Side I/O Interface | 1 Phoenix terminal, 1 MiniDP, 1 HDMI, 3 USB3, 2 RJ45 network ports (1 i219, 1 i226-LM, support AMT) / one of the optional 2 USB2, 1 2-in-1 audio,USB TPYE-C 4K |
Front Panel:POWER LED, HDD LED, Reset Button, Power On Button | |
Expansion Interfaces/Functions | 1 TPM2.0 (chip optional, default without) |
1 M.2 KEY-B (PCIe+USB3.0, 4G/5G module), 1 SIM card slot | |
1 M.2 KEY-E (PCIE_X1, WIFI module) | |
1 CAN port 2x3PIN, pitch 2.0 | |
6 COM line pins 2x5Pin, 2.0 pitch (1xRS485/RS422, 3xRS485/RS232, 2xRS232) | |
1 SPK 1x4 pitch 2.0 | |
1 CL_CMOS 1x2Pin Pitch 2.0 | |
2x USB2.0 Pinouts, 2x5Pin Pitch 2.0 | |
1 CPU Smart FAN, 4Pin; 1 System Fan, 3Pin Pitch 2.54 | |
1 F_Panel, 2x5Pin, 2.0mm pitch | |
1 LPT Print Port Pin, 2x13Pin, 2.0mm Pitch | |
1 x 8-bit GPIO Pin, 2x5Pin, 2.0 pitch; 1 x DEBUG Pin, 2x5Pin, 2.0 pitch | |
1 PS/2, 2x4Pin, 2.0 pitch; 1 SPDIF pin, 3Pin, 2.54 pitch | |
1 AT/ATX 1x2Pin spacing 2.0 | |
Power Supply | DC9-36V wide voltage |
Operating Environment | Operating Temperature:-20℃ ~ +60℃; Operating Humidity:0% ~ 90% relative humidity, no condensation |
Storage Temperature:-40℃ ~ +85℃; Storage Humidity:0% ~ 90% RH, no condensation | |
Operating System Support | Windows 10, Windows 11, Linux |
Dimensions | 155x117mm |
