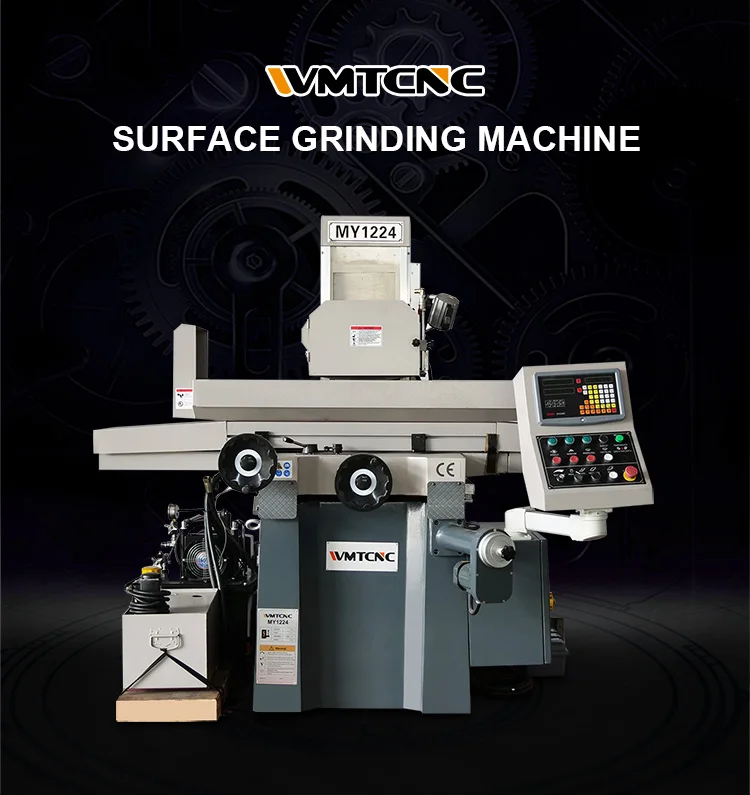

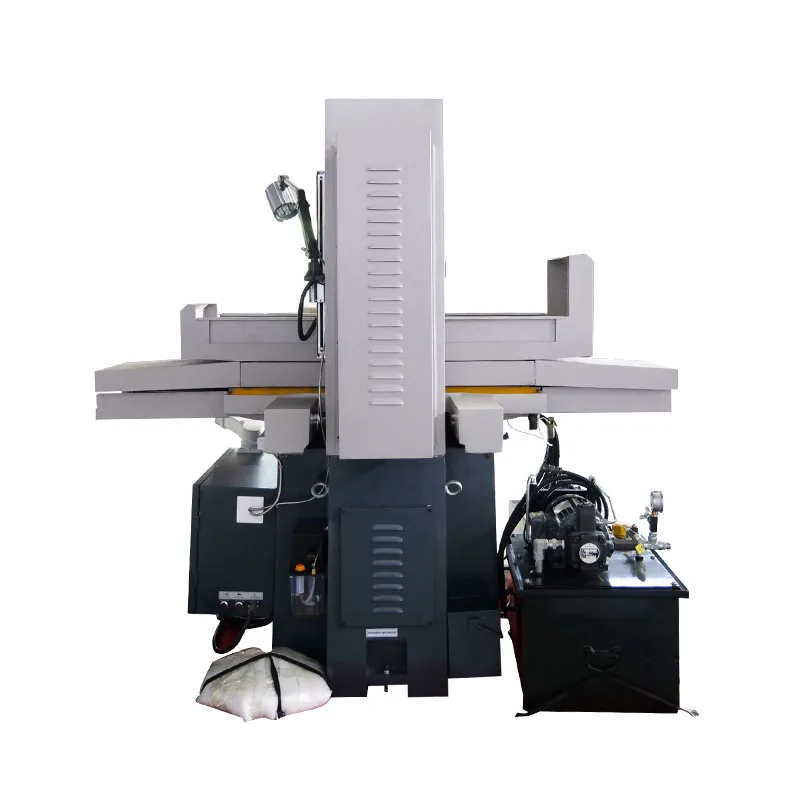

Precision surface grinding machine trade MY1224 single phase surface grinder machine
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1601049652096):
Product Overview
Description
Product Description
Main Features:
1. Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry. 2. The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Spcifications | MY1224 |
Worktable size | 600×300 mm |
Max.travel of table | 640×320 mm |
Table max.cutting area | 640×320 mm |
T-solt(number×width) | 1×14 mm |
Distance from table surface to spindle center | 490 mm |
Wheel size(dia×width×bore) | 300x30x75 mm |
Spindle speed | 1440 rpm |
Table longitudinal(left and right)speed | 3-20 m/min |
Worktable cross continuous speed | 150 mm/min |
Worktable cross intermittent speed | 0-5 mm/min |

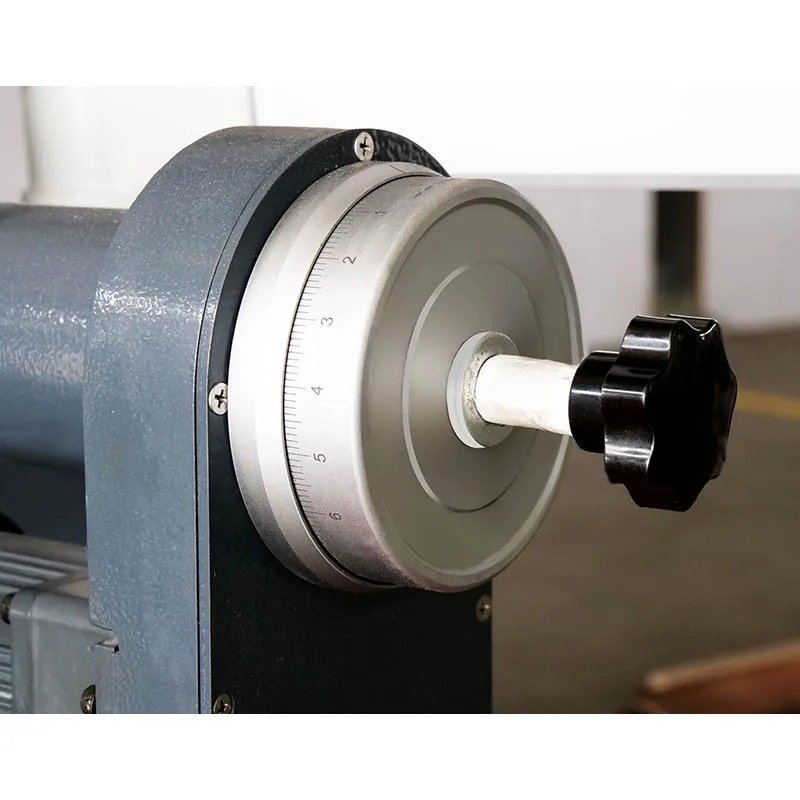

Worktable cross handweel-storke per revolution | 4 mm |
Worktable cross handweel-storke per grid | 0.02 mm |
Worktable vertical handweel-storke per revolution | 2 mm |
Worktable vertical handweel-storke per grid | 0.01 mm |
Spindle motor | 4 kw |
Cooling motor | 0.4 kw |
Hydraulic motor | 1.5 kw |
Working pressure | 3 mpa |
Oil tank capacity | 80 L |
Max.flow capacity | 18 L/min |
The mechanical surface of the base of parallelism | 300/0.004 mm |
Surface roughness | Ra0.32 μm |
N.W | 1500 kg |
G.W | 1650 kg |
Machine size | 1960×1630×1870 mm |

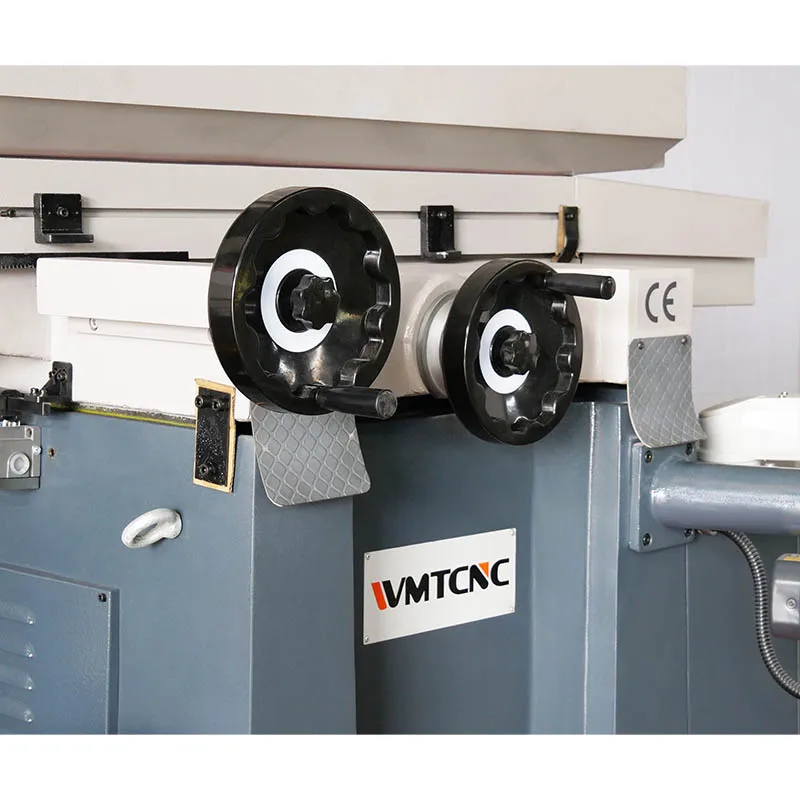

Details Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
