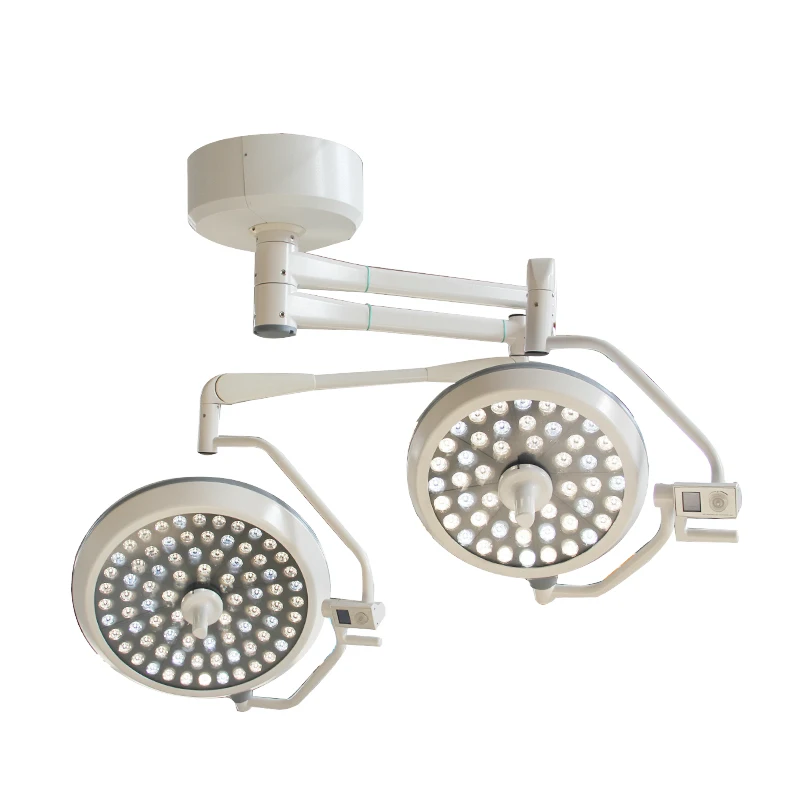

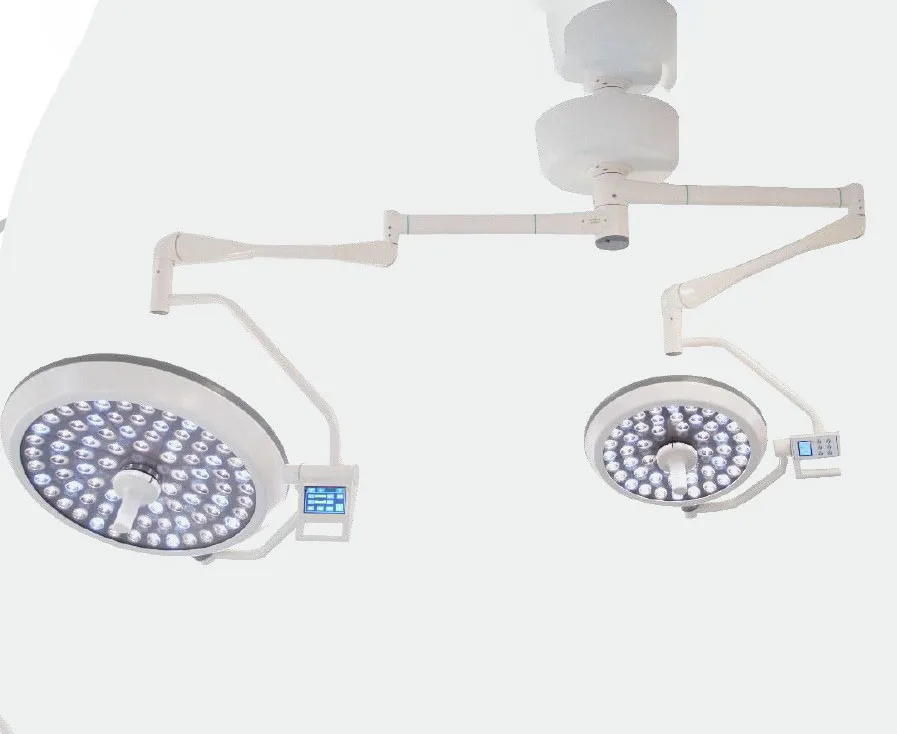

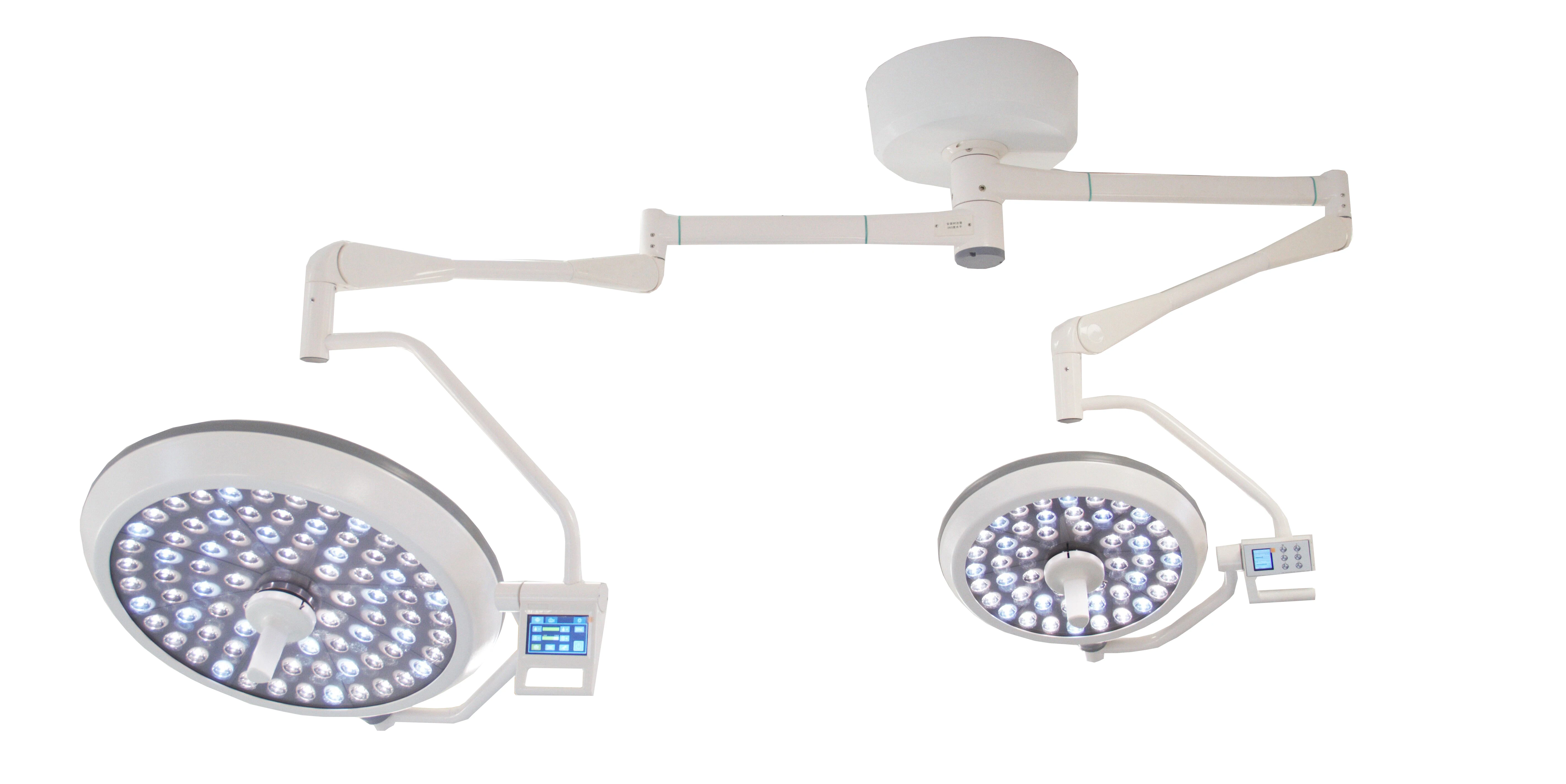

Ceiling LED700/500 surgical room 1400mm depth of illumination 20%(L1 L2) LED veterinary operation light for clinic operation

WYLED700/500 series LED surgical lights are embedded with a revolutionary LED light technology that offers precise direction of light while cutting shadows and glares. The energy-saving feature of this new generation technology provides 50,000 hours of light. Low heat generation, central serializable handle, and freedom of movement are other attractive features of the LED light.

This LED surgical light can help you in the most comfortable lighting environment for surgery

• Comfortable


• Safe


• Energy efficient


• Uniform luminance;


• Shadow-Free Illumination


• Maintenance-free and easy to clean.

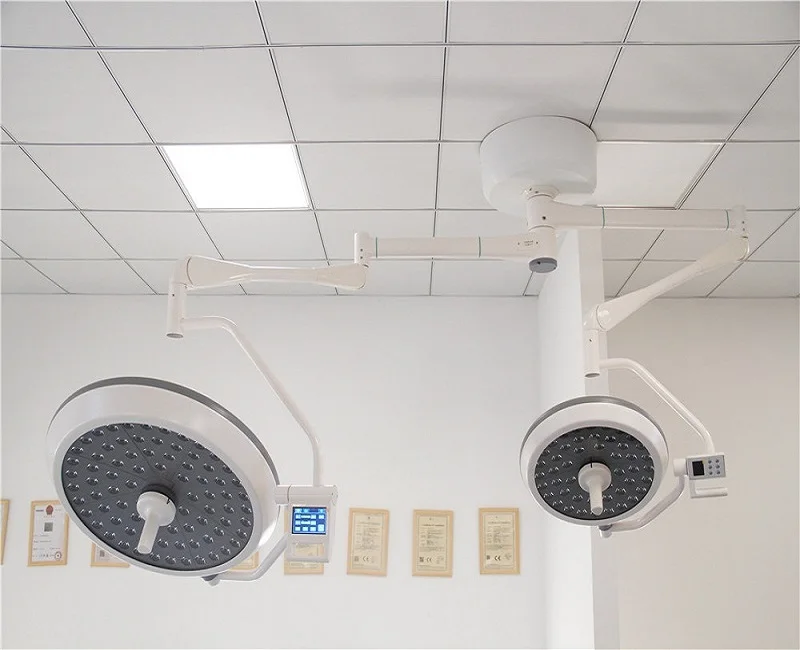

Surgeons can choose the best out of different temperature modes for each operation. These lights are so flexible that they can be fixed either on the ceiling or on the wall, rotated in any way, and combined with different kinds of camera systems and monitoring equipment.

 It is the ideal selection for a modern laminar flow operation room.

 Uniform, homogeneous lighting for surface and deep cavity procedures with shadow management control ensures safety.

 Focusing the light field clockwise or anti-clockwise on the center sterilization handle.

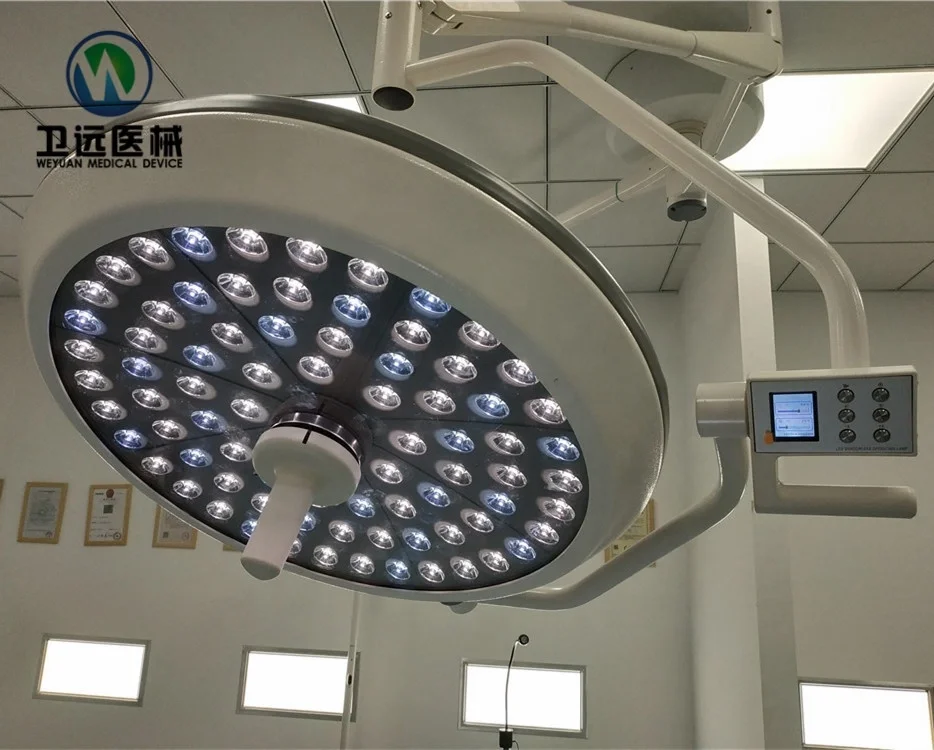

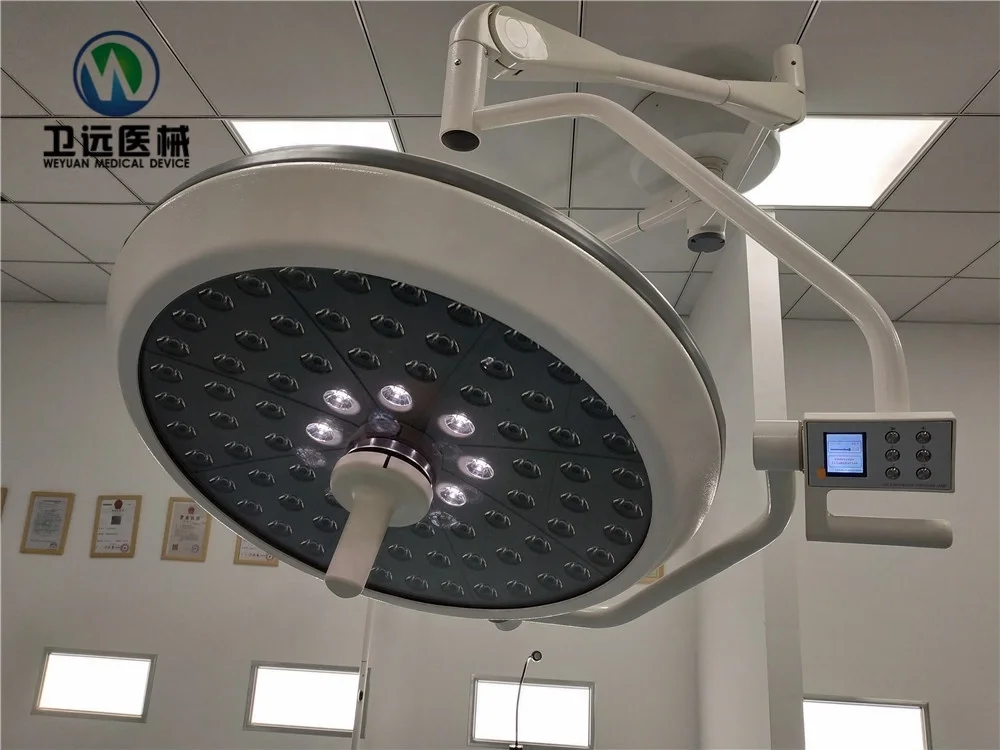

 Control panel embedded in the yoke, button controls the lighting intensity and color temperature.

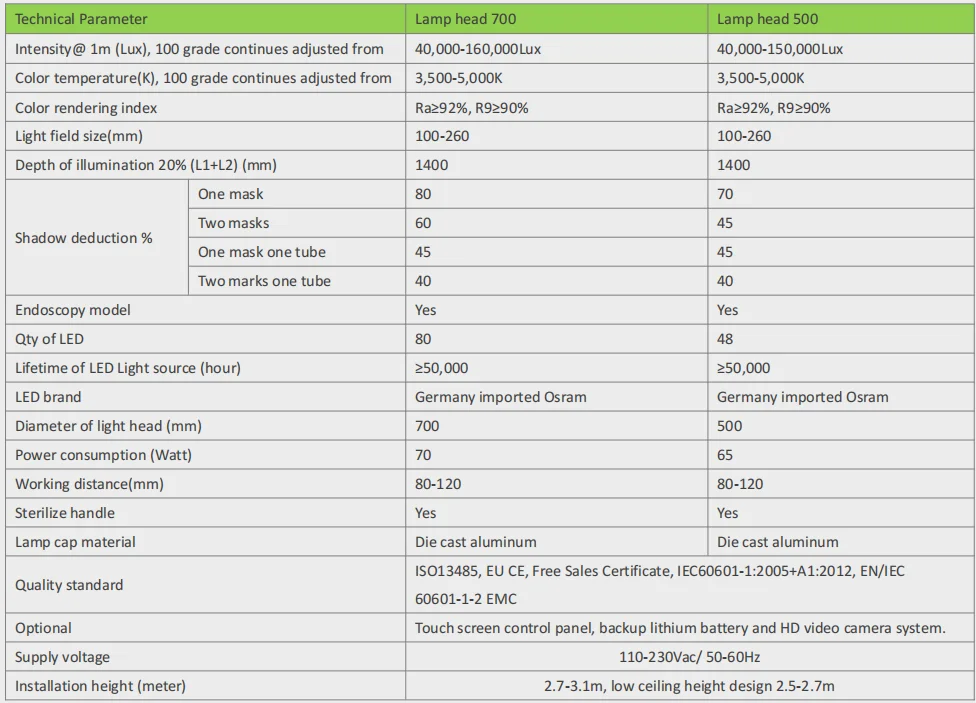

 0-100% continuous intensity adjustment, ranging from 40000lux to 160,00 lux.

 0-100% continuous color temperature adjustment, ranging from 3500-5000K.

 True color rendition of 93 %Ra, provides optimal contrast and resolution for any surgical procedure.

 Illumination depth over 1000mm.

 Humanity design, a wide range of continuous adjustments of color temperature and intensity, every doctor can find their preferred lighting. One light fits all doctor’s demands.

 Color temperature and intensity can be displayed in the control panel.

 One key to the endoscopy model, is background illumination for minimally invasive interventions.

 Foolproof switch.

 High-performance steady suspension system, smooth movement, prevent drift and bounce.

 Reusable center detachable handle can take high temperature (≤ 134° C) sterilization treatment.

 More than 50,000 hours effective lifetime of Osram LED, extremely reduces the hospital's maintenance cost.

 Working distance from 80cm to 120cm.

 Die-cast aluminum lamp cap, lightweight, durable, and much better heat dissipation.

 Shape of the dome is streamlined for easy cleaning and sterilization.

 Powder coating process, glossy appearance, anti-bacterial and anti-corrosion, easy to clean.

 6D Balanced system has more than 4 joints, can be rotated at 360°, possesses a fatigue correcting unit, easy to to move and position.

 R-free light will not overheat in the surgical area and on the surgeon’s head.

 Low power consumption and durable LEDs minimize the impact on the environment.

 Durable and reliable Taiwan brand switch power supply.

 Microcomputer digital control system offers illuminance memory function, and ease of use.

 Soft start-up circuit design to ensure the wearing parts of long life and durability.

 Optional touchscreen control panel, backup lithium battery, and HD video camera system.
