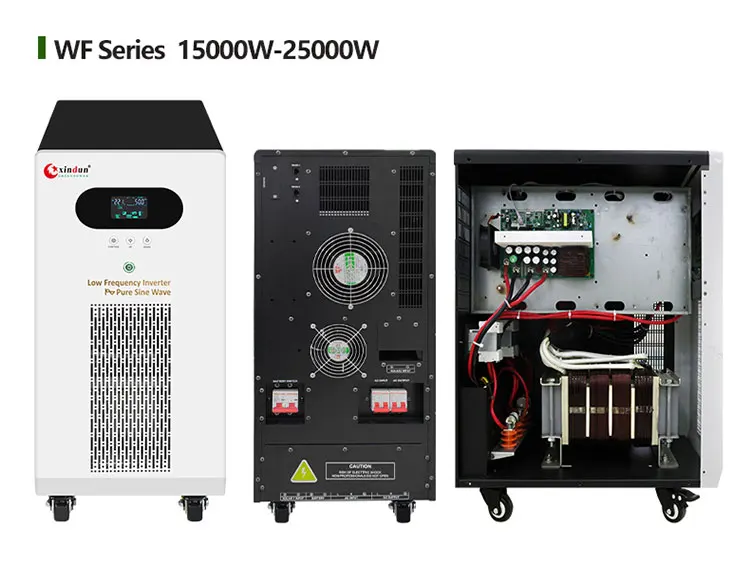

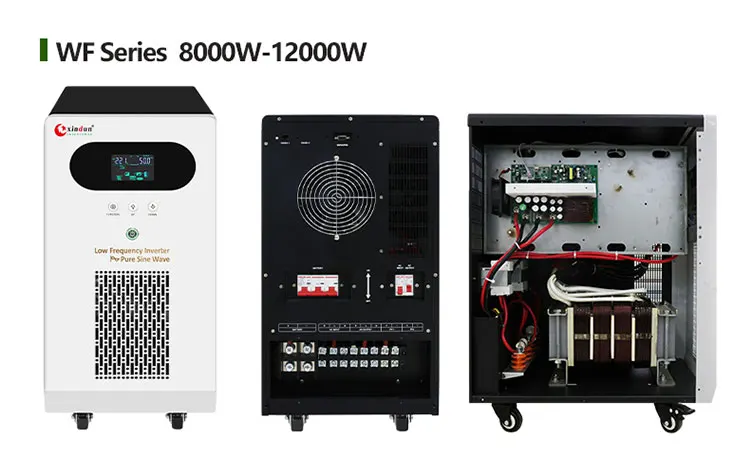

Model:WF | 80248/96/192 | 10348/96/192 | 12396/192 | 153192 | 203192 | 253240 | 303240 | |||||||||
Power | ||||||||||||||||
Rated Power | 8KW | 10KW | 12KW | 15KW | 20KW | 25KW | 30KW | |||||||||
Battery | ||||||||||||||||
Standard Battery Voltage | 48/96/192VDC | 48/96/192VDC | 96/192VDC | 192VDC | 192VDC | 240VDC | 240VDC | |||||||||
Battery Type | Lead-acid battery / Lithium battery / Custom battery | |||||||||||||||
Built-in Controller MPPT(optional) | ||||||||||||||||
Rated Current | 48V:100A, 96V:100A,192V:50A | 100A | 100A | |||||||||||||
Maximum PV Input Power | 48V(5600W)/96V(11.2KW)/192V(11.2KW) | 192V(11.2KW*2)/240V(14KW*2) | 240V(14KW*2)/384V(22.4KW*2) | |||||||||||||
Max PV Input Voltage(Voc) (At The Lowest Temperature) | 48V system:180VDC;96V system:280VDC;192V system:450VDC;240V system:500VDC;384V system:800VDC | |||||||||||||||
MPPT Tracking Voltage Range | 48V system(60V-140V);96Vsystem(120V-220V);192Vsystem(240V-360V);240Vsystem(300V-400V);384Vsystem(480V-640V) | |||||||||||||||
AC Input | ||||||||||||||||
Rated Input Voltage | 110VAC/120VAC/220VAC /230VAC/ 240VAC | |||||||||||||||
AC Input Voltage Range | 73VAC~138VAC(110VAC) / 83VAC~148VAC(120VAC) / 145VAC~275VAC(220VAC) / 155VAC~285VAC(230VAC) / 165VAC~295VAC( 240VAC) (700W~7000W) 92VAC~128VAC(110VAC) / 102VAC~138VAC(120VAC) / 185VAC~255VAC(220VAC) / 195VAC~265VAC(230VAC) / 205VAC~275VAC( 240VAC) (8KW~40KW) | |||||||||||||||
AC Input Frequency | 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz) | |||||||||||||||
AC Output | ||||||||||||||||
Output Wave | Pure Sine Wave | |||||||||||||||
Conversion Efficiency | >85% | |||||||||||||||
AC Output Voltage / Frequency Range (INV Mode) | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%,50/60Hz±1% | |||||||||||||||
Other | ||||||||||||||||
Protection | Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection | |||||||||||||||
Protection Degree | IP20 | |||||||||||||||
Display | LCD | |||||||||||||||
Cooling Method | Cooling Fan in Intelligent Control | |||||||||||||||
Communication | RS485/APP(WIFI monitoring or GPRS monitoring) | |||||||||||||||
Working Mode(settable) | Battery Priority/Mains Priority | |||||||||||||||
Operating Temperature | -15℃~40℃ | |||||||||||||||
Relative Humidity | 0%~95% ,(No Condensation) | |||||||||||||||
Dimensions and Weight | ||||||||||||||||
Product Size(L*W*Hmm) | 540x350x695 | 593x370x820 | 721x400x1002 | |||||||||||||
Packing Size(L*W*Hmm) | 600*410*810 | 656*420*937 | 775x465x1120 | |||||||||||||
N.W.(kg) | 66 | 70 | 77 | 110 | 116 | 123 | 167 | |||||||||
G.W.(kg) | 77 | 81 | 88 | 124 | 130 | 137 | 190 |
Guangdong Xindun Power Technology Co.,Ltd | ||
Factory Location | Foshan,Guangdong,China | |
Industry Experience | 15-year manufacturer, 17-year trading, 11-year alibaba gold supplier | |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system | |
Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) | |

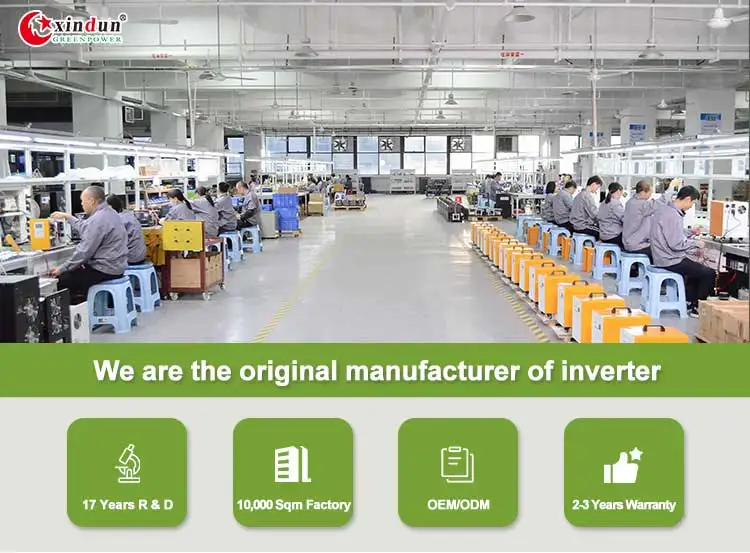

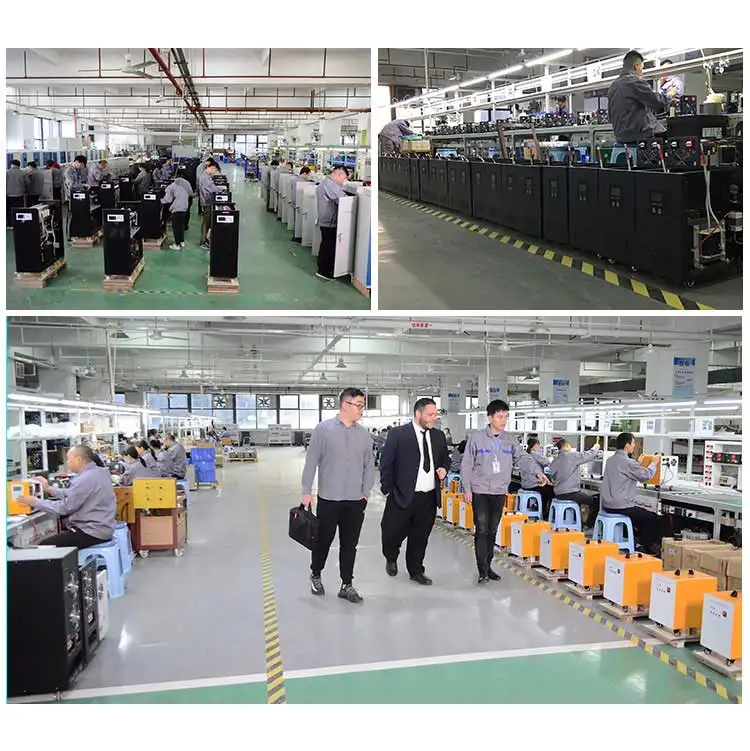

Factory | 7000 Square Meters, 100+ workers | |
Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department | |
Certificate | ISO 14001:2015, CE, IEC, TUV, etc. | |
Patent | Software Paten, Design Patent, Project Pantent |
