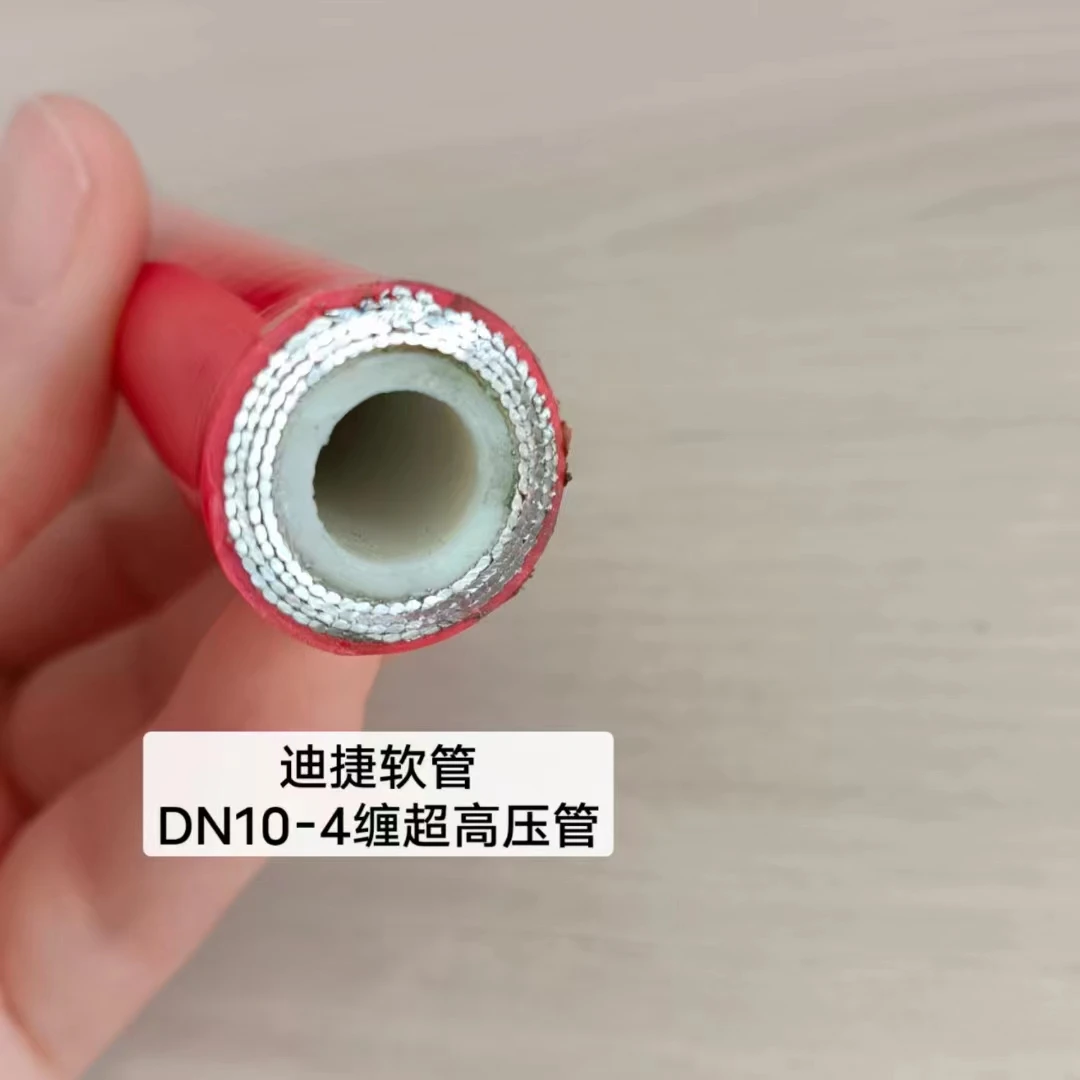

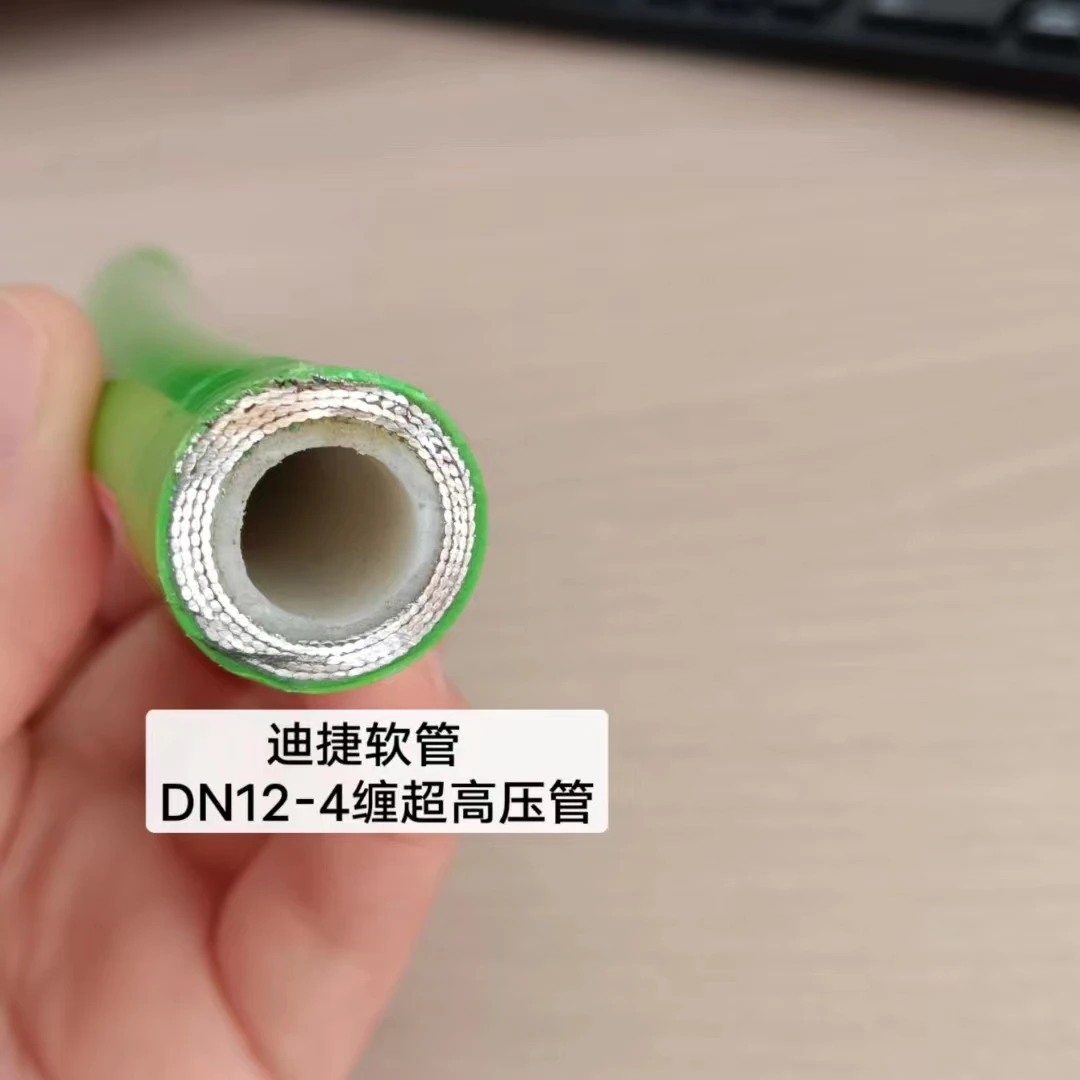

2S 4S Ultra High Pressure Steel Wire Reinforced Hydraulic Oil pipe Polyamide Thermoplastic Hose
- Category: >>>
- Supplier: Shandong Dijieflex Technology Co. Ltd.
Share on (1601050223178):
Product Overview
Description
Products Description

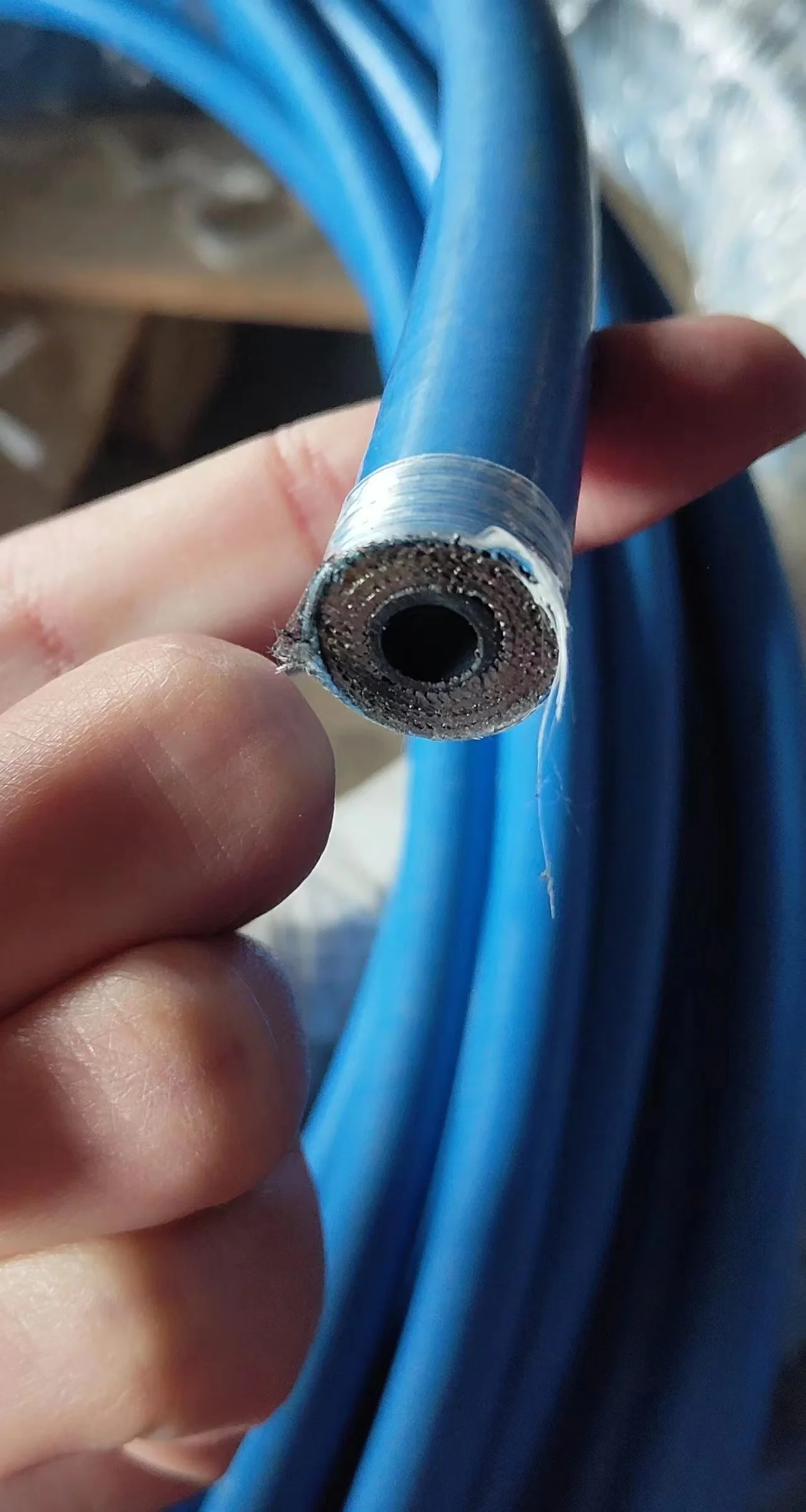

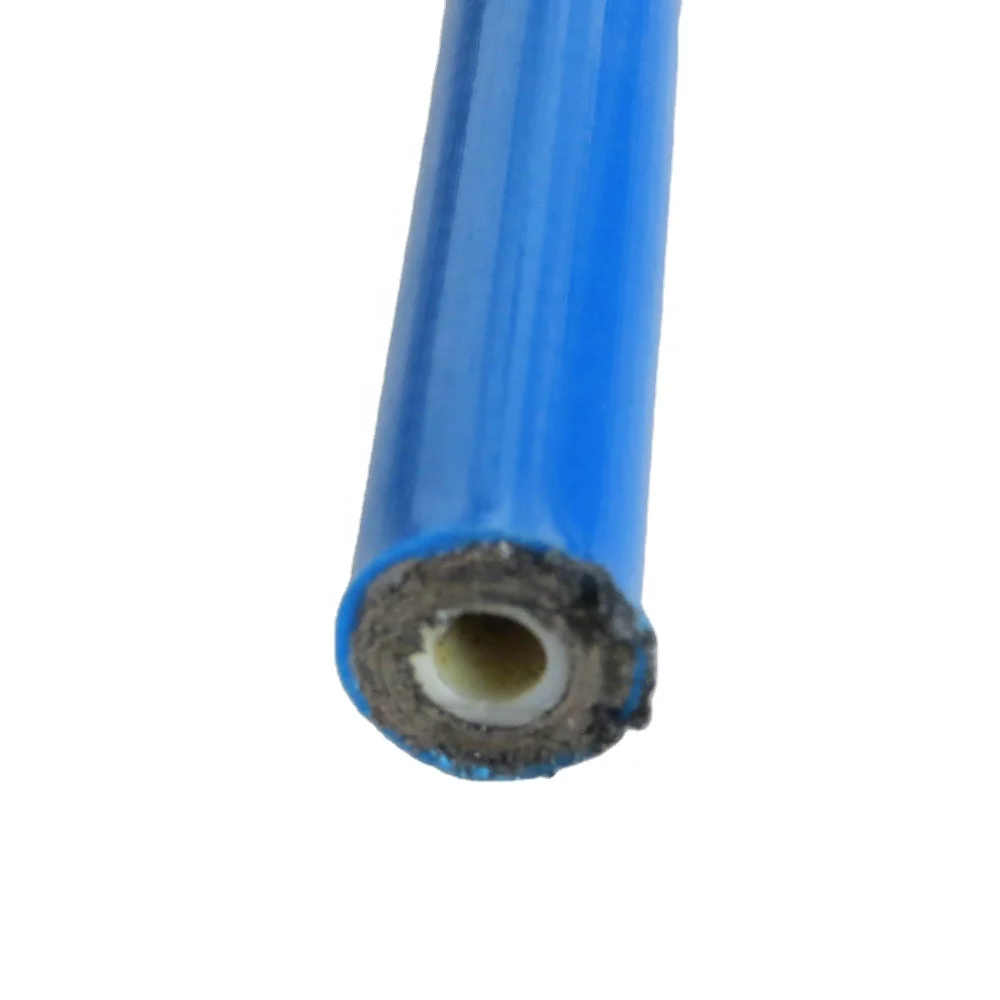

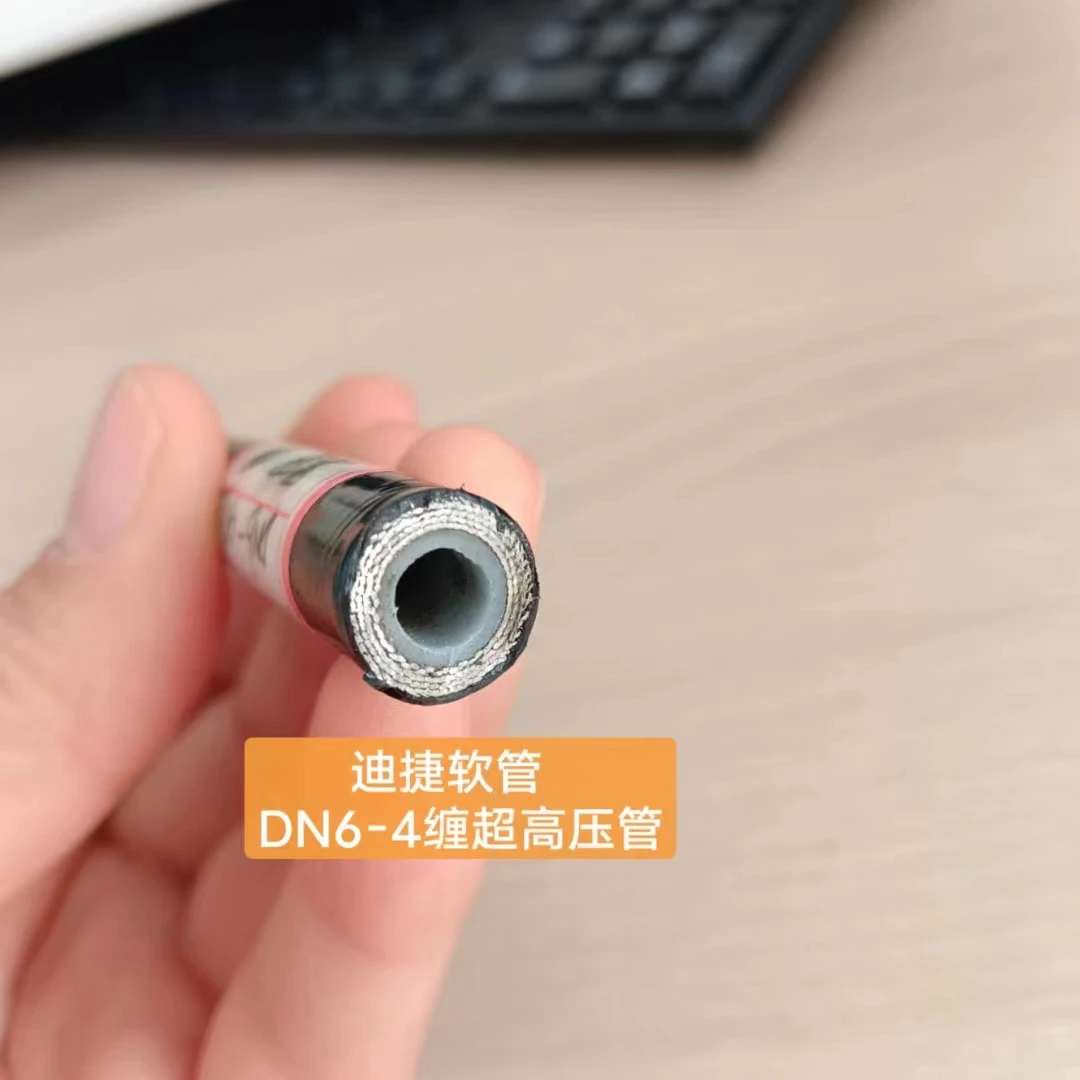

Ultra High Pressure Steel Wire Reinforced Hydraulic Oil pipe Polyamide Thermoplastic Hose

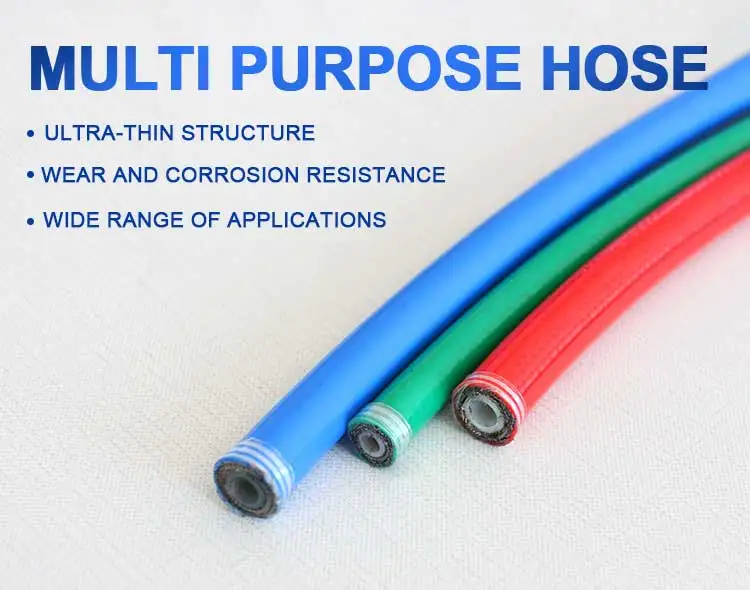

Multi purpose.
Series:PK0100

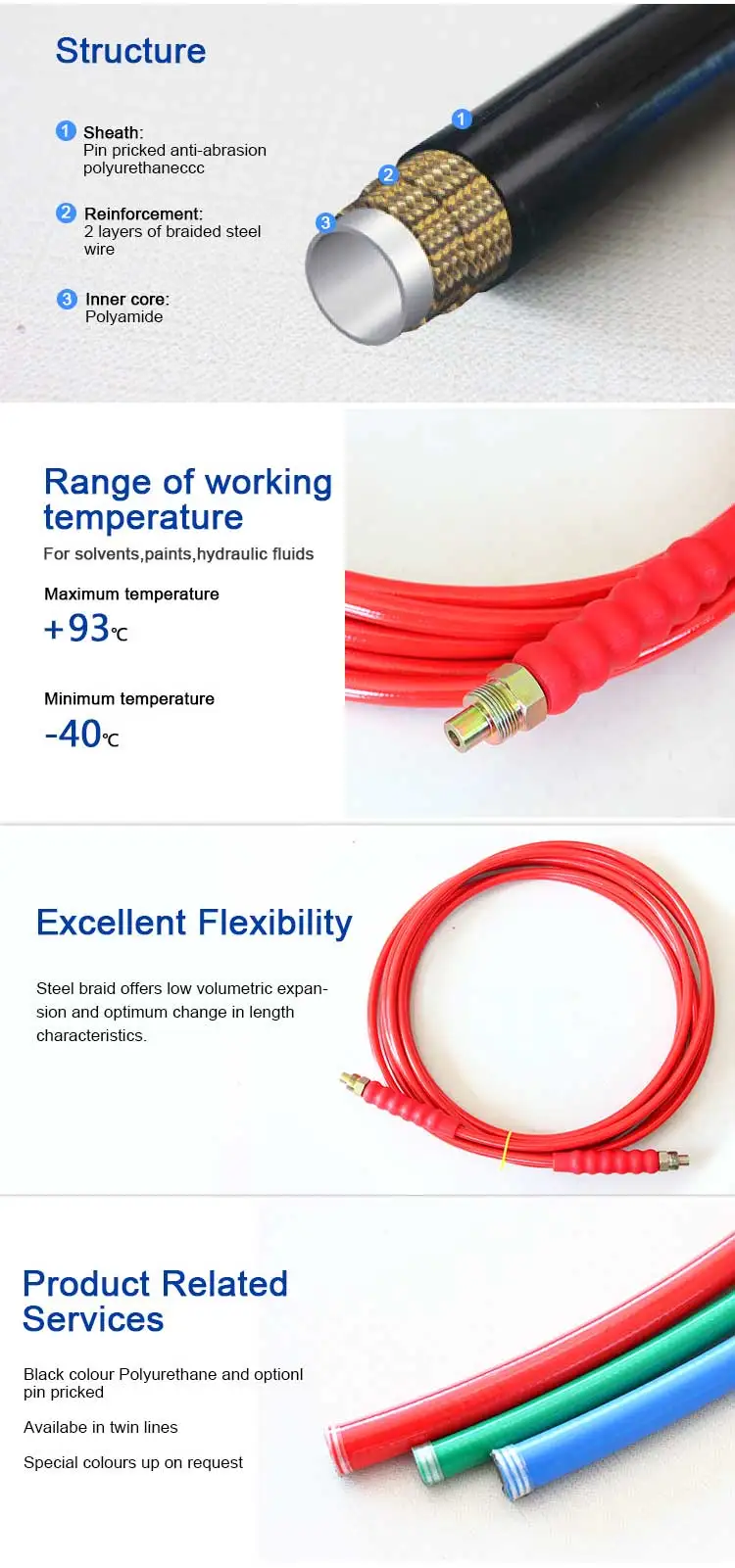

Polyamide or Thermoplastic polyester
2 layers of braided steel wire
Pin pricked anti-abrasion polyurethane
Product Specifications
INCH | Hose I.D *O.D | Working Pressure | Bursting Pressure | Min.Bend Radius |
1/4 | 6.3*13.2mm | 450bar | 1800bar | 40mm |
5/16 | 8*15.2mm | 400bar | 1600bar | 50mm |
3/8 | 10*17.5mm | 380bar | 1520bar | 80mm |
1/2 | 13*21.5mm | 300bar | 1200bar | 90mm |
3/4 | 19.5*28mm | 160bar | 640bar | 130mm |
1 | 25.4*35mm | 120bar | 480bar | 150mm |
Product Applications
Mainly used in machine tool, automobile, engineering machinery, motorcycles on the high-pressure hose, brake oil pipe and the oil,
chemical, pharmaceutical, metallurgical and other industrial automatic control in the pneumatic instrument line and so on.
chemical, pharmaceutical, metallurgical and other industrial automatic control in the pneumatic instrument line and so on.
Company Information
Shandong dijieflex technology co.,LTD.(The original Ningjin Xinxing Hose Co.,Ltd.) is a well-known enterprise engaged in the production of all high-quality thermoplastic high-pressure hoses.The high reliability and cost performance of the company's products is unanimously recognized by customers from all walks of life.Our strict technique process control and raw material quality control,and continuous investment in new technology research and development ensures that we can not provide reliable products containing the latest technology,but also endow our products with strongest market competitiveness.
Moreover,we will continuously develop and launch new products according to customers' lastest requirements,thus satisfying special application requirements from various industries.
Moreover,we will continuously develop and launch new products according to customers' lastest requirements,thus satisfying special application requirements from various industries.
FAQ
Q1:Are you factory or trading company?
A: We are factory, specialized in paint spray hose. Welcome to visit our factory.
Q2: What is your terms of packing?
A: Plastic woven belt, Carton Packaging, Wooden Cases or Your Request.
Q3:What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery paint spray hose pipe. We'll show you the paint spray hose photos of the products
and packages before you pay the balance.
Q4:What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5:How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment of paint spray hose pipe. The specific delivery time
depends on the items and the quantity of your order.
Q6:Can you produce according to the samples?
A: Yes, we can produce by your paint spray hose pipe samples or technical drawings. We can build the molds and fixtures.
Q7:What is your sample policy?
A: We can supply the paint spray hose pipe sample if we have ready parts in stock, but the customers have to pay the paint spray
hose sample cost and the courier cost.
Q8:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery paint spray hose pipe.
Q9:How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: We are factory, specialized in paint spray hose. Welcome to visit our factory.
Q2: What is your terms of packing?
A: Plastic woven belt, Carton Packaging, Wooden Cases or Your Request.
Q3:What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery paint spray hose pipe. We'll show you the paint spray hose photos of the products
and packages before you pay the balance.
Q4:What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5:How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment of paint spray hose pipe. The specific delivery time
depends on the items and the quantity of your order.
Q6:Can you produce according to the samples?
A: Yes, we can produce by your paint spray hose pipe samples or technical drawings. We can build the molds and fixtures.
Q7:What is your sample policy?
A: We can supply the paint spray hose pipe sample if we have ready parts in stock, but the customers have to pay the paint spray
hose sample cost and the courier cost.
Q8:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery paint spray hose pipe.
Q9:How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
