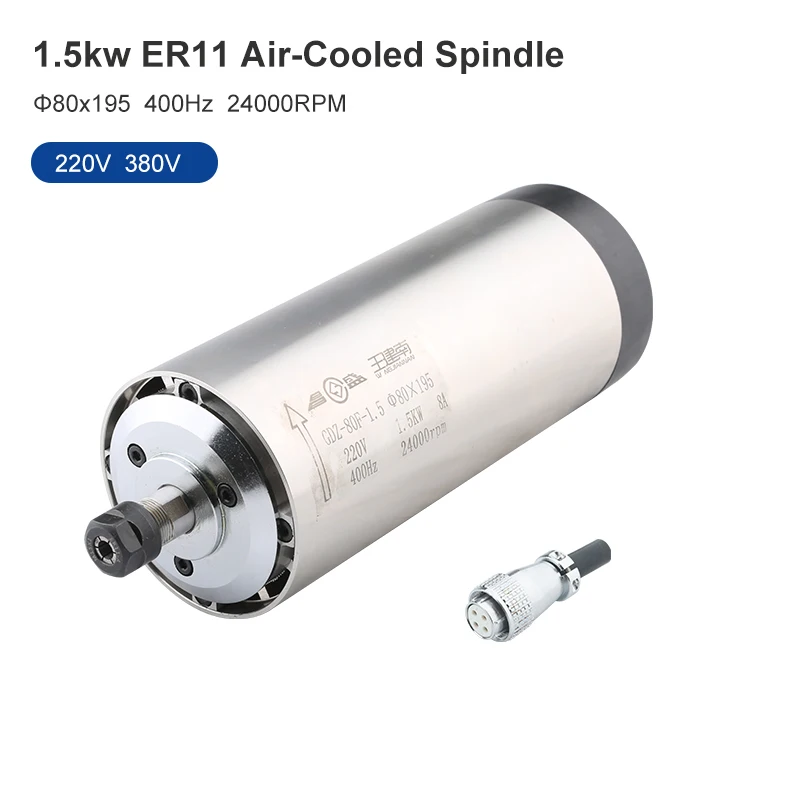

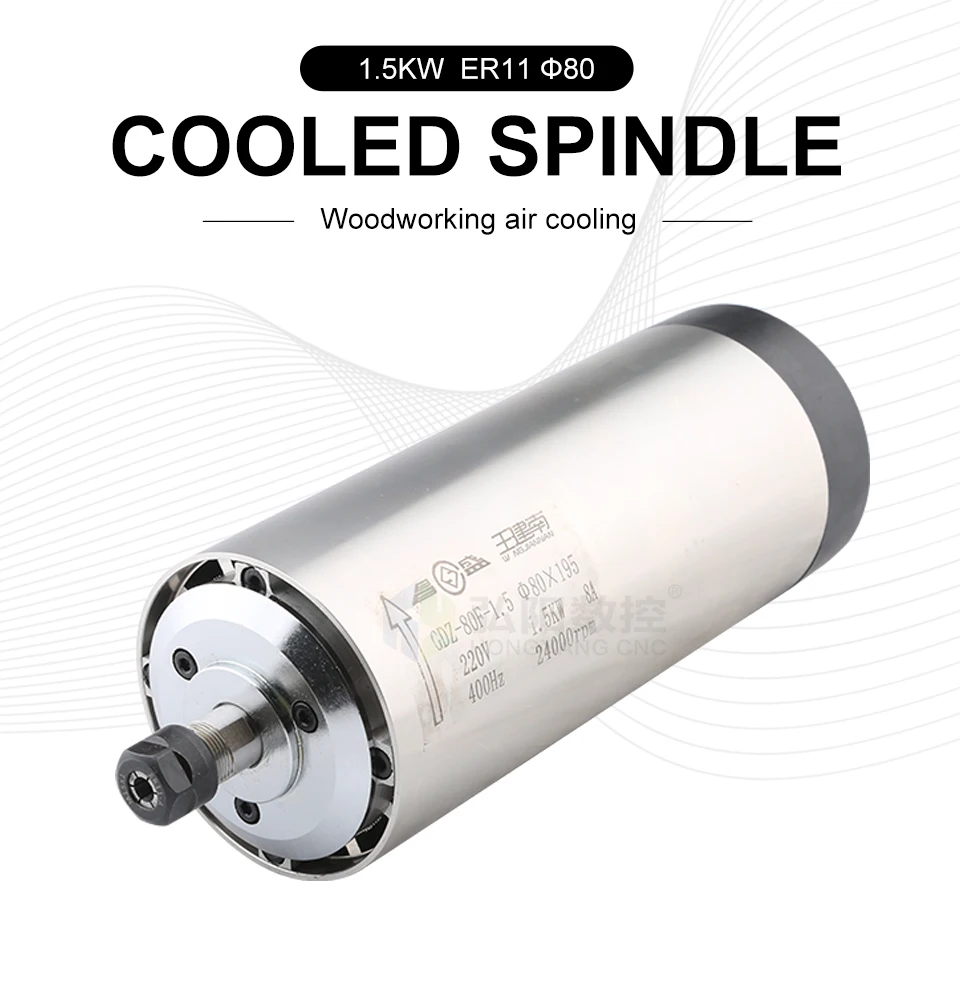

Cnc Milling Spindle 220V 1.5Kw 1500W 80mm Air Cooled Spindle 4 Bearings 24000Rpm 400Hz For Cnc Router Woodworking Carving
- Category: >>>
- Supplier: Jinan Hongyang Cnc Machinery Co. Ltd.
Share on (1601050239738):
Product Overview
Description
Product Description

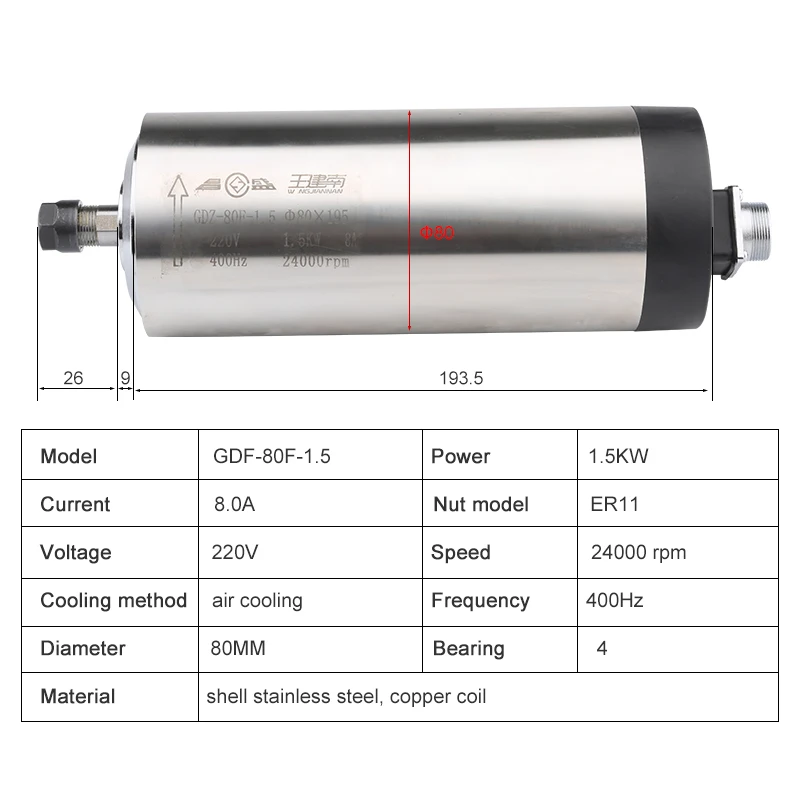

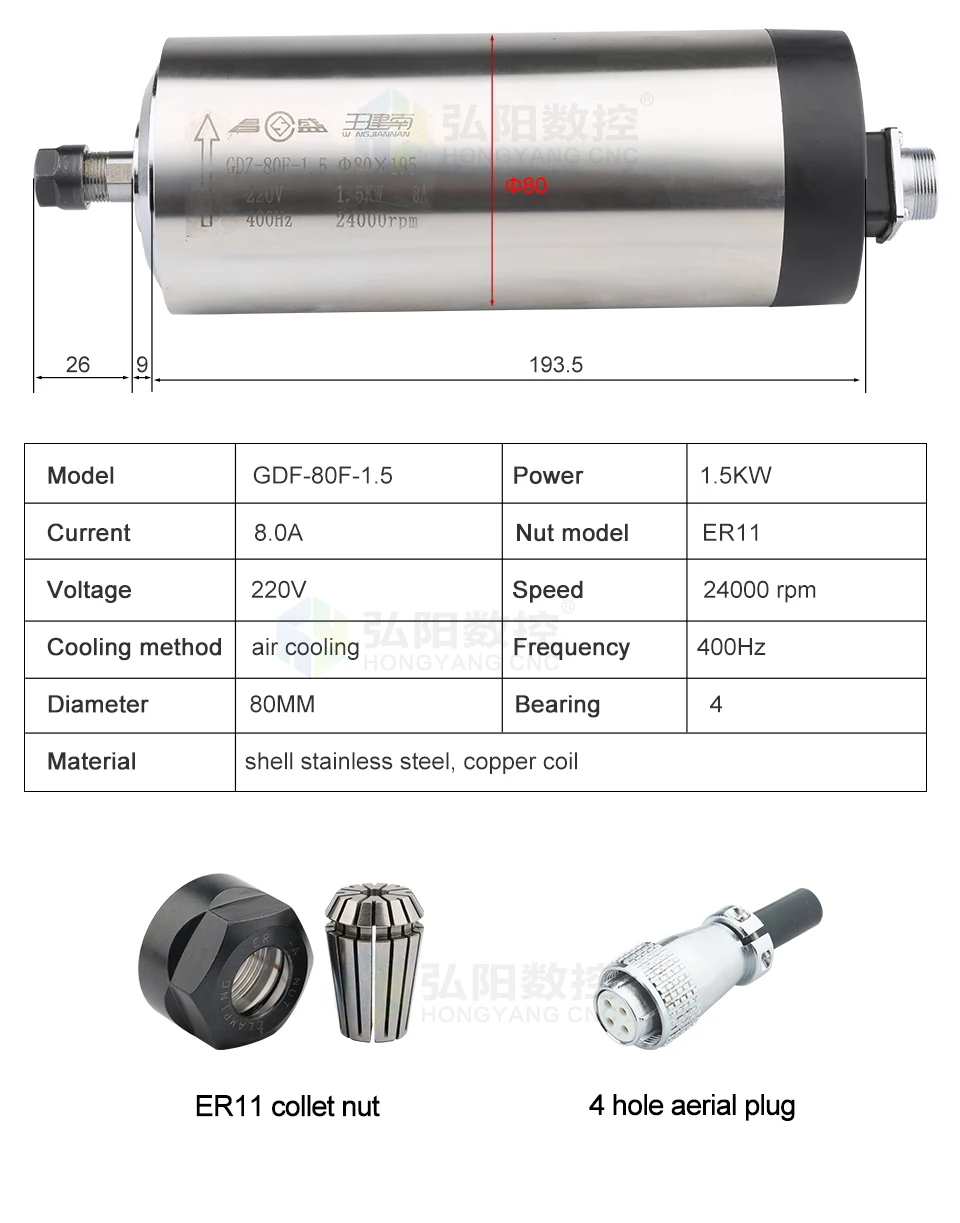

Size: GDF-80F-1.5
Speed regulation mode: can change the spindle speed through the three-phase output inverter, adjust the frequency of the inverter.
Cooling method: wind cooling

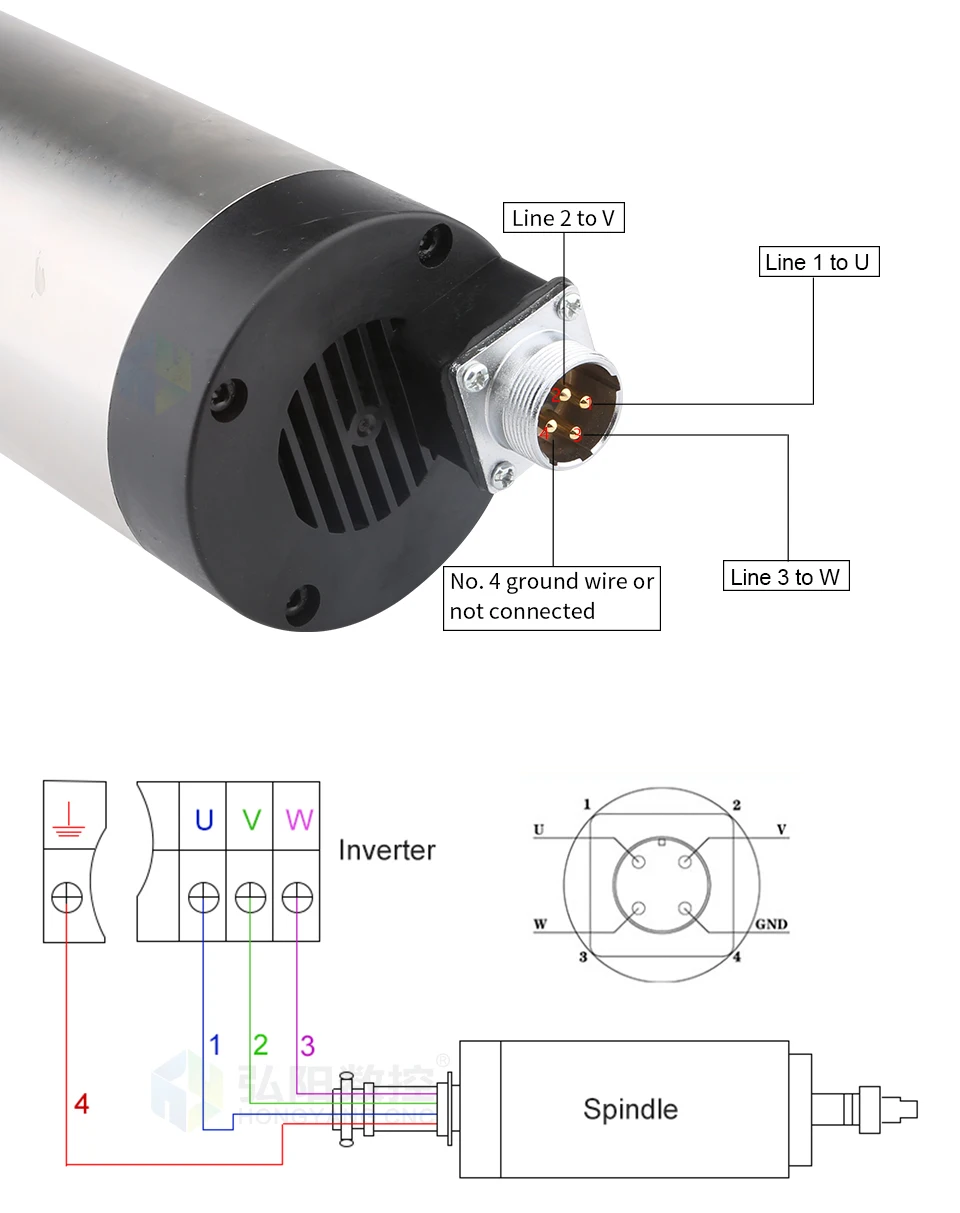

Power interface: optional 4 pin waterproof air plug.

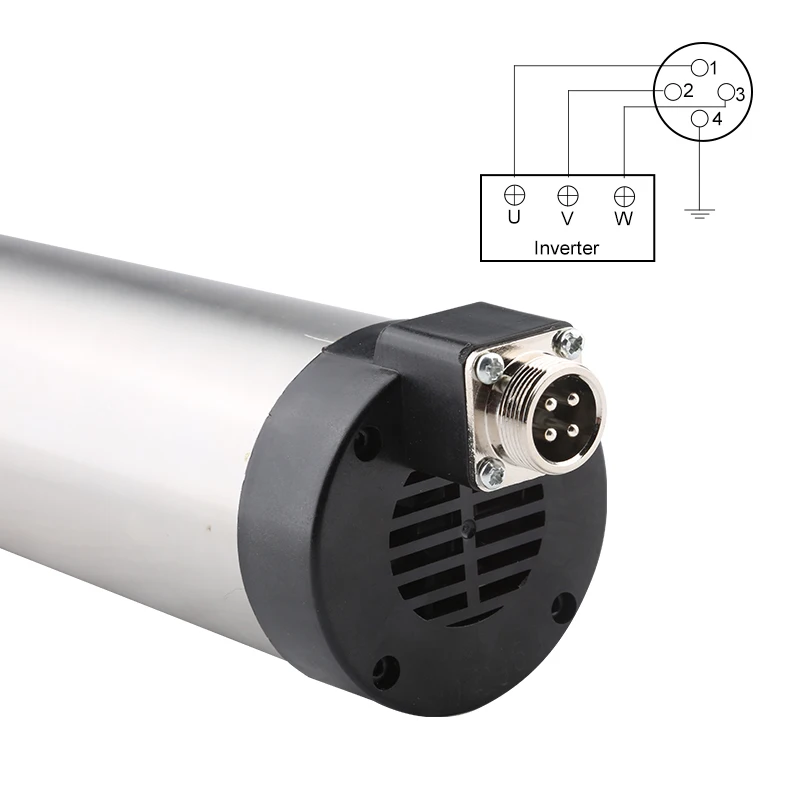

The gas plug labels "1", "2", "3", "4", "1", "2" and "3" are connected to the inverter (U, V, W), and 4 is connected to the
inverter.
Equipment grounding.
Power: 1.5KW
Voltage: 220v 380v
Current: 8.0A
Frequency: 0-400 Hz
Speed: 0-24000RPM
Jumping: less than 0.01mm
Diameter (mm): 80mm

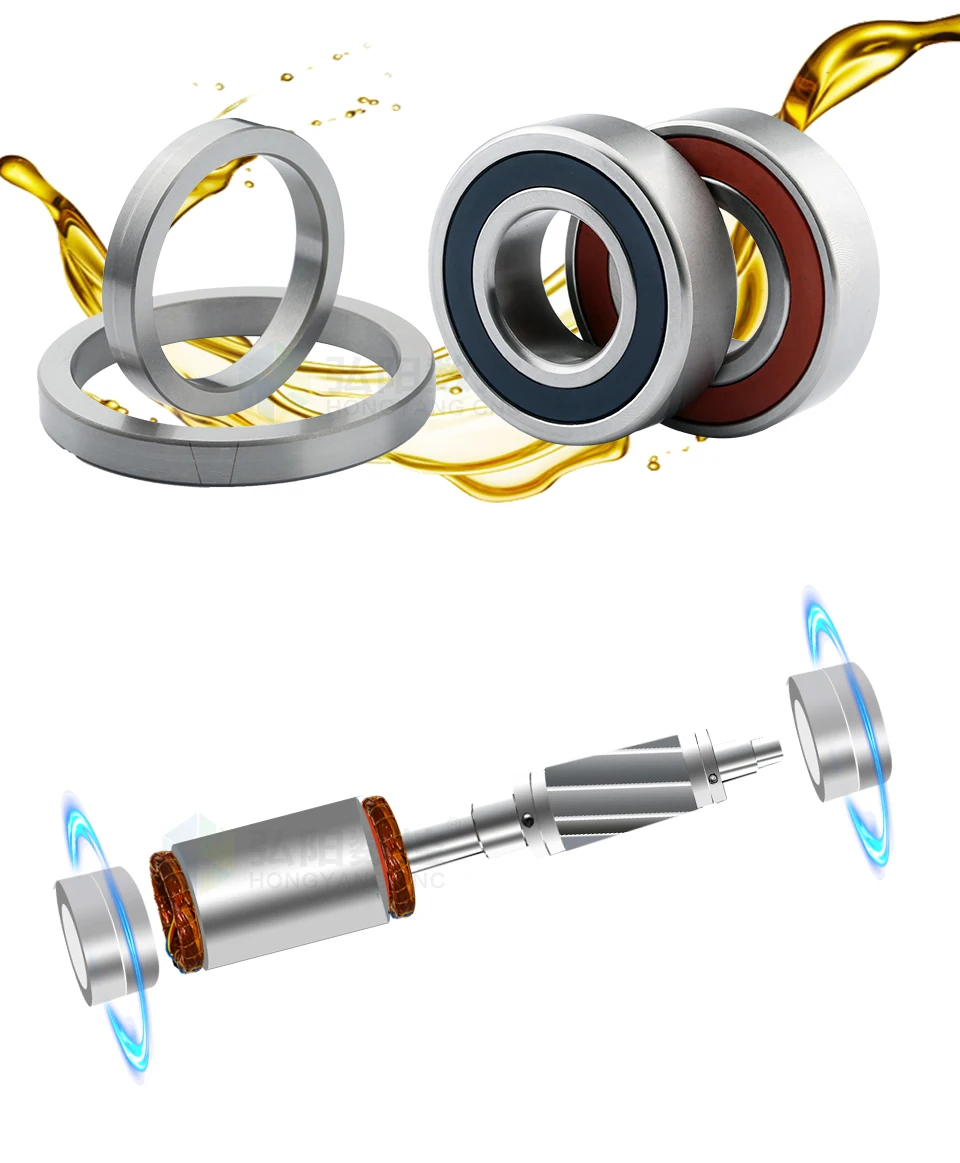

4 fully sealed angular contact bearings

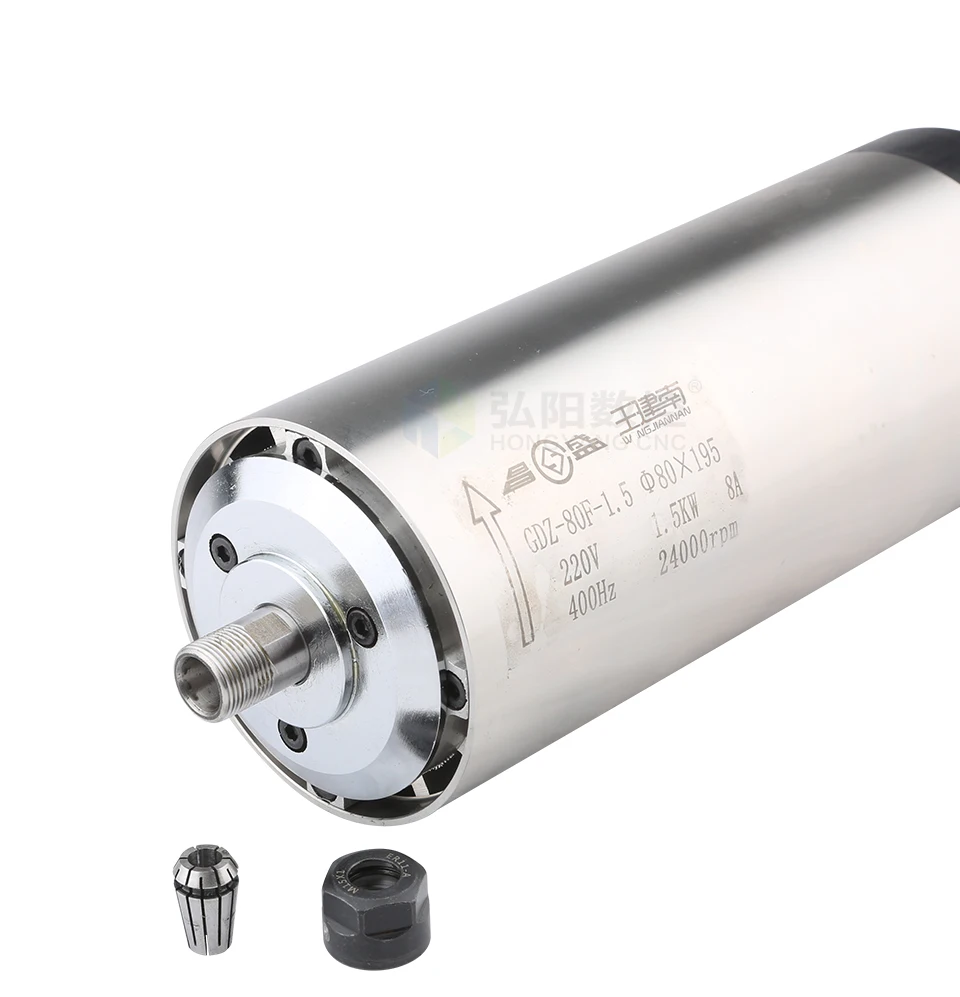

Chuck: ER11
Grease lubrication

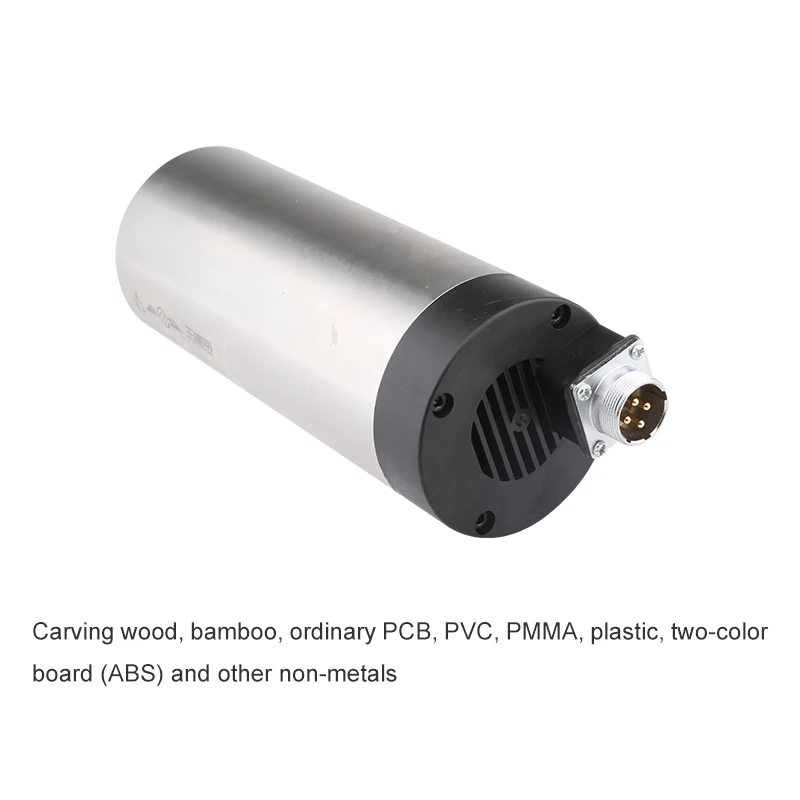

Main applications: for wood, bamboo, ordinary PCB, PVC, PMMA, plastic, bamboo, ABS and other non-metal carving.
Speed regulation mode: can change the spindle speed through the three-phase output inverter, adjust the frequency of the inverter.
Cooling method: wind cooling
Power interface: optional 4 pin waterproof air plug.
The gas plug labels "1", "2", "3", "4", "1", "2" and "3" are connected to the inverter (U, V, W), and 4 is connected to the
inverter.
Equipment grounding.
Power: 1.5KW
Voltage: 220v 380v
Current: 8.0A
Frequency: 0-400 Hz
Speed: 0-24000RPM
Jumping: less than 0.01mm
Diameter (mm): 80mm
4 fully sealed angular contact bearings
Chuck: ER11
Grease lubrication
Main applications: for wood, bamboo, ordinary PCB, PVC, PMMA, plastic, bamboo, ABS and other non-metal carving.
●The working environment temperature of the spindle is usually -10~40.
●Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
●Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
1. Different cooling methods: The water-cooled spindle motor uses water circulation to cool the heat generated after the spindle rotates at a high speed, and the spindle motor uses fan cooling for cooling.
2. Noise: The water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very large.
3. Life: water-cooled spindle motor should pay attention to maintenance, often change water or use industrial water cooler,
air-cooled spindle fan mainly blows heat to the heat sink by wind to achieve cooling effect.
4. If you need to use metal, hardwood, granite, stone, you can choose metal mandrel. Metal mandrels are much better than wooden mandrels.
2. Noise: The water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very large.
3. Life: water-cooled spindle motor should pay attention to maintenance, often change water or use industrial water cooler,
air-cooled spindle fan mainly blows heat to the heat sink by wind to achieve cooling effect.
4. If you need to use metal, hardwood, granite, stone, you can choose metal mandrel. Metal mandrels are much better than wooden mandrels.
