12 Volt 100 Ah Battery Lifepo4 12v 100ah lithium ion batteries 12.8v 300ah 12V 24V Lithium Battery 200ah
- Category: >>>
- Supplier: Shenzhen Swalle Technology Co. Ltd.
Share on (1601050288001):
Product Overview
Description
Products Description

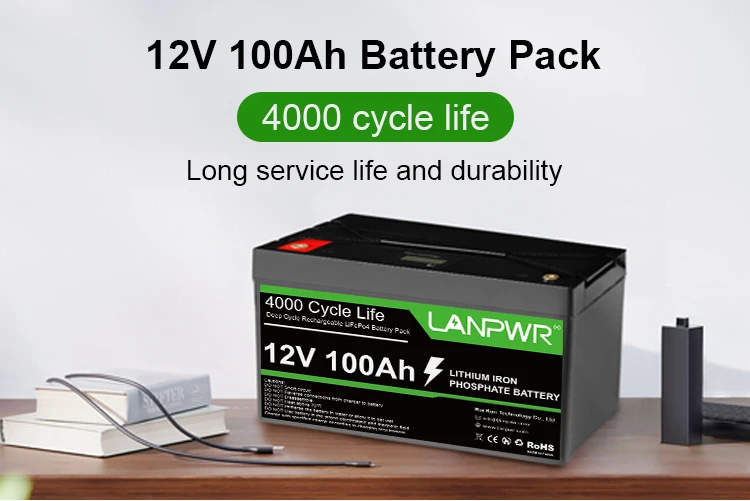

LANPWR lifepo4 5 years warranty 12v 24v 200ah 100ah 50ah 500ah battery for RV solar 12 volt lithium battery 100ah
Higher Power: Delivers twice power of lead acid battery,evern high discharge rate, while maintaining high energy capacity Wider Temperature Range:-20℃-75℃
Superior Safety:Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility:Modular design enables deployment of up to four batteries in series and up to four batteries in parallel.
Superior Safety:Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility:Modular design enables deployment of up to four batteries in series and up to four batteries in parallel.
Electrical Characteritics | Nominal Voltage | 12.8V | ||
Nominal Capacity | 100Ah(C5,25℃） | |||
Energy | 1280Wh | |||
Internal Resistance | ≤60mΩ | |||
Cycle Life | ≥2000 times@0.2C 100% DOD | |||
Months Self Discharge | ＜3% | |||
Efficiency of Charge | 100% @ 0.2C | |||
Efficiency of Discharge | 96-99%@1C | |||
Standard Charge | Charge Mode | 14.6 ±0.2V | ||
Charge cut-off voltage | 0.2C Charge to 14.6V,then 14.6V Charge to 0.02C cut-off | |||
Charge current | 20A | |||
Standard Discharge | Continuours current | 100A | ||
Max Pulse current | 300A(＜3s) | |||
Discharge cut-off voltage | 10V | |||
Environmental | Storage Temperature | -10℃ to 40℃ | ||
Charge Temperature | -5℃ to 45℃ | |||
Discharge Temperature | -20℃ to 60℃ | |||
Mechanical | Cell & Method | 3.2V 25AH-4S8P | ||
Plastic Case | ABS | |||
Dimensions | 522*240*218 mm | |||
Weight | 26.7kg | |||
Terminal | M8 | |||
Protocol | NO | |||

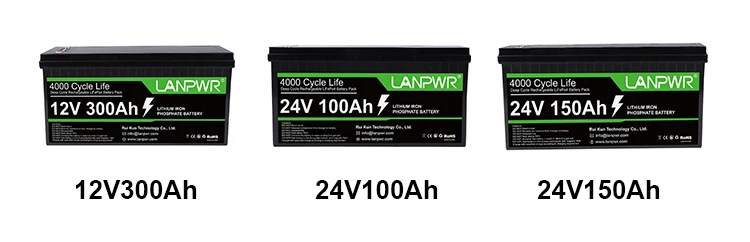

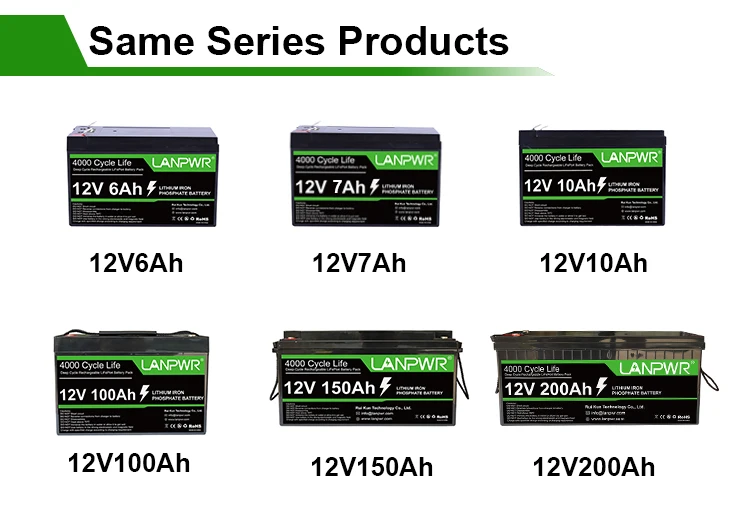

Recommend Products
Company Profile

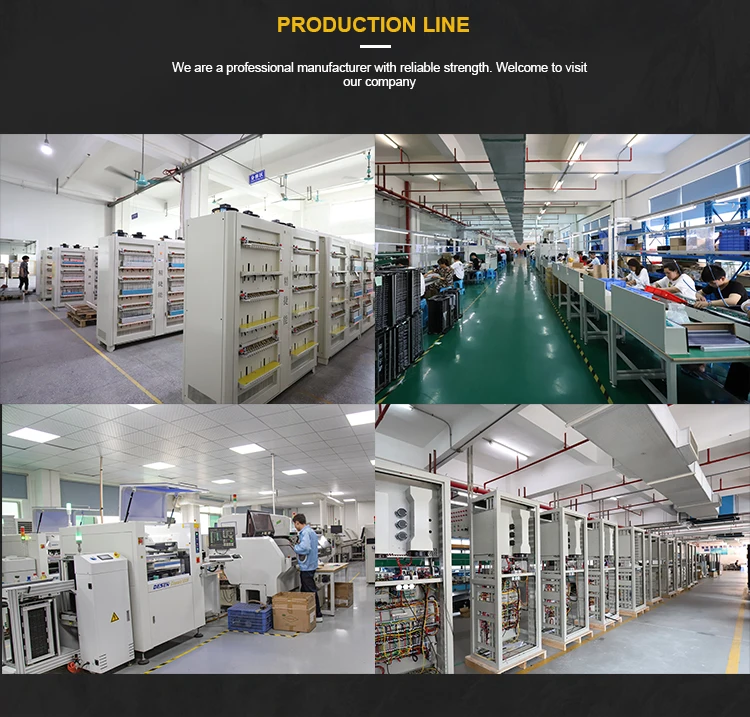

Production Line
Certifications
Packaging And Transportation
FAQ
1. Q:Do you offer samples for testing?
A: Yes,we offer samples for testing with cost paid by buyer.
2. Q:Do you have warranty?
A:Yes,Good after-sale service: 1 year warranty, provide the replacement or free accessory if any problems.
3. Q:What is your factory's advantage?
A: We have 10 years experience in battery R&D, with100% quality management and product test.
4. Q:Can you OEM/ODM the battery pack?
A: Yes,we are manufacturer,we have professional technicial team. We can customized the battery and battery pack based on your requirements.
5. Q: What's the main product of you factory?
A: Our main product is LiFepo4 Battery,Portable Power Station, Solar Panel, BMS, Solar inverter, including PCM and the total power system solution.
Contact us
Welcome to contact us
Overseas Sales Manager
Eric Xiao
Skype: robotsz9
Email: sales9(at)swalle.com
Mobile&WhatsApp: 86-15820408580
Wechat: chauvet512
Overseas Sales Manager
Eric Xiao
Skype: robotsz9
Email: sales9(at)swalle.com
Mobile&WhatsApp: 86-15820408580
Wechat: chauvet512
lifepo4 5 years warranty 12v 24v 200ah 100ah 50ah 500ah battery for RV solar 12 volt lithium battery 100ah

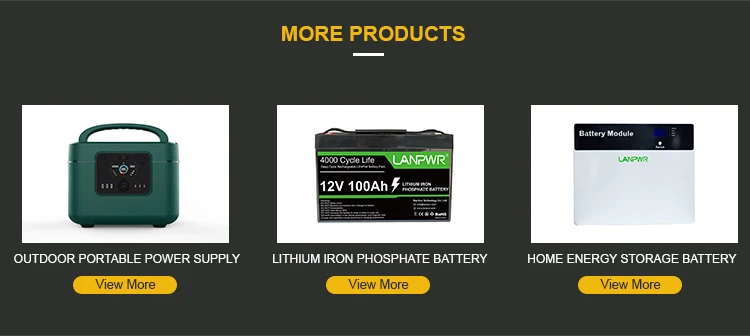

We Recommend
