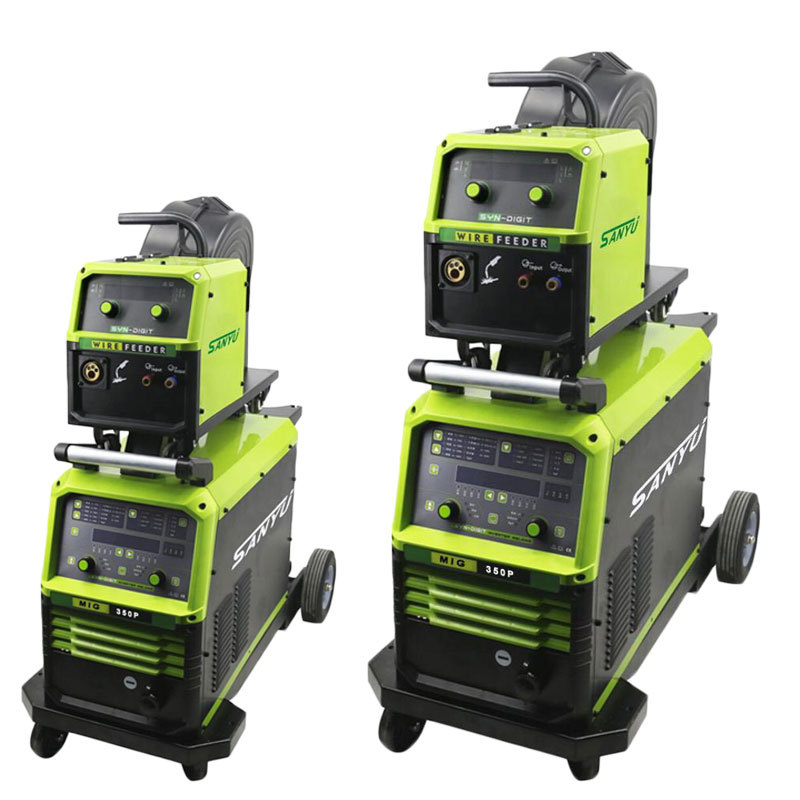

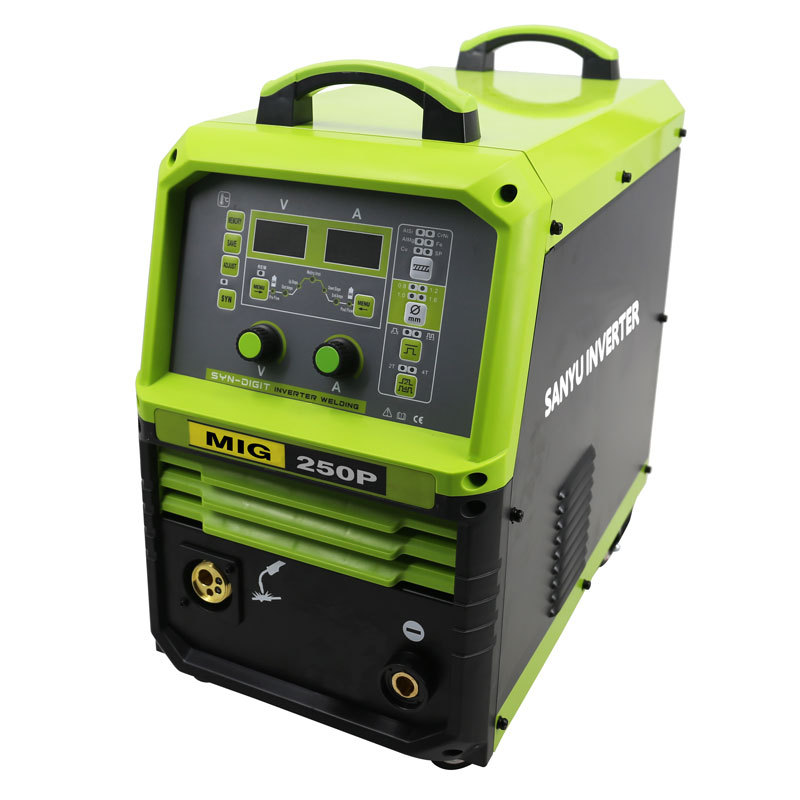

Sanyu MIG 250 300 350 500 Digital Inverter Pulse Gas Shielded MIG Welder Arc Welder

Product Overview

Description

Functions & Features

1.New Appearance Design, Compact Digital Control Panel, SYN Adjustment;
2.Integrated Wire Feeder With Double Drive Wire Feeder, Ensure Wire Feeding Stable;
3.Single Pulse and Double Pulse Can Be Chosen, Especially Suitable For  Super-thin 0.45mm Aluminum Plate welding;
4.With Trolly, Easy To Move, High Convenience For MIG Welding;
5.International Brand IGBT And Rectify Tube;
6.Quick Welding Speed, Little Splash, Deep Pool,Good Welding Appearance;
7.High Duty Cycle,Efficiency Is 3 Times Of Traditional Argon Welding, Energy Saving,High Reliability;



Technical Specifications

Model	MIG-250P	MIG-300P	MIG-350P	MIG-500P
Input Power Voltage(VAC)	1PH AC 220V/3PH AC 380V	1PH AC 220V/3PH AC 380V	3PH AC 380V	3PH AC 380V
Rated Input Capacity(KVA)	6.4	9.2	15.8	24.4
Rated Input Current(A)	29/9.8	42/14	24	37
No-load  Voltage(V)	45	45	65	65
Output Current Range(A)	50-220	50-250	50-350	50-500
Rated Duty Cycle(%)	60	60	60	60
Diameter Of Rod(mm)	φ0.8-1.2	φ0.8-1.2	φ0.8-1.6	φ0.8-1.6
Insulation Class	F	F	F	F
Protection Class	IP21	IP21	IP21	IP21
Efficiency(%)	85	85	85	85
Power Factor( cosφ)	0.93	0.93	0.93	0.93
Weight(kg)	41+18	41+18	52+20	55+20
Packing Dimensions(cm)	94*46*65	94*46*65	99*48*71	99*48*71









Quality Control:



 Packing and Delivery:



Service:

1. SANYU focus on the welding field for 20 years, familiar with the welding industry, provide pre-sales technical consultation, and welding solutions.
2.18 months warranty period, feedback within 24 hours, lifetime after-sales service.Spare parts will be provided free of charge for any problem during the warranty period
3. The product can be customized according to customer requirements, such as the functions, logo,color and so on.
4.CE,3C,ISO certification, strict testing and packing before shipping, to ensure product in good quality.
5.SANYU provide a variety of delivery methods for customers, such as sea, air, express and self-pick for customers to choose.



FAQ:

1.Q: Are you a factory or trading company?
A: We are trading company with our own factory with more than 10 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.





2.Q: Can I get some samples?
A: Yes,we are glad to offer you samples.After price and order confirmed, the samples fee will be regressed.



3.Q: When can I get the products?
A: You products will be arrived your the nearest domestic port after order confirmed, it's about 30 days.





4.Q: How does your factory do regarding quality control?
A: Our factory has gained SAA certificate and EMC certificate and ISO9002 authentication. Quality
makes us who we are today. We focus on the quality from the very beginning to the end.



5.Can I buy other factory's products directly from you?
A: Yes, of course. There are already many customers cooperating with us in this way. We have over 10 years .in the business with extensive knowledge of technology and market.Our good reputation in China has been awarded by Alibaba Group as its seleced business partner.
