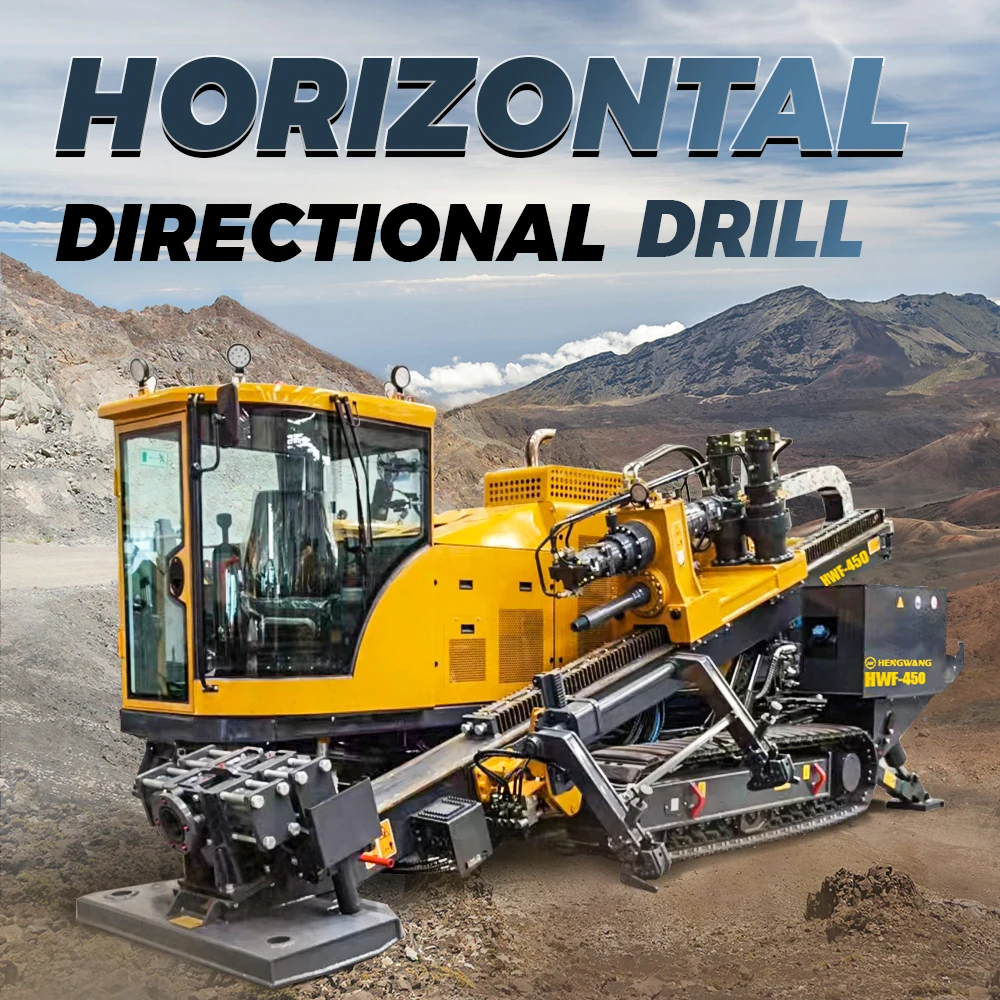

Mini buried wire trenchless Machine HWF460 Horizontal Directional Drilling Rig Machine 450KN Hengwang HDD with Tool Kits
- Category: >>>
- Supplier: Jining Fangze Machinery Co. Ltd.
Share on (1601050809102):
Product Overview
Description

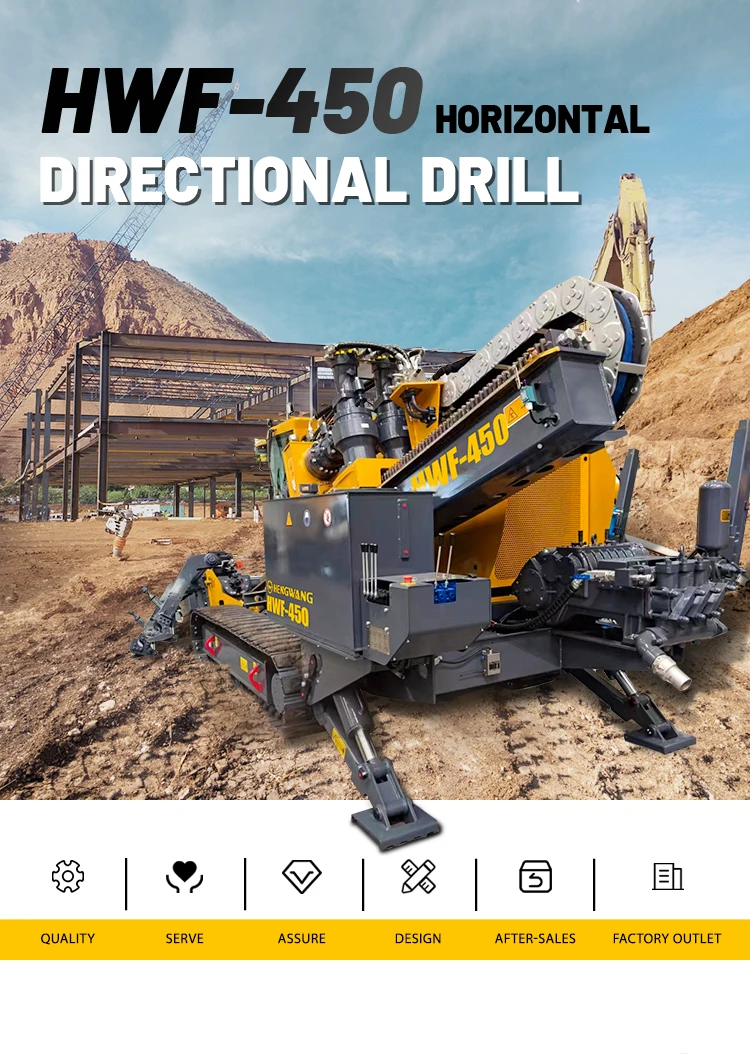

Mini buried wire trenchless Machine HWF450 Horizontal Directional Drilling Rig Machine 450KN Hengwang HDD with Tool Kits
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！
Product Description
Horizontal directional drill rig is driven with full hydraulic system, propelled with its own crawlers. Driven with duplex zero motors, the rotator could drill with two speeds with an advanced and compact structure, adopting chain feeding system driven by motor, the motor could move stably and reliably, the mast could be adjusted for the angle of drilling holes from 8°to 16°. The overall unit is in low center of gravity and good stability with graceful structure, an auxiliary crane equipped to the horizontal directional drill rig, a comfortable operation circumstance provided for the operator. Basing on the idea of purchasing internationally, the main matching parts and auxiliary equipments, such as diesel engine, hydraulic pumps, valves, motors, reducer and key hydraulic accessories are all adopted in famous brand at home and abroad.

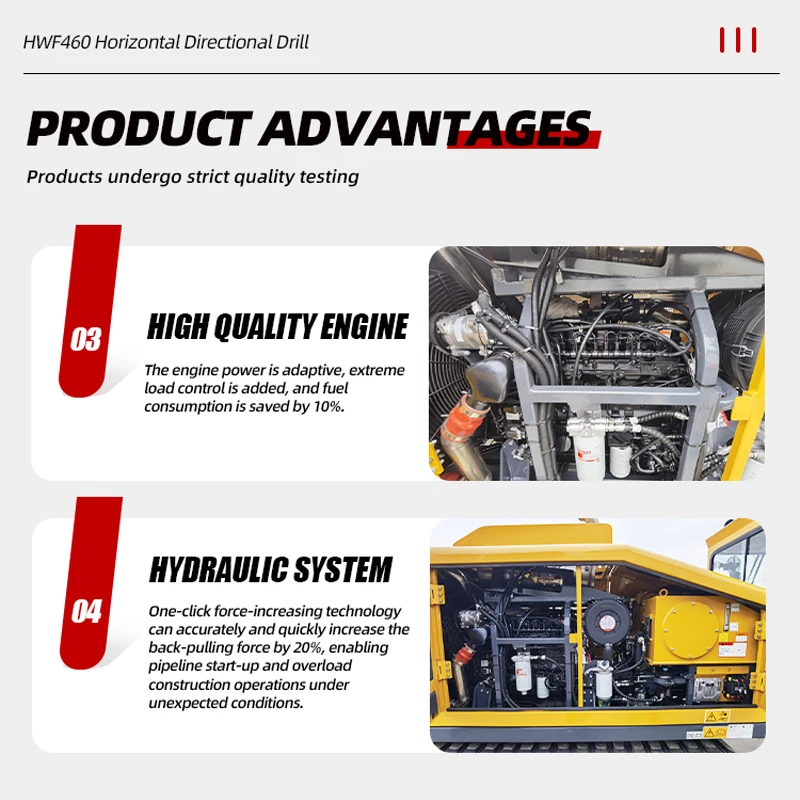

Machine Features

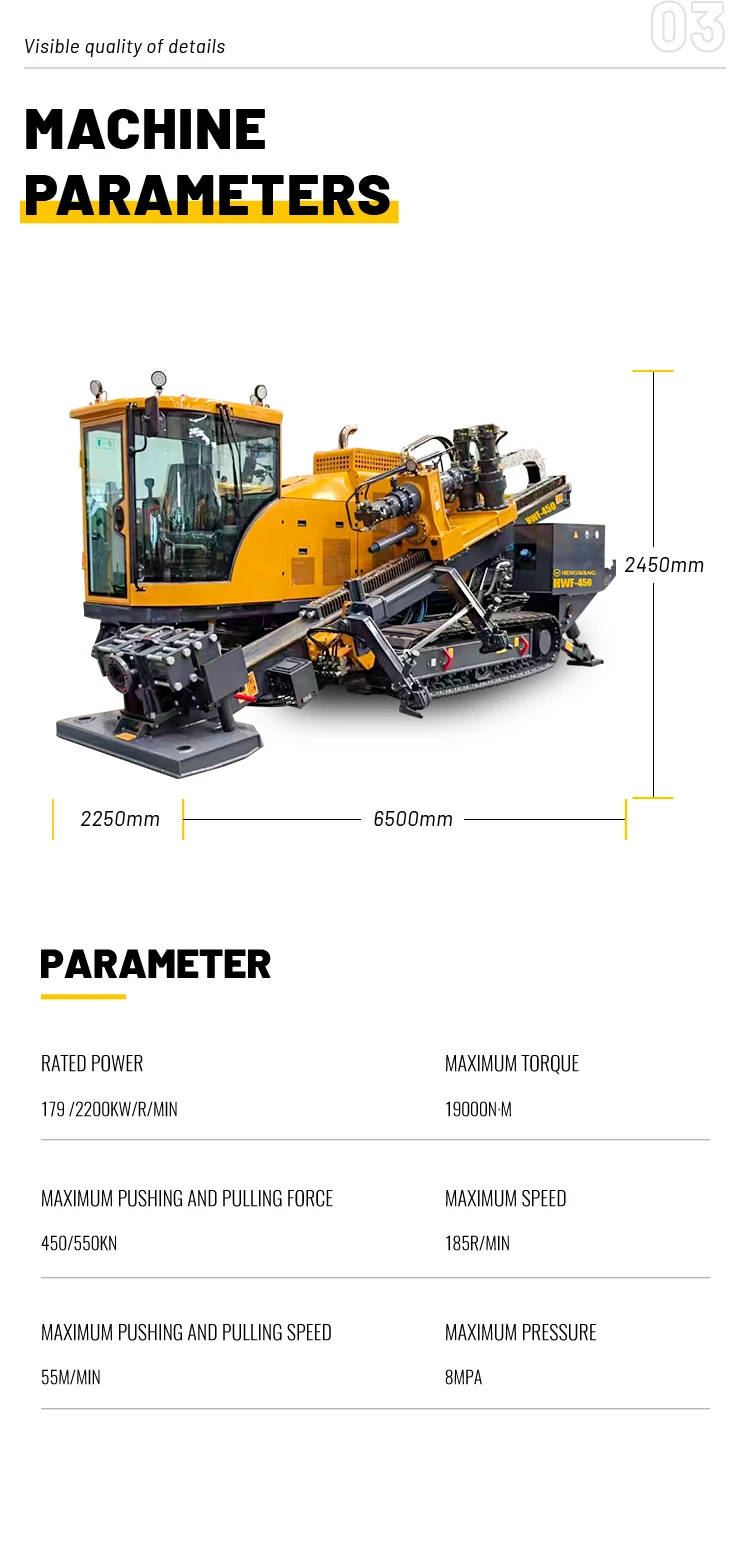

Product Paramenters
Specification for HWF450 Horizontal Directional Drilling Rig | ||
Model | HWF450 | |
Engine | Cummins | |
Dimensions（mm ) | 6500*2250*2610 | |
Rated power（KW) | 179 | |
Rotary Speed（rpm) | 2200 | |
Pushing Force（KN） | 450 | |
Pulling Force（KN） | 550 | |
Maximum pushing and pulling speed（m/min） | 55 | |
Torque（N·m ) | 19000 | |
Maximum speed（r/min ) | 185 | |
Mud pump Maximum pressure (Mpa) | 8 | |
Overall weight（kg) | 12500 | |
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！
Wide range of use
Mini buried wire trenchless Machine HWF450 Horizontal Directional Drilling Rig Machine 450KN Hengwang HDD with Tool Kits
Company Profile
Mini buried wire trenchless Machine HWF450 Horizontal Directional Drilling Rig Machine 450KN Hengwang HDD with Tool Kits
