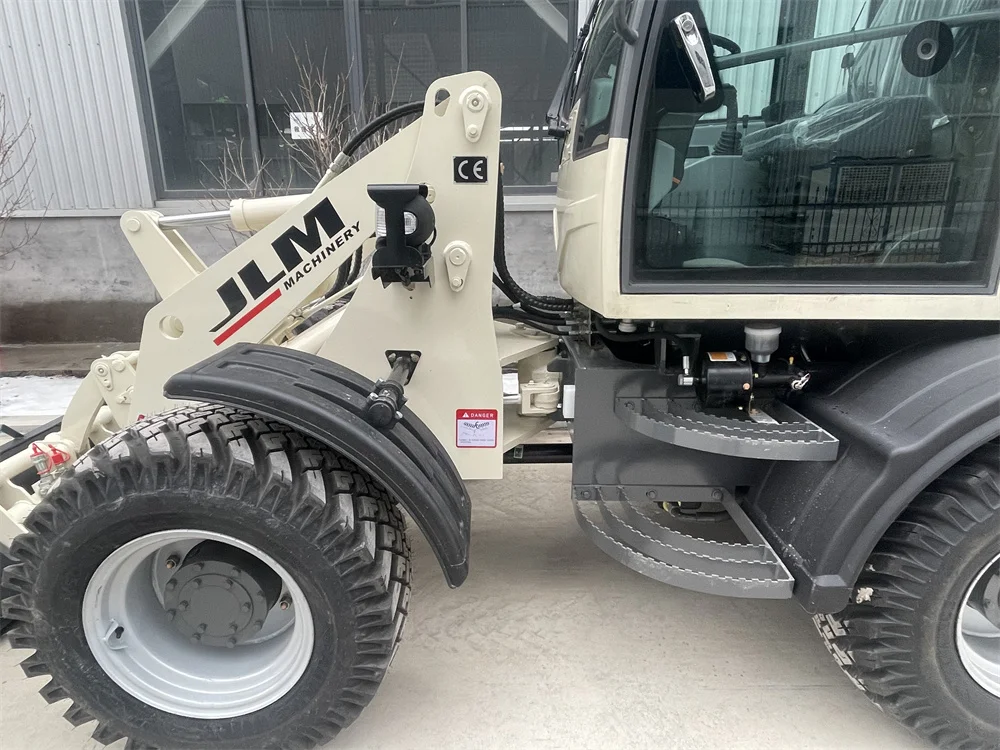

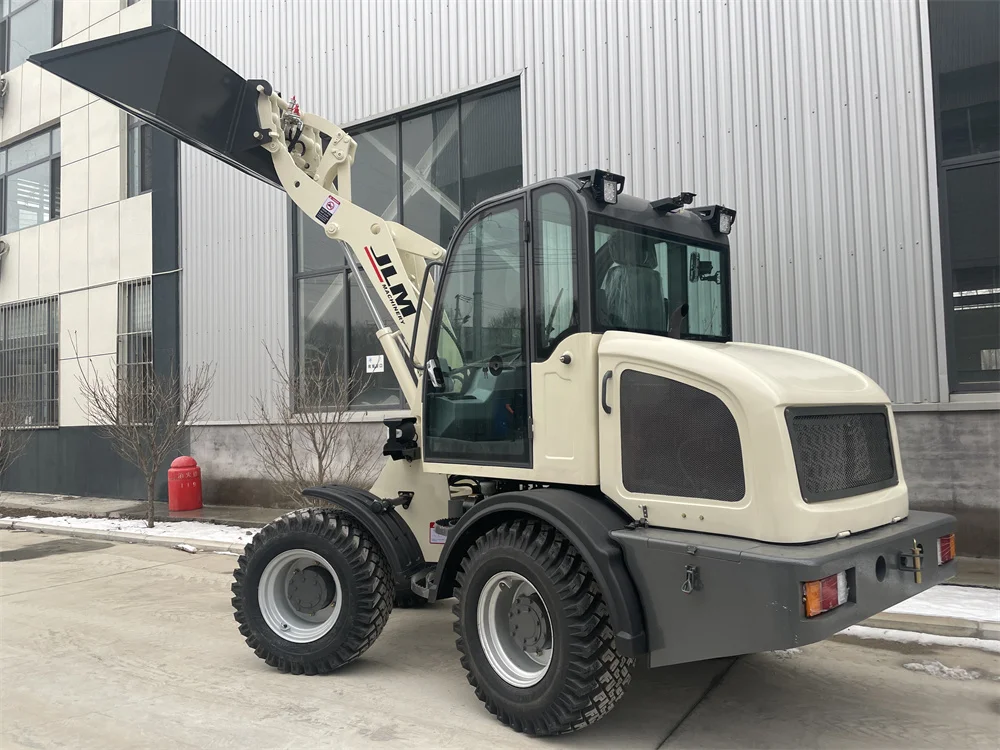

Jieli ZL15 Professional Chinese 2024 wheel loader four wheel drive loader front end wheel loader for cheap price
- Category: >>>
- Supplier: Qingzhou Jeili Machinery Co. Ltd.
Share on (1601050821744):
Product Overview
Description
The features of ZL15
a)The special part is the middle hinge joint to get a special way of swinging, So it has special functions, good passability and adapt to poor terrain to no any influence for the whole frame.
b)The distance is longer compare with other companies from middle hinge point to the middle of front wheel center, so more stable and lifting heavier.

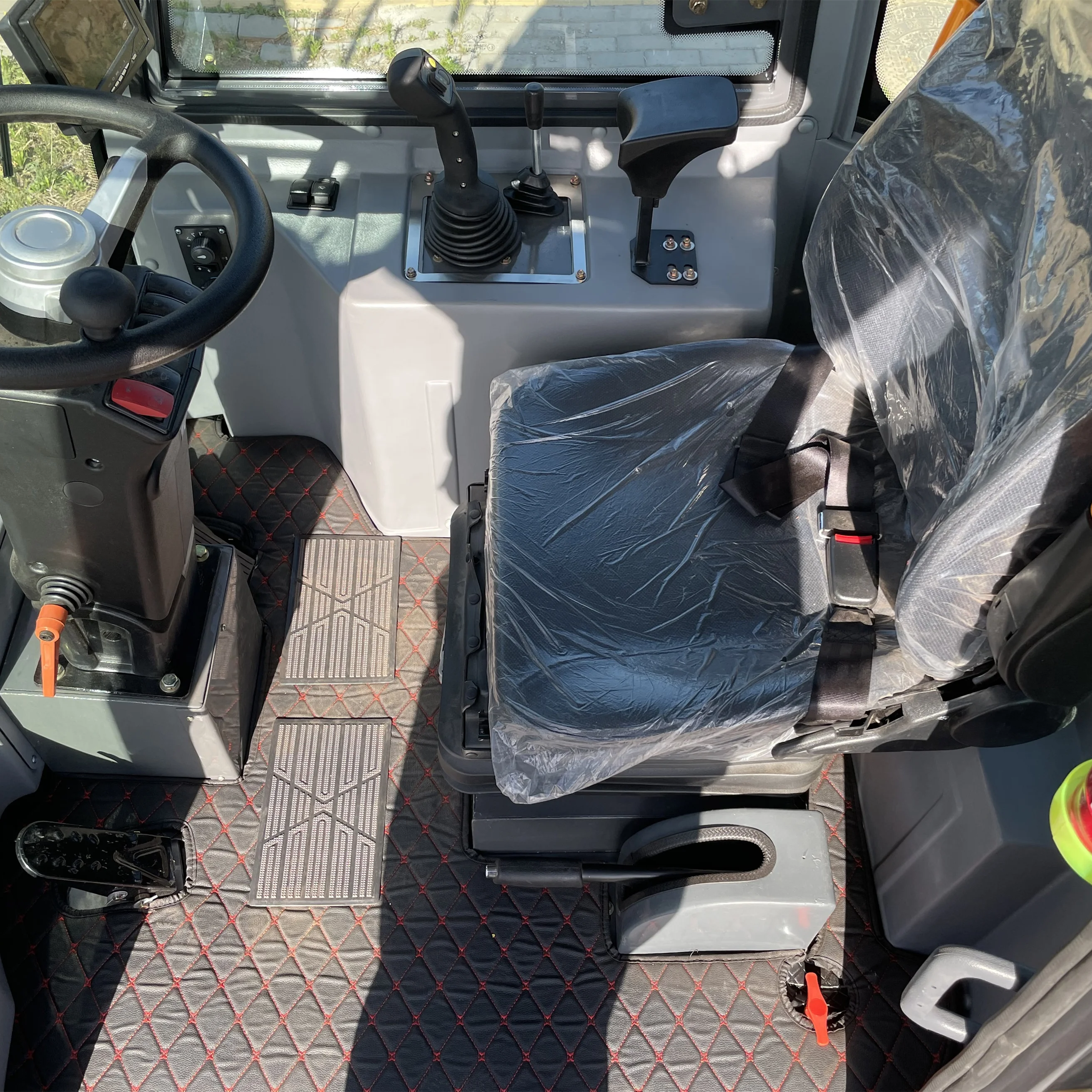

c)Special cabin only belong to our company, we designed it according to our experience that exported more 15 years to Europe market, more bigger and more width to get more better view when sit inside cabin.
d)The turning radius is the smallest compared with peers, and the turning is the most flexible.
Main Specification for ZL15 | |
Model | ZL15 |
Rated load(kg) | 1500 |
Bucket capacity(m3) | 0.8 |
Wheel distance(mm) | 2000 |
Axle-base(mm) | 2050 |
Loader clearance radius(mm) | 4600 |
Mini base to the ground(mm) | 310 |
Dump clearance(mm) | 2700 |
Distance acc.to the height(mm) | 900 |
Time of raise(s) | 4 |
Hydraulic cycle time(s) | 8.5 |
Turns to pick the strength mose greatly(kn) | 45 |
Drive ways | four are drive |
Torque Converter Model | YJ280 |
Gear Shift | 4 forward & 4 reverse shift |
Tyre size | 15.5/60-18 |
Operating weight(kg) | 4,000 |
Overall dimensions(mm) | 5000*1700*2550 |
Engine model | Xinchai euro-3,Yunnei Euro-5 |
Engine Type | Four strokes, Water cooling, Inline, injecting combustion chamber |
Cylinder No.-Bore*Stroke(mm) | 4-102*115 |
Engine rated power(kw) | 45KW |
Engine rated output(rpm) | 2500 |
