HC UV400 tunnel Furnace Drying Line Curing Machine PP PE cosmetic Plastic Glass Bottle cups jar Round Surface UV Curing Machine
- Category: >>>
- Supplier: Dongguan Hengxin Printing Equipment Co. Ltd.Dongguan Ltd.
Share on (1601050825057):
Product Overview
Description

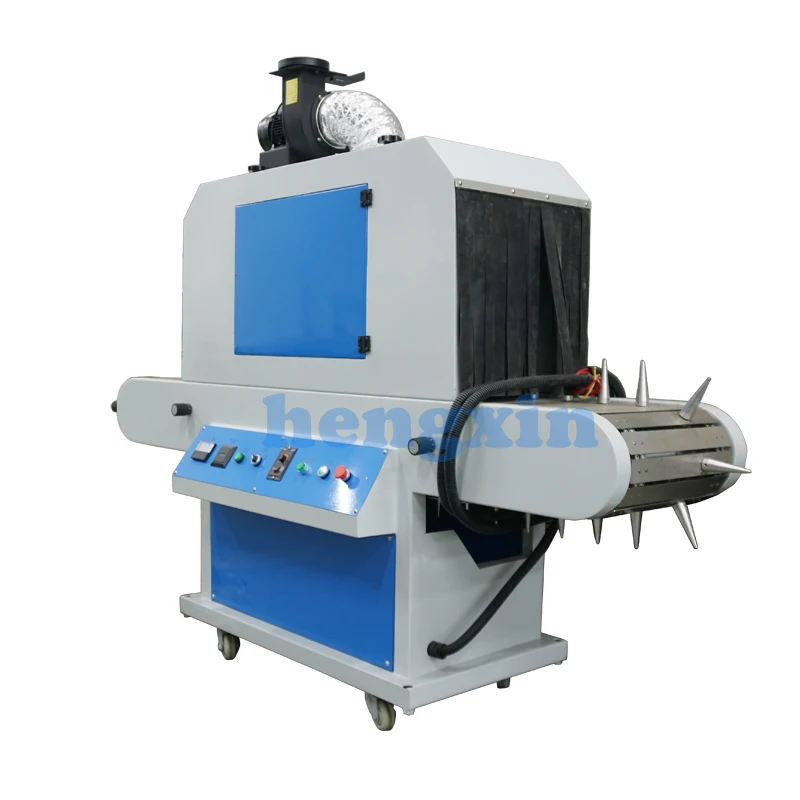

HC-UV400 tunnel Furnace Drying Line Curing Machine PP PE cosmetic Plastic Glass Bottle cups jar Round Surface UV Curing Machine
Tenique data:
Belt width | 300mm |
Curing oven width | 400mm |
Entry throat height | 0 ~ 100mm( adjustable ) |
Discharging throat height | 0 ~ 100mm( adjustable ) |
Drying air | Can be adjustable via cooling fan |
Whole machine length | 1.3M |
UV lamp | 2KW x 1pc, 1KW x 2pcs( control tubes respectively by independent switch |
Voltage | 220V |
Cooling fan power | 120W |
Conveyor motor | 120W |
Gross power | 5Kw |
Inner temperature | 40 ~ 100℃(adjustable) |
Transport speed | 3~5M/min( adjustable ) |
Machine dimension | 1300 x 550 x 1100mm |
Packing size | 1400 x 700 x 1300mm |
N.W. / G.W. | 120kg / 170kg |
Applicable range
Used for drying screen printing ink of UV ultraviolet (UV) light curing. UV curing machine can be used in UV light oil, grinding, wrinkles, snowflake, foaming, crystal convex oil, marble, refractive index, various UV color, etc.
Main performance
- 2 sets of UV light source system configuration, according to the number of open lamp production needs.
- Import Teflon conveyor belt, Seiko produced, smooth operation noise
- The belt speed motor and speed stainless speed conveyor speed visual production situation
- Convergent design, high light-gathering reflective chimney, instant drying speed, when the express.
- UV light height of chimney can be adjusted
- UV lamp working current can be shown by the master, UV analogue display system working condition
- Equipped with exquisite cooling system, prevent the working chamber at high temperature, the effective protection of production work environment.
Configuration:
1. UV light, high gather reflective chimney

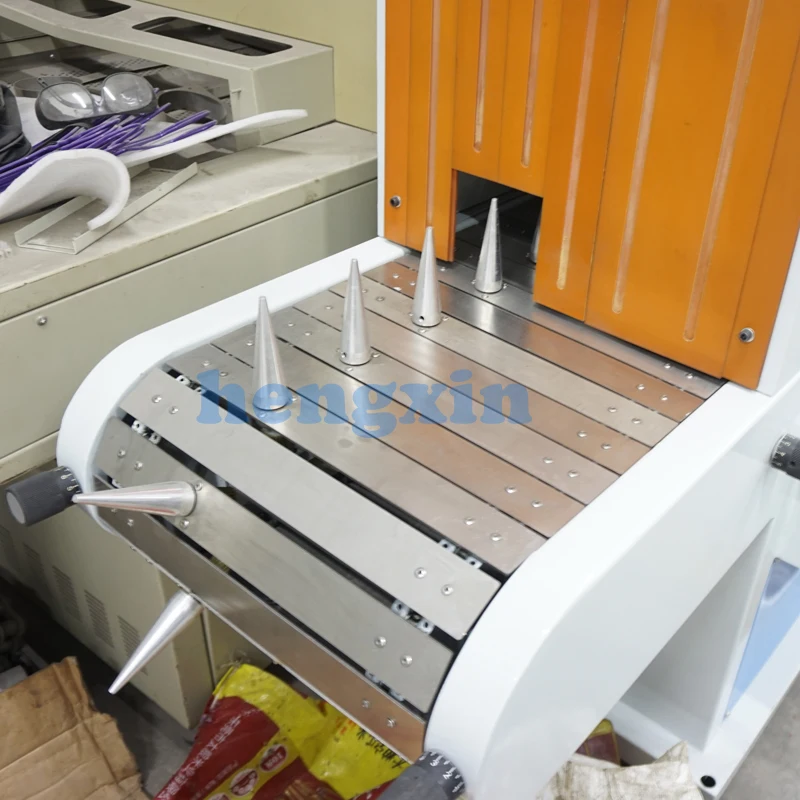

2. Teflon or stainless steel mesh belt
3. Stepless motor import from Taiwan
4. Manda brand cooling fan with high quality

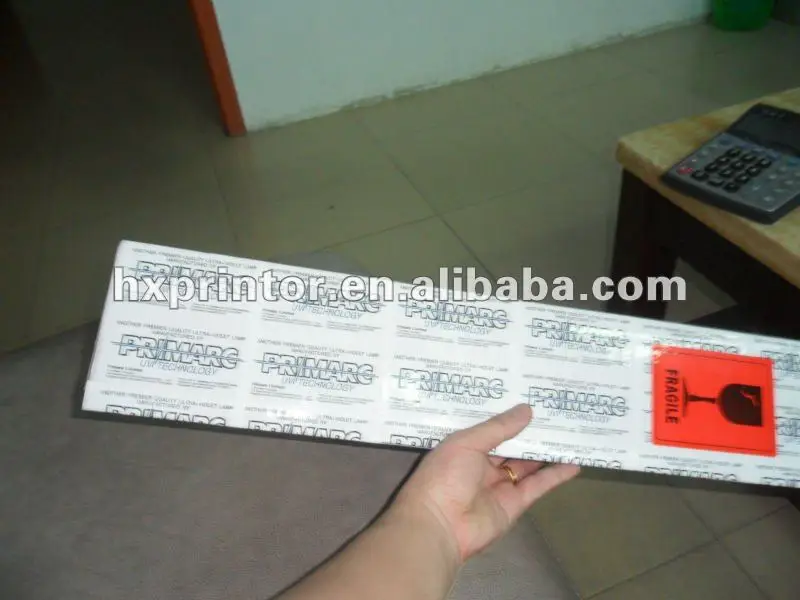

UV lamp photo:
Packaging & Shipping
Desktop laboratory uv curing equipment for screen printing
Wooden case with dustproof film rap, steel belt stable on pallet, metal locks for feet
Our Services
Desktop laboratory uv curing equipment for screen printing
Lifetime assist maintenance, full printing package kit support:

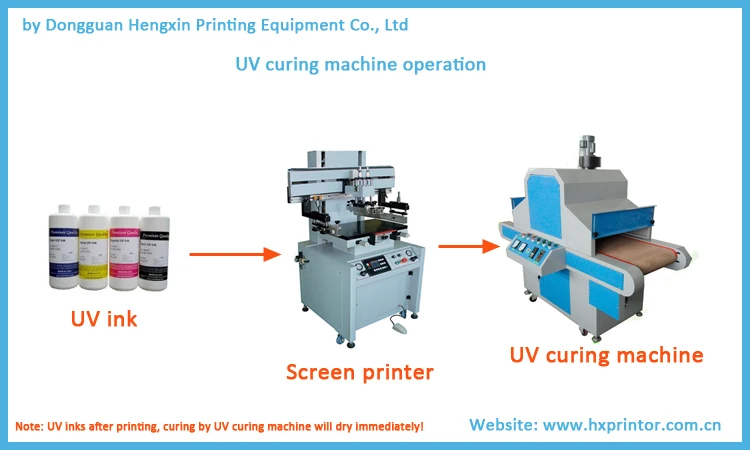

UV curing machine operating process:

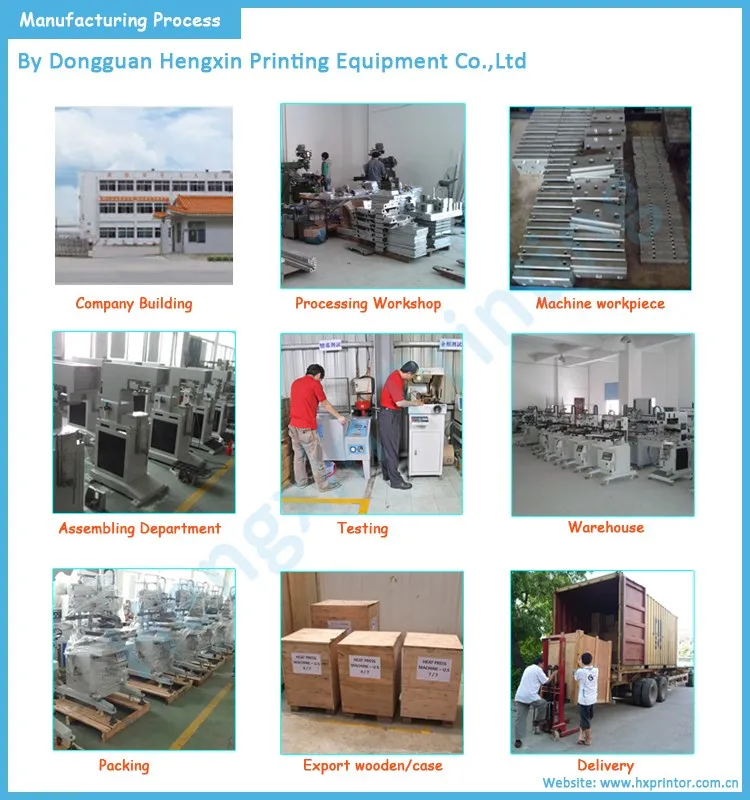

Company Information
Dongguan Hengxin Printing Equipment Co., Ltd. is a printing equipment company specialized in developing, manufacturing and selling printing equipment. We have earned a high reputation among clients for the quality of our products. We are the leading player in the printing equipment industry in domestic market. The "Hengxin" brand pad printers we developed have been awarded honorary titles for several times due to high quality and excellent performance. Our company takes pride in having a group of professional technical staff members. With our years of continuous efforts in innovation, we have developed a series of the best-selling printing equipment. In the meantime, we are also working as the sales agent of many well-known brand companies. Our technical expertise, coupled with our years of experience in serving clients in the overseas markets, enables us to provide high quality products and services for our customers from all over the world. Our business philosophy is "integrity, honesty, sincerity and accountability".
FAQ
1. Payment terms: T/T or WU 50% deposit in advance, balanced before shipping upon inspection
2. Adopt top-class UV lamp, durable
3. Equipped with tunnel conveyor, easy to
Certificates:
