API 70 shot catch overshot with fishing drum FOR Drill pipe

API 70 shot catch overshot with fishing drum FOR Drill pipe

Category: >>>
Supplier: Shandong Sunrise Petroleum Equipment Co. Ltd.

Price:$500.00

Quantity:

Product Overview

Description

Product Overview

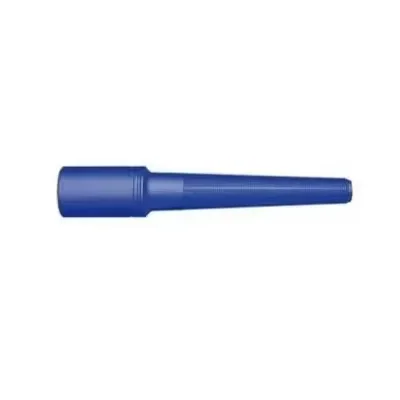

Taper tap

Taper tap is a special tool cutting thread and fishing internally in dropped objects such as tubing, drill-pipe, wash-over pipe,
packer, water flow allocator, down-hole production allocator. The tool is especially a great success in catch of objects
accompanied with couplings. The taper tap can effect different fishing operations when equipped with RH thread or LH thread drill
pipes and other tools.

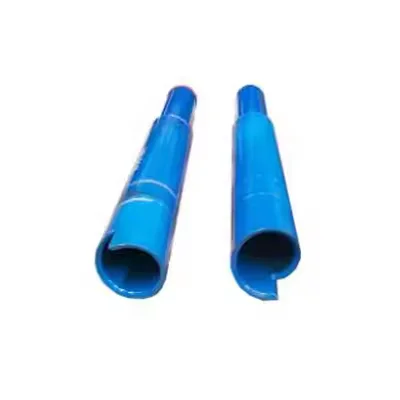

Die collar

Die collar is a special external fishing tool which is engaged on the outside wall of tubing objects such as oil tubing and drill
pipe. It can be used in fishing cylindrical objects without inner bore or stucked inner bore.

FEATURES AT A GLANCE

PRODUCT SPECIFICATIONS

Type	Connection	Overall Length (inch)	Fishing I.D.Range (inch)
GZ-NC31-LH-1	NC31 LH	63-9/32	1-17/32~2-3/32
GZ-NC31-2	NC31	22-23/32	2-13/64~2-23/64
GZ-NC38-7	NC38	33-55/64	3-5/16~4-11/64
GZ-NC38-8	NC38	33-55/64	4-11/16~5-35/64
GZ-NC38-9	NC38	37-13/32	3-13/16~4-59/64
GZ-NC38-10	NC38	27-61/64	3-27/64~3-15/16
GZ-NC50-11	NC50	44-31/64	3-1/4~4-49/64
GZ-NC50-12	NC50	36-5/8	2-3/4~3-3/4
