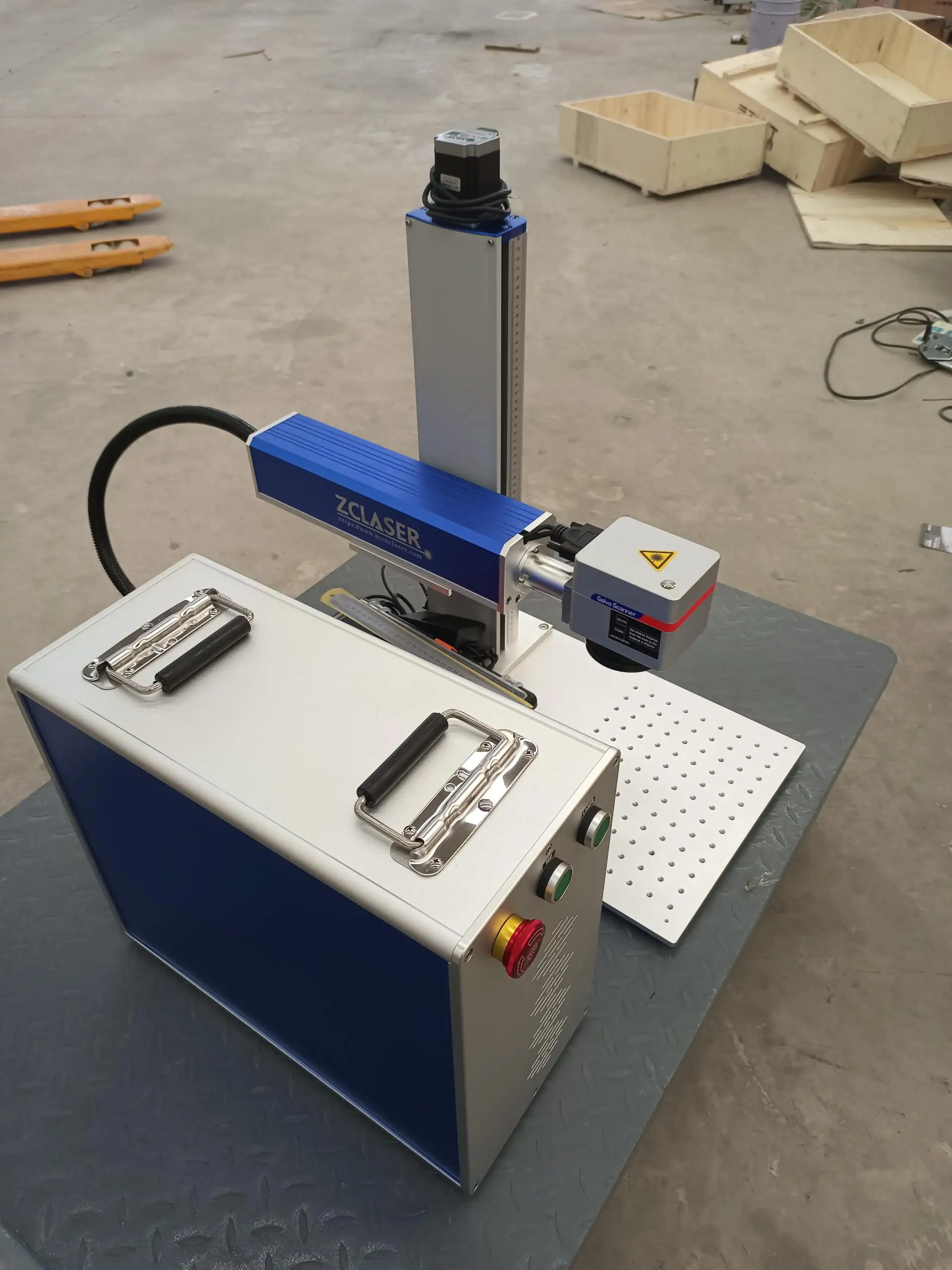

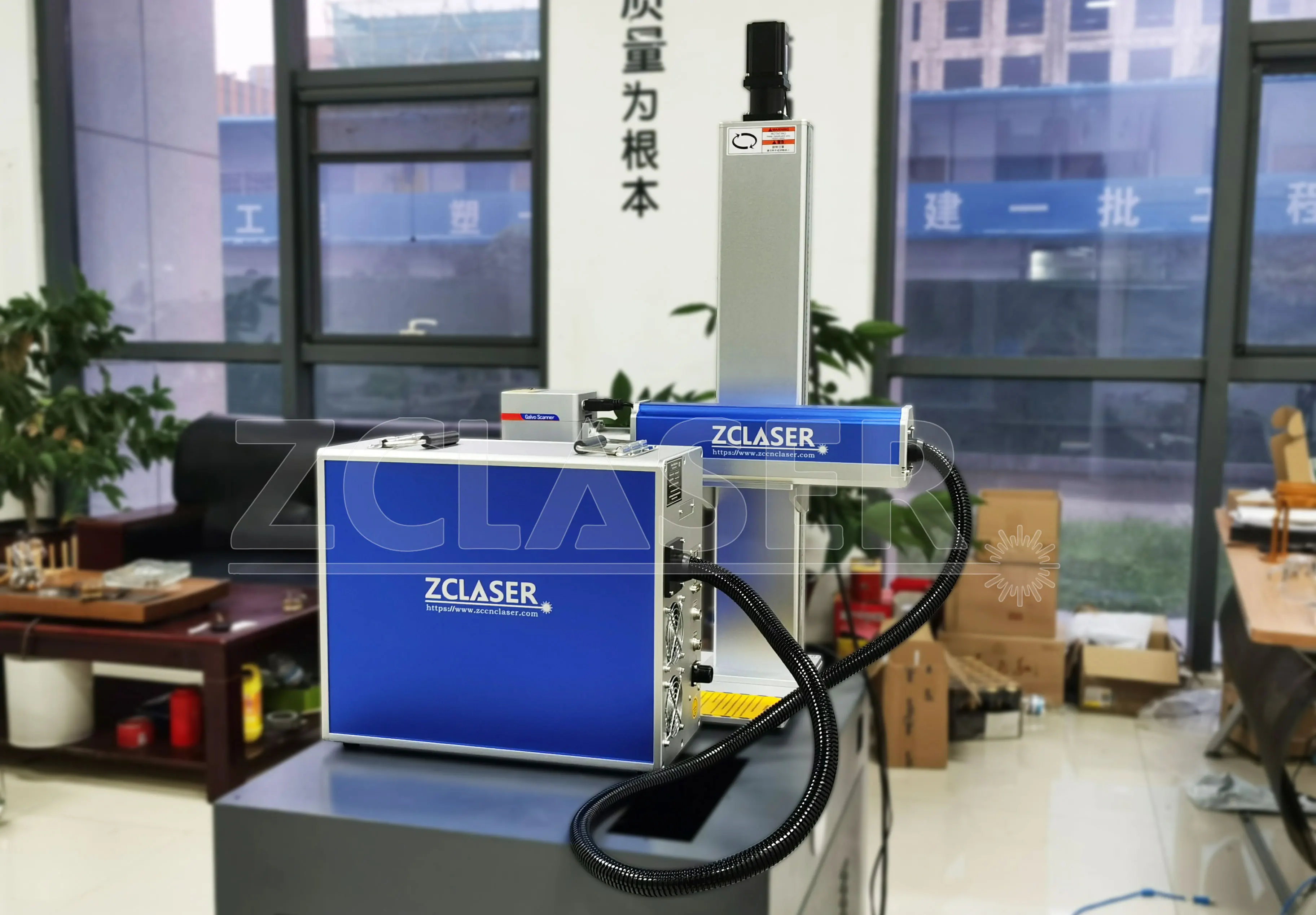

Portable 3d 20w 30w 50w 80w 100w Jpt Raycus Mopa M7 Engraver Rotary Fiber Laser Engraving Marking Machine For Guns Jewelry
- Category: >>>
- Supplier: Jinan Zhancheng Automation Equipment Co. LTD
Share on (1601050973498):
Product Overview
Description

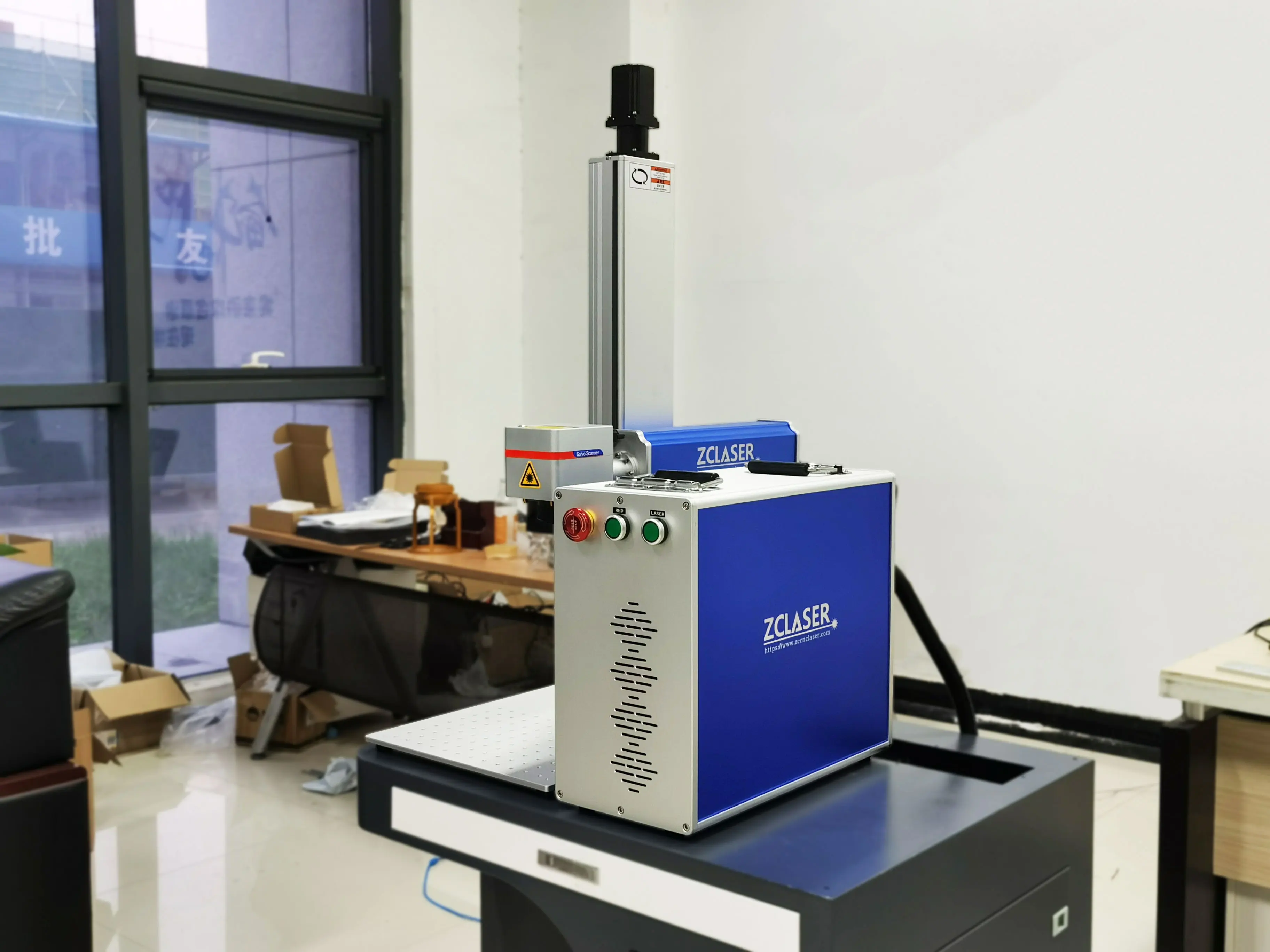

Portable 3d 20w 30w 50w 80w 100w Jpt Raycus Mopa M7 Engraver Rotary Fiber Laser Engraving Marking Machine For Guns Jewelry
Product Description
Laser Marking Machine Features

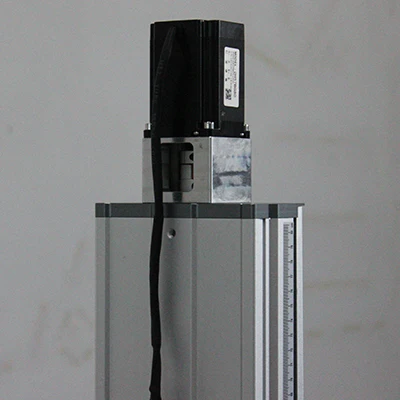

The 2.5D Z axis is responsible for adjusting the focal length of the center circle pointon the processing plane, as the engraving depth changes, the Z-axis will do fine-tuning of the following depth so as to achieve precision micro-machining fields such as relief and small-format micro-hole machining.
2.5D laser marking machine can deep engrave on flat metal.
Differences Between 2.5D and 3D Laser Marking Machine
1). 2.5D fiber laser marking engraving machine is the upgrading system based on 2D laser. Coming with motorized Z-axis auto focus function and EZCAD3 3D software for 3D relief engraving function to achieve precision micro-machining fields such as relief and small-format micro-hole machining.

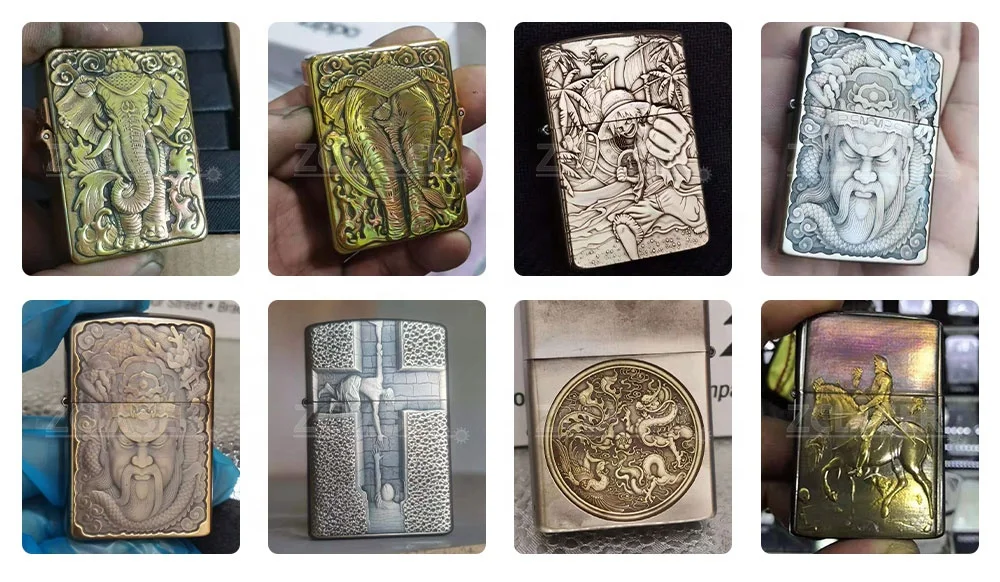

2.5D laser marking machine can deep engrave on flat metal. And much economic cost than 3D machine.2). 3D fiber laser marking engraving machine adopts 3D Dynamic focusing galvo head and 3D software, compare with ordinary 2D laser marking machine.Ordinary 2D scanning head only have two mirrors, but 3D scanning head have three mirrors. The third mirrors can move forward and backward. This is the key technology of 3D laser marking machine for marking curve surface on metal and partial of nonmetal. 3D laser marking machine outstanding functions are large format deep engraving metal, relief engraving coin mold and curve surface marking.Advantages of high precision mold metal engraving, large size metal plate deep engraving, metal coin relief carving.
Laser Power | 20W | 30W | 50W | |||
Parameter | Laser Wavelength | 1064nm | ||||
Parameter | Marking Speed | 7000mm/s | ||||
Min Line Width | 0.012mm | |||||
Power Supply | AC220V/50Hz | |||||
Marking Depth | ≤0.4mm(By materials) | |||||
Marking Area | 110*110/150*150/175*175/220*220/330*330 (mm) | |||||
Cooling System | Air Cooling | |||||
Specification | Laser Source | Raycus, Max, IPG, JPT (optional) | ||||
Laser Head | Sino-Galvo Scanning Head | |||||
Control Board | JCZ, BSL (optional) | |||||
Field Lens | Wavelength Lens | |||||
Control Software | EZCAD / BSLAPP | |||||
Power Supply | Taiwan MeanWell | |||||
Details

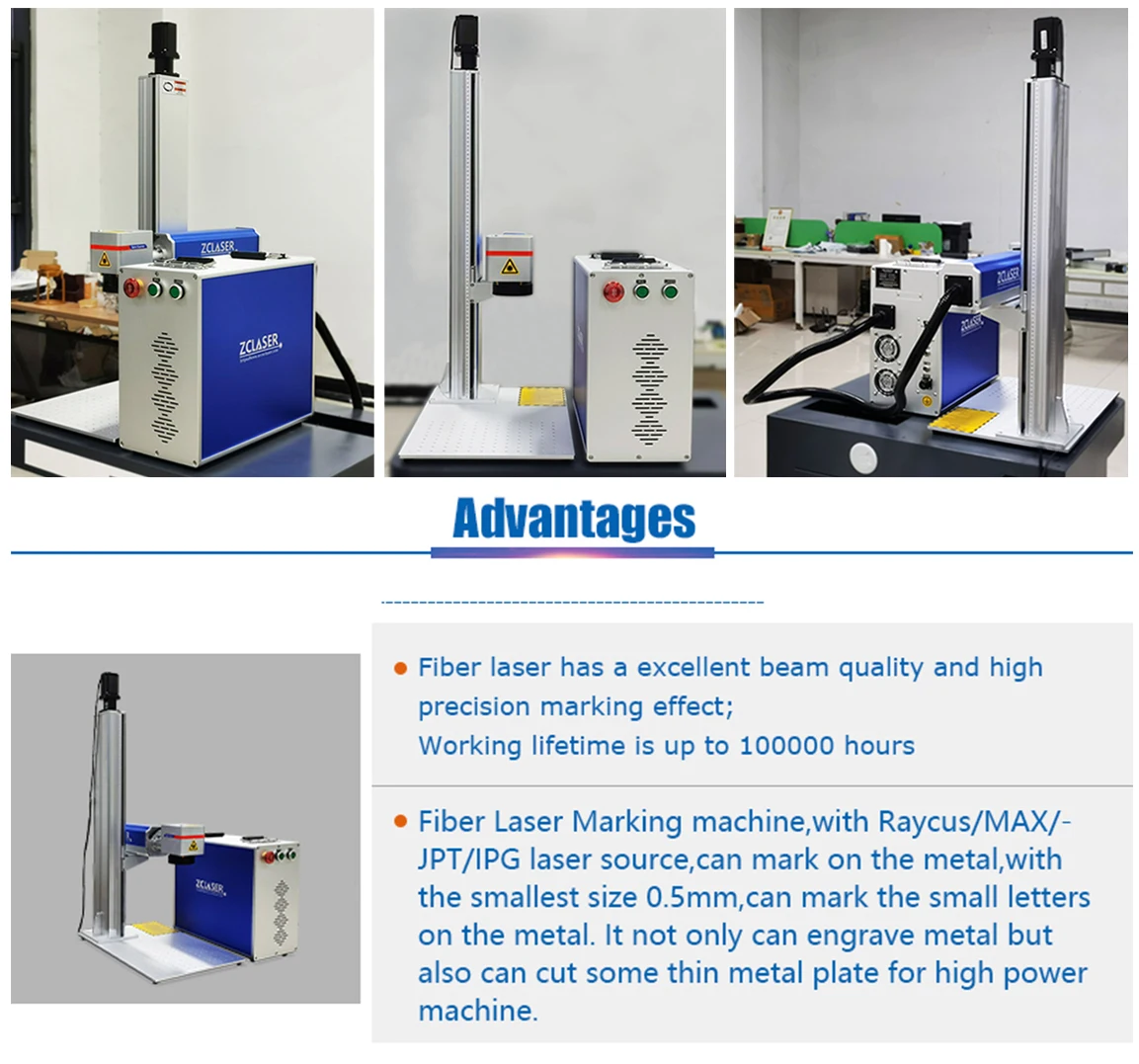

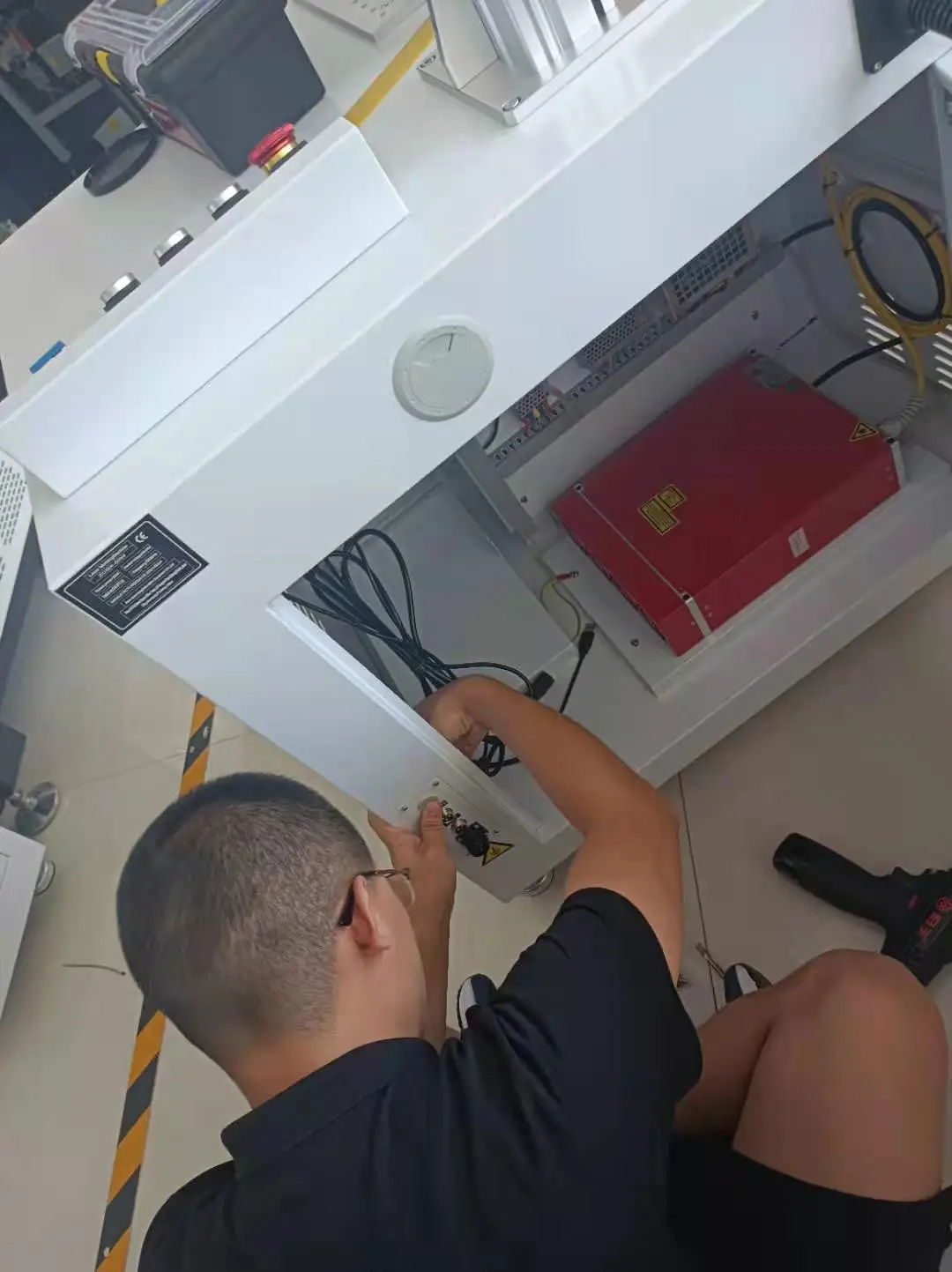

Laser Source
The best quality Wuhan Raycus fiber laser generator , Raycus brand laser source has a normal working life of 100,000 hours. The industry's best quality fiber optic manufacturer, microfiber beam 0.001mm; the laser's overall 3-year warranty.
Laser source options: Raycus, JPT, MAX, IPG
Control Board & Control Software
The international popular JCZ board and EZCAD operating software, easy to learn, accompanied by software manuals, to facilitate customer learning, supporting formats of PLT,AI,DXF,BMP,JPG, etc
Control card brand options: BSL, BJJCZ

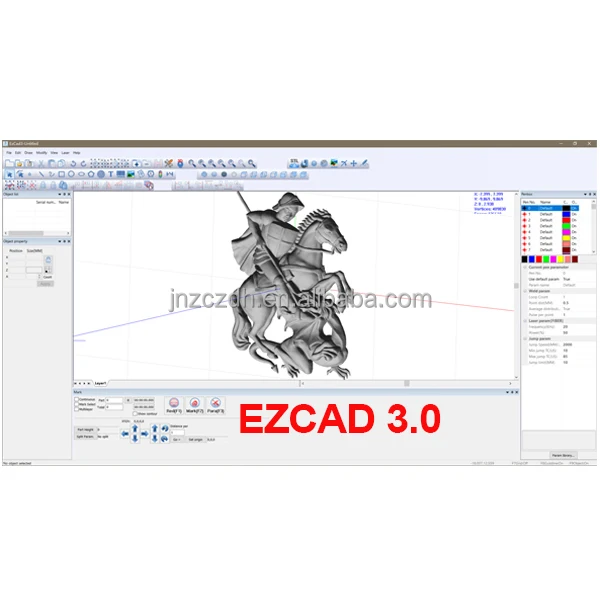

EZCAD Control Software Features
1.Powerful editing function
2.Friendly interface
3.Easy to use
4.Support Microsoft Windows XP,VISTA,Win7,Win10 syste.
5.Support tai,dxf,dst,plt bmp,jpg,gif,tga,png,tif and other file formats
6.Support for TrueType fonts,single line fonts (JSF),SHX fonts,dot matrix fonts (DMF),1D barcodes and 2D barcodes.Flexible variable text processing,changing text in real time during processing,can directly read and write text files,SQL databases and Excel files.
Galvo Scanning Head
Sino digital galvanometer scanning system with dual red light indicators to focus and display the marking position.
Galvo head brand options: Sino, OUYA
F-Theta Lens
High processing precision, high uniformity.
Optional marking area: 110*110mm/150*150mm/175*175mm/200*200mm/300*300mm.
Optional marking area: 110*110mm/150*150mm/175*175mm/200*200mm/300*300mm.
Apilication
Applicable Materials
Metals and alloys (carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc, etc.), rare metal and alloy steel(gold, silver, titanium, etc.) and some non-metal (plastic, PMMA, etc.), special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy).
Why Choose Us
Professional Team
We are a professional industrial laser equipment supplier who is committed to integrating R & D, production and testing. Our team have 10 years experience in laser equipment production field.
Free Technical Training
If you do not know how to use this machine, as long as you come to China, we will provide you the free training until you have a good command of using the machine. If you are busy, our engineers can go to your country. You only need to pay some fees, such as air tickets, hotels and meals.

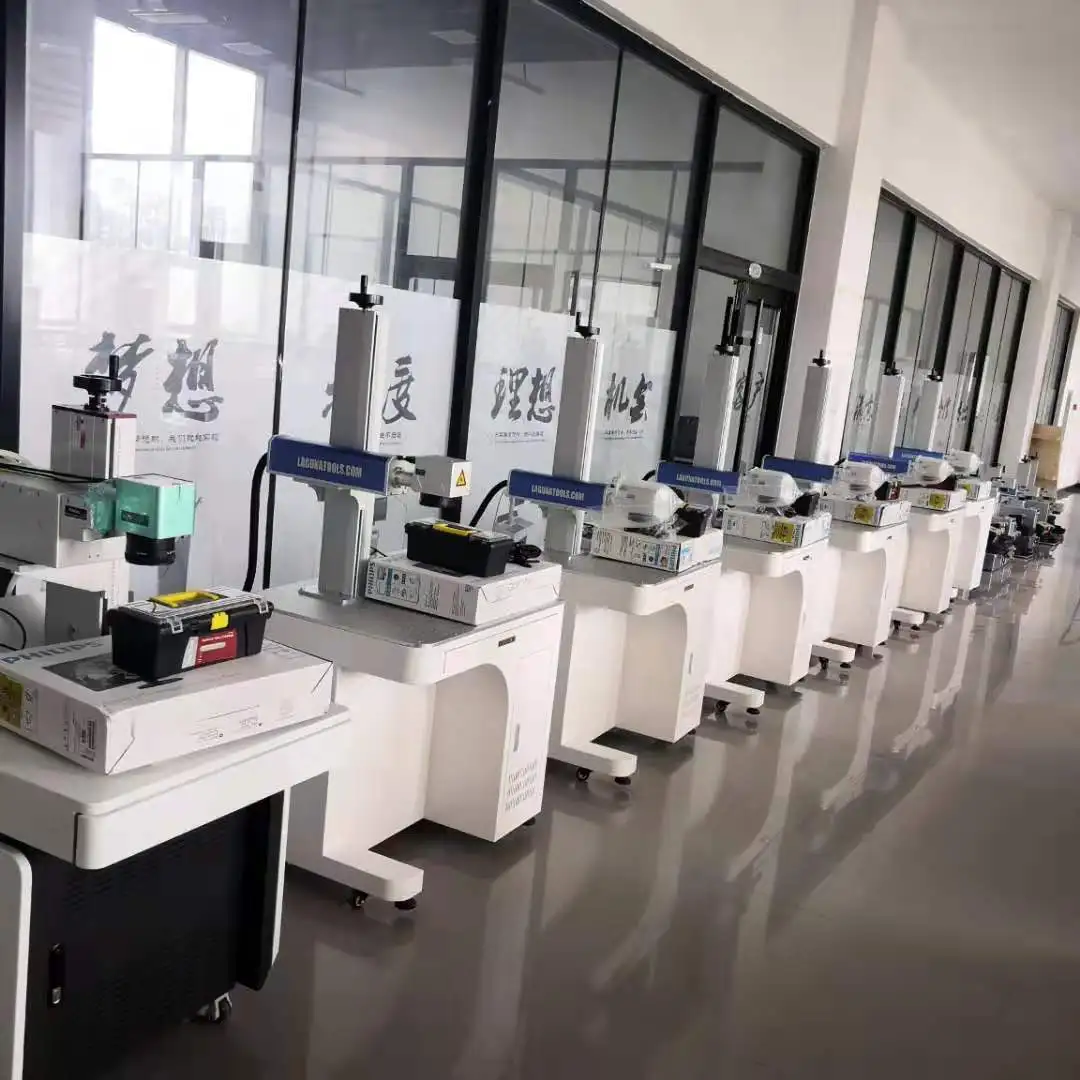

Company Profile
Jinan Zhancheng Automation Co., Ltd was founded in 2013. Integrated the domestic and European latest technology, gathered together well-known professional laser enterprises' technical and management staff.
We developed the latest intellectual property rights of laser marking machine, laser welding machine, laser cutting machine, etc.Our equipment has the characteristics of beautiful appearance, stable performance, long lifetime, high processing precision, competitive price, increasingly high-end electronics, and precision machinery parts enterprises of all types of customers focusing, recognition and trust. Up to now, our company has achieved more than 50% of the annual sales increase, which is the leading level in the country.
After Sales Service
✦We have been inspactaed by one of the world's largest institutions of certifications,Alibaba Vertitied Supplier are what you should consider first,it means good product,first class service and reasonable price !
Pre-sale Security
Before you purchase the machine, you can send samples of your products, our engineer will do test on the samples and then send you pictures and videos for your referense. So that you can know whether our machine is perfect for your products.
After-sale Service
❤Raycus laser source guarantee for 3 years.
❤ Maintenance free of charge for 1 years .
❤We will provide the consumable parts at an agency price.
❤24 hours online service, free technical support.
❤Friendly English version manual.
❤Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
❤We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance
333
Package and delivery
Packaging
①For the outside, we will pack the machine in a plywood box. We will also put some foam between the plywood box and the machine.
The foam can cushion the slight impact during transportation. And there is a steel beam at the bottom of the plywood box, which can support the machine well. The plywood box is fumigation-free, it will not pose any threat to your country.
②In the middle, we will use the air cushion film to pack the machine, to protect the machine from shaking. And it can avoid scratching the machine during transportation.
③For the inside layer, the machine will be packed with plastic wrap tightly, and the plastic wrap will be many layers onto the machine, the plastic wrap will stop the mosit air from entering the machine, this is very important during sea transportation, moist air will etch the machine.
Delivery Time
We provide shipping methods such as sea, air, and express.
1. The delivery lead time would be 7-10 working days after recieving the payment.2. The customer can choose the shipping by sea, by air and even by international express such as FedEx, DHL, TNT, etc. We will send the cargo by reliable forwarder.
FAQ
1)Compare with other supplier, what’s your company advantage?
Ten years of experience in the laser industry. Professional engineers support your needs.
2)Compare with other supplier, what’s your machine advantage?
This laser marking machine, no matter which laser other suppliers use, we always use the very famous brand laser. If you need to replace imported brand lasers, we can also provide you with. Regarding the control system, we use a genuine BJ JCZ board with a tracking number that can be upgraded for free. Other suppliers may have chosen the cracked version, which is illegal and does not support Win10.
3) How long does it take to learn the laser?
The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser, But it will take a bit of trial and error to learn what speed and power settings to use with different materials
4)I don’t know which one is suitable for me?
Please tell me your
Maximum working area: choose the most suitable model.
Materials and Products thickness: choose the most suitable power.
5) If some problems happen to this machine, what should I do?
We provide one year machine warranty. During the one-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage).
