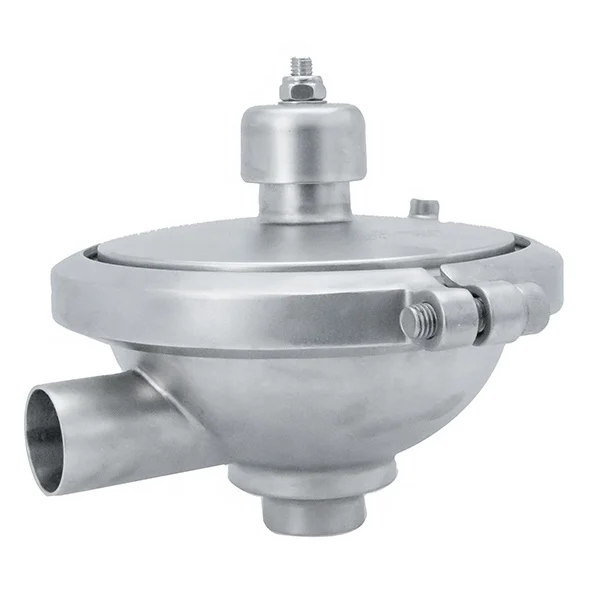

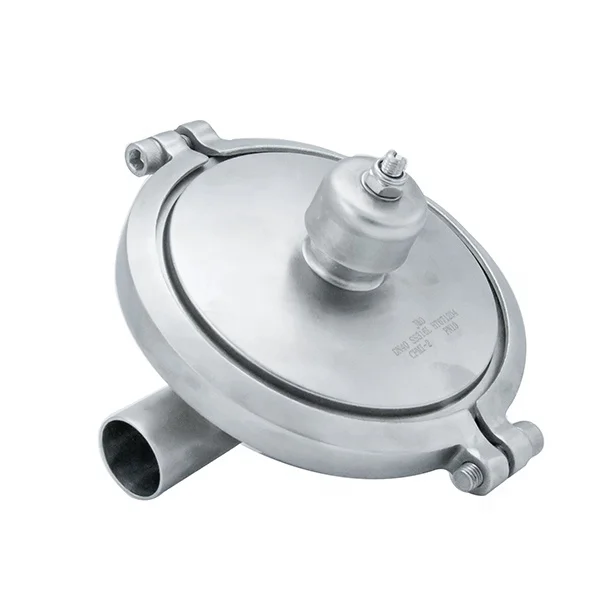

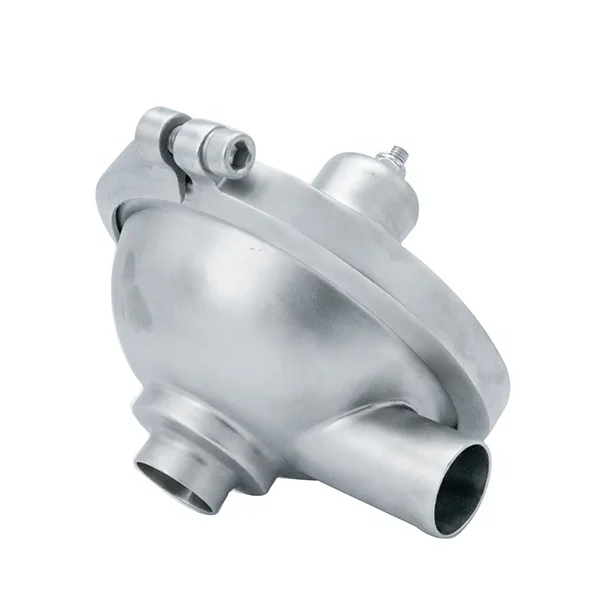

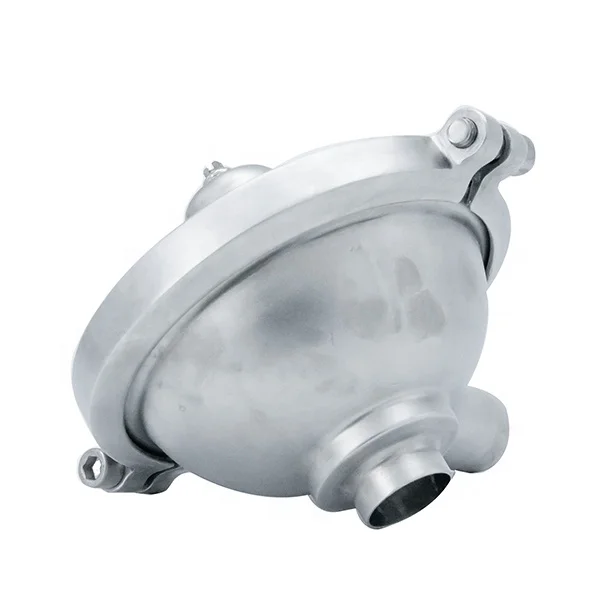

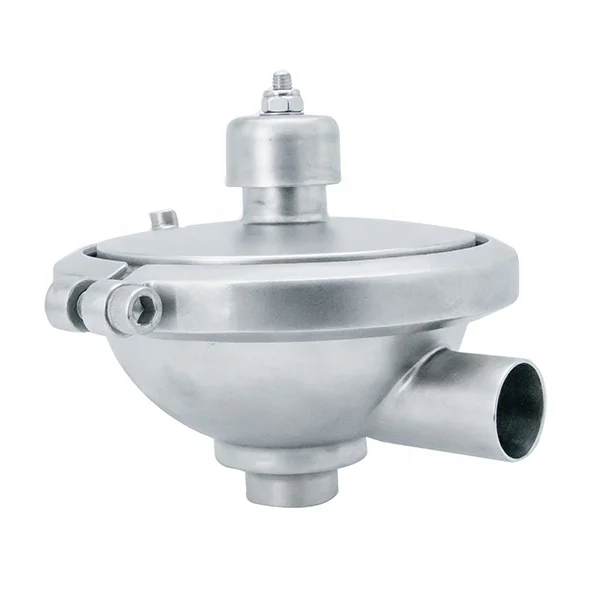

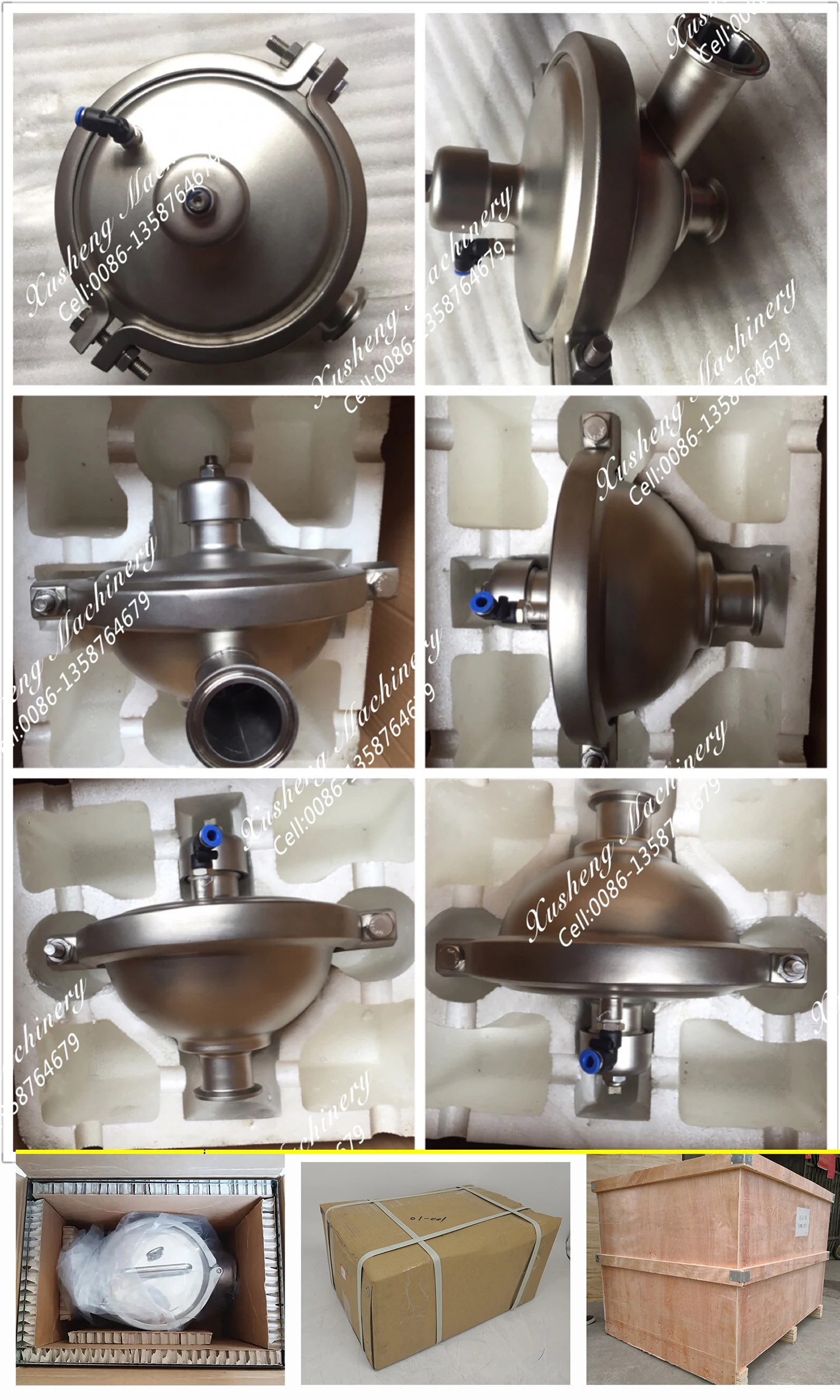

CPM Series CPMO-2 SS304 Sanitary Constant Pressure Valve from China prv Pressure Reducing Valve
Sanitary CPM Constant Pressure Valve is used for maintain a constant pressure of inlet and outlet.CPMI-2 (constant pressure valve adjusts inlet) maintains constant pressure on the production line at the valve inlet. This type CPMI-2 is used for behind seperators, heat exchangers or relief valves. CPMO-2 (contant pressure valve adjusts outlet) can maintain constant pressure in the pipeline of the production process at the outlet of the valve. This type CPMO-2 is used for front of filling or filling machine. It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Working Principle

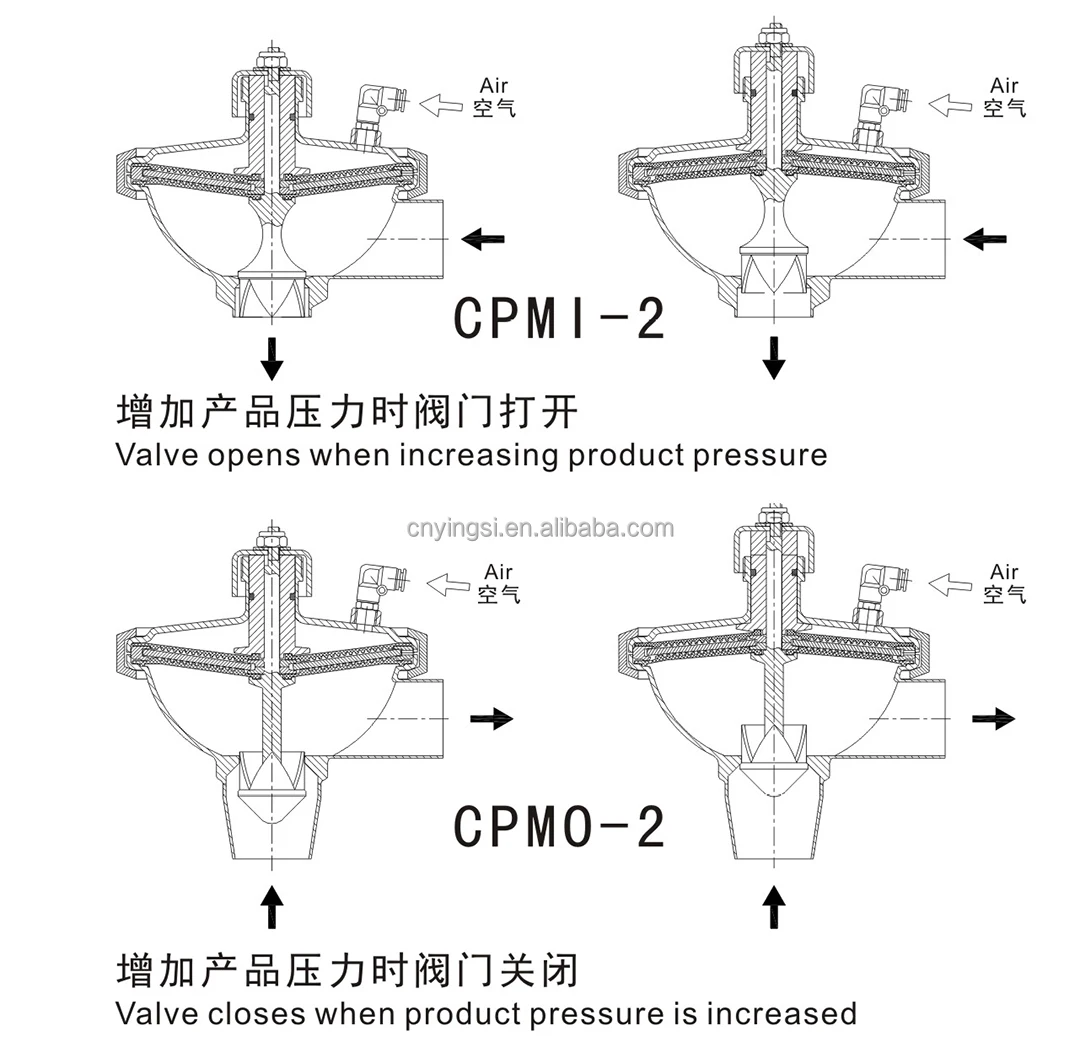

Series of constant pressure control valves are operated by compressed air, the operation of the series valve does not need to rely on any sensor in the pipeline only a pressure regulating device and product delivery pipeline for the pressure monitoring system is required A diaphragm valve stem system can quickly respond and change the valve stem position relative to the position of the valve stem so as to maintain the preset pressure value. When the pressure of the delivery product rises, the valve will open, and vice versa, the pressure of the product is reduced the valve will be closed.
Series of constant pressure control valves are operated by compressed air, the operation of the series valve does not need to rely on any sensor in the pipeline only a pressure regulating device and product delivery pipeline for the pressure monitoring system is required A diaphragm valve stem system can quickly respond and change the valve stem position relative to the position of the valve stem so as to maintain the preset pressure value. When the pressure of the delivery product rises, the valve will open, and vice versa, the pressure of the product is reduced the valve will be closed.

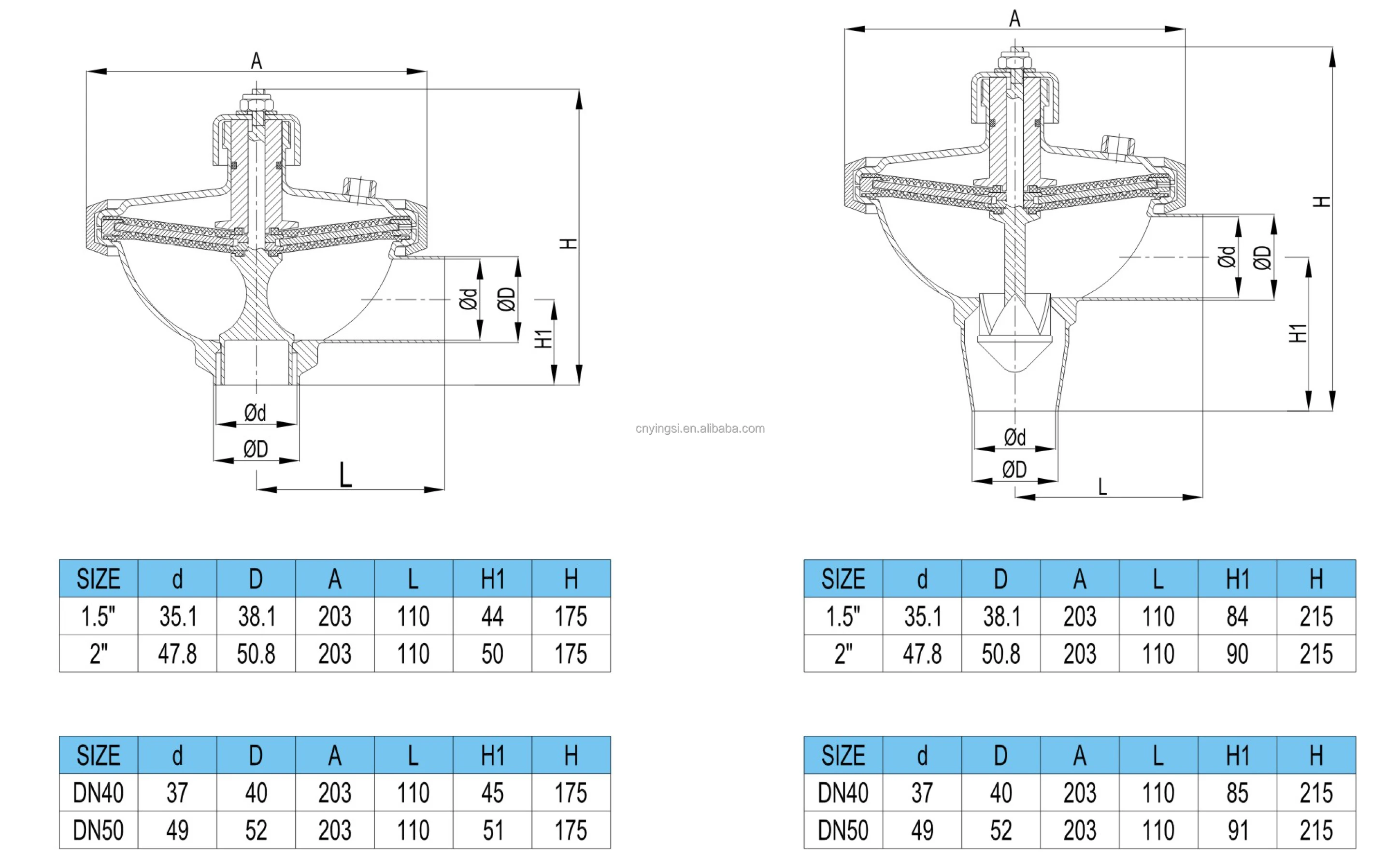

Specification

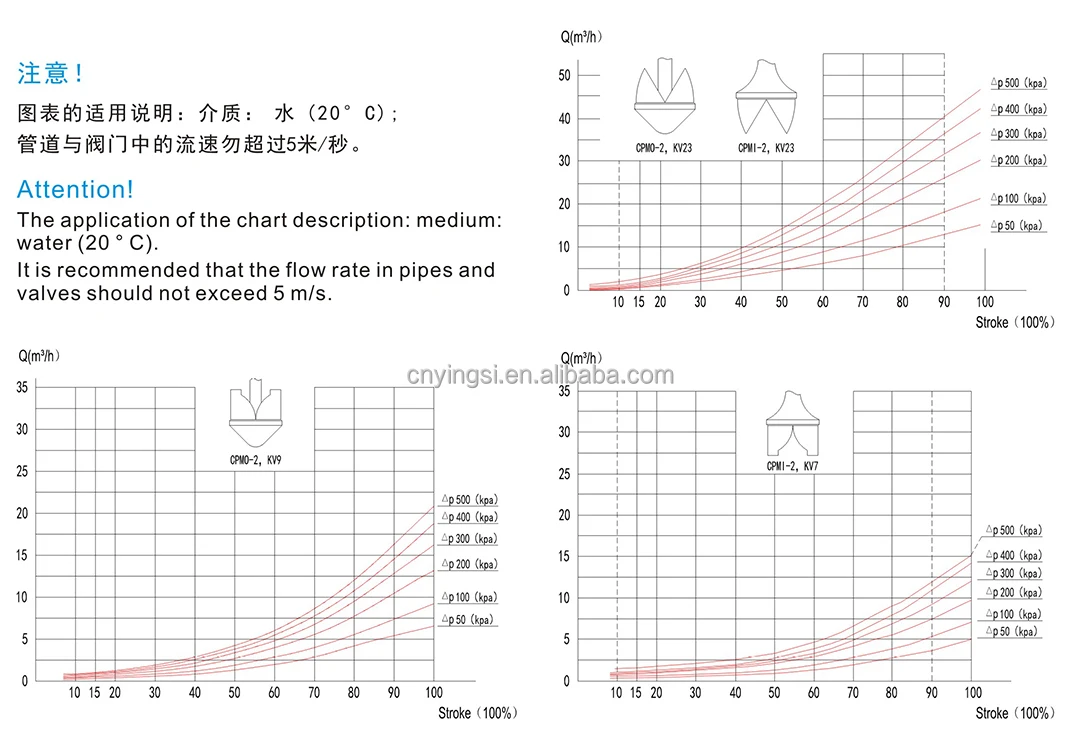

Standard | SMS,DIN11850,DIN11851,3A | ||
Material Contact Parts | SS304/SS316L | Provided with material inspection report | |
Material Non-contact Parts | SS304 | ||
Size | 1” to 2.5”，DN25-DN65 | ||
Connection | Butt-weld,Tri-clamp,Threaded,Union | ||
Type | CPMI-2, CPMO-2 | ||
Upper Diaphragm | EPDM,Buna | All seals import material comply with FDA21CFR117.2600 | |
Bottom Diaphragm | EPDM+PTFE | ||
Max. Pressure | ≤10bar(145psi) | ||
Supply Air Pressure | ≤8bar(116psi) | ||
EPDM, Buna Upper Diaphragm for 14 ~203°F(-10 ~ 95℃) | |||
EPDM+PTFE Bottom Diaphragm for 14 ~ 284°F(-10 ~ 140℃) | |||
Full Open(P=1bar) about 23m3/hr | |||
Low Flow(P=6bar) about 2m3/hr | |||
External Surface Treatment | Ra32~64uin(o.8~1.6um) | ||
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) | ||

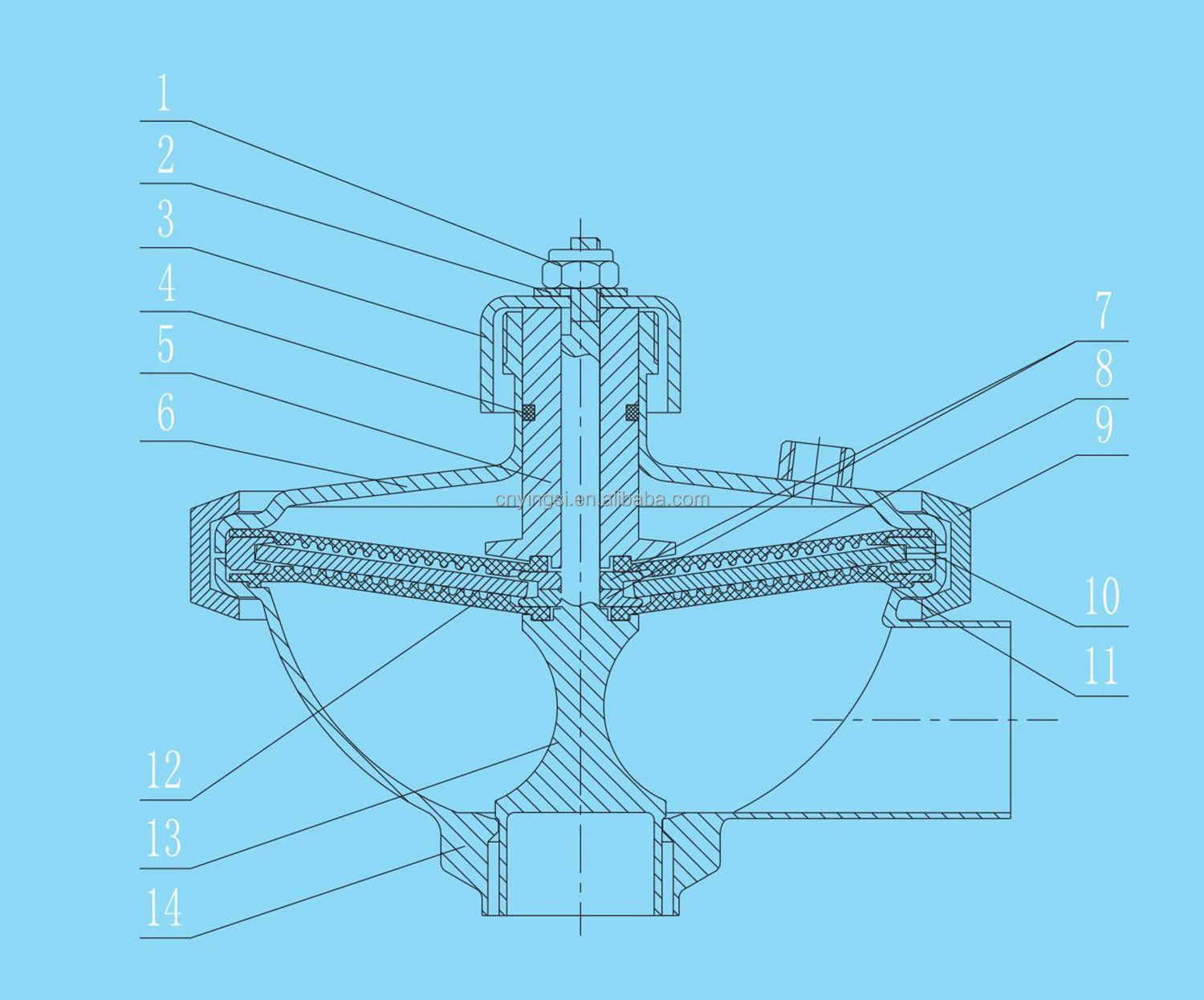

S/N | Name | Qty | Unit | Material |
1 | Rubber embedded hexagonal nut | 1 | pc | 304 |
2 | Washer | 1 | pc | 304 |
3 | Valve core fixing cover | 1 | pc | 304 |
4 | O Ring | 1 | pc | ABS |
5 | Pistion Seat | 1 | pc | H85 |
6 | Valve Cover | 1 | pc | 304 |
7 | Upper and lower pads | 2 | pc | 304 |
8 | Upper Diaphragm | 1 | pc | EPDM,Buna |
9 | Clamp | 1 | pc | 304 |
10 | Diaphragm Seal | 1 | pc | 304 |
11 | Triangular pressure plate | 12 | pc | 304 |
12 | Bottom Diaphragm | 1 | pc | EPDM+PTFE |
13 | Valve core | 1 | pc | 304/316L |
14 | Valve Seat | 1 | pc | 304/316L |
Technical Specifications
Max. pressure: ≤10bar(145psi)
Min. pressure:0bar(0psi)
Supply Air Pressure: ≤8bar(116psi)
Temperature range：
EPDM, Buna Upper Diaphragm: 14 ~203°F(-10 ~ 95℃)
EPDM+PTFE Bottom Diaphragm: 14 ~ 284°F(-10 ~ 140℃)
Min. pressure:0bar(0psi)
Supply Air Pressure: ≤8bar(116psi)
Temperature range：
EPDM, Buna Upper Diaphragm: 14 ~203°F(-10 ~ 95℃)
EPDM+PTFE Bottom Diaphragm: 14 ~ 284°F(-10 ~ 140℃)
Actuators used compressed air quality requirements
1.Compressed air connection: Air tube equipped with air connection BSP R1/8” or BSP R1/4”
2.Max. particle size: 0.01mm
3.Max. oil content: 0.08ppm
4.Dew point: atmospheric temperature 10℃(14°F) or lower
5.Max water content: 7.5g/kg
2.Max. particle size: 0.01mm
3.Max. oil content: 0.08ppm
4.Dew point: atmospheric temperature 10℃(14°F) or lower
5.Max water content: 7.5g/kg
Options
1.Connection can be Butt-weld,Tri-clamp,Threaded,Union or others upon request.
2.Type can be CPMI-2 and CPMO-2
3.The available size is 1” to 2.5”，DN25-DN65
2.Type can be CPMI-2 and CPMO-2
3.The available size is 1” to 2.5”，DN25-DN65
Advantage
1.No dead corners, no stagnation
2.Supports CIP online cleaning, and can also be disassembled for cleaning
3.Support SIP online sterilization, before temperature drops below 60℃
2.Supports CIP online cleaning, and can also be disassembled for cleaning
3.Support SIP online sterilization, before temperature drops below 60℃
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Contact Us
Application

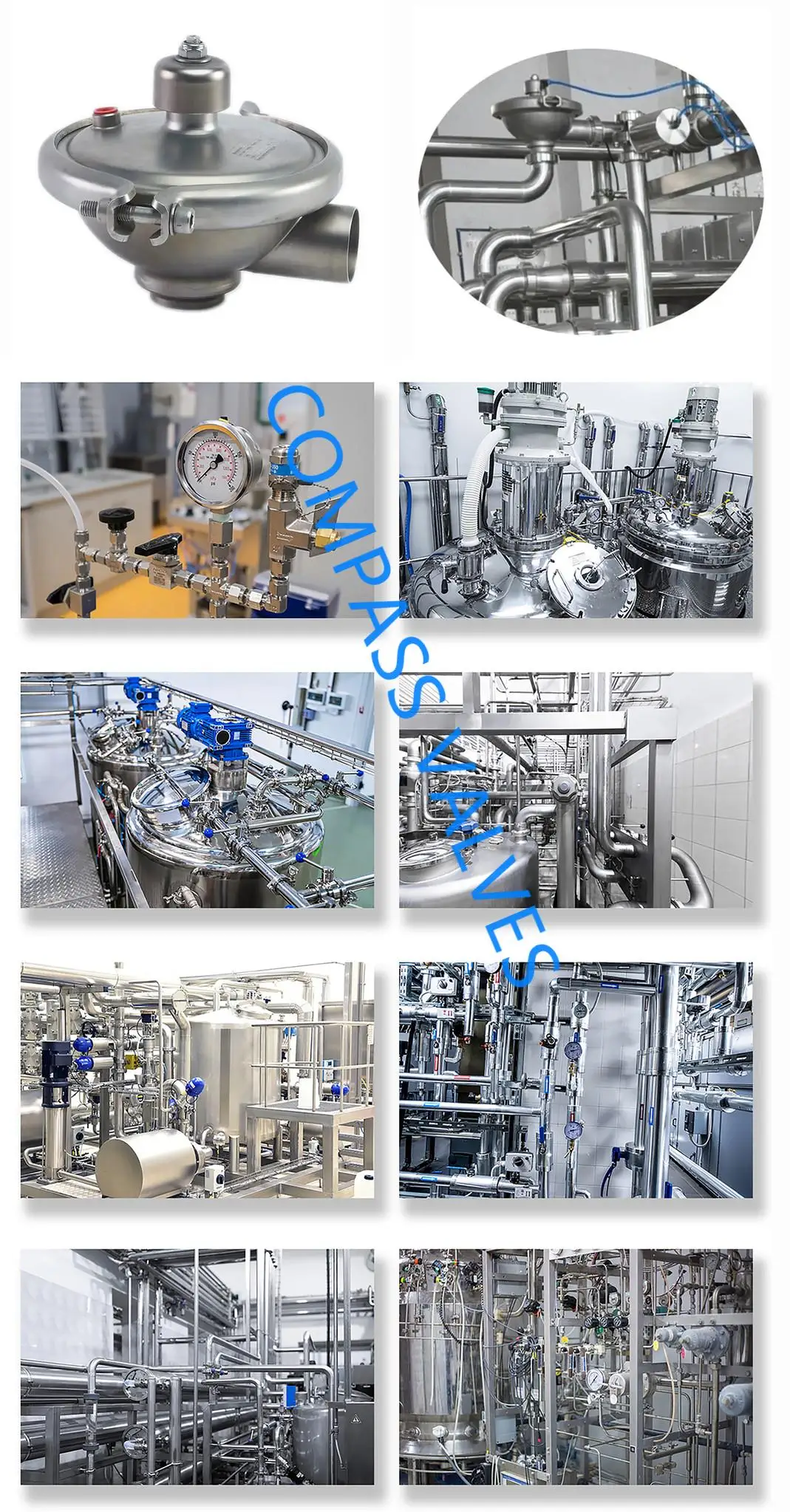

Constant Pressure Valve is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Company Profile
Founded in 2011, Compass Machinery as a global sanitary valves manufacturer,has grown to become one of leading valves manufacturers for high precision stainless steel sanitary valves, pipe fittings,pumps and tanks.
Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers 1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machining unit.
To assure better quality, we have the full inspecting quality control
equipment: 1nos Ra roughness instrument, 3nos stainless steel spectrometer, numbers of roundness instrument, numbers of thickness instrument, numbers of radius instrument, 3 nos pressure testing center.
Compass Machinery is still developing and innovating new products to ensure that the products are more energy-efficient, efficient and competitive.
Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers 1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machining unit.
To assure better quality, we have the full inspecting quality control
equipment: 1nos Ra roughness instrument, 3nos stainless steel spectrometer, numbers of roundness instrument, numbers of thickness instrument, numbers of radius instrument, 3 nos pressure testing center.
Compass Machinery is still developing and innovating new products to ensure that the products are more energy-efficient, efficient and competitive.
FAQ
Q1. Are you a trading company or factory?
We are a manufacturing factory.
Q2. What’s the payment terms?
For small testing orders,we accept Paypal,Western Union,T/T and credit Card.
For mass orders,we accept T/T and L/C.
Q3.How do you control the quality?
Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.We only have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.
Q4.If there is any quality problem,how do you solve it?
We are proud that we never let one customer leave us.We are not 100% perfect,there is some quality problem.We try our best to provide the correct materials in the beginning,so we need less time for quality problem.If there is any quality problem,we take the responsibility.We believe what we are doing together,it will get back tomorrow.If we leave our responsibility,customer will leave us.If we always take our responsibility,we keep our customers with us.
Q5.How long is your delivery time?
For normal production in 7-10days.For bulk order in 15-25days.
Q6.Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to the different application for
customers.
Q7.How to order Sanitary CPM Constant Pressure Valve?
We are a manufacturing factory.
Q2. What’s the payment terms?
For small testing orders,we accept Paypal,Western Union,T/T and credit Card.
For mass orders,we accept T/T and L/C.
Q3.How do you control the quality?
Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.We only have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.
Q4.If there is any quality problem,how do you solve it?
We are proud that we never let one customer leave us.We are not 100% perfect,there is some quality problem.We try our best to provide the correct materials in the beginning,so we need less time for quality problem.If there is any quality problem,we take the responsibility.We believe what we are doing together,it will get back tomorrow.If we leave our responsibility,customer will leave us.If we always take our responsibility,we keep our customers with us.
Q5.How long is your delivery time?
For normal production in 7-10days.For bulk order in 15-25days.
Q6.Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to the different application for
customers.
Q7.How to order Sanitary CPM Constant Pressure Valve?
1. What size ? 1” to 2.5”，DN25-DN65
2. What's material ? SS304/SS316L
3. What's type? CPMI-2 or CPMO-2 ?
4. What's connection ends ? Butt-weld,Tri-clamp,Threaded,Union ?
5. What's seal material ? Domestic diaphragm or import diaphragm ?
6. Do you need mirror polished or sand blast ?
2. What's material ? SS304/SS316L
3. What's type? CPMI-2 or CPMO-2 ?
4. What's connection ends ? Butt-weld,Tri-clamp,Threaded,Union ?
5. What's seal material ? Domestic diaphragm or import diaphragm ?
6. Do you need mirror polished or sand blast ?
