Yake Full color Soccer portable stadium perimeter led screen 960*960mm Basketball Match Football Field Score Led Display Screen
- Category: >>>
- Supplier: Shenzhen Yake LED Tech Co. LimitedShenzhen Limited
Share on (1601051727892):
Product Overview
Description
Product Details

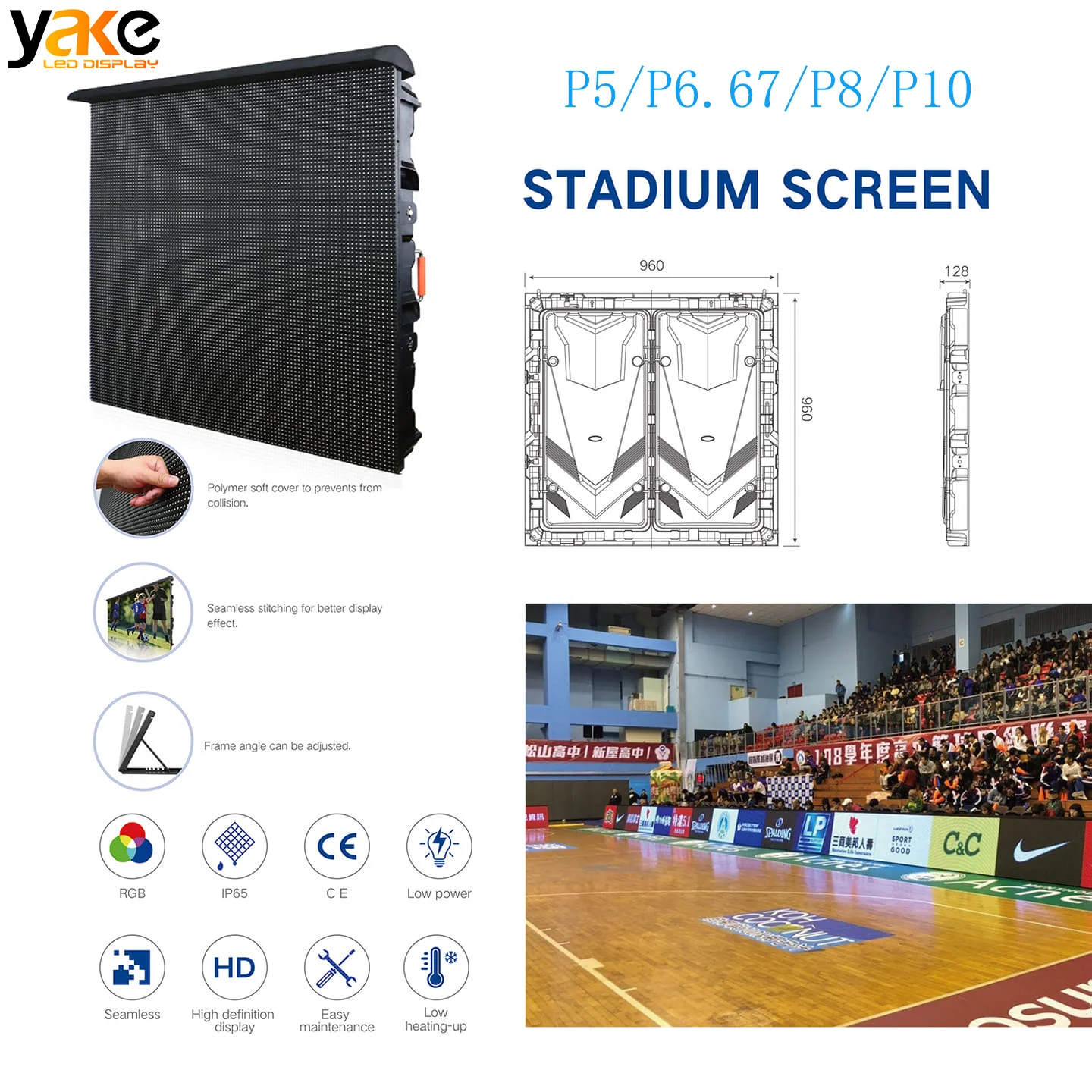

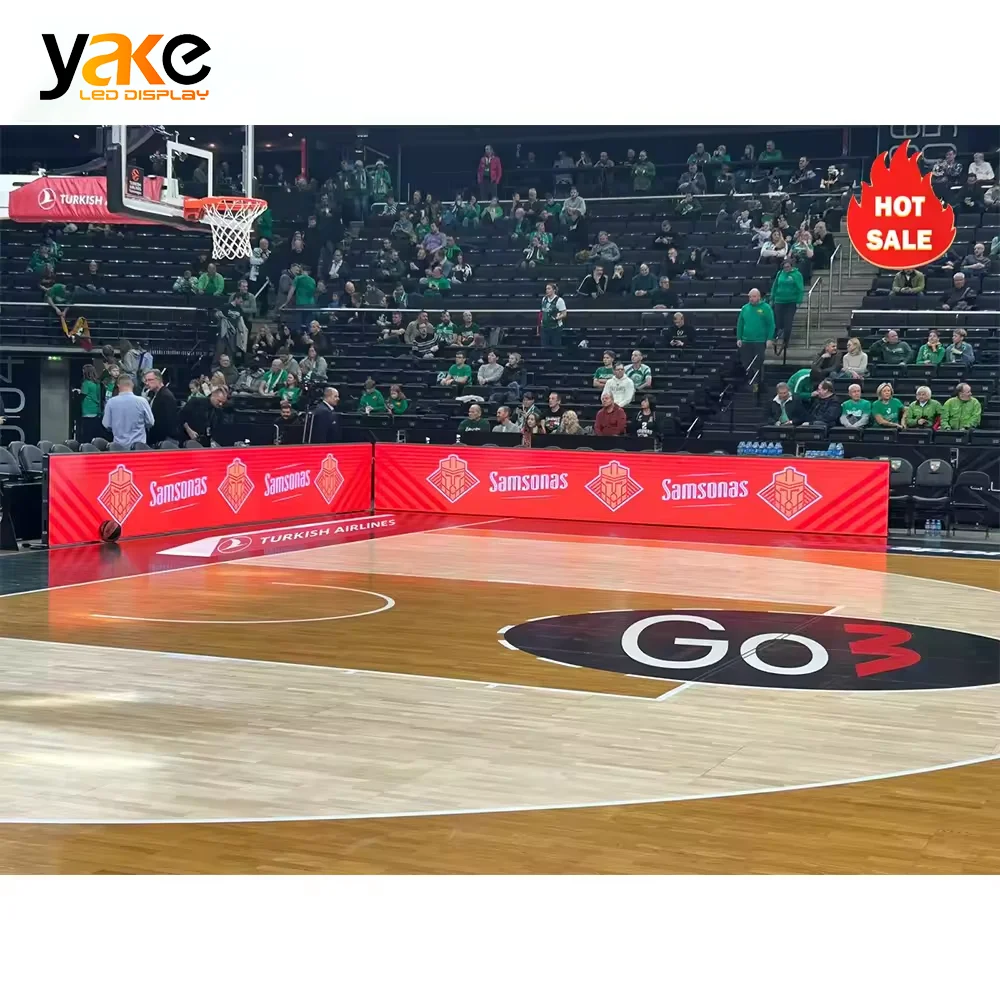

Stadium Perimeter LED Display
Stadium led display is perfect for sports event advertising, such as football field, basketball court, ice hockey ground etc. It's a great benefits for brand recognition with perimeter led display. Designed for indoor and outdoor applications, perimeter led board can bring the biggest exposure with grand sports show.
Yake LED stadium led screen pixel pitch includes 5mm, 6.67mm, 8mm, 10mm and customized.
Yake LED's stadium perimeter led displays have got CE, RoHS and FCC certificates etc.
Excellent manufacturing and fast delivery capability of outdoor and indoor perimeter led display screen.
Yake LED stadium led screen pixel pitch includes 5mm, 6.67mm, 8mm, 10mm and customized.
Yake LED's stadium perimeter led displays have got CE, RoHS and FCC certificates etc.
Excellent manufacturing and fast delivery capability of outdoor and indoor perimeter led display screen.
Specification
P5 | P6.67 | P8 | P10 | |
Pixel Pitch | 5mm | 6.67mm | 8mm | 10mm |
Density | 40,000 dots/m2 | 22,477 dots/m2 | 15,625 dots/m2 | 10.000 dots/m2 |
Led Type | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
Screen Size | 960 x 960mm | 960 x 960mm | 960 x 960mm | 960 x 960mm |
Screen Resolution | 192 X 192 dots | 144 X 144 dots | 120 x 120 dots | 96 x 96 dots |
Case Material | Die Casting Magnesium | Die Casting Magnesium | Die Casting Magnesium | Die Casting Magnesium |
Screen Weight | 28.5KG | 28.5KG | 28.5KG | 28.5KG |
Drive Method | 1/8 Scan | 1/6 Scan | 1/5 Scan | 1/2 Scan |
Best Viewing Distance | 5-70m | 6-70m | 8-100m | 10-120m |
Brightness | 6000 nits | 6000 nits | 6000 nits | 7000 nits |
Input Voltage | AC110W/220V | AC110W/220V | AC110W/220V | AC110W/220V |
Awerage PowerConsumption | 300W | 300W | 300W | 300W |
Waterproof Level | Front IP65 | Front IP65 | Front IP65 | Front IP85 |
Application | Outdoor & Indoor | Outdoor & Indoor | Outdoor & indoor | Outdoor & indoor |

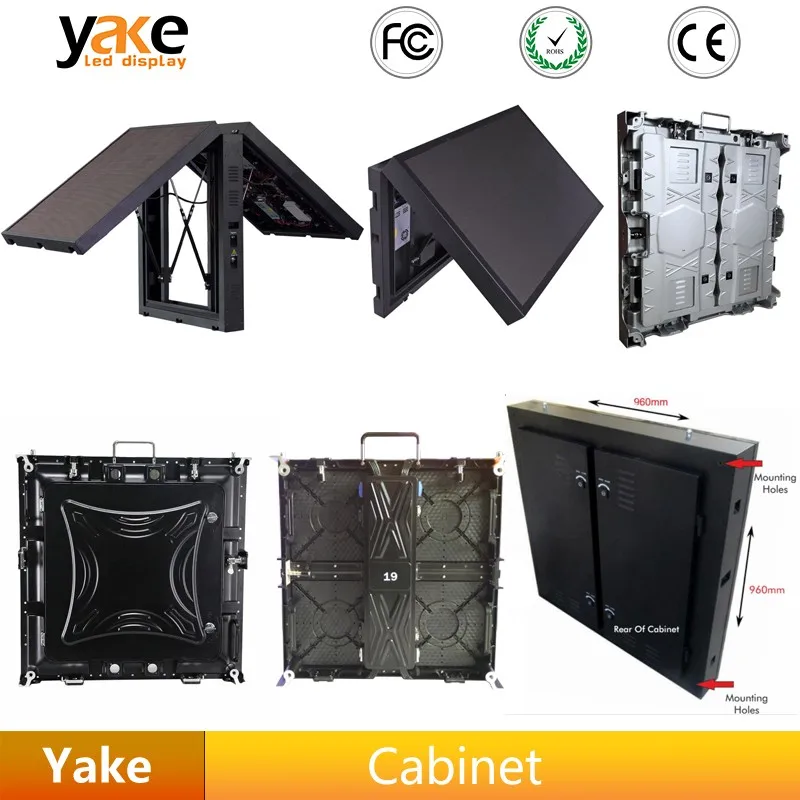

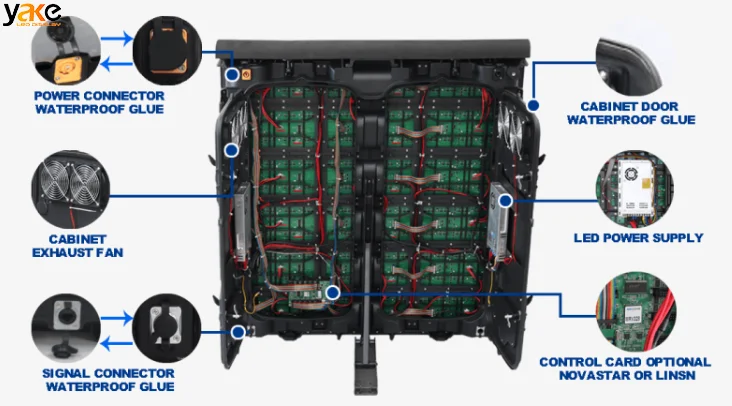

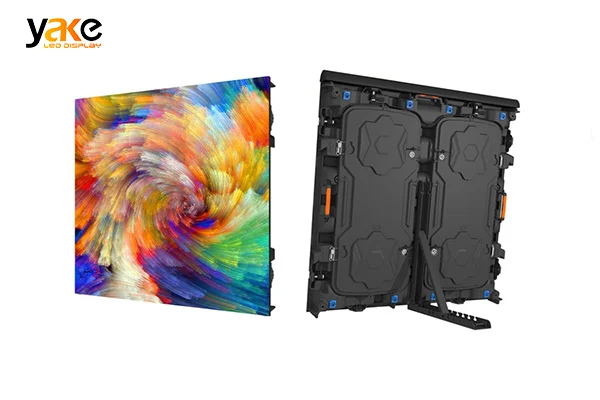

Die Casting Magnesium Cabinet
Outdoor stadium LED display has a special air inlet, a waterproof structure, excellent water resistance, can achieve the effect of heat dissipation design and absolutely quiet operation.

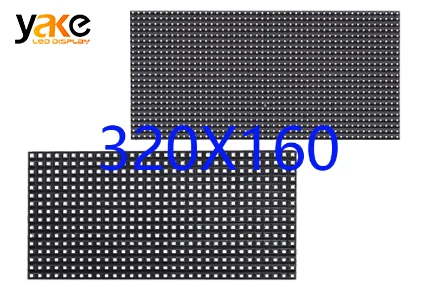

320x160mm stanard size module
960mm Series LED display with standard size panel: 320*160mm. Pay more attention to the standard led screen display performance, the Quick Assembling and Maintenance.
Also it is very convenient when you change the pixel pitch such as P5mm to P10mm. you dont need to change anything,just change the module as they have the same module size and structure.
Also it is very convenient when you change the pixel pitch such as P5mm to P10mm. you dont need to change anything,just change the module as they have the same module size and structure.

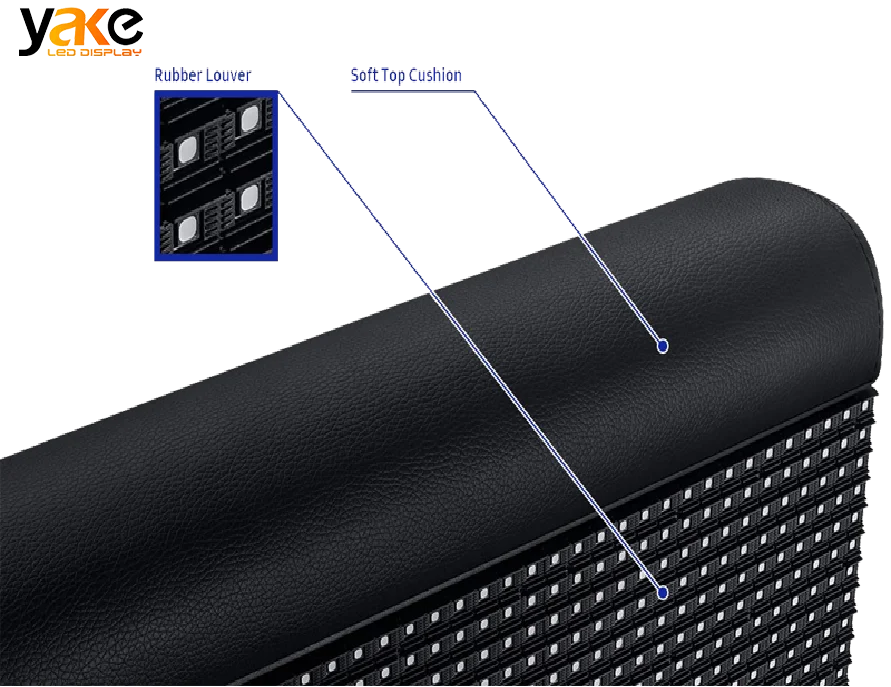

Rubber Module Mask and Protective Top Cover
Our led module is equipped with rubber module mask. LED could be well protected from ball hitting with such design. Special unique
soft top cover design could protect players from injury even for body hitting. The design philosophy of our perimeter led board is
to maximize the protection of personnel.
soft top cover design could protect players from injury even for body hitting. The design philosophy of our perimeter led board is
to maximize the protection of personnel.

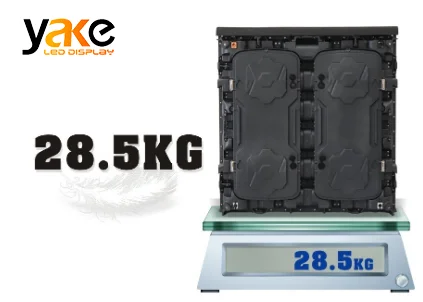

Light-Weight & Slim Cabinet
Stadium led display panel is equipped with Die Casting Magnesiumcabinet with 28.5kg/pc only. It is 30% lighter than traditional
waterproof cabinet. The thickness is assembled with only 120mm. It can be fixed, hanging and rental applications for such
multifunctional cabinet. Cost and time-saving for installation and transportation.
waterproof cabinet. The thickness is assembled with only 120mm. It can be fixed, hanging and rental applications for such
multifunctional cabinet. Cost and time-saving for installation and transportation.

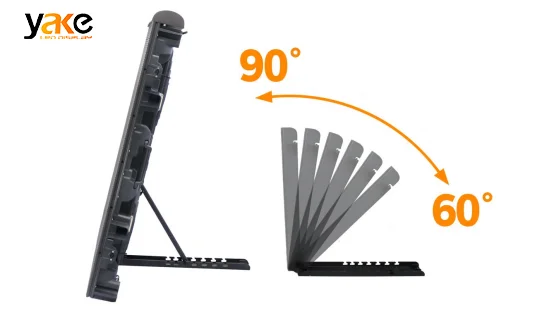

0-90° Adjustable Supporting Bracket
Cabinet viewing angle is between 60-90 degree with high flexiblity. Perimeter led display can be adjusted according to best
viewing effect to enhance viewer's visibility.
viewing effect to enhance viewer's visibility.

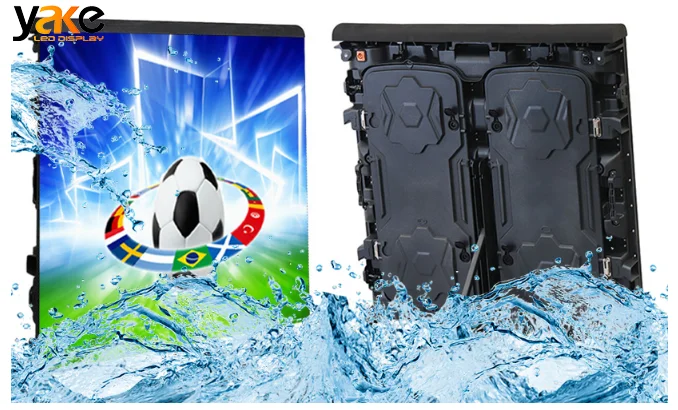

IP65 Protection and High Brightness
Special cabinet design for indoor and outdoor applications, perimeter led display is fully IP65 waterproor protection. High
durability for long lifespan even in harsh environment. With brightness control at day and night, perimeter led board could be
6000-7500nits high brightness.
durability for long lifespan even in harsh environment. With brightness control at day and night, perimeter led board could be
6000-7500nits high brightness.
3840Hz High refresh rate
Up to 3840Hz refresh rate,without the phenomenon of drag and flicker under the shooting conditions of professional cameras and cameras of 1/2800 seconds,which ensures a fine high-definition display screen.to ensure the ultra high-defination image quality.

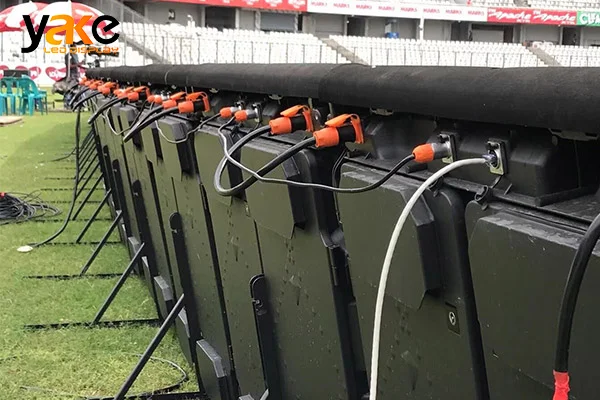

Fast and Easy Installation
High precision stadium led display cabinet could be fast assembly and connection with 12 seconds. No need for professional
technicans and devices. Quick setup and easy maintenance with such cabinet design.
technicans and devices. Quick setup and easy maintenance with such cabinet design.

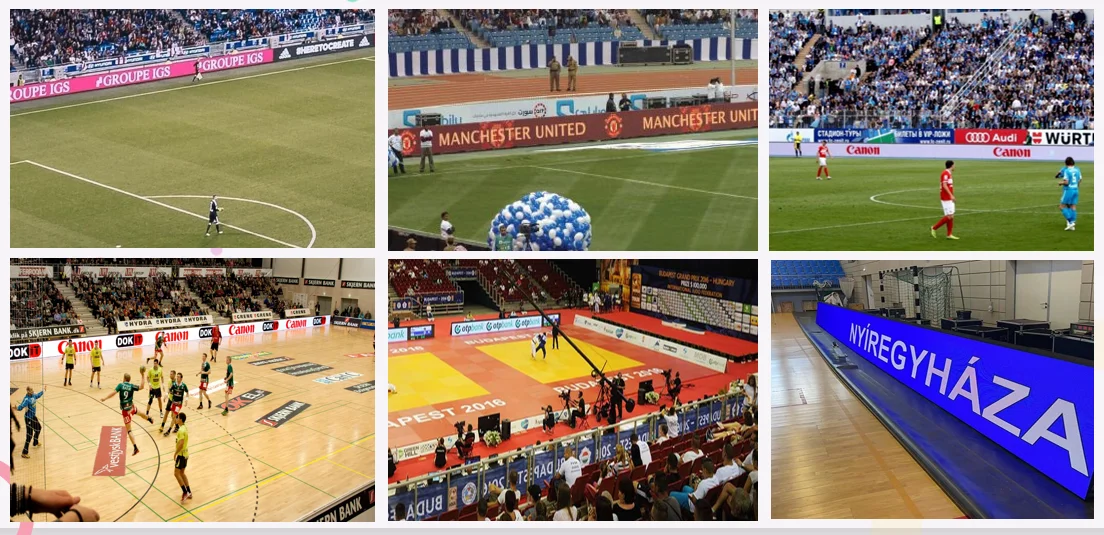

Applications

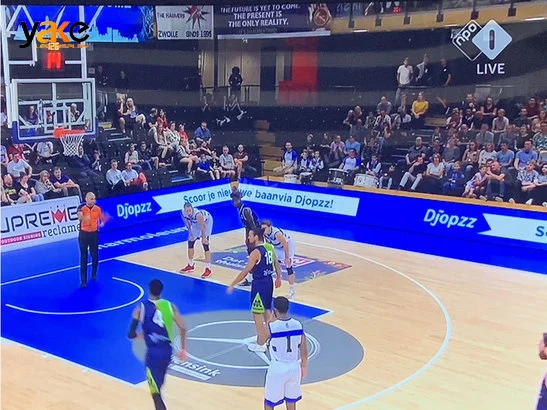

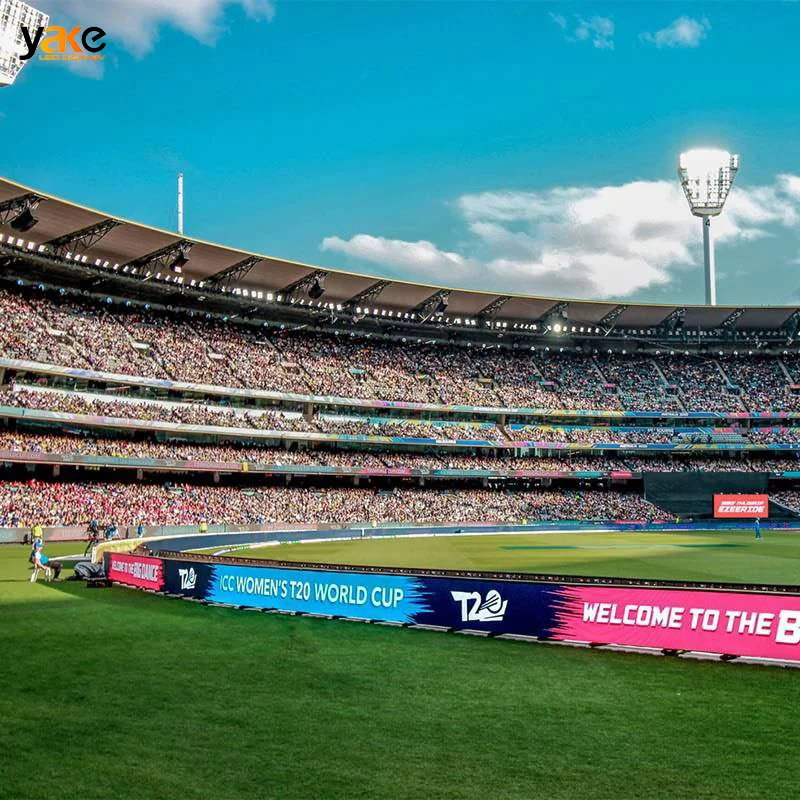

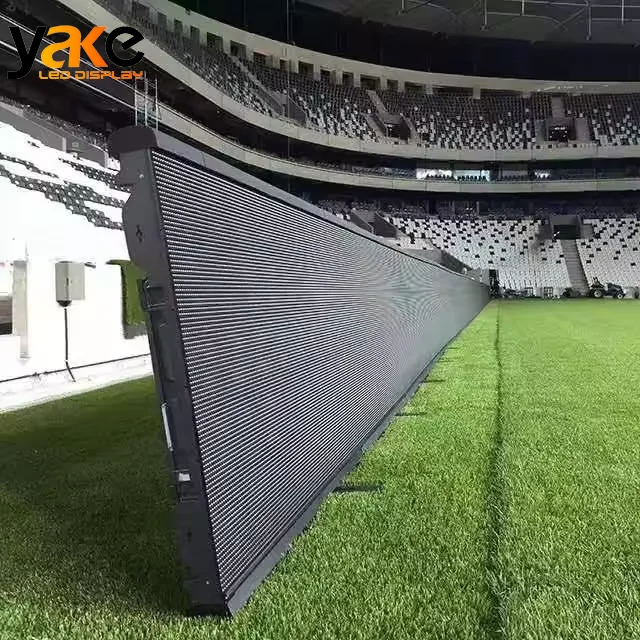

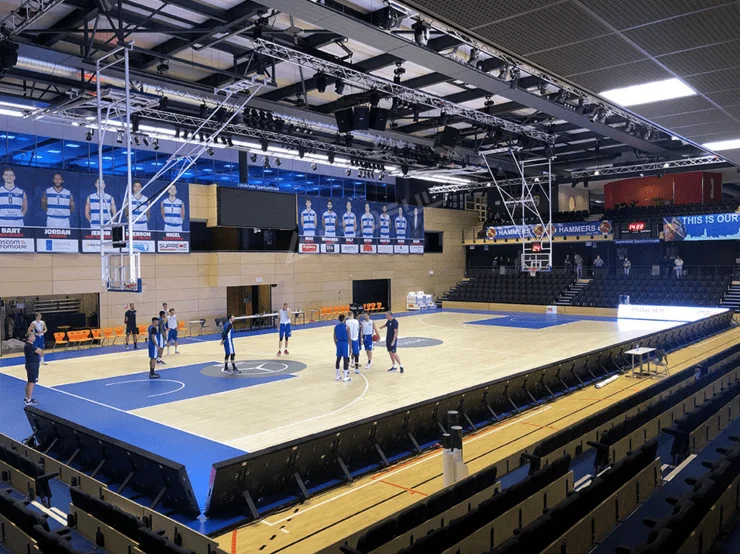

LED Perimeter Boards
LED Perimeter Boards are a highly flexible, high impact form of match day advertising. They are the ‘Rolls Royce’ product where
logos, website addresses and messages are seen on all boards at once with eye-catching clarity.
LED Scoreboard
Also known as electronic or digital scoreboards, LED scoreboards are brighter, longer-lasting and more energy-efficient than
scoreboards lit by incandescent light. They also provide more information than traditional scoreboards, displaying player names,
stats and advertising messages.
scoreboards lit by incandescent light. They also provide more information than traditional scoreboards, displaying player names,
stats and advertising messages.
LED Ribbon Board
An LED ribbon board display helps further amplify game day by displaying digital messages or graphics throughout the venue.
Whether you’re displaying sponsor ads, game scores and stats, or important messages, an LED ribbon board ensures your fans have
the ultimate game day experience.
Whether you’re displaying sponsor ads, game scores and stats, or important messages, an LED ribbon board ensures your fans have
the ultimate game day experience.

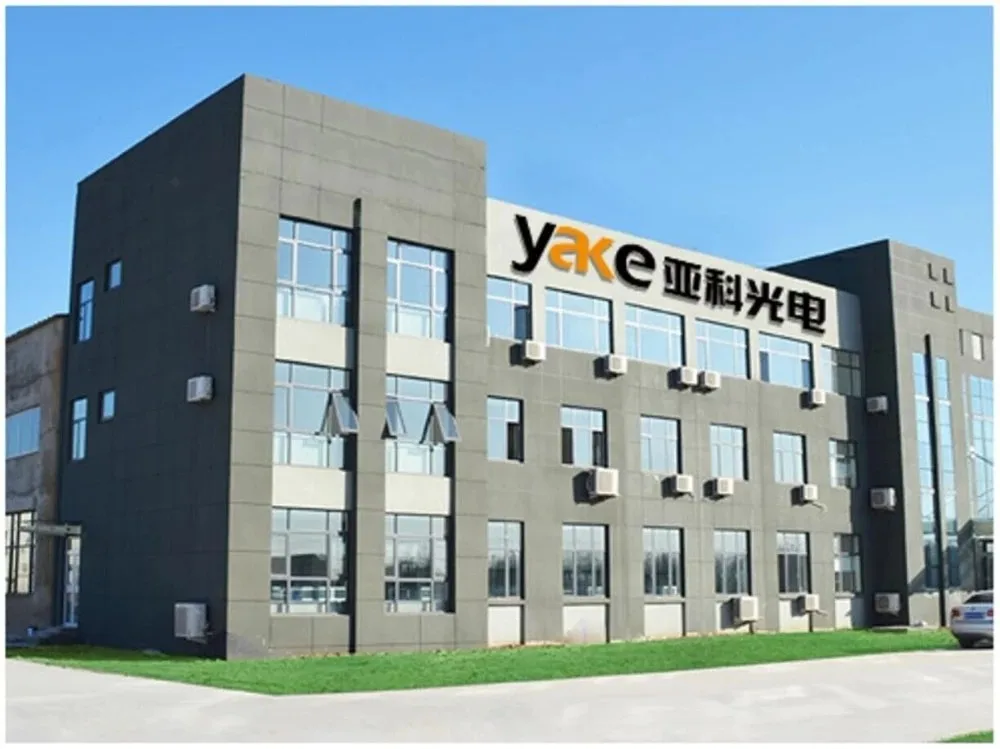

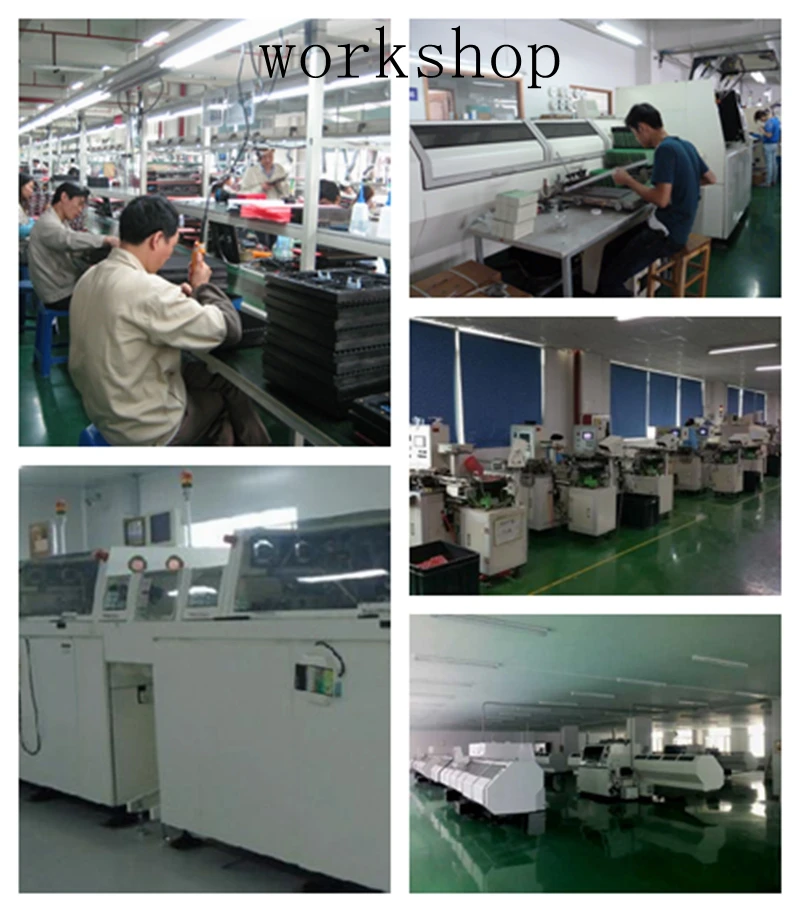

Company Profile
Shenzhen Yake LED Tech CO.,Limited.
With 12years’ experience in LED industry,Yake LED Tech intergrates R&D,manufacturing,design, sales and technical support,providing all sizes commerical LED display, rental,stadium LED display and Hi-tech micro pixel LED display.We are proud of offering our customers a comprehensive service, and their trust and respect.We keep devoting ourself to providing better LED display and better service.
Packing & Delivery
Our Exhibition
Visit & Buyer Feedback
FAQ
Q1: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q3:Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the
quantity of your order.
Q6:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have
professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q3:Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the
quantity of your order.
Q6:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have
professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
