4 Panel Shale Shaker Mud Control Oilfield Solid Control Equipment

Share on (1601052068943):


Price:

Quantity:


Product Overview

Description



Product Description

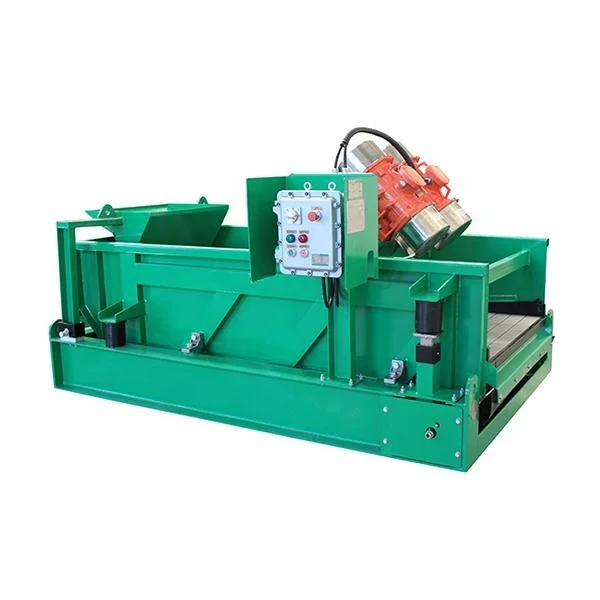

Shale Shaker
* The shale shakers have advantages of same international well-known products, containing more than one patents.

* The shale shakers being provided with high vibration intensity, adjustable-pitch, compact, reliable, behavior and cost-effective, is known as a competitive product in the international market.


Specification


1. ZS Series Linear Motion Shale Shaker


Model
ZS280-3P
ZS270-4P
ZS240-3P
ZS220-3P
ZS180-2P
Motor power
3×0.833×1.15
4×0.585×1.165
3×0.7×1.15
3×0.7×1.05
2×0.833×1.15
Shaking intensity (g)
7.2
7.2
7.2
7.2
7.2
Discharge capacity
42 l/s
40 l/s
35 l/s
30 l/s
26 l/s
Adjustable range
-2°~+6°
-2°~+6°
-2°~+6°
-2°~+6°
-2°~+6°
Overall dimension (mm)
3140×1980×1540
2970×1980×1530
2700×1980×1540
2700×1900×1540
2300×1940×1300
Weight
2000 kg
2000 kg
1900 kg
1700 kg
1200 kg


2. ZS Series Elliptical Motion Shale Shaker


Model
ZS280-3P
ZS240-3P
ZS220-3P
ZS180-2P
Motor power
2×2.2kw
2×2.2kw
2×2.2kw
2×1.3kw
Screen area (m2)
2.8
2.4
2.2
1.8
Shaking intensity (g)
7.2
7.2
7.2
7.2
Discharge capacity
42 l/s
35 l/s
30 l/s
26 l/s
Adjustable range
-2°~+6°
-2°~+6°
-2°~+6°
-2°~+6°
Overall dimension (mm)
3140×1980×1540
2700×1980×1540
2700×1900×1540
2300×1940×1300
Weight
2000 kg
1900 kg
1700 kg
1200 kg


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
